Model Whirlpool RF305EXPW0 – Common Parts &amp; Diagrams

WPL 312308 WPL 312308 Contact Us For Availability

WPL LIT313358 WPL LIT313358 Contact Us For Availability

WPL LIT313473 WPL LIT313473 Contact Us For Availability

WPL LIT313703 WPL LIT313703 Contact Us For Availability

WPL LIT884147 WPL LIT884147 Contact Us For Availability

1

Main Chassis (Platinum) WPL 330092 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

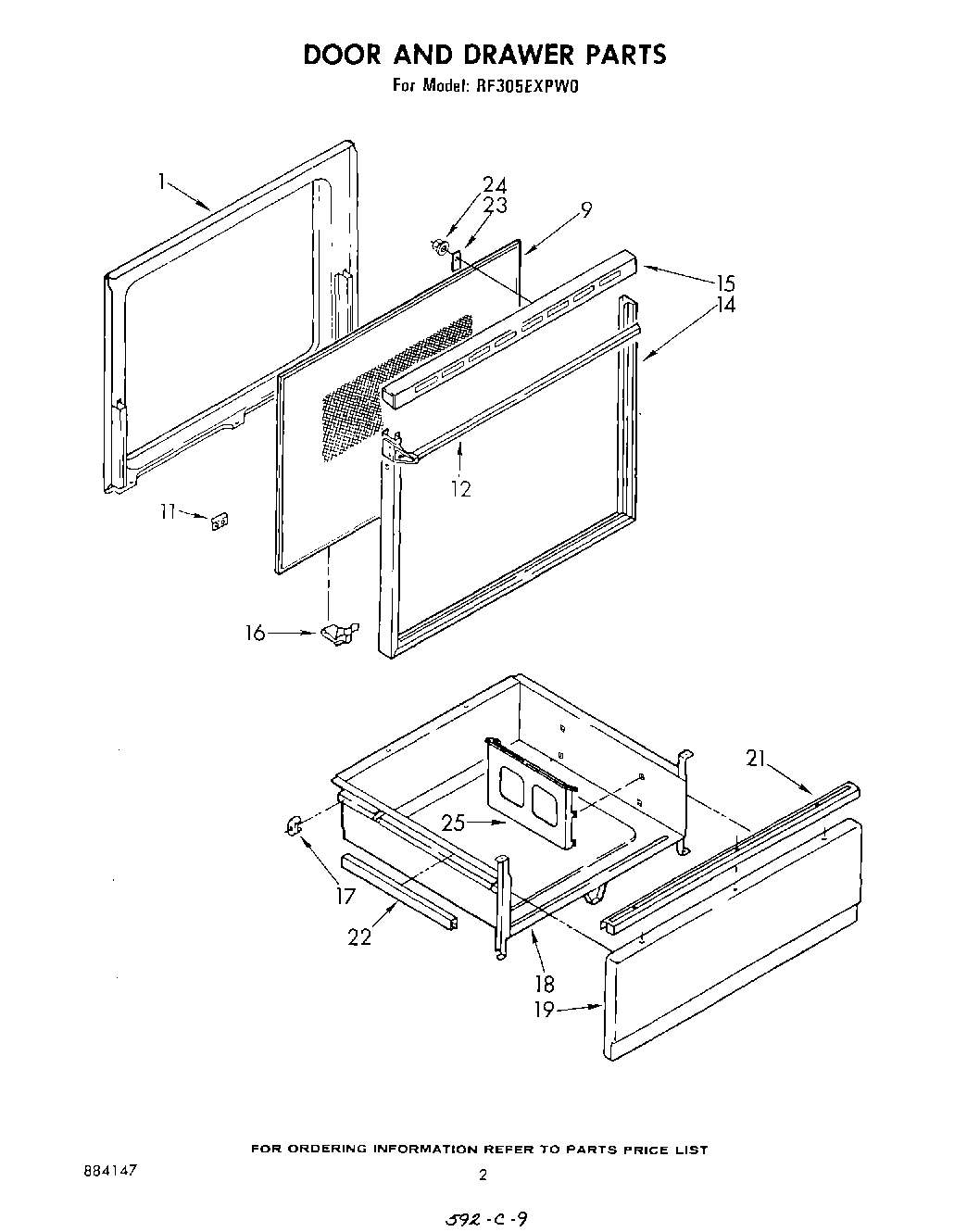

Liner, Door WPL 329688 Contact Us For Availability

1

Cover, Rear WPL 313195 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

Rail R.H. (Includes Illus. 3) WPL 307982 Contact Us For Availability

2

rail l.h. (includes illus. 3) WPL 307983 Contact Us For Availability

2

Thermostat, Oven (Alt.) WPL 308483 Contact Us For Availability

2

Thermostat, Oven WPL 308485 Contact Us For Availability

2

Thermostat, Oven (Alternate) WPL 308789 Contact Us For Availability

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Glide, Front (2) WPL 307979 Contact Us For Availability

3

Clip, Tube WPL 313570 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

WP312309 Whirlpool Bake Element In Stock WPL WP312309 $70.05

4

Front Frame WPL 330166 Contact Us For Availability

4

Switch, Selector WPL 310348 Contact Us For Availability

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

5

Pin, Hinge (2) WPL 307985 Contact Us For Availability

5

Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

6

Screw, 8B x 1/4 (4) WPL 254225 Contact Us For Availability

6

End Cap R.H. WPL 313230 Contact Us For Availability

6

End Cap L.H. WPL 313231 Contact Us For Availability

7

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

7

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

7

Pushnut (2) WPL 308306 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

7

End Trim L.H. WPL 313190 Contact Us For Availability

7

End Trim R.H. WPL 313191 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

8

Bracket, Service WPL 307970 Contact Us For Availability

8

Spring, Bezel (4) WPL 307828 Contact Us For Availability

9

Bezel, Control Knob (4) WPL 307456 Contact Us For Availability

9

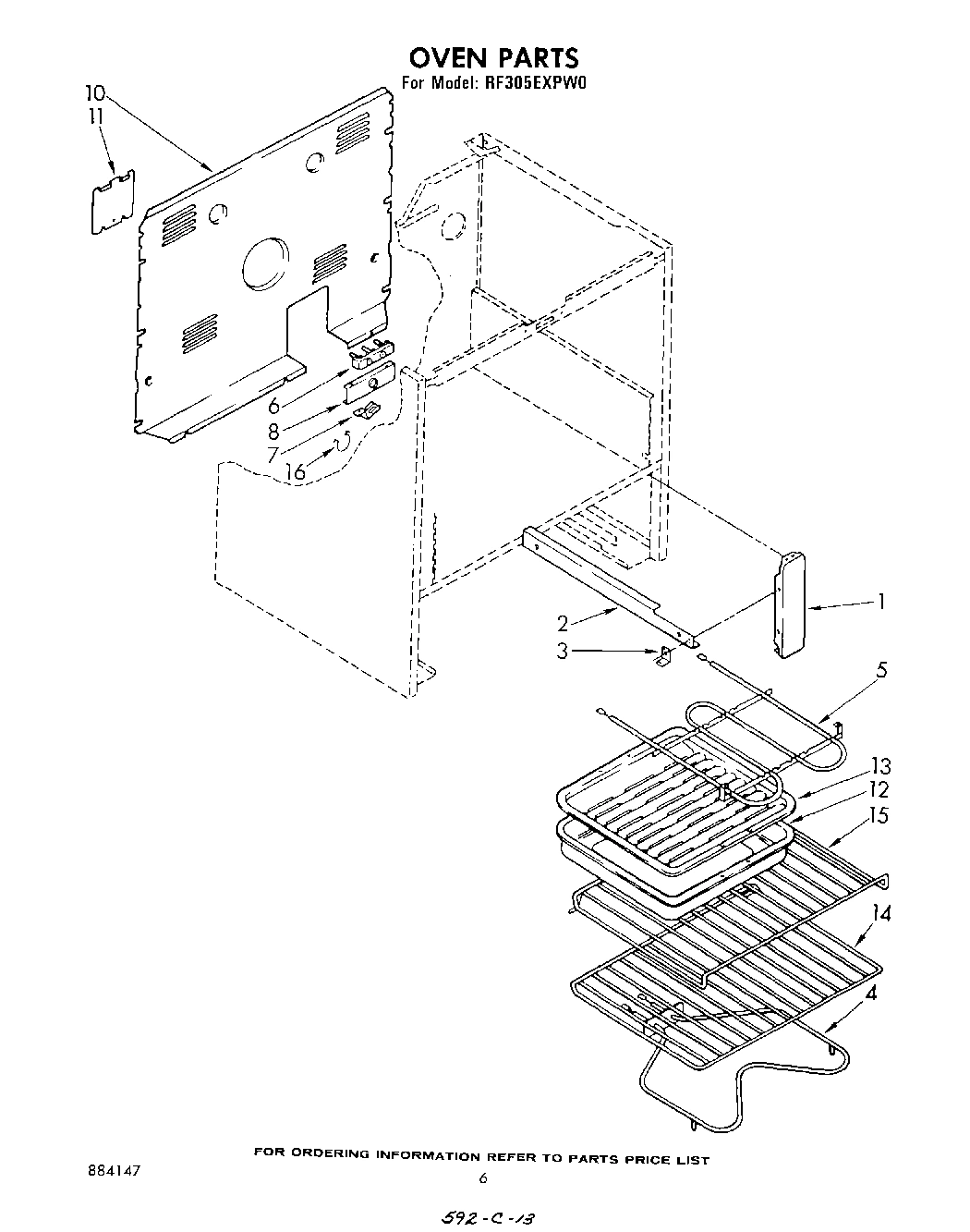

Oven (30`` Conventional) WPL 329000 Contact Us For Availability

9

Glass, Outer WPL 310655 Contact Us For Availability

WP307458 Whirlpool Knob In Stock WPL WP307458 $9.15

Screw (2) WPL 311056 Contact Us For Availability

Cover, Plate WPL 308543 Contact Us For Availability

Cover, Rear WPL 307971 Contact Us For Availability

11

Cover, Service WPL 307972 Contact Us For Availability

11

Clip (2) WPL 311506 Contact Us For Availability

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

Handle, Oven Door WPL 312722 Contact Us For Availability

Plug Button WPL 257314 Contact Us For Availability

Light, Indicator (Surface Unit) (Includes Ill WPL 313111 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 $28.79

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

Seal, Oven WPL 309107 Contact Us For Availability

Light, Indicator (2) WPL 313102 Contact Us For Availability

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

Frame, Door WPL 310427 Contact Us For Availability

15

Vent, Oven WPL 307960 Contact Us For Availability

15

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

15

Top, Door Frame WPL 310784 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261881 WPL 261881 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

clip, glass (10) WPL 310706 Contact Us For Availability

17

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

17

Channel, Arm (2) WPL 329712 Contact Us For Availability

17

Glide, Rear (2) WPL 307980 Contact Us For Availability

18

Spring, Door Stop (2) WPL 308207 Contact Us For Availability

18

Drawer, Utility WPL 327887 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

Panel Drawer (White) WPL 307935 Contact Us For Availability

Panel Drawer (Harvest Gold) WPL 307938 Contact Us For Availability

Panel, Drawer (Almond) WPL 307939 Contact Us For Availability

Panel, Drawer (Toast) WPL 313171 Contact Us For Availability

Panel, Drawer (Platinum) WPL 313172 Contact Us For Availability

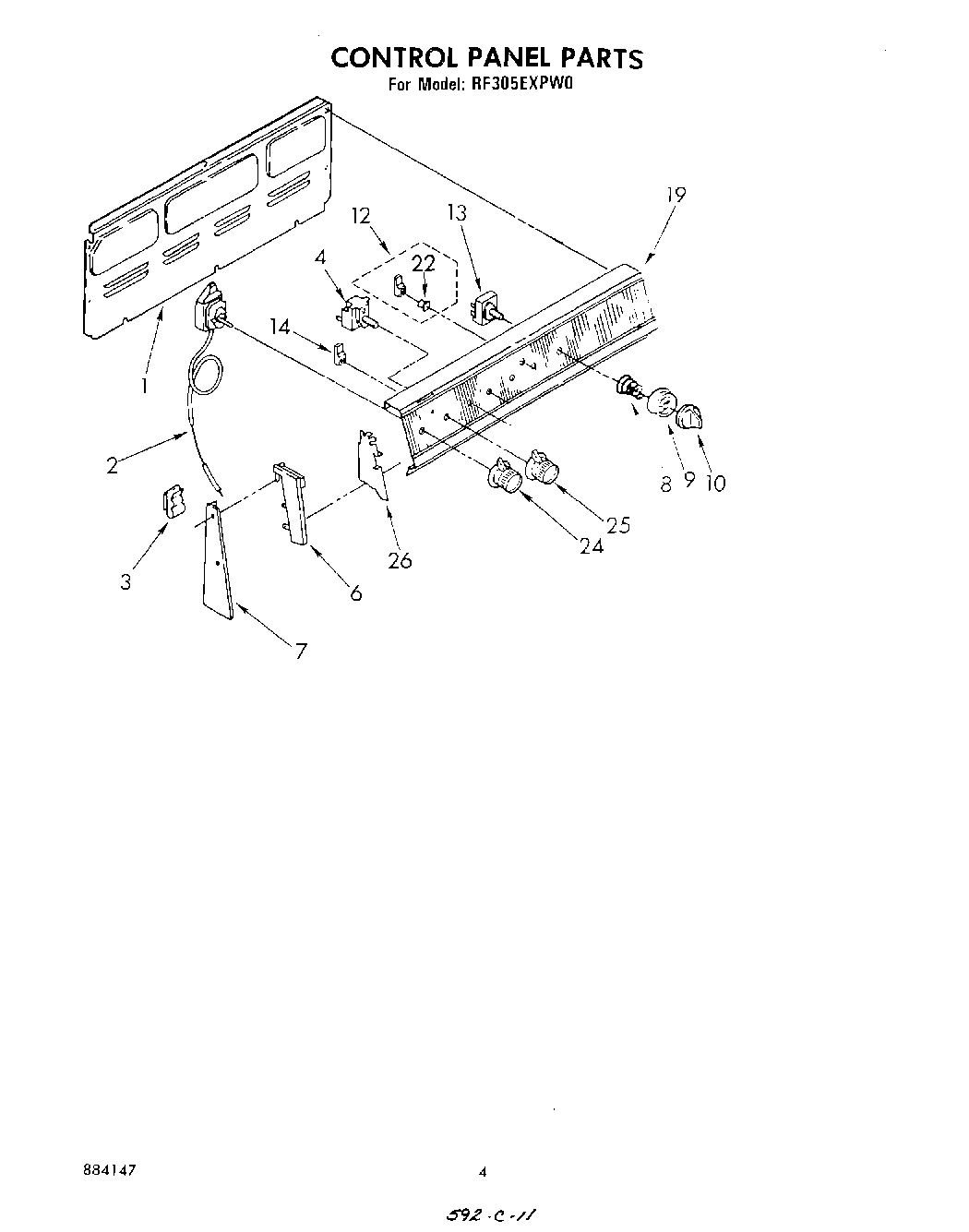

Control Panel (Screw, 8-18 x 5/8 (4)) WPL 312604 Contact Us For Availability

Control Panel (Harvest Gold) WPL 313698 Contact Us For Availability

Control Panel (White) WPL 313745 Contact Us For Availability

Control Panel (Almond) WPL 313746 Contact Us For Availability

Control Panel (Toast) WPL 313747 Contact Us For Availability

Control Panel (Platinum) WPL 313748 Contact Us For Availability

20

Ring, Retainer (2) WPL 307594 Contact Us For Availability

21

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

21

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

21

Handle, Drawer WPL 313337 Contact Us For Availability

22

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

22

Protector, Drawer WPL 309329 Contact Us For Availability

22

Lens, Amber (3) WPL 313101 Contact Us For Availability

23

Support, Channel (L.H.) WPL 313196 Contact Us For Availability

23

Support, Channel (R.H.) WPL 313197 Contact Us For Availability

23

hold down, glass (2) WPL 310705 Contact Us For Availability

24

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

24

Knob, Thermostat WPL 328709 Contact Us For Availability

24

Plug Button WPL 308535 Contact Us For Availability

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

Screw, 8-32 x 5/16 (2) WPL 310210 Contact Us For Availability

Locator, Cooktop (2) WPL 311909 Contact Us For Availability

Rack, Literature WPL 357645 Contact Us For Availability

Screw WPL 310410 Contact Us For Availability

Knob, Selector WPL 328707 Contact Us For Availability

26

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

26

Shield WPL 313608 Contact Us For Availability

27

Snubber, Door (2) WPL 309111 Contact Us For Availability
