Model Whirlpool RF302BXVG3 – Common Parts & Diagrams
06 - OVEN (2) , OPTIONAL

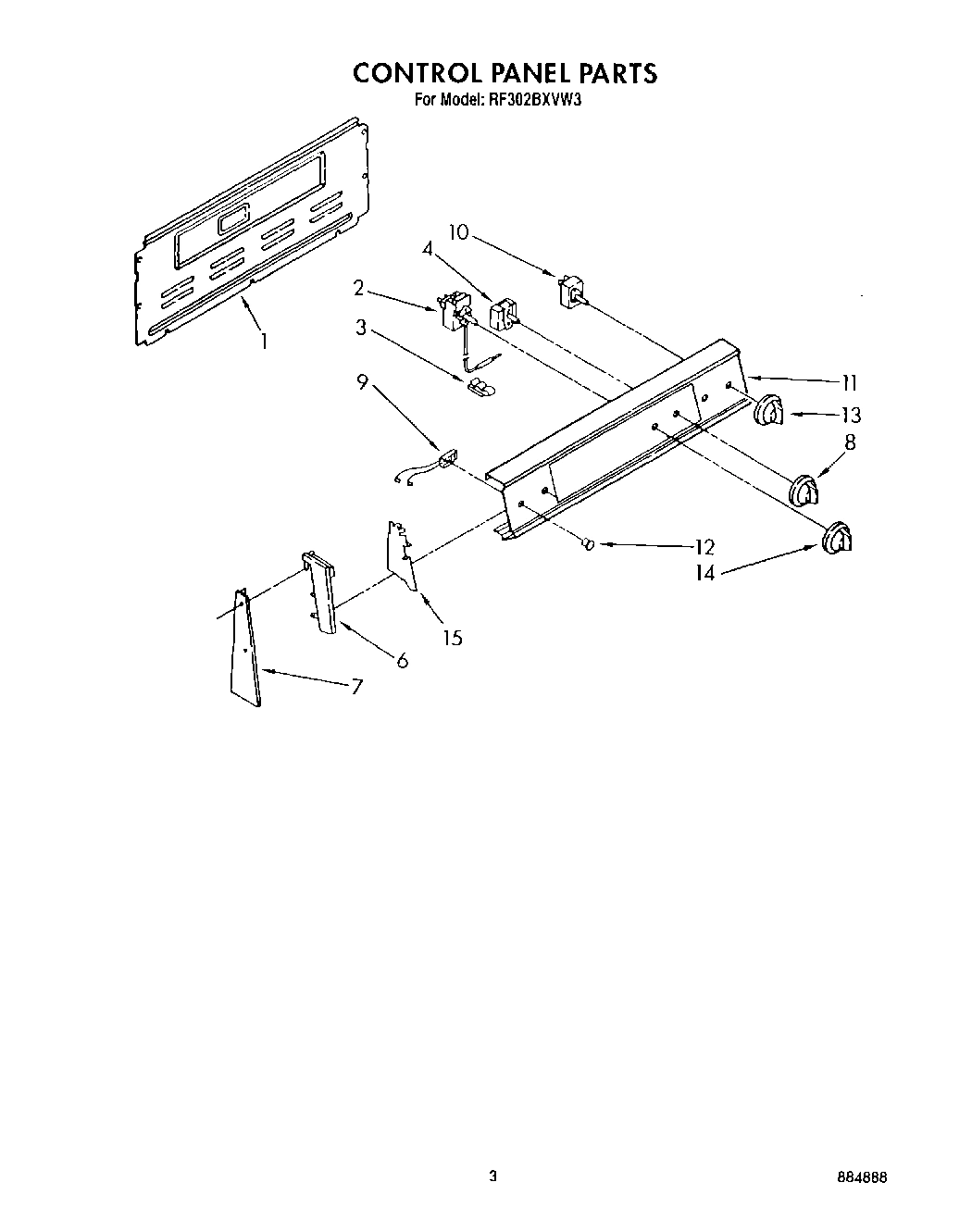

03 - CONTROL PANEL , LITERATURE

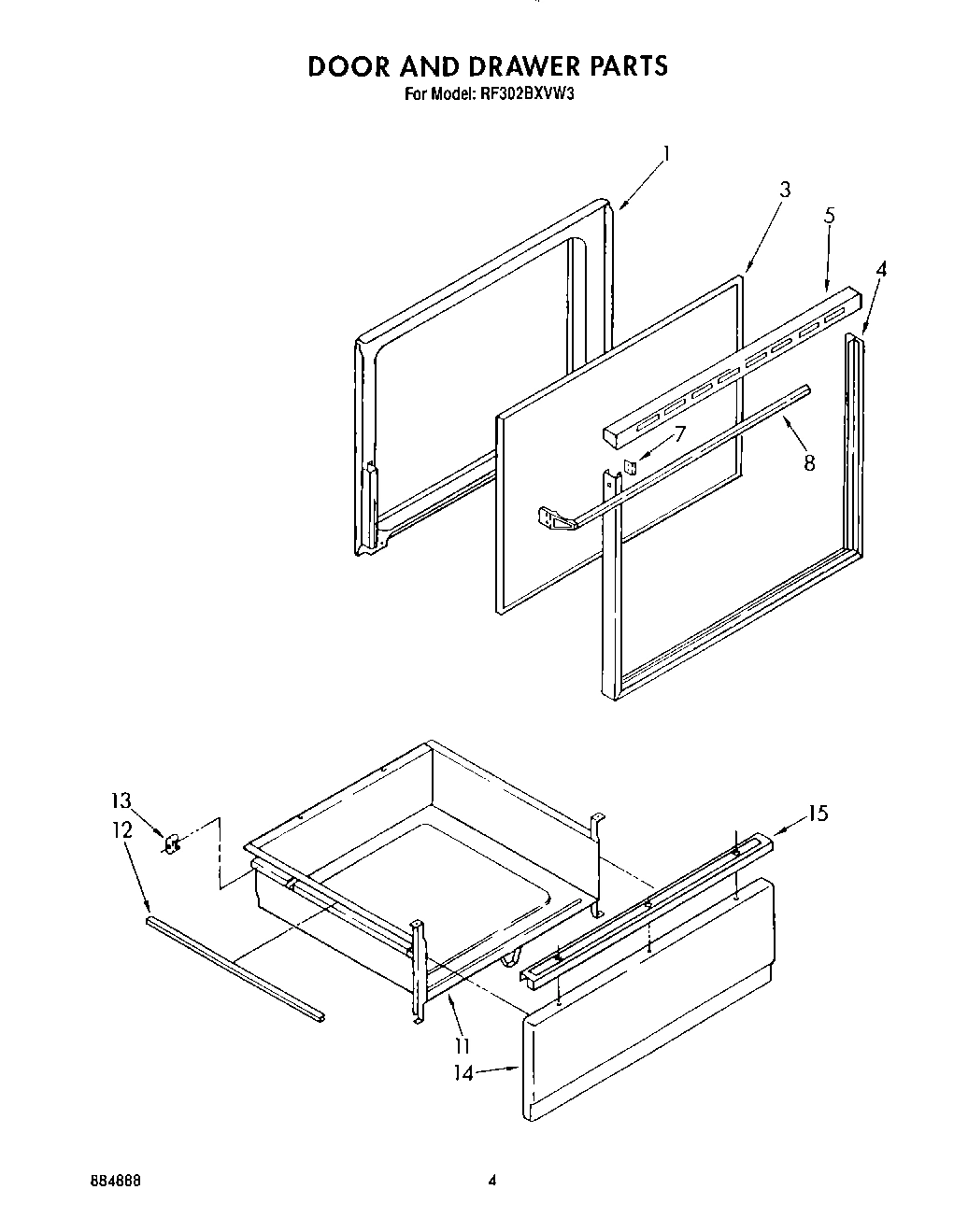

04 - DOOR AND DRAWER

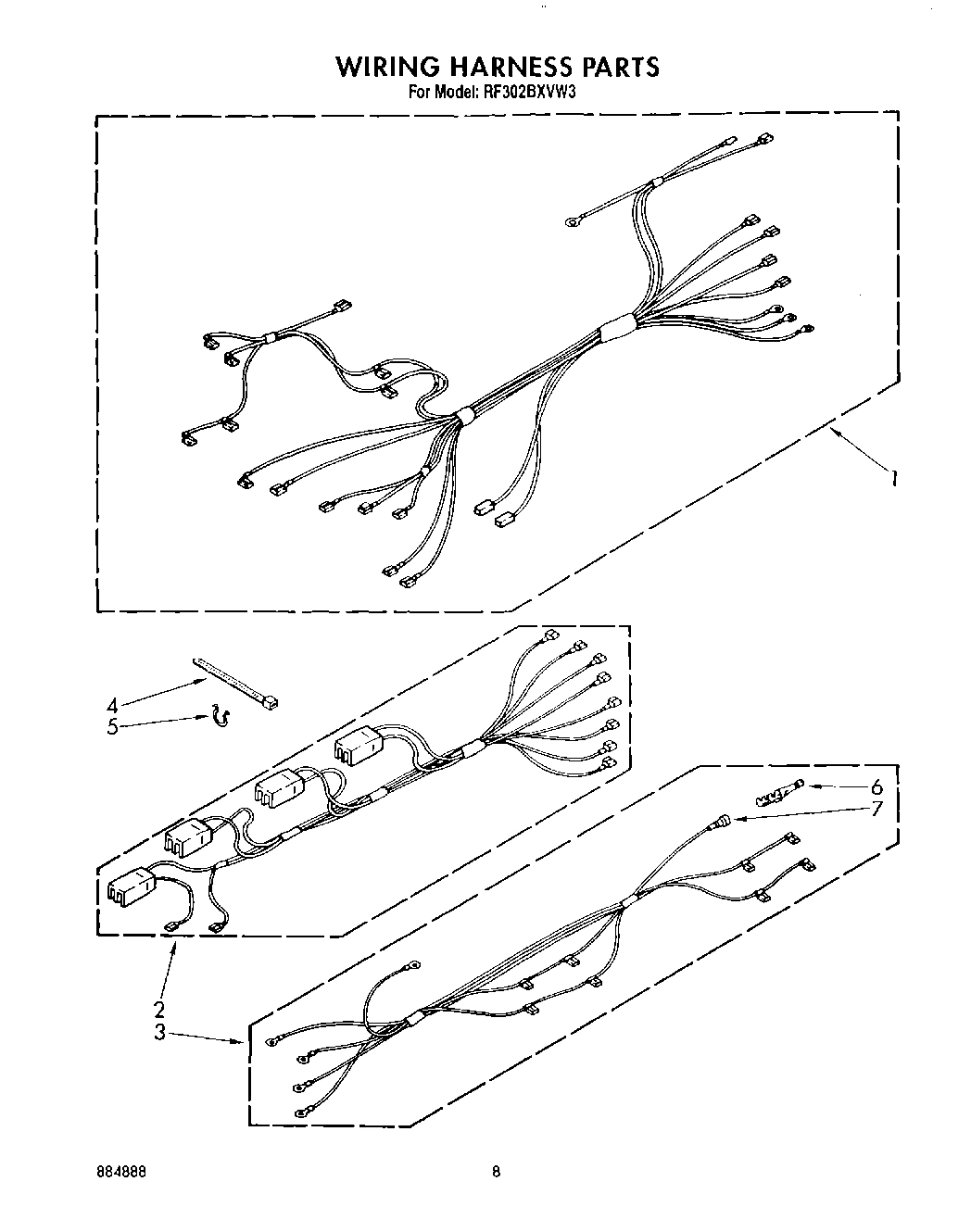

07 - WIRING HARNESS

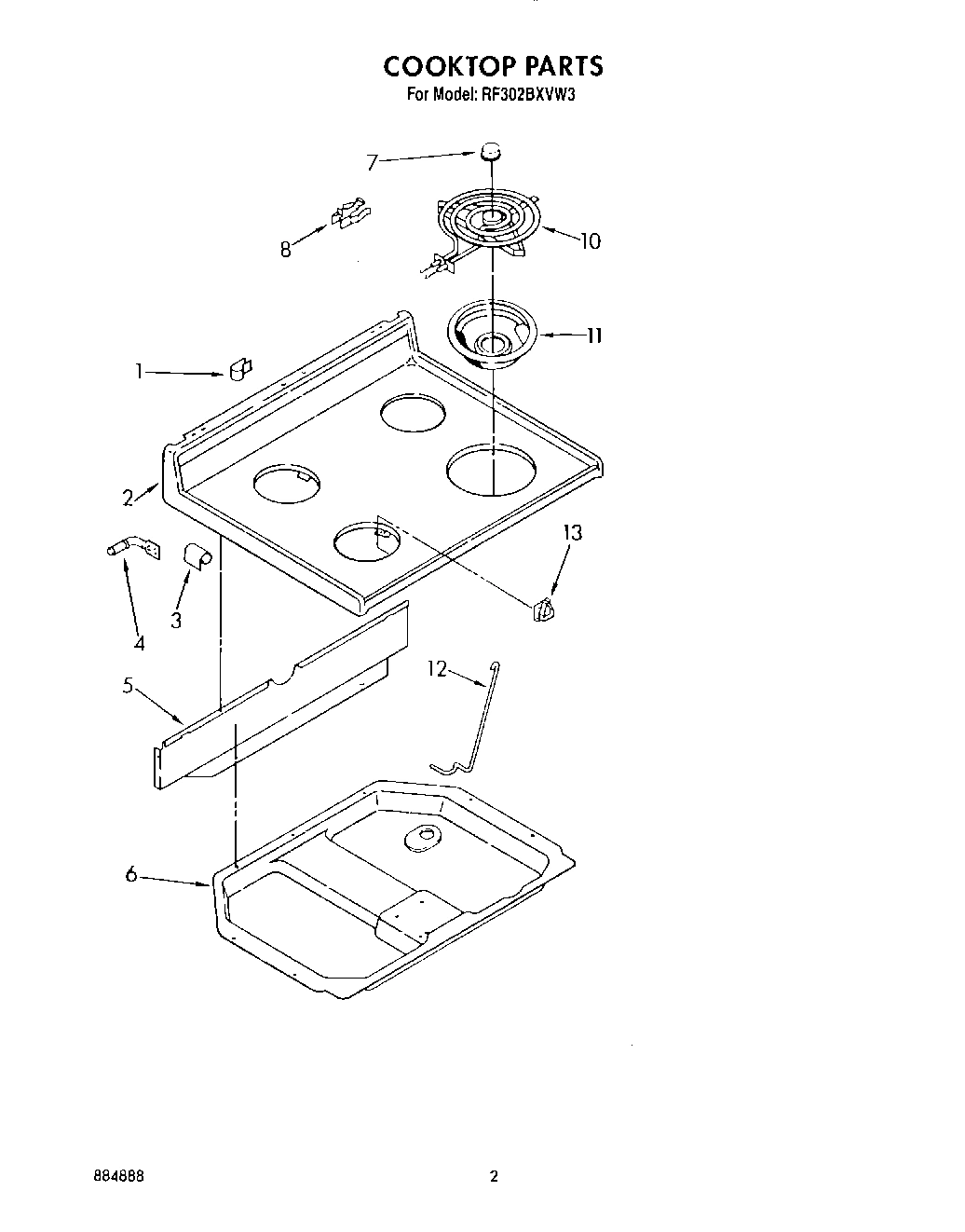

02 - COOKTOP

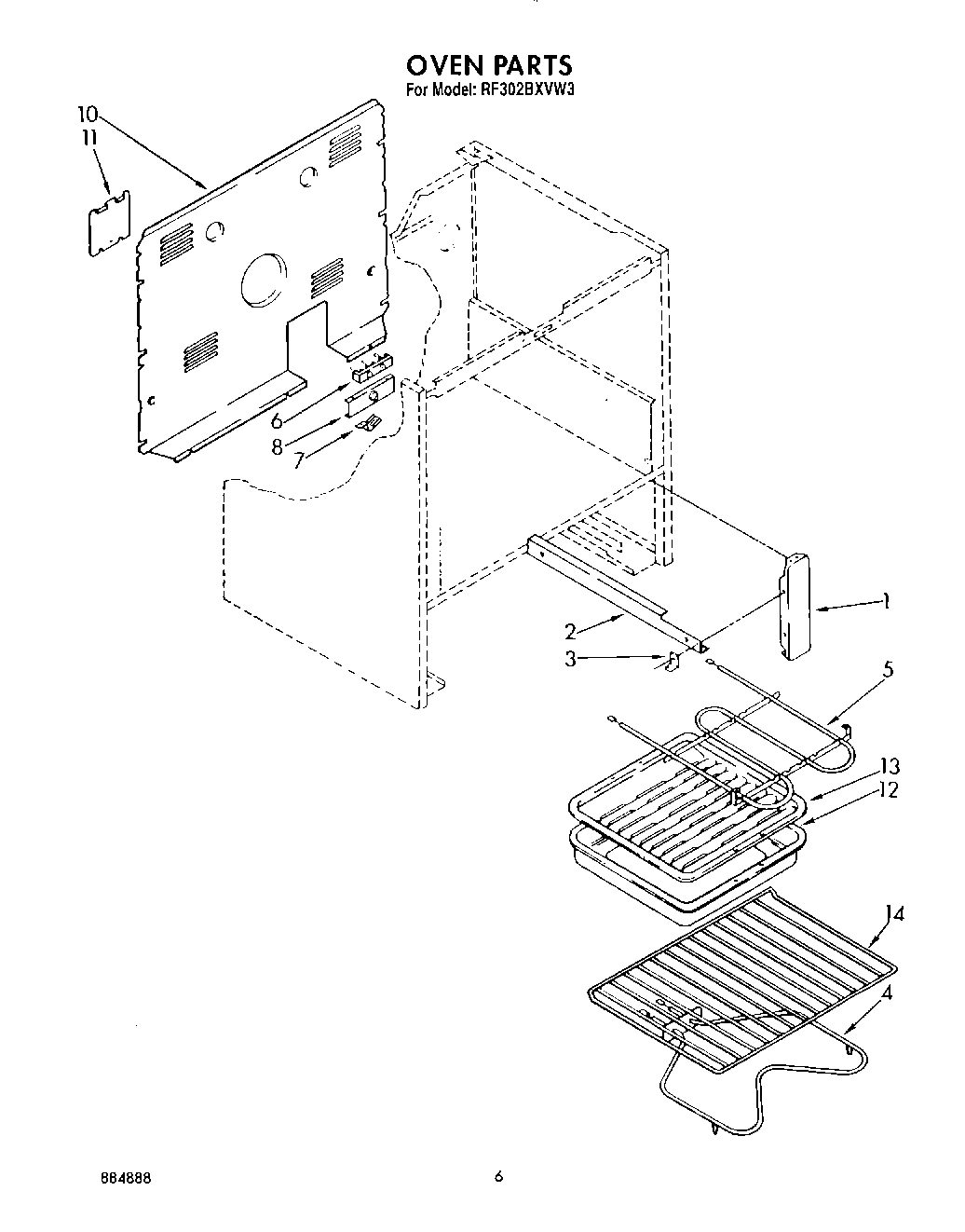

05 - OVEN (1)
Common parts from model Whirlpool RF302BXVG3
Instructions, Installation WPL LIT3147389 Contact Us For Availability
Book, Cooking WPL LIT3149507 Contact Us For Availability
Wiring Diagram WPL LIT3150559 Contact Us For Availability
Guide, Use & Care WPL LIT3150562 Contact Us For Availability
List, Parts WPL LIT884888 Contact Us For Availability
1
Screw (2) WPL 3149333 Contact Us For Availability
1
Cover, Rear WPL 313195 Contact Us For Availability
1
Liner, Door WPL 3172221 Contact Us For Availability
1
Harness, Wire (Main) WPL 313147 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Gold) WPL 330089 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
2
(Alt.) WPL 310864 Contact Us For Availability
2
(Alt.) WPL 311498 Contact Us For Availability
2
Thermostat, Oven WPL 661150 Contact Us For Availability
2
Harness, Wire (Surface unit) WPL 3149881 Contact Us For Availability
2
Cooktop (White) WPL 3170989 Contact Us For Availability
2
Cooktop (Almond) WPL 3170990 Contact Us For Availability
2
Cooktop (Gold) WPL 3170993 Contact Us For Availability
3
Clamp, Tube WPL 313570 Contact Us For Availability
3
Panel, Door (Black Glass) WPL 3148186 Contact Us For Availability
3
Harness, Wire (Oven) WPL 313149 Contact Us For Availability
3
Bracket, Cooktop WPL 307965 Contact Us For Availability
4
Switch, Selector WPL 3150430 Contact Us For Availability
4
Frame, Panel WPL 3148235 Contact Us For Availability
4
Pin, Hinge (2) WPL 307966 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
4
Frame, Front WPL 3172204 Contact Us For Availability
5
Top, Door WPL 3148223 Contact Us For Availability
5
Shield, Wiring WPL 307973 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
6
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
6
End Cap R.H. WPL 313230 Contact Us For Availability
6
End Cap L.H. WPL 313231 Contact Us For Availability
6
Box, Burner WPL 3150186 Contact Us For Availability
6
Snubber, Door (2) WPL 309111 Contact Us For Availability
7
Clip, Handle (2) WPL 3148282 Contact Us For Availability
7
End Trim L.H. WPL 313190 Contact Us For Availability
7
End Trim R.H. WPL 313191 Contact Us For Availability
7
Block, Disconnect WPL 351297 Contact Us For Availability
7
Medallion (4) WPL 309926 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
8
Knob, Selector WPL 3149984 Contact Us For Availability
8
Handle, Door WPL 3148228 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
9
Light, Indicator (Oven On (Includes No.22)) WPL 314031 Contact Us For Availability
9
Light, Indicator (Surface Unit (2)) WPL 313102 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Conv.) WPL 3172550 Contact Us For Availability
11
Panel, Control (Screw, 8-18 x 5/8 (4)) WPL 312604 Contact Us For Availability
11
Panel, Control (White) WPL 313375 Contact Us For Availability
11
Panel, Control (Almond) WPL 313376 Contact Us For Availability
11
Panel, Control (Gold) WPL 313377 Contact Us For Availability
11
Drawer, Utility WPL 327887 Contact Us For Availability
11
screw (2) WPL 3148604 Contact Us For Availability
12
Lens, Amber (3) WPL 313101 Contact Us For Availability
12
Protector, Drawer Slide (2) WPL 309329 Contact Us For Availability
12
Rod, Cooktop WPL 3148659 Contact Us For Availability
12
Anchor, Plastic WPL 3148605 Contact Us For Availability
13
Seal WPL 309107 Contact Us For Availability
13
Glide, Rear (2) WPL 307980 Contact Us For Availability
13
Nut (4) WPL 814102 Contact Us For Availability
14
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
14
Knob, Temperature WPL 3149987 Contact Us For Availability
14
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
14
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
14
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
14
Grease WPL 261582 Contact Us For Availability
14
WPL 261886 WPL 261886 Contact Us For Availability
14
WPL 261887 WPL 261887 Contact Us For Availability
14
WPL 261888 WPL 261888 Contact Us For Availability
14
WPL 261889 WPL 261889 Contact Us For Availability
14
WPL 261890 WPL 261890 Contact Us For Availability
14
WPL 261891 WPL 261891 Contact Us For Availability
14
WPL 285365 WPL 285365 Contact Us For Availability
14
WPL 285366 WPL 285366 Contact Us For Availability
14
WPL 285367 WPL 285367 Contact Us For Availability
14
WPL 285368 WPL 285368 Contact Us For Availability
14
WPL 308173 WPL 308173 Contact Us For Availability
14
WPL 72108 WPL 72108 Contact Us For Availability
14
WPL 72112 WPL 72112 Contact Us For Availability
14
WPL 799832 WPL 799832 Contact Us For Availability
14
WPL 978883 WPL 978883 Contact Us For Availability
14
Panel Drawer (White) WPL 307935 Contact Us For Availability
14
Panel, Drawer (Gold) WPL 307938 Contact Us For Availability
14
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
15
Shield (2) WPL 313608 Contact Us For Availability
15
Handle, Drawer WPL 313337 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
Vent, Oven WPL 307960 Contact Us For Availability
17
Spring, Door Stop WPL 308207 Contact Us For Availability
19
Channel, Arm (2) WPL 329712 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
25
Plug Button WPL 308535 Contact Us For Availability
× ![]()
