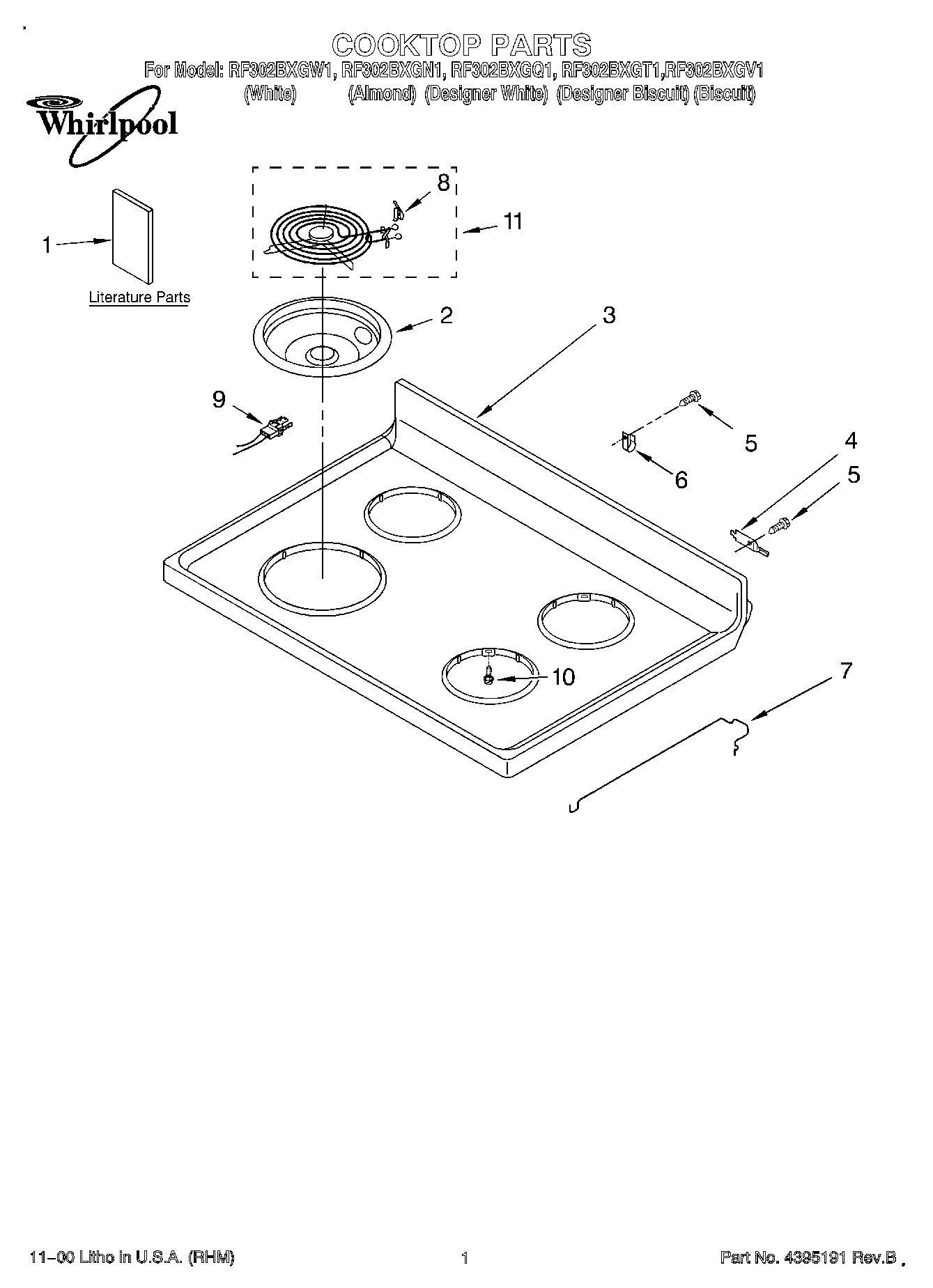

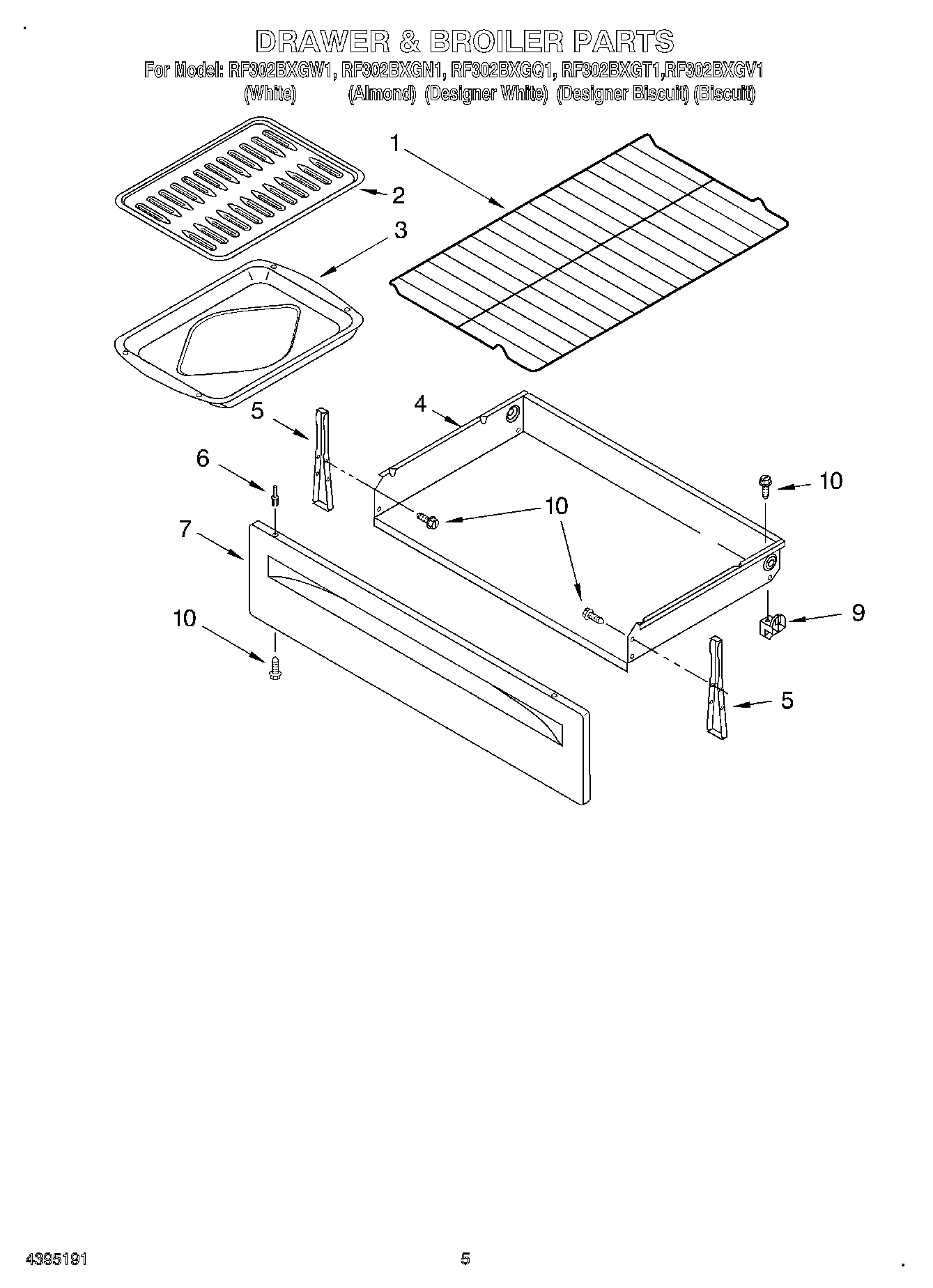

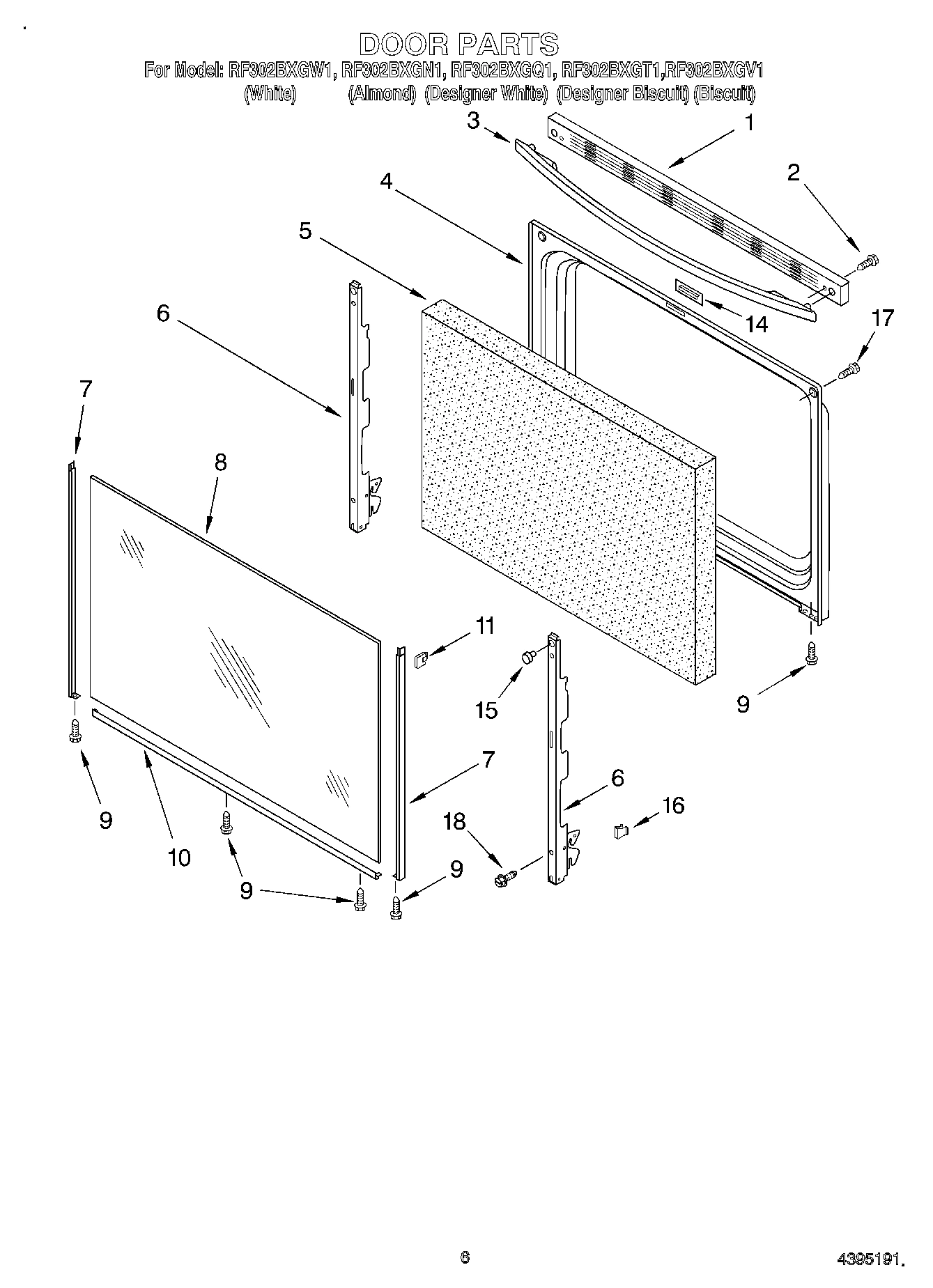

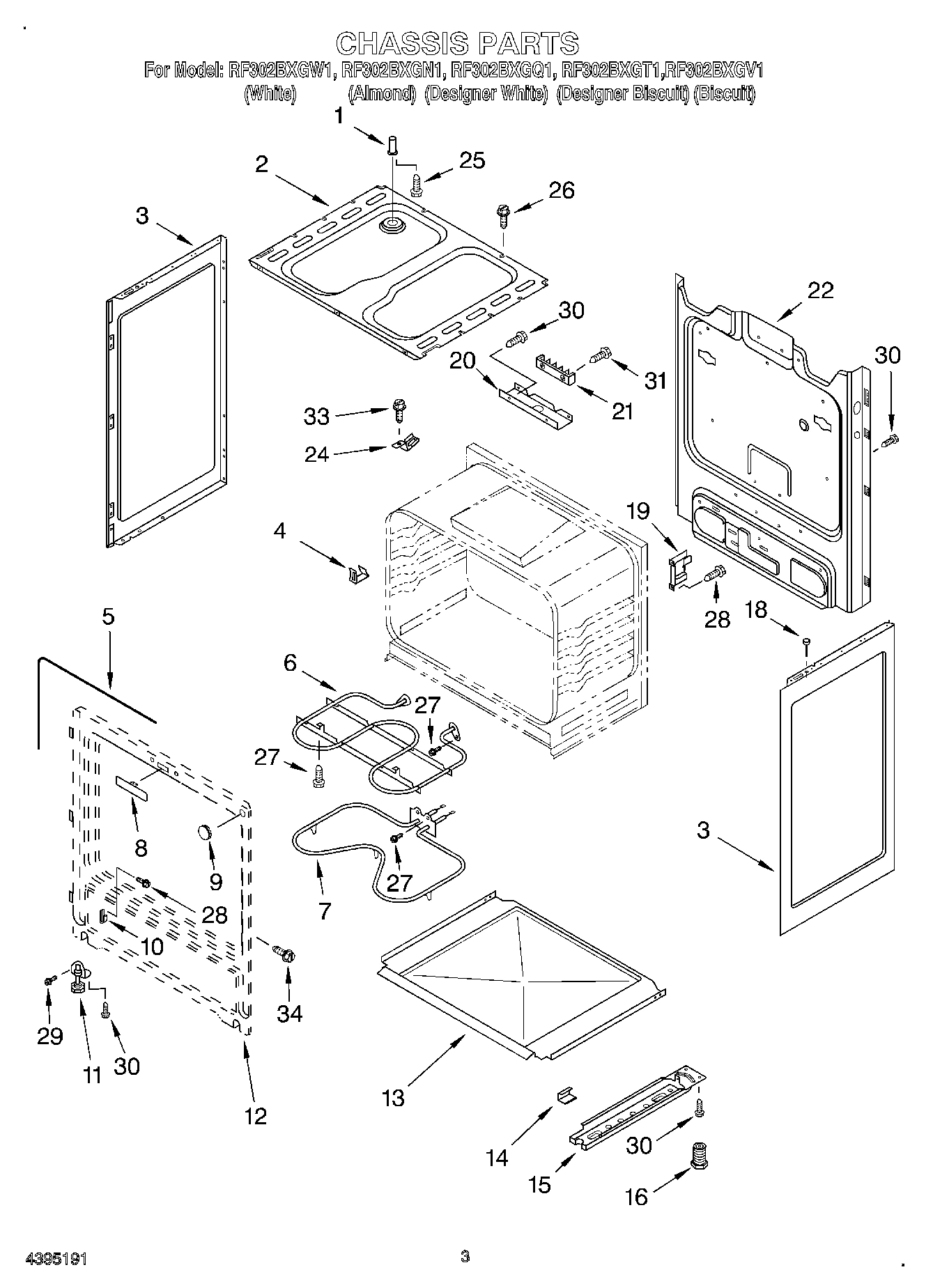

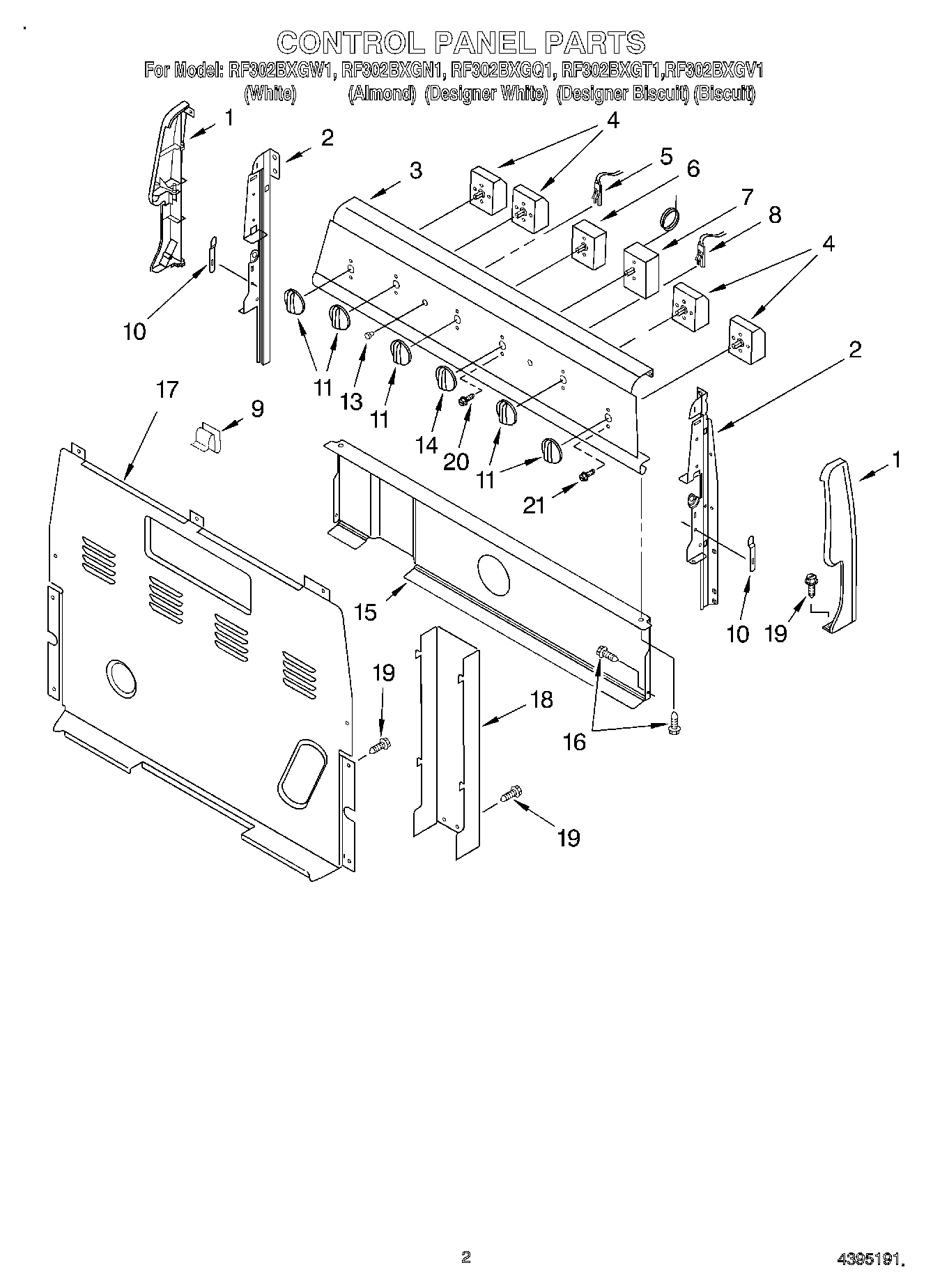

Model Whirlpool RF302BXGN1 COOKTOP – Common Parts &amp; Diagrams

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Installation Instr (Templet WPL LIT3195945 Contact Us For Availability

1

Guide, Use & Care WPL LIT8053393 Contact Us For Availability

1

Literature Parts (Instructions, Installation) WPL LIT8053714 Contact Us For Availability

1

Literature Parts (Diagram, Wiring) WPL LIT8273361 Contact Us For Availability

1

Endcap, Left Hand (Black) WPL 3186188 Contact Us For Availability

1

Endcap, Right Hand (Black) WPL 3186189 Contact Us For Availability

1

Endcap (Left Hand White) WPL 3186190 Contact Us For Availability

1

Endcap (Right Hand White) WPL 3186191 Contact Us For Availability

1

Endcap (Left Hand-Biscuit) WPL 8272507 Contact Us For Availability

1

Endcap (Right Hand-Biscuit) WPL 8272508 Contact Us For Availability

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.51

2

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.04

2

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.12

2

Support, Endcap (Left Hand) WPL 3186198 Contact Us For Availability

2

Support, Endcap (Right Hand) WPL 3186199 Contact Us For Availability

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $167.94

3

Cooktop (White) WPL 3186235 Contact Us For Availability

3

Cooktop (Almond) WPL 3186236 Contact Us For Availability

3

Cooktop (Biscuit) WPL 8273508 Contact Us For Availability

3

Panel, Backguard (Black) WPL 3186160 Contact Us For Availability

3

Panel, Backguard (White) WPL 3186161 Contact Us For Availability

3

Panel, Backguard (Biscuit) WPL 8273509 Contact Us For Availability

4

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

4

WP3148953 Whirlpool Oven Infinite Switch In Stock WPL WP3148953 $34.61

4

WP3149404 Whirlpool Oven Surface Element Swit In Stock WPL WP3149404 $28.08

4

WP3195060 Whirlpool Cooktop Pin Backorder WPL WP3195060 $4.23

4

Drawer, Storage WPL 8272605 Contact Us For Availability

5

W10838990 Whirlpool Mounting Bracket In Stock WPL W10838990 $31.66

5

Indicator, Surface WPL 8273303 Contact Us For Availability

6

3196815 Whirlpool Oven Rivet Backorder WPL 3196815 $9.59

6

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

6

WP3188987 Whirlpool Oven Switch In Stock WPL WP3188987 $57.92

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

7

W11219377 Whirlpool Drawer Panel Backorder WPL W11219377 $70.99

7

W11230476 Whirlpool Drawer Panel Backorder WPL W11230476 $70.99

7

WP3195812 Whirlpool Cooktop Rod In Stock WPL WP3195812 $2.51

7

WP3196803 Whirlpool Oven Thermostat In Stock WPL WP3196803 $101.85

7

Panel, Drawer Front (Almond) WPL 8053340 Contact Us For Availability

8

WP3195917 Whirlpool Clip Assembly In Stock WPL WP3195917 $3.70

8

Indicator, Oven WPL 314031 Contact Us For Availability

8

Glass, Door (White) WPL 3196810 Contact Us For Availability

8

Glass, Door (Black) WPL 3195610 Contact Us For Availability

9

814399 Whirlpool Receptacle Kit In Stock WPL 814399 $15.52

9

WP8053334 Whirlpool Drawer Glide In Stock WPL WP8053334 $3.70

9

WP8273564 Whirlpool Clip Backorder WPL WP8273564 $5.22

3196200 Whirlpool Clip In Stock WPL 3196200 $5.05

WP3195546 Whirlpool Drawer Glide In Stock WPL WP3195546 $3.70

WP3196154 Whirlpool Screw Assembly Backorder WPL WP3196154 $2.51

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $26.50

WP3196231 Whirlpool Knob In Stock WPL WP3196231 $11.02

WP3196232 Whirlpool Knob In Stock WPL WP3196232 $10.76

WP9761346 Whirlpool Stove Surface Burner Elem In Stock WPL WP9761346 $53.12

WPW10345407 Whirlpool Surface Element In Stock WPL WPW10345407 $63.64

13

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $2.85

14

Knob, Thermostat (Black) WPL 3196213 Contact Us For Availability

14

Knob, Thermostat (White) WPL 3196214 Contact Us For Availability

14

Knob, Thermostat (Biscuit) WPL 8273797 Contact Us For Availability

15

Shield, Heat WPL 8053912 Contact Us For Availability

16

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $5.16

16

Screw WPL 4449746 Contact Us For Availability

17

WP8272473 Whirlpool Rear Cover Backorder WPL WP8272473 $112.03

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

814381 Whirlpool Pin Backorder WPL 814381 $3.70

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

W11396691 Whirlpool Element Receptacle and Wi In Stock WPL W11396691 $66.70

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

WPW10326122 Whirlpool Black Cover Backorder WPL WPW10326122 $46.85

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 G WPL 242832 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 313660 WPL 313660 Contact Us For Availability

WPL 4392900 WPL 4392900 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 8273272 WPL 8273272 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

19

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

20

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $28.68

20

WP3196170 Whirlpool Screw Backorder WPL WP3196170 $2.51

21

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

21

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $2.51

27

WP3196174 Whirlpool Screw Backorder WPL WP3196174 $2.51

28

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

31

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

33

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59
