Model Whirlpool RF3020XYN0 – Common Parts & Diagrams

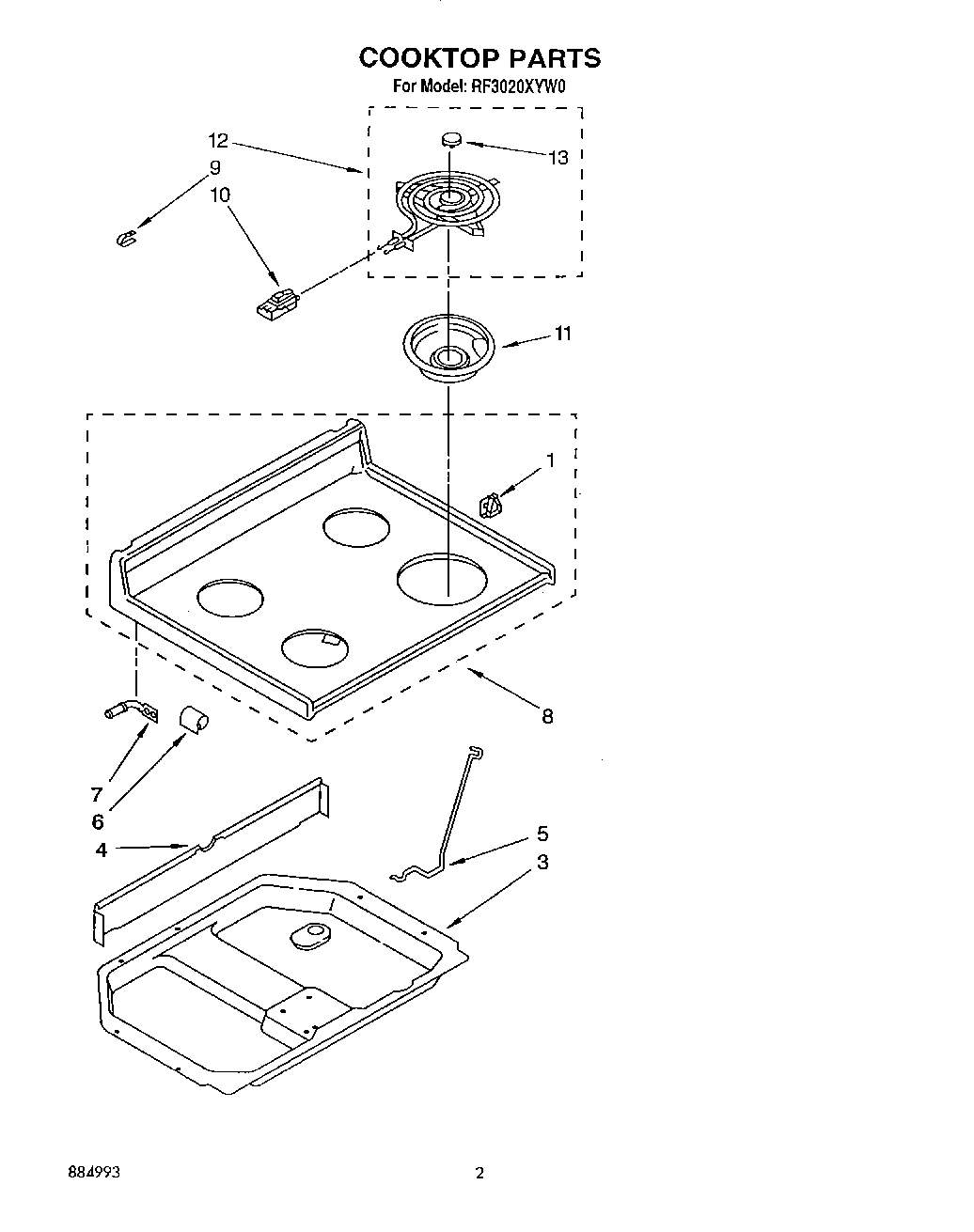

02 - COOKTOP, LIT/OPTIONAL

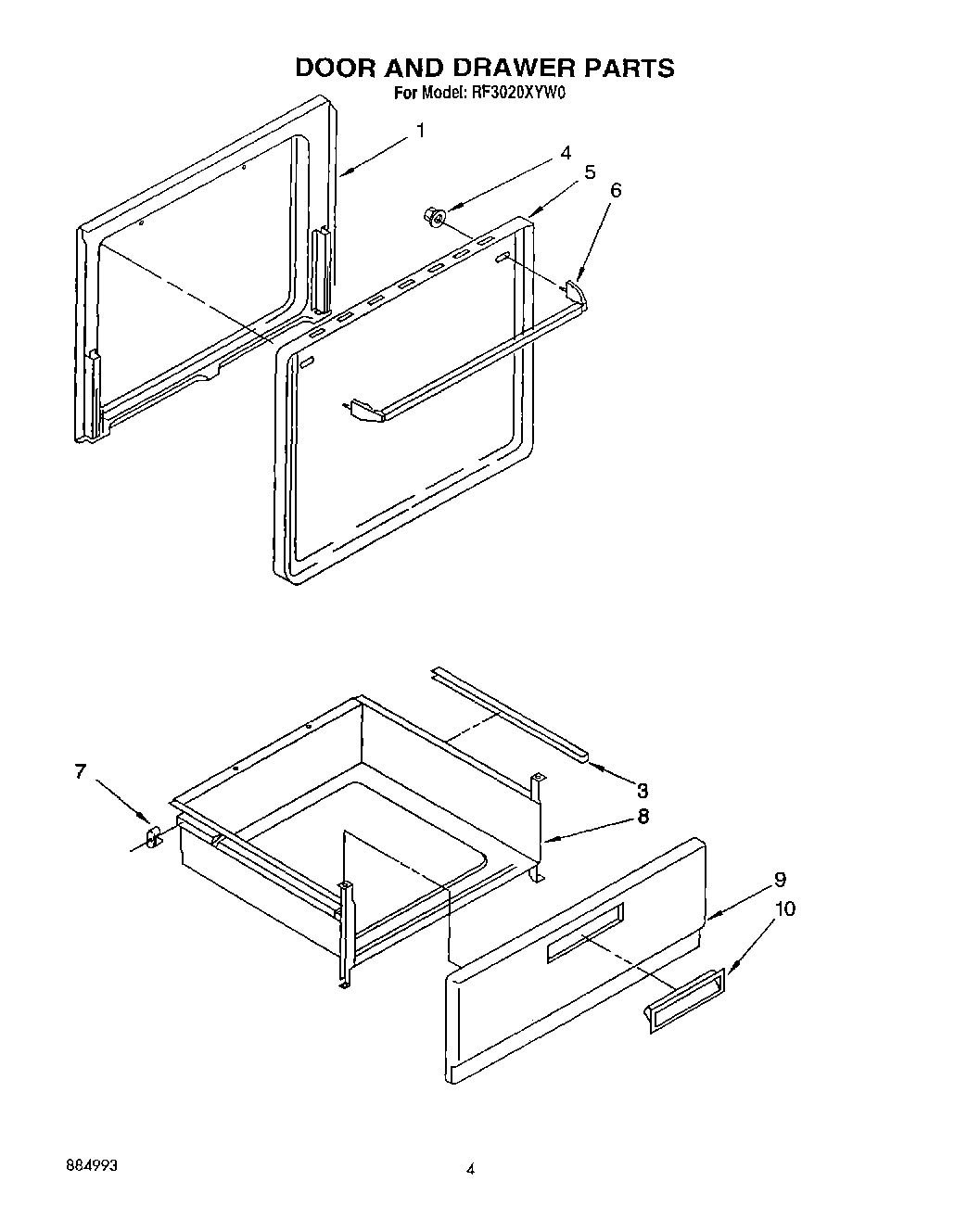

04 - DOOR AND DRAWER
06 - EXTERNAL OVEN, OPTIONAL
07 - WIRING HARNESS
03 - CONTROL PANEL
05 - INTERNAL OVEN
Common parts from model Whirlpool RF3020XYN0
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Harness, Wire (Surface Units) WPL 3149881 Contact Us For Availability
1
End Trim L.H. WPL 313190 Contact Us For Availability
1
End Trim R.H. WPL 313191 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
2
Rail R.H. WPL 3149255 Contact Us For Availability
2
Rail L.H. WPL 3149256 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3169147 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 3150441 Contact Us For Availability
2
End Cap L.H. WPL 3150442 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
3
Panel, Control WPL 3183829 Contact Us For Availability
4
Screw WPL 3150537 Contact Us For Availability
4
Frame, Front WPL 3172204 Contact Us For Availability
5
Switch, Selector (3 Position) WPL 3150430 Contact Us For Availability
5
Panel, Door (Screw, (3)) WPL 3149333 Contact Us For Availability
5
Panel, Door (White) WPL 307889 Contact Us For Availability
5
Panel, Door (Almond) WPL 307897 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
6
Handle, Oven Door WPL 311563 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
(Alt.) WPL 310864 Contact Us For Availability
6
(Alt.) WPL 311498 Contact Us For Availability
6
Thermostat WPL 661150 Contact Us For Availability
7
Light, Indicator (Oven On) WPL 314031 Contact Us For Availability
7
Glide, Rear (2) WPL 307980 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Light, Indicator (Surface Unit On (Includes N WPL 3150662 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
8
Knob, Control (4) (Infinite Switch) WPL 3183118 Contact Us For Availability
8
Drawer, Utility WPL 327887 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
9
Panel, Drawer (White) WPL 3150676 Contact Us For Availability
9
Panel, Drawer (Almond) WPL 3150677 Contact Us For Availability
9
Knob, Control (Thermostat) WPL 3183106 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Conventional) WPL 3176612 Contact Us For Availability
10
Handle, Snap-In (White) WPL 3150612 Contact Us For Availability
10
Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Tube Clip WPL 313570 Contact Us For Availability
11
Seal, Rubber WPL 309107 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Rear Cover Control Panel WPL 313195 Contact Us For Availability
12
Lens, Amber (2) WPL 313101 Contact Us For Availability
12
Spring, Door Stop WPL 308207 Contact Us For Availability
14
Knob, Control (Selector) WPL 3183109 Contact Us For Availability
14
Rack, Oven (2) WPL 308173 Contact Us For Availability
15
Shield (2) WPL 313608 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
17
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
17
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
17
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
17
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
17
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
17
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
17
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
17
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
17
12 Ga. 150~c (Wire, White 14 Ga. 150~c) WPL 242826 Contact Us For Availability
17
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
17
12 Ga. 150~c (Wire, Red 12 Ga. 150~c) WPL 242829 Contact Us For Availability
17
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
17
12 Ga. 150~c (Wire, Yellow 14 Ga. 200~c) WPL 242832 Contact Us For Availability
17
Grease WPL 261582 Contact Us For Availability
17
Coffee WPL 261886 Contact Us For Availability
17
New Avocado WPL 261888 Contact Us For Availability
17
Harves WPL 261890 Contact Us For Availability
17
WPL 261891 WPL 261891 Contact Us For Availability
17
WPL 285365 WPL 285365 Contact Us For Availability
17
WPL 285366 WPL 285366 Contact Us For Availability
17
WPL 285367 WPL 285367 Contact Us For Availability
17
WPL 285368 WPL 285368 Contact Us For Availability
17
WPL 309961 WPL 309961 Contact Us For Availability
17
WPL 72108 WPL 72108 Contact Us For Availability
17
WPL 72112 WPL 72112 Contact Us For Availability
17
WPL 799832 WPL 799832 Contact Us For Availability
17
WPL 978883 WPL 978883 Contact Us For Availability
19
Channel, Arm (2) WPL 329712 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
25
Plug, Bottom WPL 308535 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Plug, Button (2) WPL 3169107 Contact Us For Availability
× ![]()
