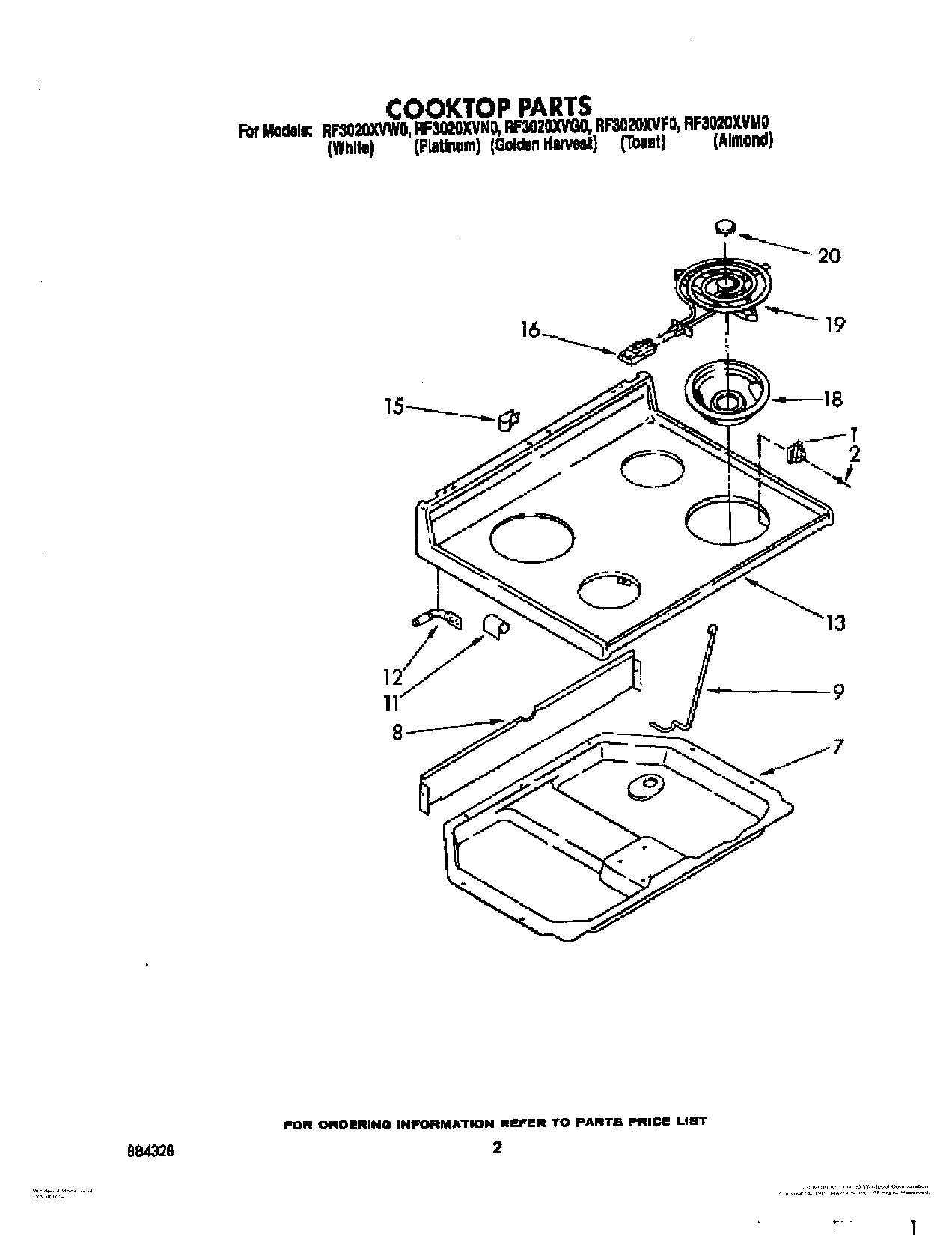

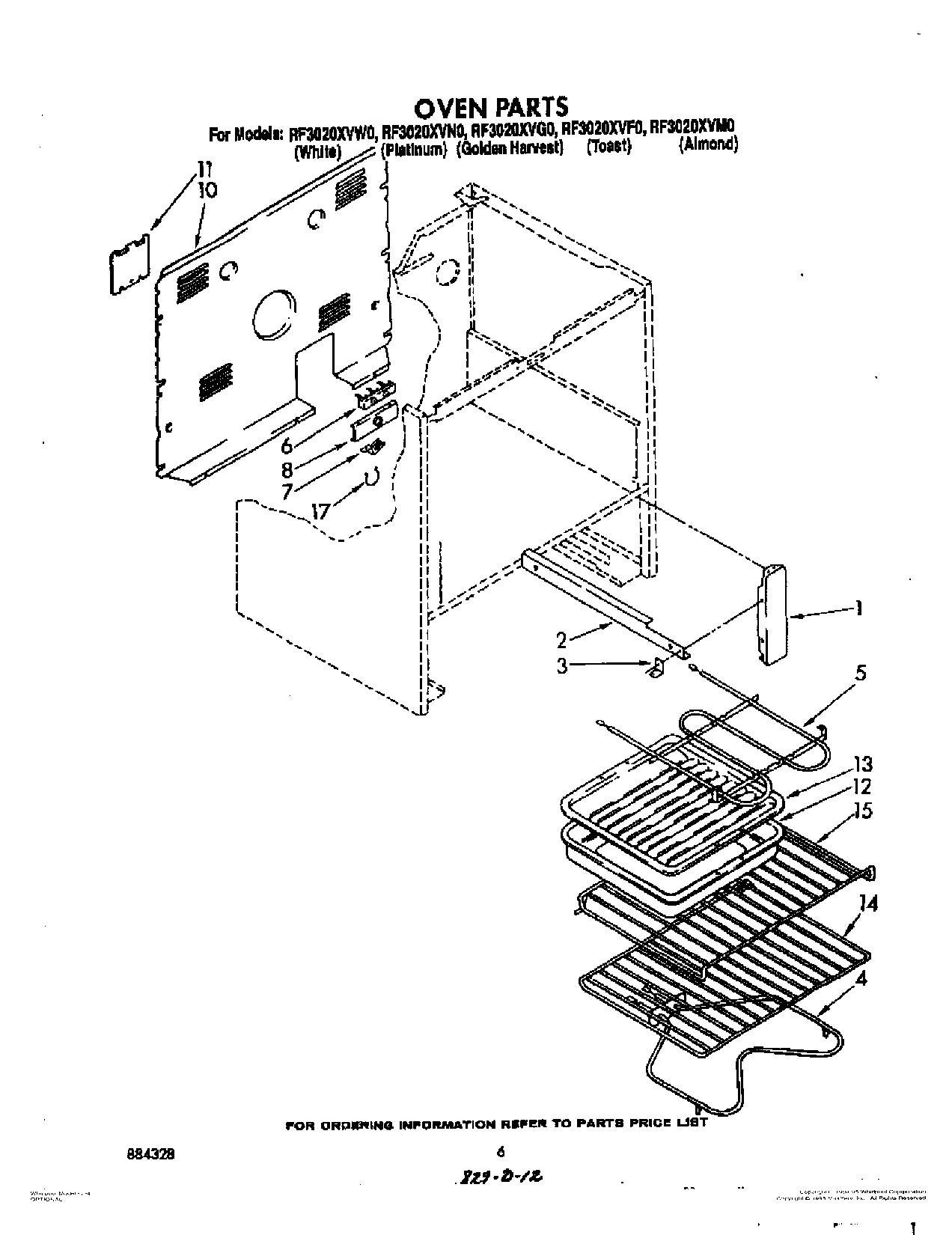

Model Whirlpool RF3020XVG0 – Common Parts &amp; Diagrams

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

1

End Trim L.H. WPL 313190 Contact Us For Availability

1

End Trim R.H. WPL 313191 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Gold) WPL 330089 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

1

Main Chassis (Toast) WPL 330091 Contact Us For Availability

1

Main Chassis (Platinum) WPL 330092 Contact Us For Availability

1

Liner, Door WPL 3170709 Contact Us For Availability

1

Harness, Wire (Suface Units) WPL 3149881 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

Rail R.H. WPL 3149255 Contact Us For Availability

2

Rail L.H. WPL 3149256 Contact Us For Availability

2

Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability

2

End Cap R.H. WPL 313230 Contact Us For Availability

2

End Cap L.H. WPL 313231 Contact Us For Availability

2

Harness, Wire (Oven) WPL 313149 Contact Us For Availability

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Glide, Front (2) WPL 3149257 Contact Us For Availability

3

Protector, Drawer (2) WPL 309329 Contact Us For Availability

3

Harness, Wire (Supply) WPL 313147 Contact Us For Availability

4

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

Frame, Front WPL 3171800 Contact Us For Availability

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

5

Pin, Hinge WPL 307985 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

7

Pushnut (2) WPL 308306 Contact Us For Availability

8

Bracket, Service WPL 307970 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

9

Oven (30`` Conventional) WPL 329000 Contact Us For Availability

WP308499 Whirlpool Nut Backorder WPL WP308499 $3.70

Cover, Rear WPL 3148975 Contact Us For Availability

Screw (2) WPL 311056 Contact Us For Availability

Cover, Plate WPL 308543 Contact Us For Availability

Seal, Rubber WPL 309107 Contact Us For Availability

Cover, Service WPL 307972 Contact Us For Availability

Panel, Door (White) WPL 307889 Contact Us For Availability

Panel, Door (Gold) WPL 307895 Contact Us For Availability

Panel, Door (Almond) WPL 307897 Contact Us For Availability

Panel, Door (Toast) WPL 313177 Contact Us For Availability

Panel, Door (Platinum) WPL 313178 Contact Us For Availability

12

Handle, Oven Door WPL 311563 Contact Us For Availability

12

Spring, Door Stop WPL 308207 Contact Us For Availability

13

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

14

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

14

Plug Button WPL 257314 Contact Us For Availability

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

Panel, Control (Screw, 8-18 x 5/8 (4)) WPL 312604 Contact Us For Availability

Panel, Control (White) WPL 313370 Contact Us For Availability

Panel, Control (Almond) WPL 313371 Contact Us For Availability

Panel, Control (Gold) WPL 313372 Contact Us For Availability

Panel, Control (Toast) WPL 313373 Contact Us For Availability

Panel, Control (Platinum) WPL 313374 Contact Us For Availability

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

16

Vent, Oven WPL 307960 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

WP3148953 Whirlpool Oven Infinite Switch In Stock WPL WP3148953 $34.61

WP3149404 Whirlpool Oven Surface Element Swit In Stock WPL WP3149404 $28.08

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Rotisserie Kit (RCK 81) WPL 242985 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

Co WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

screw (2) WPL 3148604 Contact Us For Availability

Glide, Rear (2) WPL 307980 Contact Us For Availability

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

Switch, Selector (3 Position) WPL 3148067 Contact Us For Availability

Anchor, Plastic WPL 3148605 Contact Us For Availability

Drawer, Utility WPL 327887 Contact Us For Availability

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

Thermostat (Alt.) WPL 310864 Contact Us For Availability

Thermostat (Alt.) WPL 311498 Contact Us For Availability

Thermostat WPL 661150 Contact Us For Availability

Channel, Arm (2) WPL 329712 Contact Us For Availability

Panel Drawer (White) WPL 307935 Contact Us For Availability

Panel, Drawer (Gold) WPL 307938 Contact Us For Availability

Panel, Drawer (Almond) WPL 307939 Contact Us For Availability

Panel, Drawer (Toast) WPL 313171 Contact Us For Availability

Panel, Drawer (Platinum) WPL 313172 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

20

Light, Indicator (Oven On) WPL 314031 Contact Us For Availability

20

Light, Indicator (Surface Unit On (2) (Includ WPL 313102 Contact Us For Availability

21

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

21

Ring, Retainer (2) WPL 307594 Contact Us For Availability

21

Handle, Drawer WPL 313337 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

22

Rack, Literature WPL 357645 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

24

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

24

Support, L.H. Channel WPL 313196 Contact Us For Availability

24

Support, R.H. Channel WPL 313197 Contact Us For Availability

25

Plug, Bottom WPL 308535 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

30

Knob, Control (4) (Infinite Switch) WPL 330177 Contact Us For Availability

34

Screw (2) WPL 310410 Contact Us For Availability

34

Knob, Control (Thermostat) WPL 330176 Contact Us For Availability

37

Tube Clip WPL 313570 Contact Us For Availability

39

Rear Cover Control Panel WPL 313195 Contact Us For Availability

41

Lens, Amber (3) WPL 313101 Contact Us For Availability

50

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

50

Shield, Glass (2) WPL 313608 Contact Us For Availability

52

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

52

Knob, Control (Selector) WPL 330180 Contact Us For Availability
