Model Whirlpool RF3020XDN0 – Common Parts & Diagrams
06 - WIRING HARNESS
02 - CONTROL PANEL

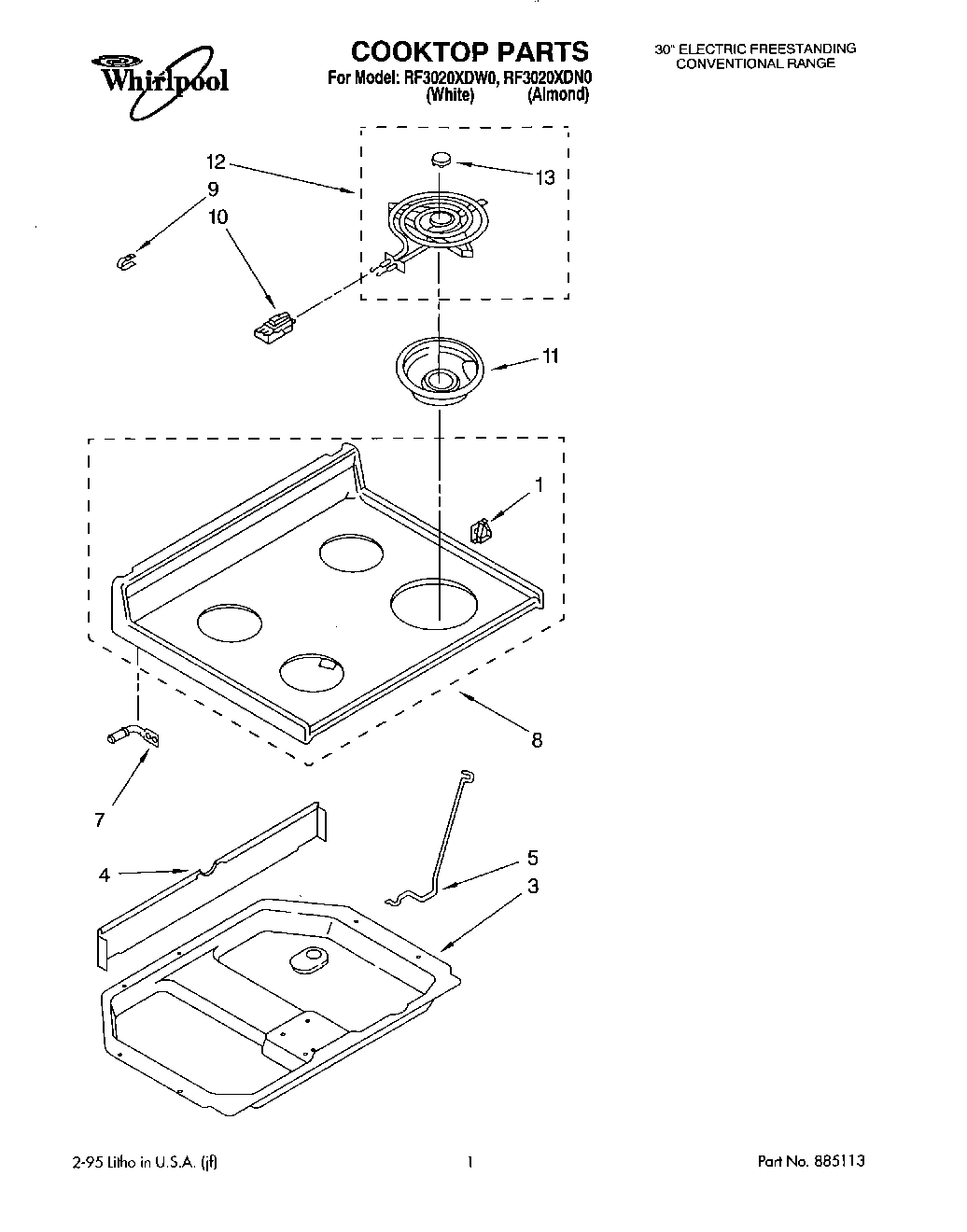

01 - COOKTOP, LITERATURE

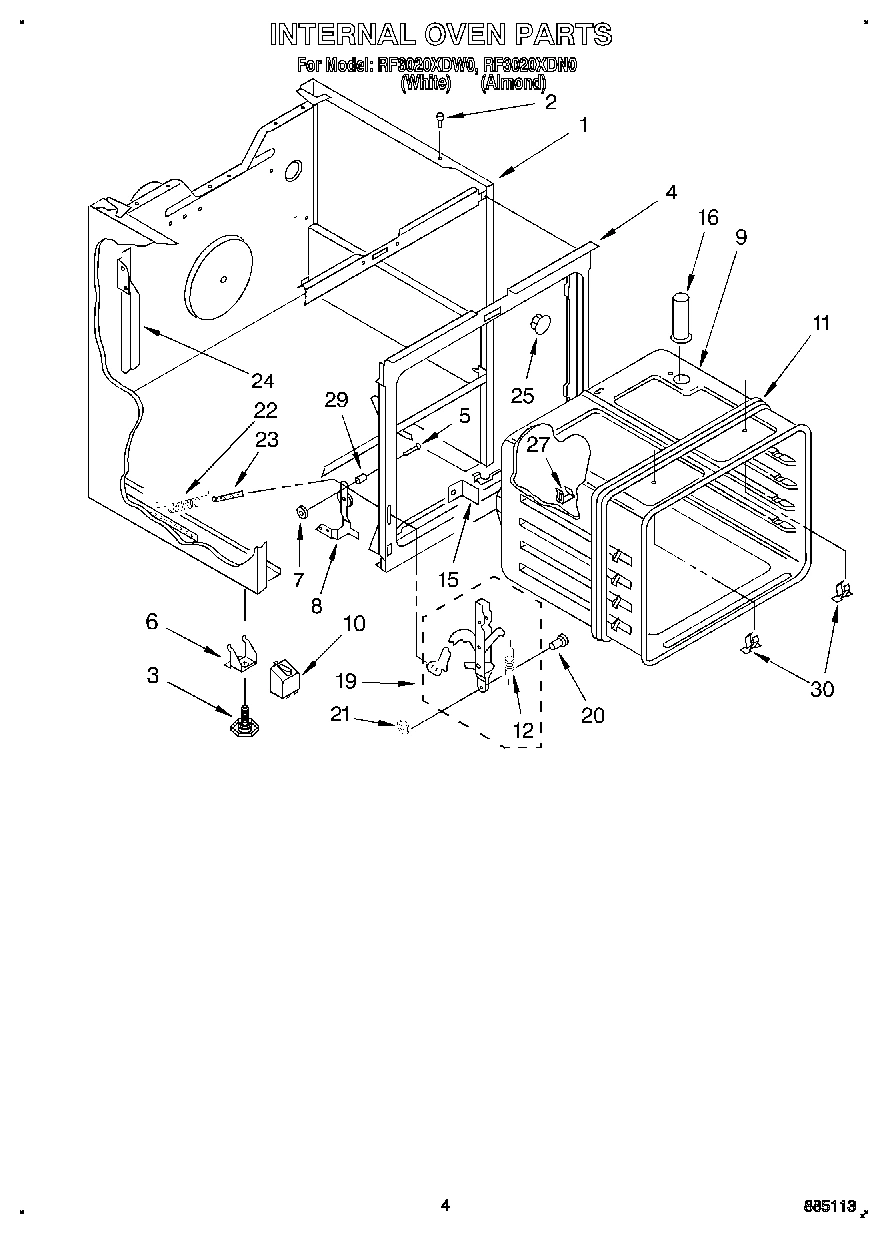

04 - INTERNAL OVEN

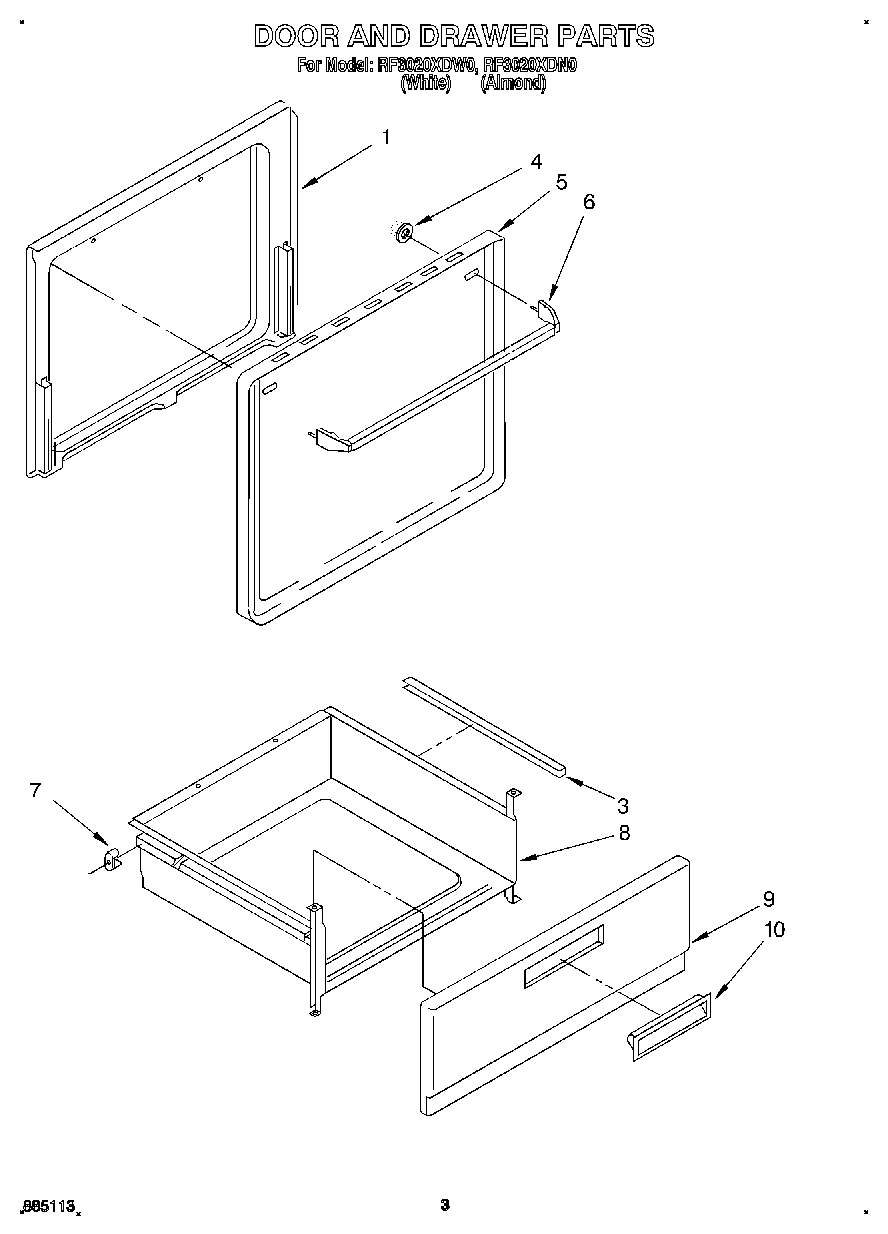

03 - DOOR AND DRAWER

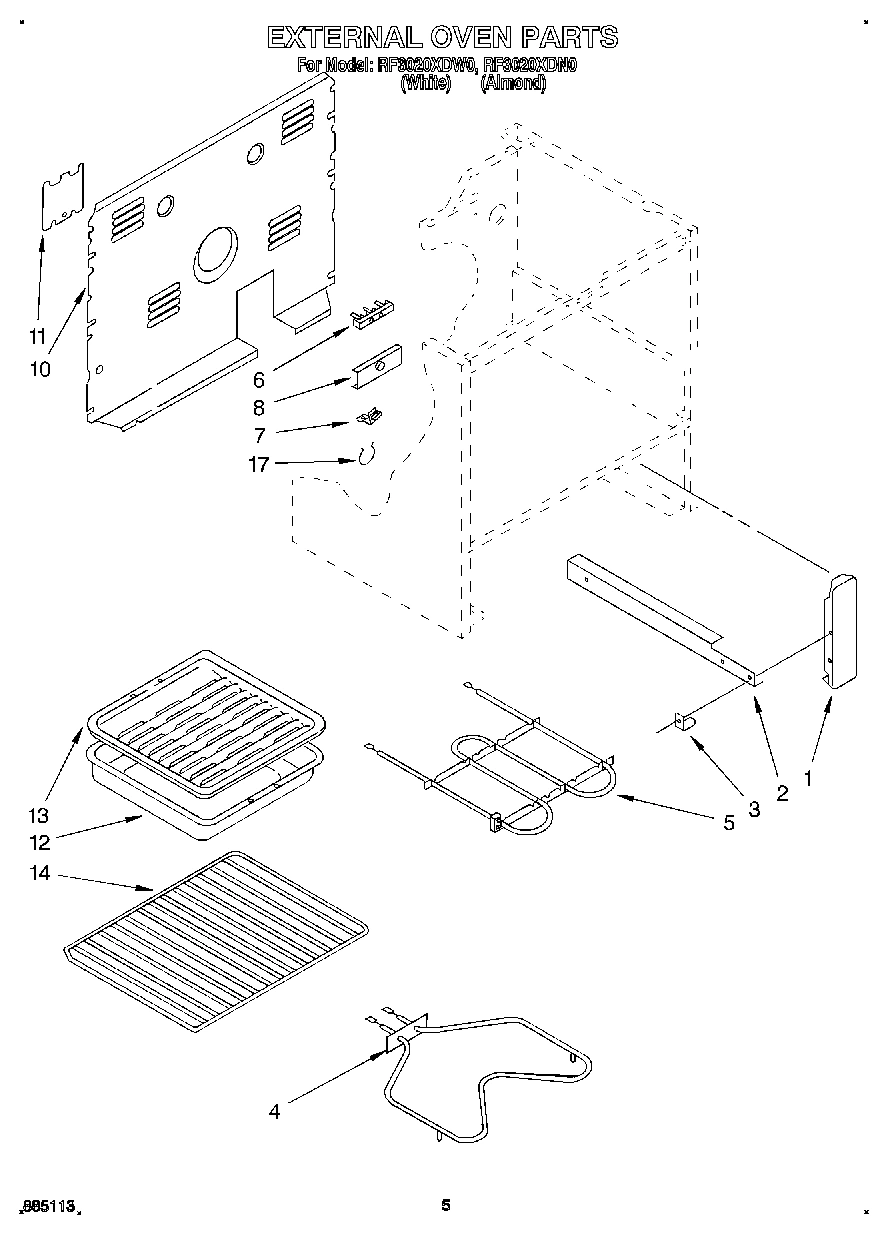

05 - EXTERNAL OVEN, OPTIONAL
Common parts from model Whirlpool RF3020XDN0
WPL 241430 WPL 241430 Contact Us For Availability
Guide, Use & Care WPL LIT3189066 Contact Us For Availability
WPL LIT677973 WPL LIT677973 Contact Us For Availability
1
Nut (4) WPL 814102 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Liner, Door WPL 3172221 Contact Us For Availability
1
Bracket, Mounting (2) WPL 3169420 Contact Us For Availability
2
Rail R.H. WPL 3149255 Contact Us For Availability
2
Rail L.H. WPL 3149256 Contact Us For Availability
3
Box, Burner WPL 3169186 Contact Us For Availability
3
Leg Leveling (4) WPL 3169499 Contact Us For Availability
3
Screw (2) WPL 307748 Contact Us For Availability
3
Protector, Drawer (2) WPL 309329 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
4
Shield, Wiring WPL 307973 Contact Us For Availability
4
Screw WPL 3150537 Contact Us For Availability
4
Frame, Front WPL 3176714 Contact Us For Availability
5
Rod, Cooktop (2) WPL 3148659 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
5
Panel, Door (White) WPL 307889 Contact Us For Availability
5
Panel, Door (Almond) WPL 307897 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
6
Thermostat WPL 3169302 Contact Us For Availability
6
Support, Foot (2) WPL 3169418 Contact Us For Availability
6
Handle, Oven Door WPL 3184128 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
7
Light, Indicator (Oven On) WPL 314031 Contact Us For Availability
7
Pin, Cooktop (2) WPL 3169384 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
7
Glide, Rear (2) WPL 307980 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
8
Cooktop (White) WPL 3170989 Contact Us For Availability
8
Cooktop (Almond) WPL 3170990 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
8
Drawer, Utility WPL 327887 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Conventional) WPL 3176612 Contact Us For Availability
9
Panel, Drawer (White) WPL 3169430 Contact Us For Availability
9
Panel, Drawer (Almond) WPL 3169431 Contact Us For Availability
10
Cover, Foot (2) WPL 3169448 Contact Us For Availability
10
Handle, Snap-In (White) WPL 3150612 Contact Us For Availability
10
Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Seal, Rubber WPL 3169283 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Spring, Door Stop WPL 308207 Contact Us For Availability
13
Medallion (4) WPL 309195 Contact Us For Availability
14
Rack, Oven (2) WPL 308173 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
17
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
17
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
17
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
17
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
17
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
17
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
17
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
17
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
17
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
17
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
17
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
17
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
17
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
17
Grease WPL 261582 Contact Us For Availability
17
Coffee WPL 261886 Contact Us For Availability
17
New Avocado WPL 261888 Contact Us For Availability
17
Harvest Gold WPL 261890 Contact Us For Availability
17
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
17
WPL 285365 WPL 285365 Contact Us For Availability
17
WPL 285366 WPL 285366 Contact Us For Availability
17
WPL 285367 WPL 285367 Contact Us For Availability
17
WPL 285368 WPL 285368 Contact Us For Availability
17
WPL 309961 WPL 309961 Contact Us For Availability
17
WPL 72108 WPL 72108 Contact Us For Availability
17
WPL 72112 WPL 72112 Contact Us For Availability
17
WPL 799832 WPL 799832 Contact Us For Availability
17
WPL 978883 WPL 978883 Contact Us For Availability
19
Channel, Arm (2) WPL 3176708 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
25
Plug, Bottom WPL 308535 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Plug, Button (2) WPL 3169107 Contact Us For Availability
× ![]()
