Model Whirlpool RF3010XVW4 – Common Parts & Diagrams

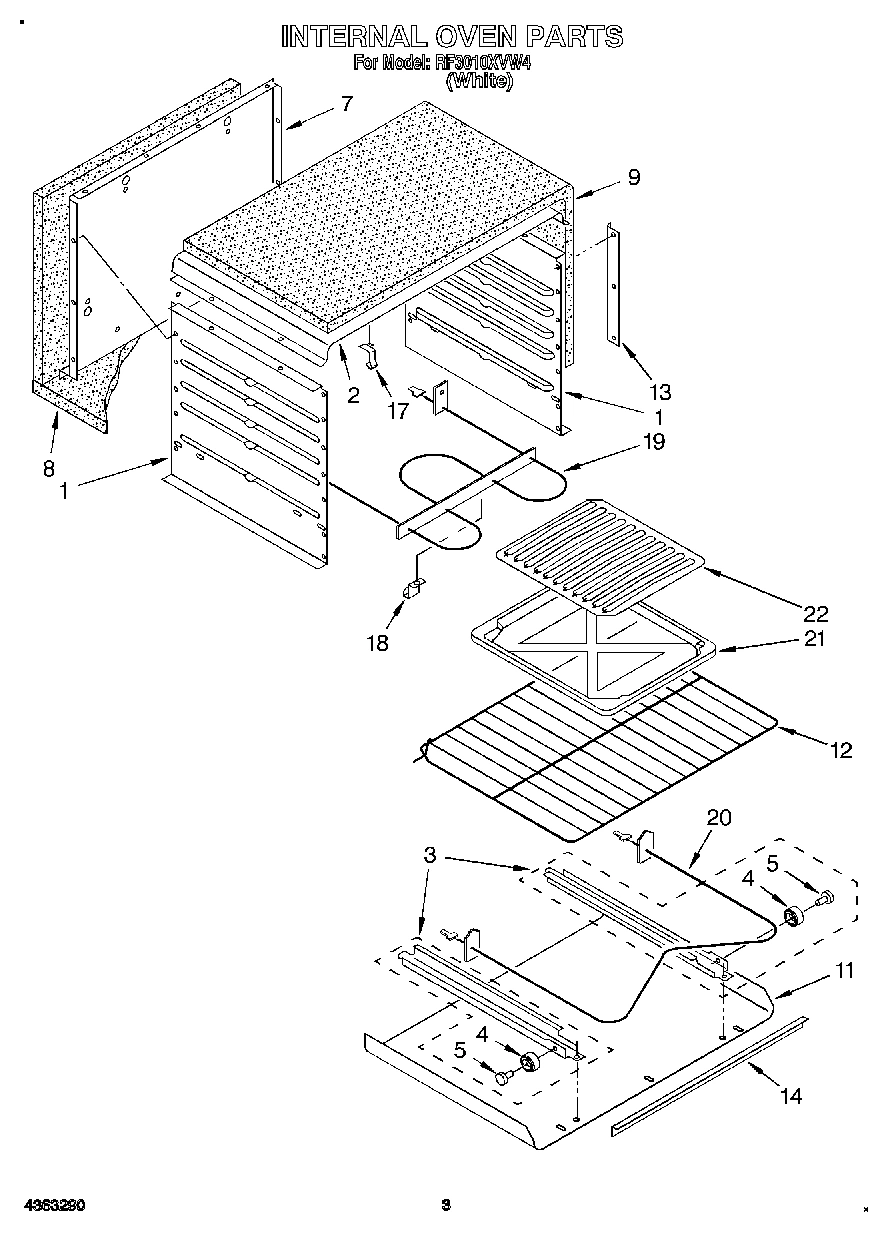

02 - INTERNAL

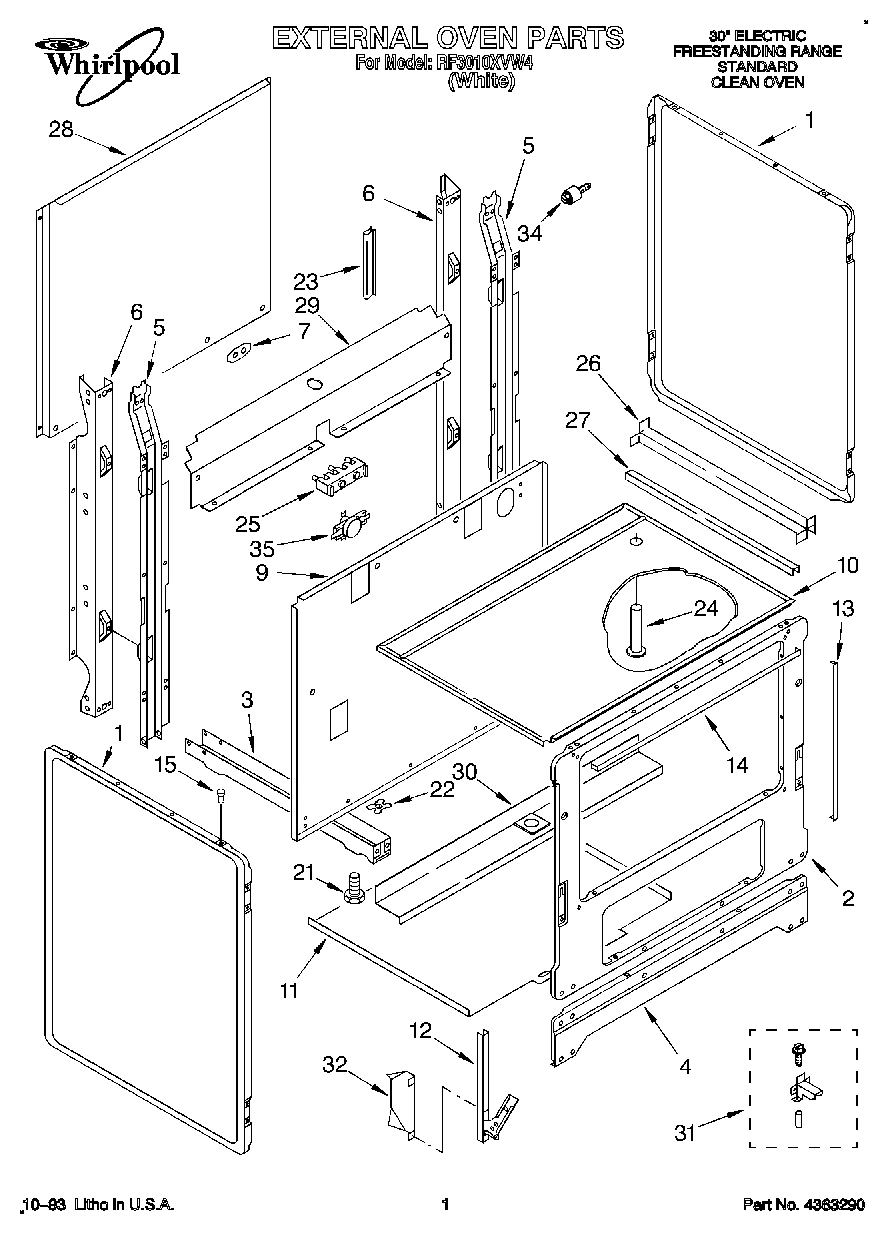

01 - EXTERNAL, LIT/OPTIONAL

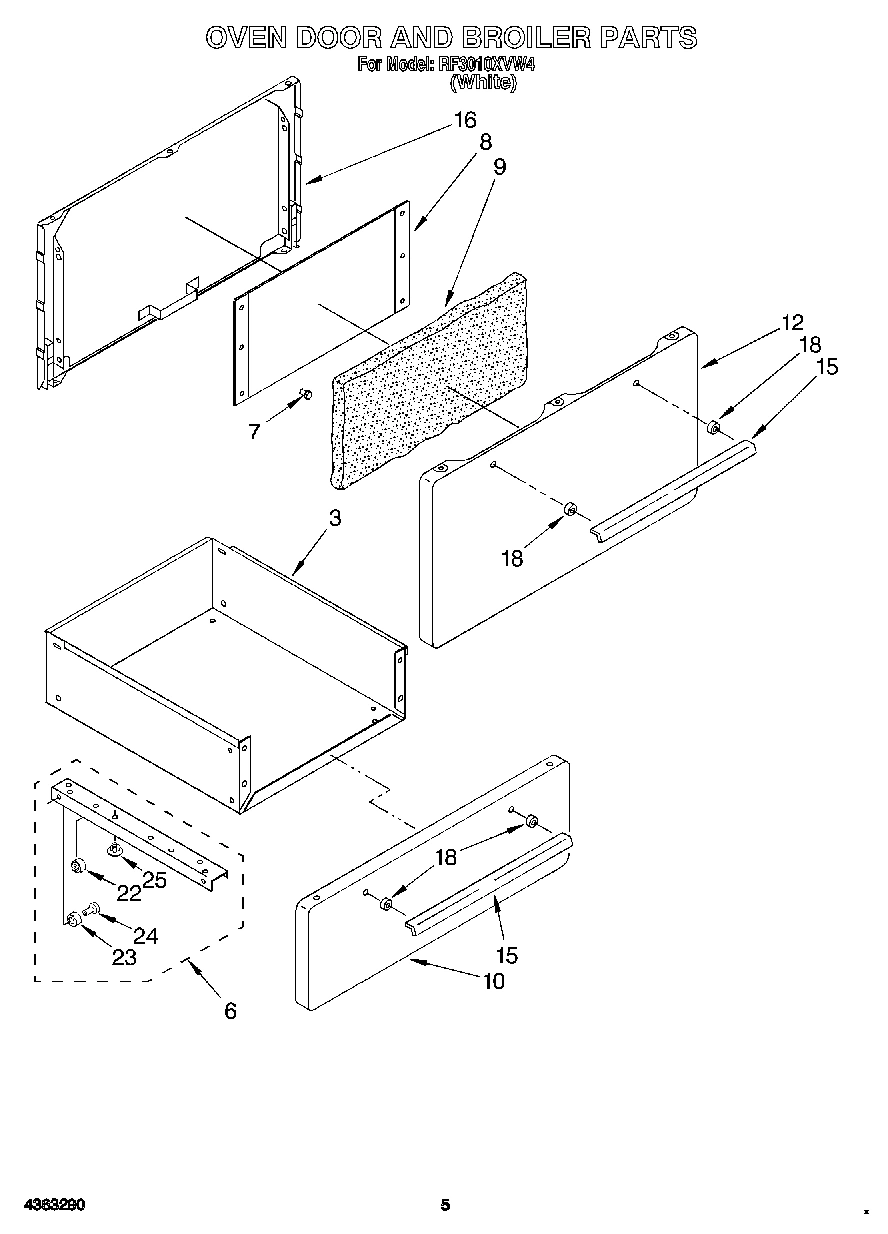

03 - OVEN DOOR AND BOILER

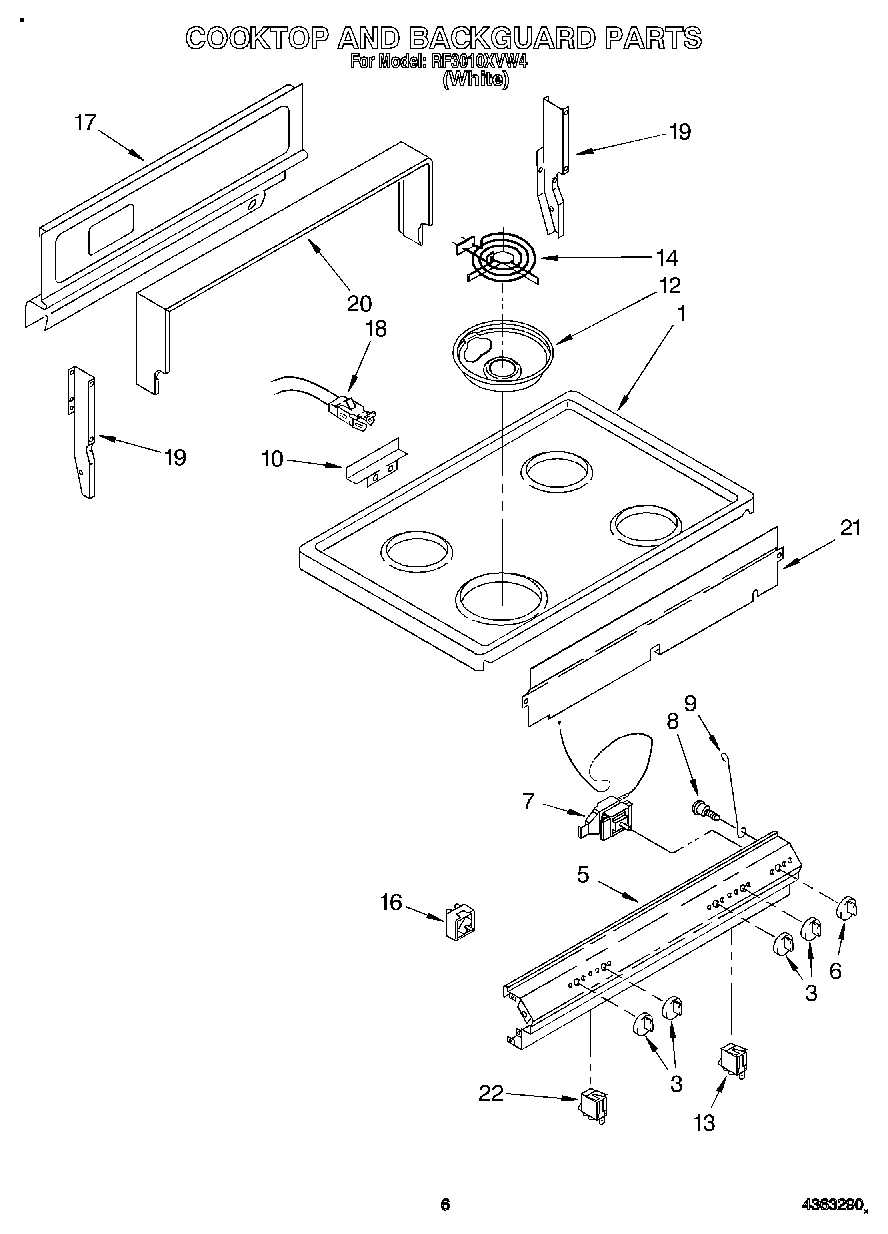

04 - COOKTOP AND BACKGUARD
Common parts from model Whirlpool RF3010XVW4
Guide, Cooking WPL LIT313358 Contact Us For Availability
Guide, Use & Care WPL LIT4315037 Contact Us For Availability
Instuctions, Installation WPL LIT4315038 Contact Us For Availability
Manual, Range WPL LIT677973 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4363024 Contact Us For Availability
1
Cooktop (White) WPL 4363288 Contact Us For Availability
2
Frame, Front WPL 4321257 Contact Us For Availability
3
Knob, Burner (4) WPL 4179304 Contact Us For Availability
3
Rail, Base (2) WPL 4363194 Contact Us For Availability
3
Drawer, Storage WPL 4363284 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Panel, Manifold WPL 4315215 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
6
Screw, 10-12 X 1/2 (2) WPL 4320661 Contact Us For Availability
6
Track, Upper (Left Hand) WPL 4364023 Contact Us For Availability
6
Track, Upper (Right Hand) WPL 4364024 Contact Us For Availability
6
Knob, Thermostat WPL 4179305 Contact Us For Availability
7
Backliner, Oven WPL 4315052 Contact Us For Availability
7
Plate, Conduit WPL 4320523 Contact Us For Availability
7
Bumper, Rubber (2) WPL 4157128 Contact Us For Availability
7
Thermostat WPL 4314949 Contact Us For Availability
8
Baffle, Oven Door WPL 4363287 Contact Us For Availability
8
Screw (2) WPL 4320604 Contact Us For Availability
9
Insulation, Wrap WPL 4320508 Contact Us For Availability
9
Panel, Rear WPL 4315493 Contact Us For Availability
9
Insulation WPL 4363236 Contact Us For Availability
9
Rod, Support WPL 4157010 Contact Us For Availability
10
Burner Box WPL 4320679 Contact Us For Availability
10
Panel, Drawer (White) WPL 4320527 Contact Us For Availability
10
Bracket, Top Supt. WPL 4314992 Contact Us For Availability
11
Bottom, Oven WPL 4320773 Contact Us For Availability
11
Retainer, Insulation WPL 4315490 Contact Us For Availability
12
Rack, Oven WPL 4320804 Contact Us For Availability
12
Hinge, Door (2) WPL 4157022 Contact Us For Availability
12
Screw, 10-24 X 5/16 (2) WPL 4320567 Contact Us For Availability
12
Panel, Oven Door (Screw, 10-12 x 1/2 (5)) WPL 4320742 Contact Us For Availability
12
Panel, Oven Door (White) WPL 4363220 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4315334 Contact Us For Availability
13
Light, Indicator WPL 4314996 Contact Us For Availability
14
Screw, 10-12 x 5/8 WPL 4320662 Contact Us For Availability
14
Support, Oven Bottom WPL 4315213 Contact Us For Availability
14
Seal, Door (Top) WPL 4315335 Contact Us For Availability
14
Unit, Surface (6`` (3)) WPL 4315619 Contact Us For Availability
14
Unit, Surface (8``) WPL 4315620 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Handle (2) WPL 4157040 Contact Us For Availability
15
Screw, Handle 10-24 x 5/8 (4) WPL 4320579 Contact Us For Availability
16
Liner, Oven Door WPL 4363285 Contact Us For Availability
17
Panel, Backguard (White) WPL 4157158 Contact Us For Availability
18
Support, Broil Element WPL 4157967 Contact Us For Availability
18
Spacer, Handle (4) WPL 4157041 Contact Us For Availability
19
Support, Backguard (Screw, 10-32 X 1/2) WPL 4157123 Contact Us For Availability
19
Support, Backguard (Left Hand) WPL 4157159 Contact Us For Availability
19
Support, Backguard (Right Hand) WPL 4157160 Contact Us For Availability
20
Screw, 10-12 X 3/8 (6) WPL 4157121 Contact Us For Availability
20
Frame, Backguard WPL 4314813 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Cover, Switch WPL 4315214 Contact Us For Availability
22
Grid, Broiler WPL 4315094 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Bumper, Nylon (4) WPL 4315387 Contact Us For Availability
22
Light, Indicator (2) WPL 4315030 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
23
Roller (2) WPL 4315388 Contact Us For Availability
24
Roller Pin (2) WPL 4363050 Contact Us For Availability
24
Tube, Vent WPL 4314952 Contact Us For Availability
25
Button, Glide (4) WPL 4315386 Contact Us For Availability
26
Channel, Wire WPL 4363171 Contact Us For Availability
27
Support WPL 4157965 Contact Us For Availability
28
Cover, Rear WPL 4314943 Contact Us For Availability
29
Cover, Rear WPL 4363286 Contact Us For Availability
30
Shield, Wire WPL 4320496 Contact Us For Availability
31
Bracket, Anti Tip WPL 4363057 Contact Us For Availability
32
Shield, Insulation WPL 4157325 Contact Us For Availability
34
Stud, Locator WPL 4315408 Contact Us For Availability
34
Screw, 6-32 x 7/8 WPL 4315409 Contact Us For Availability
35
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
35
Disc, Thermo WPL 4179130 Contact Us For Availability
× ![]()
