Model Whirlpool RF3010XVW0 – Common Parts & Diagrams
05 - COOK TOP AND BACKGUARD
03 - INTERNAL OVEN

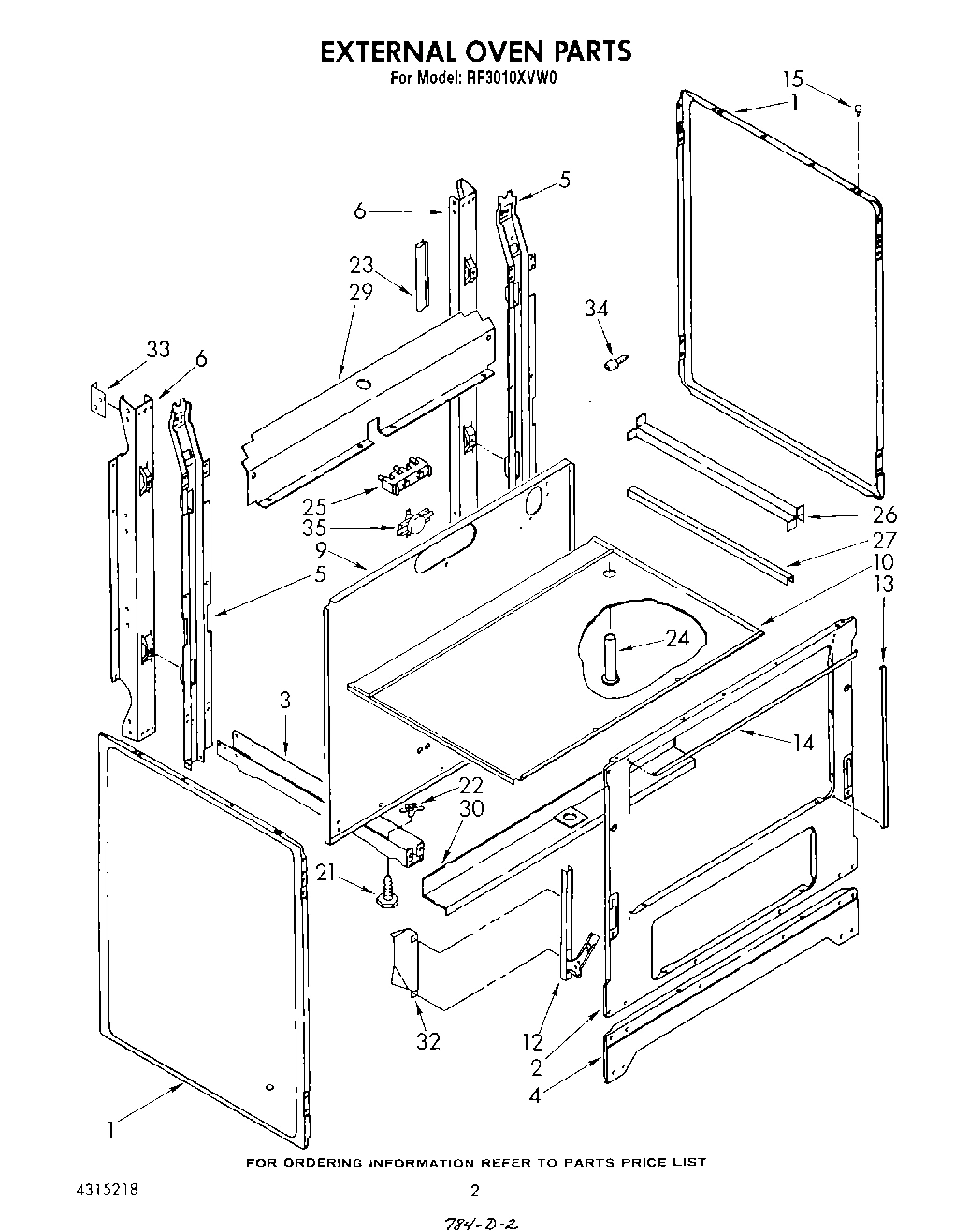

02 - EXTERNAL OVEN , LITERATURE AND OPTIONAL

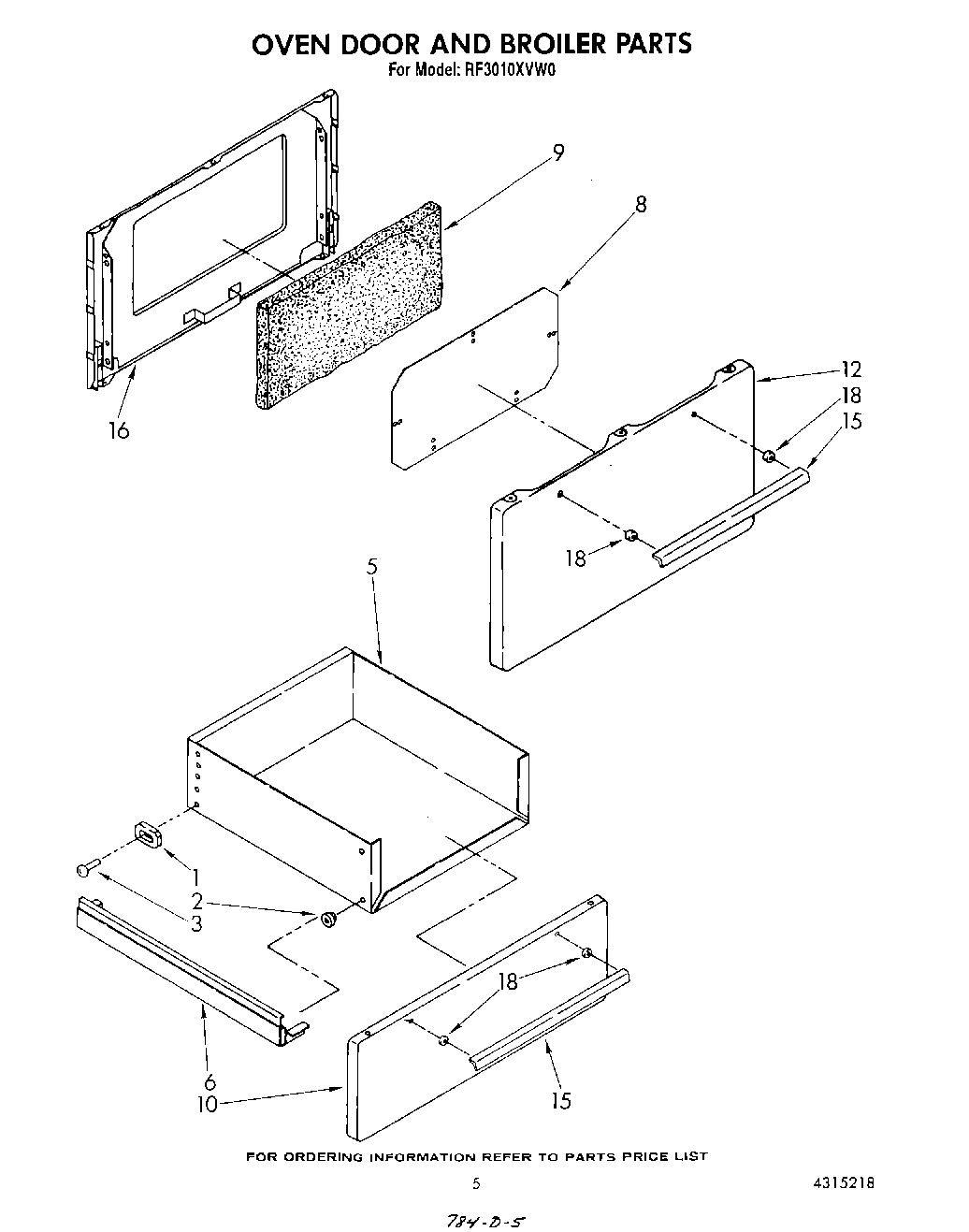

04 - OVEN DOOR AND BROILER
Common parts from model Whirlpool RF3010XVW0
Guide, Cooking WPL LIT313358 Contact Us For Availability
Guide, Use & Care WPL LIT4315037 Contact Us For Availability
Instuctions, Installation WPL LIT4315038 Contact Us For Availability
List, Repair Parts WPL LIT4315218 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315039 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4157000 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4157130 Contact Us For Availability
1
Slide (2) WPL 4157993 Contact Us For Availability
2
Liner, Oven Top WPL 4315043 Contact Us For Availability
2
Frame, Front WPL 4315083 Contact Us For Availability
2
Roller (2) WPL 4157994 Contact Us For Availability
3
Knob, Burner (4) WPL 4179304 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
3
Rivet WPL 4157995 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4157123 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Liner WPL 4314940 Contact Us For Availability
6
Support, Rear (2) WPL 4157012 Contact Us For Availability
6
Track (Left) WPL 4157998 Contact Us For Availability
6
Track (Right) WPL 4157999 Contact Us For Availability
7
Thermostat WPL 4314949 Contact Us For Availability
7
Backliner, Oven WPL 4315052 Contact Us For Availability
8
Screw WPL 4157018 Contact Us For Availability
8
Plate, Hold Down WPL 4157154 Contact Us For Availability
9
Rod, Support WPL 4157010 Contact Us For Availability
9
Panel, Rear WPL 4157015 Contact Us For Availability
9
Insulation WPL 4157033 Contact Us For Availability
10
Burner Box WPL 4314939 Contact Us For Availability
10
Panel, Drawer (White) WPL 4315211 Contact Us For Availability
10
Panel, Drawer (Almond) WPL 4315212 Contact Us For Availability
11
Bottom, Oven WPL 4315069 Contact Us For Availability
12
Rack, Oven WPL 4157102 Contact Us For Availability
12
Hinge, Door (2) WPL 4157022 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Panel, Door (White) WPL 4157152 Contact Us For Availability
12
Panel, Door (Almond) WPL 4157153 Contact Us For Availability
13
Light, Indicator WPL 4314951 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4157948 Contact Us For Availability
14
Unit, Surface (6``) WPL 4157979 Contact Us For Availability
14
Unit, Surface (8``) WPL 4157980 Contact Us For Availability
14
Support, Oven Bottom WPL 4315213 Contact Us For Availability
14
Seal, Door (Top) WPL 4314948 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Handle (2) WPL 4157040 Contact Us For Availability
16
Liner, Door WPL 4315064 Contact Us For Availability
17
Panel, Backguard (Almond) WPL 4157158 Contact Us For Availability
17
Panel, Backguard (White) WPL 4157528 Contact Us For Availability
18
Support, Broil Element WPL 4157967 Contact Us For Availability
18
Spacer (4) WPL 4157041 Contact Us For Availability
19
Support, Backguard (Left Hand) WPL 4157159 Contact Us For Availability
19
Support, Backguard (Right Hand) WPL 4157160 Contact Us For Availability
20
Screw, 10-12 X 3/8 (6) WPL 4157121 Contact Us For Availability
20
Frame WPL 4157157 Contact Us For Availability
21
Cover, Switch WPL 4315214 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
22
Light, Indicator (2) WPL 4315030 Contact Us For Availability
22
Grid WPL 4315094 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
24
Tube, Vent WPL 4314952 Contact Us For Availability
26
Channel WPL 4315097 Contact Us For Availability
27
Support WPL 4157965 Contact Us For Availability
29
Cover, Rear WPL 4314942 Contact Us For Availability
30
Cover, Wire WPL 4314954 Contact Us For Availability
32
Shield, Insulation WPL 4157325 Contact Us For Availability
33
Bracket, Mounting (R.H.) WPL 4314911 Contact Us For Availability
33
Bracket, Mounting (L.H.) WPL 4314912 Contact Us For Availability
34
Stud, Locator WPL 4314933 Contact Us For Availability
35
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
35
Disc, Thermo WPL 4179130 Contact Us For Availability
× ![]()
