Model Whirlpool RF3010XPW0 – Common Parts & Diagrams
02 - SECTION
03 - SECTION
01 - SECTION

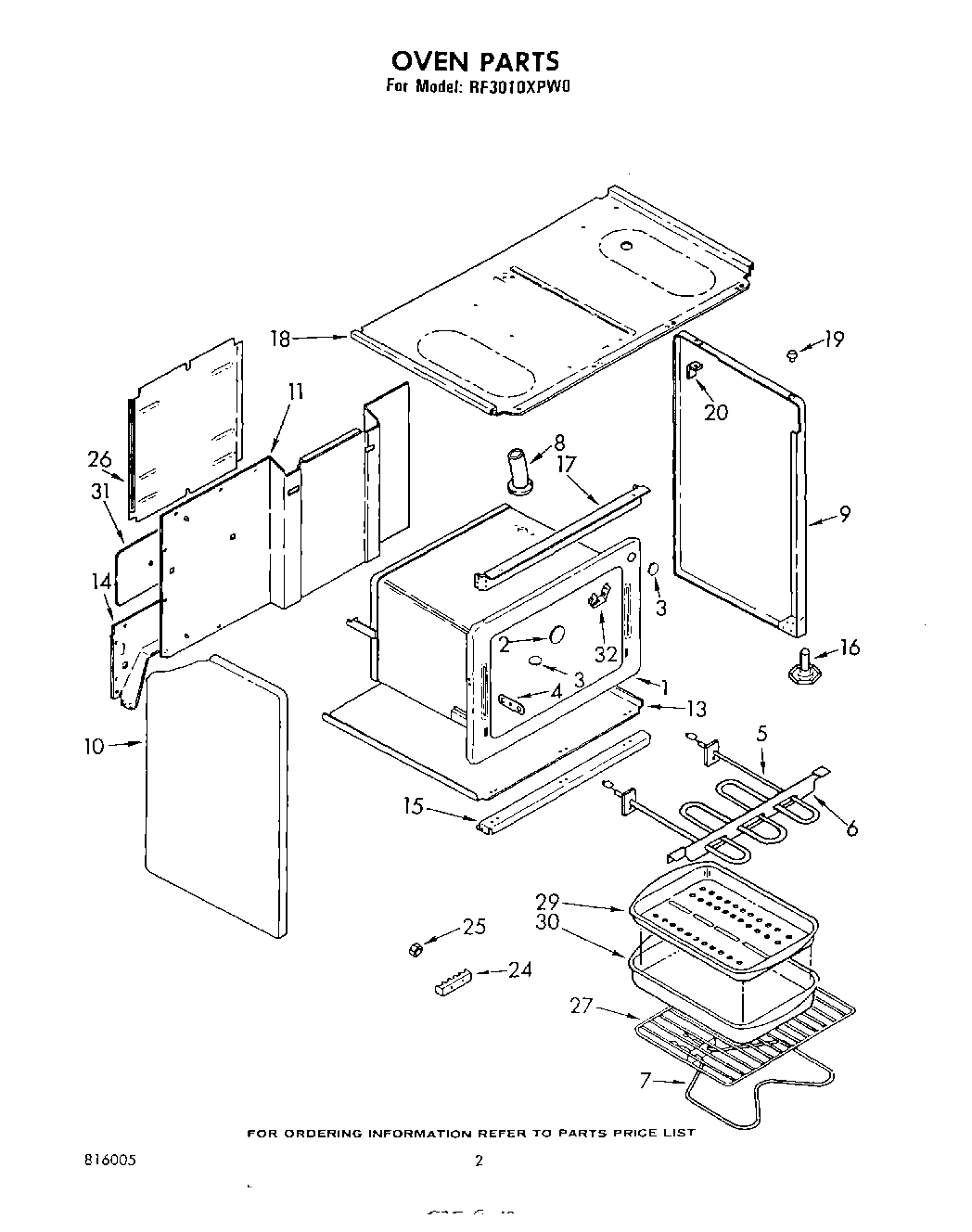

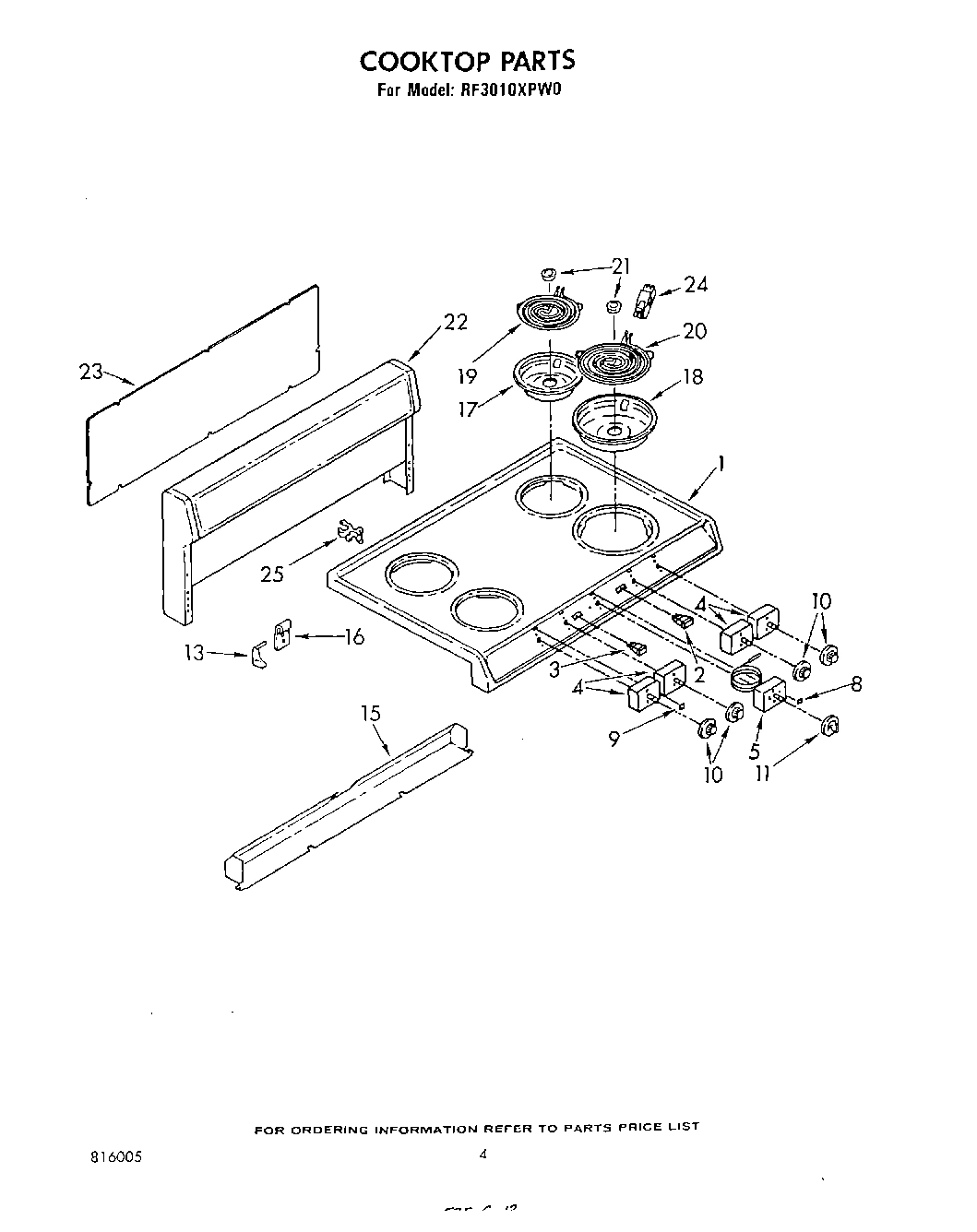

Common parts from model Whirlpool RF3010XPW0
WPL LIT816005 WPL LIT816005 Contact Us For Availability
WPL LIT865621 WPL LIT865621 Contact Us For Availability
WPL LIT877952 WPL LIT877952 Contact Us For Availability
WPL LIT877987 WPL LIT877987 Contact Us For Availability
WPL LIT877989 WPL LIT877989 Contact Us For Availability
1
Cooktop (Platinum) WPL 816001 Contact Us For Availability
1
Cooktop (Toast) WPL 816002 Contact Us For Availability
1
Cooktop (Almond) WPL 816006 Contact Us For Availability
1
Cooktop (White) WPL 877973 Contact Us For Availability
1
Panel, Oven Door (White) WPL 868593 Contact Us For Availability
1
Panel, Oven Door (Almond) WPL 868596 Contact Us For Availability
1
Panel, Oven Door (Platinum) WPL 877988 Contact Us For Availability
1
Panel, Oven Door (Screw 10-24 x 1-1/4 (2)) WPL 877993 Contact Us For Availability
1
Panel, Oven Door (Toast) WPL 877994 Contact Us For Availability
2
Light, Signal (250V) (Surface Unit) WPL 877974 Contact Us For Availability
3
Light, Signal (Oven) (250V) WPL 868373 Contact Us For Availability
3
Door Handle Assembly WPL 877990 Contact Us For Availability
5
Screw, 8-32 x 3/16 (2) WPL 877919 Contact Us For Availability
5
Thermostat, Oven WPL 877975 Contact Us For Availability
5
Spacer, Handle (2) WPL 877991 Contact Us For Availability
6
Roller, Stop (2) WPL 834471 Contact Us For Availability
7
Unit Bake (Screw, 10-24 x 1/2 (2)) WPL 486146 Contact Us For Availability
7
River (2) WPL 241423 Contact Us For Availability
8
Indicator, Oven Selector (1) WPL 868376 Contact Us For Availability
8
Arm Assembly (2) WPL 865640 Contact Us For Availability
9
End Panel, R.H. (Toast) WPL 877998 Contact Us For Availability
9
Indicator, Surface Unit (4) WPL 868377 Contact Us For Availability
9
Pin, Hinge (2) WPL 877884 Contact Us For Availability
10
End Panel, L.H. (Screw (2)) WPL 877972 Contact Us For Availability
10
End Panel, L.H. (Toast) WPL 816000 Contact Us For Availability
10
End Panel, L.H. (White) WPL 877775 Contact Us For Availability
10
End Panel, L.H. (Almond) WPL 877776 Contact Us For Availability
10
End Panel, L.H. (Platinum) WPL 877999 Contact Us For Availability
10
Knob & Skirt Assembly (Surface Unit) (4) WPL 877783 Contact Us For Availability
10
Spring, Door (2) WPL 241314 Contact Us For Availability
11
Back, Range WPL 877968 Contact Us For Availability
11
Knob & Skirt Assembly (Thermostat) (1) WPL 877976 Contact Us For Availability
11
Liner, Door WPL 877633 Contact Us For Availability
12
Screw, 10-24 x 1/2 (4) WPL 868430 Contact Us For Availability
12
Washer (2) WPL 241422 Contact Us For Availability
12
Channel Assembly WPL 865972 Contact Us For Availability
13
Panel, Weldment (Bottom) WPL 868087 Contact Us For Availability
13
Hinge Pin, Cooktop (R.H.) WPL 868364 Contact Us For Availability
13
Hinge Pin, Cooktop (L.H.) WPL 868365 Contact Us For Availability
13
Gasket, Door (Alternate) WPL 865977 Contact Us For Availability
13
Gasket, Door (Alternate) WPL 877634 Contact Us For Availability
14
Gusset, Rear (R.H.) WPL 877780 Contact Us For Availability
14
Gusset, Rear (L.H.) WPL 877781 Contact Us For Availability
14
Bracket, Panel (Screw, 10-24 x 1/2 (4)) WPL 681151 Contact Us For Availability
14
Bracket, Panel ((R.H.)) WPL 865659 Contact Us For Availability
14
Bracket, Panel ((L.H.)) WPL 865660 Contact Us For Availability
15
Channel, Oven Support WPL 868120 Contact Us For Availability
15
Shield, Control WPL 877980 Contact Us For Availability
16
Leg Leveler (4) WPL 868880 Contact Us For Availability
16
Retainer, Hinge Pin (2) WPL 868137 Contact Us For Availability
16
Panel, Lower (White) WPL 865877 Contact Us For Availability
16
Panel, Lower (Almond) WPL 877992 Contact Us For Availability
16
Panel, Lower (Platinum) WPL 877995 Contact Us For Availability
16
Panel, Lower (Toast) WPL 877996 Contact Us For Availability
17
Bracket, Cooktop WPL 877970 Contact Us For Availability
18
Burner Box WPL 877971 Contact Us For Availability
19
Bumper, Cooktop (4) WPL 868363 Contact Us For Availability
20
Gusset, Backguard (2) WPL 868128 Contact Us For Availability
21
WPL 868522 WPL 868522 Contact Us For Availability
22
WPL 816003 WPL 816003 Contact Us For Availability
22
WPL 816004 WPL 816004 Contact Us For Availability
22
WPL 868384 WPL 868384 Contact Us For Availability
22
WPL 868387 WPL 868387 Contact Us For Availability
23
WPL 868396 WPL 868396 Contact Us For Availability
24
WPL 877978 WPL 877978 Contact Us For Availability
25
WPL 241430 WPL 241430 Contact Us For Availability
25
Hex Nut, 10-32 (6) WPL 487836 Contact Us For Availability
25
WPL 242820 WPL 242820 Contact Us For Availability
25
WPL 242821 WPL 242821 Contact Us For Availability
25
WPL 242822 WPL 242822 Contact Us For Availability
25
WPL 242823 WPL 242823 Contact Us For Availability
25
WPL 242824 WPL 242824 Contact Us For Availability
25
WPL 242825 WPL 242825 Contact Us For Availability
25
WPL 242826 WPL 242826 Contact Us For Availability
25
WPL 242827 WPL 242827 Contact Us For Availability
25
WPL 242828 WPL 242828 Contact Us For Availability
25
WPL 242829 WPL 242829 Contact Us For Availability
25
WPL 242830 WPL 242830 Contact Us For Availability
25
WPL 242832 WPL 242832 Contact Us For Availability
25
WPL 261582 WPL 261582 Contact Us For Availability
25
WPL 261810 WPL 261810 Contact Us For Availability
25
WPL 261886 WPL 261886 Contact Us For Availability
25
WPL 261887 WPL 261887 Contact Us For Availability
25
WPL 261888 WPL 261888 Contact Us For Availability
25
WPL 261889 WPL 261889 Contact Us For Availability
25
WPL 261890 WPL 261890 Contact Us For Availability
25
WPL 261891 WPL 261891 Contact Us For Availability
25
WPL 350941 WPL 350941 Contact Us For Availability
25
WPL 72108 WPL 72108 Contact Us For Availability
25
WPL 799832 WPL 799832 Contact Us For Availability
25
WPL 868136 WPL 868136 Contact Us For Availability
25
WPL 877979 WPL 877979 Contact Us For Availability
25
WPL 978883 WPL 978883 Contact Us For Availability
26
Washer Flat (3) WPL 486608 Contact Us For Availability
26
Cover Wiring, Lower WPL 868159 Contact Us For Availability
27
Rack, Oven (1) WPL 865983 Contact Us For Availability
31
WPL 834649 WPL 834649 Contact Us For Availability
31
WPL 877969 WPL 877969 Contact Us For Availability
× ![]()
