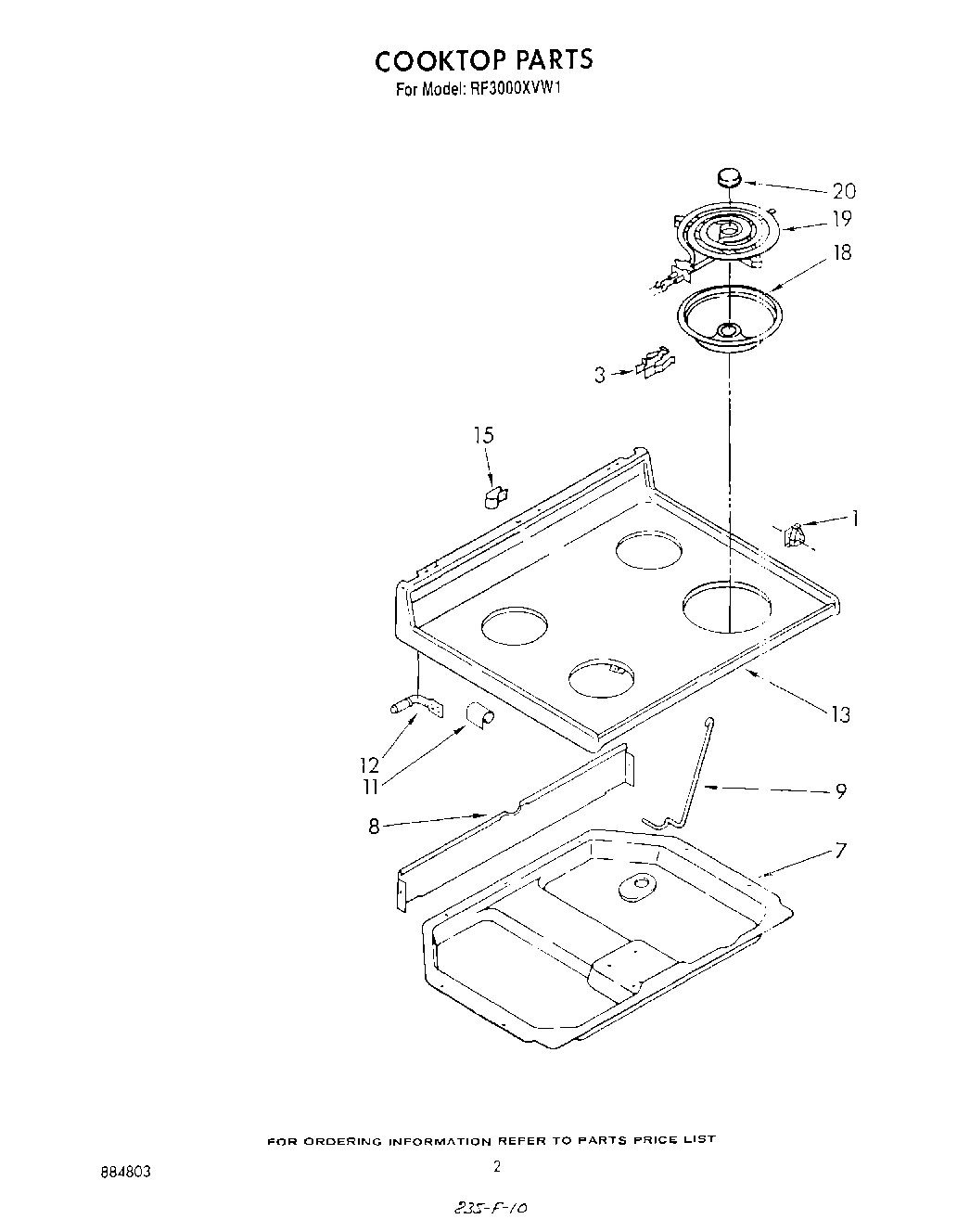

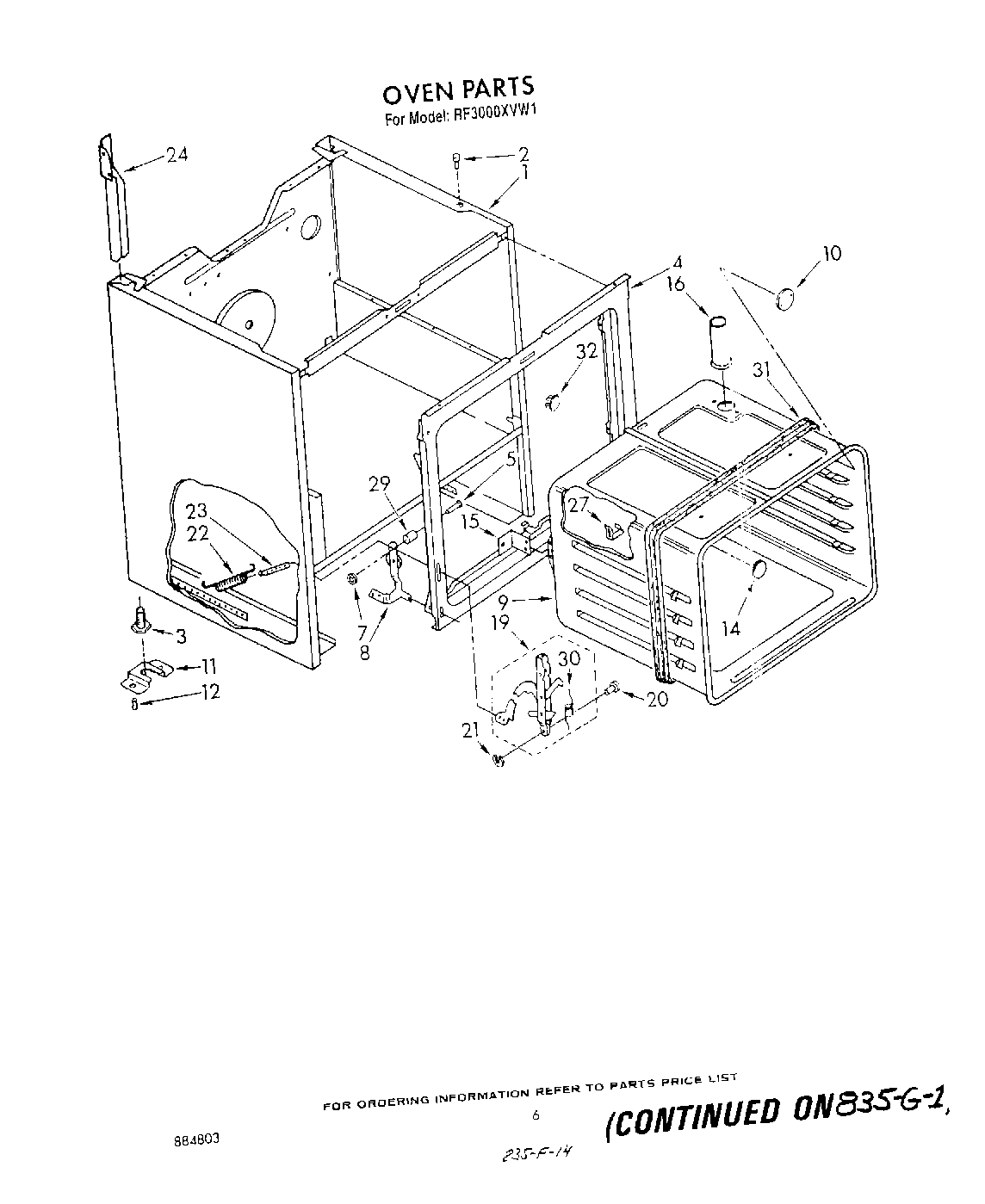

Model Whirlpool RF3000XVW1 – Common Parts &amp; Diagrams

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

Installation Instructions WPL LIT3148614 Contact Us For Availability

Guide, Use & Care WPL LIT3149908 Contact Us For Availability

Buy Guide WPL LIT3149932 Contact Us For Availability

List, Parts WPL LIT884803 Contact Us For Availability

1

814103 Whirlpool Clip In Stock WPL 814103 $3.95

1

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

1

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

1

Nut (4) WPL 814102 Contact Us For Availability

1

End Trim L.H. WPL 313190 Contact Us For Availability

1

End Trim R.H. WPL 313191 Contact Us For Availability

1

Harness, Wire (Suface Units) WPL 3149881 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

Liner, Door WPL 3170709 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

WP308499 Whirlpool Nut Backorder WPL WP308499 $3.70

2

Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability

2

End Cap R.H. WPL 313230 Contact Us For Availability

2

End Cap L.H. WPL 313231 Contact Us For Availability

2

Harness, Wire (Oven) WPL 313149 Contact Us For Availability

2

Spring, Panel (2) WPL 307958 Contact Us For Availability

3

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $3.70

3

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

3

Panel, Control (Screw, 8-18 x 5/8 (4)) WPL 312604 Contact Us For Availability

3

Panel, Control (White) WPL 313370 Contact Us For Availability

3

Panel, Control (Almond) WPL 313371 Contact Us For Availability

3

Harness, Wire (Supply) WPL 313147 Contact Us For Availability

3

Bracket, Mounting (2) WPL 307957 Contact Us For Availability

3

Panel, Door (Screw, 10A x 1/2 (3)) WPL 307748 Contact Us For Availability

3

Panel, Door (White) WPL 307889 Contact Us For Availability

3

Panel, Door (Almond) WPL 307897 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

WP3148953 Whirlpool Oven Infinite Switch In Stock WPL WP3148953 $34.61

4

WP3149404 Whirlpool Oven Surface Element Swit In Stock WPL WP3149404 $28.08

4

Handle, Oven Door WPL 311563 Contact Us For Availability

5

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

5

Switch, Selector (3 Position) WPL 3148067 Contact Us For Availability

5

Screw, 10-32 x 1/2 (2) WPL 312318 Contact Us For Availability

5

Panel, Lower (White) WPL 307935 Contact Us For Availability

5

Panel, Lower (Almond) WPL 307939 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

6

Thermostat, Oven (Alt.) WPL 310864 Contact Us For Availability

6

Thermostat, Oven (Alt.) WPL 311498 Contact Us For Availability

6

Thermostat, Oven WPL 661150 Contact Us For Availability

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

7

Light, Indicator (1) (Oven) (Includes Illus. WPL 314031 Contact Us For Availability

7

Box, Burner WPL 3149194 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

8

Light, Indicator (Surface Unit) (2) (Includes WPL 313102 Contact Us For Availability

8

Shield, Wiring WPL 307973 Contact Us For Availability

8

Bracket, Service WPL 307970 Contact Us For Availability

9

WP3149983 Whirlpool Knob Backorder WPL WP3149983 $12.19

9

Rod, Cooktop WPL 3148659 Contact Us For Availability

10

Knob, Temp. Control WPL 3149987 Contact Us For Availability

10

Screw (2) WPL 310410 Contact Us For Availability

10

Cover, Rear WPL 3148975 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Bracket, Cooktop (2) WPL 307965 Contact Us For Availability

Tube Clip WPL 313570 Contact Us For Availability

Cover, Service WPL 307972 Contact Us For Availability

12

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

12

Rear Cover Control Panel WPL 313195 Contact Us For Availability

13

Cooktop (White) WPL 3170989 Contact Us For Availability

13

Cooktop (Almond) WPL 3170990 Contact Us For Availability

13

Lens, Amber (3) WPL 313101 Contact Us For Availability

14

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

14

Shield, Glass (2) WPL 313608 Contact Us For Availability

14

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

15

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

15

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

15

Knob, Selector Control WPL 3149984 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Rotisserie Kit (RCK 79) WPL 261881 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

Coffee (Uncut) WPL 261887 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

New Avocado WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

18

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.04

18

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.12

19

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

20

Medallion (4) WPL 309195 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

27

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

31

Seal, Rubber WPL 309107 Contact Us For Availability
