Model Whirlpool RF0100XRW5 – Common Parts & Diagrams

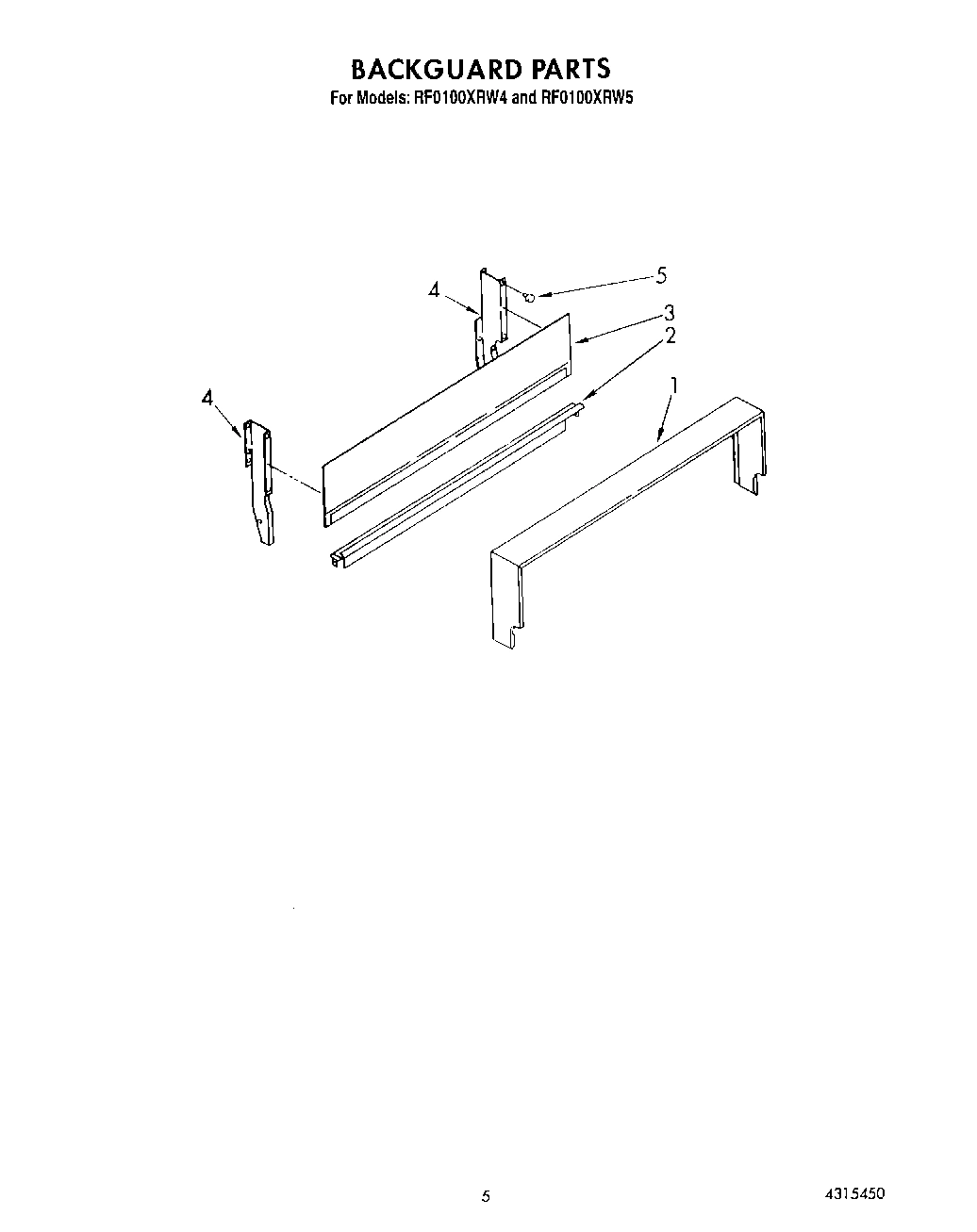

04 - BACKGUARD

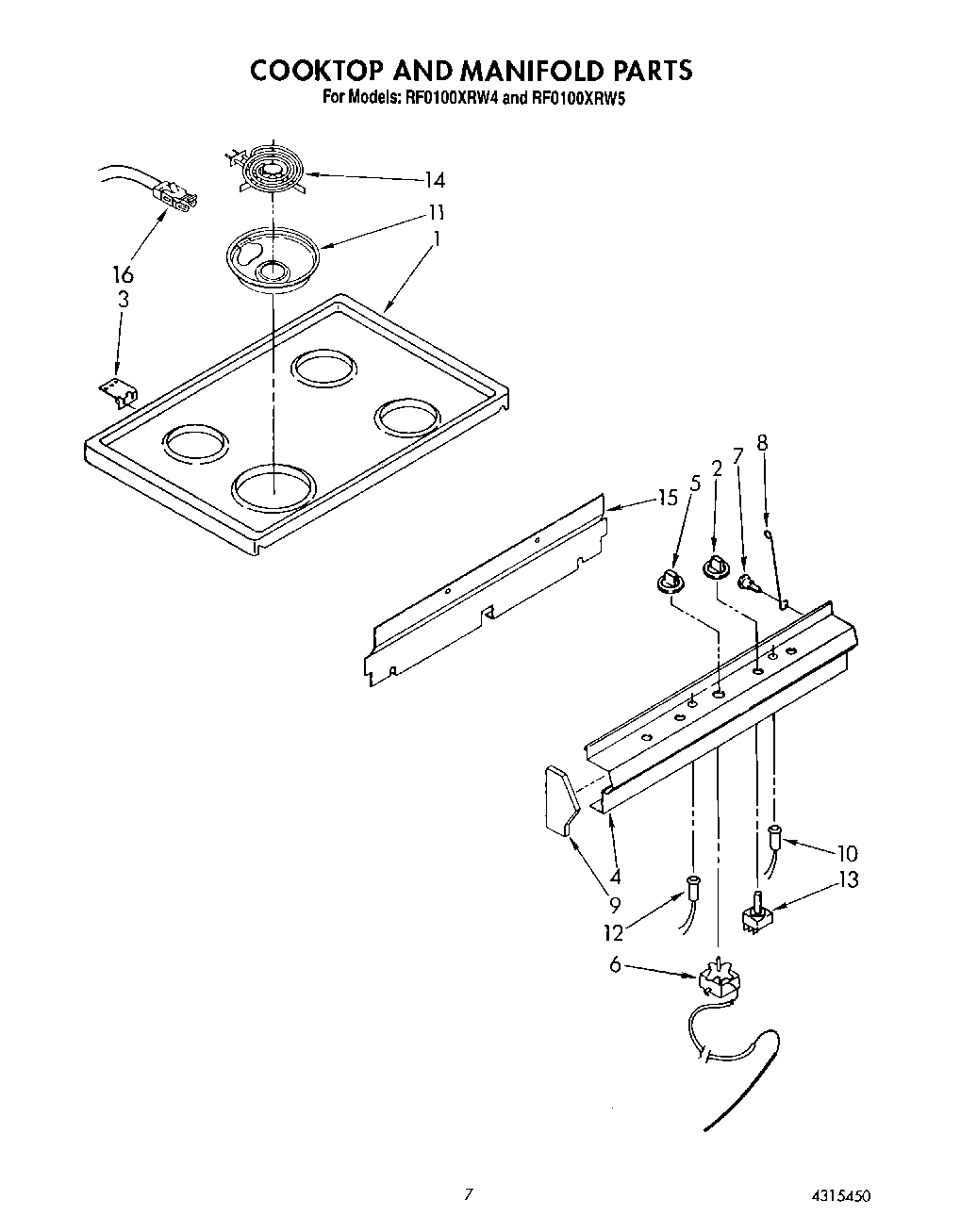

06 - COOKTOP AND MANIFOLD
02 - EXTERNAL OVEN, LIT/OPTIONAL
03 - INTERNAL OVEN
05 - OVEN DOOR
Common parts from model Whirlpool RF0100XRW5
Guide, Cooking WPL LIT313358 Contact Us For Availability
Guide, Use & Care WPL LIT4179118 Contact Us For Availability
List, Repair Parts WPL LIT4315450 Contact Us For Availability
Instuctions, Installation WPL LIT786730 Contact Us For Availability
1
Cooktop (White) WPL 4157970 Contact Us For Availability
1
Cooktop (Almond) WPL 4157971 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4157000 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4157130 Contact Us For Availability
1
Panel, Side (2) (Toast) WPL 4157348 Contact Us For Availability
1
Panel, Side (2) (Platinum) WPL 4157349 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315039 Contact Us For Availability
1
Bracket, Clip WPL 4157957 Contact Us For Availability
2
Knob, Burner (4) WPL 4179304 Contact Us For Availability
2
Bottom, Backguard WPL 4157857 Contact Us For Availability
2
Frame, Front WPL 4315206 Contact Us For Availability
2
Liner, Oven Top WPL 4315047 Contact Us For Availability
2
Bracket WPL 4157958 Contact Us For Availability
3
Glass WPL 4157854 Contact Us For Availability
3
Hinge, Cooktop (2) WPL 4157083 Contact Us For Availability
3
Speed Clip (4) WPL 4157115 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157159 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157160 Contact Us For Availability
4
Panel, Manifold WPL 4157836 Contact Us For Availability
4
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
4
Base, Front WPL 4157945 Contact Us For Availability
4
Clip WPL 4157959 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4157123 Contact Us For Availability
5
Bumper (4) WPL 4157128 Contact Us For Availability
5
Knob, Thermostat WPL 4179305 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
6
Thermostat WPL 4157565 Contact Us For Availability
6
Support, Rear (2) WPL 4157012 Contact Us For Availability
6
Grid WPL 4315094 Contact Us For Availability
7
Screw WPL 4157018 Contact Us For Availability
7
Liner, Oven Back WPL 4315059 Contact Us For Availability
7
Baffle WPL 4157931 Contact Us For Availability
8
Rod, Support WPL 4157010 Contact Us For Availability
8
Panel, Door (White) WPL 4179271 Contact Us For Availability
8
Panel, Door (Almond) WPL 4179272 Contact Us For Availability
9
Endcap (L.H.) WPL 4157186 Contact Us For Availability
9
Endcap (R.H.) WPL 4157187 Contact Us For Availability
9
Panel, Rear WPL 4157923 Contact Us For Availability
9
Liner, Door WPL 4315068 Contact Us For Availability
10
Light, Indicator (Oven) WPL 4157870 Contact Us For Availability
10
Burner Box WPL 4315209 Contact Us For Availability
11
Bottom, Oven WPL 4315076 Contact Us For Availability
12
Light, Indicator (Surface Unit) WPL 4157976 Contact Us For Availability
12
Rack, Oven (2) WPL 4157927 Contact Us For Availability
12
Panel (White) WPL 4315268 Contact Us For Availability
12
Panel (Almond) WPL 4315269 Contact Us For Availability
13
Seal, Door (2) (Side) (Light Gray) WPL 4157948 Contact Us For Availability
13
Seal, Door (2) (Side) (Charcoal Gray) WPL 4315334 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Handle WPL 4157794 Contact Us For Availability
14
Unit, Surface (6``) WPL 4157979 Contact Us For Availability
14
Unit, Surface (8``) WPL 4157980 Contact Us For Availability
14
Seal, Door (Top) (Light Gray) WPL 4157947 Contact Us For Availability
14
Seal, Door (Top) (Charcoal Gray) WPL 4315331 Contact Us For Availability
14
Spacer (2) WPL 4157041 Contact Us For Availability
15
Cover, Switch WPL 4157974 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
16
Support WPL 4157967 Contact Us For Availability
16
Insulation WPL 4179307 Contact Us For Availability
19
Clip, Wire (2) WPL 4157127 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
24
Panel, Bottom WPL 4157952 Contact Us For Availability
25
Tube, Vent WPL 4157953 Contact Us For Availability
27
Channel, Wire WPL 4315097 Contact Us For Availability
28
Support, Channel WPL 4157965 Contact Us For Availability
29
Cover, Wire WPL 4315092 Contact Us For Availability
30
Support WPL 4157968 Contact Us For Availability
31
Cover, Rear WPL 4157969 Contact Us For Availability
32
Disc, Thermo WPL 4179130 Contact Us For Availability
33
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
33
Hinge, Door WPL 4179315 Contact Us For Availability
× ![]()
