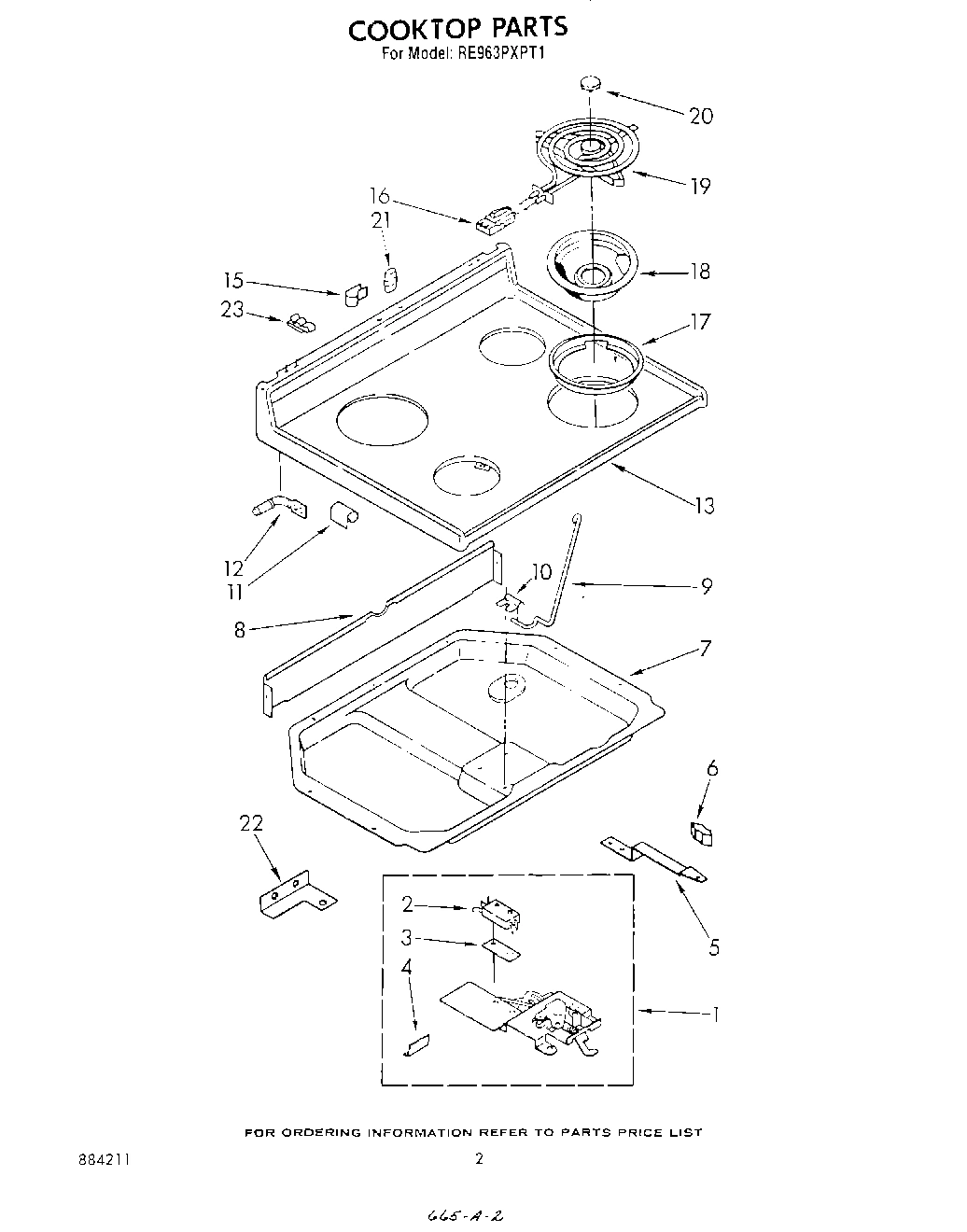

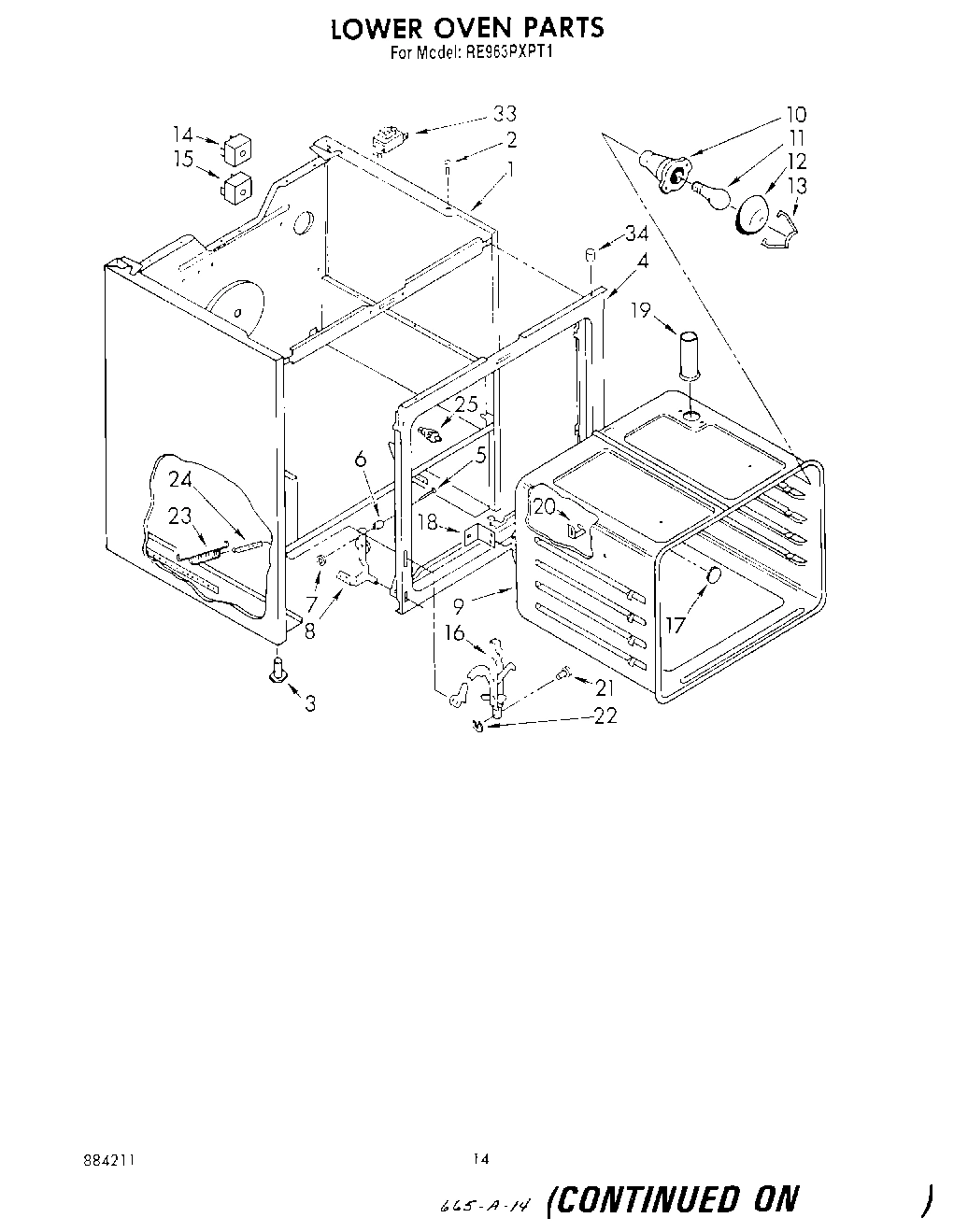

Model Whirlpool RE963PXPT1 – Common Parts &amp; Diagrams

WP312309 Whirlpool Bake Element In Stock WPL WP312309 $70.05

Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability

WPL 312308 WPL 312308 Contact Us For Availability

WPL LIT313295 WPL LIT313295 Contact Us For Availability

WPL LIT313358 WPL LIT313358 Contact Us For Availability

WPL LIT313480 WPL LIT313480 Contact Us For Availability

WPL LIT884211 WPL LIT884211 Contact Us For Availability

1

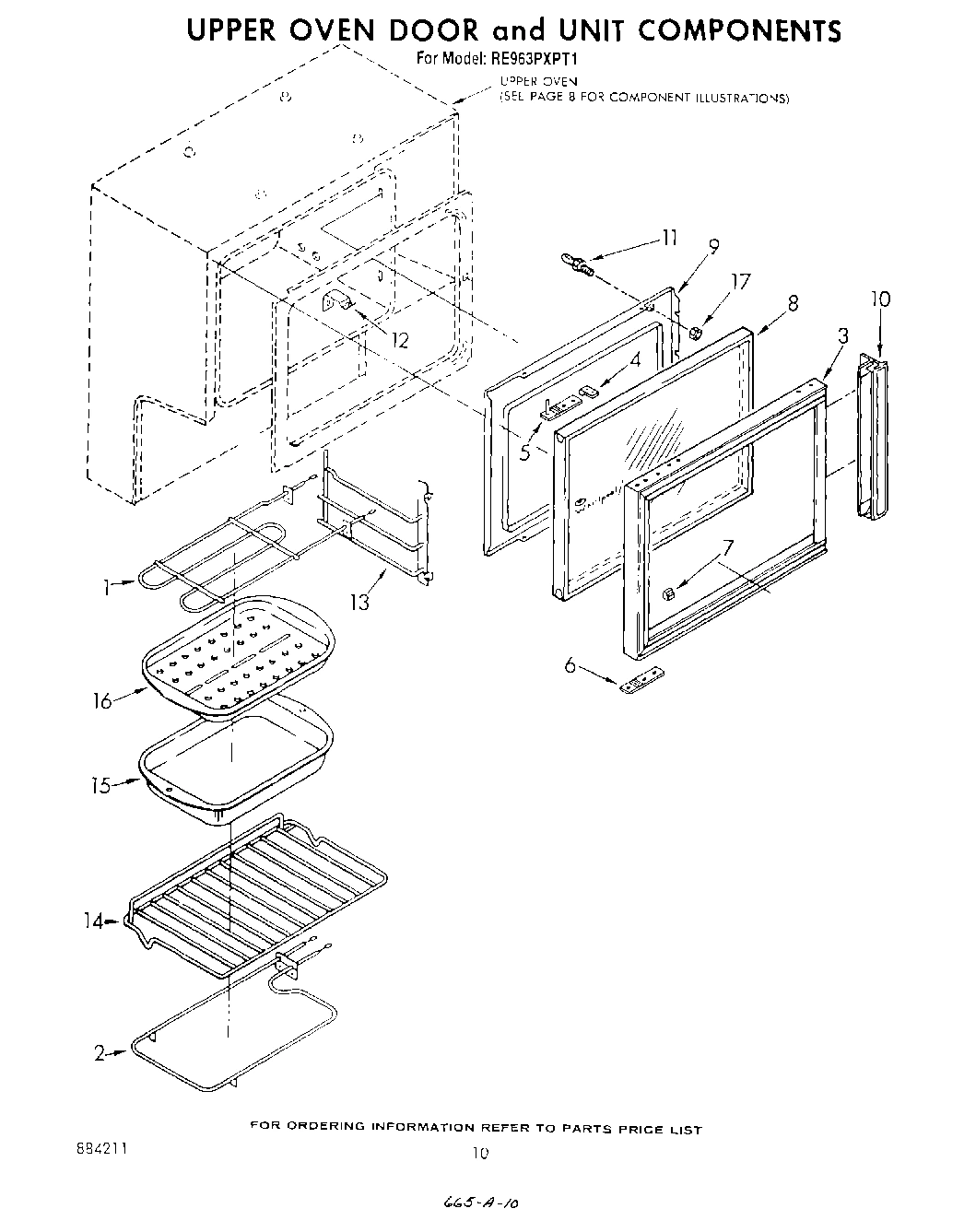

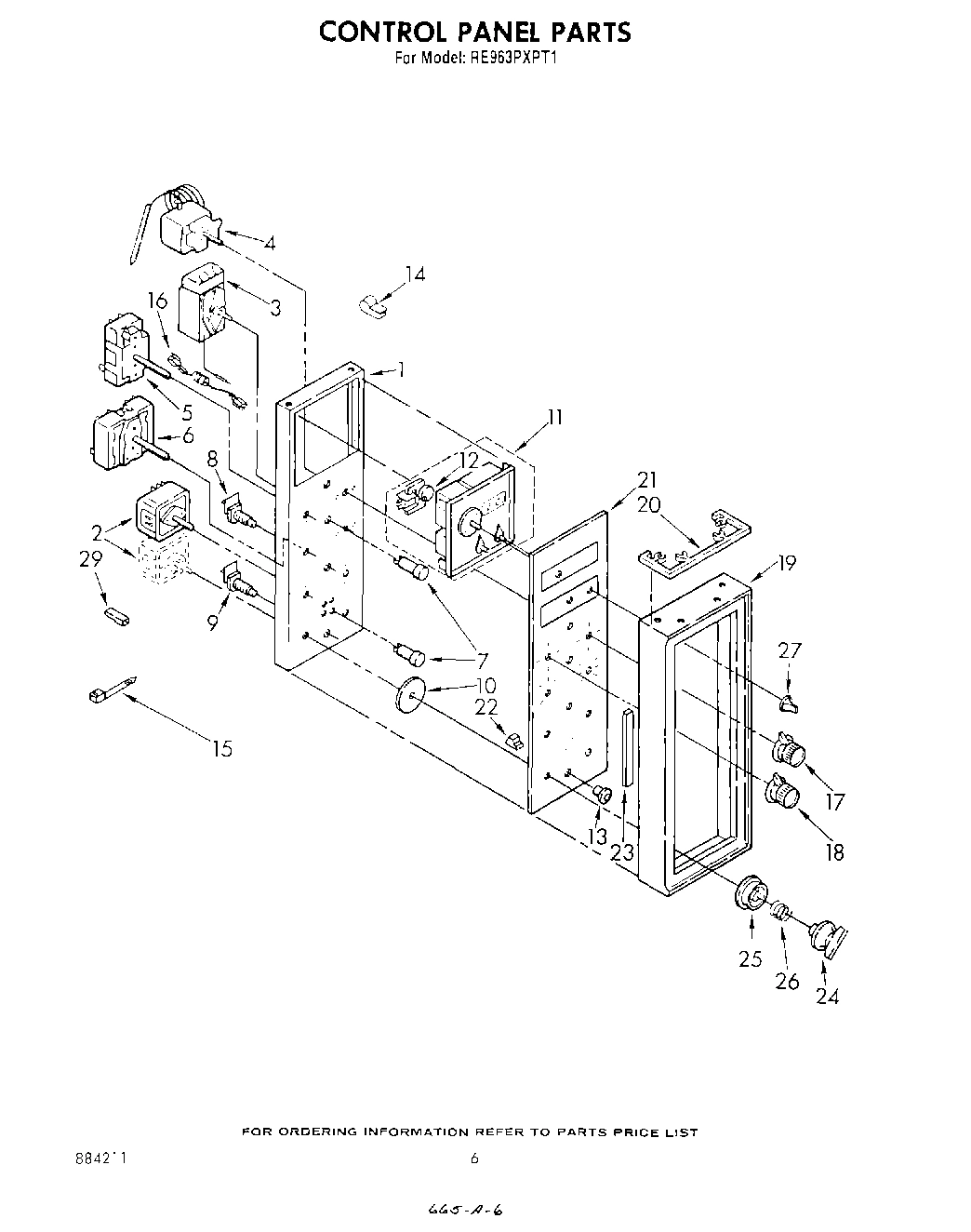

panel, control WPL 328247 Contact Us For Availability

1

unit, broil WPL 306138 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

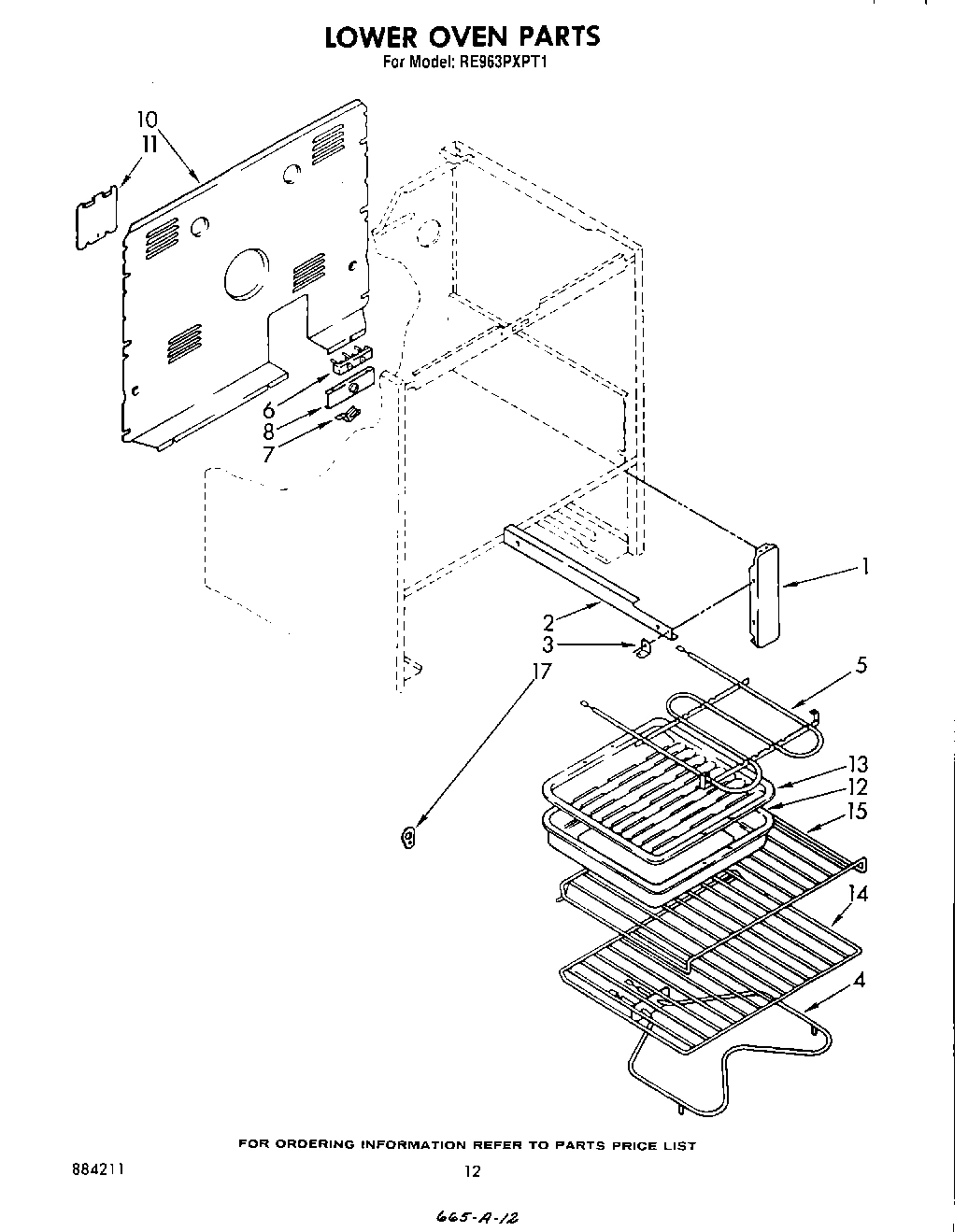

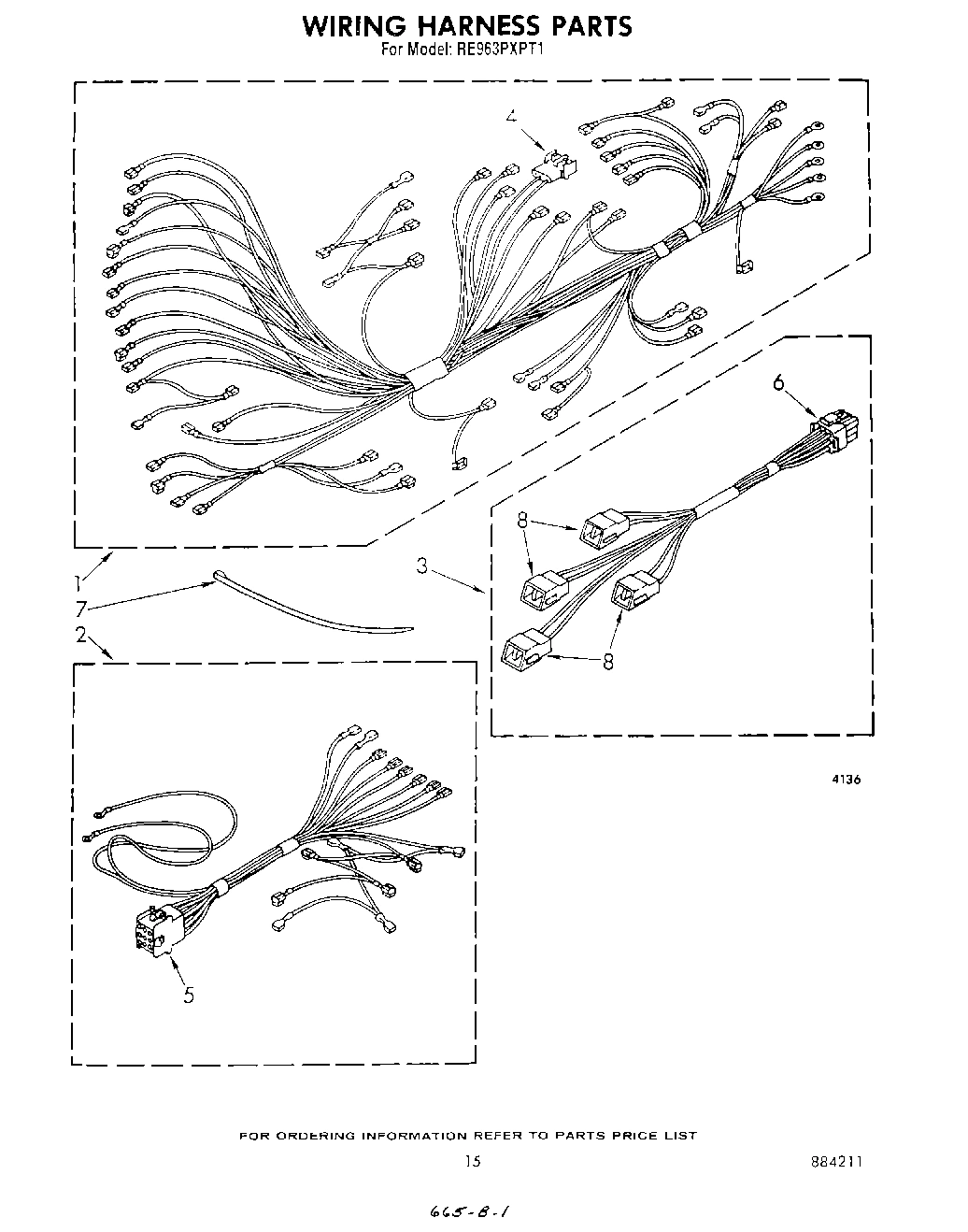

Harness, Wiring Main WPL 313586 Contact Us For Availability

1

Latch Assembly (Pyro) WPL 328585 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

switch, infinite (4) WPL 308475 Contact Us For Availability

2

unit, bake WPL 306083 Contact Us For Availability

2

Rail R.H. (Includes Illus. 3) WPL 307982 Contact Us For Availability

2

rail l.h. (includes illus. 3) WPL 307983 Contact Us For Availability

2

Harness, Wiring Infinite Switch WPL 311177 Contact Us For Availability

2

Safety Switch WPL 308185 Contact Us For Availability

2

Screw (2) WPL 98106 Contact Us For Availability

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Thermostat, Oven (Pyro) WPL 310022 Contact Us For Availability

3

Frame, Door WPL 312786 Contact Us For Availability

3

Glide, Front (2) WPL 307979 Contact Us For Availability

3

Harness Wiring (Surface Unit) WPL 311176 Contact Us For Availability

3

Insulator, Switch WPL 309245 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

shield, upper oven WPL 309246 Contact Us For Availability

4

Thermostat (Upper Oven) WPL 308787 Contact Us For Availability

4

Broil Stop WPL 309090 Contact Us For Availability

4

Frame, Front WPL 330166 Contact Us For Availability

4

Connector Housing WPL 309105 Contact Us For Availability

4

Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability

4

Shield, Latch Terminal WPL 313035 Contact Us For Availability

5

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

5

latch plate (upper oven) WPL 309536 Contact Us For Availability

5

Switch, Selector (4 Position) WPL 310350 Contact Us For Availability

5

Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability

5

plate, hinge WPL 328181 Contact Us For Availability

5

Pin, Hinge (2) WPL 307985 Contact Us For Availability

5

Screw (2) WPL 311056 Contact Us For Availability

5

Cap, Female WPL 309409 Contact Us For Availability

5

Handle, Latch WPL 307976 Contact Us For Availability

5

Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

6

screw, 10-24 x 3/8 (2) WPL 246076 Contact Us For Availability

6

bracket, hinge WPL 328182 Contact Us For Availability

6

Screw, 8-32 x 3/16 (2) WPL 308119 Contact Us For Availability

6

Switch, Selector (Pyro) WPL 310007 Contact Us For Availability

6

Washer WPL 138479 Contact Us For Availability

6

Screw, 10-24 x 1/2 WPL 247326 Contact Us For Availability

6

plate hinge plated (2) WPL 306260 Contact Us For Availability

6

Snubber, Door (2) WPL 309111 Contact Us For Availability

6

Plug, Male WPL 309406 Contact Us For Availability

6

Knob, Latch WPL 307977 Contact Us For Availability

7

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

7

Bumper (4) WPL 312783 Contact Us For Availability

7

Bottom Panel WPL 313330 Contact Us For Availability

7

light, indicator 250v (8) WPL 311550 Contact Us For Availability

7

Cushion, Window (9) WPL 311599 Contact Us For Availability

7

Pushnut (2) WPL 308306 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

7

Burner Box WPL 307929 Contact Us For Availability

8

Socket Assembly R.H. WPL 313137 Contact Us For Availability

8

Socket Assembly L.H. WPL 313138 Contact Us For Availability

8

Switch, Fluorescent Light WPL 312370 Contact Us For Availability

8

window, oven door WPL 312517 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

8

Bracket, Service WPL 307970 Contact Us For Availability

8

Shield, Wiring WPL 307973 Contact Us For Availability

9

baffle WPL 308090 Contact Us For Availability

9

nut, 3/8 x 27 WPL 255912 Contact Us For Availability

9

Switch, Oven Light WPL 308829 Contact Us For Availability

9

Liner, Door WPL 313791 Contact Us For Availability

9

Oven (30`` Pyro) WPL 329002 Contact Us For Availability

9

Rod, Cooktop WPL 307968 Contact Us For Availability

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

Bracket, Receptacle WPL 308839 Contact Us For Availability

Socket, Lamp (Alt.) WPL 307856 Contact Us For Availability

Socket, Lamp (Alt.) WPL 310208 Contact Us For Availability

Socket, Lamp WPL 660556 Contact Us For Availability

Skirt, Knob (4) WPL 308352 Contact Us For Availability

Screw, 8-A x 5/8 (2) WPL 309133 Contact Us For Availability

Handle, Connoisseur WPL 314133 Contact Us For Availability

Cover, Rear WPL 307971 Contact Us For Availability

Retainer, Cooktop WPL 307967 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

Timer, Digital (Includes Illus. 12) WPL 313519 Contact Us For Availability

Strike, Door Catch WPL 313794 Contact Us For Availability

Cover, Service WPL 307972 Contact Us For Availability

Bracket, Cooktop (2) WPL 307965 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Support, Tubing R.H. WPL 313327 Contact Us For Availability

Support, Tubing L.H. WPL 313329 Contact Us For Availability

screw, 10a x 3/8 WPL 254217 Contact Us For Availability

Motor, Timer WPL 308594 Contact Us For Availability

spring, broil stop WPL 309091 Contact Us For Availability

Cover, Light WPL 308039 Contact Us For Availability

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

Gusset, R.H. WPL 312810 Contact Us For Availability

Gusset, L.H. WPL 312812 Contact Us For Availability

Bezel, Switch (2) WPL 313030 Contact Us For Availability

support, oven rack (2) WPL 306371 Contact Us For Availability

Retainer, Light WPL 308038 Contact Us For Availability

Cooktop (Chrome) WPL 309922 Contact Us For Availability

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

panel, side l.h. (almond panel, side r.h.) WPL 312453 Contact Us For Availability

Panel, Side L.H. (Almond) WPL 312461 Contact Us For Availability

Strain, Relief WPL 308609 Contact Us For Availability

rack, upper oven WPL 306672 Contact Us For Availability

Switch, Broil WPL 310643 Contact Us For Availability

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Panel, Top (Almond) WPL 313798 Contact Us For Availability

Switch, Bake WPL 310644 Contact Us For Availability

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

Handle, Oven Door WPL 312722 Contact Us For Availability

bolt (2) WPL 306280 Contact Us For Availability

Nut, Retainer (2) WPL 306381 Contact Us For Availability

support, oven WPL 327917 Contact Us For Availability

Resistor & Terminal Assembly WPL 328923 Contact Us For Availability

Channel, Arm (2) WPL 329710 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

W10854470 Whirlpool Trim Ring Backorder WPL W10854470 $29.99

W10858781 Whirlpool Trim Ring Backorder WPL W10858781 $31.11

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

Knob, Thermostat (2) WPL 328709 Contact Us For Availability

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Plug Button WPL 257314 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Rotisserie Kit (RCK 81) WPL 242985 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261810 WPL 261810 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 311982 WPL 311982 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

W10291024 Whirlpool Range Cooktop Gray Porcel In Stock WPL W10291024 $30.20

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

Screw WPL 310410 Contact Us For Availability

Knob, Selector WPL 328707 Contact Us For Availability

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $15.88

WPY04100165 Whirlpool Surface Element In Stock WPL WPY04100165 $35.36

Screw, 10A x 2 WPL 161463 Contact Us For Availability

Frame, Control Panel WPL 312785 Contact Us For Availability

Vent, Oven WPL 307961 Contact Us For Availability

Unit, Surface (8`` (208V) (2)) WPL 834645 Contact Us For Availability

Unit, Surface (8`` (208V) (2) (Includes Illus WPL 834647 Contact Us For Availability

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability

filler, control panel WPL 308660 Contact Us For Availability

Medallion (4) WPL 256904 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

WP75614 Whirlpool Connector Backorder WPL WP75614 $2.51

Panel, Backguard WPL 313577 Contact Us For Availability

Glass, Control Panel WPL 313516 Contact Us For Availability

retainer, glass (10) WPL 306393 Contact Us For Availability

Screw, 10A x 1/2 WPL 307748 Contact Us For Availability

Ring, Retainer (2) WPL 307594 Contact Us For Availability

Shield, Insulation WPL 312320 Contact Us For Availability

23

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $12.59

23

Seal, Foam WPL 308298 Contact Us For Availability

23

Clamp, Tube WPL 313570 Contact Us For Availability

24

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

24

Knob, Control (4) WPL 313307 Contact Us For Availability

Switch, Door WPL 310345 Contact Us For Availability

End Trim R.H. (Screw, 10A x 1/2 (4)) WPL 246134 Contact Us For Availability

End Trim R.H. (Almond End Trim L.H.) WPL 330197 Contact Us For Availability

End Trim R WPL 330203 Contact Us For Availability

bezel control knob (4) WPL 308350 Contact Us For Availability

26

WPL 313320 WPL 313320 Contact Us For Availability

26

spring, bezel (4) WPL 308348 Contact Us For Availability

27

WP3169181 Whirlpool Knob In Stock WPL WP3169181 $9.28

27

WP95292 Whirlpool Fluorescent Light Bulb Backorder WPL WP95292 $48.64

27

Spring (3) WPL 313311 Contact Us For Availability

28

WPL 313322 WPL 313322 Contact Us For Availability

29

WPL 313321 WPL 313321 Contact Us For Availability

29

Housing, Receptical WPL 307772 Contact Us For Availability

30

WPL 306615 WPL 306615 Contact Us For Availability

31

WPL 312331 WPL 312331 Contact Us For Availability

31

WPL 327916 WPL 327916 Contact Us For Availability

32

WPL 308112 WPL 308112 Contact Us For Availability

WPL 309507 WPL 309507 Contact Us For Availability

Ballast (Alt.) WPL 346772 Contact Us For Availability

Ballast WPL 660001 Contact Us For Availability

Ballast (Alt.) WPL 685591 Contact Us For Availability

34

WPL 313319 WPL 313319 Contact Us For Availability

34

Screw, 8-32 x 5/16 (2) WPL 310210 Contact Us For Availability

34

Locator, Cooktop (2) WPL 311909 Contact Us For Availability

35

WPL 313793 WPL 313793 Contact Us For Availability
