Model Whirlpool RE960PXYN0 – Common Parts & Diagrams
01 - SPLASHER AND COOKTOP
02 - LOWER OVEN

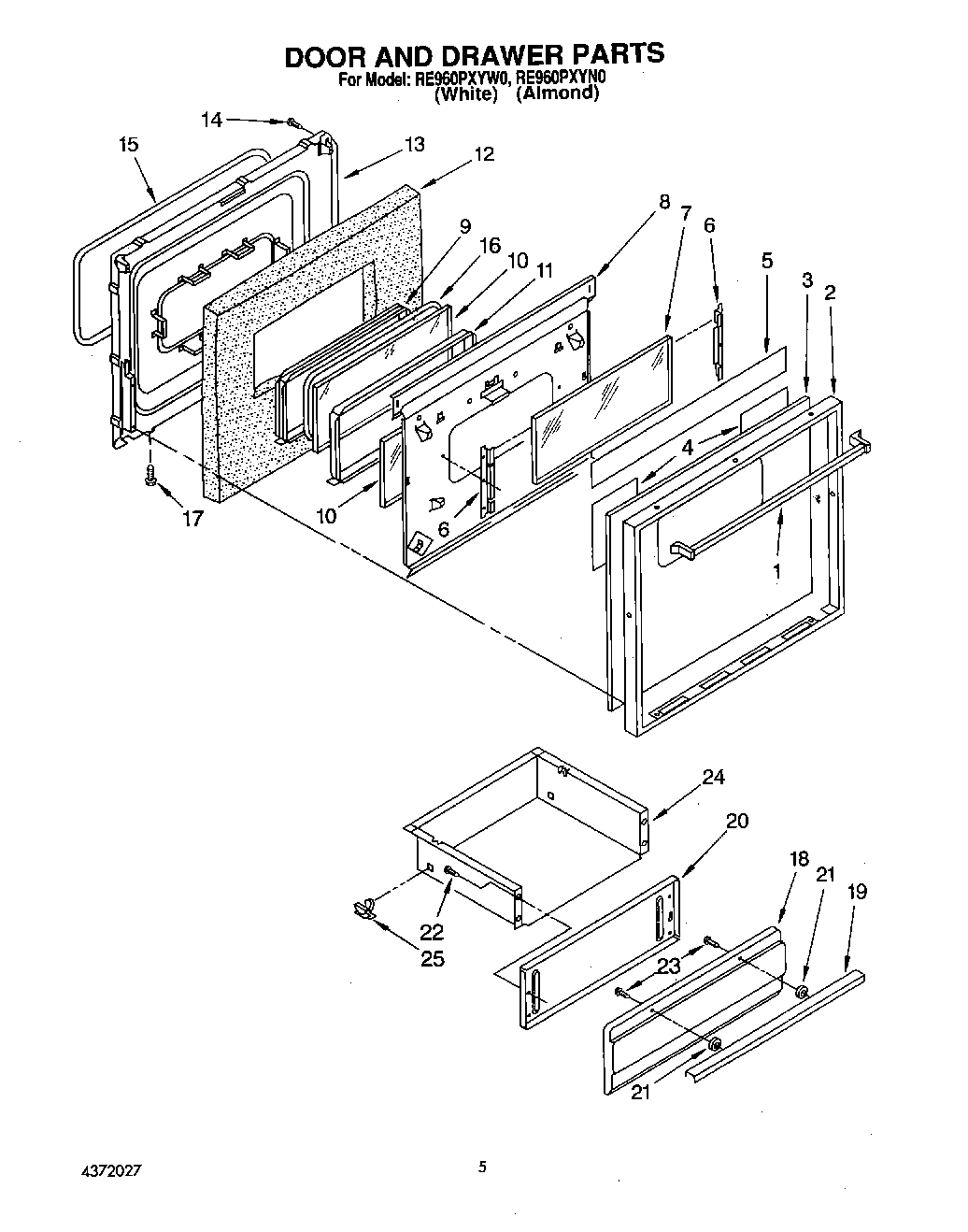

03 - DOOR AND DRAWER

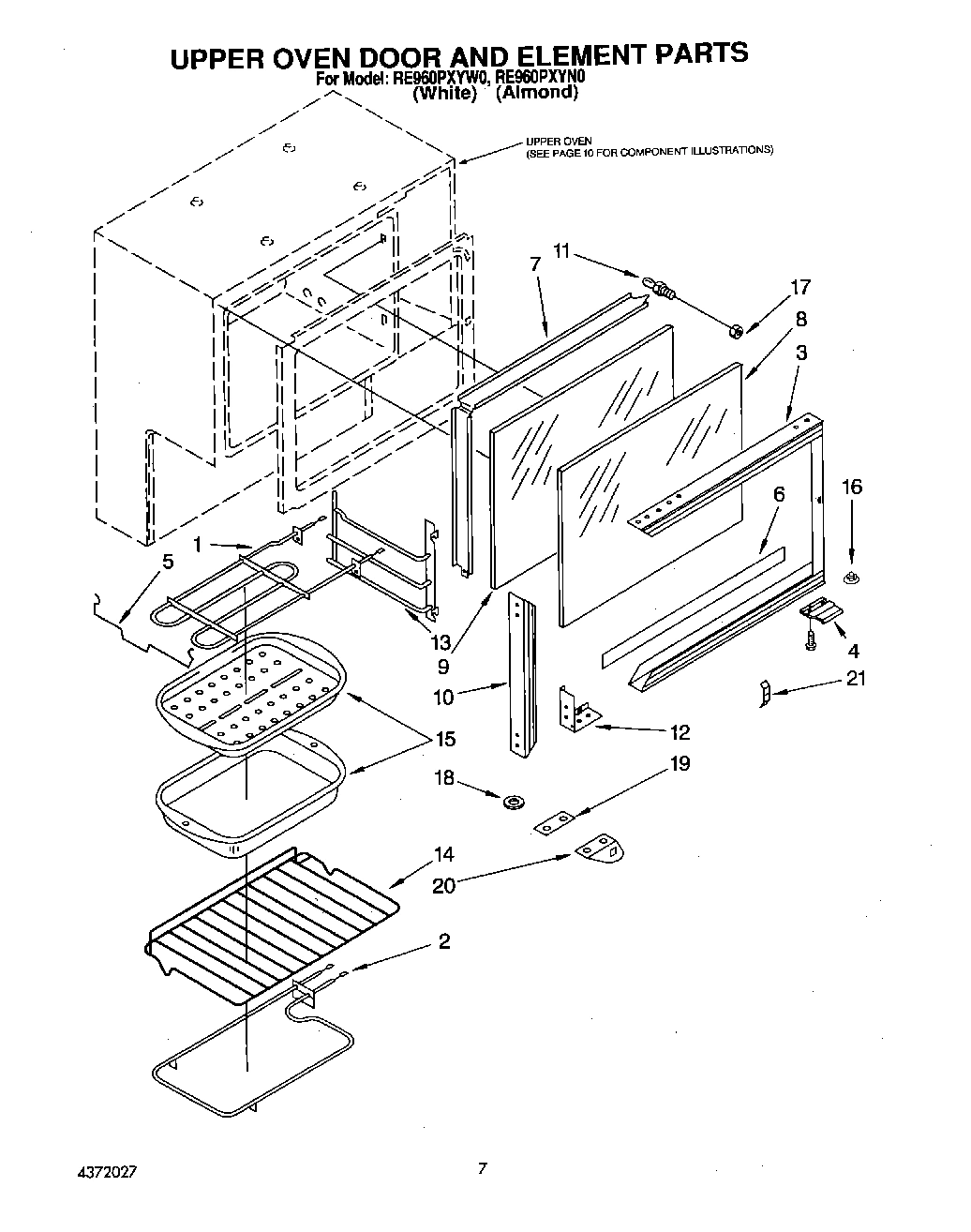

05 - UPPER OVEN DOOR AND ELEMENT

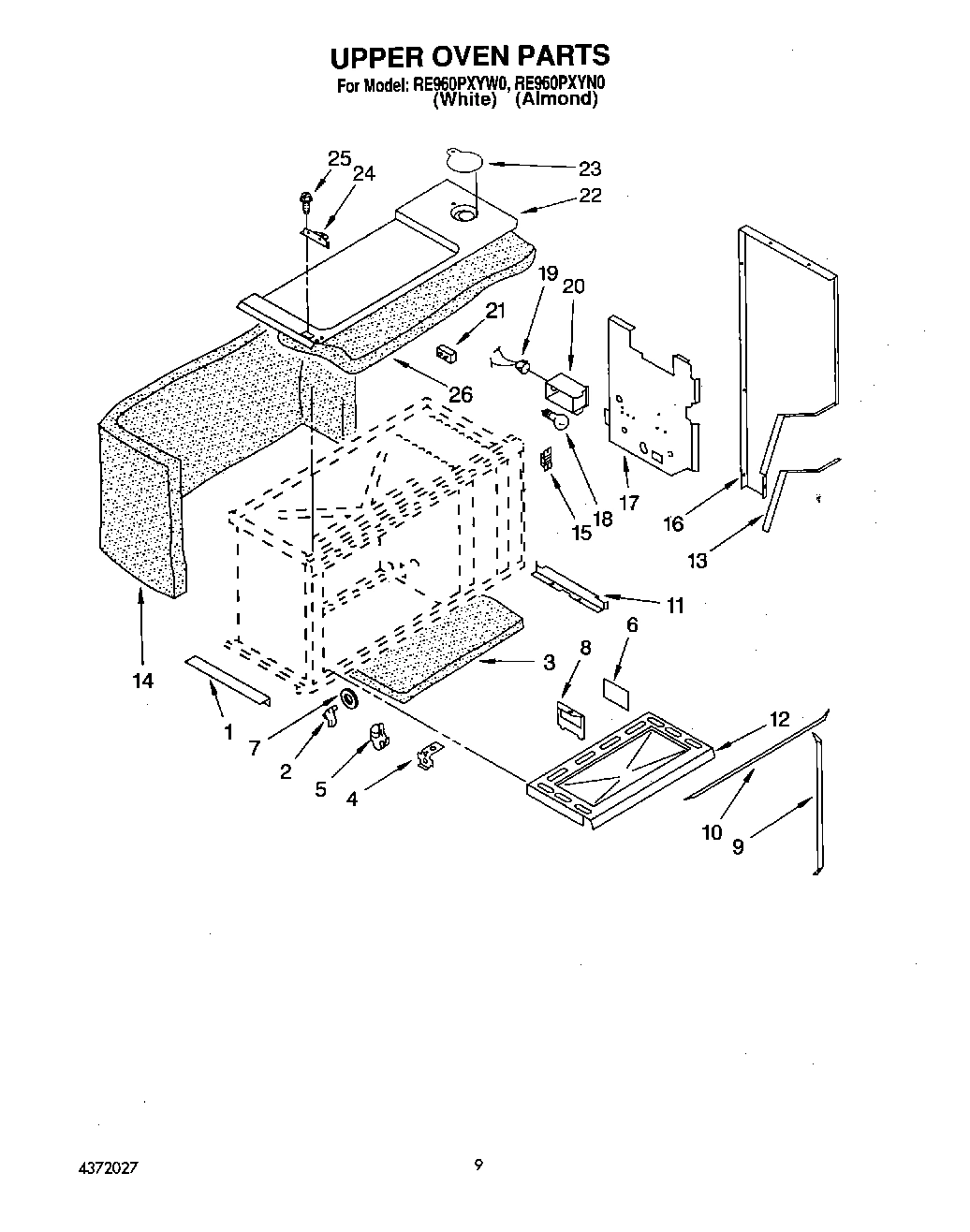

06 - UPPER OVEN

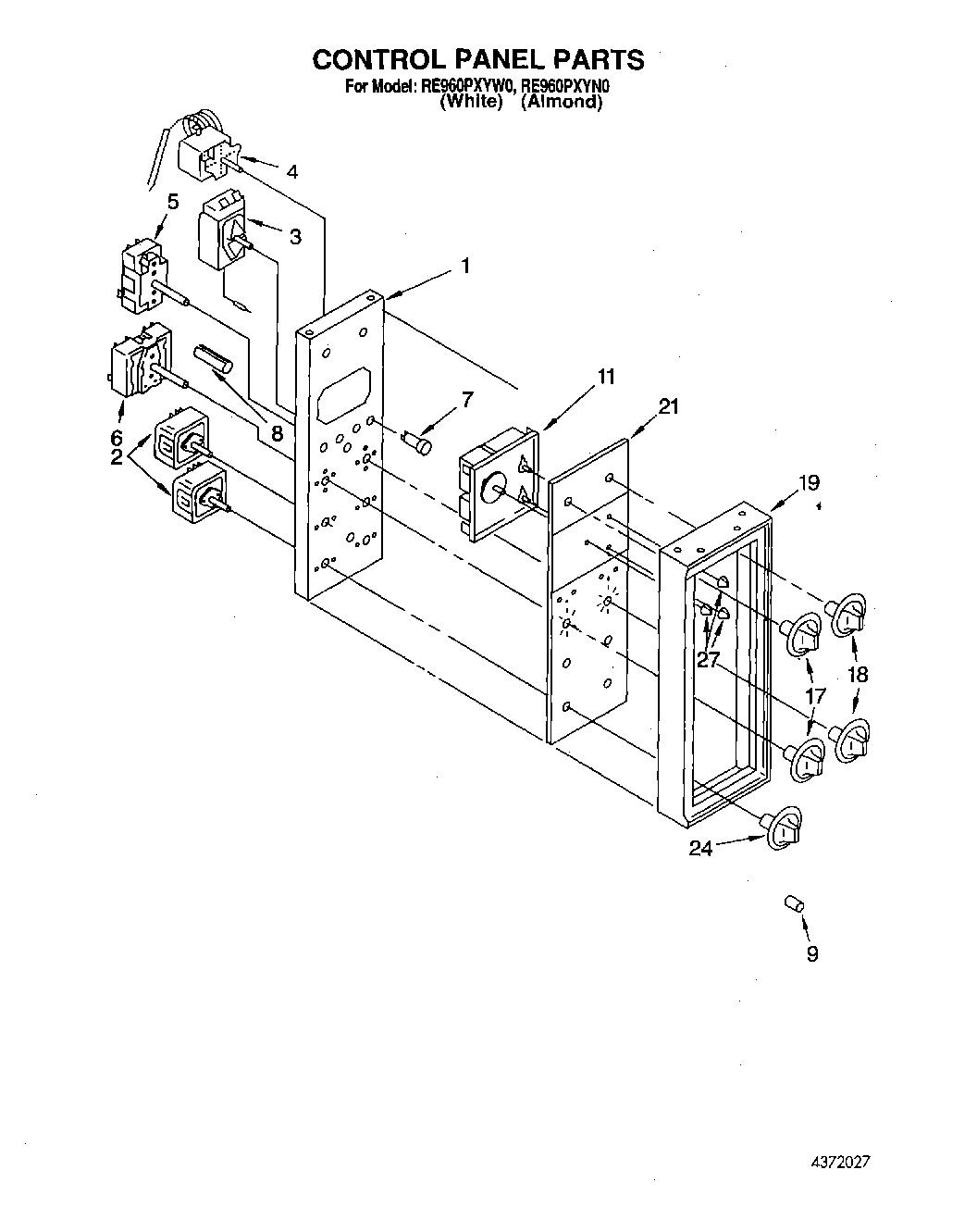

04 - CONTROL PANEL

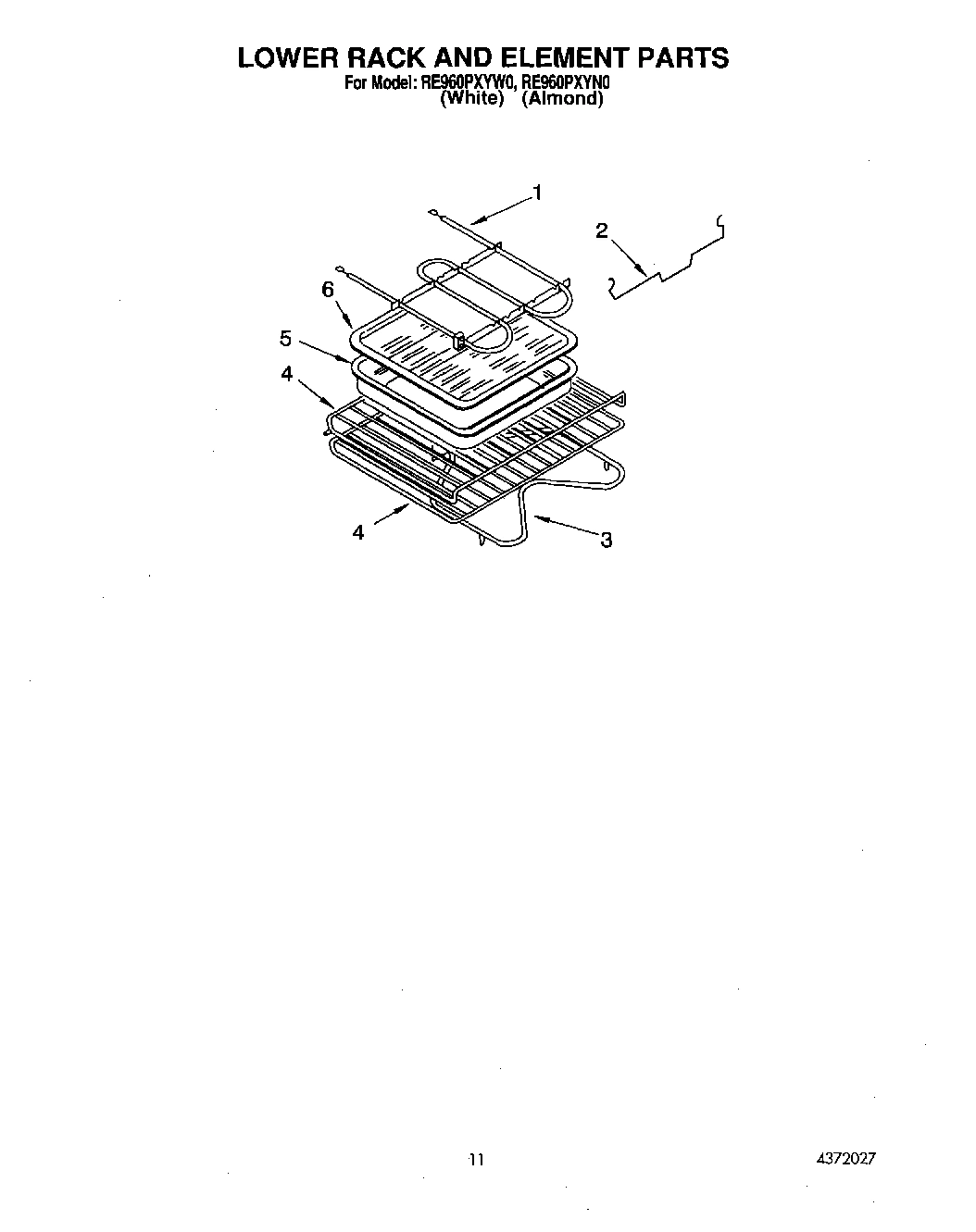

07 - LOWER RACK AND ELEMENT, LITERATURE
Common parts from model Whirlpool RE960PXYN0
Instructions, Installation WPL LIT4371665 Contact Us For Availability
Tech Sheet WPL LIT4371666 Contact Us For Availability
Guide, Use & Care WPL LIT4371667 Contact Us For Availability
List, Repair Parts WPL LIT4372027 Contact Us For Availability
1
Spacer, Body (8) WPL 816669 Contact Us For Availability
1
Handle, Oven Door WPL 4371944 Contact Us For Availability
1
Element, Broil WPL 4371976 Contact Us For Availability
1
Support, Side (2) WPL 4371974 Contact Us For Availability
1
Panel, Control Mtg WPL 4371987 Contact Us For Availability
1
Element, Broiler WPL 4371899 Contact Us For Availability
2
Reflector WPL 4371241 Contact Us For Availability
2
Shield, Rear Wall WPL 4371940 Contact Us For Availability
2
Trim, Door WPL 816688 Contact Us For Availability
2
Element, Bake WPL 4371977 Contact Us For Availability
2
Hinge, Door WPL 4371213 Contact Us For Availability
2
Support, Broiler WPL 4371900 Contact Us For Availability
3
Plug, Button WPL 4371905 Contact Us For Availability
3
Glass, Door WPL 816680 Contact Us For Availability
3
Frame, Door WPL 4371860 Contact Us For Availability
3
Screw, Frame (12) WPL 4372002 Contact Us For Availability
3
Insulation, Bottom WPL 4371980 Contact Us For Availability
3
Thermostat, Oven (Lower Oven) WPL 4371991 Contact Us For Availability
3
Element, Bake WPL 4371913 Contact Us For Availability
4
Insulator (2) WPL 4371200 Contact Us For Availability
4
Foil, Alum. (2) WPL 816674 Contact Us For Availability
4
Handle, Door WPL 4371186 Contact Us For Availability
4
Plate, Bottom Hinge WPL 4371222 Contact Us For Availability
4
Thermostat, Oven (Upper Oven) WPL 4371990 Contact Us For Availability
4
Rack, Oven (2) WPL 4371483 Contact Us For Availability
5
Receptacle (2) WPL 4371870 Contact Us For Availability
5
Foil, Alum. WPL 816675 Contact Us For Availability
5
Support, Broiler WPL 4371994 Contact Us For Availability
5
Clip, Thermostat Bulb (2) WPL 4371482 Contact Us For Availability
5
Switch, Selector (Upper,5 Position) WPL 4371989 Contact Us For Availability
5
Pan, Broiler WPL 816644 Contact Us For Availability
6
Vent, Trim WPL 4371926 Contact Us For Availability
6
Retainer, Lens WPL 4371621 Contact Us For Availability
6
Bracket, Glass WPL 816676 Contact Us For Availability
6
Spacer, Glass WPL 4371188 Contact Us For Availability
6
Glass, Oven Light Lens WPL 4371211 Contact Us For Availability
6
Switch, Selector (Lower,6 Position) WPL 4371988 Contact Us For Availability
6
Insert, Broiler Pan WPL 816626 Contact Us For Availability
7
Support, Oven (Right Hand) WPL 4371245 Contact Us For Availability
7
Support, Oven (Left Hand) WPL 4371246 Contact Us For Availability
7
Lens, Oven Light WPL 816609 Contact Us For Availability
7
Glass, Oven Door WPL 816679 Contact Us For Availability
7
Spacer, Glass (2) WPL 4371187 Contact Us For Availability
7
Washer, Hinge (2) WPL 816607 Contact Us For Availability
7
Light, Indicator (Clean/Lock/Surface 125V (3) WPL 4371053 Contact Us For Availability
7
Light, Indicator (Oven Indicator 250V (2)) WPL 4371917 Contact Us For Availability
8
Hinge, Oven Door WPL 4371143 Contact Us For Availability
8
Shield, Heat WPL 4371253 Contact Us For Availability
8
Glass, Outer WPL 4371183 Contact Us For Availability
8
Cover, Oven Lens WPL 4371207 Contact Us For Availability
8
Fastener, Clock (3) WPL 4371208 Contact Us For Availability
9
Glass, Splasher WPL 4371193 Contact Us For Availability
9
Cover, Hinge (2) WPL 816617 Contact Us For Availability
9
Collar, Glass WPL 816677 Contact Us For Availability
9
Glass, Inner WPL 4371184 Contact Us For Availability
9
Seal, Door Side WPL 4371993 Contact Us For Availability
9
Bushing WPL 4371205 Contact Us For Availability
10
Splasher, Panel (Upper) WPL 4371869 Contact Us For Availability
10
Shield, Heat (Lower) WPL 4371908 Contact Us For Availability
10
Glass, Heat Barrier (2) WPL 816681 Contact Us For Availability
10
End, Door Frame WPL 4371859 Contact Us For Availability
10
Seal, Door Top/Bottom WPL 4371992 Contact Us For Availability
11
Ballast WPL 4371178 Contact Us For Availability
11
Shield, Insulation WPL 4371907 Contact Us For Availability
11
Spacer, Glass WPL 816687 Contact Us For Availability
11
Strike, Door WPL 4371862 Contact Us For Availability
11
Glide, Oven Bottom WPL 4371212 Contact Us For Availability
11
Clock, Timer WPL 4371215 Contact Us For Availability
12
Thermostat, S/C WPL 4371997 Contact Us For Availability
12
Insulation, Door WPL 816682 Contact Us For Availability
12
Support, Corner (2) WPL 4371185 Contact Us For Availability
12
Bottom, Oven WPL 4371975 Contact Us For Availability
13
Bracket, Thermostat WPL 4371176 Contact Us For Availability
13
Trim, Side (Left Hand) WPL 4371248 Contact Us For Availability
13
Trim, Side (Right Hand) WPL 4371249 Contact Us For Availability
13
Switch, Latch WPL 4371973 Contact Us For Availability
13
Liner, Oven Door WPL 816683 Contact Us For Availability
13
Glide, Oven Rack (2) WPL 4371863 Contact Us For Availability
14
Screw, Handle WPL 4371542 Contact Us For Availability
14
Rack, Upper Oven WPL 4371238 Contact Us For Availability
14
Insulation, Back & Sides WPL 4371981 Contact Us For Availability
15
Trim, Upper Oven Spl. Filler WPL 4371255 Contact Us For Availability
15
Clip, Thermo Bulb WPL 4371190 Contact Us For Availability
15
Seal, Oven Door WPL 816685 Contact Us For Availability
15
Catch, Door WPL 4371206 Contact Us For Availability
16
Fastener, Cable WPL 4371996 Contact Us For Availability
16
Back, Main WPL 816581 Contact Us For Availability
16
Seal, Rope WPL 816684 Contact Us For Availability
16
Button, Wear WPL 4371861 Contact Us For Availability
16
Panel, Back Side (Right (White)) WPL 4371262 Contact Us For Availability
16
Panel, Back Side (Left (White)) WPL 4371263 Contact Us For Availability
16
Panel, Back Side (Right (Almond)) WPL 4371272 Contact Us For Availability
16
Panel, Back Side (Left (Almond)) WPL 4371273 Contact Us For Availability
17
Rod, Light WPL 816649 Contact Us For Availability
17
Screw, Liner (3) WPL 4371946 Contact Us For Availability
17
Nut, Hex WPL 816642 Contact Us For Availability
17
Shield, Wool Upper Oven WPL 4371226 Contact Us For Availability
17
Knob, Thermostat (Upper) WPL 4371982 Contact Us For Availability
17
Knob, Thermostat (Lower) WPL 4371983 Contact Us For Availability
18
Bumper, Front (4) WPL 816608 Contact Us For Availability
18
Panel, Drawer WPL 816715 Contact Us For Availability
18
Knob, Selector (Lower, 6 Position) WPL 4371984 Contact Us For Availability
18
Knob, Selector (Upper, 5 Position) WPL 4371986 Contact Us For Availability
19
Starter, Receptacle WPL 4371239 Contact Us For Availability
19
Cover, Rod End WPL 4371682 Contact Us For Availability
19
Handle, Utility Drawer WPL 4371060 Contact Us For Availability
19
Frame, Control Panel WPL 4371865 Contact Us For Availability
20
Starter WPL 4371243 Contact Us For Availability
20
Switch, Door WPL 816671 Contact Us For Availability
20
Shield, Panel WPL 816716 Contact Us For Availability
20
Box, Upper Oven Light WPL 4371864 Contact Us For Availability
21
Panel, Manifold WPL 4371998 Contact Us For Availability
21
Bracket, Door Switch WPL 816587 Contact Us For Availability
21
Spacer, Handle WPL 816713 Contact Us For Availability
21
Strike, Door WPL 4371871 Contact Us For Availability
21
Fuse, Thermal Cut-Out WPL 4371978 Contact Us For Availability
21
Glass, Control Panel WPL 4371979 Contact Us For Availability
22
Top, Main (White) WPL 4371935 Contact Us For Availability
22
Top, Main (Almond) WPL 4371936 Contact Us For Availability
22
Shield, Rear Heat WPL 4371939 Contact Us For Availability
22
Screw, Panel (4) WPL 4371925 Contact Us For Availability
22
Top, Panel Upper Oven WPL 4371236 Contact Us For Availability
23
Rod, Support (2) WPL 4371039 Contact Us For Availability
23
Strap, Ground WPL 4371937 Contact Us For Availability
23
Cover, Outlet WPL 4371192 Contact Us For Availability
24
Bracket, Hinge (Left) WPL 816586 Contact Us For Availability
24
Bracket, Hinge (Right) WPL 816721 Contact Us For Availability
24
Clip, Wire WPL 4371999 Contact Us For Availability
24
Drawer, Utility WPL 4371671 Contact Us For Availability
24
Hinge, Door Top WPL 4371194 Contact Us For Availability
24
Knob, Control (4) WPL 4371985 Contact Us For Availability
25
Guide, Drawer (2) WPL 816712 Contact Us For Availability
25
Medallion WPL 4372026 Contact Us For Availability
25
Cover, Flue WPL 4371911 Contact Us For Availability
25
Screw, Shoulder (2) WPL 4372003 Contact Us For Availability
26
Knob, Latch WPL 4371144 Contact Us For Availability
26
Foil, Aluminum WPL 4371175 Contact Us For Availability
26
Insulation, Wool Splasher WPL 4371196 Contact Us For Availability
26
Insulation, Wool WPL 4371197 Contact Us For Availability
26
Bracket, Connector Mounting WPL 4371203 Contact Us For Availability
26
Insulation, Upper Oven WPL 4371217 Contact Us For Availability
26
Insulation, Wool WPL 4371218 Contact Us For Availability
26
Retainer, Oven Burner WPL 4371224 Contact Us For Availability
26
Strike, Door Align WPL 4371244 Contact Us For Availability
26
Insulation, Top WPL 4371995 Contact Us For Availability
27
Latch, Door WPL 816635 Contact Us For Availability
27
Knob, Clock (3) WPL 4371866 Contact Us For Availability
28
Pan, Surface (8`` (2)) WPL 4371445 Contact Us For Availability
28
Pan, Surface (6`` (2)) WPL 4371941 Contact Us For Availability
28
Handle, Latch WPL 4371265 Contact Us For Availability
29
Plate, Cover WPL 816615 Contact Us For Availability
30
Burner Box WPL 4371924 Contact Us For Availability
31
Nut, Hex (6) WPL 4371938 Contact Us For Availability
32
Shield, Latch WPL 816638 Contact Us For Availability
33
Insulation, Bottom WPL 4371906 Contact Us For Availability
34
Panel, Side (Almond RH) WPL 816672 Contact Us For Availability
34
Panel, Side (Almond LH) WPL 816695 Contact Us For Availability
34
Panel, Side (White RH) WPL 816708 Contact Us For Availability
34
Panel, Side (White LH) WPL 816709 Contact Us For Availability
35
Screw, Leveler (4) WPL 4371909 Contact Us For Availability
38
Insulation, Oven Back WPL 816630 Contact Us For Availability
39
Bottom, Oven WPL 4371904 Contact Us For Availability
41
Fuse, Thermal Cut-Out WPL 4372000 Contact Us For Availability
42
Spacer, Stud (2) WPL 816639 Contact Us For Availability
43
Shield, Latch WPL 816637 Contact Us For Availability
45
Shield, Side (2) WPL 816648 Contact Us For Availability
46
Cover, Lower Access WPL 4371949 Contact Us For Availability
47
Insulation, Oven Wrapper WPL 816629 Contact Us For Availability
48
Screw, Latch WPL 816653 Contact Us For Availability
49
Glide, Drawer (2) WPL 816621 Contact Us For Availability
50
Bracket, Anti-Tip WPL 816585 Contact Us For Availability
51
Insulation, Ov Top WPL 816628 Contact Us For Availability
54
Tube, Post (LH) WPL 4371257 Contact Us For Availability
55
Tube, Post (RH) WPL 4371258 Contact Us For Availability
57
Filter WPL 4371901 Contact Us For Availability
58
Tube, Oven Vent WPL 4371902 Contact Us For Availability
59
Retainer, Filter WPL 4371903 Contact Us For Availability
× ![]()
