Model Whirlpool RE960PXVW3 – Common Parts &amp; Diagrams

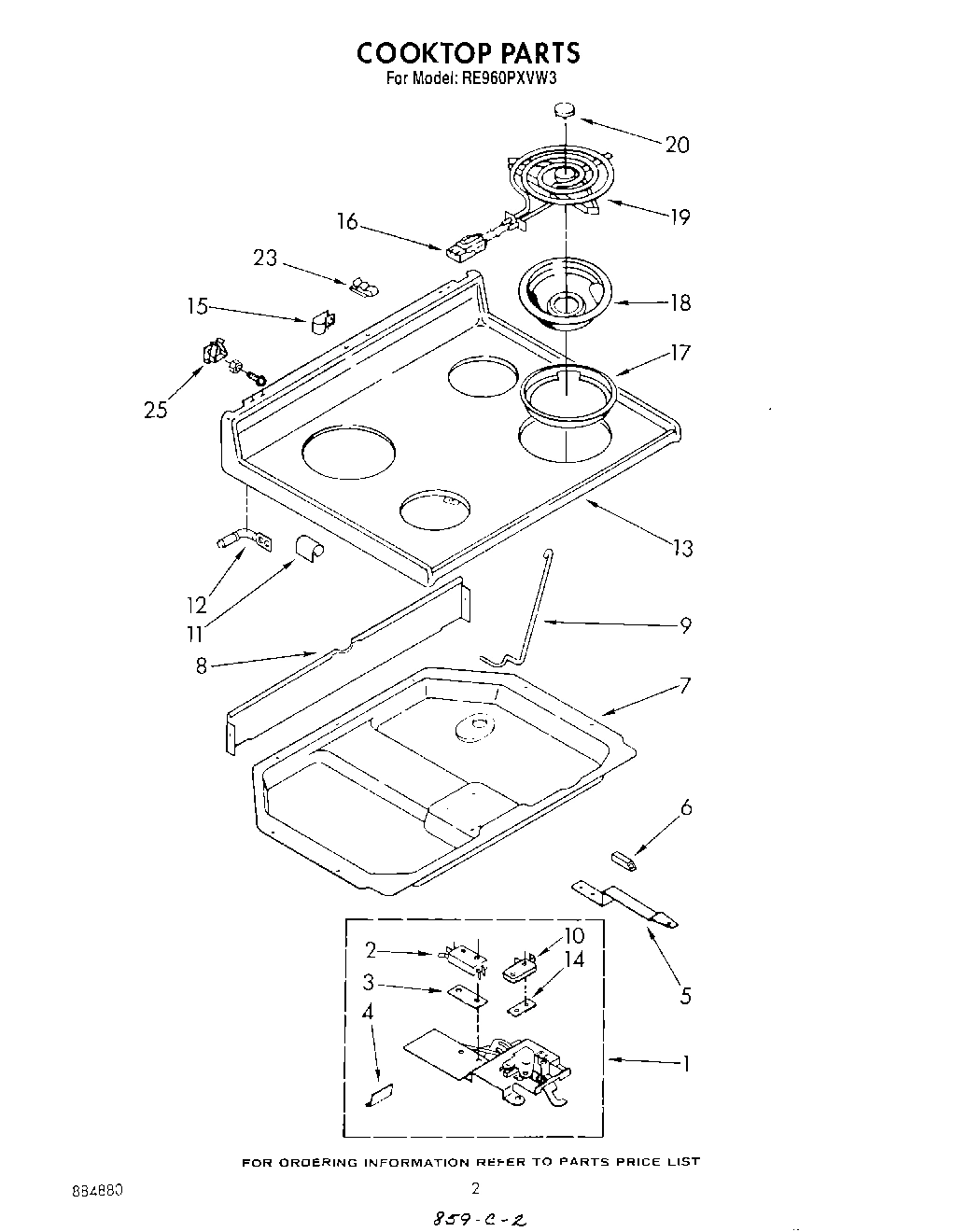

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $15.88

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WPL 312318 WPL 312318 Contact Us For Availability

WPL LIT3148614 WPL LIT3148614 Contact Us For Availability

WPL LIT3149507 WPL LIT3149507 Contact Us For Availability

WPL LIT3149606 WPL LIT3149606 Contact Us For Availability

WPL LIT3149926 WPL LIT3149926 Contact Us For Availability

WPL LIT884880 WPL LIT884880 Contact Us For Availability

Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

Latch Assembly (Pyro) WPL 3171148 Contact Us For Availability

1

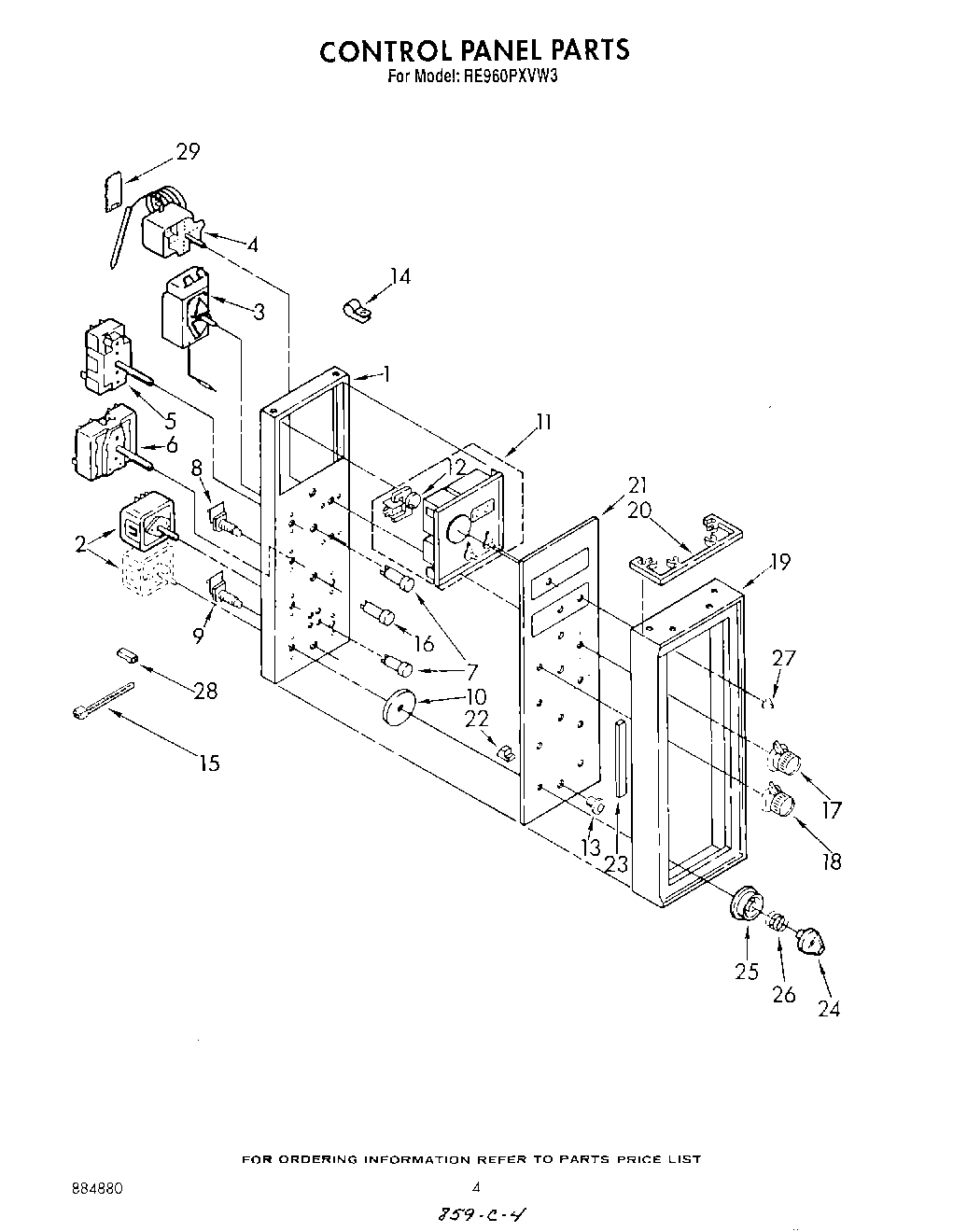

Panel, Control WPL 3170226 Contact Us For Availability

1

Liner, Door WPL 3172218 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability

2

Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability

2

Safety Switch WPL 308185 Contact Us For Availability

2

Screw (2) WPL 98106 Contact Us For Availability

2

switch, infinite (4) WPL 308475 Contact Us For Availability

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Glide, Front (2) WPL 3149257 Contact Us For Availability

3

Insulator, Switch WPL 309245 Contact Us For Availability

3

Thermostat, Oven (Pyro) WPL 3148935 Contact Us For Availability

3

Seal, Flange (2) WPL 3148441 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

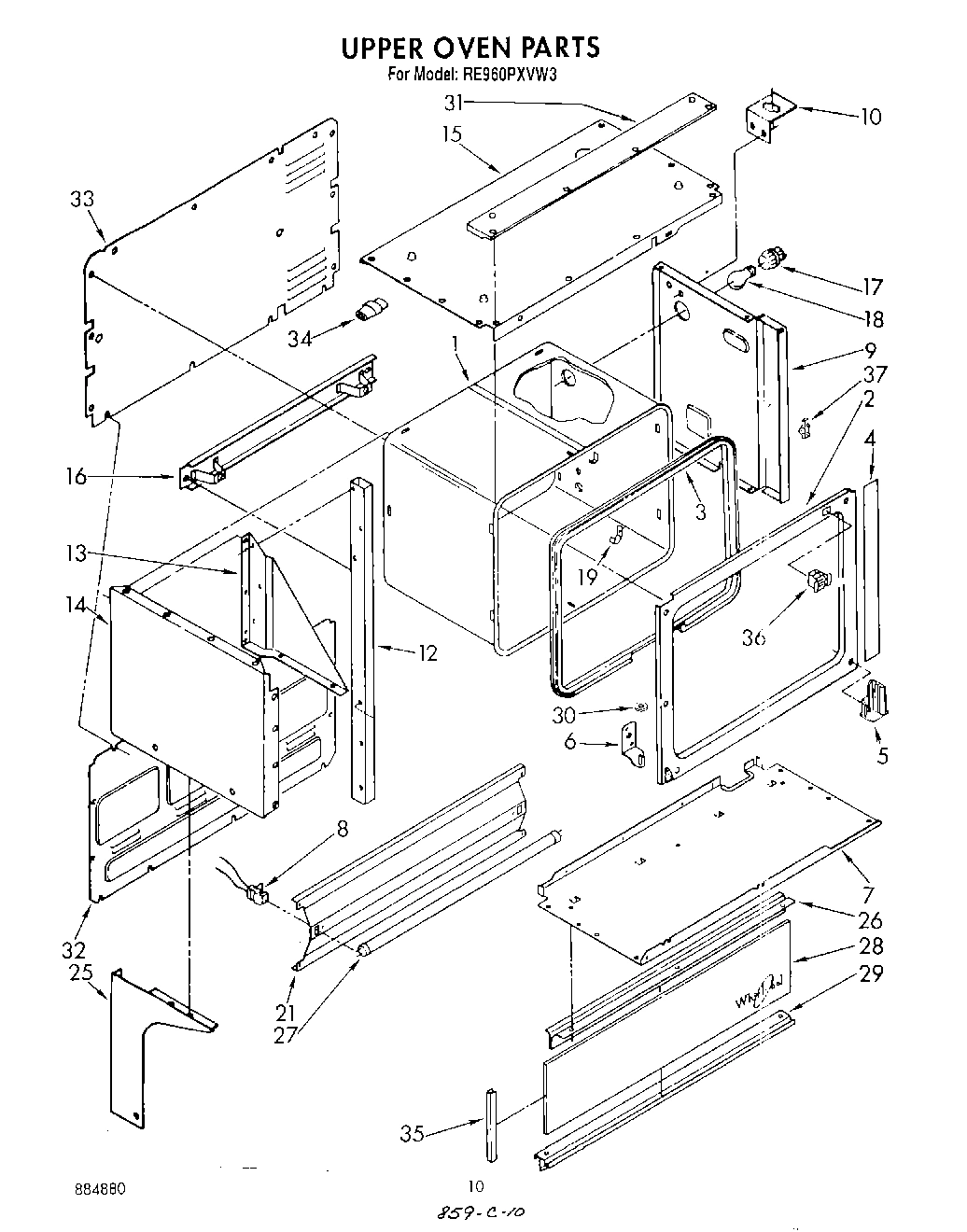

shield, upper oven WPL 309246 Contact Us For Availability

4

Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability

4

Shield, Latch Terminal WPL 313035 Contact Us For Availability

4

Thermostat (Upper Oven) WPL 308486 Contact Us For Availability

4

Glass, Reflective WPL 3148178 Contact Us For Availability

4

Frame, Front WPL 3172194 Contact Us For Availability

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

5

Seal, Window WPL 3148183 Contact Us For Availability

5

latch plate (upper oven) WPL 309536 Contact Us For Availability

5

Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability

5

Handle, Latch WPL 3147065 Contact Us For Availability

5

Switch, Selector (4 Position) WPL 310350 Contact Us For Availability

5

Pin, Hinge (2) WPL 307985 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

6

Knob, Latch WPL 3148684 Contact Us For Availability

6

screw, 10-24 x 3/8 (2) WPL 246076 Contact Us For Availability

6

bracket, hinge WPL 328182 Contact Us For Availability

6

Screw, 8-32 x 3/16 (2) WPL 308119 Contact Us For Availability

6

Switch, Selector (Pyro) WPL 310007 Contact Us For Availability

6

Retainer, Insulation WPL 3148159 Contact Us For Availability

6

Snubber, Door (2) WPL 309111 Contact Us For Availability

7

WP3169203 Whirlpool Door Glass Backorder WPL WP3169203 $58.10

7

Bumper (4) WPL 312783 Contact Us For Availability

7

Bottom Panel WPL 3149615 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

7

Box, Burner WPL 3150186 Contact Us For Availability

7

Light, Indicator 250V (6) WPL 311550 Contact Us For Availability

7

Pushnut (2) WPL 308306 Contact Us For Availability

8

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

8

Socket Assembly R.H. WPL 313137 Contact Us For Availability

8

Socket Assembly L.H. WPL 313138 Contact Us For Availability

8

Bracket, Service WPL 307970 Contact Us For Availability

8

Shield, Wiring WPL 307973 Contact Us For Availability

8

Switch, Fluorescent Light WPL 312370 Contact Us For Availability

8

Retainer, Reflective Glass WPL 3148187 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

9

Baffle WPL 3149602 Contact Us For Availability

9

Rod, Cooktop WPL 3148659 Contact Us For Availability

9

Switch, Oven Light WPL 312581 Contact Us For Availability

9

Washer WPL 312796 Contact Us For Availability

9

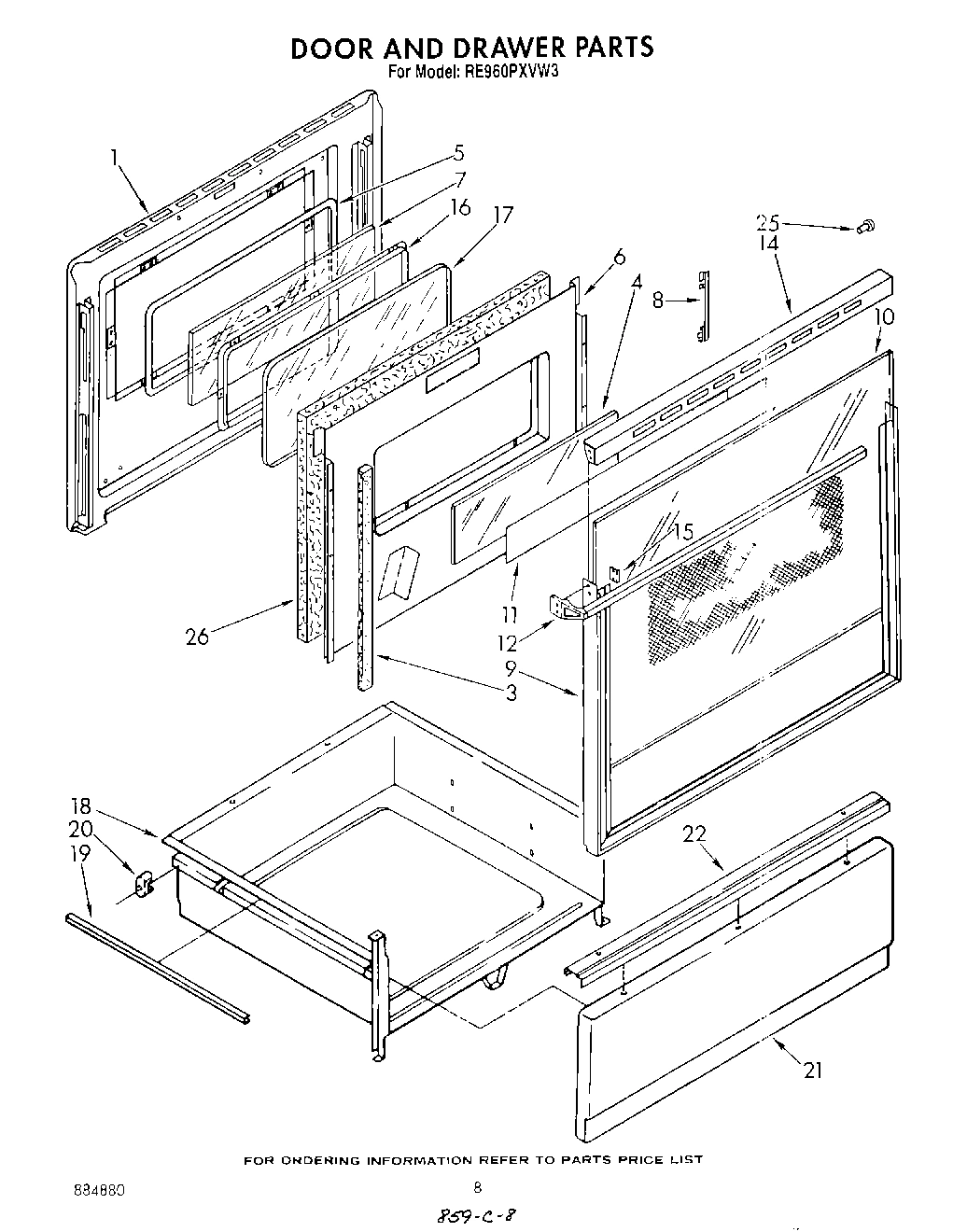

Frame, Oven Door WPL 3148235 Contact Us For Availability

9

Screw (3) WPL 311056 Contact Us For Availability

9

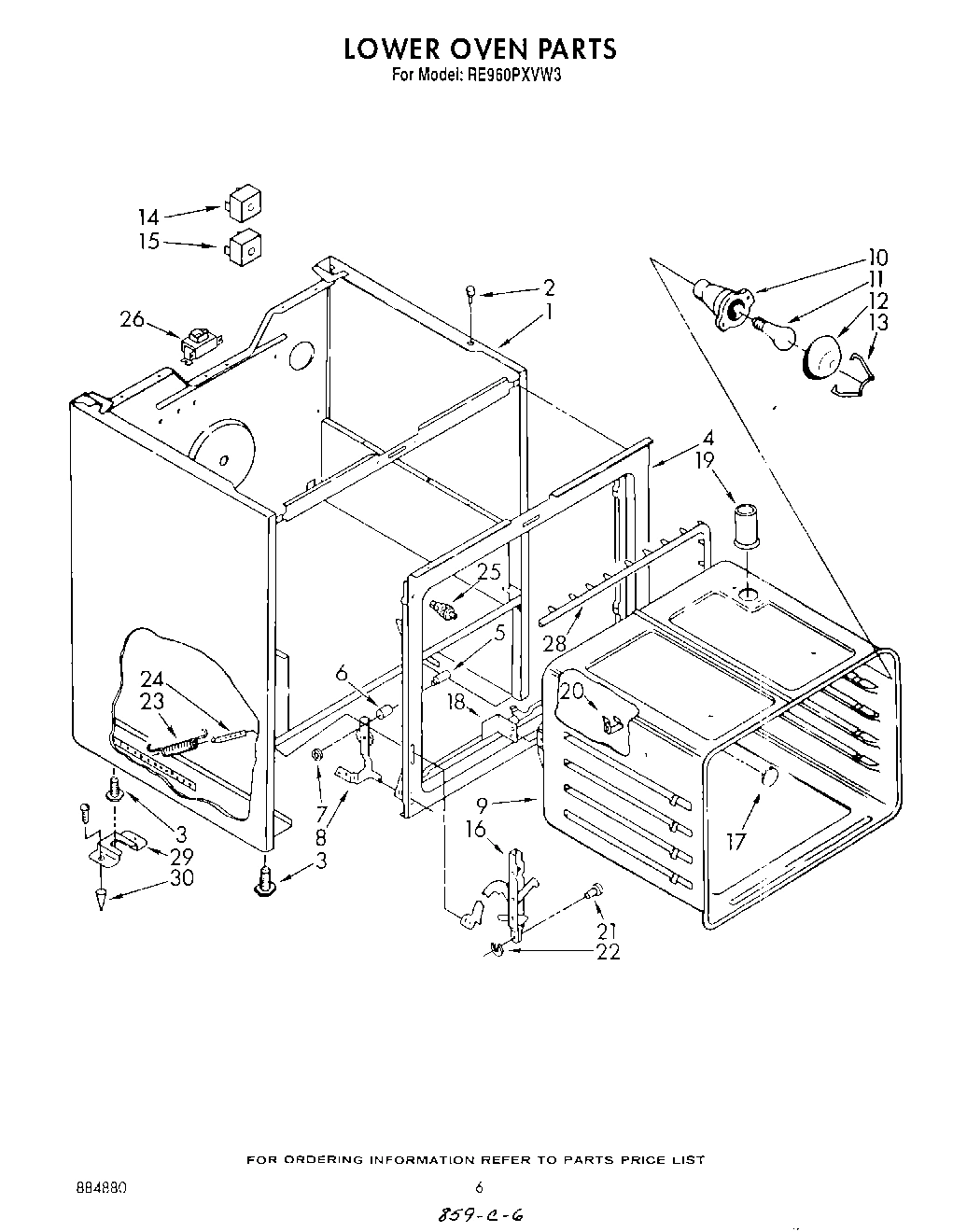

Oven (30`` Pyro) WPL 3172456 Contact Us For Availability

Bracket, Receptacle WPL 308839 Contact Us For Availability

Socket, Lamp (Alt.) WPL 307856 Contact Us For Availability

Socket, Lamp (Alt.) WPL 310208 Contact Us For Availability

Socket, Lamp WPL 660556 Contact Us For Availability

Cover, Rear WPL 3148975 Contact Us For Availability

Switch, Lock WPL 3148669 Contact Us For Availability

Skirt, Knob (4) WPL 308352 Contact Us For Availability

Glass, Door (Black Panoramic) WPL 3148185 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

Cover, Service WPL 307972 Contact Us For Availability

Bracket, Cooktop (2) WPL 307965 Contact Us For Availability

Timer, Digital (Includes Illus. 12) WPL 313519 Contact Us For Availability

Foil, Panoramic Door WPL 3148184 Contact Us For Availability

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

Support, Tubing R.H. WPL 313327 Contact Us For Availability

Support, Tubing L.H. WPL 313329 Contact Us For Availability

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

Motor, Timer WPL 308594 Contact Us For Availability

Handle, Oven Door WPL 3148228 Contact Us For Availability

Cover, Light WPL 308039 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

Gusset, R.H. WPL 312810 Contact Us For Availability

Gusset, L.H. WPL 312812 Contact Us For Availability

Cooktop (White) WPL 3170981 Contact Us For Availability

Cooktop (Almond) WPL 3170982 Contact Us For Availability

Bezel, Switch (2) WPL 313030 Contact Us For Availability

Retainer, Light WPL 308038 Contact Us For Availability

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

Screw, 10 x 1/2 (2) WPL 3149333 Contact Us For Availability

Panel, Side L.H. (White) WPL 312457 Contact Us For Availability

Panel, Side L.H. (Almond) WPL 312461 Contact Us For Availability

Panel, Side L.H. (White) WPL 3149628 Contact Us For Availability

Panel, Side L.H. (Almond Panel, Side R.H.) WPL 3149632 Contact Us For Availability

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

Screw (2) WPL 313489 Contact Us For Availability

insulator WPL 3147864 Contact Us For Availability

Strain Relief WPL 308615 Contact Us For Availability

Top, Oven Door Trim WPL 3148223 Contact Us For Availability

Switch, Broil WPL 314209 Contact Us For Availability

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Clip, Handle Mtg. (2) WPL 3148282 Contact Us For Availability

panel, top (screw, 10a x 3/8 (3)) WPL 254217 Contact Us For Availability

Panel, Top (White) WPL 3149589 Contact Us For Availability

Panel, Top (Almond) WPL 3149591 Contact Us For Availability

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

Screw, No.6 WPL 314215 Contact Us For Availability

Switch, Bake WPL 314210 Contact Us For Availability

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $3.70

bolt (2) WPL 306280 Contact Us For Availability

Nut, Retainer (2) WPL 306381 Contact Us For Availability

support, oven WPL 327917 Contact Us For Availability

Indicator Light, Lock (1) WPL 3148721 Contact Us For Availability

Screw, 8-18 x 5/16 (6) WPL 3148443 Contact Us For Availability

Frame, Inner Glass WPL 3148234 Contact Us For Availability

Channel, Arm (2) WPL 329710 Contact Us For Availability

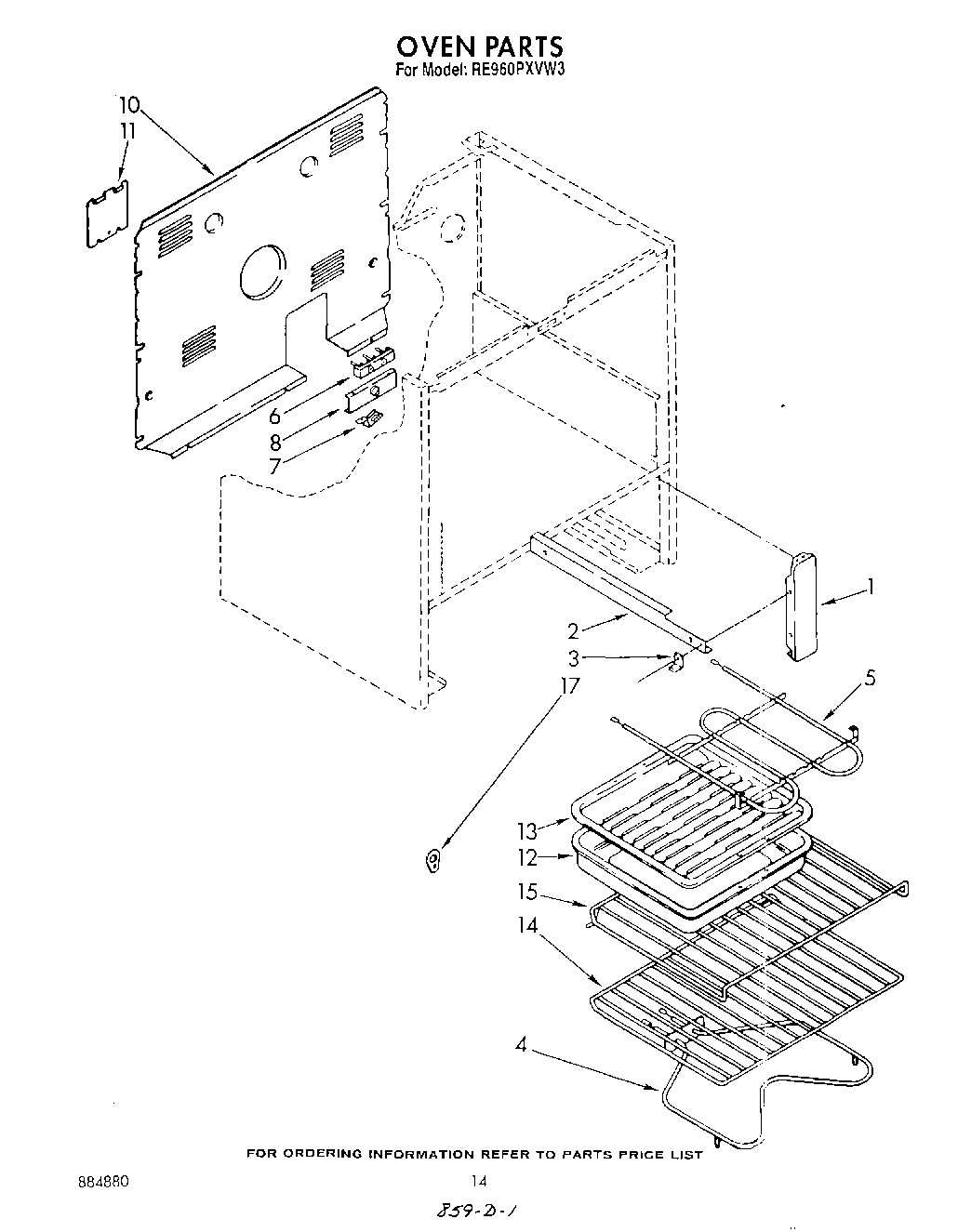

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

W10854470 Whirlpool Trim Ring Backorder WPL W10854470 $29.99

W10858781 Whirlpool Trim Ring Backorder WPL W10858781 $31.11

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

Knob, Thermostat WPL 328709 Contact Us For Availability

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Rotisserie Kit (RCK 81) WPL 242985 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Touch-Up Continuous Clean (1 oz.) WPL 261748 Contact Us For Availability

Co WPL 261886 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 310433 WPL 310433 Contact Us For Availability

WPL 311982 WPL 311982 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Plug Button WPL 257314 Contact Us For Availability

W10291024 Whirlpool Range Cooktop Gray Porcel In Stock WPL W10291024 $30.20

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

Reflector Pan (6`` (2)) WPL 3150198 Contact Us For Availability

Screw WPL 310410 Contact Us For Availability

Knob, Selector WPL 328707 Contact Us For Availability

Drawer, Utility WPL 327887 Contact Us For Availability

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

Screw, 10A x 2 WPL 161463 Contact Us For Availability

Frame, Control Panel WPL 312785 Contact Us For Availability

Protector, Drawer (2) WPL 309329 Contact Us For Availability

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

Vent, Oven WPL 307961 Contact Us For Availability

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

Medallion (4) WPL 309195 Contact Us For Availability

Screw, 8BT x 1/4 (3) WPL 254225 Contact Us For Availability

filler, control panel WPL 308660 Contact Us For Availability

Glide, Rear (2) WPL 307980 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

Panel, Backguard WPL 313577 Contact Us For Availability

Glass, Control Panel WPL 3149020 Contact Us For Availability

Panel Drawer (White) WPL 307935 Contact Us For Availability

Panel, Drawer (Almond) WPL 307939 Contact Us For Availability

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

retainer, glass (10) WPL 306393 Contact Us For Availability

Handle, Drawer WPL 313337 Contact Us For Availability

Ring, Retainer (2) WPL 307594 Contact Us For Availability

23

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $12.59

23

Clamp, Tube WPL 313570 Contact Us For Availability

23

Seal, Foam WPL 308298 Contact Us For Availability

24

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

24

Knob, Control (4) WPL 313307 Contact Us For Availability

814103 Whirlpool Clip In Stock WPL 814103 $3.95

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Switch, Door WPL 310345 Contact Us For Availability

WPL 330194 WPL 330194 Contact Us For Availability

WPL 330197 WPL 330197 Contact Us For Availability

WPL 330200 WPL 330200 Contact Us For Availability

WPL 330203 WPL 330203 Contact Us For Availability

Nut (4) WPL 814102 Contact Us For Availability

bezel control knob (4) WPL 308350 Contact Us For Availability

Bumper (4) WPL 3148182 Contact Us For Availability

WPL 313320 WPL 313320 Contact Us For Availability

spring, bezel (4) WPL 308348 Contact Us For Availability

Insulation WPL 3147951 Contact Us For Availability

Ballast (Alt.) WPL 346772 Contact Us For Availability

Ballast WPL 660001 Contact Us For Availability

Ballast (Alt.) WPL 685591 Contact Us For Availability

27

WP3169181 Whirlpool Knob In Stock WPL WP3169181 $9.28

27

WP95292 Whirlpool Fluorescent Light Bulb Backorder WPL WP95292 $48.64

27

Spring (3) WPL 313311 Contact Us For Availability

28

WPL 313322 WPL 313322 Contact Us For Availability

28

Housing Receptacle WPL 307772 Contact Us For Availability

28

Seal, Pyro WPL 3148284 Contact Us For Availability

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

WPL 313321 WPL 313321 Contact Us For Availability

Insulator (Thermostat) WPL 3150044 Contact Us For Availability

Screw WPL 3148604 Contact Us For Availability

30

WPL 306615 WPL 306615 Contact Us For Availability

30

Anchor, Plastic WPL 3148605 Contact Us For Availability

31

WPL 3149613 WPL 3149613 Contact Us For Availability

32

WPL 308112 WPL 308112 Contact Us For Availability

33

WPL 309507 WPL 309507 Contact Us For Availability

34

WP75614 Whirlpool Connector Backorder WPL WP75614 $2.51

35

WPL 313319 WPL 313319 Contact Us For Availability

36

WPL 3149611 WPL 3149611 Contact Us For Availability

37

WPL 3147623 WPL 3147623 Contact Us For Availability
