Model Whirlpool RC8920XRH2 – Common Parts & Diagrams
04 - OPTIONAL WALL CAPS
06 - GRILL KIT 4179094

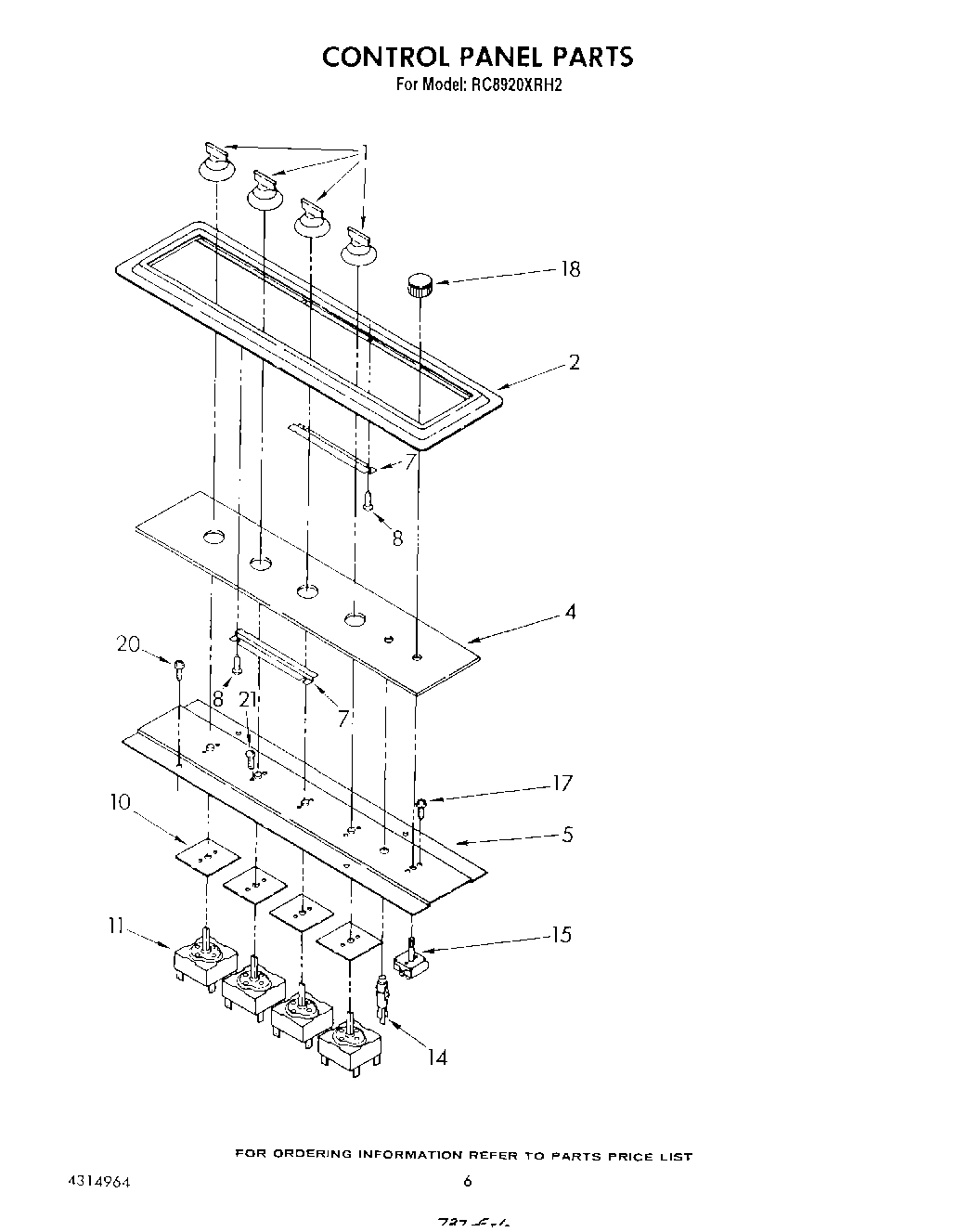

05 - CONTROL PANEL
03 - VENTILATION

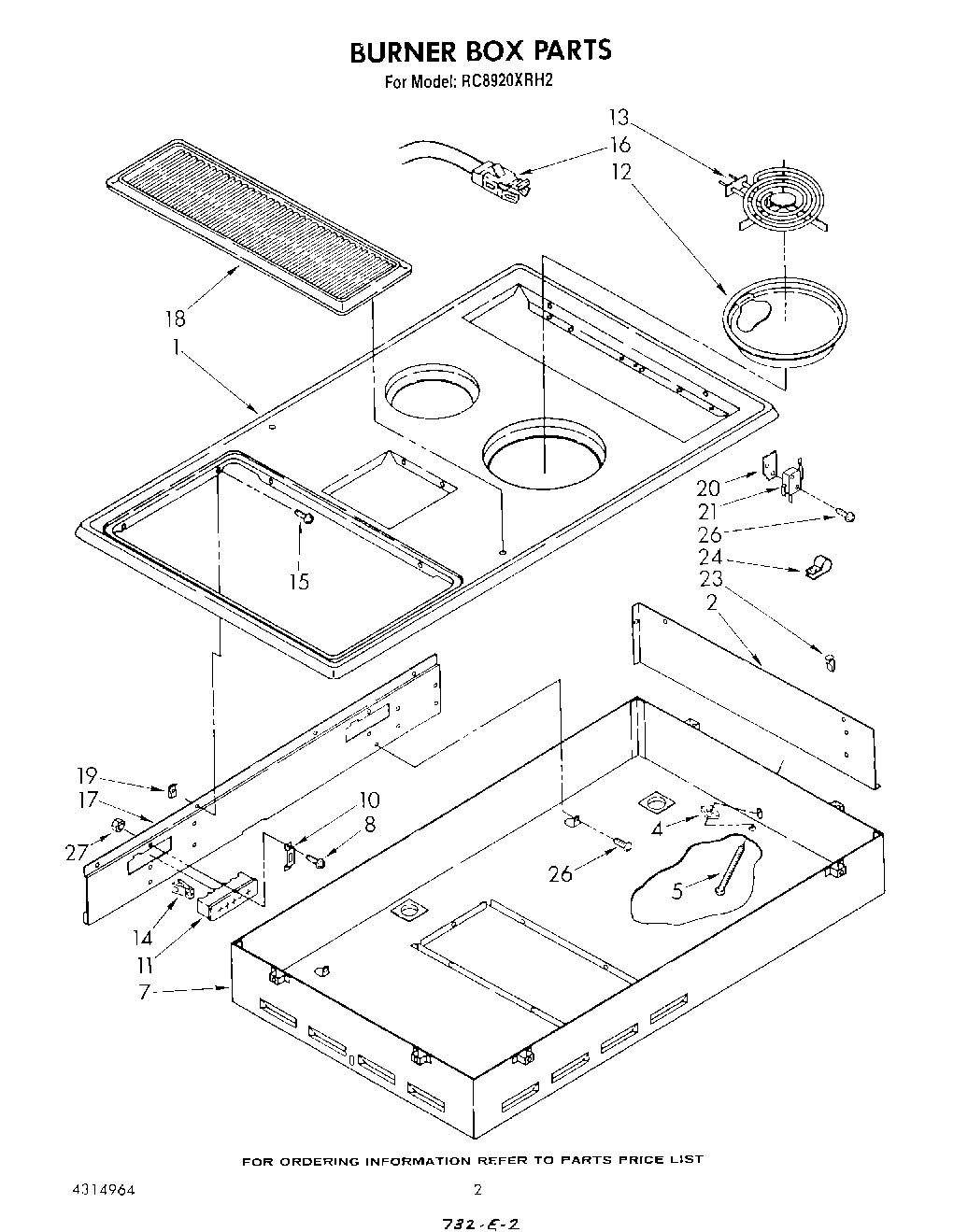

02 - BURNER BOX , LITERATURE AND OPTIONAL
Common parts from model Whirlpool RC8920XRH2
WPL LIT4179083 WPL LIT4179083 Contact Us For Availability
WPL LIT4179084 WPL LIT4179084 Contact Us For Availability
WPL LIT4314964 WPL LIT4314964 Contact Us For Availability
WPL LIT786203 WPL LIT786203 Contact Us For Availability
1
Knob (4) WPL 4157572 Contact Us For Availability
1
Top, Main WPL 4157543 Contact Us For Availability
2
Pan, Grille WPL 4179155 Contact Us For Availability
2
Trim, Control Panel WPL 4157918 Contact Us For Availability
2
Plenum WPL 4179323 Contact Us For Availability
2
Sheild, Switch WPL 786137 Contact Us For Availability
3
Gasket, Motor Mounting WPL 4179303 Contact Us For Availability
4
Grid, Insert WPL 4179156 Contact Us For Availability
4
Glass, Control Panel WPL 4157917 Contact Us For Availability
4
Transition 6`` WPL 4179340 Contact Us For Availability
4
Nut (2) WPL 786222 Contact Us For Availability
5
Element, Grille (240V) WPL 786170 Contact Us For Availability
5
Bracket, Switch Mounting WPL 786188 Contact Us For Availability
5
Scroll, Fan WPL 786154 Contact Us For Availability
5
Screw, Hold Down (2) WPL 786211 Contact Us For Availability
7
Grille (2) WPL 4157920 Contact Us For Availability
7
Retainer, Glass (2) WPL 786134 Contact Us For Availability
7
Nut, Locking (4) WPL 786239 Contact Us For Availability
7
Box, Burner WPL 786193 Contact Us For Availability
8
Pan, Grease WPL 786265 Contact Us For Availability
8
Screw, 4-40F x 1/4 Phillips Head (4) WPL 786226 Contact Us For Availability
8
Wheel, Fan WPL 786155 Contact Us For Availability
10
Gasket, Switch (4) WPL 786189 Contact Us For Availability
10
Plate, Motor Mounting WPL 4314921 Contact Us For Availability
10
Bracket, Plug Block Mounting (2) WPL 786194 Contact Us For Availability
11
Grommet, Motor Mounting (8) WPL 786234 Contact Us For Availability
11
Plug Block (2) WPL 786196 Contact Us For Availability
12
Bowl, Chrome (6``) WPL 4157865 Contact Us For Availability
14
Light, Indicator WPL 786195 Contact Us For Availability
14
Contact, Element (10) WPL 786214 Contact Us For Availability
15
Switch, Fan WPL 786190 Contact Us For Availability
17
Screw, 6-32 x 3/16 Phillips Pan Head (2) WPL 786245 Contact Us For Availability
17
Baffle, Plug Block WPL 4157922 Contact Us For Availability
18
Knob, Fan WPL 786269 Contact Us For Availability
18
Motor, 60 Hz. WPL 4314920 Contact Us For Availability
18
Cover, Vent WPL 4157919 Contact Us For Availability
19
Clip, ``U`` WPL 786264 Contact Us For Availability
20
Cover, Motor WPL 4314924 Contact Us For Availability
20
Insulator, Switch WPL 786380 Contact Us For Availability
21
Screw, 8-32 x 3/16 Phillips Pan Head (8) WPL 786231 Contact Us For Availability
21
Switch, Interlock WPL 4179158 Contact Us For Availability
23
Clip WPL 4157127 Contact Us For Availability
24
Orifice WPL 4179324 Contact Us For Availability
24
Clip, Wire WPL 786216 Contact Us For Availability
25
Conduit WPL 786253 Contact Us For Availability
27
16 Oz. Cooktop Conditioner WPL W10355051 No Longer Available
27
Grille Kit WPL 4179094 Contact Us For Availability
27
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
27
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
27
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
27
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
27
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
27
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
27
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
27
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
27
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
27
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
27
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
27
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
27
11 Oz. Cooktop Cleaner WPL 261961 Contact Us For Availability
27
Griddle Kit (RCK 980) WPL 786100 Contact Us For Availability
27
Rotisserie Kit (RCK 982) WPL 786102 Contact Us For Availability
27
Kit, Cooktop Module, 1-6`` & 1-8`` (RCK 986) WPL 786106 Contact Us For Availability
27
Smooth Top (RCK 988) WPL 786107 Contact Us For Availability
27
Nut WPL 786260 Contact Us For Availability
27
Solid Element Module WPL 786681 Contact Us For Availability
29
Spacer, Motor Cover (4) WPL 4314926 Contact Us For Availability
30
Bushing WPL 4314925 Contact Us For Availability
31
Nut, 10-24 (3) WPL 786439 Contact Us For Availability
32
Washer (3) WPL 4314923 Contact Us For Availability
33
Bolt, 10-24 X 3/4 (3) WPL 4314922 Contact Us For Availability
× ![]()
