Model Whirlpool RC8920XRH0 – Common Parts & Diagrams
05 - GRILLE MODULE KIT RCK984
03 - VENTILATION

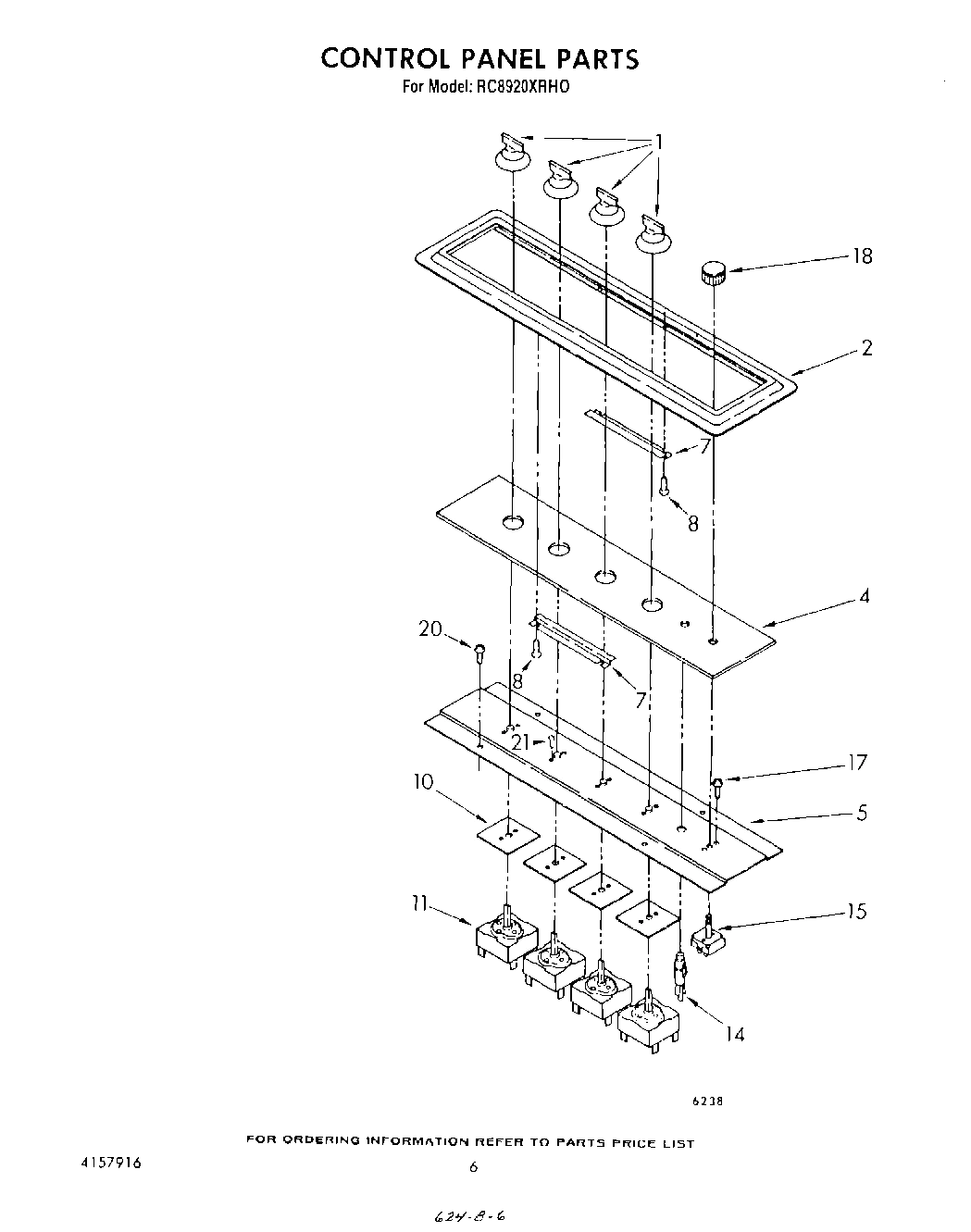

04 - CONTROL PANEL

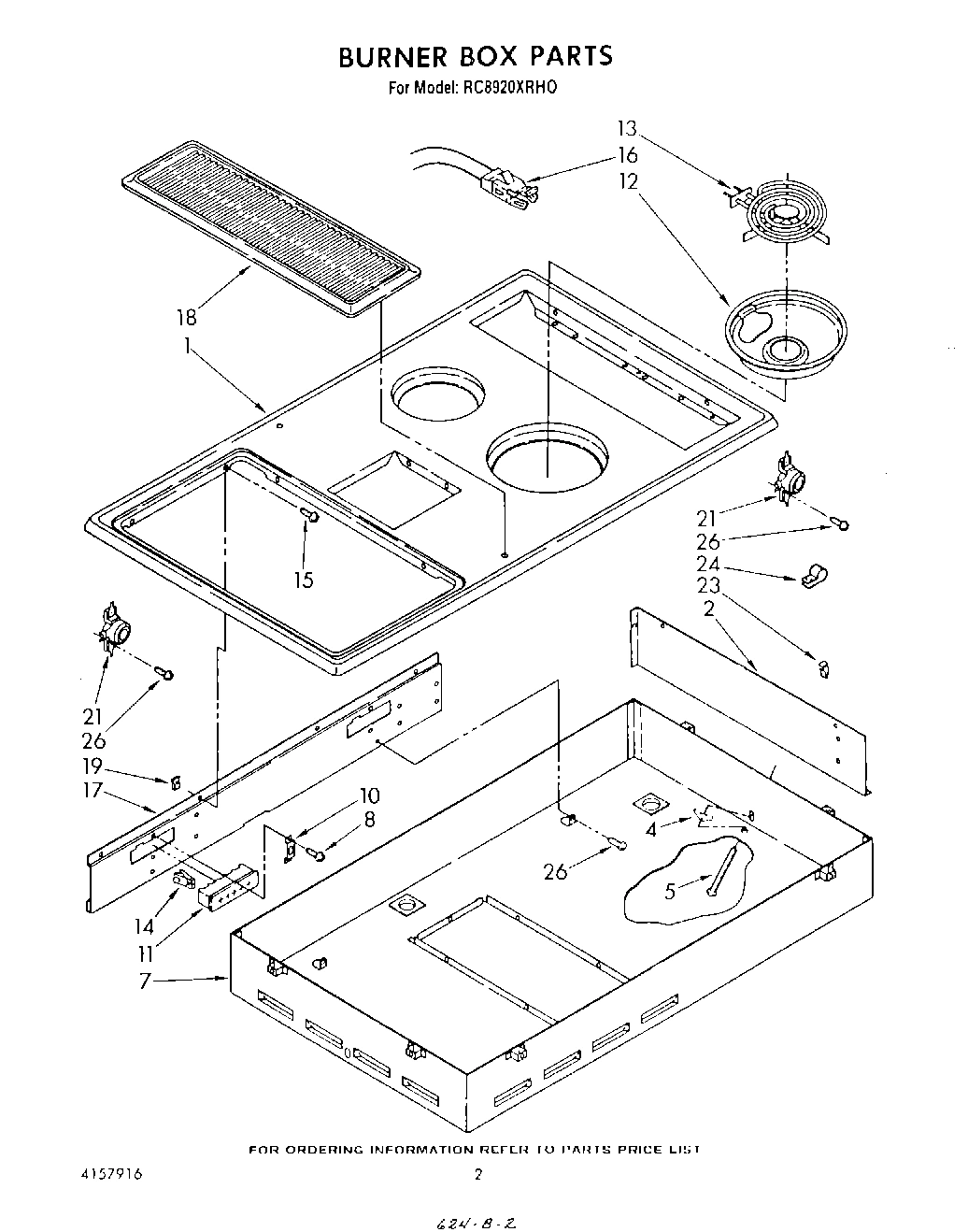

02 - BURNER BOX , LITERATURE AND OPTIONAL
Common parts from model Whirlpool RC8920XRH0
Li WPL LIT4157916 Contact Us For Availability
WPL LIT786202 WPL LIT786202 Contact Us For Availability
WPL LIT786203 WPL LIT786203 Contact Us For Availability
WPL LIT786696 WPL LIT786696 Contact Us For Availability
1
Knob (4) WPL 4157572 Contact Us For Availability
1
Top, Main WPL 4157543 Contact Us For Availability
2
Plenum WPL 786158 Contact Us For Availability
2
Trim, Control Panel WPL 4157918 Contact Us For Availability
2
Sheild, Switch WPL 786137 Contact Us For Availability
4
Grid, Pan WPL 786168 Contact Us For Availability
4
Transition 6`` WPL 786156 Contact Us For Availability
4
Glass, Control Panel WPL 4157917 Contact Us For Availability
4
Nut (2) WPL 786222 Contact Us For Availability
5
Element, Grille (240V) WPL 786170 Contact Us For Availability
5
Scroll, Fan WPL 786154 Contact Us For Availability
5
Bracket, Switch Mounting WPL 786188 Contact Us For Availability
5
Screw, Hold Down (2) WPL 786211 Contact Us For Availability
7
Grille (2) WPL 4157920 Contact Us For Availability
7
Nut, Locking (4) WPL 786239 Contact Us For Availability
7
Retainer, Glass (2) WPL 786134 Contact Us For Availability
7
Box, Burner WPL 786193 Contact Us For Availability
8
Wheel, Fan WPL 786155 Contact Us For Availability
8
Screw, 4-40F x 1/4 Phillips Head (4) WPL 786226 Contact Us For Availability
10
Plate, Motor Mounting WPL 786153 Contact Us For Availability
10
Gasket, Switch (4) WPL 786189 Contact Us For Availability
10
Bracket, Plug Block Mounting (2) WPL 786194 Contact Us For Availability
11
Grommet, Motor Mounting (8) WPL 786234 Contact Us For Availability
11
Plug Block (2) WPL 786196 Contact Us For Availability
12
Bowl, Chrome (6``) WPL 4157865 Contact Us For Availability
14
Light, Indicator WPL 786195 Contact Us For Availability
14
Contact, Element (10) WPL 786214 Contact Us For Availability
15
Switch, Fan WPL 786190 Contact Us For Availability
15
Washer (4) WPL 786229 Contact Us For Availability
17
Nut, Hex (4) WPL 786256 Contact Us For Availability
17
Baffle, Plug Block WPL 4157922 Contact Us For Availability
18
Motor, 60 Hz. WPL 786152 Contact Us For Availability
18
Knob, Fan WPL 786269 Contact Us For Availability
18
Cover, Vent WPL 4157919 Contact Us For Availability
19
Clip, ``U`` WPL 786264 Contact Us For Availability
20
Cover, Motor WPL 786151 Contact Us For Availability
21
Screw, 8-32 x 3/16 Phillips Pan Head (8) WPL 786231 Contact Us For Availability
21
Switch, Limit (2) WPL 786246 Contact Us For Availability
23
Screw, 8-32F x 3/8 Hex Head WPL 786232 Contact Us For Availability
23
Clip WPL 4157127 Contact Us For Availability
24
Orifice WPL 786157 Contact Us For Availability
24
Clip, Wire WPL 786216 Contact Us For Availability
25
Conduit WPL 786253 Contact Us For Availability
26
Screw, 6-32 x 3/16 Phillips Pan Head (4) WPL 786245 Contact Us For Availability
26
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
26
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
26
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
26
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
26
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
26
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
26
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
26
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
26
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
26
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
26
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
26
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
26
11 Oz. Cooktop Cleaner WPL 261961 Contact Us For Availability
26
Griddle Kit (RCK 980) WPL 786100 Contact Us For Availability
26
Rotisserie Kit (RCK 982) WPL 786102 Contact Us For Availability
26
Grille Kit (RCK 984) WPL 786104 Contact Us For Availability
26
Kit, Cooktop Module, 1-6`` & 1-8`` (RCK 986) WPL 786106 Contact Us For Availability
26
Smooth Top (RCK 988) WPL 786107 Contact Us For Availability
26
Solid Element Module WPL 786681 Contact Us For Availability
× ![]()
