Model Whirlpool RC8900XXB0 – Common Parts & Diagrams
04 - CONTROL PANEL
05 - ELECTRIC GRILLE MODULE
06 - OPTIONAL GLASS CERAMIC MODULE

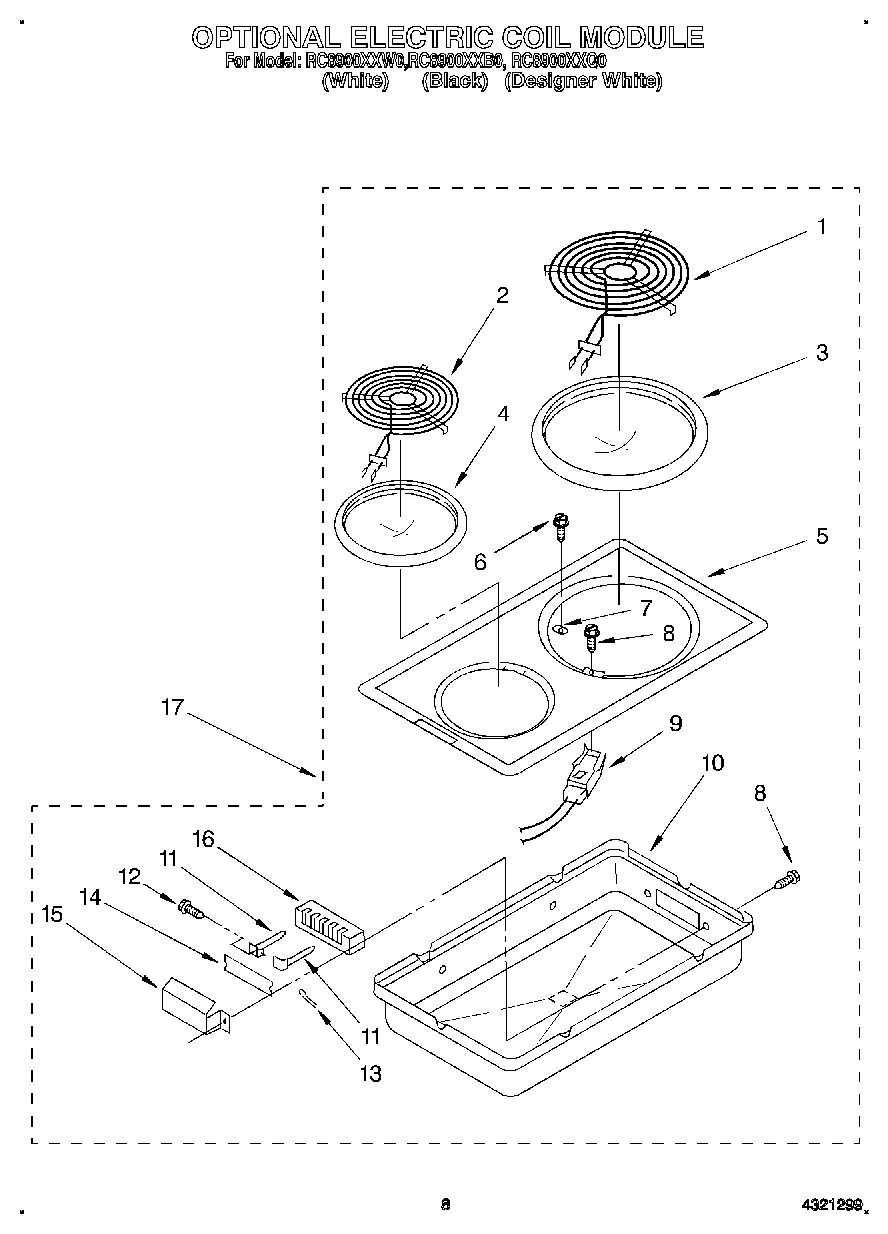

07 - OPTIONAL ELECTRIC COIL MODULE

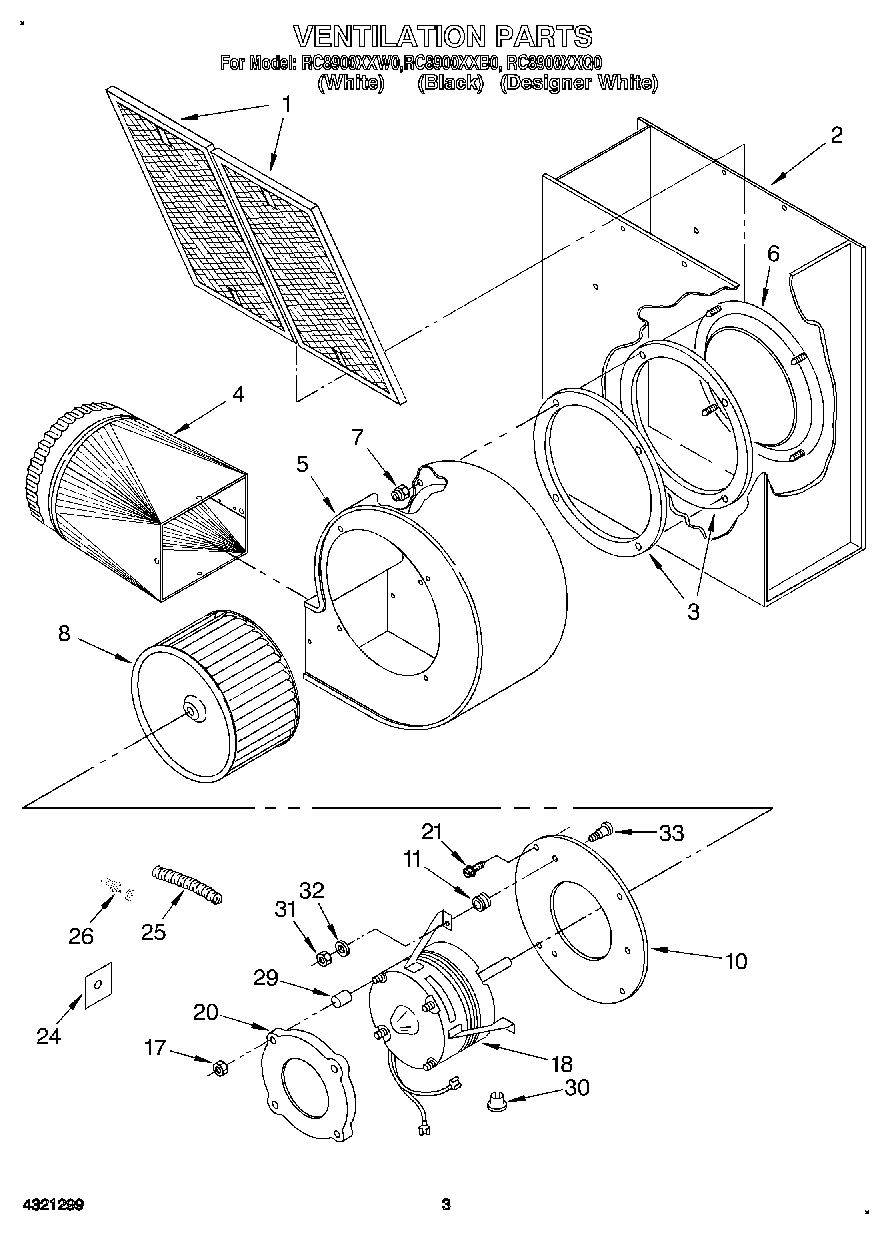

02 - VENTILATION

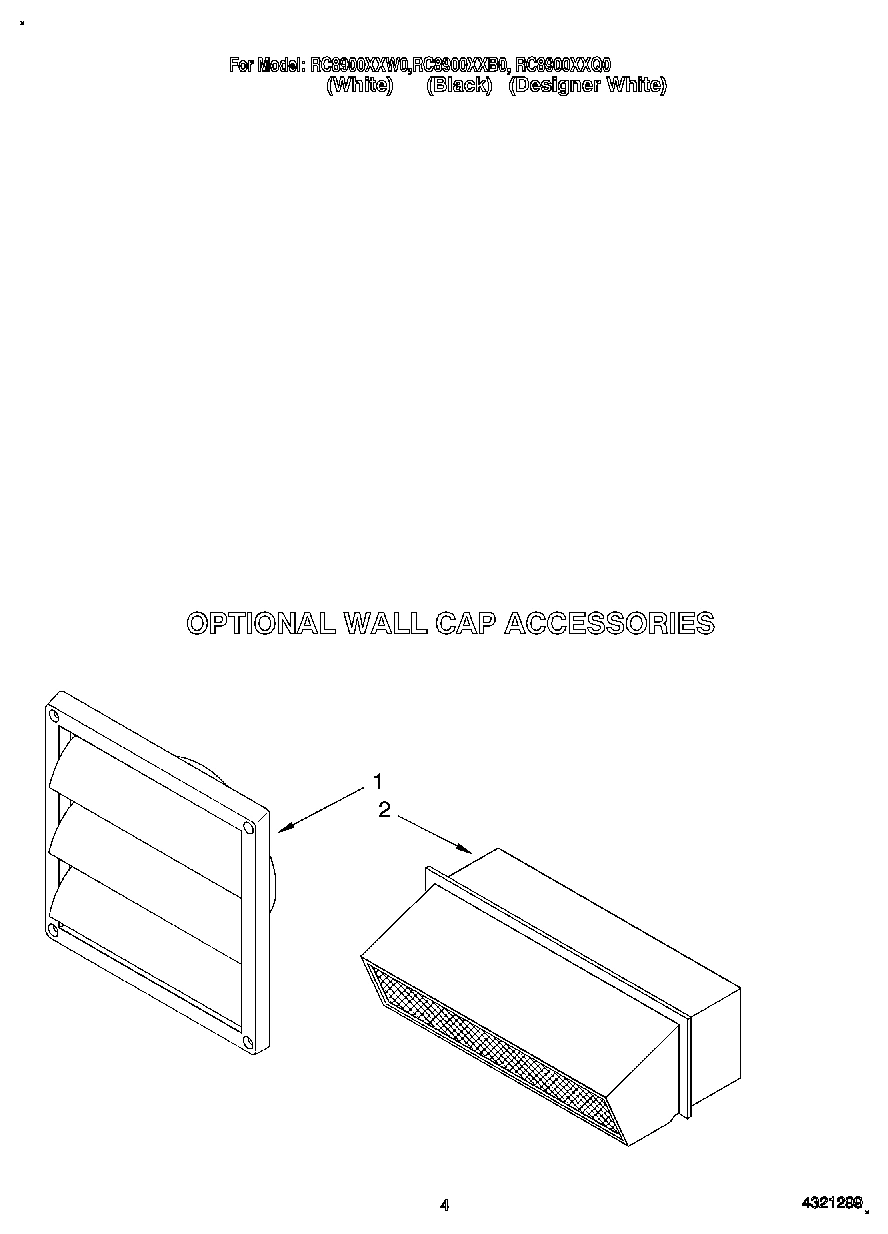

03 - OPTIONAL WALL CAP ACCESSORIES

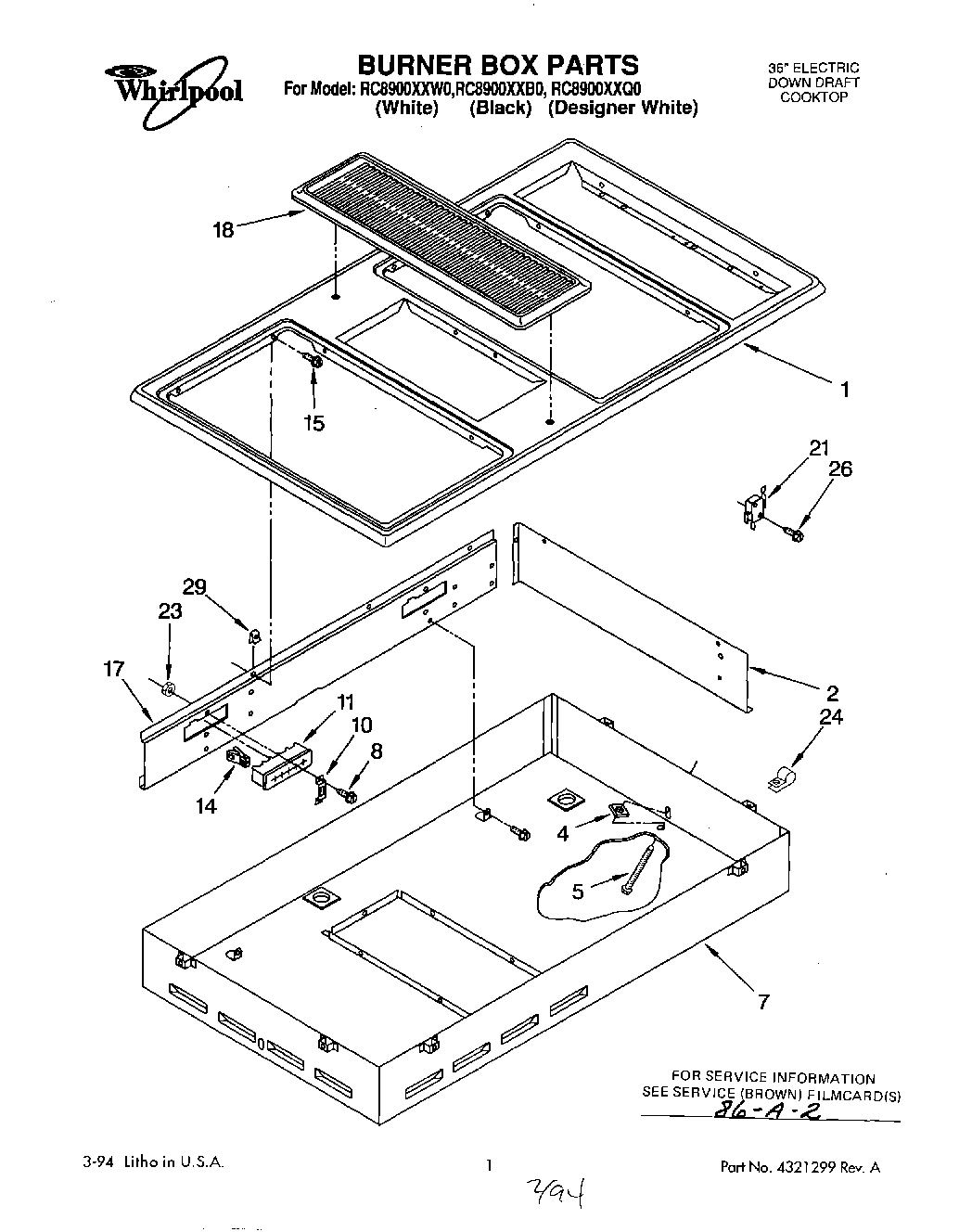

01 - BURNER BOX, LIT/OPTIONAL

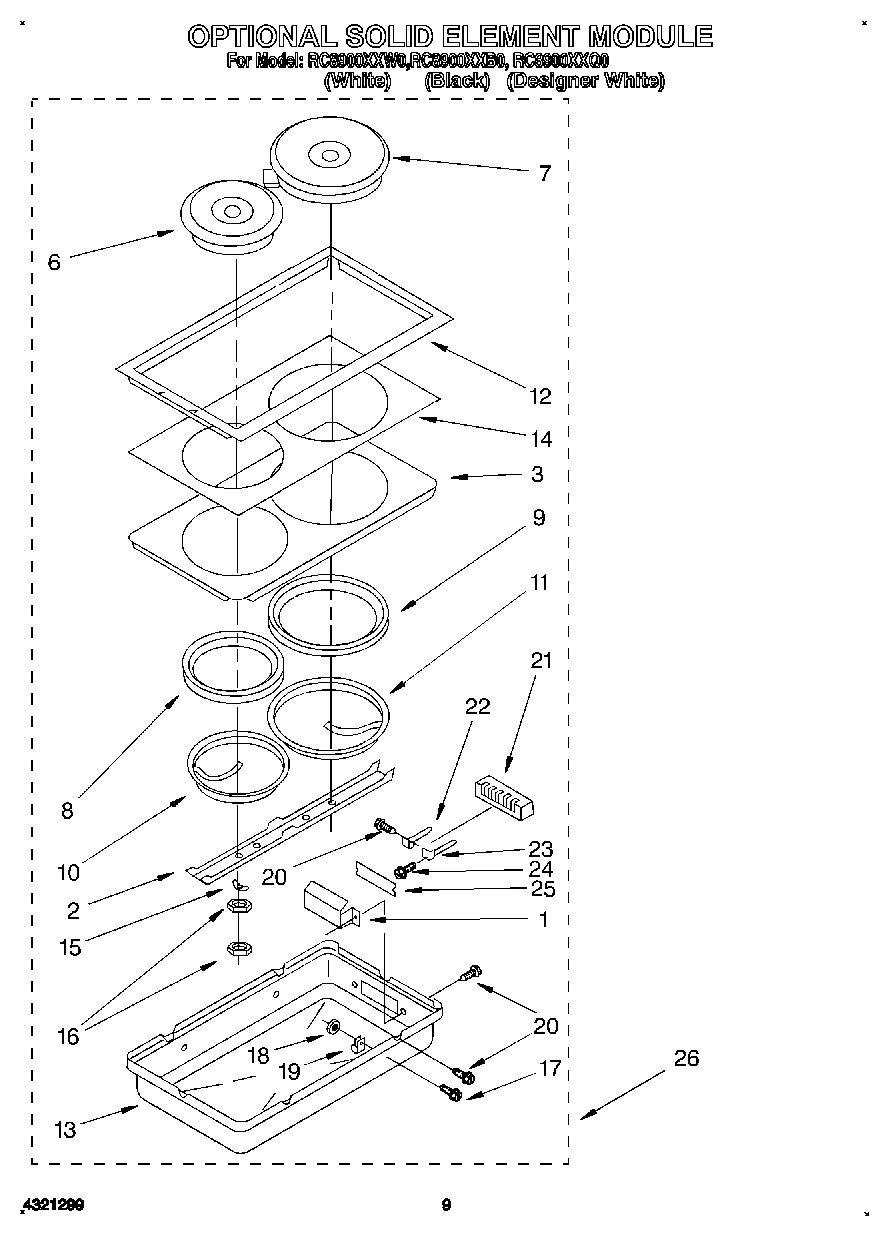

08 - OPTIONAL SOLID ELEMENT MODULE
Common parts from model Whirlpool RC8900XXB0
WPL LIT4179084 WPL LIT4179084 Contact Us For Availability
WPL LIT4320700 WPL LIT4320700 Contact Us For Availability
1
Knob, Control (4) (White/Des. White) WPL 4362504 Contact Us For Availability
1
Pan, Grease WPL 786265 Contact Us For Availability
1
Top Assembly (White Frame with White Glass) WPL 4363127 Contact Us For Availability
1
Top Assembly (Black Frame with Black Glass) WPL 4363128 Contact Us For Availability
1
Top Assembly (Chrome Frame with Black Glass) WPL 4363221 Contact Us For Availability
1
Bracket, Plug WPL 786707 Contact Us For Availability
1
6`` Diameter Duct System Wall Cap WPL 786244 Contact Us For Availability
1
Top, Main (White/Des. White) WPL 4321271 Contact Us For Availability
1
Top, Main (Black) WPL 4321272 Contact Us For Availability
2
Trim, Control Panel (Black) WPL 4157918 Contact Us For Availability
2
Trim, Control Panel (White/Des. White) WPL 4321195 Contact Us For Availability
2
Pan, Module WPL 4362512 Contact Us For Availability
2
Element, Heat (2) WPL 4363081 Contact Us For Availability
2
Plenum WPL 4179323 Contact Us For Availability
2
3 1/4 X 10`` Rectangular Duct System Wall Cap WPL 786247 Contact Us For Availability
2
Sheild, Switch WPL 786137 Contact Us For Availability
2
Bracket, Element WPL 786708 Contact Us For Availability
3
Insert, Pan WPL 4179156 Contact Us For Availability
3
Bracket, Mounting WPL 786174 Contact Us For Availability
3
Gasket, Motor Mounting WPL 4179303 Contact Us For Availability
3
Support, Glass WPL 786709 Contact Us For Availability
4
Glass, Control Panel (Tape Anti-Vibration) WPL 4321199 Contact Us For Availability
4
Glass, Control Panel (Black) WPL 4362501 Contact Us For Availability
4
Glass, Control Panel (White/Des. White) WPL 4362502 Contact Us For Availability
4
Element WPL 786170 Contact Us For Availability
4
Transition 6`` WPL 4179340 Contact Us For Availability
4
Nut (2) WPL 786222 Contact Us For Availability
5
Bracket, Switch Mounting WPL 4315284 Contact Us For Availability
5
Top, Module (Chrome) WPL 4320994 Contact Us For Availability
5
Top, Module (Black) WPL 4321224 Contact Us For Availability
5
Top, Module (White) WPL 4321225 Contact Us For Availability
5
Scroll, Fan WPL 4321055 Contact Us For Availability
5
Screw, Hold Down (2) WPL 786211 Contact Us For Availability
6
Rack, Grille (2) WPL 4157920 Contact Us For Availability
6
Screw WPL 786228 Contact Us For Availability
6
Orifice WPL 4179324 Contact Us For Availability
6
Element 6`` WPL 4363175 Contact Us For Availability
7
Retainer, Glass (2) WPL 786134 Contact Us For Availability
7
Nut, Weld WPL 786213 Contact Us For Availability
7
Nut, Locking (4) WPL 786239 Contact Us For Availability
7
Box, Burner WPL 786193 Contact Us For Availability
7
Element 8`` WPL 4363176 Contact Us For Availability
8
Screw, 4-40F x 1/4 Phillips Head (4) WPL 786226 Contact Us For Availability
8
Griddle (Optional) WPL 4320993 Contact Us For Availability
8
Wheel, Fan WPL 786155 Contact Us For Availability
8
Ring, Gasket (6``) WPL 786714 Contact Us For Availability
9
Ring, Gasket (8``) WPL 786715 Contact Us For Availability
10
Gasket, Switch (4) WPL 786189 Contact Us For Availability
10
Pan, Module WPL 4320652 Contact Us For Availability
10
Plate, Motor Mounting WPL 4314921 Contact Us For Availability
10
Bracket, Plug Block Mounting (2) WPL 786194 Contact Us For Availability
10
Gasket 6`` WPL 4320996 Contact Us For Availability
11
Washer (4) WPL 786229 Contact Us For Availability
11
Grommet, Motor Mounting (3) WPL 786234 Contact Us For Availability
11
Plug Block (2) WPL 786196 Contact Us For Availability
11
Gasket 8`` WPL 4320997 Contact Us For Availability
12
Trim, Top-Chrome WPL 4321135 Contact Us For Availability
12
Trim, Top (Black) WPL 4362526 Contact Us For Availability
12
Trim, Top (White) WPL 4362527 Contact Us For Availability
13
Module, Pan WPL 4364012 Contact Us For Availability
13
Wire Jumper WPL 786252 Contact Us For Availability
13
Pan Module WPL 4321136 Contact Us For Availability
14
Light, Indicator WPL 786195 Contact Us For Availability
14
Contact, Element (10) WPL 786214 Contact Us For Availability
14
Glass, Top (White) WPL 4362513 Contact Us For Availability
14
Glass, Top-Black WPL 786720 Contact Us For Availability
15
Switch, Fan WPL 4315285 Contact Us For Availability
15
Bracket, Mounting WPL 786181 Contact Us For Availability
15
Spring, Leaf (2) WPL 786721 Contact Us For Availability
16
Barrier, Switch (2) WPL 4315286 Contact Us For Availability
16
Nut, Hex 6mm (4) WPL 786722 Contact Us For Availability
17
Baffle, Plug Block WPL 786197 Contact Us For Availability
17
Screw (2) WPL 786723 Contact Us For Availability
18
Knob, Fan WPL 4362505 Contact Us For Availability
18
Knob, Fan (Black) WPL 786269 Contact Us For Availability
18
Motor, 60 Hz. WPL 4315281 Contact Us For Availability
18
Cover, Vent (Black) WPL 4157919 Contact Us For Availability
18
Cover, Vent (White/Des. White) WPL 4321223 Contact Us For Availability
19
Clamp, Wire (2) WPL 4157298 Contact Us For Availability
20
Cover, Motor WPL 4314924 Contact Us For Availability
20
Screw, Sq. Drive WPL 4320676 Contact Us For Availability
21
Block, Plug WPL 786176 Contact Us For Availability
21
Screw, 8-32F x 3/8 Hex Head WPL 786232 Contact Us For Availability
21
Switch, Interlock (2) WPL 4179158 Contact Us For Availability
22
Contact, Power (4) WPL 786725 Contact Us For Availability
23
Contact Ground WPL 786726 Contact Us For Availability
23
Nut (2) WPL 786260 Contact Us For Availability
24
Screw, Contact (5) WPL 786231 Contact Us For Availability
24
Bracket, Conduit WPL 4315575 Contact Us For Availability
24
Clip, Wire WPL 786216 Contact Us For Availability
25
Insulator WPL 786179 Contact Us For Availability
25
Conduit WPL 786253 Contact Us For Availability
26
Connector, Conduit WPL 4363102 Contact Us For Availability
26
Screw, 6-32 x 3/16 Phillips Pan Head (4) WPL 786245 Contact Us For Availability
26
Module, Complete (Black Frame with Black Glas WPL 4363040 Contact Us For Availability
26
Module, Complete (White Frame with White Glas WPL 4363041 Contact Us For Availability
26
Module, Complete (Chrome Frame with Black Gla WPL 4363042 Contact Us For Availability
29
Grille Module WPL 4320707 Contact Us For Availability
29
Ceramic Modules (Black) WPL 4363038 Contact Us For Availability
29
White WPL 4363039 Contact Us For Availability
29
Brushed Chrome Coil Modules WPL 4363044 Contact Us For Availability
29
Complete Module (Black) WPL 4320708 Contact Us For Availability
29
White WPL 4320712 Contact Us For Availability
29
Brushed Chrome Solid El WPL 786106 Contact Us For Availability
29
Spacer, Motor Cover (4) WPL 4314926 Contact Us For Availability
29
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
29
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
29
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
29
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
29
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
29
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
29
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
29
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
29
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
29
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
29
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
29
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
29
11 Oz. Cooktop Cleaner WPL 261961 Contact Us For Availability
29
Griddle Kit WPL 786100 Contact Us For Availability
29
Rotisserie Kit Ceramic Modules WPL 786102 Contact Us For Availability
29
WPL 786264 WPL 786264 Contact Us For Availability
30
Bushing WPL 4314925 Contact Us For Availability
31
Nut, 10-24 (3) WPL 786439 Contact Us For Availability
32
Washer (3) WPL 4314923 Contact Us For Availability
33
Bolt, 10-24 X 3/4 (3) WPL 4321170 Contact Us For Availability
× ![]()
