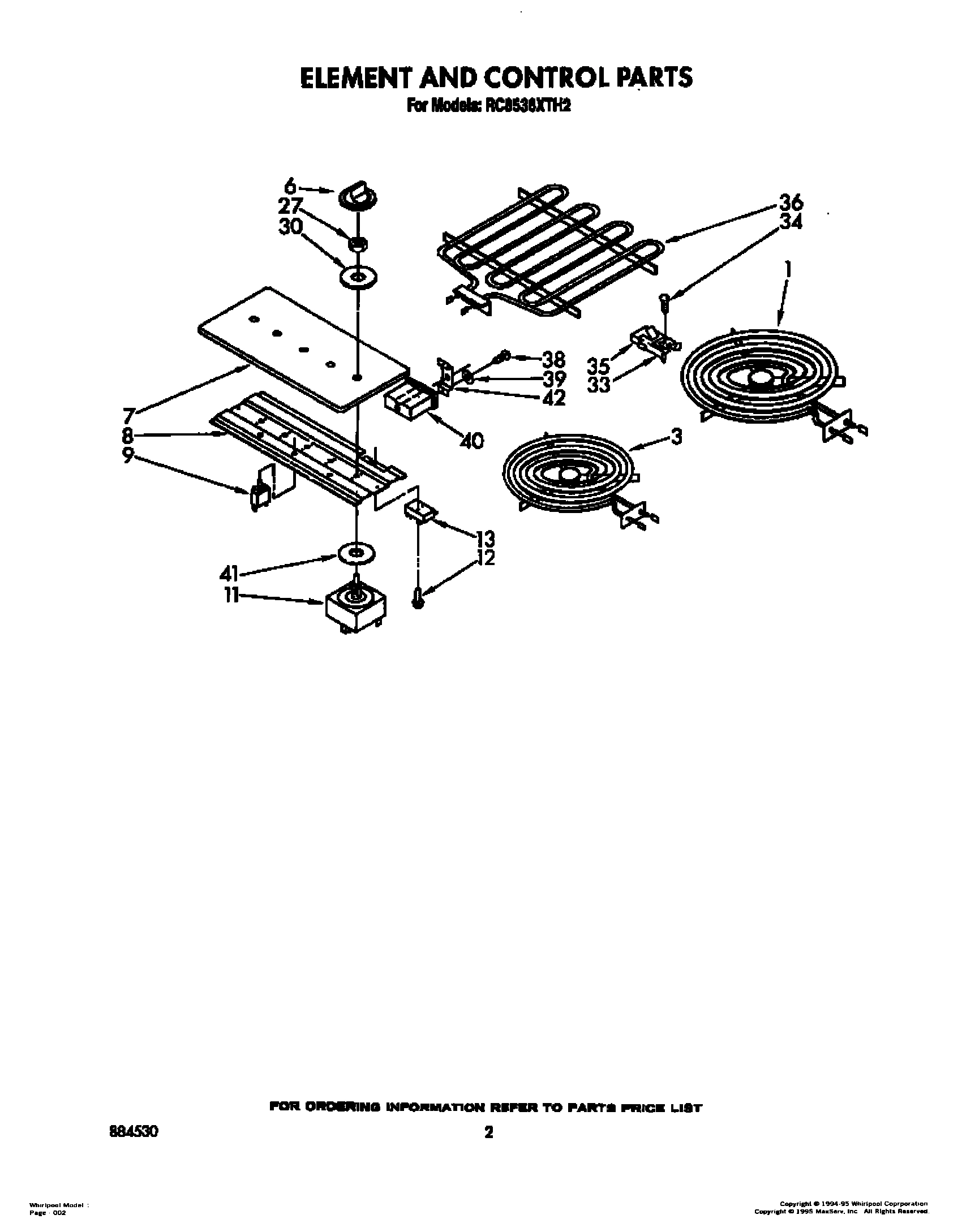

Model Whirlpool RC8536XTW2 – Common Parts & Diagrams

Hardware, Installation
Hardware, Installation WPL 416344 Contact Us For Availability
View on Model
Cooking Guide
Cooking Guide WPL LIT3149507 Contact Us For Availability
View on Model
Guide, Use & Care
Guide, Use & Care WPL LIT3177084 Contact Us For Availability
View on Model
Installation Instructions
Installation Instructions WPL LIT3177126 Contact Us For Availability
View on Model
Repair Parts List
Repair Parts List WPL LIT884530 Contact Us For Availability
View on Model
1
Cooktop (Almond)
Cooktop (Almond) WPL 4170028 Contact Us For Availability
View on Model
1
Cooktop (Brushed Chrome)
Cooktop (Brushed Chrome) WPL 4170030 Contact Us For Availability
View on Model
1
Cooktop (White)
Cooktop (White) WPL 4170031 Contact Us For Availability
View on Model
1
Cooktop (Black)
Cooktop (Black) WPL 4173024 Contact Us For Availability
View on Model
1
Element 8`` (2600W 240V)
Element 8`` (2600W 240V) WPL 3177569 Contact Us For Availability
View on Model
2
Griddle - Grill
Griddle - Grill WPL 3177249 Contact Us For Availability
View on Model
3
Screw (2)
Screw (2) WPL 4159201 Contact Us For Availability
View on Model
3
Handle, Grill Cover
Handle, Grill Cover WPL 4164376 Contact Us For Availability
View on Model
5
Pan, Grill
Pan, Grill WPL 3178709 Contact Us For Availability
View on Model
6
Knob, Control (5)
Knob, Control (5) WPL 3177270 Contact Us For Availability
View on Model
7
Pan, Heat Shield
Pan, Heat Shield WPL 4173123 Contact Us For Availability
View on Model
7
Plate, Control
Plate, Control WPL 3177244 Contact Us For Availability
View on Model
8
Bracket, Switch Mounting
Bracket, Switch Mounting WPL 3177243 Contact Us For Availability
View on Model
9
Frame, Outer Substructure
Frame, Outer Substructure WPL 4173214 Contact Us For Availability
View on Model
9
Indicator Light (3)
Indicator Light (3) WPL 3177245 Contact Us For Availability
View on Model
12
Hinge, Muli-Leaf
Hinge, Muli-Leaf WPL 4164319 Contact Us For Availability
View on Model
12
Screw, (8 x 1/2)
Screw, (8 x 1/2) WPL 4159409 Contact Us For Availability
View on Model
13
Terminal Block
Terminal Block WPL 3177247 Contact Us For Availability
View on Model
14
Box, Burner (Porcelained)
Box, Burner (Porcelained) WPL 3178713 Contact Us For Availability
View on Model
15
Rod, Top Support
Rod, Top Support WPL 4164239 Contact Us For Availability
View on Model
16
Cover, Control (Right)
Cover, Control (Right) WPL 4173215 Contact Us For Availability
View on Model
18
Cover, Control (Front)
Cover, Control (Front) WPL 4173216 Contact Us For Availability
View on Model
21
Screw
Screw WPL 4159465 Contact Us For Availability
View on Model
21
Cover, Control (Left)
Cover, Control (Left) WPL 4173217 Contact Us For Availability
View on Model
27
Jam Nut 3/8-24 Hex
Jam Nut 3/8-24 Hex WPL 4159114 Contact Us For Availability
View on Model
30
Washer
Washer WPL 4159607 Contact Us For Availability
View on Model
33
Clip, Receptacle
Clip, Receptacle WPL 4164316 Contact Us For Availability
View on Model
34
Screw, 8-18 X 1/4 (4)
Screw, 8-18 X 1/4 (4) WPL 4159448 Contact Us For Availability
View on Model
36
Element, Grill (1200 W 240 V.)
Element, Grill (1200 W 240 V.) WPL 3177524 Contact Us For Availability
View on Model
38
Screw, (8-18 X 3/8) (2)
Screw, (8-18 X 3/8) (2) WPL 4159386 Contact Us For Availability
View on Model
39
Lockwasher, 8 Int. Shake- proof
Lockwasher, 8 Int. Shake- proof WPL 4173213 Contact Us For Availability
View on Model
40
Receptacle, Grill Element
Receptacle, Grill Element WPL 3178640 Contact Us For Availability
View on Model
41
Washer
Washer WPL 4173369 Contact Us For Availability
View on Model
42
Clip, Mounting Ground Pin
Clip, Mounting Ground Pin WPL 4173205 Contact Us For Availability
View on Model
