Model Whirlpool RC8536XTN0 – Common Parts & Diagrams

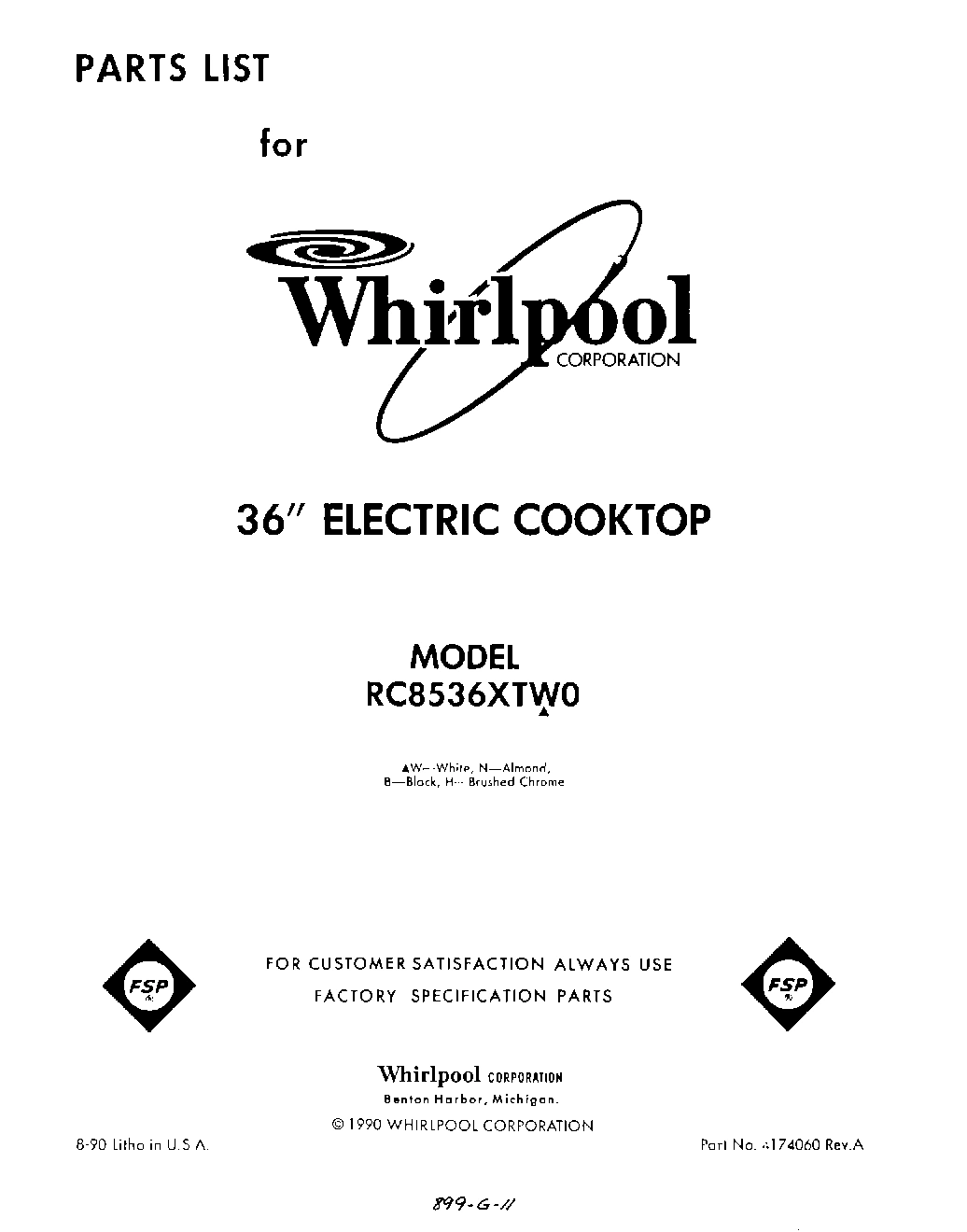

01 - SECTION

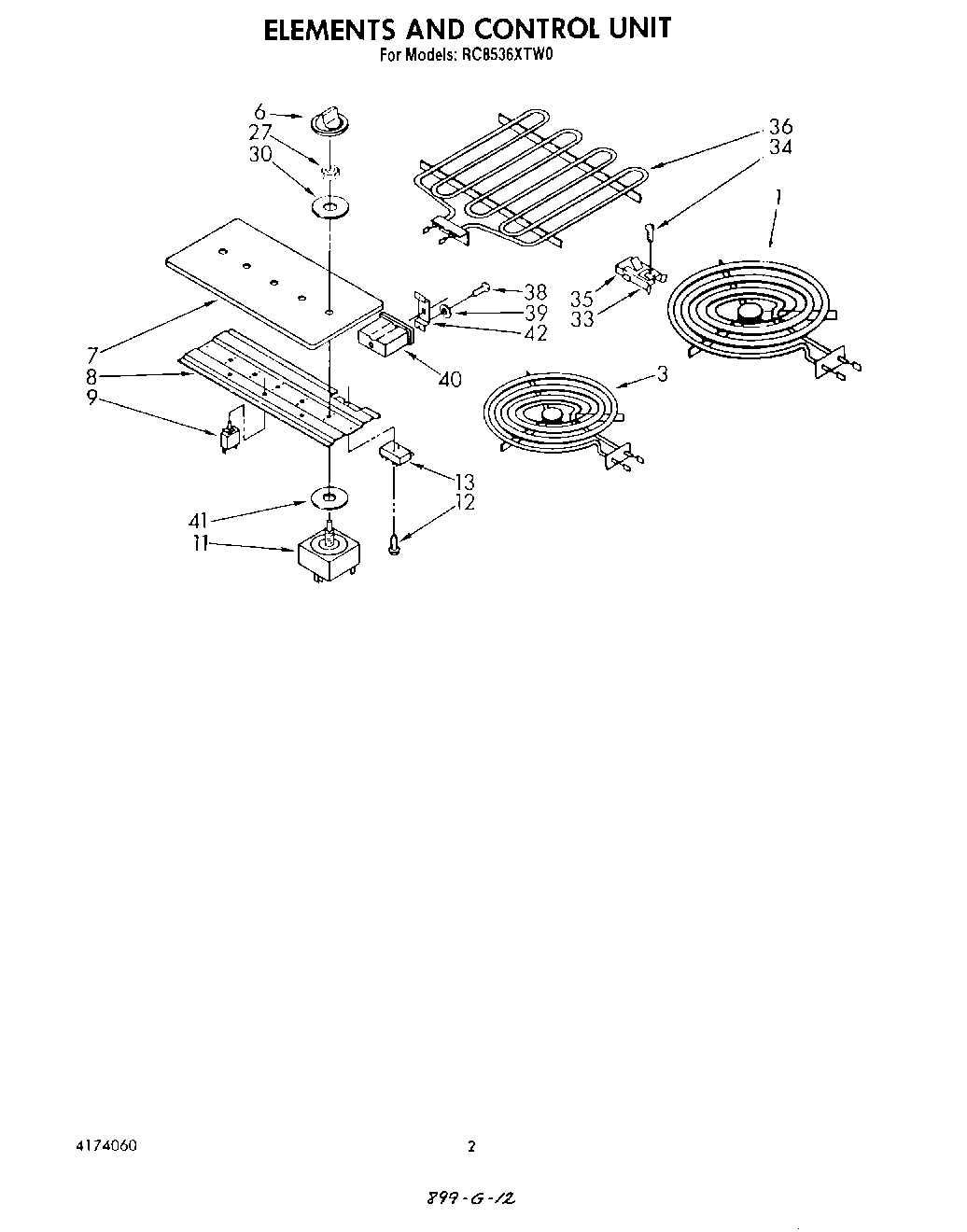

02 - SECTION

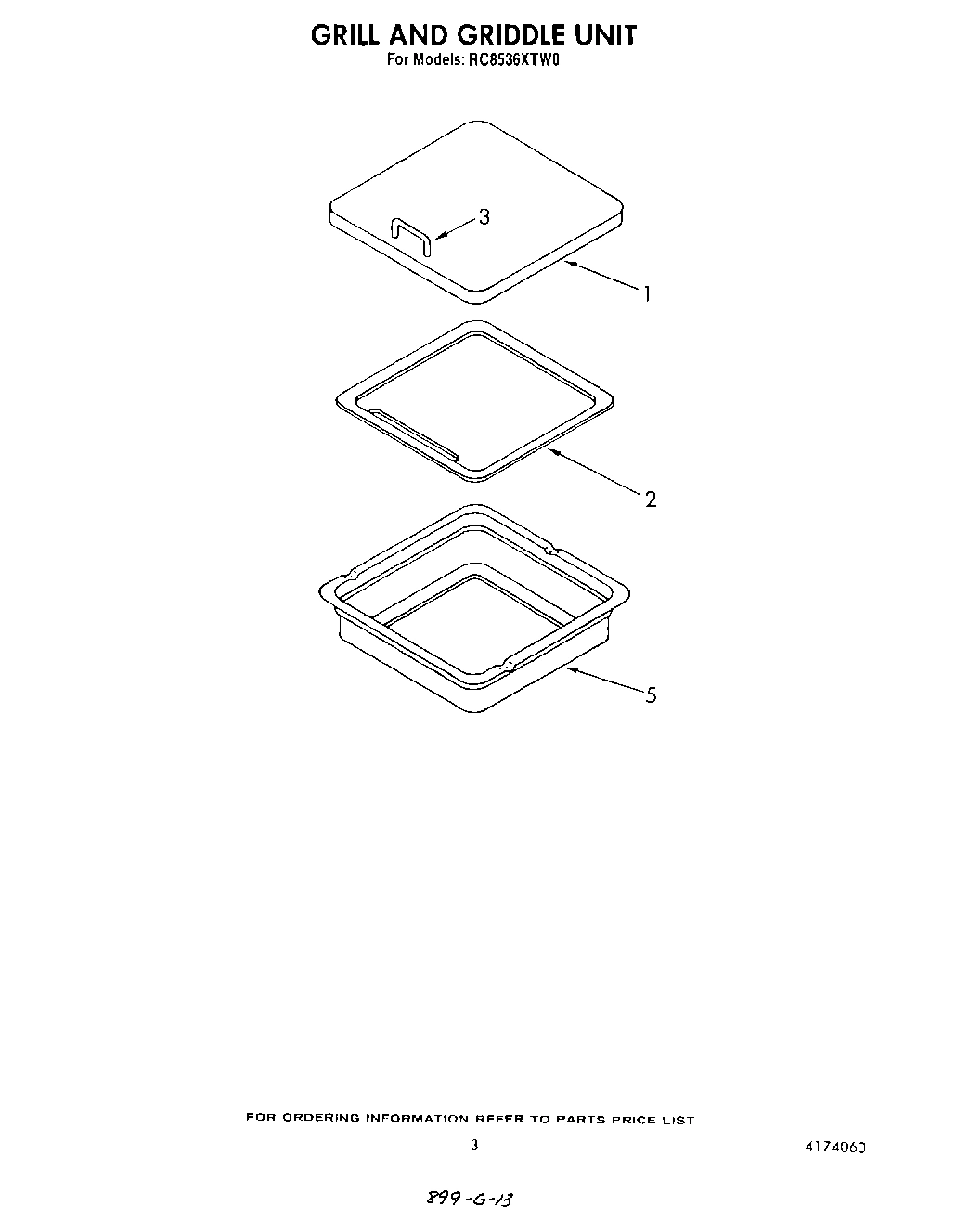

03 - SECTION

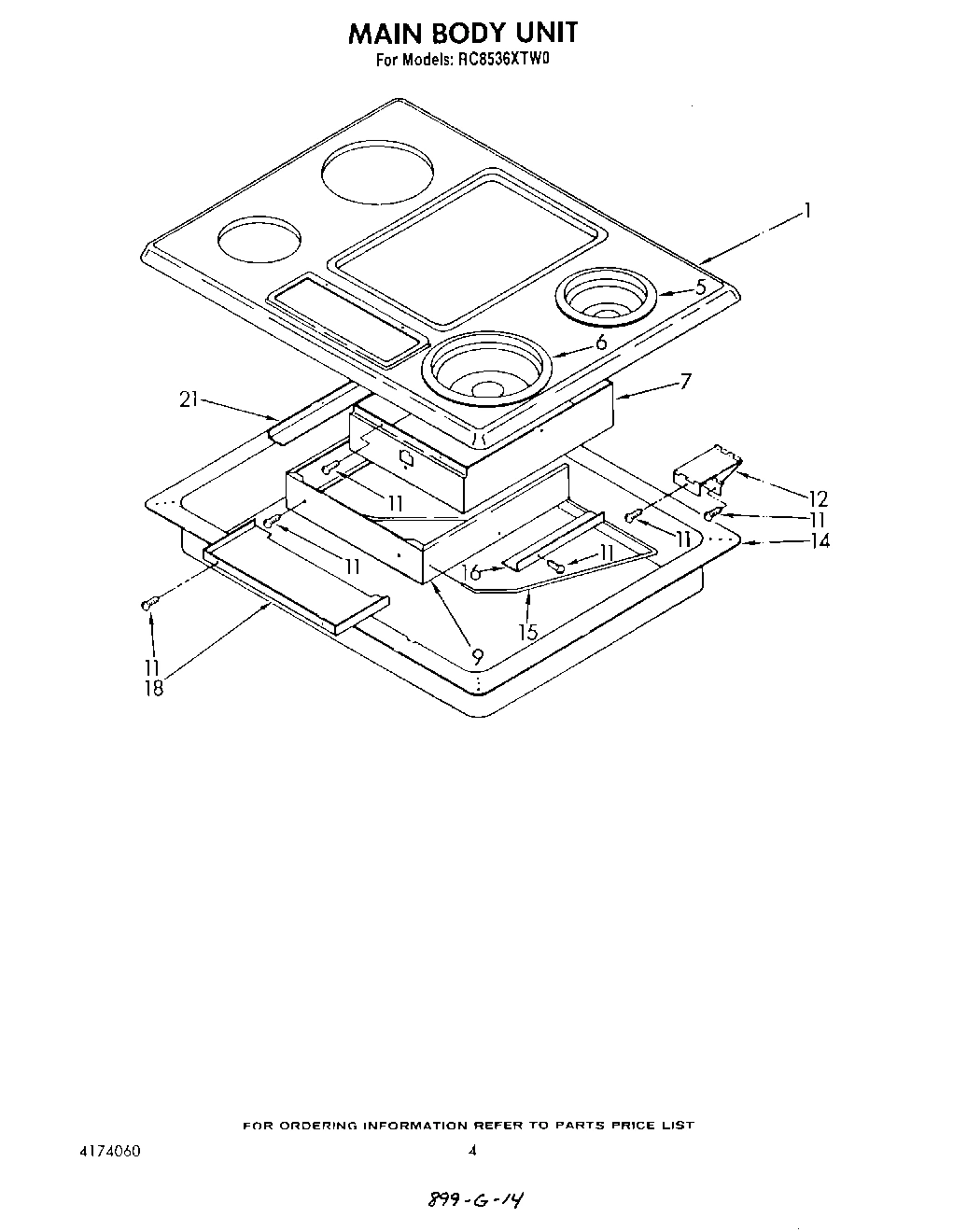

04 - SECTION
Common parts from model Whirlpool RC8536XTN0
Guide, Use & Care WPL LIT3177084 Contact Us For Availability
Installation Instructions WPL LIT3177126 Contact Us For Availability
Repair Parts List WPL LIT4174060 Contact Us For Availability
1
Grill Cover WPL 4164377 Contact Us For Availability
1
Cooktop (Almond) WPL 4170028 Contact Us For Availability
1
Cooktop (Brushed Chrome) WPL 4170030 Contact Us For Availability
1
Cooktop (White) WPL 4170031 Contact Us For Availability
1
Cooktop (Black) WPL 4173024 Contact Us For Availability
2
(Alt.) WPL 3177248 Contact Us For Availability
2
(Alt.) WPL 3177569 Contact Us For Availability
2
Element 8`` (2600 W 240 V) WPL 661406 Contact Us For Availability
2
Griddle - Grill WPL 3177249 Contact Us For Availability
3
Screw (2) WPL 4159201 Contact Us For Availability
3
Handle, Grill Cover WPL 4164376 Contact Us For Availability
5
Pan, Grill WPL 4164305 Contact Us For Availability
6
Knob, Control (5) WPL 3177270 Contact Us For Availability
7
Plate, Control WPL 3177244 Contact Us For Availability
7
Pan, Heat Shield WPL 4173123 Contact Us For Availability
8
Bracket, Switch Mounting WPL 3177243 Contact Us For Availability
9
Indicator Light (3) WPL 3177245 Contact Us For Availability
9
Screw, 8-18 X 3/8 WPL 4159386 Contact Us For Availability
9
Frame, Outer Substructure WPL 4173214 Contact Us For Availability
12
Screw, (8 x 1/2) WPL 4159409 Contact Us For Availability
12
Hinge, Muli-Leaf WPL 4164319 Contact Us For Availability
13
Terminal Block WPL 3177247 Contact Us For Availability
14
Box, Burner (porcelained) WPL 4164298 Contact Us For Availability
15
Rod, Top Support WPL 4164329 Contact Us For Availability
16
Cover, Control (Right) WPL 4173215 Contact Us For Availability
18
Cover, Control (Front) WPL 4173216 Contact Us For Availability
21
Screw, 8-18 X 3/8 WPL 4159465 Contact Us For Availability
21
Cover, Control (Left) WPL 4173217 Contact Us For Availability
27
Jam Nut 3/8-24 Hex WPL 4159114 Contact Us For Availability
30
Washer WPL 4159607 Contact Us For Availability
33
Clip, Receptacle WPL 4164316 Contact Us For Availability
34
Screw, 8-18 X 1/4 (4) WPL 4159448 Contact Us For Availability
36
Element, Grill (1200 W 240 V.) WPL 3177251 Contact Us For Availability
39
Lockwasher, 8 Int. Shake- proof WPL 4173213 Contact Us For Availability
40
Receptacle, Grill Element WPL 4173125 Contact Us For Availability
41
Washer (10) WPL 4173369 Contact Us For Availability
42
Clip, Mounting Ground Pin WPL 4173205 Contact Us For Availability
× ![]()
