  • Whirlpool RC8200XKW1 Parts List

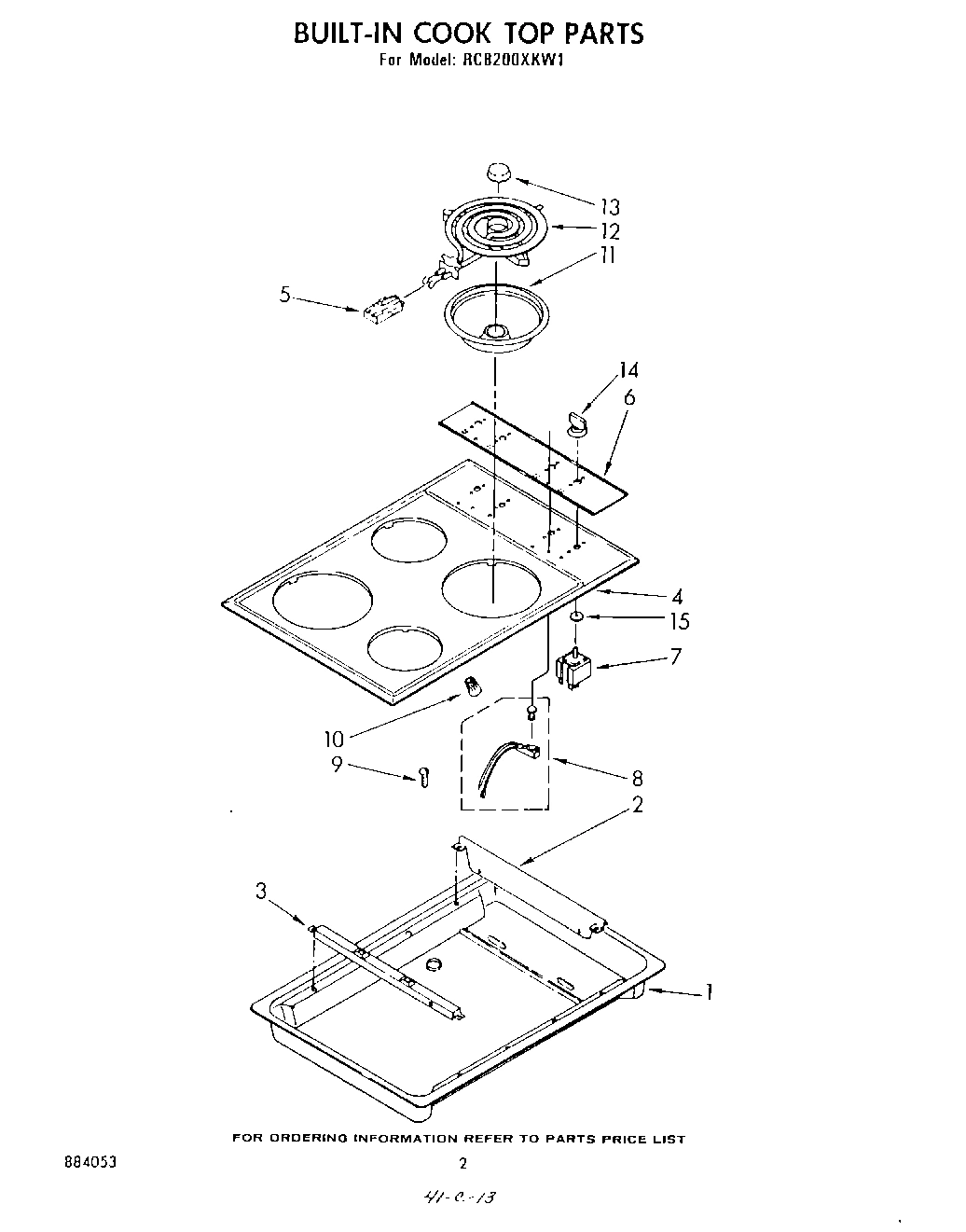

Model Whirlpool RC8200XKW1 – Common Parts & Diagrams

2
Shield, Switch
Shield, Switch WPL 310716 Contact Us For Availability
View on Model
3
Support, Cooktop
Support, Cooktop WPL 310717 Contact Us For Availability
View on Model
4
Cooktop, Brushed Chrome
Cooktop, Brushed Chrome WPL 307492 Contact Us For Availability
View on Model
4
Cooktop (White)
Cooktop (White) WPL 307493 Contact Us For Availability
View on Model
4
Cooktop (New Avocado)
Cooktop (New Avocado) WPL 308943 Contact Us For Availability
View on Model
4
Cooktop (Golden Harvest)
Cooktop (Golden Harvest) WPL 308944 Contact Us For Availability
View on Model
4
Cooktop (Coffee)
Cooktop (Coffee) WPL 308945 Contact Us For Availability
View on Model
4
Cooktop (Almond)
Cooktop (Almond) WPL 308946 Contact Us For Availability
View on Model
4
Cooktop (Toast)
Cooktop (Toast) WPL 308947 Contact Us For Availability
View on Model
4
Cooktop (Platinum)
Cooktop (Platinum) WPL 308948 Contact Us For Availability
View on Model
4
Cooktop (Screw (4))
Cooktop (Screw (4)) WPL 342043 Contact Us For Availability
View on Model
6
Panel, Control
Panel, Control WPL 312519 Contact Us For Availability
View on Model
7
Switch, Infinite (Screw, 8-32 x 5/16 (8))
Switch, Infinite (Screw, 8-32 x 5/16 (8)) WPL 246406 Contact Us For Availability
View on Model
8
Light, Indicator (2) (Includes Lens Part No.3
Light, Indicator (2) (Includes Lens Part No.3 WPL 312860 Contact Us For Availability
View on Model
9
Screw, 10D-32 x 5/16 (2) (Ground Wire)
Screw, 10D-32 x 5/16 (2) (Ground Wire) WPL 166681 Contact Us For Availability
View on Model
10
Connector, Wire
Connector, Wire WPL 255673 Contact Us For Availability
View on Model
12
nit, Surface (2) 6`` (240V) (6``)
nit, Surface (2) 6`` (240V) (6``) WPL 834645 Contact Us For Availability
View on Model
12
Unit, Surface (2) 6`` (240V) (8``)
Unit, Surface (2) 6`` (240V) (8``) WPL 834647 Contact Us For Availability
View on Model
13
Medallion, Surface Unit
Medallion, Surface Unit WPL 309195 Contact Us For Availability
View on Model
15
Wire (14 Ga. 150 c Black)
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
View on Model
15
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
View on Model
15
Wire (14 Ga. 150 c B
Wire (14 Ga. 150 c B WPL 242822 Contact Us For Availability
View on Model
15
WPL 242823
WPL 242823 WPL 242823 Contact Us For Availability
View on Model
15
WPL 242824
WPL 242824 WPL 242824 Contact Us For Availability
View on Model
15
WPL 242825
WPL 242825 WPL 242825 Contact Us For Availability
View on Model
15
WPL 242826
WPL 242826 WPL 242826 Contact Us For Availability
View on Model
15
WPL 242827
WPL 242827 WPL 242827 Contact Us For Availability
View on Model
15
WPL 242828
WPL 242828 WPL 242828 Contact Us For Availability
View on Model
15
WPL 242829
WPL 242829 WPL 242829 Contact Us For Availability
View on Model
15
WPL 242830
WPL 242830 WPL 242830 Contact Us For Availability
View on Model
15
WPL 242832
WPL 242832 WPL 242832 Contact Us For Availability
View on Model
15
WPL 308500
WPL 308500 WPL 308500 Contact Us For Availability
View on Model
15
WPL 309839
WPL 309839 WPL 309839 Contact Us For Availability
View on Model
15
WPL 311423
WPL 311423 WPL 311423 Contact Us For Availability
View on Model
15
WPL 311437
WPL 311437 WPL 311437 Contact Us For Availability
View on Model
15
WPL 884053
WPL 884053 WPL 884053 Contact Us For Availability
View on Model
