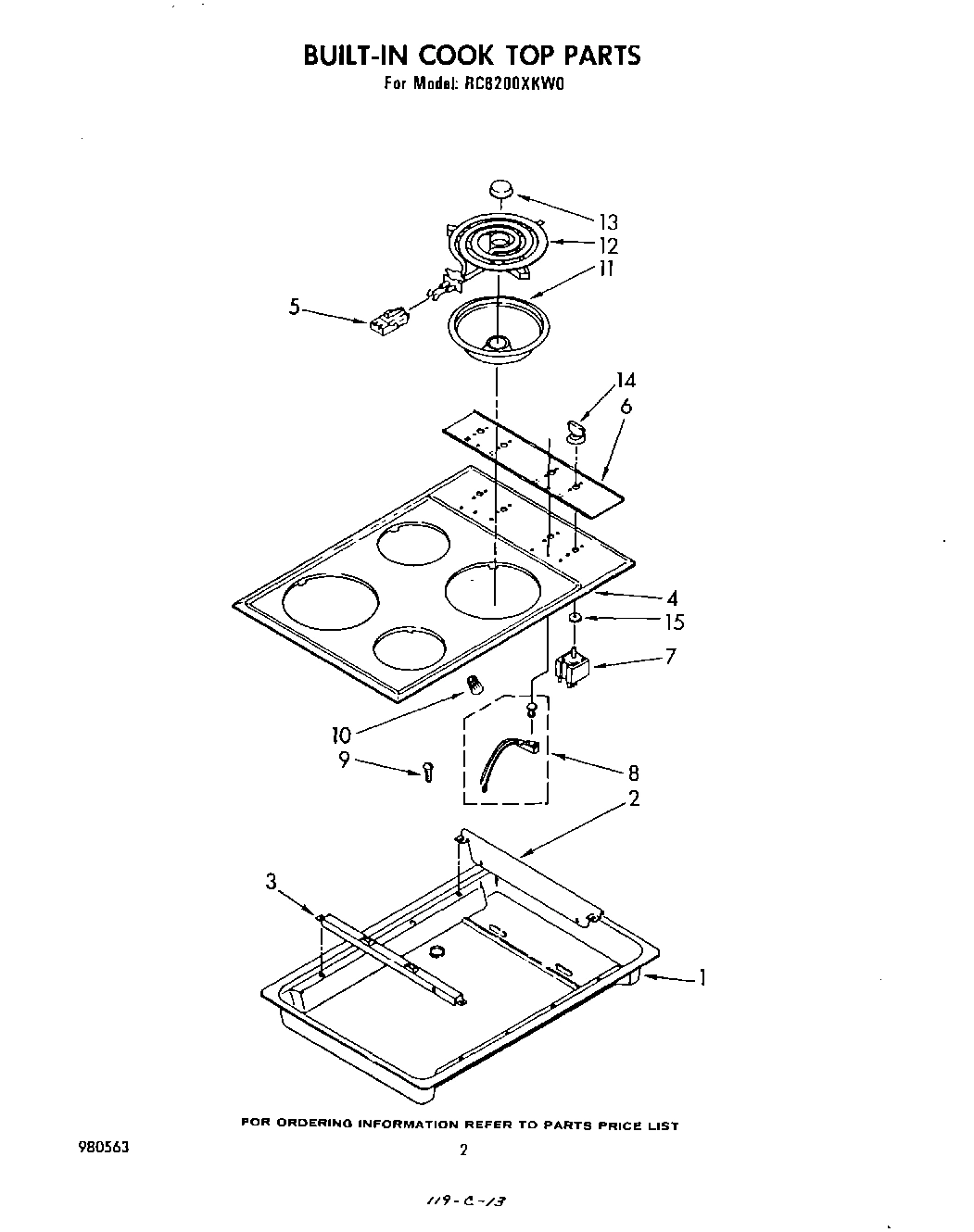

Model Whirlpool RC8200XKW0 – Common Parts & Diagrams

1
Burner Box
Burner Box WPL 311017 Contact Us For Availability
View on Model
2
Shield, Switch
Shield, Switch WPL 310716 Contact Us For Availability
View on Model
3
Support, Cooktop
Support, Cooktop WPL 310717 Contact Us For Availability
View on Model
4
Cooktop (Screw (4))
Cooktop (Screw (4)) WPL 342043 Contact Us For Availability
View on Model
4
Cooktop, Brushed Chrome
Cooktop, Brushed Chrome WPL 307492 Contact Us For Availability
View on Model
4
Cooktop (White)
Cooktop (White) WPL 307493 Contact Us For Availability
View on Model
4
Cooktop (New Avocado)
Cooktop (New Avocado) WPL 308943 Contact Us For Availability
View on Model
4
Cooktop (Golden Harvest)
Cooktop (Golden Harvest) WPL 308944 Contact Us For Availability
View on Model
4
Cooktop (Coffee)
Cooktop (Coffee) WPL 308945 Contact Us For Availability
View on Model
4
Cooktop (Almond)
Cooktop (Almond) WPL 308946 Contact Us For Availability
View on Model
6
Panel, Control
Panel, Control WPL 310939 Contact Us For Availability
View on Model
7
Switch, Infinite (Screw, 8-32 x 5/16 (8))
Switch, Infinite (Screw, 8-32 x 5/16 (8)) WPL 246406 Contact Us For Availability
View on Model
8
Light, Indicator (2) (Includes Lens Part No.3
Light, Indicator (2) (Includes Lens Part No.3 WPL 311523 Contact Us For Availability
View on Model
9
Screw, 10D-32 x 5/16 (2) (Ground Wire)
Screw, 10D-32 x 5/16 (2) (Ground Wire) WPL 166681 Contact Us For Availability
View on Model
10
Connector, Wire
Connector, Wire WPL 255673 Contact Us For Availability
View on Model
12
Unit, Surface (6`` (2))
Unit, Surface (6`` (2)) WPL 309916 Contact Us For Availability
View on Model
13
Medallion, Surface Unit
Medallion, Surface Unit WPL 309195 Contact Us For Availability
View on Model
15
Wire (14 Ga. 150 c Black)
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
View on Model
15
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
View on Model
15
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
View on Model
15
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
View on Model
15
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
View on Model
15
Wire (14 Ga. 150 c Red)
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
View on Model
15
Wire, White 14 Ga. 150~c
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
View on Model
15
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
View on Model
15
Wire (12 Ga. 150 c Black)
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
View on Model
15
Wire, Red 12 Ga. 150~c
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
View on Model
15
Wire (14 Ga. 200 c Brown)
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
View on Model
15
Wire, Yellow 14 Ga. 200~c
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
View on Model
15
Book, Cooking Guid
Book, Cooking Guid WPL 308500 Contact Us For Availability
View on Model
15
WPL 309837
WPL 309837 WPL 309837 Contact Us For Availability
View on Model
15
WPL 311423
WPL 311423 WPL 311423 Contact Us For Availability
View on Model
15
WPL 311437
WPL 311437 WPL 311437 Contact Us For Availability
View on Model
15
WPL 980563
WPL 980563 WPL 980563 Contact Us For Availability
View on Model
