Model Whirlpool RBS307PDQ1 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

Cookbook Conv.
Cookbook Conv. WPL LIT4449237 Contact Us For Availability
View on Model
Installation Instructions
Installation Instructions WPL LIT4450411 Contact Us For Availability
View on Model
Use & Care Guide
Use & Care Guide WPL LIT4450569 Contact Us For Availability
View on Model
Installation/ Undercounter
Installation/ Undercounter WPL LIT4450839 Contact Us For Availability
View on Model
Tech Sheet (Oven)
Tech Sheet (Oven) WPL LIT4450916 Contact Us For Availability
View on Model
1

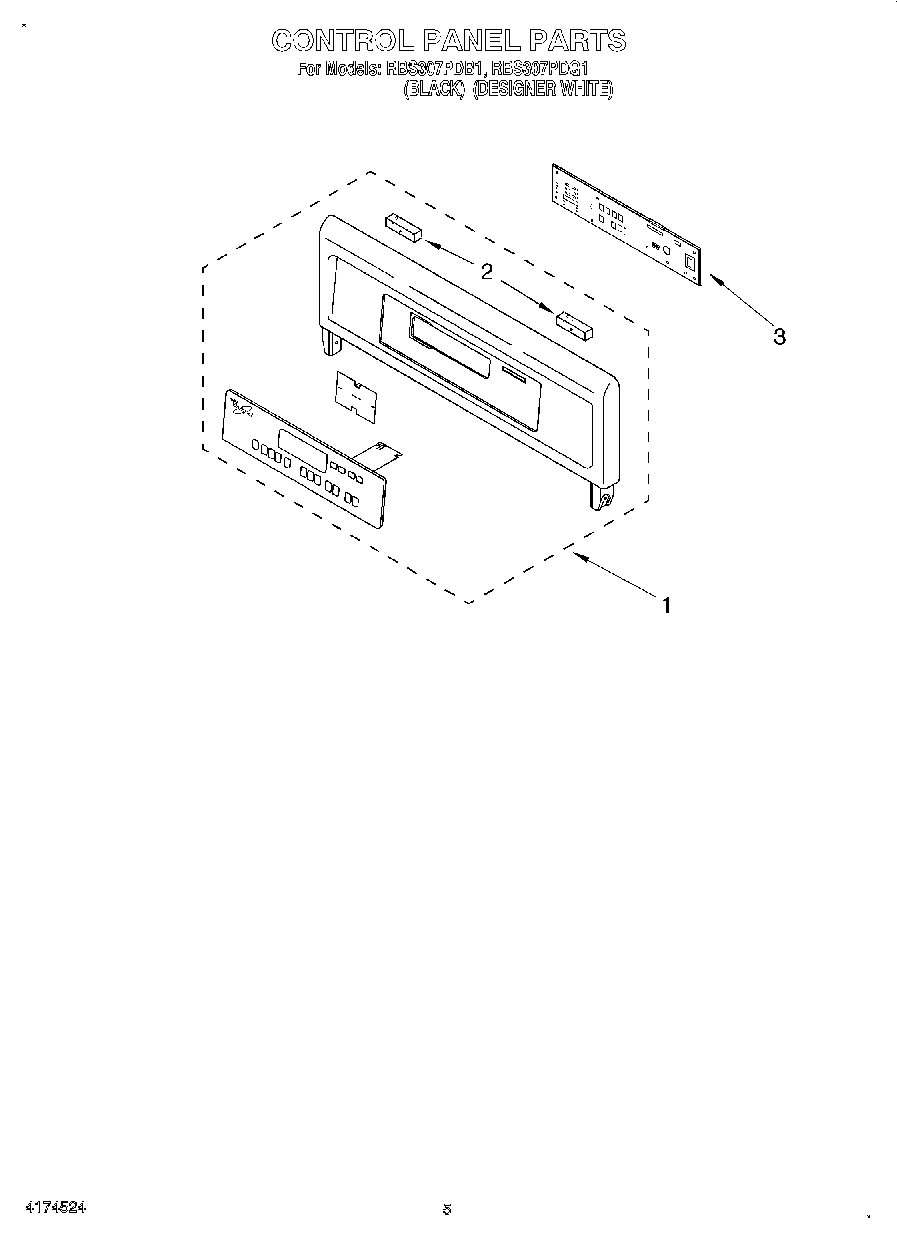

Control Panel Assy. W/Membrane Switch (Black
Control Panel Assy. W/Membrane Switch (Black WPL 4451342 Contact Us For Availability
View on Model
1
Control Panel Assy. W/Membrane Switch (White
Control Panel Assy. W/Membrane Switch (White WPL 4451343 Contact Us For Availability
View on Model
2
Screw
Screw WPL 4159465 Contact Us For Availability
View on Model
2
Gasket, Control Panel
Gasket, Control Panel WPL 4451034 Contact Us For Availability
View on Model
3
Microcomputer
Microcomputer WPL 4448875 Contact Us For Availability
View on Model
3

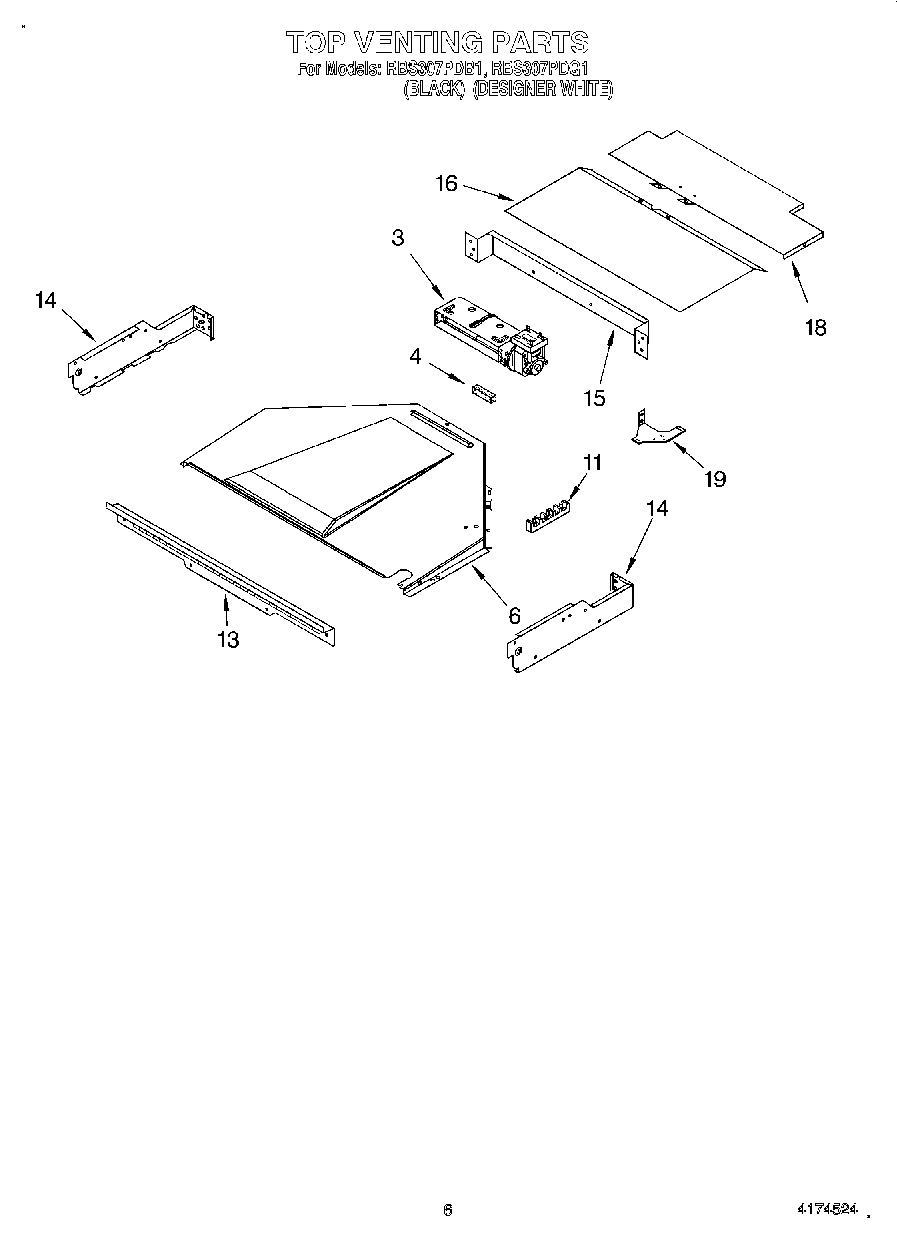

Blower, Upper/Lower
Blower, Upper/Lower WPL 4450920 Contact Us For Availability
View on Model
4
Block, Foam
Block, Foam WPL 3182384 Contact Us For Availability
View on Model
5

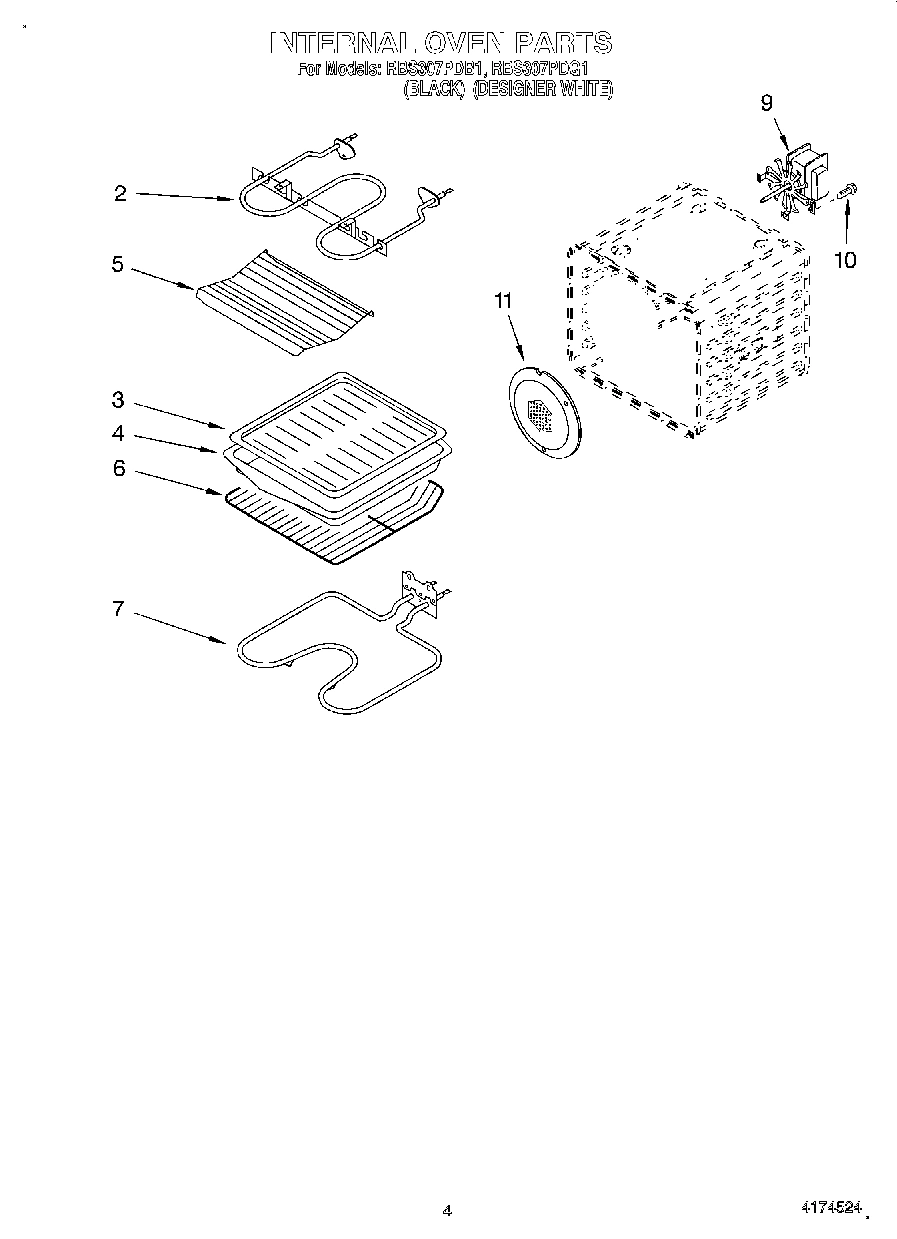

Rack, Roasting
Rack, Roasting WPL 3181534 Contact Us For Availability
View on Model
6
Exhaust Duct
Exhaust Duct WPL 4450367 Contact Us For Availability
View on Model
9
Motor, Convection
Motor, Convection WPL 4448952 Contact Us For Availability
View on Model
13
Door Handle (Black Model)
Door Handle (Black Model) WPL 4448854 Contact Us For Availability
View on Model
13
Safety Switch (Oven Temp)
Safety Switch (Oven Temp) WPL 4450812 Contact Us For Availability
View on Model
13
Vent, Control Panel
Vent, Control Panel WPL 4448549 Contact Us For Availability
View on Model
14
Bracket, Handle
Bracket, Handle WPL 4450813 Contact Us For Availability
View on Model
14
Screw
Screw WPL 4449040 Contact Us For Availability
View on Model
15
Back, Control
Back, Control WPL 4450658 Contact Us For Availability
View on Model
19
Support, Insulation
Support, Insulation WPL 4450542 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Black)
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Red)
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c White)
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
View on Model
19
Wire (12 Ga. 150 c Black)
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
View on Model
19
Wire (12 Ga. 150 c Red)
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
View on Model
19
Wire (14 Ga. 200 c Brown)
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
View on Model
19
Wire (14 Ga. 200 c Yellow)
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
View on Model
19
Bracket, Blower
Bracket, Blower WPL 4450545 Contact Us For Availability
View on Model
19
Harness, Wire (Latch)
Harness, Wire (Latch) WPL 4450753 Contact Us For Availability
View on Model
19
Harness, Wire (Door Switch)
Harness, Wire (Door Switch) WPL 4450951 Contact Us For Availability
View on Model
19
Harness, Wire (Main)
Harness, Wire (Main) WPL 4450966 Contact Us For Availability
View on Model
19
ADHESIVE LOCTITE (1/3 OZ.)
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
View on Model
19
Roll Tape, Exhaust Duct
Roll Tape, Exhaust Duct WPL 814387 Contact Us For Availability
View on Model
22
Screw
Screw WPL 4450289 Contact Us For Availability
View on Model
22
Shield, Latch
Shield, Latch WPL 4451036 Contact Us For Availability
View on Model
23
Deflector, Latch
Deflector, Latch WPL 4450051 Contact Us For Availability
View on Model
24
Latch, Assy
Latch, Assy WPL 4450332 Contact Us For Availability
View on Model
25
Side, Chassis (R.H. & L.H.)
Side, Chassis (R.H. & L.H.) WPL 4450528 Contact Us For Availability
View on Model
26
Back, Chassis
Back, Chassis WPL 4451169 Contact Us For Availability
View on Model
27
Liner, Oven (Not a Serviceable Part)
Liner, Oven (Not a Serviceable Part) WPL ARI121138A Contact Us For Availability
View on Model
29
Sensor
Sensor WPL 4450026 Contact Us For Availability
View on Model
31
Switch, Door
Switch, Door WPL 4450819 Contact Us For Availability
View on Model
32
Vent Box Assy
Vent Box Assy WPL 4449369 Contact Us For Availability
View on Model
43
Base, Chassis
Base, Chassis WPL 4450527 Contact Us For Availability
View on Model
50
Cover, Back
Cover, Back WPL 4450544 Contact Us For Availability
View on Model
53
BRACKET-SUPPORT
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
View on Model
54
Spacer, Harness
Spacer, Harness WPL 4451002 Contact Us For Availability
View on Model
55
Trim, Bottom (Black Model)
Trim, Bottom (Black Model) WPL 4448477 Contact Us For Availability
View on Model
55
Trim, Bottom (White Model)
Trim, Bottom (White Model) WPL 4448478 Contact Us For Availability
View on Model
55
Insulation, Back
Insulation, Back WPL 4450365 Contact Us For Availability
