Model Whirlpool RBS305PVT03 30`` BUILT-IN ELECTRIC SINGLE OVEN SELF-CLEAN – Common Parts & Diagrams

1
Vent, Exhaust
Vent, Exhaust WPL 4451759 Contact Us For Availability
View on Model
1

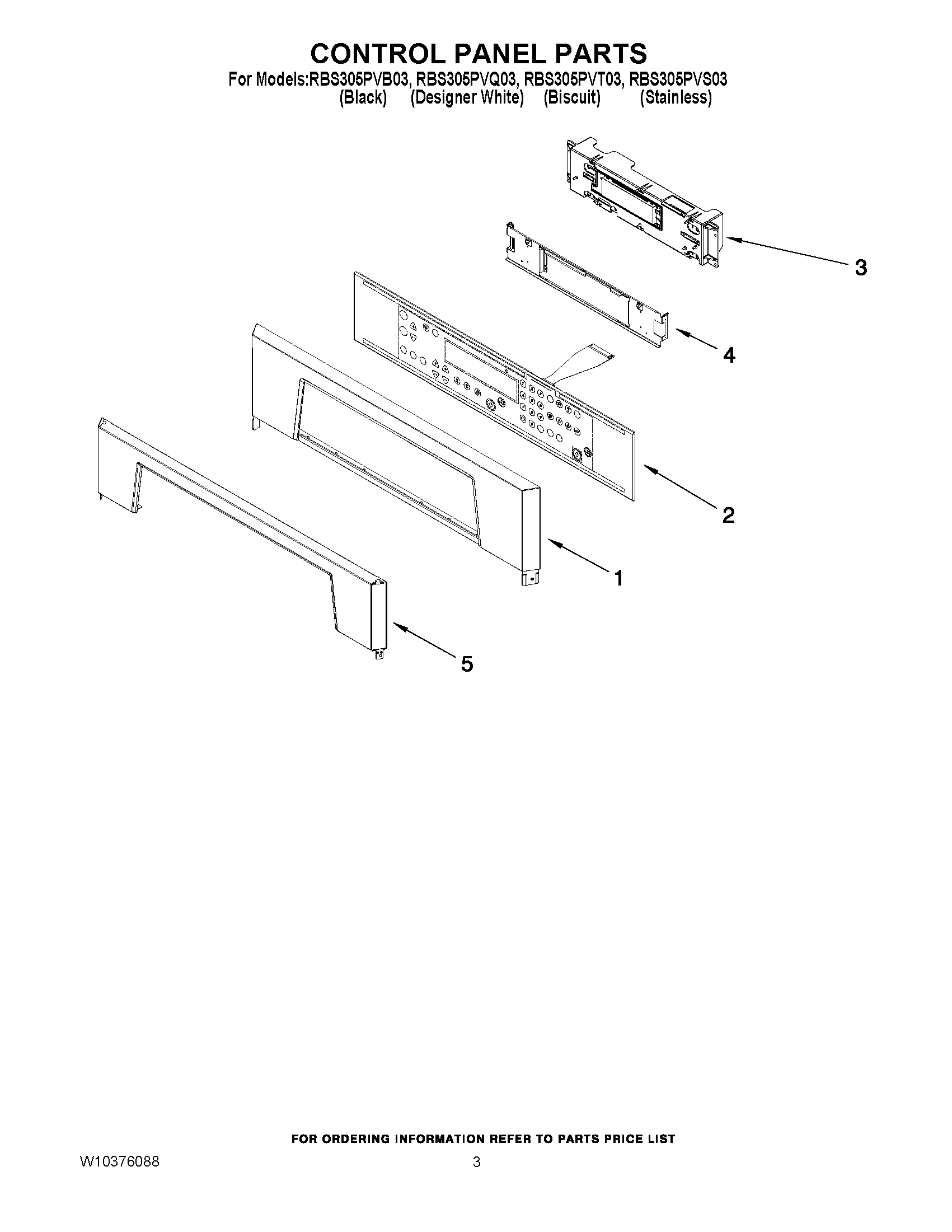

Panel, Control (Biscuit)
Panel, Control (Biscuit) WPL 8302850 Contact Us For Availability
View on Model
2
Trim, Side Right (Stainless)
Trim, Side Right (Stainless) WPL W10145004 Contact Us For Availability
View on Model
2
Trim, Side Left (Stainless)
Trim, Side Left (Stainless) WPL W10145005 Contact Us For Availability
View on Model
2
ELBOW, VENT TOP
ELBOW, VENT TOP WPL 4455178 Contact Us For Availability
View on Model
2
TRIM, SIDE LEFT (WHITE)
TRIM, SIDE LEFT (WHITE) WPL W10339496 Contact Us For Availability
View on Model
3
MICROCOMPUTER
MICROCOMPUTER WPL W10340935 Contact Us For Availability
View on Model
4
Bumper, Door
Bumper, Door WPL W10105790 Contact Us For Availability
View on Model
5
ELBOW, VENT BOTTOM
ELBOW, VENT BOTTOM WPL 4455177 Contact Us For Availability
View on Model
6
SCREW
SCREW WPL 7101P42660 Contact Us For Availability
View on Model
7
Screw
Screw WPL 4449040 Contact Us For Availability
View on Model
8
Screw
Screw WPL 3400080 Contact Us For Availability
View on Model
10
Lens, Light
Lens, Light WPL W10067870 Contact Us For Availability
View on Model
11
BLOCK, TERMINAL
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
View on Model
12

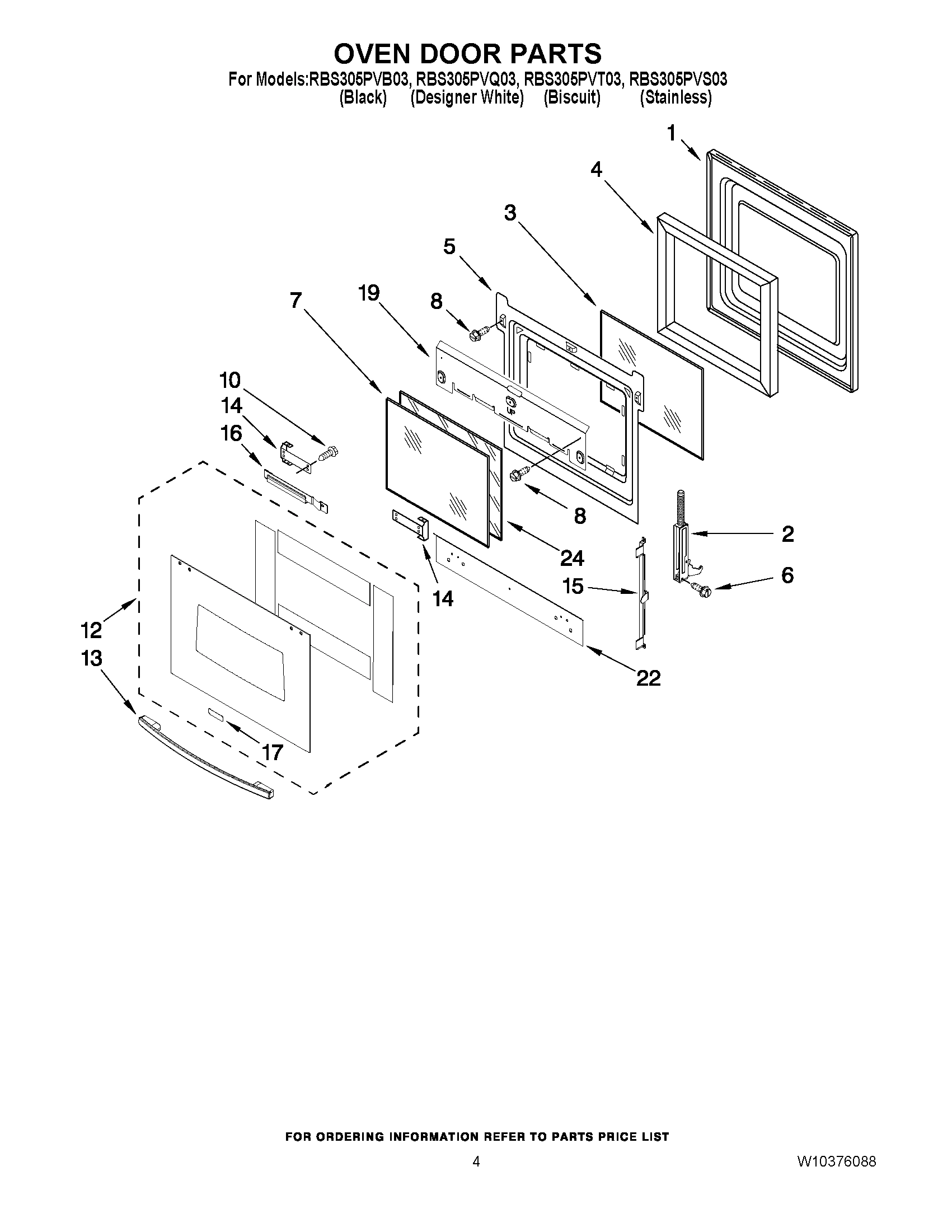

Assembly, Door Glass (Black)
Assembly, Door Glass (Black) WPL W10200754 Contact Us For Availability
View on Model
12
Assembly, Door Glass (White)
Assembly, Door Glass (White) WPL W10200755 Contact Us For Availability
View on Model
13
VENT,CONTROL PANEL
VENT,CONTROL PANEL WPL 8303497 Contact Us For Availability
View on Model
14
Bracket, Handle (Right)
Bracket, Handle (Right) WPL 4455803 Contact Us For Availability
View on Model
14
Bracket, Handle (Left)
Bracket, Handle (Left) WPL 4455804 Contact Us For Availability
View on Model
15
Back, Control
Back, Control WPL 9759135 Contact Us For Availability
View on Model
17
Nameplate
Nameplate WPL W10215072 Contact Us For Availability
View on Model
17
Clamp
Clamp WPL 4448664 Contact Us For Availability
View on Model
18
BRACKET, MOUNTING BOTTOM VENT
BRACKET, MOUNTING BOTTOM VENT WPL 4452152 Contact Us For Availability
View on Model
19
SUPPRESSOR
SUPPRESSOR WPL 8302143 Contact Us For Availability
View on Model
21
Rail, Side (Left)
Rail, Side (Left) WPL 8303116 Contact Us For Availability
View on Model
24
Glass, Inner
Glass, Inner WPL 9759228 Contact Us For Availability
View on Model
26
Back, Chassis
Back, Chassis WPL W10161110 Contact Us For Availability
View on Model
27
LINER, OVEN (NOT SERVICEABLE)
LINER, OVEN (NOT SERVICEABLE) WPL NP Contact Us For Availability
View on Model
29
Deflector, Vent
Deflector, Vent WPL 9760677 Contact Us For Availability
View on Model
31
Base, Chassis
Base, Chassis WPL 9759713 Contact Us For Availability
View on Model
34
Assembly, Bottom Vent (Stainless)
Assembly, Bottom Vent (Stainless) WPL W10151131 Contact Us For Availability
View on Model
35
Support, Bracket
Support, Bracket WPL 4449845 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
View on Model
NI
PAINT, SPRAY (Citrine White)
PAINT, SPRAY (Citrine White) WPL 261900 Contact Us For Availability
View on Model
NI
BRACKE
BRACKE WPL W10345262 Contact Us For Availability
View on Model
NI
Lead, Ground Strap
Lead, Ground Strap WPL 4452400 Contact Us For Availability
View on Model
NI
Insulation, Back
Insulation, Back WPL 4450365 Contact Us For Availability
View on Model
NI
Screw
Screw WPL 4450800 Contact Us For Availability
View on Model
NI
Support, Wiring
Support, Wiring WPL 4451761 Contact Us For Availability
View on Model
NI
ADHESIVE LOCTITE (1/3 OZ.)
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
View on Model
NI
Nut, Terminal Block
Nut, Terminal Block WPL 7103P02760 Contact Us For Availability
View on Model
NI
Harness, Main
Harness, Main WPL 8301400 Contact Us For Availability
View on Model
