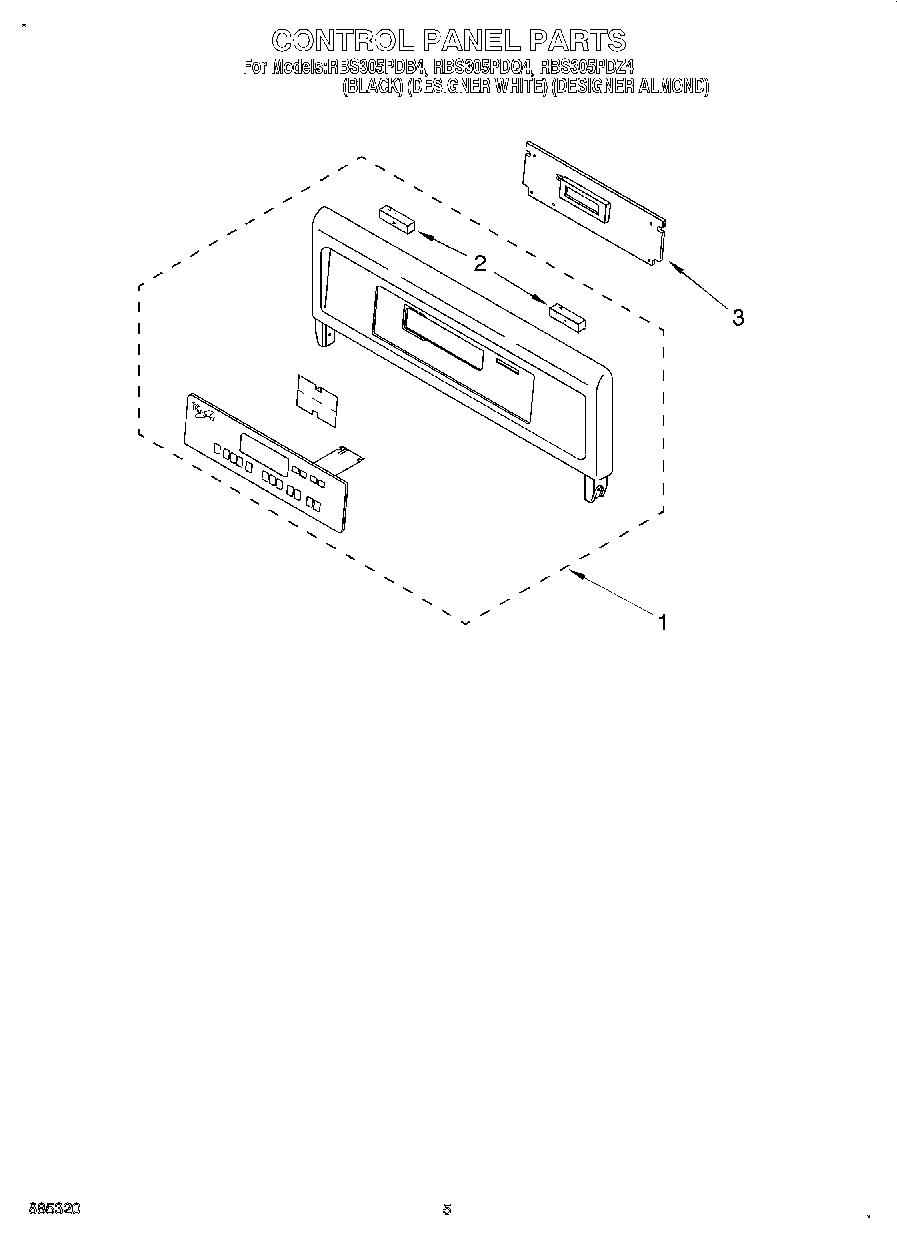

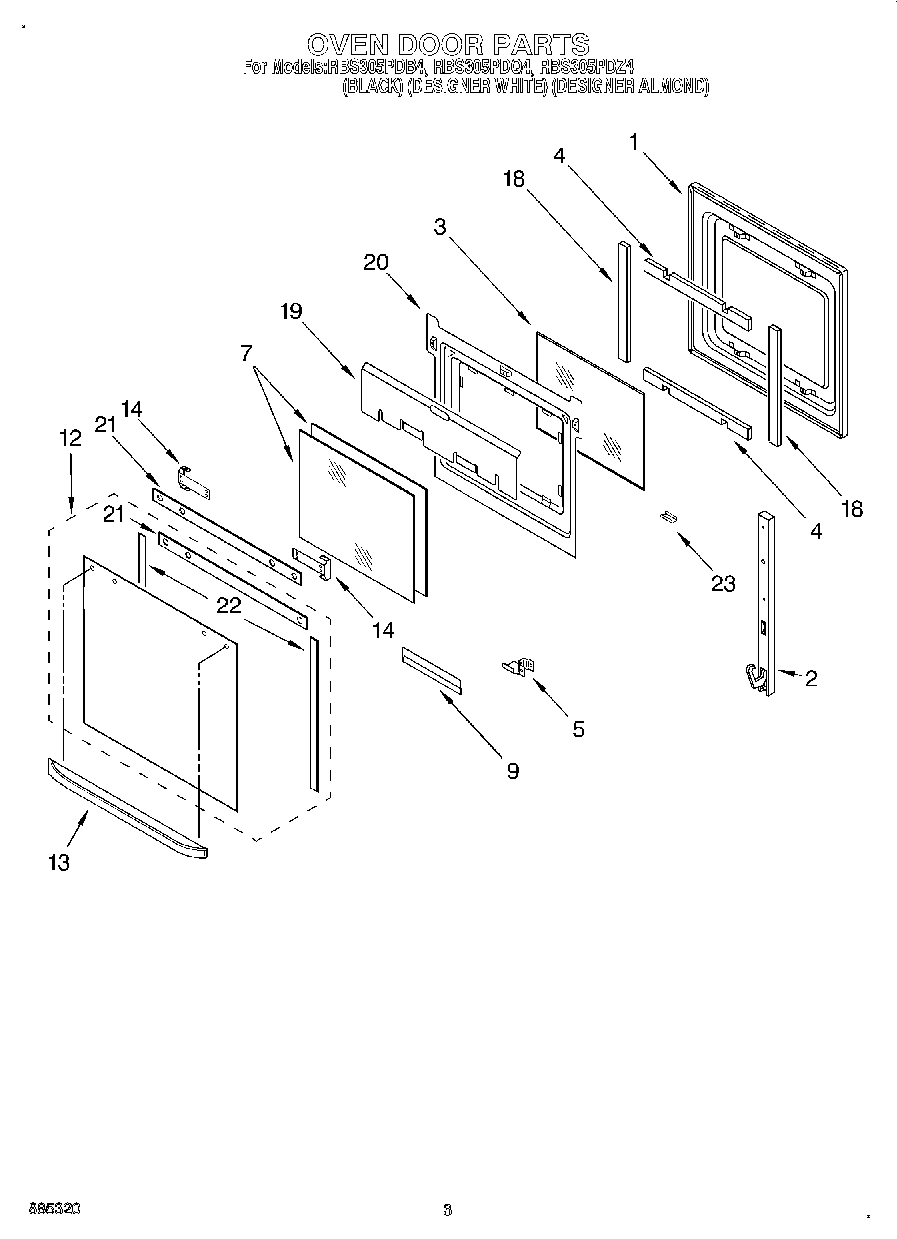

Model Whirlpool RBS305PDZ4 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts &amp; Diagrams

1

Control Panel Assy. W/Membrane Switch (Almond WPL 4451341 Contact Us For Availability

1

Trim, Side (Left Hand) (Screw) WPL 4449041 Contact Us For Availability

1

Trim, Side (Right Hand) (Black Model) WPL 4450844 Contact Us For Availability

1

Trim, Side (White, Right) WPL 4450845 Contact Us For Availability

1

Trim, Side (Right Hand) (Almond Model) WPL 4450846 Contact Us For Availability

1

Trim, Side (Left Hand) (Black Model) WPL 4450847 Contact Us For Availability

1

Trim, Side (Left Hand) (White Model) WPL 4450848 Contact Us For Availability

1

(Trim, Side (Left Hand)) (Almond Model) WPL 4450849 Contact Us For Availability

2

WP9760767 Whirlpool Range Wall Oven Broil Ele In Stock WPL WP9760767 $65.29

2

Gasket, Control Panel WPL 4451034 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $79.44

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

Microcomputer WPL 4448874 Contact Us For Availability

3

Blower, Upper/Lower WPL 4450920 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

Block, Foam WPL 3182384 Contact Us For Availability

6

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $63.24

6

Divider, Vent WPL 4451039 Contact Us For Availability

6

Exhaust Duct WPL 4450367 Contact Us For Availability

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $80.64

7

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $45.71

7

Partition WPL 4451166 Contact Us For Availability

9

Tube, Vent WPL 4449009 Contact Us For Availability

11

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

11

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

11

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $35.32

13

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

13

Door Handle (Black Model) WPL 4448854 Contact Us For Availability

13

Vent, Control Panel WPL 4448549 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $33.93

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $28.79

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4450417 Contact Us For Availability

15

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $25.44

15

Back, Control WPL 4450658 Contact Us For Availability

16

WP4450551 Whirlpool Top Cabinet Backorder WPL WP4450551 $52.43

18

WP4452367 Whirlpool Top Cover Backorder WPL WP4452367 $45.99

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP4450952 Whirlpool Conduit Backorder WPL WP4450952 $86.84

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Support, Insulation WPL 4450542 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Bracket, Blower WPL 4450545 Contact Us For Availability

Harness, Wire (Latch) WPL 4454709 Contact Us For Availability

Harness, Wire (Main) (Also, Order Door Switch WPL 4454856 Contact Us For Availability

Harness, Wire (Door Switch) (Also, order Mai WPL 4454871 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

Roll Tape, WPL 814387 Contact Us For Availability

21

814371 Whirlpool Oven Rail Mount Backorder WPL 814371 $38.69

21

814372 Whirlpool Oven Rail Mount Backorder WPL 814372 $40.88

21

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

22

Screw WPL 4450289 Contact Us For Availability

22

Shield, Latch WPL 4451036 Contact Us For Availability

23

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

23

Deflector, Latch WPL 4450051 Contact Us For Availability

24

Latch Assy WPL 4454710 Contact Us For Availability

25

Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability

26

Back, Chassis WPL 4451169 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI121079A Contact Us For Availability

29

Sensor WPL 4450026 Contact Us For Availability

31

Switch, Door WPL 4450819 Contact Us For Availability

32

Vent Box Assy WPL 4449369 Contact Us For Availability

37

WP4450934 Whirlpool Thermostat Assembly Backorder WPL WP4450934 $77.29

43

Base, Chassis WPL 4450527 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

Cover, Back WPL 4450544 Contact Us For Availability

53

BRACKET-SUPPORT WPL 4449845 Contact Us For Availability

54

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

54

Spacer, Harness WPL 4451002 Contact Us For Availability

W11684730 Whirlpool Insulation Backorder WPL W11684730 $45.31

Trim, Bottom (Black Model) WPL 4448477 Contact Us For Availability

Trim, Bottom (White Model) WPL 4448478 Contact Us For Availability

Trim, Bottom (Almond Model) WPL 4448862 Contact Us For Availability

Insulation, Back WPL 4450365 Contact Us For Availability
