Model Whirlpool RBS305PDZ1 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

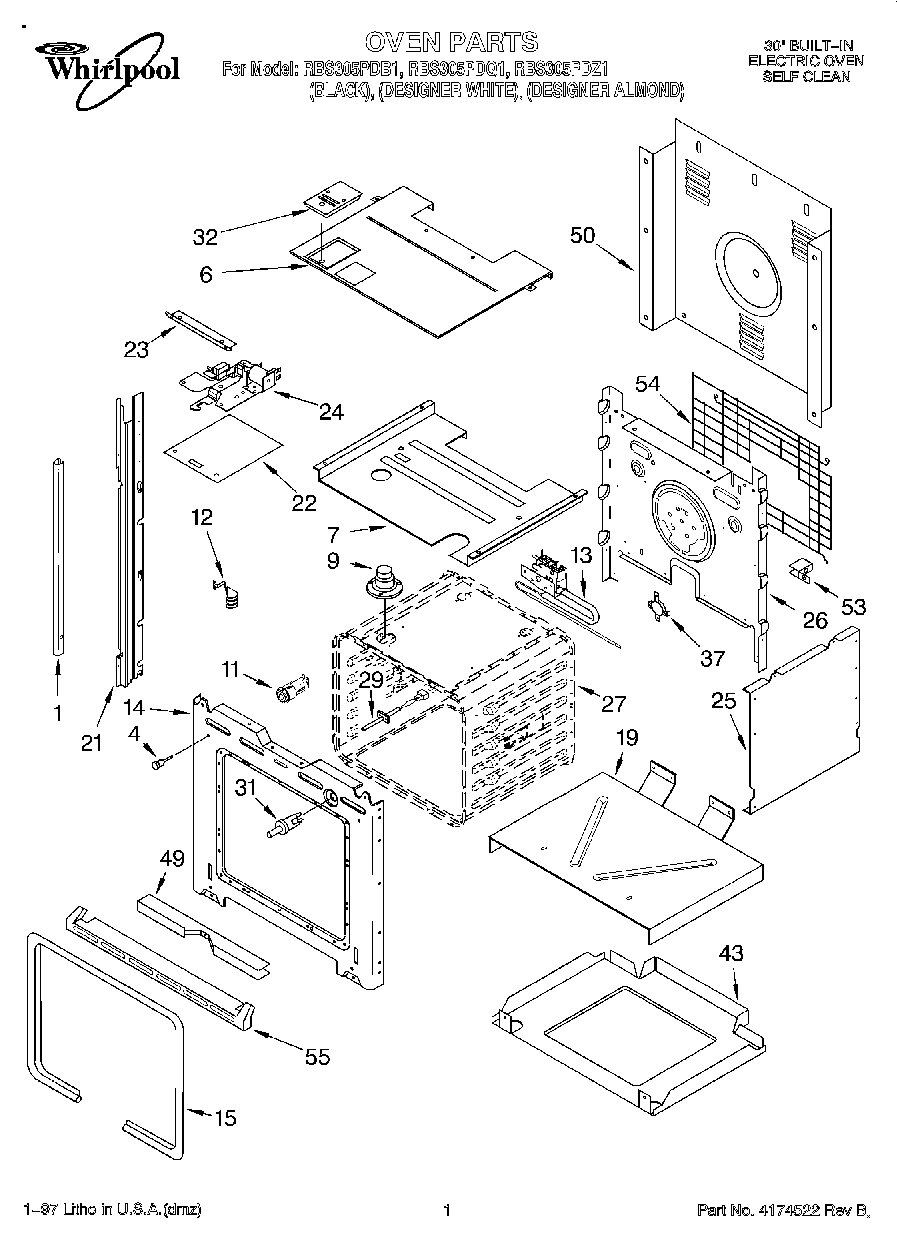

01 - OVEN

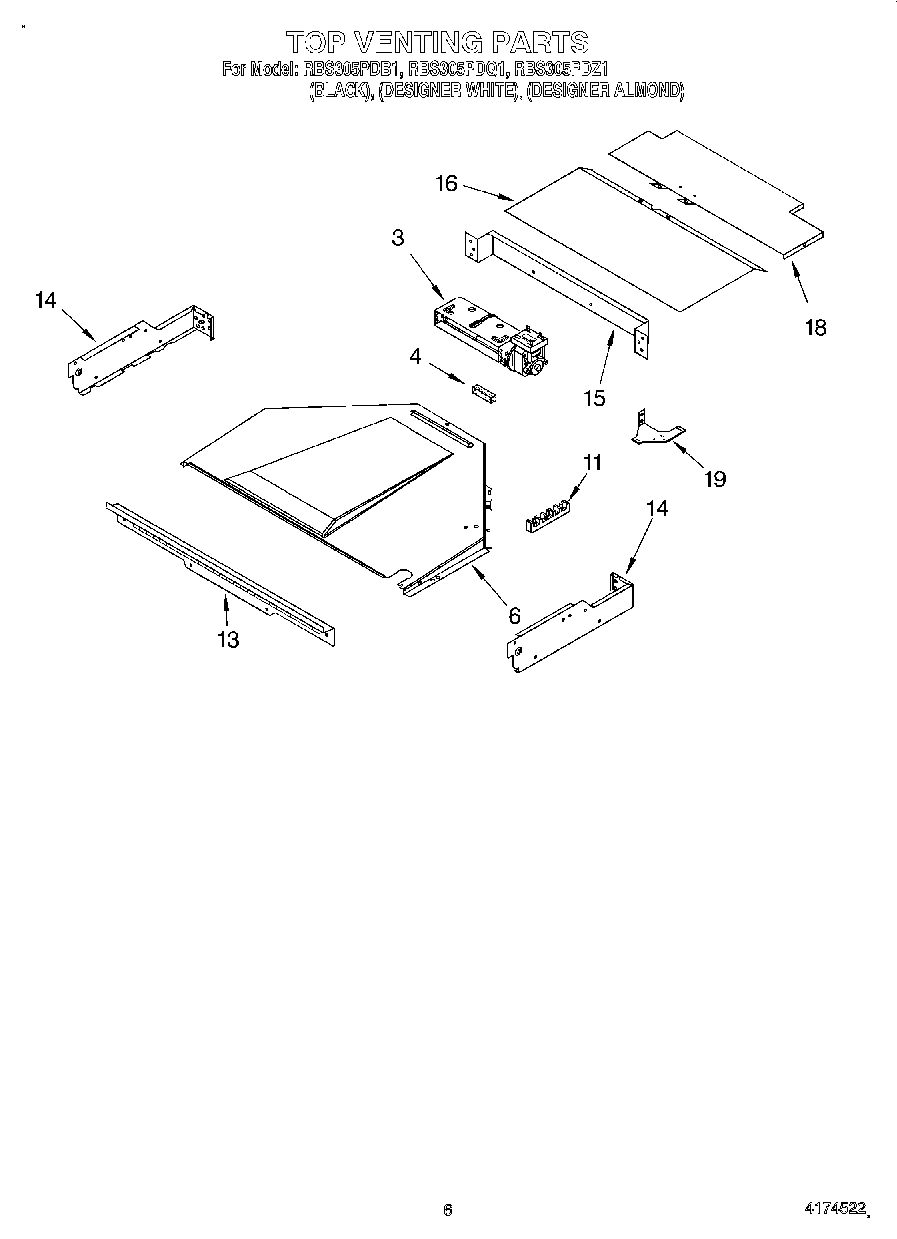

05 - TOP VENTING, OPTIONAL
02 - OVEN DOOR
04 - CONTROL PANEL, LITERATURE
03 - INTERNAL OVEN
Common parts from model Whirlpool RBS305PDZ1 BUILT-IN ELECTRIC SINGLE OVEN
Installation Instructions WPL LIT4450411 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4450568 Contact Us For Availability
Installation/ Undercounter WPL LIT4450839 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4450916 Contact Us For Availability
1
Door Liner WPL 4450429 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451339 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451340 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Almond WPL 4451341 Contact Us For Availability
2
Screw WPL 4159465 Contact Us For Availability
2
Gasket, Control Panel WPL 4451034 Contact Us For Availability
3
Blower, Upper/Lower WPL 4450920 Contact Us For Availability
3
Microcomputer WPL 4448874 Contact Us For Availability
4
Block, Foam WPL 3182384 Contact Us For Availability
4
Insulation, Top and Bottom Door WPL 4448680 Contact Us For Availability
5
Retainer, Glass WPL 4450470 Contact Us For Availability
6
Exhaust Duct WPL 4450367 Contact Us For Availability
9
Retainer, Glass WPL 4449031 Contact Us For Availability
12
Door Glass, Outer (White Model) WPL 4450692 Contact Us For Availability
12
Door Glass, Outer (Almond Model) WPL 4450704 Contact Us For Availability
13
Door Handle (Black Model) WPL 4448854 Contact Us For Availability
13
Safety Switch (Oven Temp) WPL 4450812 Contact Us For Availability
13
Vent, Control Panel WPL 4448549 Contact Us For Availability
13
Door Handle (White Model) WPL 4448855 Contact Us For Availability
13
Door Handle (Almond Model) WPL 4448856 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
19
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
19
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
19
Bracket, Blower WPL 4450545 Contact Us For Availability
19
Harness, Wire (Latch) WPL 4450753 Contact Us For Availability
19
Harness, Wire (Door Switch) WPL 4450951 Contact Us For Availability
19
Harness, Wire (Main) WPL 4450965 Contact Us For Availability
19
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
19
Roll Tape, Exhaust Duct WPL 814387 Contact Us For Availability
19
Shield, Heat WPL 4450362 Contact Us For Availability
20
Retainer, Glass WPL 4450423 Contact Us For Availability
21
Seal, Door Top WPL 4450837 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
23
Retainer, Clip (Almond Model) WPL 4450865 Contact Us For Availability
43
Base, Chassis WPL 4450527 Contact Us For Availability
50
Cover, Back WPL 4450544 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
54
Spacer, Harness WPL 4451002 Contact Us For Availability
55
Trim, Bottom (Black Model) WPL 4448477 Contact Us For Availability
55
Trim, Bottom (White Model) WPL 4448478 Contact Us For Availability
55
Trim, Bottom (Almon WPL 4448862 Contact Us For Availability
55
WPL 4450365 WPL 4450365 Contact Us For Availability
× ![]()
