Model Whirlpool RBD307PDQ2 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams

Cookbook, WP Conv.
Cookbook, WP Conv. WPL LIT4449237 Contact Us For Availability
View on Model
Installation Instructions
Installation Instructions WPL LIT4450411 Contact Us For Availability
View on Model
Use & Care Guide (Oven)
Use & Care Guide (Oven) WPL LIT4450569 Contact Us For Availability
View on Model
Tech Sheet (Oven)
Tech Sheet (Oven) WPL LIT4454767 Contact Us For Availability
View on Model
1

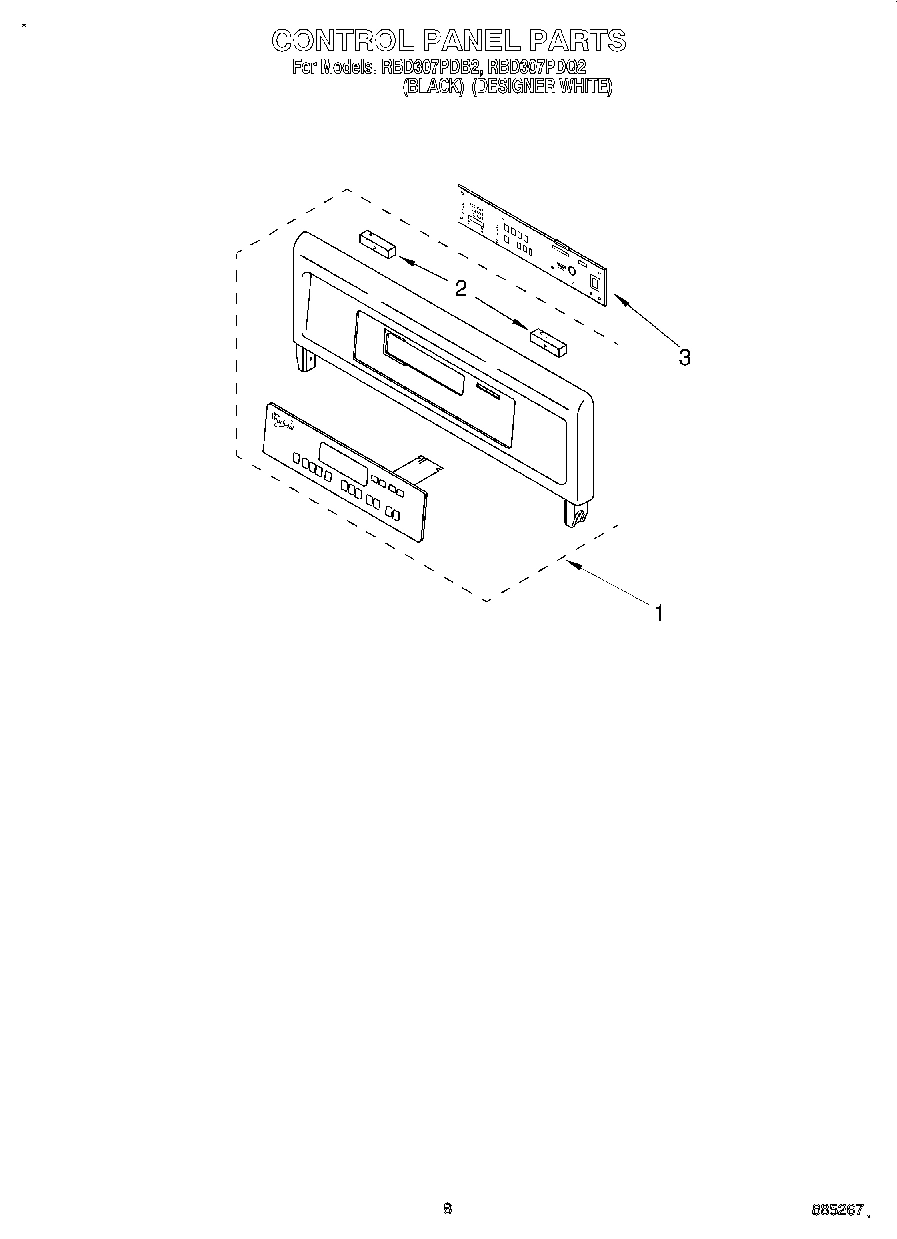

Control Panel Assy W/Membrane, Switch (Black
Control Panel Assy W/Membrane, Switch (Black WPL 4451319 Contact Us For Availability
View on Model
1
Control Panel Assy. W/Membrane Switch (White
Control Panel Assy. W/Membrane Switch (White WPL 4451320 Contact Us For Availability
View on Model
1
Trim, Side (Screw) (White Model)
Trim, Side (Screw) (White Model) WPL 4449041 Contact Us For Availability
View on Model
1
Trim, Side (RH Black)
Trim, Side (RH Black) WPL 4450850 Contact Us For Availability
View on Model
1
Trim, Side (Right Hand) (White Model)
Trim, Side (Right Hand) (White Model) WPL 4450851 Contact Us For Availability
View on Model
1
Trim, Side (LH Black)
Trim, Side (LH Black) WPL 4450853 Contact Us For Availability
View on Model
1
Trim, Side (Left Hand)) (White Model)
Trim, Side (Left Hand)) (White Model) WPL 4450854 Contact Us For Availability
View on Model
2
Screw Control Panel
Screw Control Panel WPL 4449899 Contact Us For Availability
View on Model
2
Gasket,
Gasket, WPL 4451034 Contact Us For Availability
View on Model
3
Blower, Upper/Lower
Blower, Upper/Lower WPL 4450920 Contact Us For Availability
View on Model
3
Microcomputer
Microcomputer WPL 4448876 Contact Us For Availability
View on Model
4
Foam, Block
Foam, Block WPL 3182384 Contact Us For Availability
View on Model
5
Rack, Roasting
Rack, Roasting WPL 3181534 Contact Us For Availability
View on Model
6
Exhaust Duct
Exhaust Duct WPL 4450367 Contact Us For Availability
View on Model
6
Divider, Vent
Divider, Vent WPL 4451039 Contact Us For Availability
View on Model
7
Partition
Partition WPL 4451166 Contact Us For Availability
View on Model
8
Fan, Convection
Fan, Convection WPL 4448952 Contact Us For Availability
View on Model
9
Tube, Vent
Tube, Vent WPL 4449009 Contact Us For Availability
View on Model
13
Door Handle (Black Model)
Door Handle (Black Model) WPL 4448854 Contact Us For Availability
View on Model
13
Vent, Control Panel
Vent, Control Panel WPL 4448549 Contact Us For Availability
View on Model
14
Bracket, Handle
Bracket, Handle WPL 4450813 Contact Us For Availability
View on Model
14
Screw
Screw WPL 4449040 Contact Us For Availability
View on Model
14
Screw
Screw WPL 4451040 Contact Us For Availability
View on Model
14
Frame, Front
Frame, Front WPL 4450417 Contact Us For Availability
View on Model
15
Back, Control
Back, Control WPL 4450658 Contact Us For Availability
View on Model
19
Conduit, Double
Conduit, Double WPL 4450953 Contact Us For Availability
View on Model
19
Shield, Heat
Shield, Heat WPL 4450362 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Black)
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Red)
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c White)
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
View on Model
19
Wire (12 Ga. 150 c Black)
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
View on Model
19
Wire (12 Ga. 150 c Red)
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
View on Model
19
Wire (14 Ga. 200 c Brown)
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
View on Model
19
Wire (14 Ga. 200 c Yellow)
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
View on Model
19
Bracket, Blower
Bracket, Blower WPL 4450545 Contact Us For Availability
View on Model
19
Harness, Wire S/C (Door Switch)
Harness, Wire S/C (Door Switch) WPL 4450951 Contact Us For Availability
View on Model
19
Harness, Wire (Main)
Harness, Wire (Main) WPL 4454700 Contact Us For Availability
View on Model
19
Harness, Wire (Latch)
Harness, Wire (Latch) WPL 4454709 Contact Us For Availability
View on Model
19
ADHESIVE LOCTITE (1/3 OZ.)
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
View on Model
19
WPL 814387
WPL 814387 WPL 814387 Contact Us For Availability
View on Model
19
Support, Insulation
Support, Insulation WPL 4450542 Contact Us For Availability
View on Model
20
Retainer, Glass
Retainer, Glass WPL 4450423 Contact Us For Availability
View on Model
21
Seal, Door Top
Seal, Door Top WPL 4450837 Contact Us For Availability
View on Model
22
Seal, Side
Seal, Side WPL 4450838 Contact Us For Availability
View on Model
23
Retainer, Clip (Black Model)
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
View on Model
23
Retainer, Clip (White Model)
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
View on Model
25
Side, Chassis (R.H. & L.H.)
Side, Chassis (R.H. & L.H.) WPL 4450528 Contact Us For Availability
View on Model
26
Back, Chassis
Back, Chassis WPL 4451169 Contact Us For Availability
View on Model
27
Liner, Oven (Not a Serviceable Part)
Liner, Oven (Not a Serviceable Part) WPL ARI120525A Contact Us For Availability
View on Model
29
Sensor
Sensor WPL 4450026 Contact Us For Availability
View on Model
31
Switch, Door
Switch, Door WPL 4450819 Contact Us For Availability
View on Model
32
Vent Box Assy
Vent Box Assy WPL 4449369 Contact Us For Availability
View on Model
43
Base, Chassis
Base, Chassis WPL 4451398 Contact Us For Availability
View on Model
50
Cover, Back
Cover, Back WPL 4450544 Contact Us For Availability
View on Model
51
Trim, Bottom (Black Model)
Trim, Bottom (Black Model) WPL 4448477 Contact Us For Availability
View on Model
51
Trim, Bottom (White Model)
Trim, Bottom (White Model) WPL 4448478 Contact Us For Availability
View on Model
51
Trim, Bottom (Screw)
Trim, Bottom (Screw) WPL 4450289 Contact Us For Availability
View on Model
53
BRACKET-SUPPORT
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
View on Model
54
Insulation, Back
Insulation, Back WPL 4450365 Contact Us For Availability
View on Model
54
Spacer, Harness
Spacer, Harness WPL 4451002 Contact Us For Availability
View on Model
