Model Whirlpool RBD307PDB2 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams

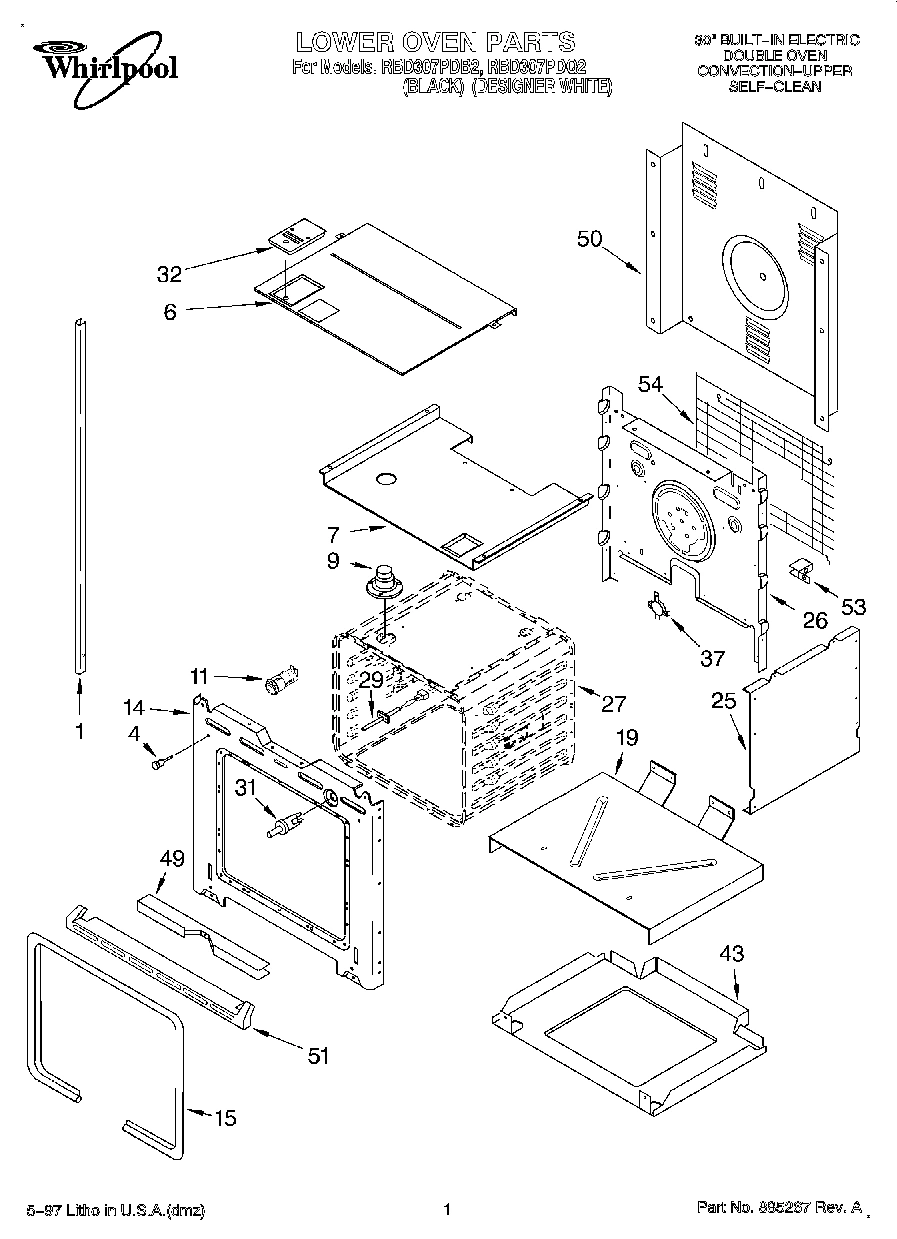

01 - LOWER OVEN

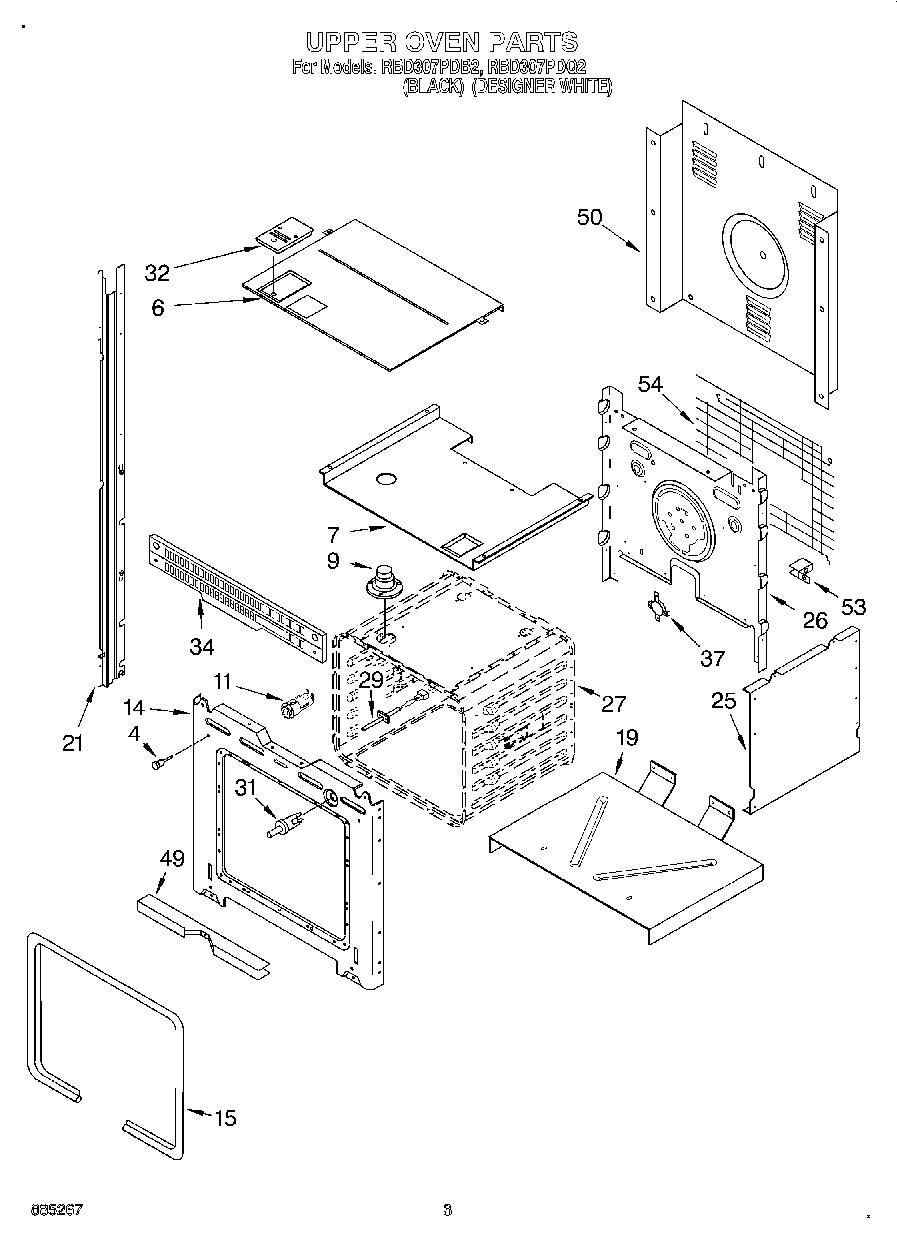

02 - UPPER OVEN
03 - OVEN DOOR
07 - TOP VENTING, OPTIONAL
05 - INTERNAL OVEN
04 - LATCH
06 - CONTROL PANEL, LITERATURE
Common parts from model Whirlpool RBD307PDB2 BUILT-IN ELECTRIC DOUBLE OVEN
Cookbook, WP Conv. WPL LIT4449237 Contact Us For Availability
Installation Instructions WPL LIT4450411 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4450569 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4454767 Contact Us For Availability
1
Door Liner WPL 4450429 Contact Us For Availability
1
Screw WPL 4450289 Contact Us For Availability
1
Shield, Latch WPL 4451036 Contact Us For Availability
1
Control Panel Assy W/Membrane, Switch (Black WPL 4451319 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451320 Contact Us For Availability
2
Screw Control Panel WPL 4449899 Contact Us For Availability
2
Gasket, WPL 4451034 Contact Us For Availability
3
Blower, Upper/Lower WPL 4450920 Contact Us For Availability
3
Microcomputer WPL 4448876 Contact Us For Availability
4
Insulation, Top and Bottom Door WPL 4448680 Contact Us For Availability
4
Foam, Block WPL 3182384 Contact Us For Availability
4
Deflector, Latch Upper Latch Only WPL 4450051 Contact Us For Availability
5
Retainer, Glass WPL 4450470 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
6
Exhaust Duct WPL 4450367 Contact Us For Availability
8
Fan, Convection WPL 4448952 Contact Us For Availability
9
Retainer, Glass WPL 4449031 Contact Us For Availability
10
Latch Assy WPL 4454710 Contact Us For Availability
12
Door Glass, Outer (White Model) WPL 4450692 Contact Us For Availability
13
Door Handle (Black Model) WPL 4448854 Contact Us For Availability
13
Door Handle (White Model) WPL 4448855 Contact Us For Availability
13
Vent, Control Panel WPL 4448549 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
19
Conduit, Double WPL 4450953 Contact Us For Availability
19
Support, Insulation WPL 4450542 Contact Us For Availability
19
Shield, Heat WPL 4450362 Contact Us For Availability
19
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
19
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
19
Bracket, Blower WPL 4450545 Contact Us For Availability
19
Harness, Wire S/C (Door Switch) WPL 4450951 Contact Us For Availability
19
Harness, Wire (Main) WPL 4454700 Contact Us For Availability
19
Harness, Wire (Latch) WPL 4454709 Contact Us For Availability
19
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
19
WPL 814387 WPL 814387 Contact Us For Availability
20
Retainer, Glass WPL 4450423 Contact Us For Availability
21
Seal, Door Top WPL 4450837 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4450528 Contact Us For Availability
26
Back, Chassis WPL 4451169 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI120522A Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
31
Switch, Door WPL 4450819 Contact Us For Availability
32
Vent Box Assy WPL 4449369 Contact Us For Availability
34
Vent, Center WPL 4449052 Contact Us For Availability
50
Cover, Back WPL 4450544 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448477 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
54
Insulation, Back WPL 4450365 Contact Us For Availability
54
Spacer, Harness WPL 4451002 Contact Us For Availability
× ![]()
