  • Whirlpool RBD306PDZ2

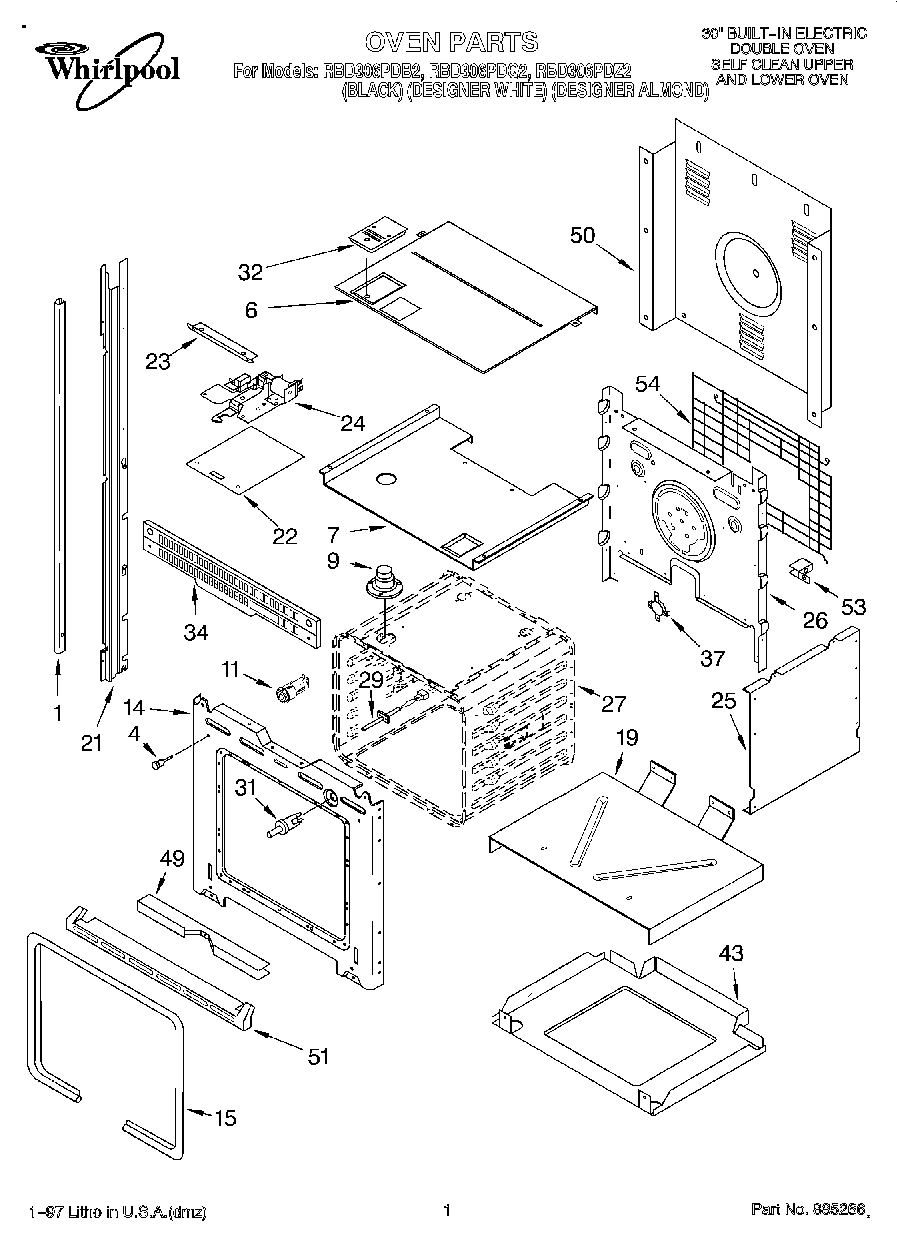

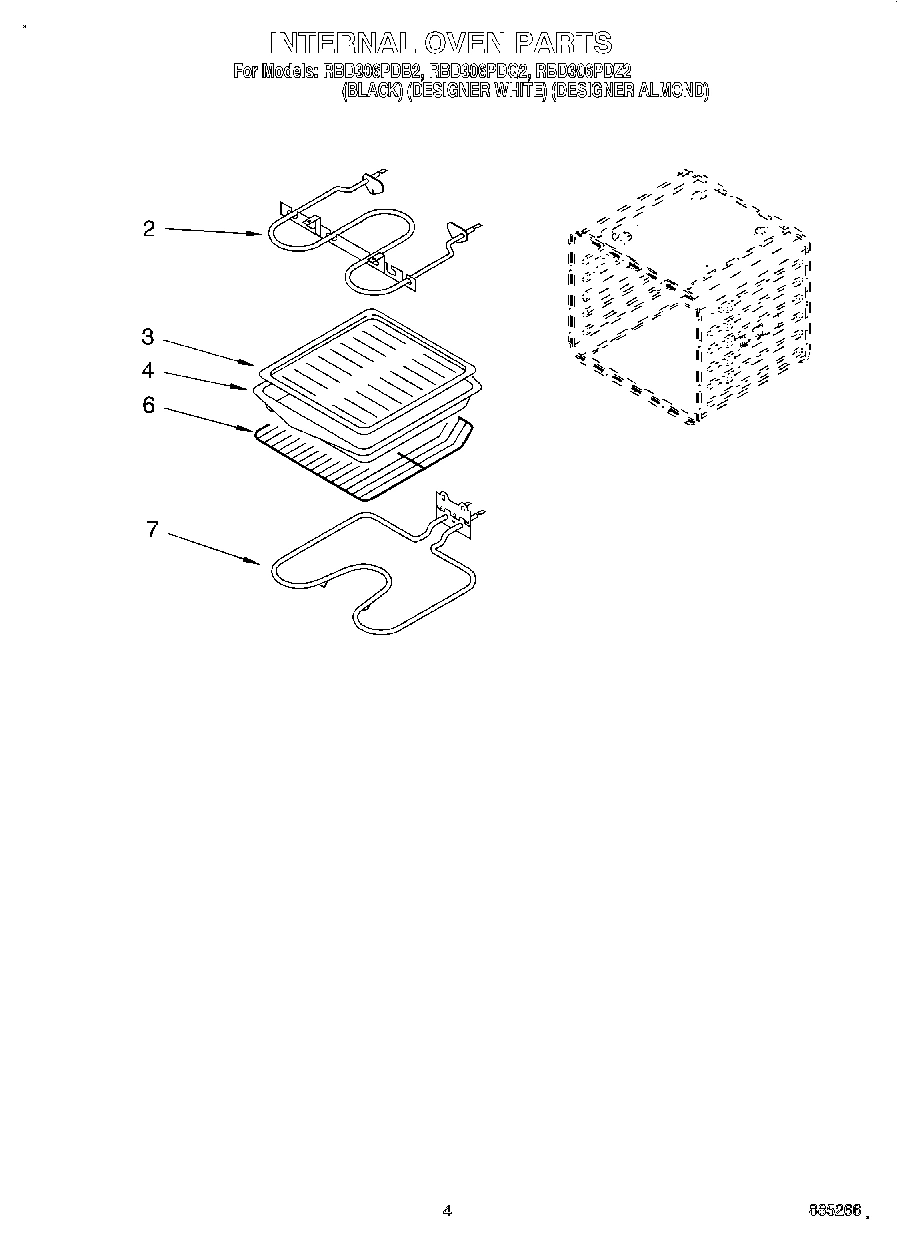

Model Whirlpool RBD306PDZ2 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams

Installation Instructions
Installation Instructions WPL LIT4450411 Contact Us For Availability
View on Model
Use & Care Guide (Oven)
Use & Care Guide (Oven) WPL LIT4450568 Contact Us For Availability
View on Model
Tech Sheet (Oven)
Tech Sheet (Oven) WPL LIT4454767 Contact Us For Availability
View on Model
1
Door Liner
Door Liner WPL 4450429 Contact Us For Availability
View on Model
1
Control Panel Assy. W/Membrane Switch (Black
Control Panel Assy. W/Membrane Switch (Black WPL 4451316 Contact Us For Availability
View on Model
1
Control Panel Assy. W/Membrane Switch (White
Control Panel Assy. W/Membrane Switch (White WPL 4451317 Contact Us For Availability
View on Model
1
Control Panel Assy. W/Membrane Switch (Almond
Control Panel Assy. W/Membrane Switch (Almond WPL 4451318 Contact Us For Availability
View on Model
2
Screw
Screw WPL 4449899 Contact Us For Availability
View on Model
2
Gasket, Control Panel
Gasket, Control Panel WPL 4451034 Contact Us For Availability
View on Model
3
Blower, Fan
Blower, Fan WPL 4450920 Contact Us For Availability
View on Model
3
Microcomputer
Microcomputer WPL 4448876 Contact Us For Availability
View on Model
4
Seal, Foam
Seal, Foam WPL 3182384 Contact Us For Availability
View on Model
4
Insulation, Top and Bottom Door
Insulation, Top and Bottom Door WPL 4448680 Contact Us For Availability
View on Model
5
Retainer, Glass
Retainer, Glass WPL 4450470 Contact Us For Availability
View on Model
6
Exhaust Duct
Exhaust Duct WPL 4450367 Contact Us For Availability
View on Model
9
Retainer, Glass
Retainer, Glass WPL 4449031 Contact Us For Availability
View on Model
12
Door Glass, Outer (White Model)
Door Glass, Outer (White Model) WPL 4450692 Contact Us For Availability
View on Model
12
Door Glass, Outer (Almond Model)
Door Glass, Outer (Almond Model) WPL 4450704 Contact Us For Availability
View on Model
13
Door Handle (Black Model)
Door Handle (Black Model) WPL 4448854 Contact Us For Availability
View on Model
13
Vent, Control Panel
Vent, Control Panel WPL 4448549 Contact Us For Availability
View on Model
13
Door Handle (White Model)
Door Handle (White Model) WPL 4448855 Contact Us For Availability
View on Model
13
Door Handle (Almond Model)
Door Handle (Almond Model) WPL 4448856 Contact Us For Availability
View on Model
14
Bracket, Handle
Bracket, Handle WPL 4450813 Contact Us For Availability
View on Model
14
Screw
Screw WPL 4449040 Contact Us For Availability
View on Model
14
Screw
Screw WPL 4451040 Contact Us For Availability
View on Model
15
Back, Control
Back, Control WPL 4450658 Contact Us For Availability
View on Model
19
Conduit, Double
Conduit, Double WPL 4450953 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Black)
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Red)
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c White)
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
View on Model
19
Wire (12 Ga. 150 c Black)
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
View on Model
19
Wire (12 Ga. 150 c Red)
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
View on Model
19
Wire (14 Ga. 200 c Brown)
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
View on Model
19
Wire (14 Ga. 200 c Yellow)
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
View on Model
19
Bracket, Blower
Bracket, Blower WPL 4450545 Contact Us For Availability
View on Model
19
Harness, Wire (Door Switch)
Harness, Wire (Door Switch) WPL 4450951 Contact Us For Availability
View on Model
19
Harness, Wire (Main)
Harness, Wire (Main) WPL 4454701 Contact Us For Availability
View on Model
19
Harness, Wire (Latch)
Harness, Wire (Latch) WPL 4454709 Contact Us For Availability
View on Model
19
ADHESIVE LOCTITE (1/3 OZ.)
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
View on Model
19
Roll Tape, Exhaust Duct
Roll Tape, Exhaust Duct WPL 814387 Contact Us For Availability
View on Model
19
Shield, Heat
Shield, Heat WPL 4450362 Contact Us For Availability
View on Model
20
Retainer, Glass
Retainer, Glass WPL 4450423 Contact Us For Availability
View on Model
21
Seal, Door Top
Seal, Door Top WPL 4450837 Contact Us For Availability
View on Model
22
Seal, Side
Seal, Side WPL 4450838 Contact Us For Availability
View on Model
23
Retainer, Clip (Black Model)
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
View on Model
23
Retainer, Clip (White Model)
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
View on Model
23
Retainer, Clip (Almond Model)
Retainer, Clip (Almond Model) WPL 4450865 Contact Us For Availability
View on Model
43
Base, Chassis
Base, Chassis WPL 4450527 Contact Us For Availability
View on Model
50
Cover, Back
Cover, Back WPL 4450544 Contact Us For Availability
View on Model
51
Trim, Bottom (Black Model)
Trim, Bottom (Black Model) WPL 4448477 Contact Us For Availability
View on Model
51
Trim, Bottom (White Model)
Trim, Bottom (White Model) WPL 4448478 Contact Us For Availability
View on Model
51
Trim, Bottom (Almond Model)
Trim, Bottom (Almond Model) WPL 4448862 Contact Us For Availability
View on Model
53
BRACKET-SUPPORT
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
View on Model
54
Insulati
Insulati WPL 4450365 Contact Us For Availability
View on Model
54
WPL 4451002
WPL 4451002 WPL 4451002 Contact Us For Availability
View on Model
