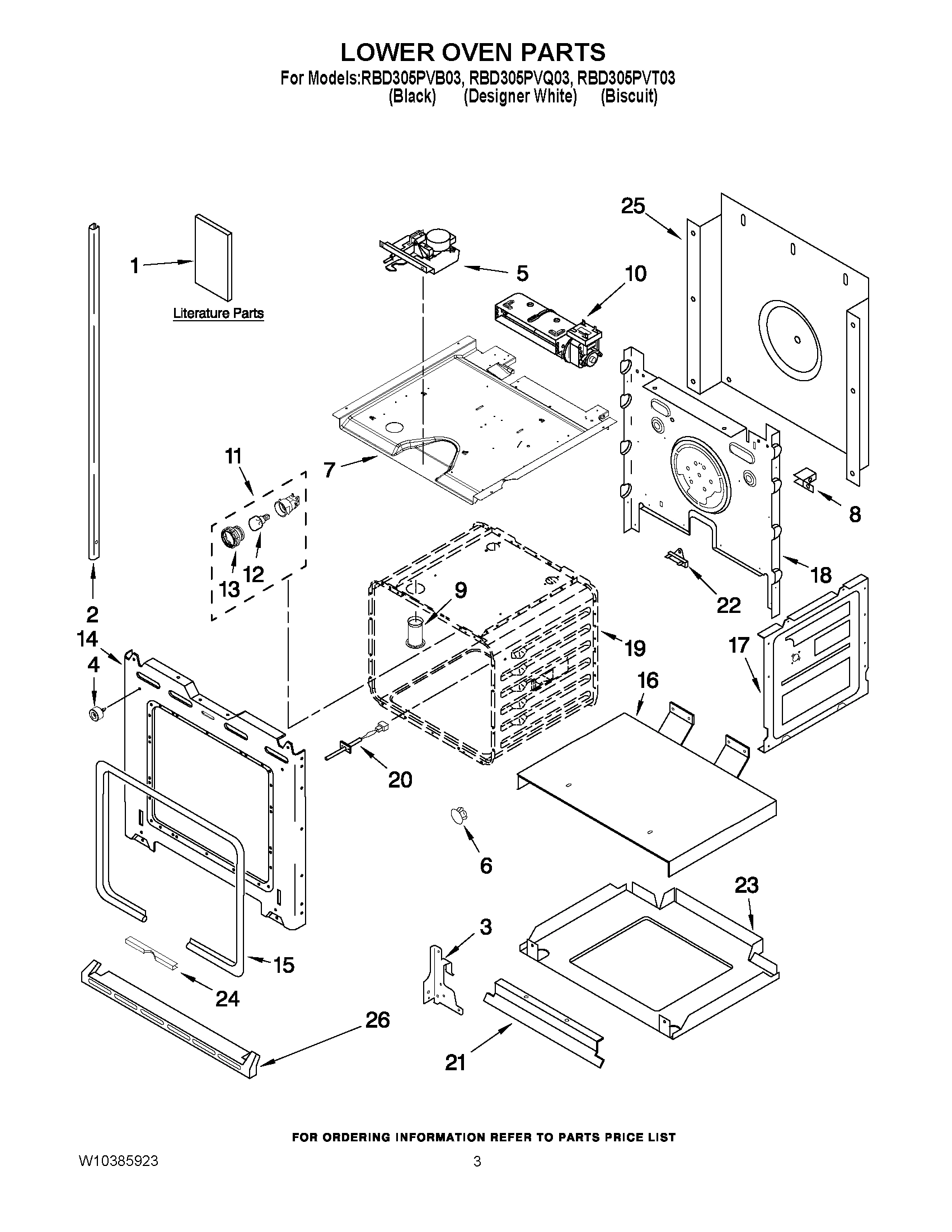

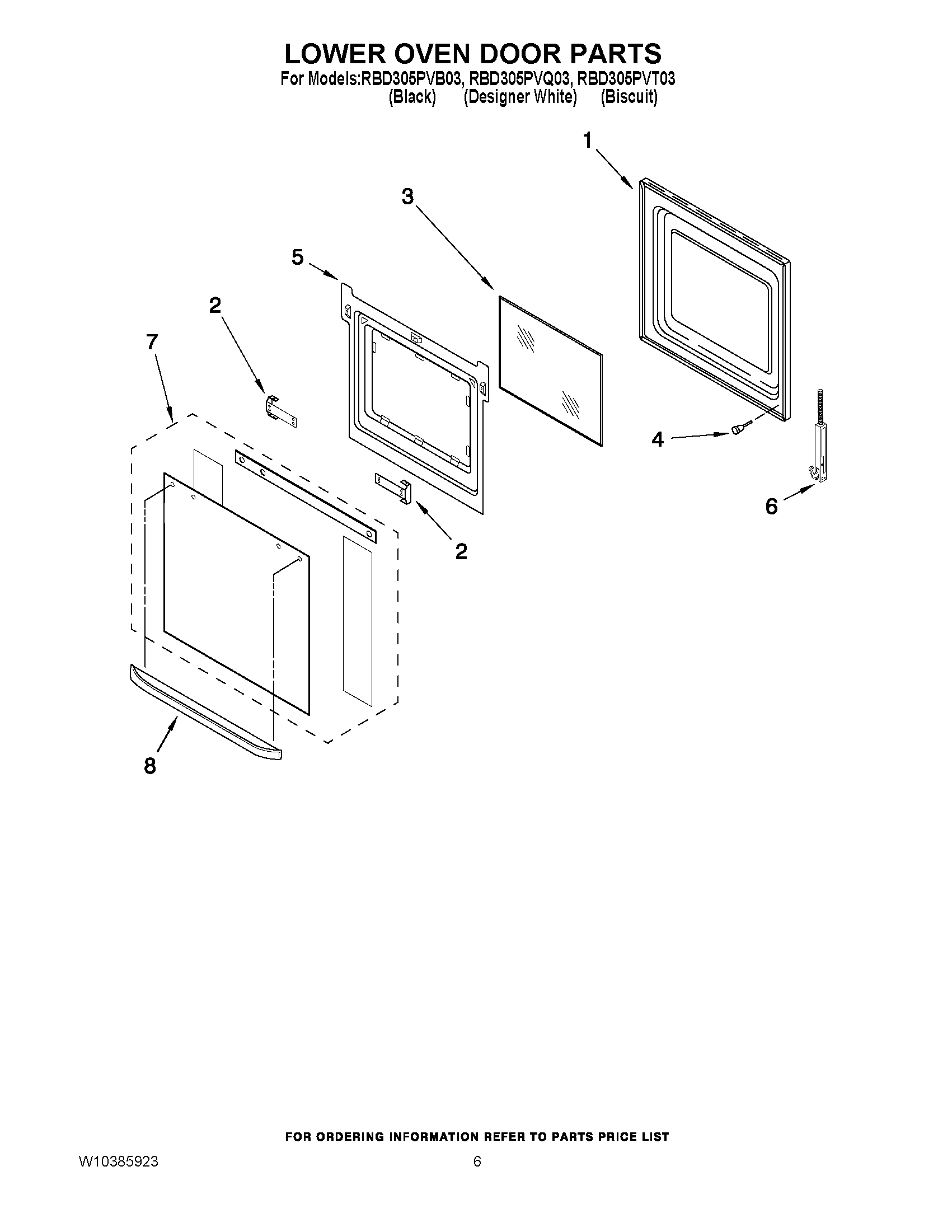

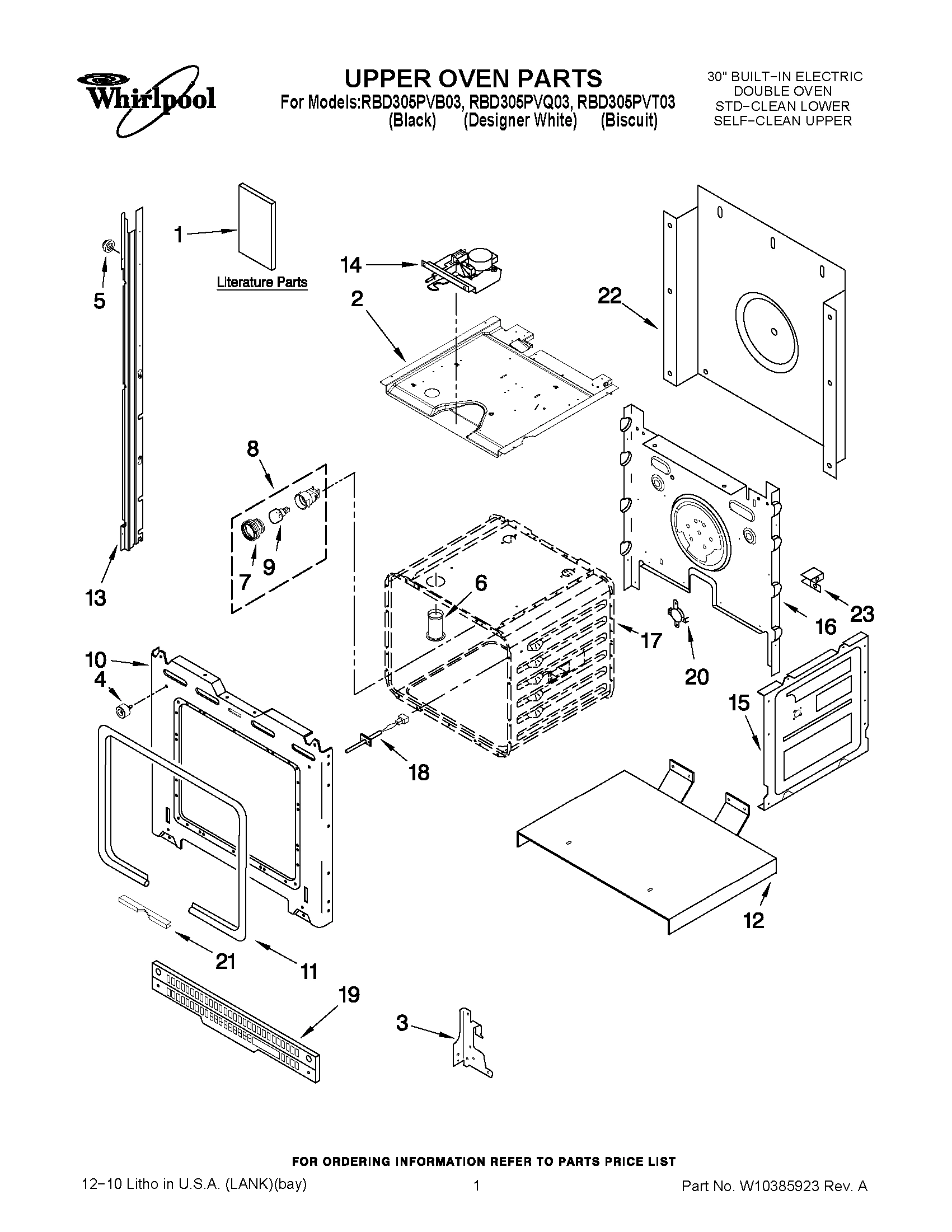

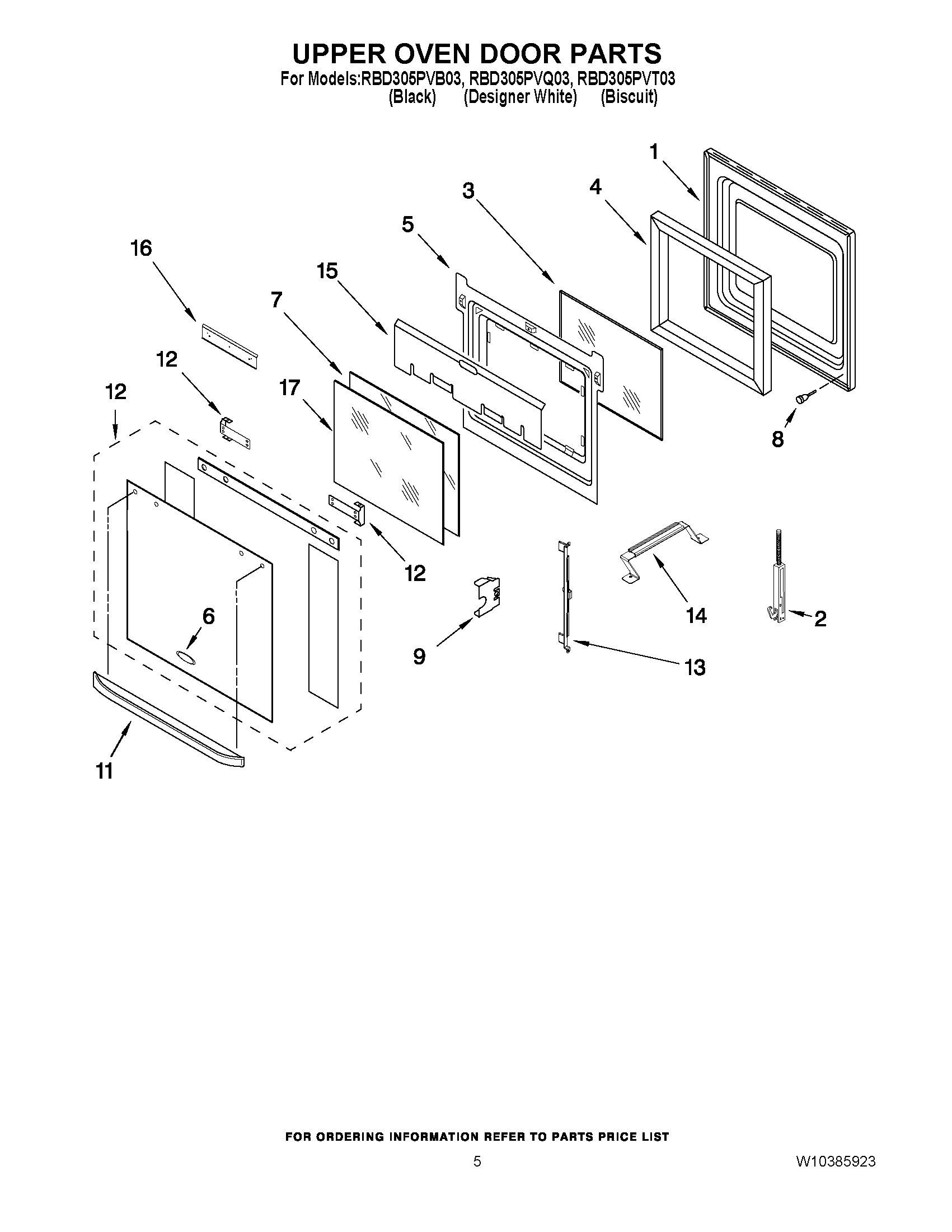

Model Whirlpool RBD305PVB03 30`` BUILT-IN ELECTRIC DOUBLE OVEN STD-CLEAN LOWER – Common Parts & Diagrams

1

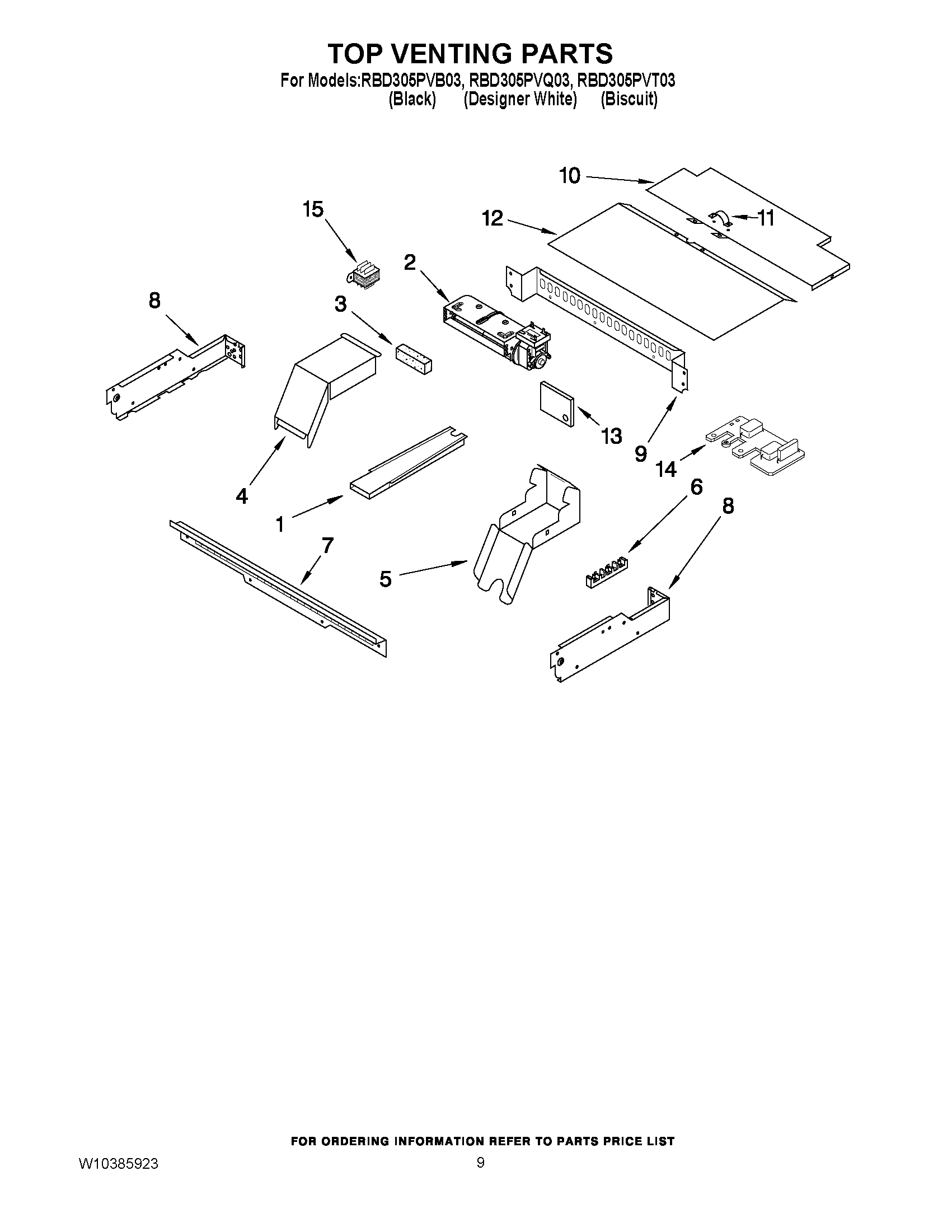

Vent, Exhaust
Vent, Exhaust WPL 4451759 Contact Us For Availability
View on Model
1

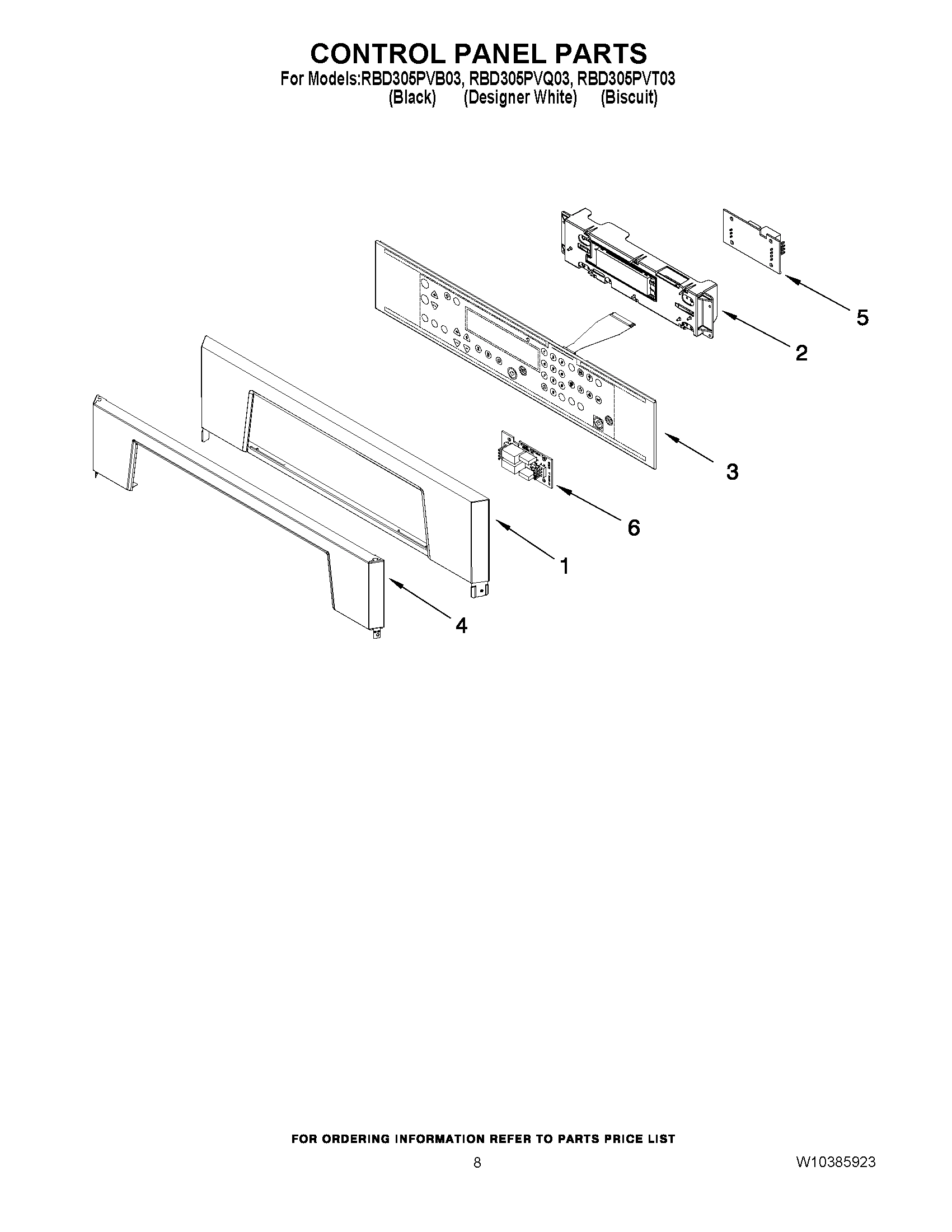

Panel, Control (Biscuit)
Panel, Control (Biscuit) WPL 8302850 Contact Us For Availability
View on Model
2
Bracket, Handle (Right)
Bracket, Handle (Right) WPL 4455803 Contact Us For Availability
View on Model
2
Bracket, Handle (Left)
Bracket, Handle (Left) WPL 4455804 Contact Us For Availability
View on Model
2
TRIM, SIDE RIGHT (WHITE)
TRIM, SIDE RIGHT (WHITE) WPL W10339501 Contact Us For Availability
View on Model
2
TRIM, SIDE RIGHT (BISCUIT)
TRIM, SIDE RIGHT (BISCUIT) WPL W10339503 Contact Us For Availability
View on Model
2
TRIM, SIDE LEFT (BISCUIT)
TRIM, SIDE LEFT (BISCUIT) WPL W10339504 Contact Us For Availability
View on Model
3
Assembly, Membrane (Black)
Assembly, Membrane (Black) WPL 8304275 Contact Us For Availability
View on Model
3
Assembly, Membrane (White)
Assembly, Membrane (White) WPL 8304276 Contact Us For Availability
View on Model
4
Bumper, Door
Bumper, Door WPL 4448520 Contact Us For Availability
View on Model
4
ELBOW, VENT TOP
ELBOW, VENT TOP WPL 4455178 Contact Us For Availability
View on Model
4
Bumper, Door
Bumper, Door WPL W10105790 Contact Us For Availability
View on Model
5
ELBOW, VENT BOTTOM
ELBOW, VENT BOTTOM WPL 4455177 Contact Us For Availability
View on Model
6
Motorized Latch Sister Board
Motorized Latch Sister Board WPL 8301848 Contact Us For Availability
View on Model
6
Screw
Screw WPL 3400080 Contact Us For Availability
View on Model
6
Hinge, Door (Left)
Hinge, Door (Left) WPL 9760566 Contact Us For Availability
View on Model
6
Hinge, Door (Right)
Hinge, Door (Right) WPL 9760565 Contact Us For Availability
View on Model
6
Nameplate
Nameplate WPL W10215072 Contact Us For Availability
View on Model
6
Plug, Door
Plug, Door WPL 4450935 Contact Us For Availability
View on Model
7
Assembly, Door Glass (Black)
Assembly, Door Glass (Black) WPL W10200754 Contact Us For Availability
View on Model
7
Assembly, Door Glass (White)
Assembly, Door Glass (White) WPL W10200755 Contact Us For Availability
View on Model
7
Lens, Light
Lens, Light WPL W10067870 Contact Us For Availability
View on Model
7
Top Chassis
Top Chassis WPL 8303099 Contact Us For Availability
View on Model
8
Support, Bracket
Support, Bracket WPL 4449845 Contact Us For Availability
View on Model
9
BRACKET, MOUNTING BOTTOM VENT
BRACKET, MOUNTING BOTTOM VENT WPL 4452152 Contact Us For Availability
View on Model
10
Assembly, Fan
Assembly, Fan WPL 4451664 Contact Us For Availability
View on Model
10
Screw
Screw WPL 4449040 Contact Us For Availability
View on Model
14
SUPPRESSOR
SUPPRESSOR WPL 8302143 Contact Us For Availability
View on Model
15
Transformer, Control
Transformer, Control WPL 9760587 Contact Us For Availability
View on Model
15
GASKET, DOOR
GASKET, DOOR WPL W10203265 Contact Us For Availability
View on Model
16
Support, Insulation
Support, Insulation WPL 4451478 Contact Us For Availability
View on Model
17
Glass, Inner
Glass, Inner WPL 9759228 Contact Us For Availability
View on Model
18
Back, Chassis
Back, Chassis WPL W10161110 Contact Us For Availability
View on Model
19
LINER, OVEN (NOT SERVICEABLE)
LINER, OVEN (NOT SERVICEABLE) WPL NP Contact Us For Availability
View on Model
21
Deflector, Vent
Deflector, Vent WPL 9760677 Contact Us For Availability
View on Model
23
Base, Chassis
Base, Chassis WPL 9759713 Contact Us For Availability
View on Model
25
SCREW
SCREW WPL 7101P42660 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
View on Model
NI
PAINT, SPRAY (Citrine White)
PAINT, SPRAY (Citrine White) WPL 261900 Contact Us For Availability
View on Model
NI
Harness, Main
Harness, Main WPL 8302154 Contact Us For Availability
View on Model
NI
Conduit, Double
Conduit, Double WPL 4450953 Contact Us For Availability
View on Model
NI
Lead, Ground Strap
Lead, Ground Strap WPL 4452400 Contact Us For Availability
View on Model
NI
ADHESIVE LOCTITE (1/3 OZ.)
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
View on Model
NI
Nut, Terminal Block
Nut, Terminal Block WPL 7103P02760 Contact Us For Availability
View on Model
NI
Insulation, Back
Insulation, Back WPL 4450365 Contact Us For Availability
View on Model
