Model Whirlpool RBD305PVB02 30`` BUILT-IN ELECTRIC DOUBLE OVEN STD-CLEAN LOWER – Common Parts & Diagrams

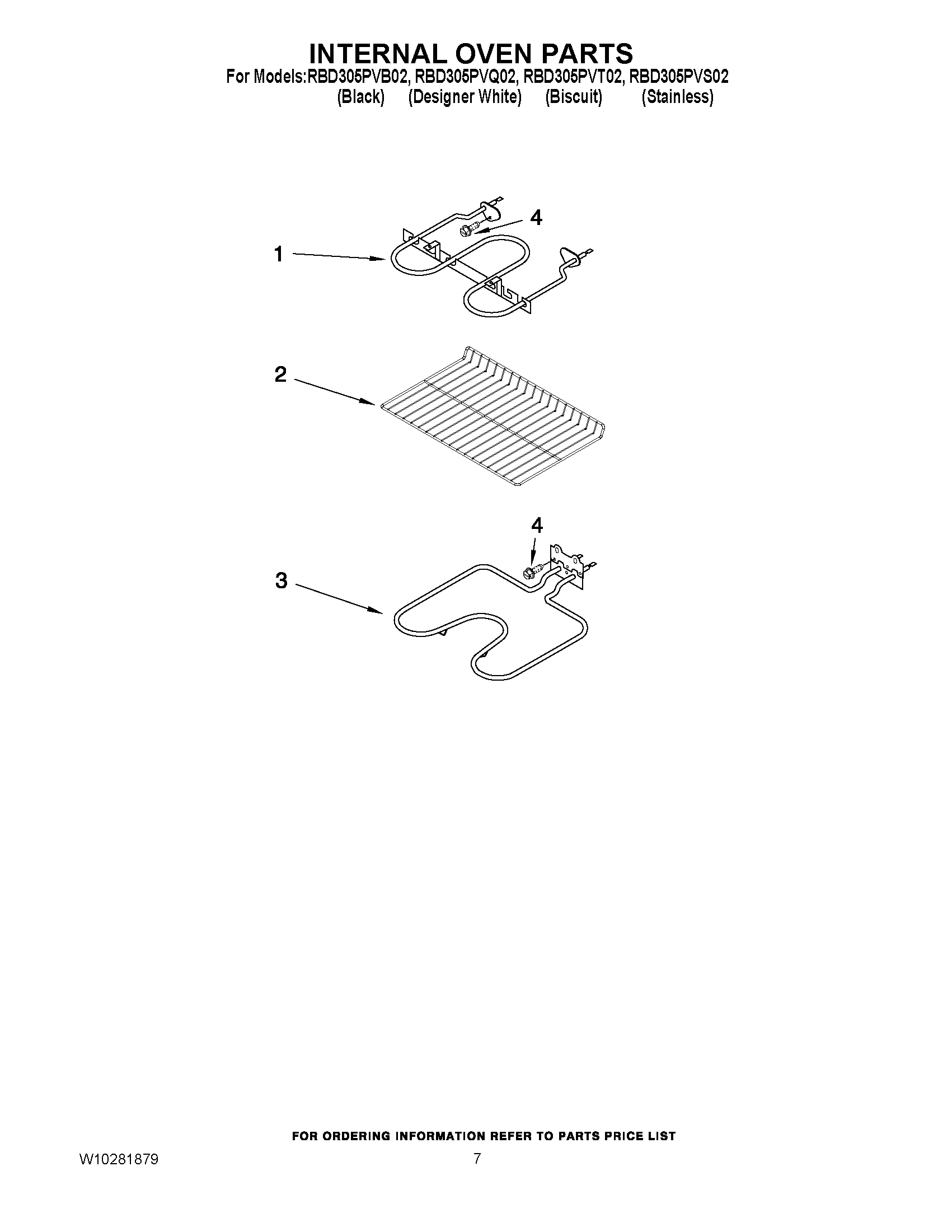

05 - INTERNAL OVEN PARTS

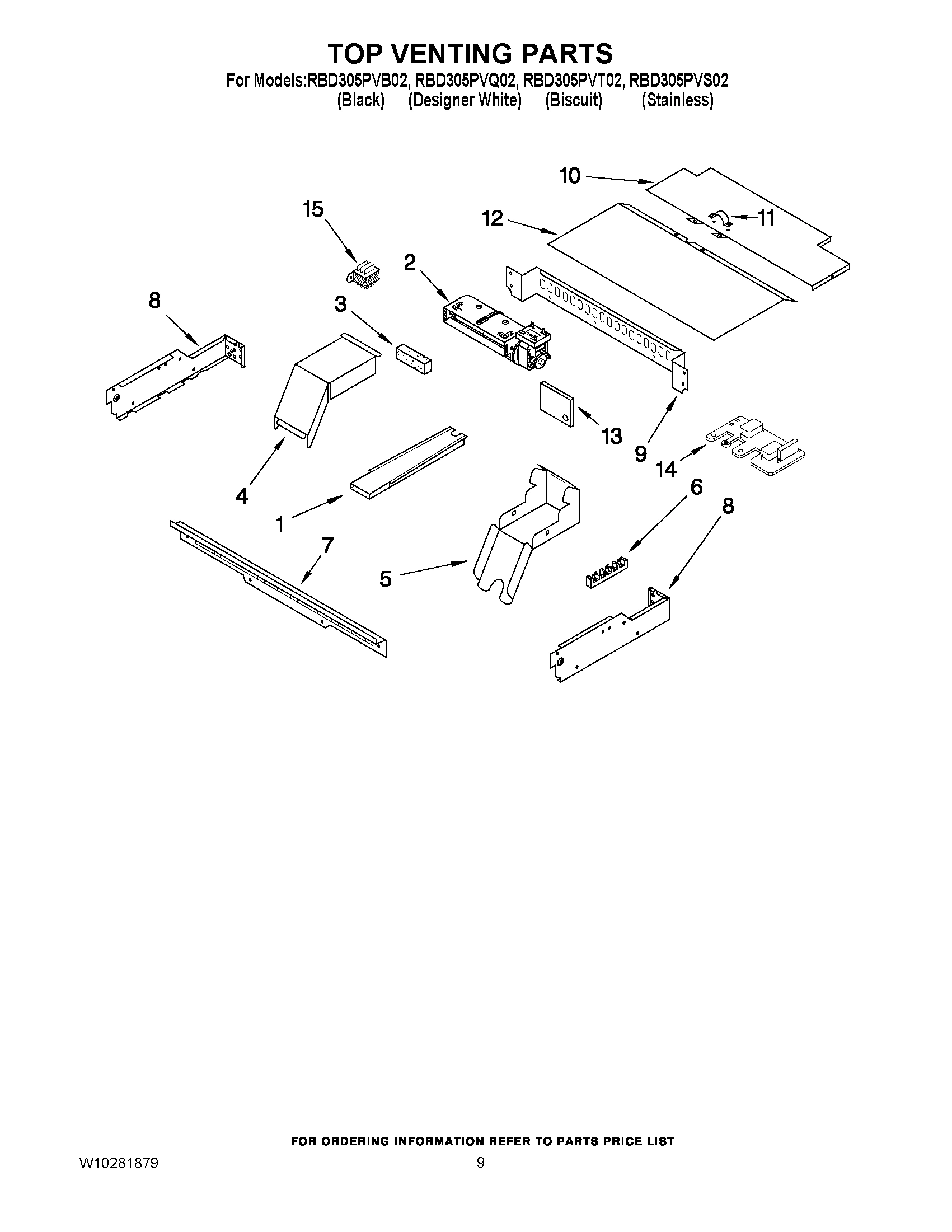

07 - TOP VENTING PARTS
04 - UPPER OVEN DOOR PARTS
06 - CONTROL PANEL PARTS
01 - LOWER OVEN PARTS
03 - LOWER OVEN DOOR PARTS
02 - UPPER OVEN PARTS
08 - OPTIONAL PARTS
Common parts from model Whirlpool RBD305PVB02 30`` BUILT-IN ELECTRIC DOUBLE OVEN STD-CLEAN LOWER
1
Vent, Exhaust WPL 4451759 Contact Us For Availability
1
Panel, Control (Biscuit) WPL 8302850 Contact Us For Availability
2
Hinge, Door (For Stainless Model Only) (Right WPL 9760573 Contact Us For Availability
2
Chassis, Top WPL 8303099 Contact Us For Availability
3
Assembly, Membrane (Black) WPL 8304275 Contact Us For Availability
3
Assembly, Membrane (White) WPL 8304276 Contact Us For Availability
4
Bumper, Door WPL 4448520 Contact Us For Availability
4
ELBOW, VENT TOP WPL 4455178 Contact Us For Availability
4
Bumper, Door WPL W10105790 Contact Us For Availability
5
ELBOW, VENT BOTTOM WPL 4455177 Contact Us For Availability
6
Motorized Latch Sister Board WPL 8301848 Contact Us For Availability
6
Screw WPL 3400080 Contact Us For Availability
6
Hinge, Door (For Stainless Model Only) (Left) WPL 9760568 Contact Us For Availability
6
Hinge, Door (For Stainless Model Only) (Right WPL 9760567 Contact Us For Availability
6
Hinge, Door (Left) WPL 9760566 Contact Us For Availability
6
Hinge, Door (Right) WPL 9760565 Contact Us For Availability
6
Nameplate WPL W10215072 Contact Us For Availability
7
Assembly, Door Glass (Black) WPL W10200754 Contact Us For Availability
7
Assembly, Door Glass (White) WPL W10200755 Contact Us For Availability
8
Door Handle (Biscuit) WPL W10169805 Contact Us For Availability
9
Bracket, Handle (Right) WPL 4455803 Contact Us For Availability
9
Bracket, Handle (Left) WPL 4455804 Contact Us For Availability
9
BRACKET, MOUNTING BOTTOM VENT WPL 4452152 Contact Us For Availability
10
RETAINER,GLASS CLIP (STAINLESS) WPL W10158497 Contact Us For Availability
10
RETAINER, GLASS CLIP (BLACK) WPL 4450863 Contact Us For Availability
10
RETAINER,GLASS CLIP (WHITE) WPL 4450864 Contact Us For Availability
10
RETAINER,GLASS CLIP (BISCUIT) WPL 4452119 Contact Us For Availability
13
Lens, Light WPL W10067870 Contact Us For Availability
14
SUPPRESSOR WPL 8302143 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
15
Transformer, Control WPL 9760587 Contact Us For Availability
15
GASKET, DOOR WPL W10203265 Contact Us For Availability
16
Support, Insulation WPL 4451478 Contact Us For Availability
17
Rail, Side (Left) WPL 8302794 Contact Us For Availability
21
Deflector, Vent WPL 9760677 Contact Us For Availability
21
Back, Chassis WPL W10161110 Contact Us For Availability
22
LINER, OVEN (NOT SERVICEABLE) WPL NP Contact Us For Availability
23
Base, Chassis WPL 9759713 Contact Us For Availability
24
Glass, Inner WPL 9759228 Contact Us For Availability
24
Vent, Center WPL 4452267 Contact Us For Availability
29
Support, Bracket WPL 4449845 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
Harness, Main WPL 8302154 Contact Us For Availability
NI
Conduit, Double WPL 4450953 Contact Us For Availability
NI
Lead, Ground Strap WPL 4452400 Contact Us For Availability
NI
Insulation, Back WPL 4450365 Contact Us For Availability
NI
PAINT, SPRAY (CITRINE WHITE) WPL 251900 Contact Us For Availability
NI
Clamp WPL 4448664 Contact Us For Availability
NI
Screw, Ground WPL 4450800 Contact Us For Availability
NI
Support, Wiring WPL 4451761 Contact Us For Availability
NI
SEALER, SILASTIC (3 OZ.) WPL 482838 Contact Us For Availability
NI
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
NI
Nut, Terminal Block WPL 7103P02760 Contact Us For Availability
× ![]()
