Model Whirlpool RBD305PRB02 30`` BUILT-IN ELECTRIC DOUBLE OVEN STD-CLEAN LOWER – Common Parts & Diagrams

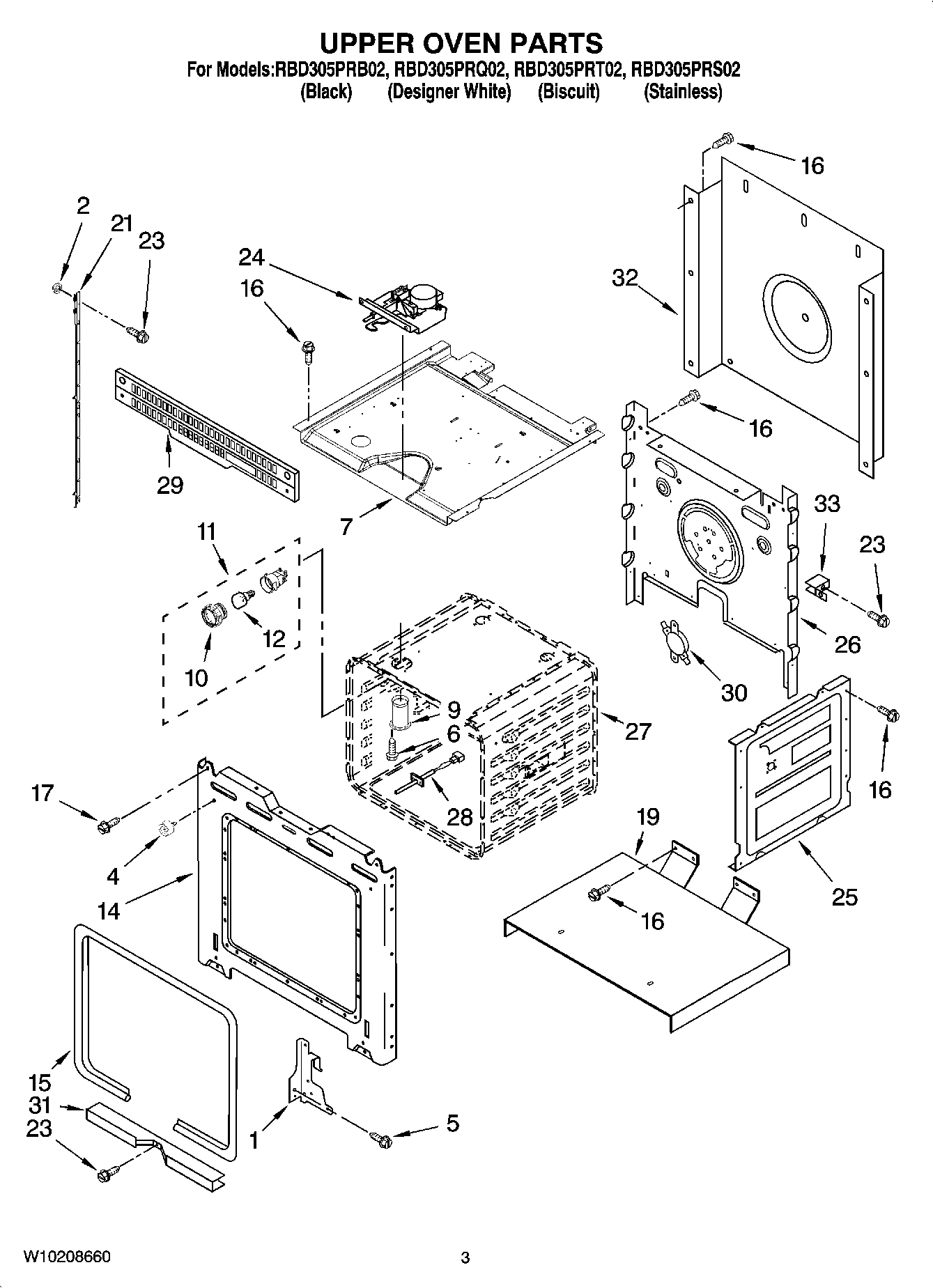

02 - UPPER OVEN PARTS

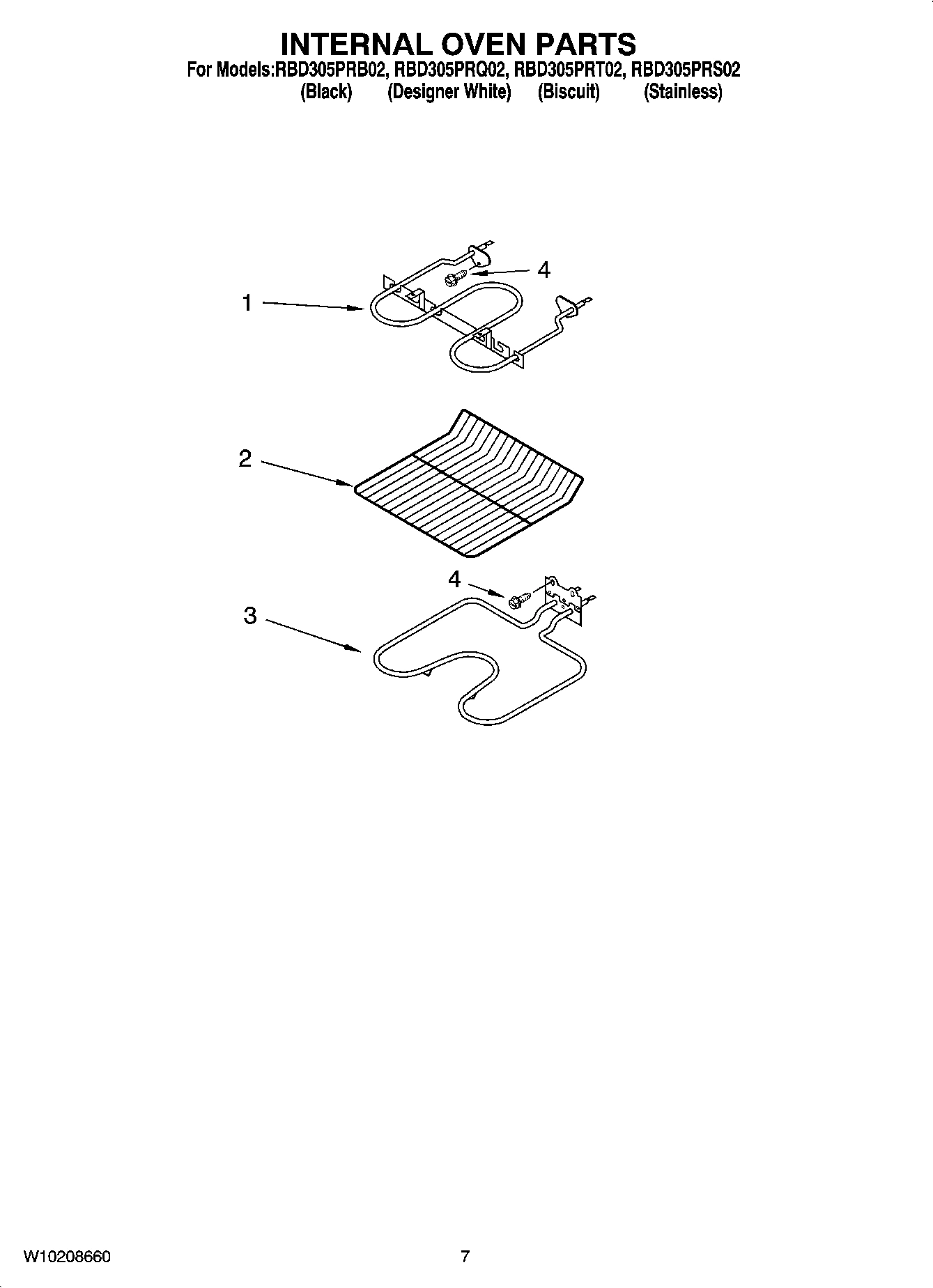

05 - INTERNAL OVEN PARTS
07 - TOP VENTING PARTS, OPTIONAL PARTS
03 - LOWER OVEN DOOR PARTS
04 - UPPER OVEN DOOR PARTS
01 - LOWER OVEN PARTS
06 - CONTROL PANEL PARTS
Common parts from model Whirlpool RBD305PRB02 30`` BUILT-IN ELECTRIC DOUBLE OVEN STD-CLEAN LOWER
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PAINT, SPRAY (Citrine White) WPL 261900 Contact Us For Availability
Harness, Main WPL 8302154 Contact Us For Availability
Conduit, Double WPL 4450953 Contact Us For Availability
Lead, Ground Strap WPL 4452400 Contact Us For Availability
Insulation, Back WPL 4450365 Contact Us For Availability
Following Parts Not Illustrated WPL ARI120377A Contact Us For Availability
Insulation WPL ARI120378A Contact Us For Availability
1
Vent, Exhaust WPL 4451759 Contact Us For Availability
1
Control Panel (Biscuit) WPL 8302850 Contact Us For Availability
1
Tech Sheet WPL 8302068 Contact Us For Availability
1
Installation Instructions WPL 8303647 Contact Us For Availability
1
SAFER COOKING TIPS (ENGLISH WPL 9762761 Contact Us For Availability
1
Safer Cooking Tips (French) WPL W10065852 Contact Us For Availability
1
Use & Care Guide WPL W10162170 Contact Us For Availability
2
Membrane Switch (Black) WPL 8304275 Contact Us For Availability
2
Hinge, Door (SS Model Only) (Right) WPL 9760573 Contact Us For Availability
2
Membrane Switch (White) WPL 8304276 Contact Us For Availability
2
Trim, Side Right (White) WPL W10136100 Contact Us For Availability
2
Trim, Side Left (Biscuit) WPL W10136103 Contact Us For Availability
2
Trim, Side Left (Stainless) WPL W10166948 Contact Us For Availability
2
Trim, Side Right (Stainless) WPL W10166949 Contact Us For Availability
2
Membrane Switch (Biscuit) WPL 8304277 Contact Us For Availability
3
Microcomputer WPL 8303883 Contact Us For Availability
4
Hinge, Door (SS Model Only) (Left) WPL 9760568 Contact Us For Availability
4
Hinge, Door (SS Model Only) (Right) WPL 9760567 Contact Us For Availability
4
Hinge, Door (Left) WPL 9760566 Contact Us For Availability
4
Hinge, Door (Right) WPL 9760565 Contact Us For Availability
4
ELBOW, VENT TOP WPL 4455178 Contact Us For Availability
4
Bumper, Door WPL W10105790 Contact Us For Availability
4
Backer, Control Panel WPL W10153086 Contact Us For Availability
5
Board, Latch WPL 8301848 Contact Us For Availability
5
ELBOW, VENT BOTTOM WPL 4455177 Contact Us For Availability
6
Bumper, Door WPL 4448520 Contact Us For Availability
7
Top Chassis WPL 8303099 Contact Us For Availability
8
Screw WPL 3400080 Contact Us For Availability
10
Lens, Light WPL W10067870 Contact Us For Availability
12
Assembly, Door Glass (Stainless) WPL 8303314 Contact Us For Availability
12
Assembly, Door Glass (Black) WPL 8303330 Contact Us For Availability
12
Assembly, Door Glass (White) WPL 8303339 Contact Us For Availability
12
Assembly, Door Glass (Biscuit) WPL 8303342 Contact Us For Availability
13
Door Handle (Black) WPL 8302813 Contact Us For Availability
13
Door Handle (White) WPL 8302814 Contact Us For Availability
13
Door Handle (Biscuit) WPL 8302815 Contact Us For Availability
14
Bracket, Handle WPL W10136473 Contact Us For Availability
15
Gasket, Door WPL 4450493 Contact Us For Availability
16
BRACKET(3RD GLASS) WPL 9759230 Contact Us For Availability
17
Screw WPL 4449040 Contact Us For Availability
17
Nameplate WPL 8303811 Contact Us For Availability
18
Bracket, Bottom Vent Mounting WPL 4452152 Contact Us For Availability
18
Retainer, Door (White) WPL 8303389WH Contact Us For Availability
18
Retainer, Door (Black) WPL 8303389BL Contact Us For Availability
18
Retainer, Door (Biscuit) WPL 8303389BT Contact Us For Availability
19
Shield, Heat WPL 4457103 Contact Us For Availability
19
Support, Insulation WPL 4451478 Contact Us For Availability
20
SUPPRESSOR WPL 8302143 Contact Us For Availability
20
Screw WPL 4451040 Contact Us For Availability
20
Plug, Door WPL 4450935 Contact Us For Availability
21
Transformer WPL 9760587 Contact Us For Availability
21
Seal - Door WPL 8303878 Contact Us For Availability
22
Assembly, Fan & Bracket WPL 4451664 Contact Us For Availability
22
SHIELD, HEAT BOTTOM WPL 4457114 Contact Us For Availability
23
Retainer, Clip WPL 4451432 Contact Us For Availability
24
Glass, Inner WPL 9759228 Contact Us For Availability
26
Back, Chassis WPL W10161110 Contact Us For Availability
27
Liner, Oven (Not serviceable) WPL ARI120376A Contact Us For Availability
30
Deflector, Vent WPL 9760677 Contact Us For Availability
32
Base, Chassis WPL 9759713 Contact Us For Availability
35
Trim, Bottom (Stainless) WPL 8303582 Contact Us For Availability
36
Support, Bracket WPL 4449845 Contact Us For Availability
× ![]()
