Model Whirlpool RBD305PDB7 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams

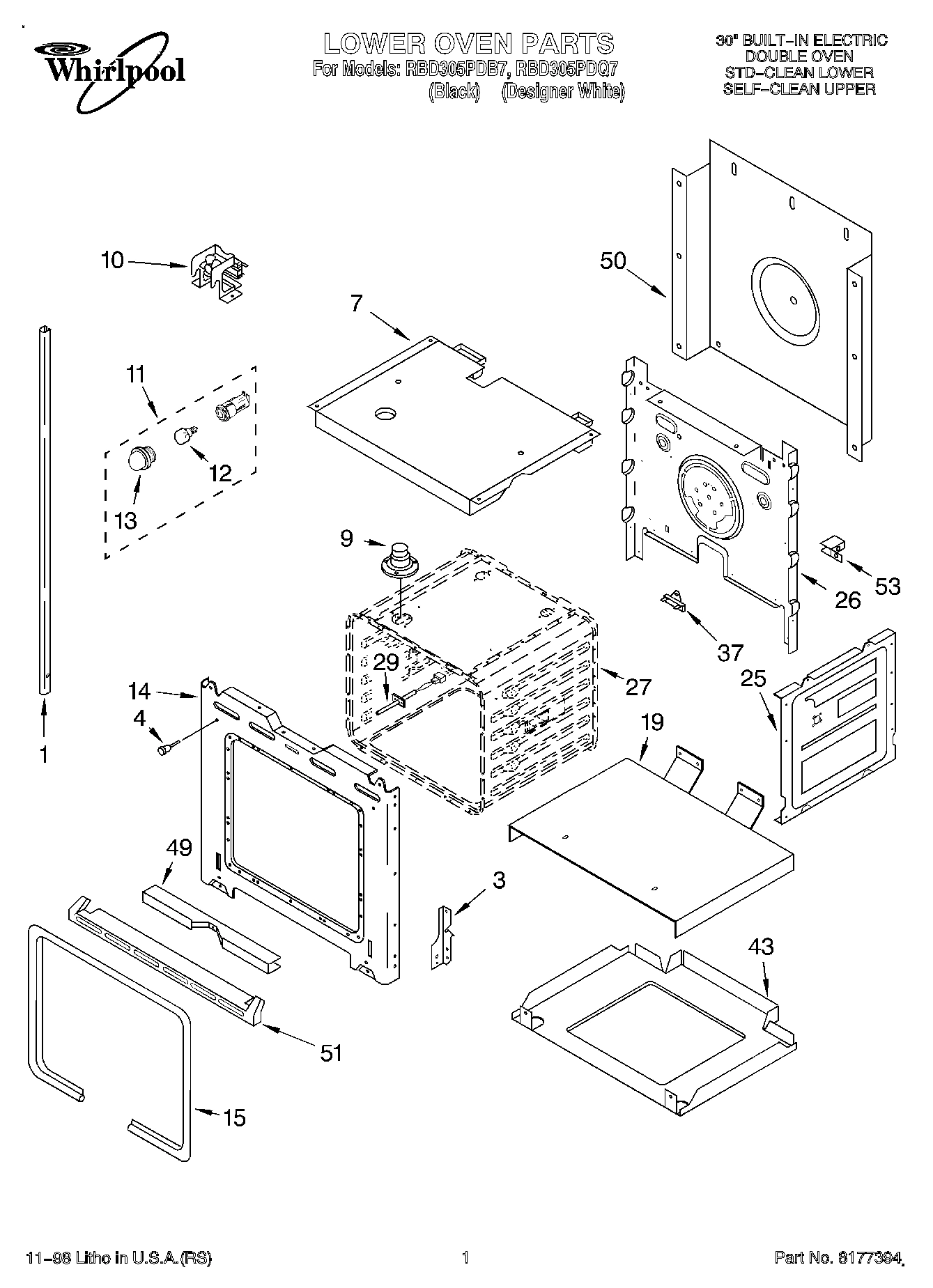

01 - LOWER OVEN

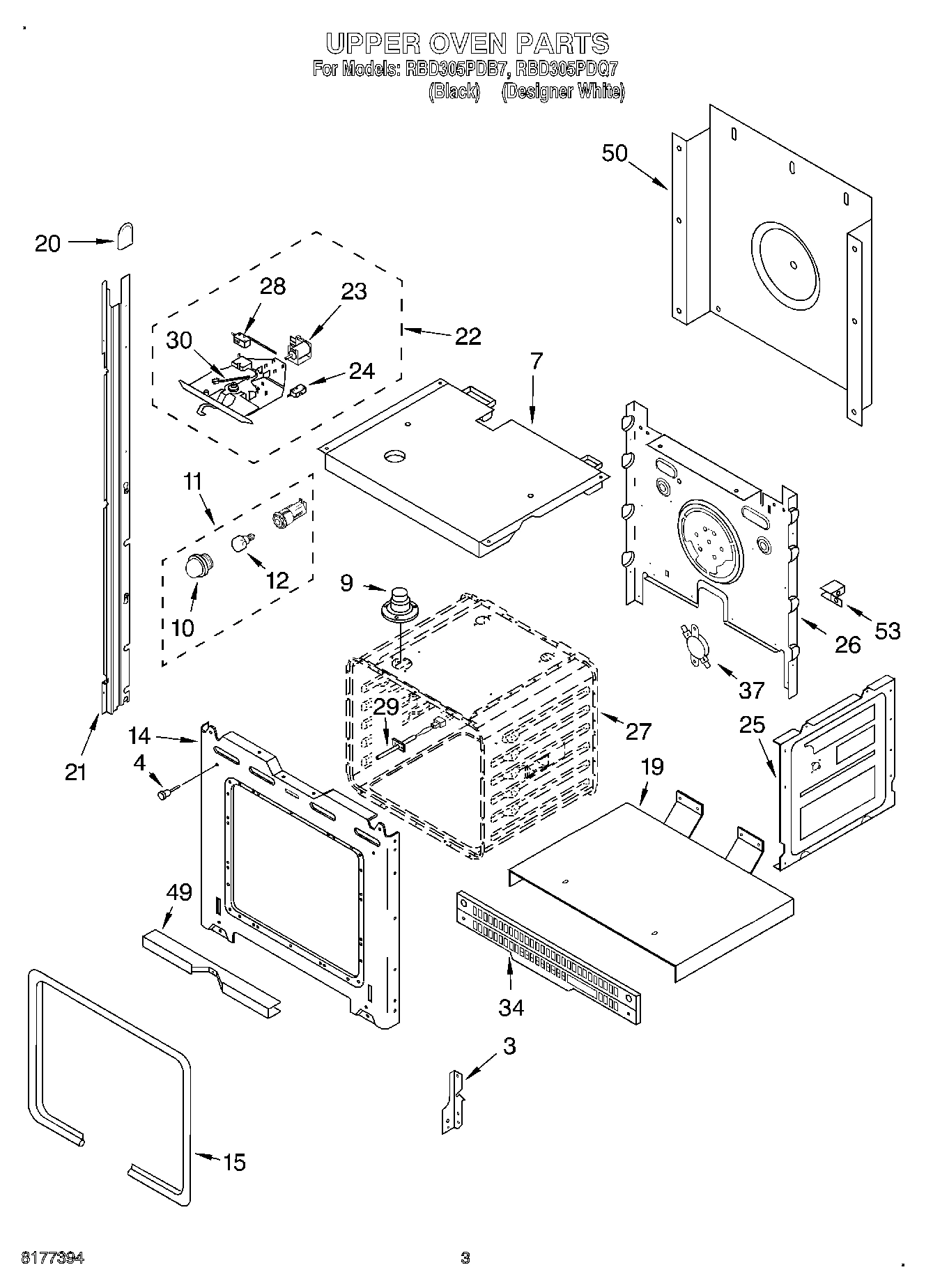

02 - UPPER OVEN

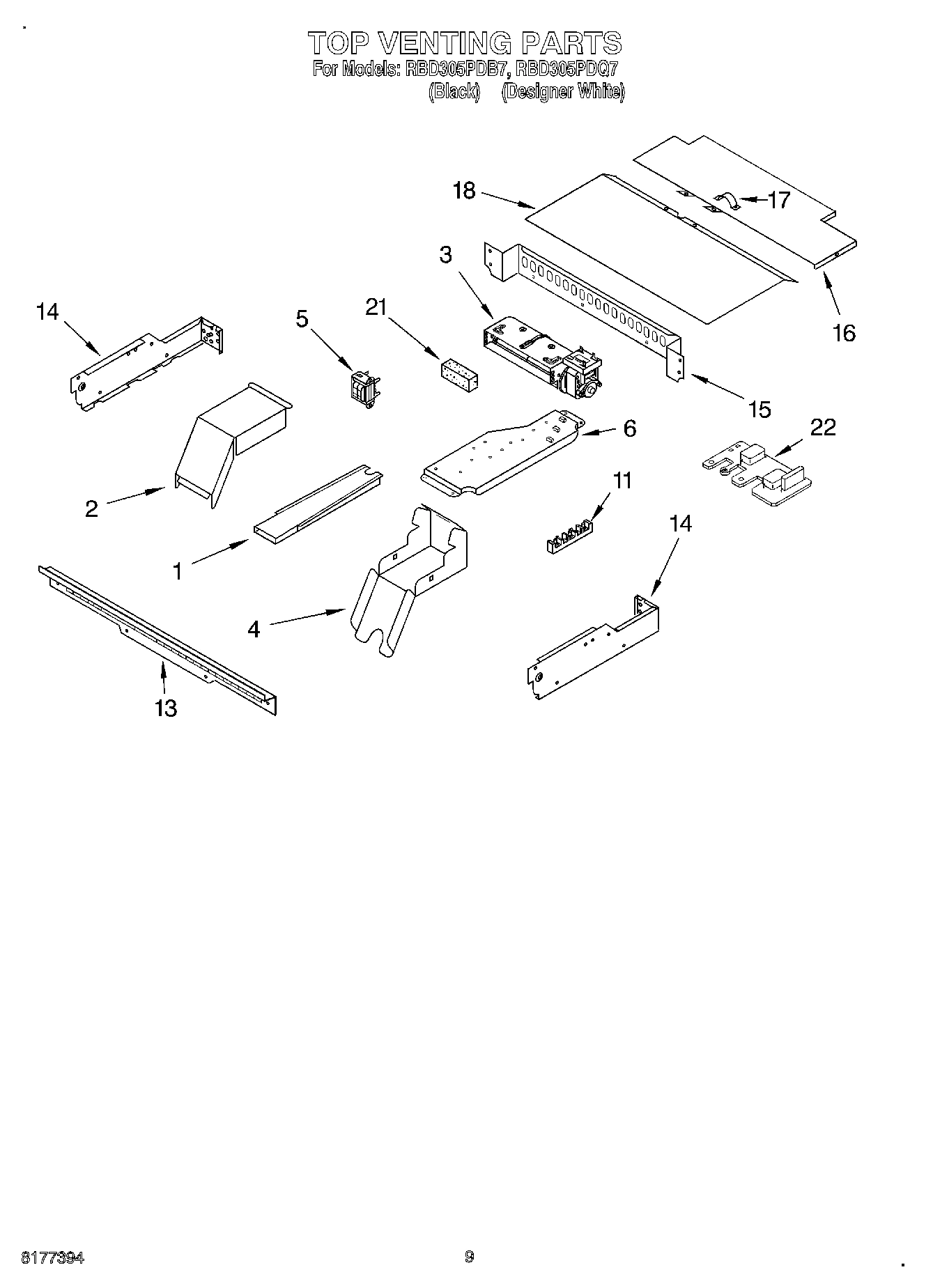

07 - TOP VENTING, OPTIONAL

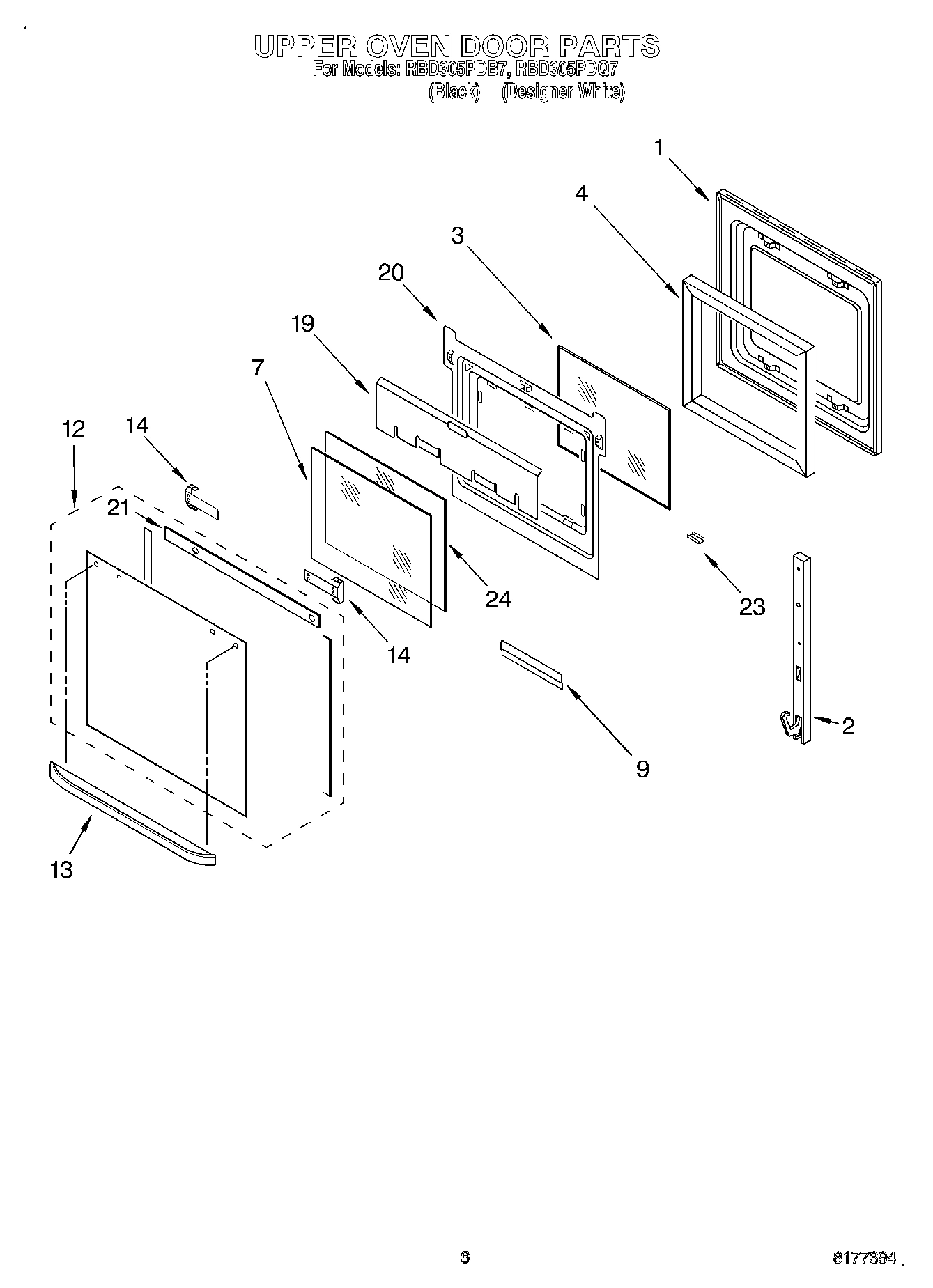

04 - UPPER OVEN DOOR

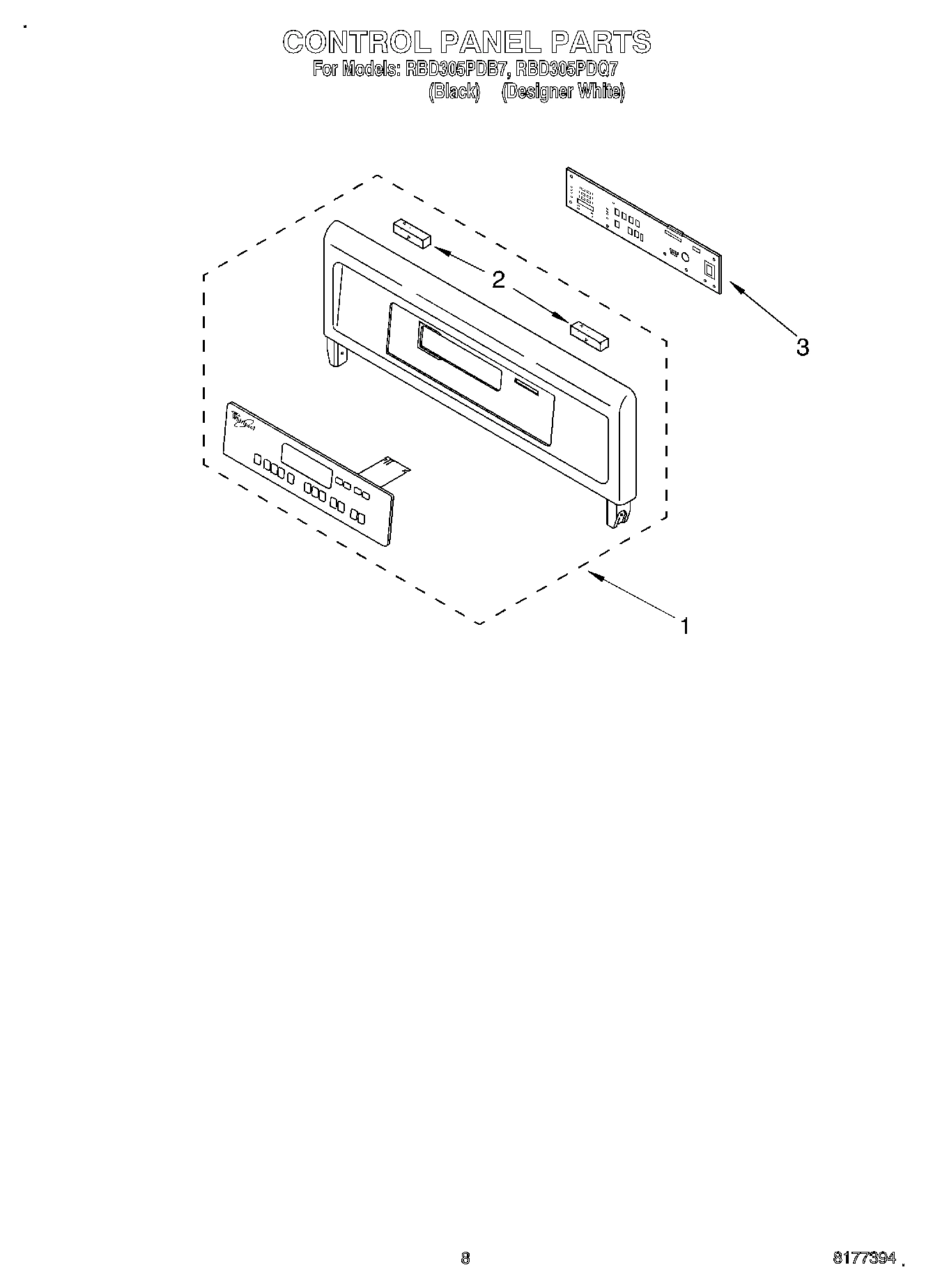

06 - CONTROL PANEL, LITERATURE

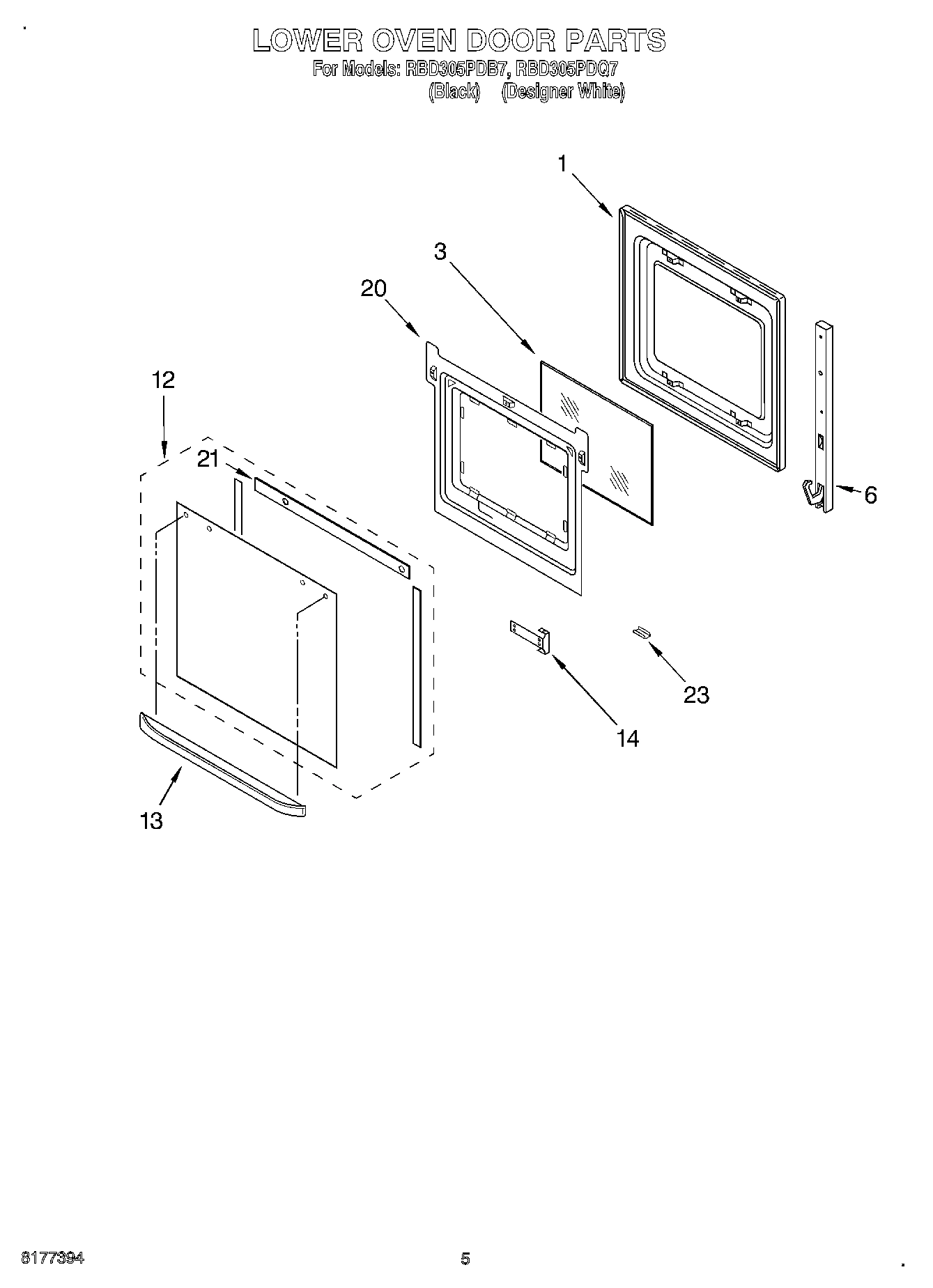

03 - LOWER OVEN DOOR

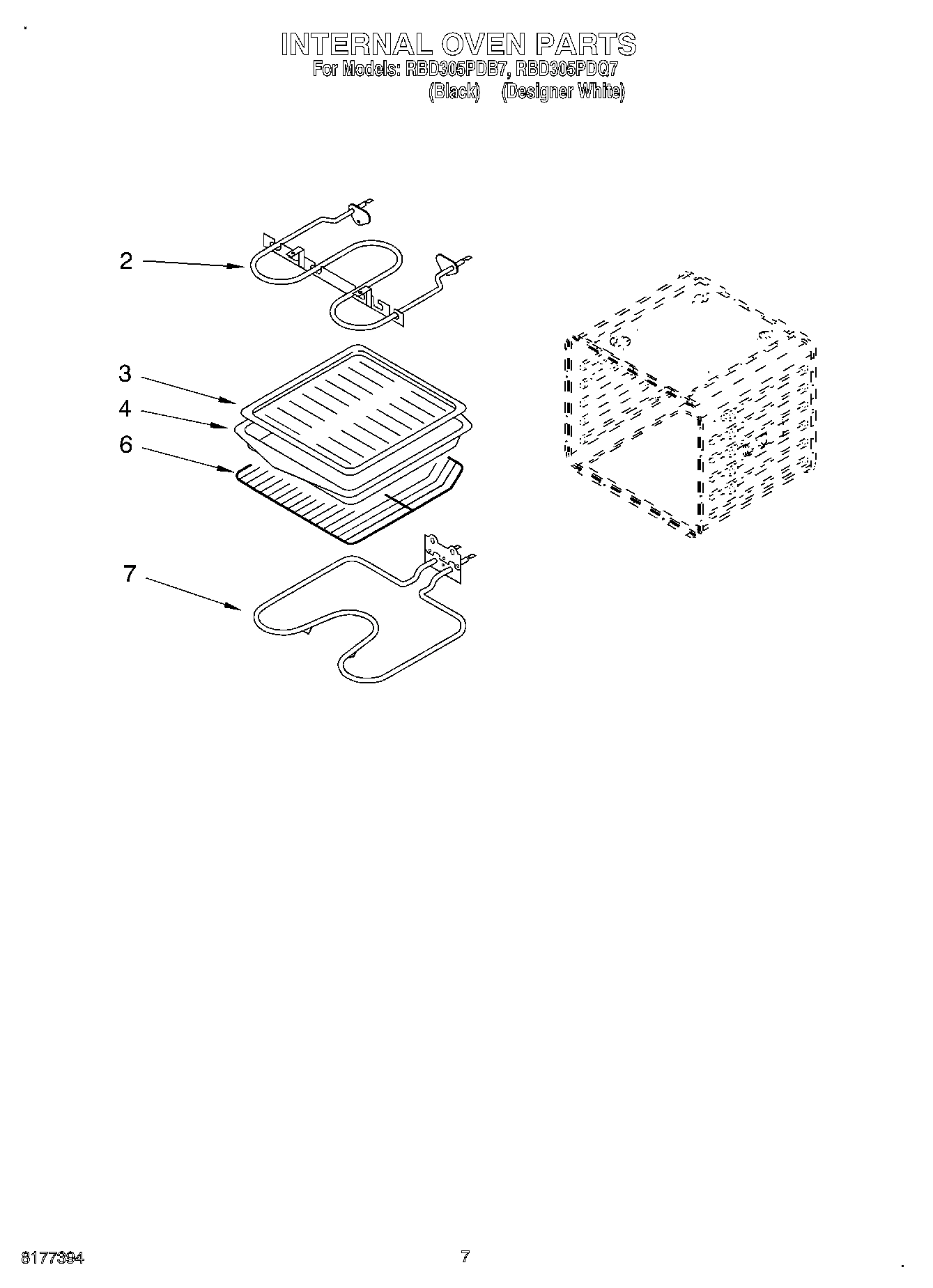

05 - INTERNAL OVEN
Common parts from model Whirlpool RBD305PDB7 BUILT-IN ELECTRIC DOUBLE OVEN
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Installation Instructions WPL LIT4450411 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4450568 Contact Us For Availability
Tech Sheet WPL LIT4451887 Contact Us For Availability
1
Screw WPL 4449040 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Screw) WPL 4159465 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451973 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451974 Contact Us For Availability
2
Gasket, Control Panel WPL 4451034 Contact Us For Availability
3
Screw WPL 4449899 Contact Us For Availability
3
Microcomputer WPL 4451991 Contact Us For Availability
5
Transformer, Control WPL 4451891 Contact Us For Availability
6
Plate, Mounting WPL 4451789 Contact Us For Availability
9
Retainer, Glass WPL 4451668 Contact Us For Availability
10
Fan & Bracket Assy WPL 4451664 Contact Us For Availability
12
Door Glass, Outer (White Model) WPL 4452066 Contact Us For Availability
13
Door Handle (Black Model) WPL 4448854 Contact Us For Availability
13
Vent, Control Panel WPL 4448549 Contact Us For Availability
13
Door Handle (White Model) WPL 4448855 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
16
Cover, Top Rear WPL 4450551 Contact Us For Availability
19
Shield, Heat WPL 4450362 Contact Us For Availability
20
Retainer, Glass WPL 4451671 Contact Us For Availability
21
Seal, Door Top WPL 4451674 Contact Us For Availability
22
Latch Assembly WPL 4451896 Contact Us For Availability
22
Conduit, Double WPL 4450953 Contact Us For Availability
22
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
22
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
22
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
22
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
22
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
22
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
22
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
22
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
22
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
22
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
22
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
22
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
22
Spacer, Harness WPL 4452222 Contact Us For Availability
22
Harness, Wire (Main DOC) WPL 4455350 Contact Us For Availability
22
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
22
WPL 814387 WPL 814387 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
24
Glass, Inner WPL 4455257 Contact Us For Availability
24
Switch, Micro WPL 4452312 Contact Us For Availability
28
Switch, Micro WPL 4451426 Contact Us For Availability
29
Sensor WPL 4451665 Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
30
Spring, Latch WPL 4451537 Contact Us For Availability
34
Vent, Center WPL 4452267 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448477 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
53
Insulation, Back WPL 4450365 Contact Us For Availability
× ![]()
