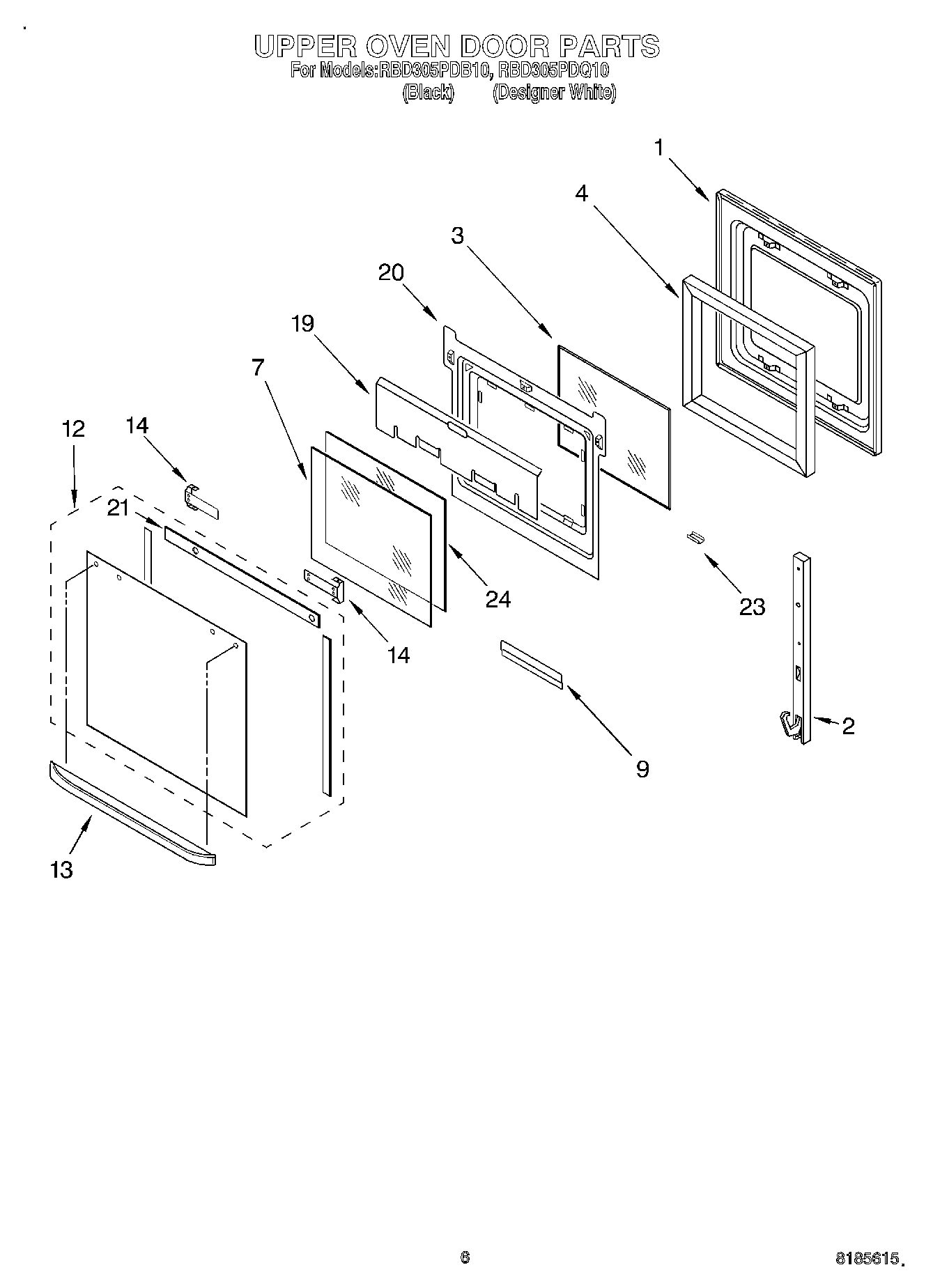

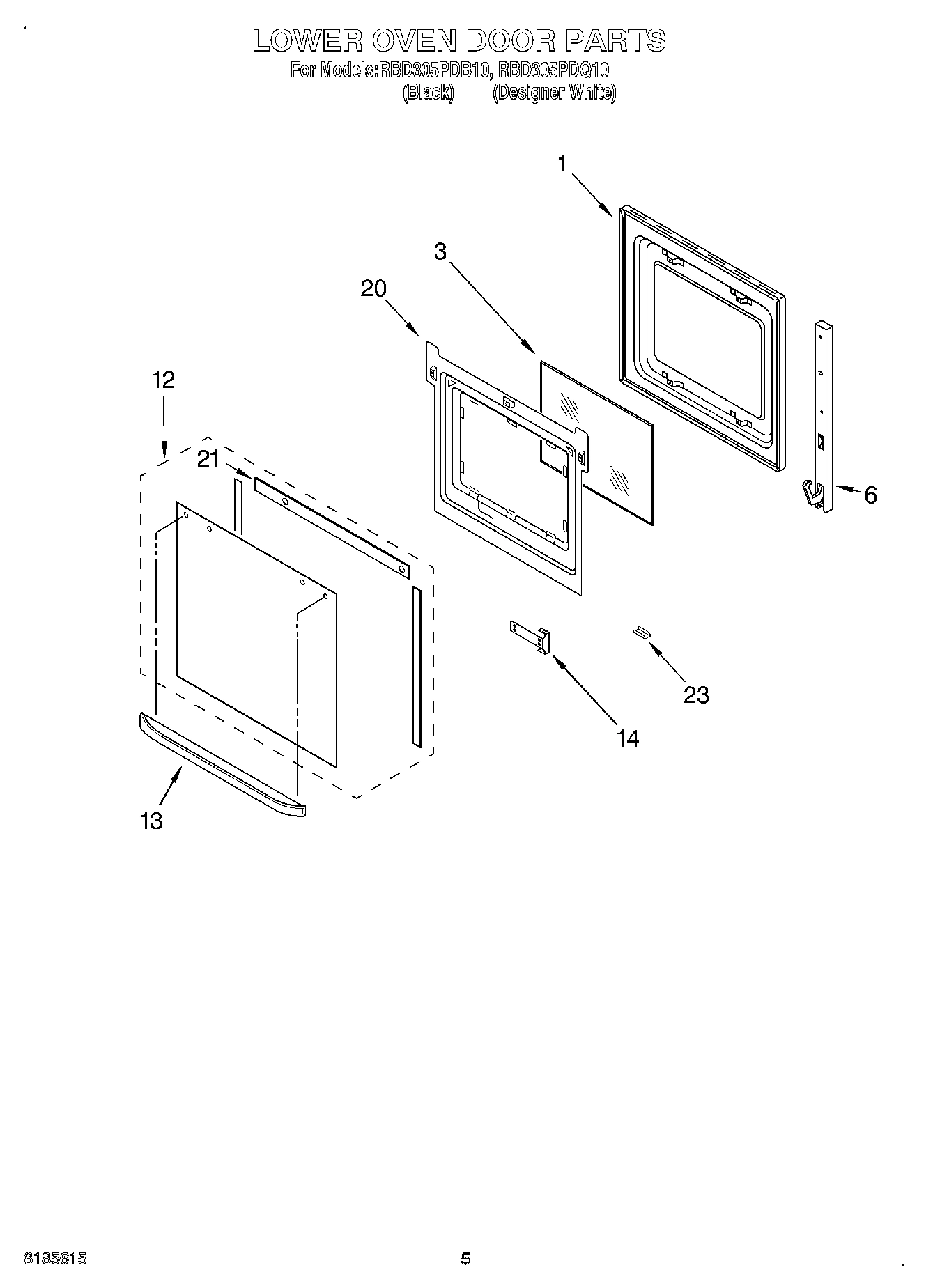

Model Whirlpool RBD305PDB10 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts &amp; Diagrams

1

Control Panel Assy. W/Membrane Switch (Black WPL 8300435 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch (White WPL 8300436 Contact Us For Availability

1

Screw WPL 4449040 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT4450411 Contact Us For Availability

1

Literature Parts (Use & Care Guide (Oven)) WPL LIT4450568 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT4451887 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP4455525 Whirlpool Oven Door Hinge In Stock WPL WP4455525 $43.32

2

WP8281236 Whirlpool Screw Backorder WPL WP8281236 $2.51

2

WP9760767 Whirlpool Range Wall Oven Broil Ele In Stock WPL WP9760767 $68.54

2

Trim, Side (Screw) (White Model) WPL 4449041 Contact Us For Availability

2

Trim, Side (RH Black) WPL 4450850 Contact Us For Availability

2

Trim, Side (Right Hand) (White Model) WPL 4450851 Contact Us For Availability

2

Trim, Side (LH Black) WPL 4450853 Contact Us For Availability

2

Trim, Side (Left Hand)) (White Model) WPL 4450854 Contact Us For Availability

2

Gasket, Control Panel WPL 4451034 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $36.18

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $83.40

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

Blower 60MM WPL 4455334 Contact Us For Availability

3

Reciever, Hinge (Right Hand) WPL 4455723 Contact Us For Availability

3

Reciever, Hinge (Left Hand) WPL 4455722 Contact Us For Availability

3

Insulator, Switch Membrane WPL 3192690 Contact Us For Availability

3

Microcomputer WPL 4451991 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

4

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $68.58

5

WP4455509 Whirlpool Support Bracket Backorder WPL WP4455509 $29.15

6

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

6

WP4455523 Whirlpool Oven Door Hinge In Stock WPL WP4455523 $31.90

6

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $79.34

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $84.67

7

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $52.29

7

Top, Chassis WPL 4455286 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $40.00

9

Retainer, Glass WPL 4451668 Contact Us For Availability

10

Fan & Bracket Assy WPL 4451664 Contact Us For Availability

10

Plate, Fan WPL 4454943 Contact Us For Availability

11

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $37.09

11

Screw WPL 3400080 Contact Us For Availability

12

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $28.53

13

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

13

Door Handle (Black Model) WPL 4448854 Contact Us For Availability

13

Lens, Light WPL 4452165 Contact Us For Availability

14

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

14

Bracket, Handle WPL 4450813 Contact Us For Availability

14

Frame, Front WPL 4451740 Contact Us For Availability

15

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $44.23

15

Gasket, Door WPL 4450493 Contact Us For Availability

19

Support, Insulation WPL 4451478 Contact Us For Availability

20

Cap, Spacer WPL 4451605 Contact Us For Availability

21

814373 Whirlpool Oven Rail Mount Backorder WPL 814373 $90.90

21

814374 Whirlpool Oven Rail Mount Backorder WPL 814374 $90.99

21

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

814381 Whirlpool Pin In Stock WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $9.88

WP4451985 Whirlpool Noise Filter Board In Stock WPL WP4451985 $58.95

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Latch Assembly WPL 4451896 Contact Us For Availability

Conduit, Double WPL 4450953 Contact Us For Availability

23

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

23

Solenoid WPL 4452224 Contact Us For Availability

24

Glass, Inner WPL 4455257 Contact Us For Availability

24

Switch, Micro WPL 4452312 Contact Us For Availability

25

Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability

26

Back, Chassis WPL 4452234 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI120223A Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI120222A Contact Us For Availability

28

Switch, Micro WPL 4451426 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

Spring, Latch WPL 4451537 Contact Us For Availability

34

Vent, Center WPL 4452267 Contact Us For Availability

37

WP4451354 Whirlpool Thermal Fuse Assembly In Stock WPL WP4451354 $17.04

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

43

Base, Chassis WPL 4455530 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $51.94

51

Trim, Bottom (Black Model) WPL 4448477 Contact Us For Availability

51

Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability

51

Trim, Bottom (White Model) WPL 4448478 Contact Us For Availability

W11684730 Whirlpool Insulation Backorder WPL W11684730 $47.58

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.64

BRACKET-SUPPORT WPL 4449845 Contact Us For Availability

Insulation, Back WPL 4450365 Contact Us For Availability
