Model Whirlpool RAP7244DW0 – Common Parts & Diagrams

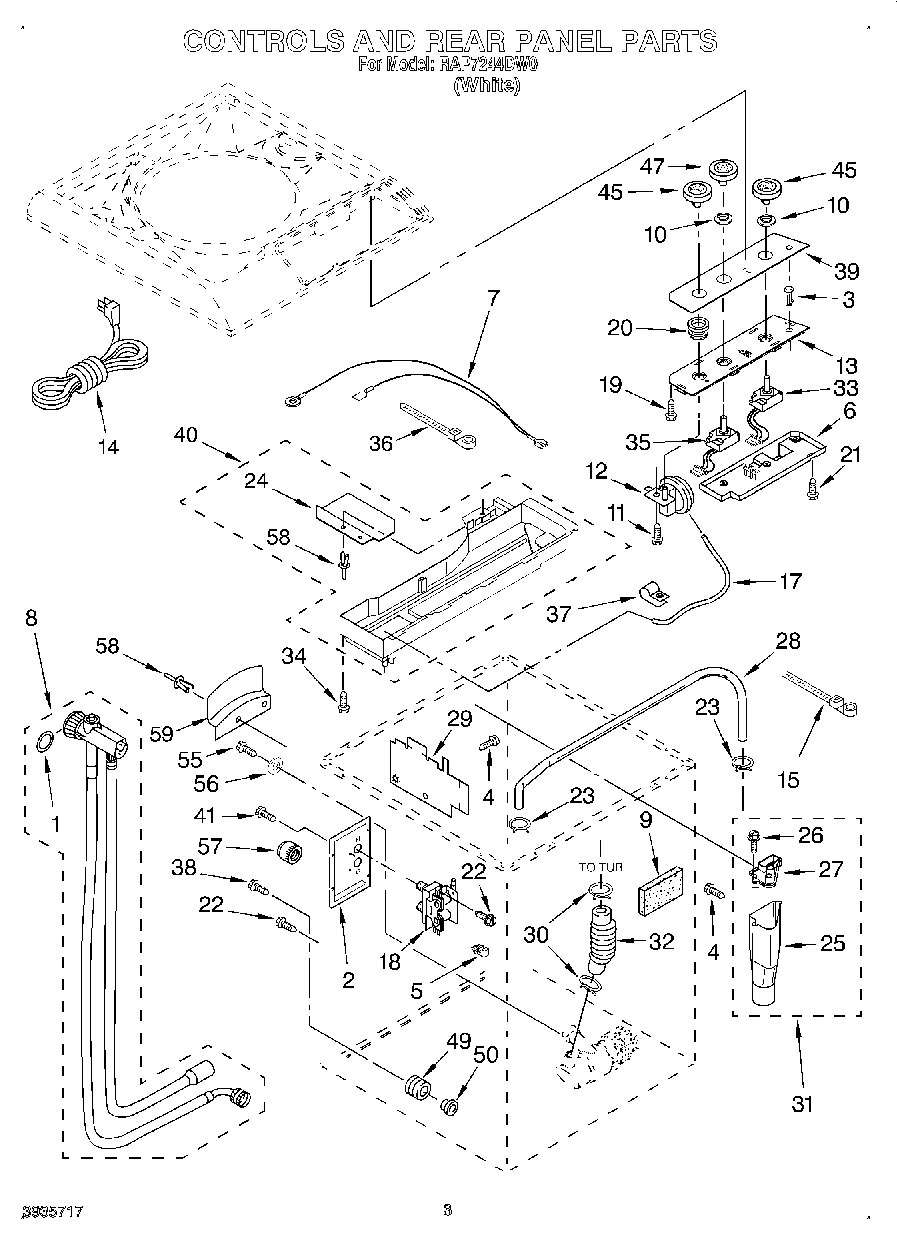

02 - CONTROLS AND REAR PANEL

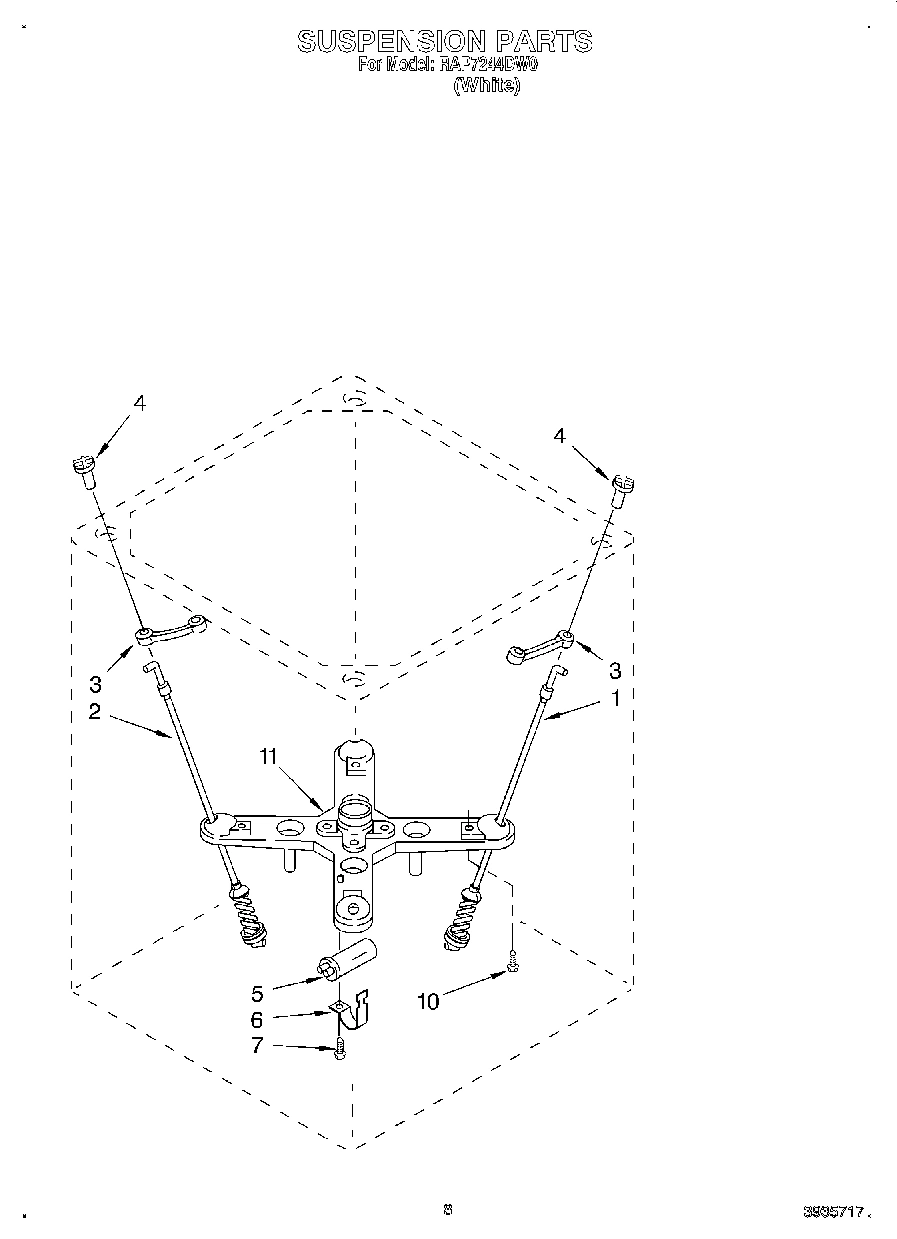

05 - SUSPENSION
06 - WIRING HARNESS
04 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP
07 - WATER SYSTEM
01 - TOP AND CABINET
03 - AGITATOR, BASKET AND TUB
08 - MISCELLANEOUS, LIT/OPTIONAL
Common parts from model Whirlpool RAP7244DW0
Stationary To Portable WPL 3935674 Contact Us For Availability
Almond WPL 49978 Contact Us For Availability
Almond (Uncut) WPL 978883 Contact Us For Availability
Energy Guide WPL LIT3935011 Contact Us For Availability
Label, Wiring Diagram WPL LIT3935289 Contact Us For Availability
Guide, Use and Care WPL LIT3935695 Contact Us For Availability
Sheet, Installation Instructions WPL LIT3935938 Contact Us For Availability
Tech. Sheet WPL LIT3966292 Contact Us For Availability
1
Seal WPL 711696 Contact Us For Availability
1
Suspension Rod, Front (2) WPL 3935137 Contact Us For Availability
1
Harness/Power-Cord (Includes Clip.) WPL 3934172 Contact Us For Availability
1
Adhesive WPL 3430081 Contact Us For Availability
1
Gearcase Assembly (Use Adhesive WPL 3935337 Contact Us For Availability
1
Top WPL 3935573 Contact Us For Availability
2
Suspension Rod, Rear (2) WPL 3935136 Contact Us For Availability
2
Block, Disconnect (Motor) WPL 3966385 Contact Us For Availability
2
Cabinet WPL 3935109 Contact Us For Availability
2
Filter WPL 3428391 Contact Us For Availability
3
Screw WPL 3428014 Contact Us For Availability
3
Shield, Motor Splash WPL 3935998 Contact Us For Availability
3
Lid WPL 3935590 Contact Us For Availability
4
Pin, Wheel WPL 3935130 Contact Us For Availability
4
Ball, Upper Suspension (4) WPL 3428423 Contact Us For Availability
4
Brake Band WPL 3428323 Contact Us For Availability
4
Agitator WPL 3428392 Contact Us For Availability
5
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
5
Capacitor WPL 3429938 Contact Us For Availability
5
Spring, Brake WPL 3428342 Contact Us For Availability
5
Tub Ring WPL 3429902 Contact Us For Availability
6
Bracket, Capacitor WPL 3428343 Contact Us For Availability
6
Terminal WPL 310222 Contact Us For Availability
6
Block, Disconnect (Motor) (Uses WPL 311150 Contact Us For Availability
6
Nut, Washer Locking WPL 3934661 Contact Us For Availability
6
Basket WPL 3428186 Contact Us For Availability
7
Pulley, Splutch WPL 3428359 Contact Us For Availability
7
Drain Protector WPL 367031 Contact Us For Availability
7
Hinge, Lid (R.H.) WPL 3935351 Contact Us For Availability
7
Screw WPL 3428430 Contact Us For Availability
8
Cam, Splutch WPL 3428378 Contact Us For Availability
8
Tub & Inlet Asy. WPL 3935537 Contact Us For Availability
9
Screw WPL 3935634 Contact Us For Availability
10
Screw (4) WPL 3428033 Contact Us For Availability
10
Spring, Splutch WPL 3934212 Contact Us For Availability
10
Cover, Pump WPL 3428525 Contact Us For Availability
10
Hose, Bleach WPL 3430339 Contact Us For Availability
11
Support, Tub (Includes Bearing) WPL 3934460 Contact Us For Availability
11
Slider, Splutch WPL 3428380 Contact Us For Availability
12
Caster (4) WPL 3934872 Contact Us For Availability
12
Cam Ring, Splutch WPL 3428379 Contact Us For Availability
13
Solenoid WPL 3934709 Contact Us For Availability
13
Saddle Block WPL 3428429 Contact Us For Availability
14
Screw, Solenoid Mtg. (4) WPL 3934040 Contact Us For Availability
14
Protector, Edge WPL 3429705 Contact Us For Availability
14
Shield, Tub/Motor WPL 3428814 Contact Us For Availability
15
Plate, Motor & Bearing Assy. WPL 3430205 Contact Us For Availability
15
Hub, Drive WPL 3934735 Contact Us For Availability
16
Bolt, Motor Plate (4) WPL 3429405 Contact Us For Availability
16
Screw WPL 3935602 Contact Us For Availability
16
Gasket, Hub (2) WPL 3428179 Contact Us For Availability
17
Bracket-Cabinet To Top WPL 3935198 Contact Us For Availability
17
Inlet-Tube Assy. WPL 3935347 Contact Us For Availability
18
Drive Belt WPL 3934700 Contact Us For Availability
18
Hinge, Lid (L.H.) WPL 3935352 Contact Us For Availability
18
Balance Ring WPL 3934565 Contact Us For Availability
19
Bumper WPL 3935442 Contact Us For Availability
19
Hose, Tub Overflow WPL 3966238 Contact Us For Availability
20
Rivet WPL 3430186 Contact Us For Availability
20
Motor, Main Drive (Includes Item 6) WPL 3934201 Contact Us For Availability
21
Shield, Pulley WPL 3935999 Contact Us For Availability
21
Bearing, Hinge (RH) WPL 3935739 Contact Us For Availability
22
Pump (Complete) WPL 3430119 Contact Us For Availability
22
Bearing, Hinge (LH) WPL 3935889 Contact Us For Availability
22
Washer WPL 3429750 Contact Us For Availability
23
Housing, Pump WPL 3430120 Contact Us For Availability
24
Ring-Protector WPL 3935678 Contact Us For Availability
25
Extrude-Top (2) WPL 3935201 Contact Us For Availability
25
Screw (6) WPL 3934714 Contact Us For Availability
26
Bolt, Motor Mounting (2) WPL 3934663 Contact Us For Availability
26
Screw (4) WPL 3429189 Contact Us For Availability
26
Seal WPL 3935332 Contact Us For Availability
27
Pin, Brake Band WPL 3934183 Contact Us For Availability
27
Panel-Cabinet Access WPL 3430058 Contact Us For Availability
27
Well-Nut (2) WPL 3935431 Contact Us For Availability
28
Pump WPL 3430089 Contact Us For Availability
28
Rivet, Plastic (2) WPL 3429823 Contact Us For Availability
28
Screw, Well Nut (2) WPL 3935432 Contact Us For Availability
29
Blade, Fan WPL 3429939 Contact Us For Availability
29
Washer, Nut (2) WPL 3935786 Contact Us For Availability
30
Hex-Nut (2) WPL 3935437 Contact Us For Availability
31
Hose-Corrugated WPL 3429900 Contact Us For Availability
31
Funnel-Inlet Asy. WPL 3935327 Contact Us For Availability
32
Clamp-Hose WPL 3935874 Contact Us For Availability
33
Switch, Cycle Selection WPL 3966202 Contact Us For Availability
34
Solenoid Shield, Top WPL 3935997 Contact Us For Availability
35
Switch, Water Temperature WPL 3966205 Contact Us For Availability
36
Clamp, Tie Wrap WPL 3935429 Contact Us For Availability
37
Clamp, Cable (Pressure Switch) WPL 3935709 Contact Us For Availability
37
Lock, Solenoid WPL 3429416 Contact Us For Availability
38
Screw, Pump Mtg. (2) WPL 3428934 Contact Us For Availability
38
Shield, Motor Connector WPL 3430197 Contact Us For Availability
39
Panel, Console (Includes Inlay) WPL 3935510 Contact Us For Availability
40
Top, Shield Assy. WPL 3935627 Contact Us For Availability
41
Screw, 10-16 x 1/2 WPL 3934148 Contact Us For Availability
45
Knob, Cycle Selection WPL 3935954 Contact Us For Availability
47
Knob, Temperature Control WPL 3352167 Contact Us For Availability
49
Grommet, Pump (3) WPL 3428526 Contact Us For Availability
50
Spacer, Pump (3) WPL 3428933 Contact Us For Availability
56
Washer WPL 3429923 Contact Us For Availability
59
Bracket, Hose Storage WPL 356499 Contact Us For Availability
× ![]()
