Model Whirlpool RAC4244AW1 – Common Parts &amp; Diagrams

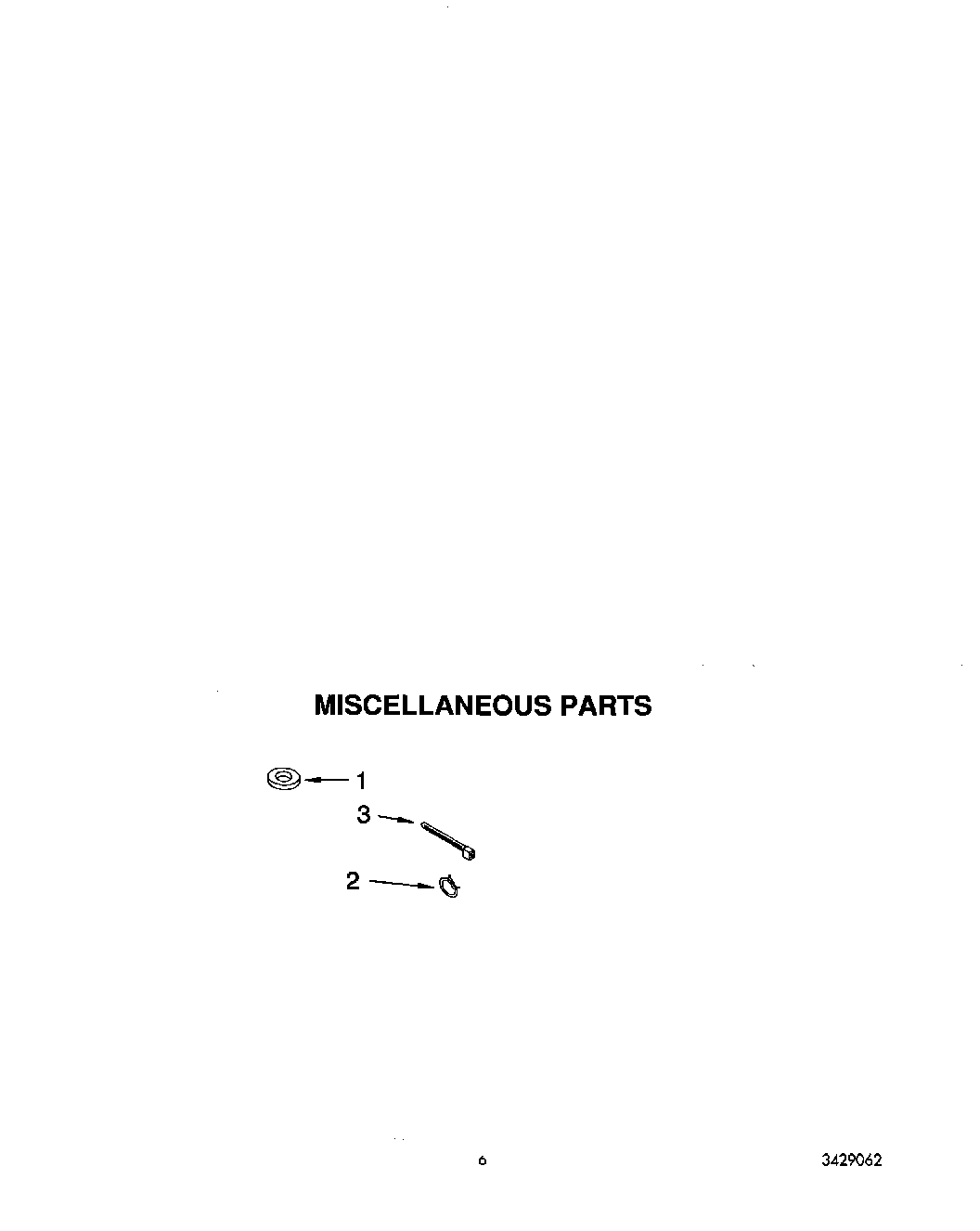

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $32.39

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

1

WP326018423 Whirlpool Dispenser Assembly Backorder WPL WP326018423 $62.10

1

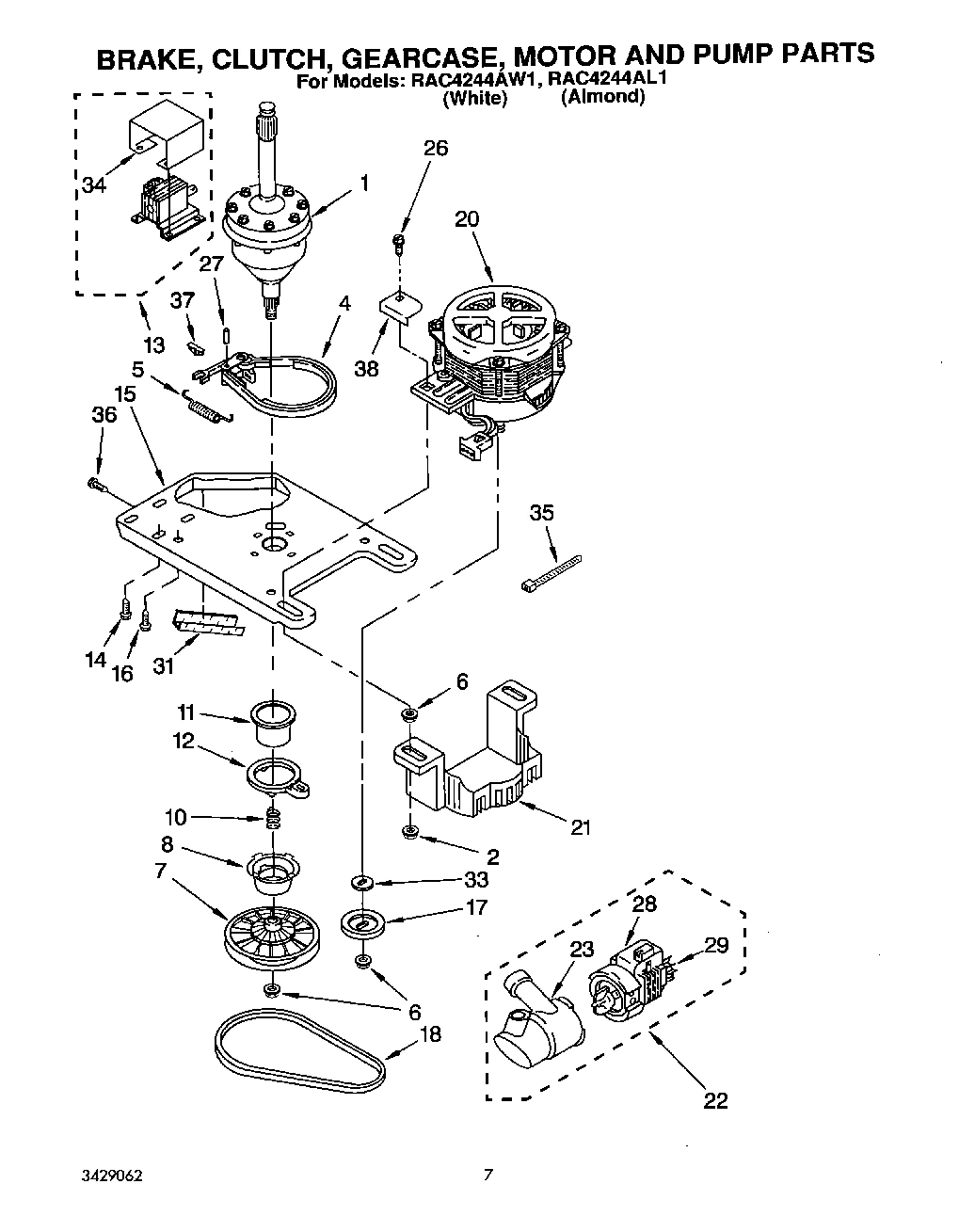

Gearcase Assembly WPL 3429856 Contact Us For Availability

1

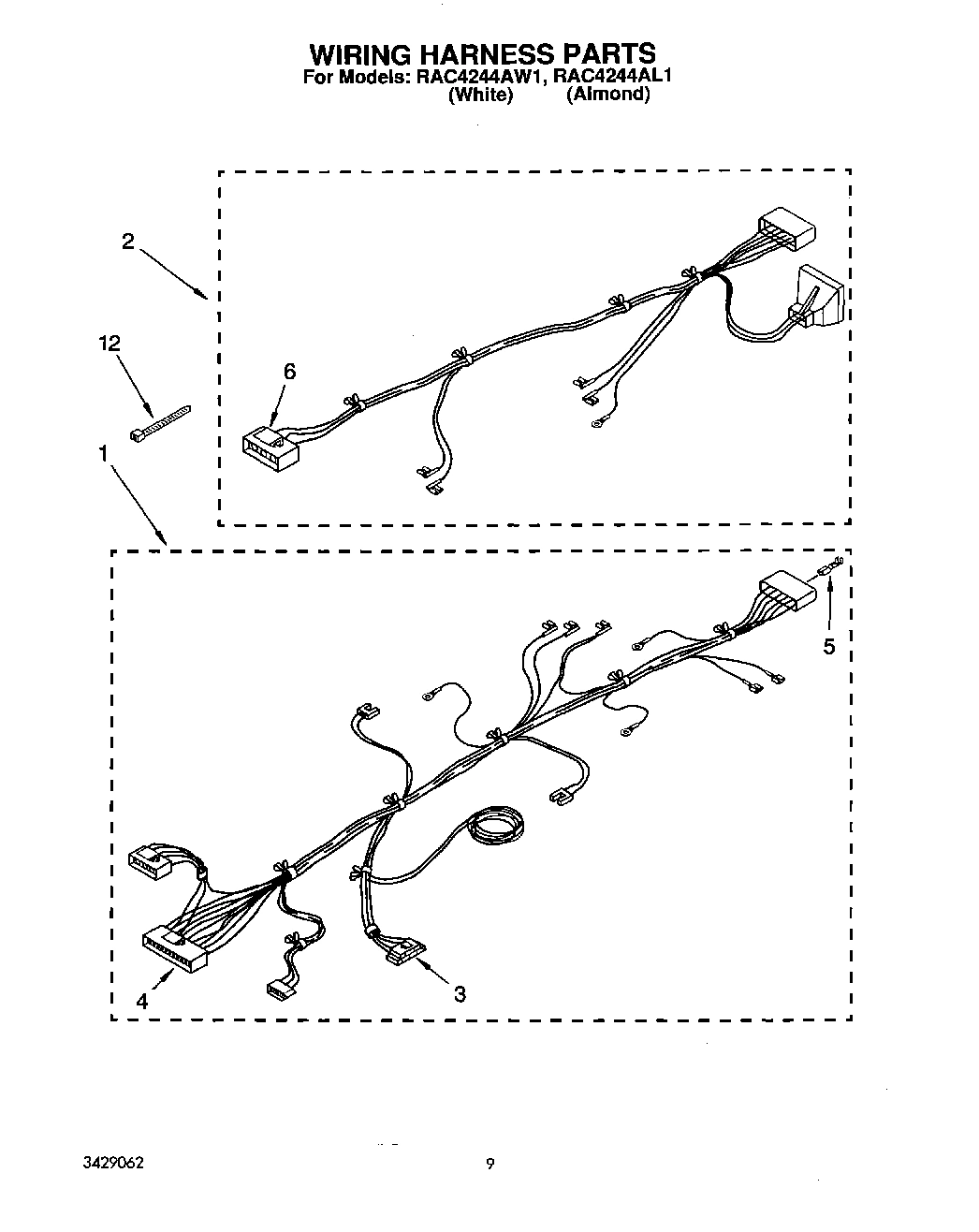

Harness, Wiring (Upper) WPL 3934170 Contact Us For Availability

1

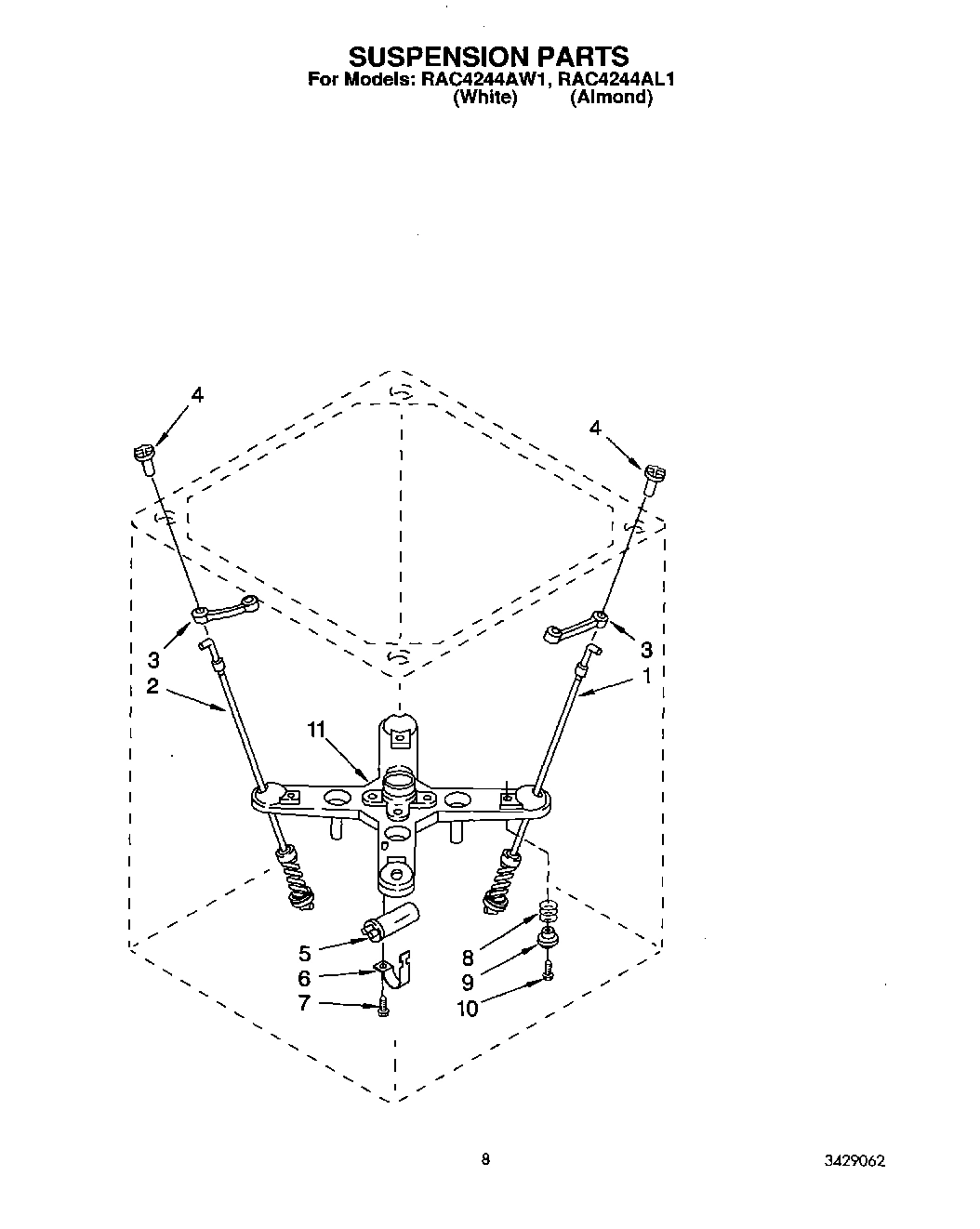

Suspension Rod, Front (2) WPL 3430076 Contact Us For Availability

2

285321 Whirlpool Sleeve Backorder WPL 285321 $28.09

2

Filter WPL 3428391 Contact Us For Availability

2

Lock Nut WPL 3934182 Contact Us For Availability

2

Harness, Wiring (Lower) WPL 3429819 Contact Us For Availability

2

Suspension Rod, Rear (2) WPL 3430077 Contact Us For Availability

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.52

3

WP3967051 Whirlpool Strap In Stock WPL WP3967051 $3.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $5.29

3

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

3

Connector, Temp. Switch WPL 3347243 Contact Us For Availability

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

Screw, Console Cover (4) WPL 3429189 Contact Us For Availability

4

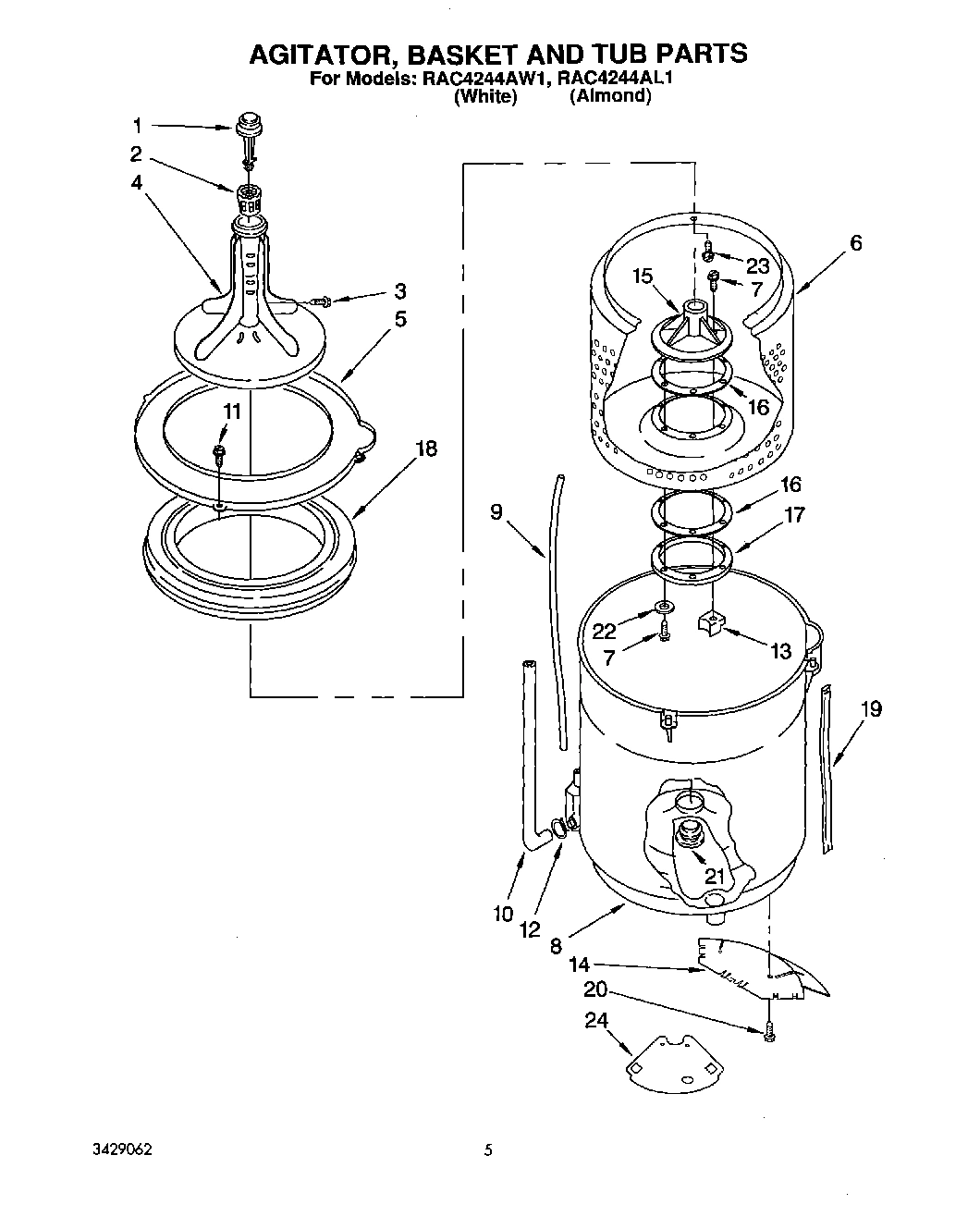

Agitator WPL 3428392 Contact Us For Availability

4

Brake Band WPL 3428323 Contact Us For Availability

4

Block, Timer Disconnect (White) WPL 3369366 Contact Us For Availability

4

Ball, Upper Suspension (4) WPL 3428423 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

Capacitor WPL 3429938 Contact Us For Availability

5

Tub Ring WPL 3429902 Contact Us For Availability

5

Spring, Brake WPL 3428342 Contact Us For Availability

5

Terminal, Female WPL 3369365 Contact Us For Availability

5

Clip, Harness WPL 3428879 Contact Us For Availability

6

Basket WPL 3428186 Contact Us For Availability

6

Nut, Washer Locking WPL 3428083 Contact Us For Availability

6

Block, Disconnect (Motor) (Uses Terminal No.3 WPL 311150 Contact Us For Availability

6

Bracket, Capacitor WPL 3428343 Contact Us For Availability

6

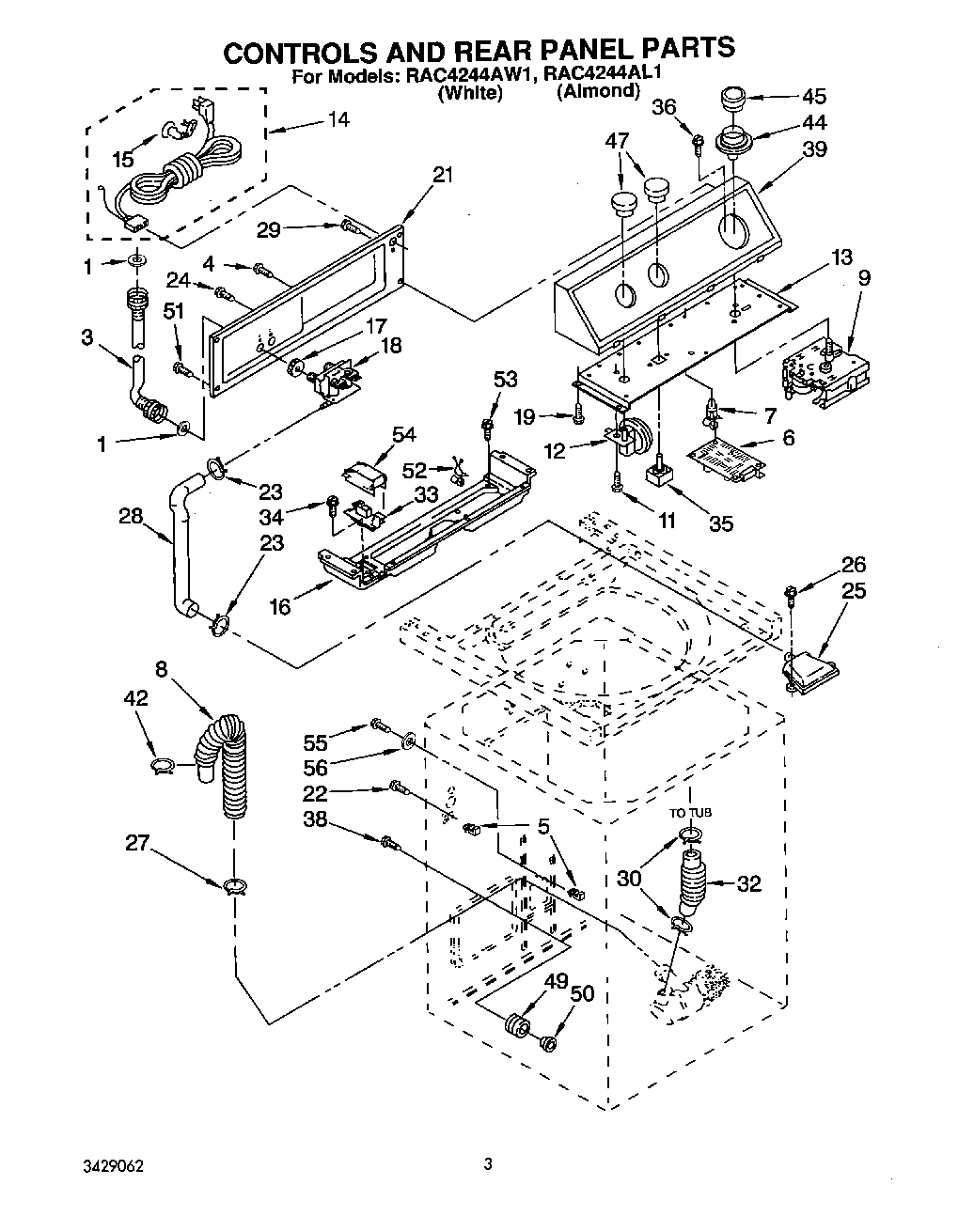

Board, Control WPL 3429904 Contact Us For Availability

7

Pulley, Splutch WPL 3428359 Contact Us For Availability

7

Hinge, Lid (2) WPL 3428543 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

7

Screw WPL 3428430 Contact Us For Availability

7

Stand Off, Small (2) WPL 3428718 Contact Us For Availability

7

Stand Off, Large (2) WPL 3430082 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $19.14

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $30.62

8

Screw, Lid Hinge Mounting (2) WPL 3430073 Contact Us For Availability

8

Tub WPL 3428517 Contact Us For Availability

8

Cam, Splutch WPL 3428378 Contact Us For Availability

8

Spring (4) WPL 3429000 Contact Us For Availability

9

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.99

9

Retainer, Tub Spring (4) WPL 3428876 Contact Us For Availability

9

Timer, Control (60 Hz.) WPL 3430101 Contact Us For Availability

Cover, Pump WPL 3428525 Contact Us For Availability

Hose, Bleach WPL 3430339 Contact Us For Availability

Spring, Splutch WPL 3934212 Contact Us For Availability

Screw (4) WPL 3428033 Contact Us For Availability

11

Slider, Splutch WPL 3428380 Contact Us For Availability

11

Support, Tub WPL 3934037 Contact Us For Availability

WP2205813 Whirlpool Refrigerator Wire Tie Backorder WPL WP2205813 $2.51

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $3.33

Caster (4) WPL 3429406 Contact Us For Availability

Cam Ring, Splutch WPL 3428379 Contact Us For Availability

Switch, Water Level WPL 3429610 Contact Us For Availability

13

Saddle Block WPL 3428429 Contact Us For Availability

13

Solenoid WPL 3430336 Contact Us For Availability

13

Bracket, Control WPL 3428848 Contact Us For Availability

14

Shield, Tub/Motor WPL 3428814 Contact Us For Availability

14

Cord, Power WPL 3429399 Contact Us For Availability

15

Hub, Drive WPL 3430098 Contact Us For Availability

15

Plate, Motor Mount WPL 3430205 Contact Us For Availability

15

Strain Relief, Power Cord WPL 63848 Contact Us For Availability

16

Gasket, Hub (2) WPL 3428179 Contact Us For Availability

16

Bolt, Motor Plate (4) WPL 3934341 Contact Us For Availability

16

Pan, Console WPL 3428370 Contact Us For Availability

17

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.58

17

Clamp, Ring WPL 3428395 Contact Us For Availability

17

Pulley, Motor WPL 3428683 Contact Us For Availability

18

Balance Ring WPL 3428181 Contact Us For Availability

18

Drive Belt WPL 3428097 Contact Us For Availability

18

Valve, Water Mixing WPL 3430029 Contact Us For Availability

19

Hose, Tub Overflow WPL 3430093 Contact Us For Availability

20

Motor, Main Drive (Includes Items 33, 17, & 6 WPL 3934034 Contact Us For Availability

21

WP3968381 Whirlpool Tub Seal Backorder WPL WP3968381 $14.22

21

Shield, Pulley WPL 3429190 Contact Us For Availability

21

Cover, Console Rear WPL 3428365 Contact Us For Availability

22

Washer WPL 3429750 Contact Us For Availability

22

Pump (Complete) WPL 3430119 Contact Us For Availability

23

Housing, Pump WPL 3430120 Contact Us For Availability

24

Shield, Tub/Solenoid WPL 3430303 Contact Us For Availability

25

Water Inlet (Upper) WPL 3429917 Contact Us For Availability

25

Water Inlet (Lower) WPL 3429918 Contact Us For Availability

26

Screw, Water Inlet Mtg. (2) WPL 3934040 Contact Us For Availability

26

Bolt, Motor Mounting (2) WPL 3429371 Contact Us For Availability

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.52

27

Pin, Brake Band WPL 3934183 Contact Us For Availability

28

Pump WPL 3430089 Contact Us For Availability

28

Hose, Valve To Water Inlet WPL 3430030 Contact Us For Availability

29

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

29

Blade, Fan WPL 3429939 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

Protector, Edge WPL 3429705 Contact Us For Availability

32

Hose, Pump To Tub WPL 3429900 Contact Us For Availability

33

Washer, Pulley WPL 3428377 Contact Us For Availability

33

Switch, Lid WPL 3934247 Contact Us For Availability

34

WP3400872 Whirlpool Screw Backorder WPL WP3400872 $2.51

34

Solenoid Shield, Top WPL 3430305 Contact Us For Availability

35

Switch, Water Temperature WPL 3429541 Contact Us For Availability

36

WP3428970 Whirlpool Refrigerator Screw Backorder WPL WP3428970 $4.56

37

Lock, Solenoid WPL 3429416 Contact Us For Availability

38

Shield, Motor Connector WPL 3430197 Contact Us For Availability

38

Screw, Pump Mtg. (2) WPL 3428934 Contact Us For Availability

39

Panel, Console (Includes Inlay) (White) WPL 3430206 Contact Us For Availability

39

Panel, Console (Includes Inlay) (Almond) WPL 3430207 Contact Us For Availability

42

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $4.52

44

Blade, Timer Knob WPL 3388184 Contact Us For Availability

45

280193 Whirlpool Timer Knob Backorder WPL 280193 $34.97

47

Knob, Control WPL 3352167 Contact Us For Availability

49

Grommet, Pump (3) WPL 3428526 Contact Us For Availability

50

Spacer, Pump (3) WPL 3428933 Contact Us For Availability

51

Screw WPL 3429942 Contact Us For Availability

52

Clip, Coil (2) WPL 3429534 Contact Us For Availability

53

Screw WPL 3429941 Contact Us For Availability

54

Shield, Lid Switch WPL 3429706 Contact Us For Availability

55

Screw WPL 3428014 Contact Us For Availability

56

Washer WPL 3429923 Contact Us For Availability
