Model GE PTS7000SN1SS Electric Range – Common Parts & Diagrams

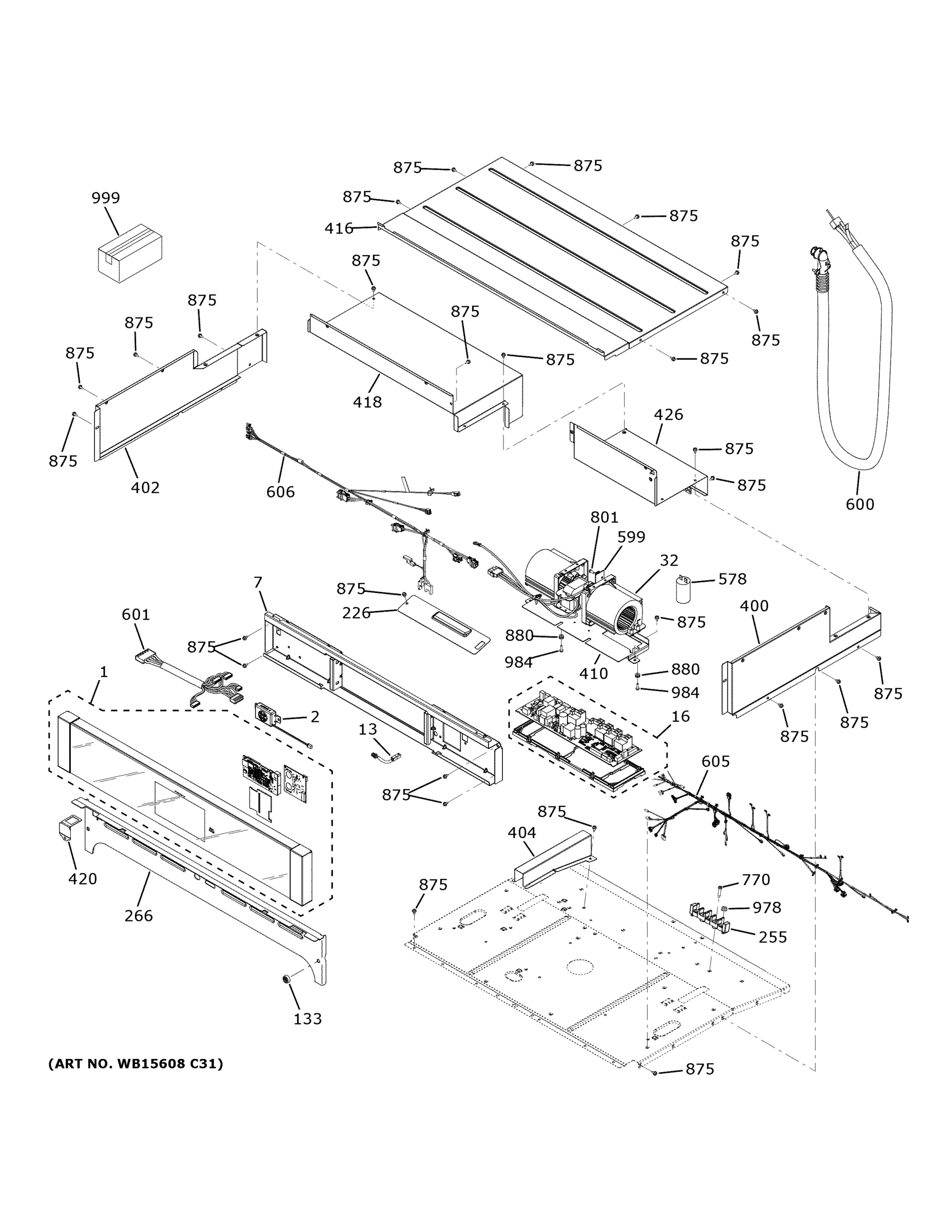

CONTROL PANEL

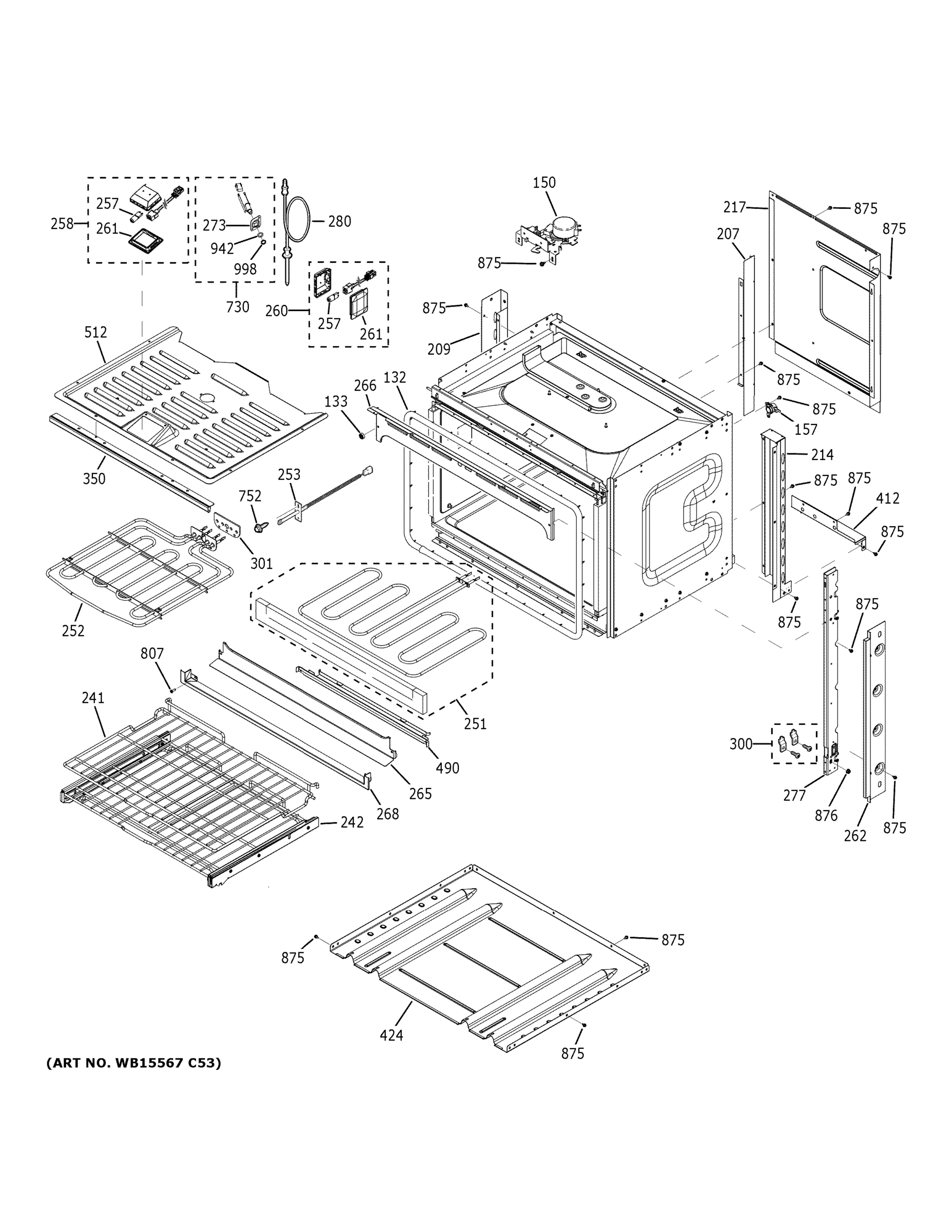

BODY PARTS
DOOR
CONVECTION FAN
Common parts from model GE PTS7000SN1SS Electric Range
13
JUMPER GEN WB18X30704 Contact Us For Availability
16
CONTROL BOARD ASM GEN WB27X32922 Contact Us For Availability
32
FAN BLOWER GEN WB26X31060 Contact Us For Availability
43
BLADE FAN CONVECTION GEN WB02T10598 Contact Us For Availability
55
BADGE ASM GEN WB02X29479 Contact Us For Availability
101
INSULATION DR TOP GEN WB35X21737 Contact Us For Availability
112
OVEN DOOR LINER ASM GEN WB63X32569 Contact Us For Availability
132
OVEN DOOR GASKET GEN WB35X32825 Contact Us For Availability
133
BUMPER DOOR GEN WB03T10341 Contact Us For Availability
145
DOOR LINER PLUG GEN WB02X32816 Contact Us For Availability
150
LATCH ASM GEN WB10X28391 Contact Us For Availability
209
CHANNEL REAR LT GEN WB34X21910 Contact Us For Availability
217
COVER - UPPER REAR DUCT GEN WB34T10136 Contact Us For Availability
241
OVEN RACK GEN WB48X31582 Contact Us For Availability
251
HIDDEN BAKE ELEMENT KIT GEN WB44X21667 Contact Us For Availability
253
SENSOR ASM GEN WB21X10165 Contact Us For Availability
257
LAMP HALOGEN BULB G9 GEN WB25T10102 Contact Us For Availability
258
HALOGEN LAMP ASM GEN WB25X31221 Contact Us For Availability
261
OVEN LIGHT LENS GEN WB34X31317 Contact Us For Availability
265
TRIM VENT LWR GEN WB07X21187 Contact Us For Availability
266
UPPER VENT TRIM GEN WB07X32831 Contact Us For Availability
268
BOTTOM TRIM GEN WB07X32832 Contact Us For Availability
280
MEAT PROBE GEN WB20T10024 Contact Us For Availability
281
HINGE DOOR RT GEN WB10X35065 Contact Us For Availability
300
HINGE BRACKET ASM KIT GEN WB49X21652 Contact Us For Availability
338
WINDOW PACK ASM GEN WB56X27480 Contact Us For Availability
402
COVER TOP LEFT EDGE GEN WB44T10126 Contact Us For Availability
416
COVER HOUSING FRT GEN WB34X28390 Contact Us For Availability
490
COVER HIDDEN BAKE GEN WB55T10197 Contact Us For Availability
512
PLATE - TOP OVEN GEN WB37T10024 Contact Us For Availability
514
COVER CONVECTION FAN GEN WB37T10023 Contact Us For Availability
578
CAPACITOR MOTOR GEN WB27T10662 Contact Us For Availability
599
BOARD FAN SENSOR GEN WB27T11463 Contact Us For Availability
600
OPTIONAL 6 FT CONDUIT GEN WB18T10578 Contact Us For Availability
601
UI COM AND RJ45 HARNESS GEN WB18X32919 Contact Us For Availability
730
MEAT PROBE AND HARNESS GEN WB18X23585 Contact Us For Availability
801
6-19 X 1/4 TORX PAN HEAD GEN WD02X10129 Contact Us For Availability
977
NUT HEX GEN WB02T10608 Contact Us For Availability
999
LUBRICANT CLEANER GEN WB02T10303 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
× ![]()
