Model Whirlpool PTF1952FRW REFRIGERATOR – Common Parts & Diagrams

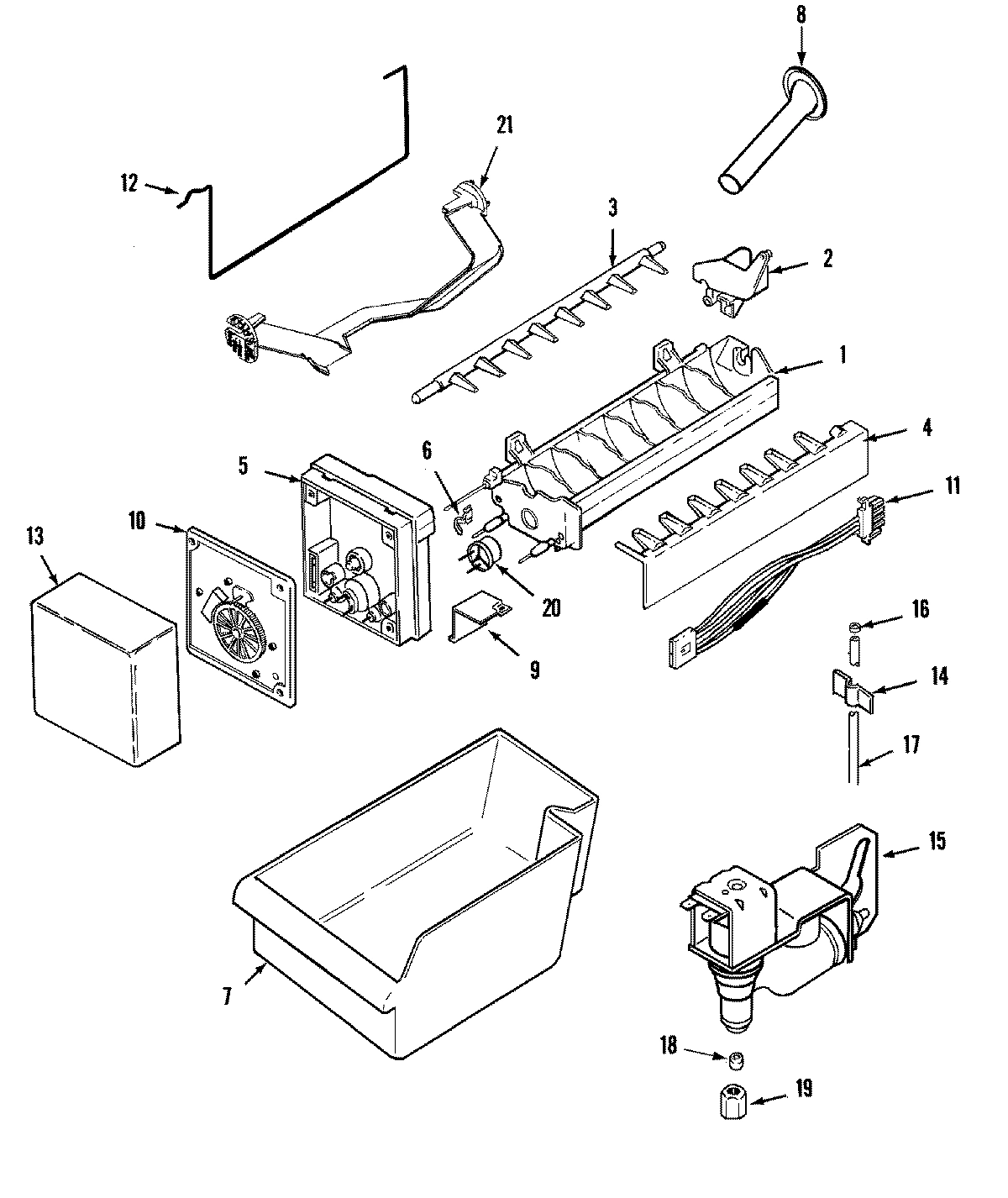

08 - ICE MAKER

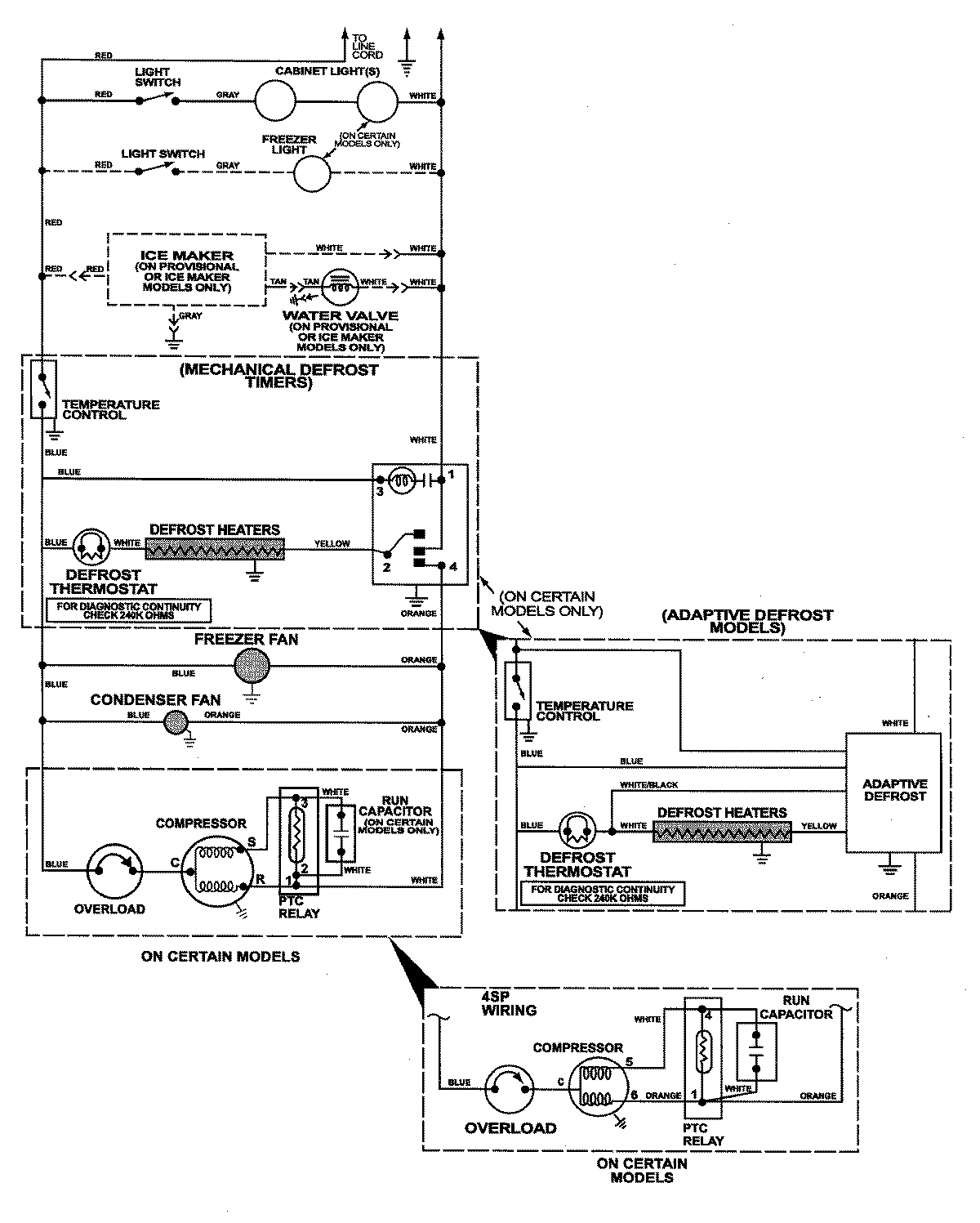

10 - WIRING INFORMATION
02 - CONTROLS

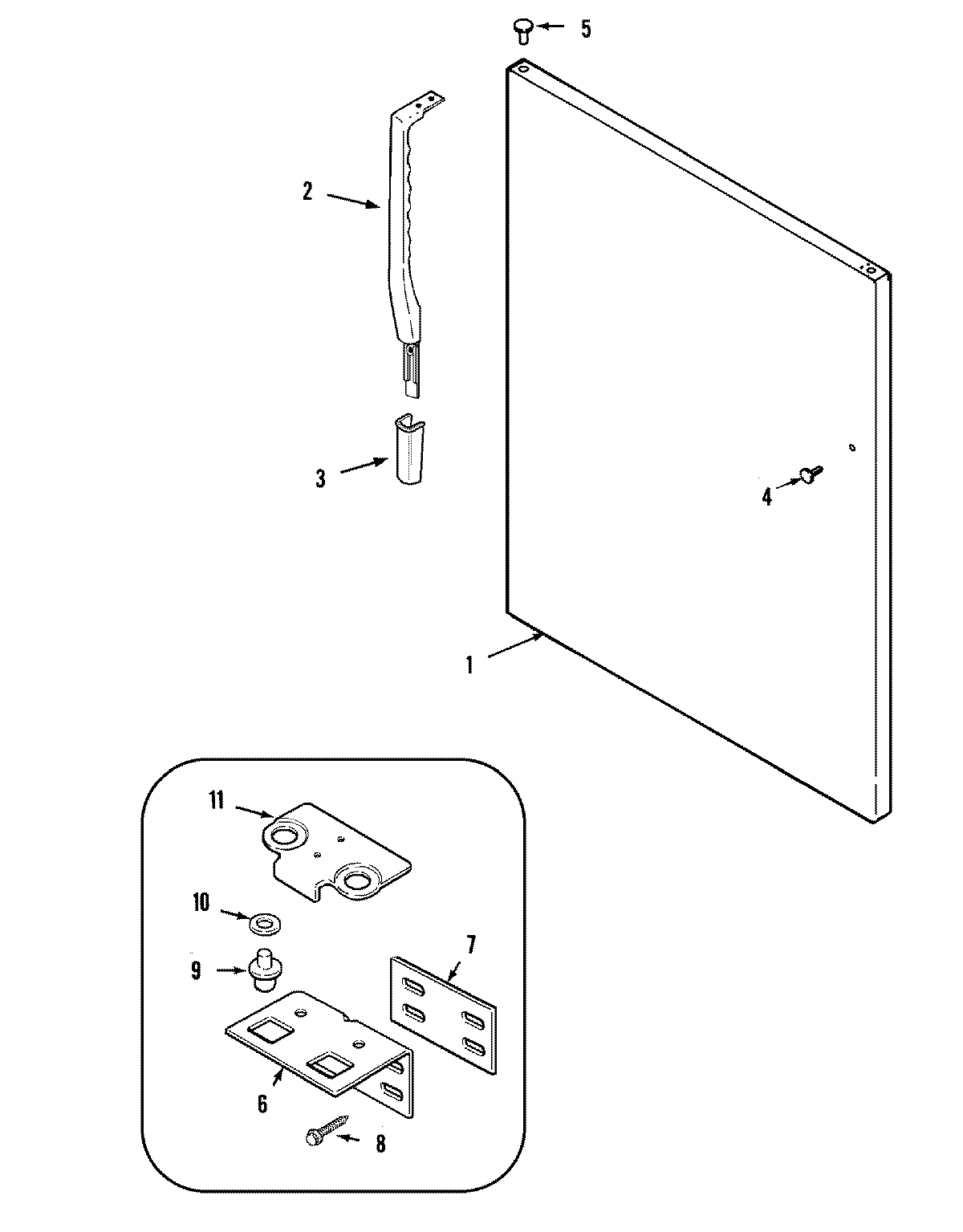

07 - FRESH FOOD OUTER DOOR

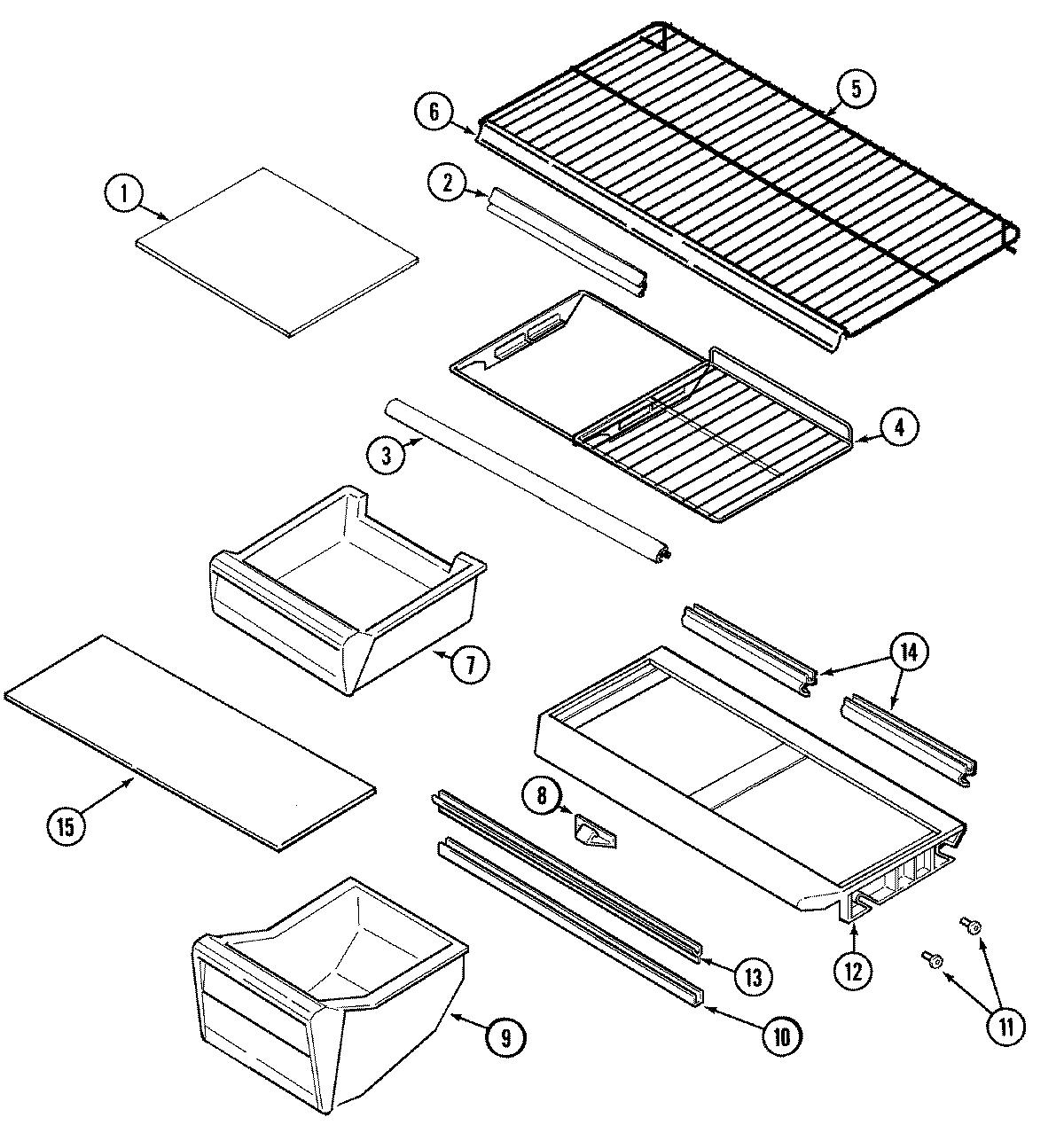

09 - SHELVES & ACCESSORIES

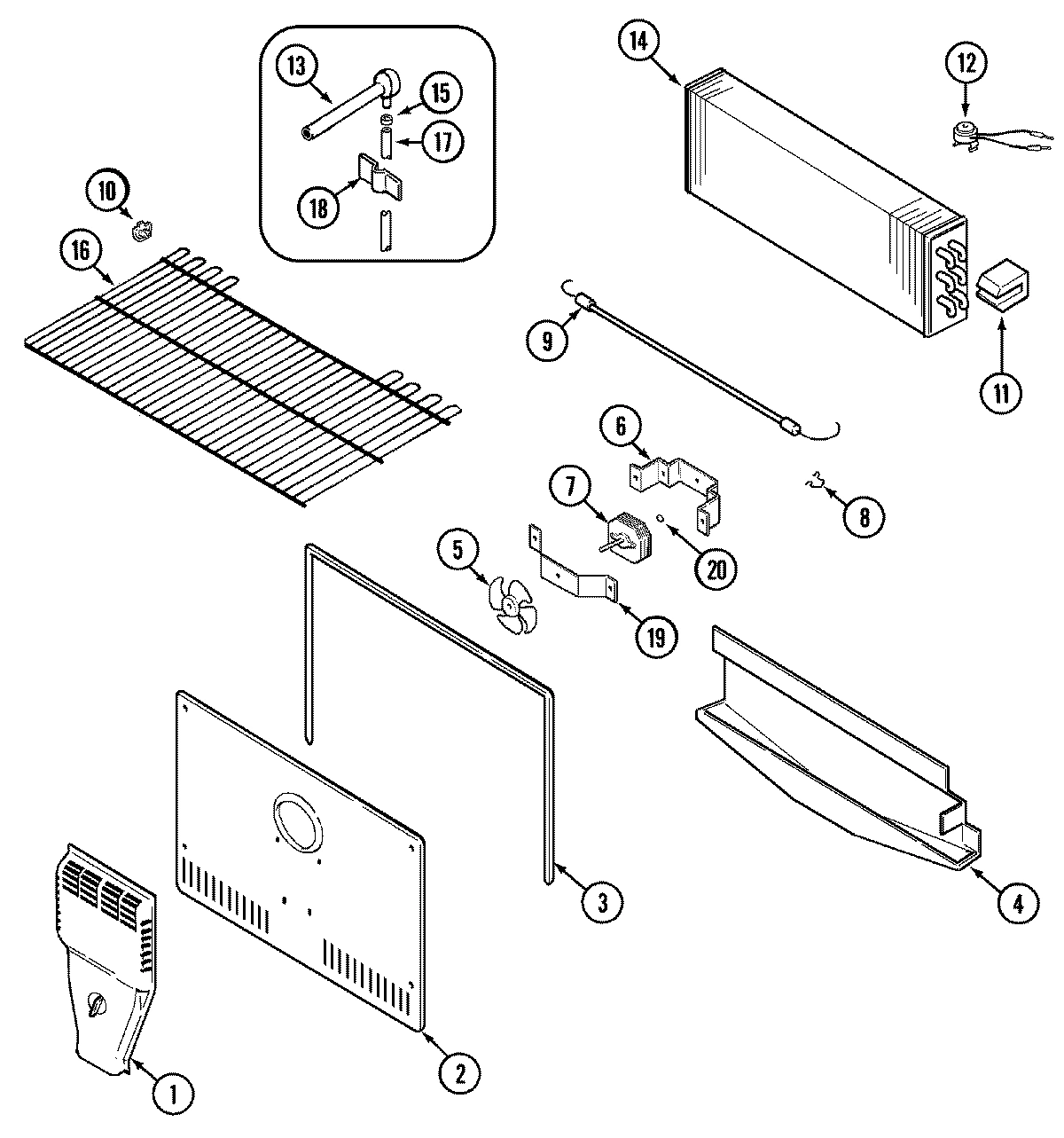

03 - FREEZER COMPARTMENT

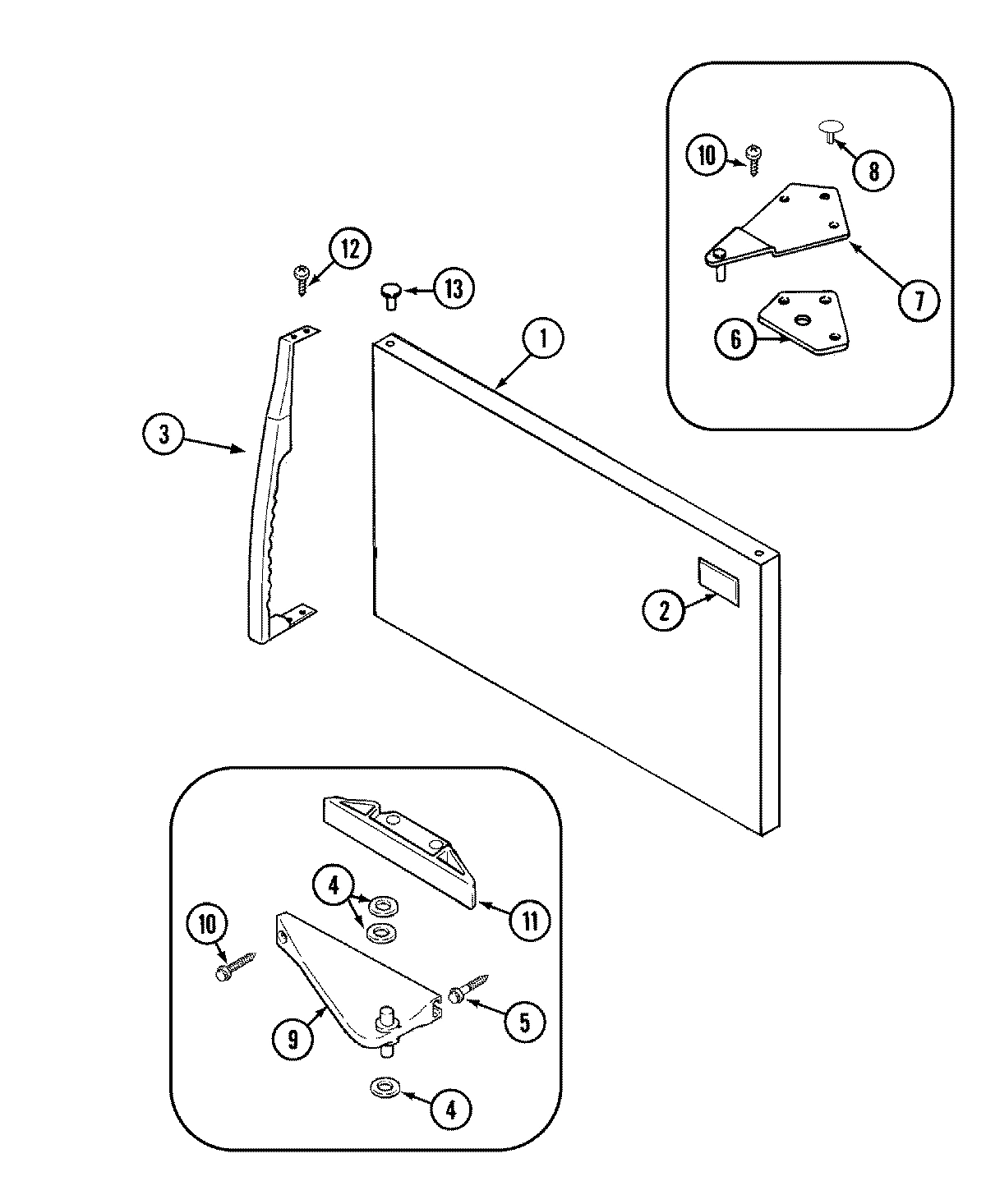

05 - FREEZER OUTER DOOR

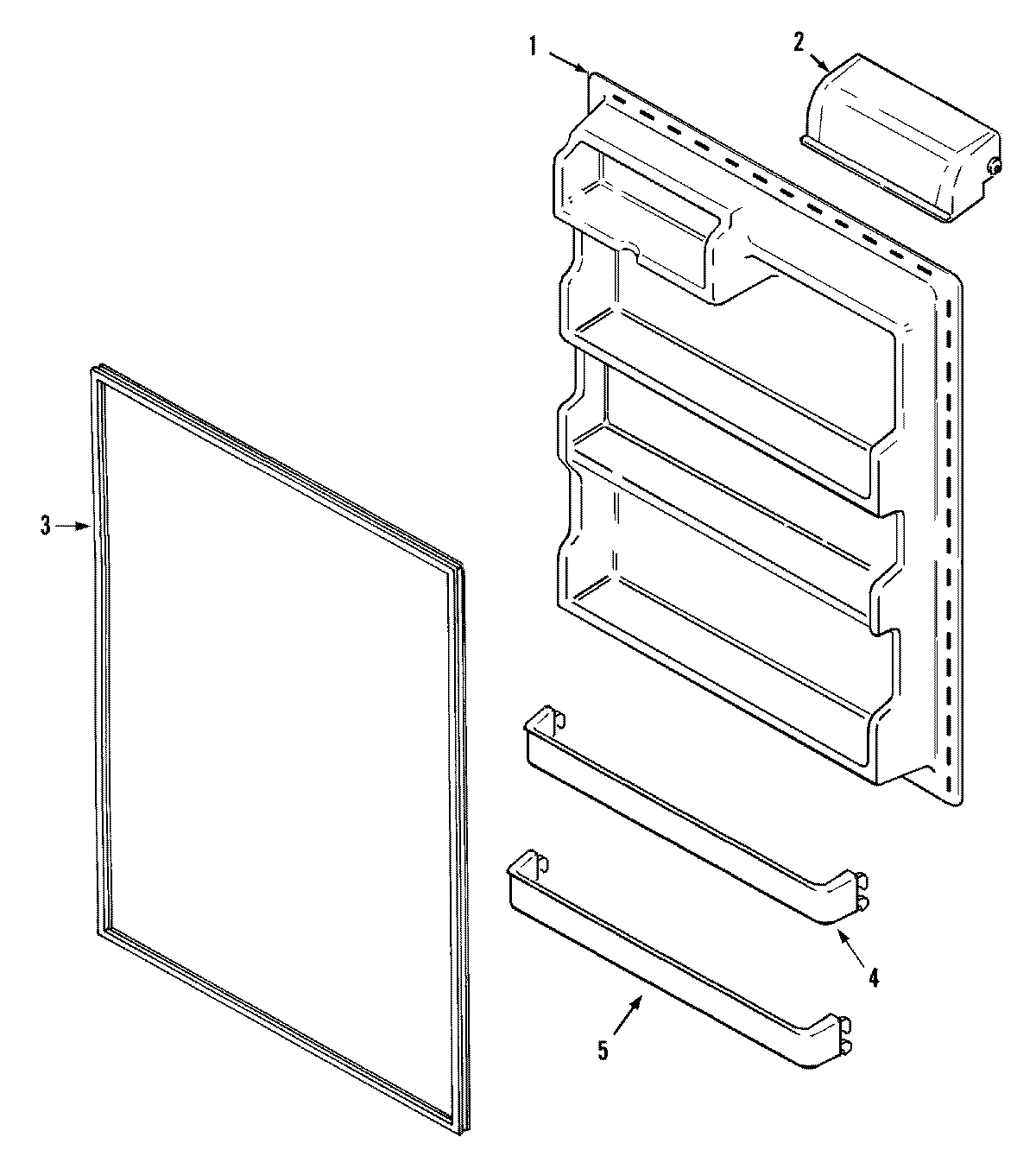

06 - FRESH FOOD INNER DOOR
01 - COMPRESSOR

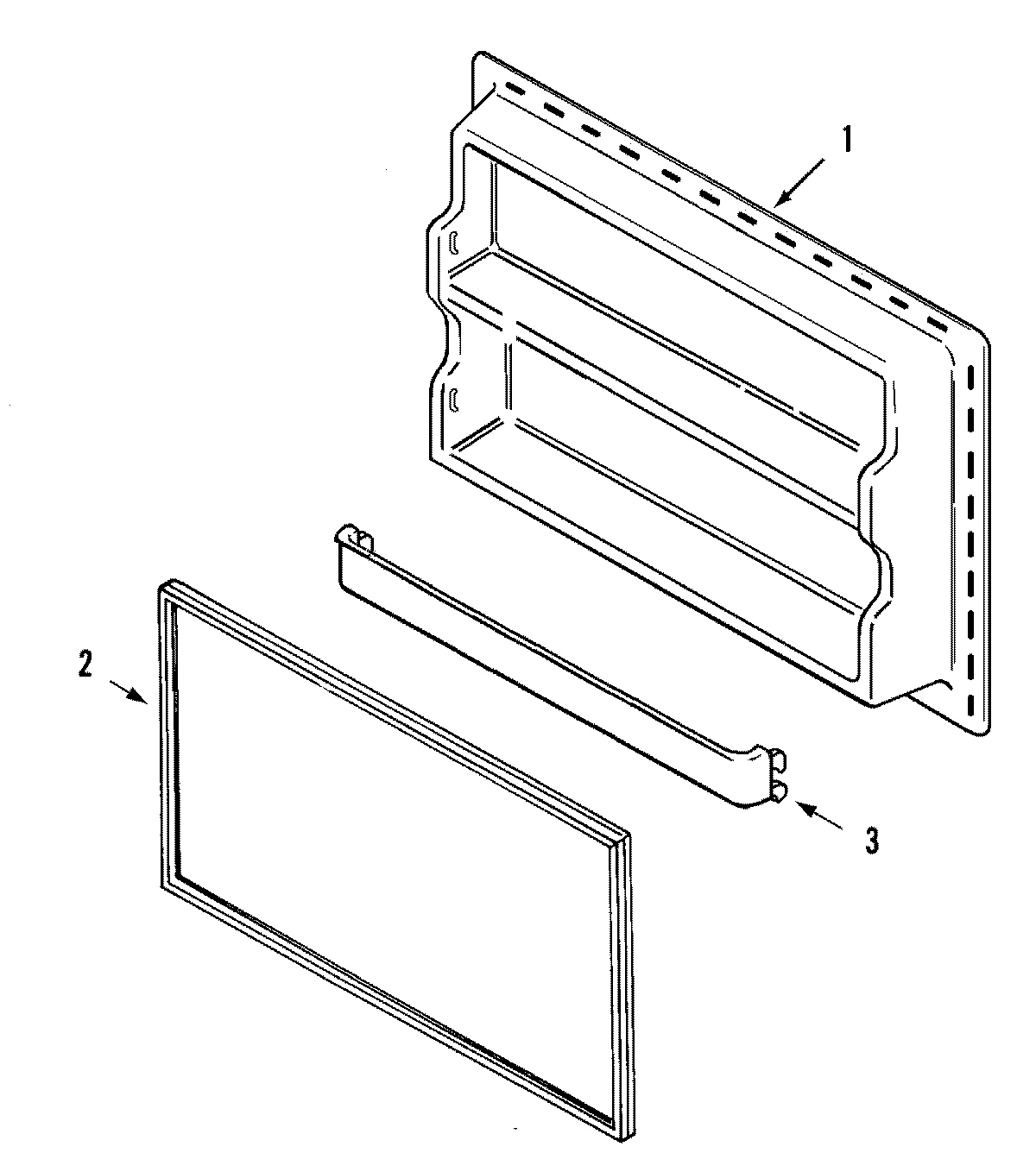

04 - FREEZER INNER DOOR
Common parts from model Whirlpool PTF1952FRW REFRIGERATOR
1
DAMPER/INSULATION KIT WPL 12001377 Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 61002397 Contact Us For Availability
1
GLASS, SHELF WPL 61005530 Contact Us For Availability
1
TUNNEL, AIR WPL 61005596 Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 61002402 Contact Us For Availability
1
LABEL, DUAL ENERGY GUIDE WPL 61005664 Contact Us For Availability
1
LINER, F.F. DOOR WPL 61002513 Contact Us For Availability
1
SCREW WPL 61005388 Contact Us For Availability
1
KIT, COMPRESSOR (R134A) WPL 12001814 Contact Us For Availability
1
WIRE HARNESS, COMP(W/PWR.CORD) WPL 61002012 Contact Us For Availability
1
LINER. FRZ. DOOR WPL 61002261 Contact Us For Availability
2
SEAL, DRAIN WPL 61001977 Contact Us For Availability
2
TRIM, MEAT SHELF (REAR) WPL 61002415 Contact Us For Availability
2
COVER, EVAPORATOR WPL 61002418 Contact Us For Availability
2
NAMEPLATE (WHT) WPL 61005228 Contact Us For Availability
2
DOOR, DAIRY WPL 61002160 Contact Us For Availability
3
CONTROL ASSY., TEMPERATURE WPL 61002085 Contact Us For Availability
3
SCREW WPL 6527581 Contact Us For Availability
3
CAP, HANDLE (WHT) WPL 61005395 Contact Us For Availability
3
PLUG BUTTON (WHT) WPL 61001795 Contact Us For Availability
3
TRIM, MEAT SHELF (FRT) WPL 61002414 Contact Us For Availability
3
SEAL, FOAM (CTR) WPL 61002276 Contact Us For Availability
3
SEAL, EVAPORATOR COVER WPL 61004625 Contact Us For Availability
3
CLIP, COMPRESSOR WPL 61005561 Contact Us For Availability
4
TAPE, DAMPER ACTUATOR WPL 61001999 Contact Us For Availability
4
PLUG BUTTON (WHT) WPL 676782 Contact Us For Availability
4
SHELF, MEAT WPL 61003109 Contact Us For Availability
4
BARRIER, FOIL WPL 61004832 Contact Us For Availability
4
TRAY, DRIP WPL 61004838 Contact Us For Availability
4
RELAY, START WPL 61005250 Contact Us For Availability
5
SHELF, SLIDE-OUT WPL 61002410 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability
5
SCREW WPL 61002025 Contact Us For Availability
5
FRONT, PICK-OFF WPL 61005104 Contact Us For Availability
5
OVERLOAD WPL 61002037 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
BULB, LIGHT WPL 319561 Contact Us For Availability
6
HINGE, LOWER (WHT) WPL 61001918 Contact Us For Availability
6
TRIM, SHELF WPL 61002385 Contact Us For Availability
6
BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability
6
SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability
6
TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability
7
PAN, ICE WPL 61001886 Contact Us For Availability
7
SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability
7
PAN, UTILITY WPL 61004690 Contact Us For Availability
7
HINGE, UPPER WPL 61004896 Contact Us For Availability
8
SCREW WPL 61004485 Contact Us For Availability
8
CONTROL, HUMIDITY WPL 61002187 Contact Us For Availability
8
CLIP, DEFROST HEATER WPL 61004834 Contact Us For Availability
8
PLUG BUTTON, HINGE (WHT) WPL 61001923 Contact Us For Availability
8
LEG, LEVELING WPL 61002014 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW, BRACKET WPL 951081 Contact Us For Availability
9
PAN, CRISPER WPL 61002515 Contact Us For Availability
9
HINGE, CENTER (WHT) WPL 61001920 Contact Us For Availability
9
CONDENSER WPL 61005454 Contact Us For Availability
10
SCREW WPL 4000311 Contact Us For Availability
10
ICEMAKER WPL 951091 Contact Us For Availability
10
RAIL, CRISPER SUPPORT WPL 61005012 Contact Us For Availability
10
SUPPORT, FRZ. SHELF (FRT) WPL 61002142 Contact Us For Availability
10
SUPPORT, FRZ. SHELF (REAR) WPL 61002143 Contact Us For Availability
10
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
11
HOUSING, CONTROL WPL 61004622 Contact Us For Availability
11
WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability
11
SCREW WPL 61001876 Contact Us For Availability
11
STOP, DOOR WPL 61001969 Contact Us For Availability
11
SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability
11
SUPPORT, EVAPORATOR (LT) WPL 61004835 Contact Us For Availability
11
SUPPORT, EVAPORATOR (RT) WPL 61004836 Contact Us For Availability
11
STOP, DOOR (WHT) WPL 61004481 Contact Us For Availability
11
SHROUD, CONDENSER WPL 61001941 Contact Us For Availability
12
ARM, SENSOR WPL 61005173 Contact Us For Availability
12
CLIP, SENSOR ARM WPL 61005175 Contact Us For Availability
12
SCREW WPL 4050071 Contact Us For Availability
12
TIMER, DEFROST WPL 682333 Contact Us For Availability
12
SCREW WPL 61005394 Contact Us For Availability
12
SHELF, CRISPER WPL 61002511 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability
13
GROMMET, WATER ENTRY WPL 61001888 Contact Us For Availability
13
COVER, ICE MAKER WPL 61005374 Contact Us For Availability
13
CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability
13
PLUG BUTTON, HINGE CUP (WHT) WPL 61001908 Contact Us For Availability
13
SEAL, CRISPER SHELF (FRT) WPL 61002389 Contact Us For Availability
13
DRIER WPL 139001 Contact Us For Availability
14
EVAP/HEAT EXCH. ASSY. 19` WPL 12001397 Contact Us For Availability
14
CLAMP, TUBING WPL 535168 Contact Us For Availability
14
ARM, ACTUATOR WPL 61002000 Contact Us For Availability
14
SEAL, CRISPER SHELF (REAR) WPL 61003129 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
15
WIRE HARNESS, CONTROLS WPL 61002212 Contact Us For Availability
15
GLASS, CRISPER SHELF WPL 61002459 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability
16
SCREW WPL 4000171 Contact Us For Availability
16
SHELF, FRZ. WPL 61002420 Contact Us For Availability
16
PAN, DRAIN WPL 61001955 Contact Us For Availability
18
CLIP, WATER LINE (ADHESIVE) WPL 61004913 Contact Us For Availability
18
SLEEVE, BRASS WPL 694311 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
19
RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability
19
GROMMET, BRACKET WPL 61004743 Contact Us For Availability
20
THERMOSTAT WPL 950921 Contact Us For Availability
20
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
20
BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability
20
PAN, COMPRESSOR MTG. WPL 61005272 Contact Us For Availability
21
ADJUSTER, ICE LEVEL WPL 61005174 Contact Us For Availability
21
WIRE HARNESS, FRZ. WPL 61005033 Contact Us For Availability
21
COVER, COMPRESSOR COMPARTMENT WPL 61004654 Contact Us For Availability
21
SCREW WPL 652751 Contact Us For Availability
22
KICKPLATE W/CLIPS (WHT) WPL 61002427 Contact Us For Availability
23
CLIP, KICKPLATE WPL 61001975 Contact Us For Availability
24
SCREW WPL 4000161 Contact Us For Availability
24
WHEEL ASSY. (FRT) WPL 61005216 Contact Us For Availability
27
YODER LOOP HEATER REPAIR (115V WPL 12001492 Contact Us For Availability
28
MANUAL, USE & CARE (TRILNGUL) WPL 61005299 Contact Us For Availability
29
MANUAL, SERVICE-NO REFUND WPL 16008248 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002787 Contact Us For Availability
× ![]()
