GE PHS930BP7TS Electric Range Parts List

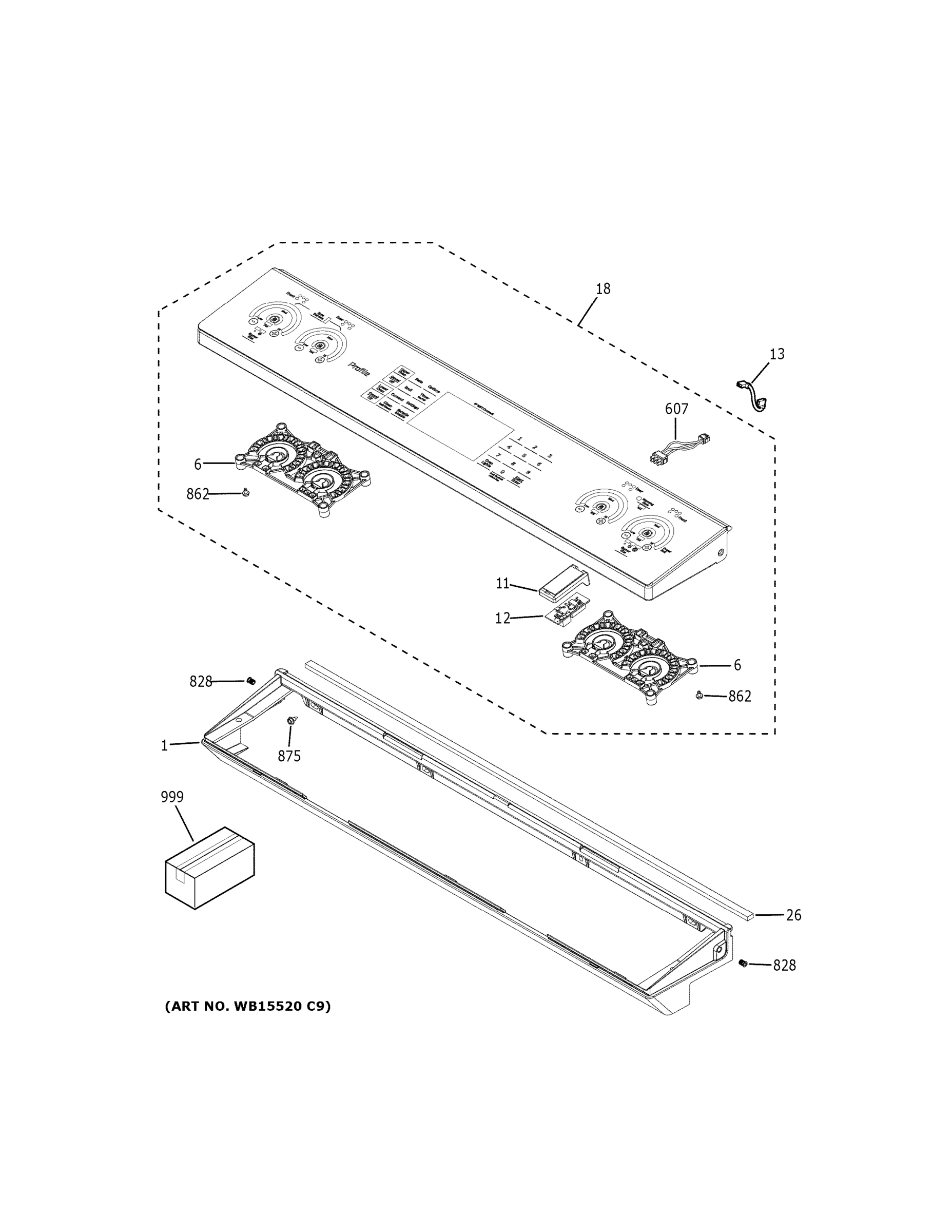

1

WB07X47587 GE Control Panel Trim Kit Backorder GEN WB07X47587 $13.45

View on Model

6

WB63X29528 GE Range Control Lights Guide Backorder GEN WB63X29528 $9.28

View on Model

13

WB18X30704 GE Jumper Backorder GEN WB18X30704 $5.20

View on Model

26

WB35X29473 GE Range Gasket Control Panel Backorder GEN WB35X29473 $19.98

View on Model

31

WB26X10272 GE Range 12V Centrifugal Blower Backorder GEN WB26X10272 $102.63

View on Model

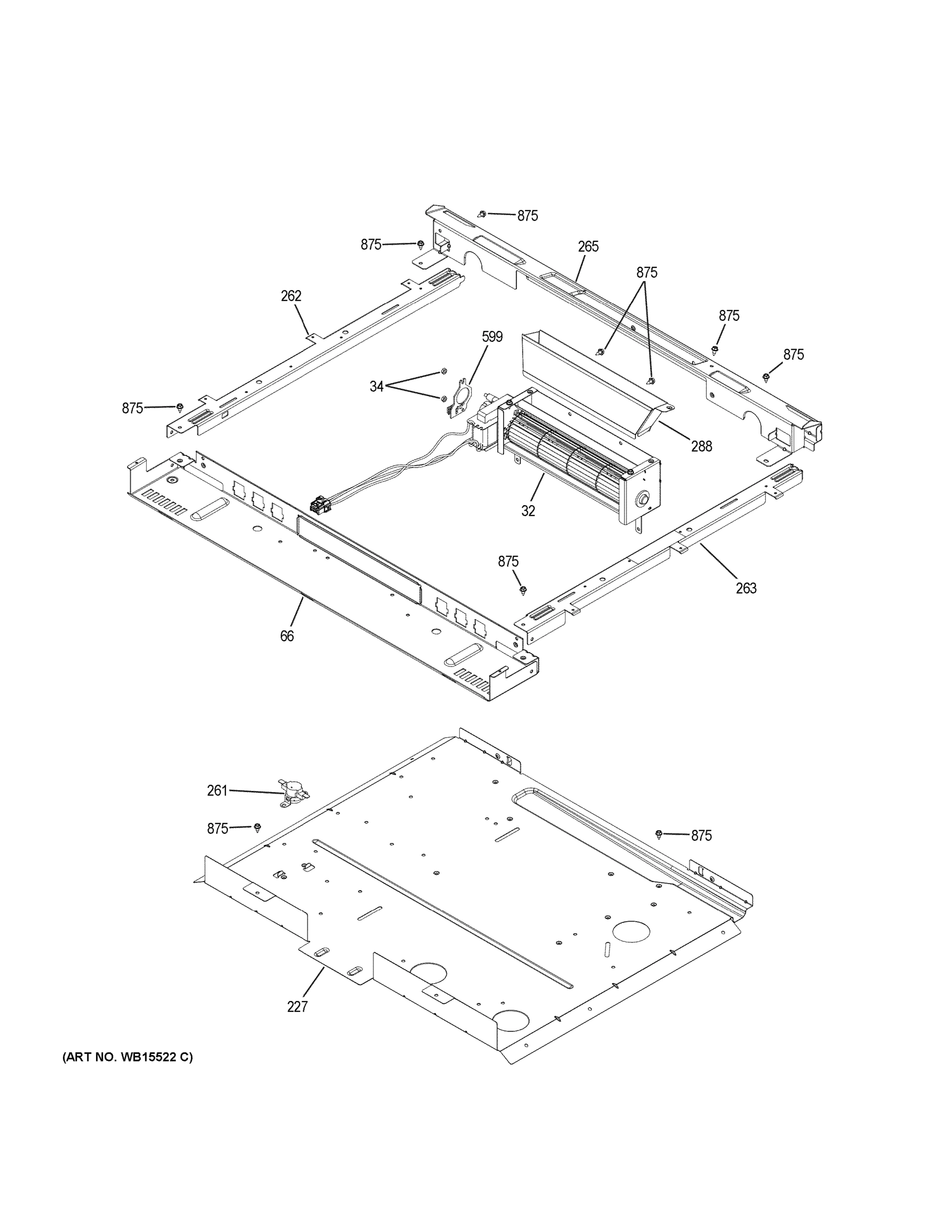

32

WB26X29468 GE Range Cooling Fan Assembly In Stock GEN WB26X29468 $53.58

View on Model

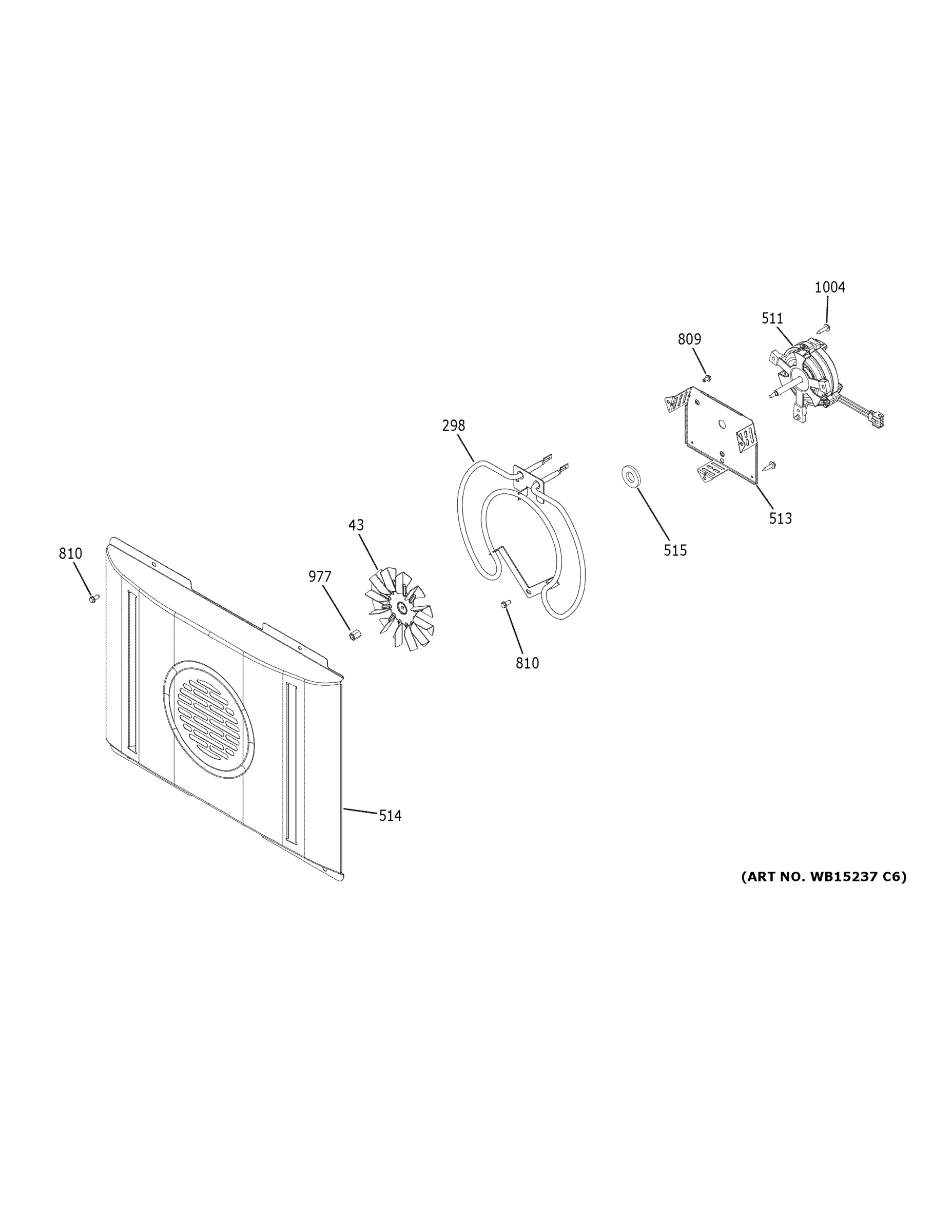

43

WB02X26501 GE Range Convection Fan Blade Backorder GEN WB02X26501 $10.34

View on Model

55

WB02X29637 GE Oven Badge Assembly Backorder GEN WB02X29637 $5.20

View on Model

56

WB30X10035 GE Range Warmer Element Low Profil In Stock GEN WB30X10035 $37.28

View on Model

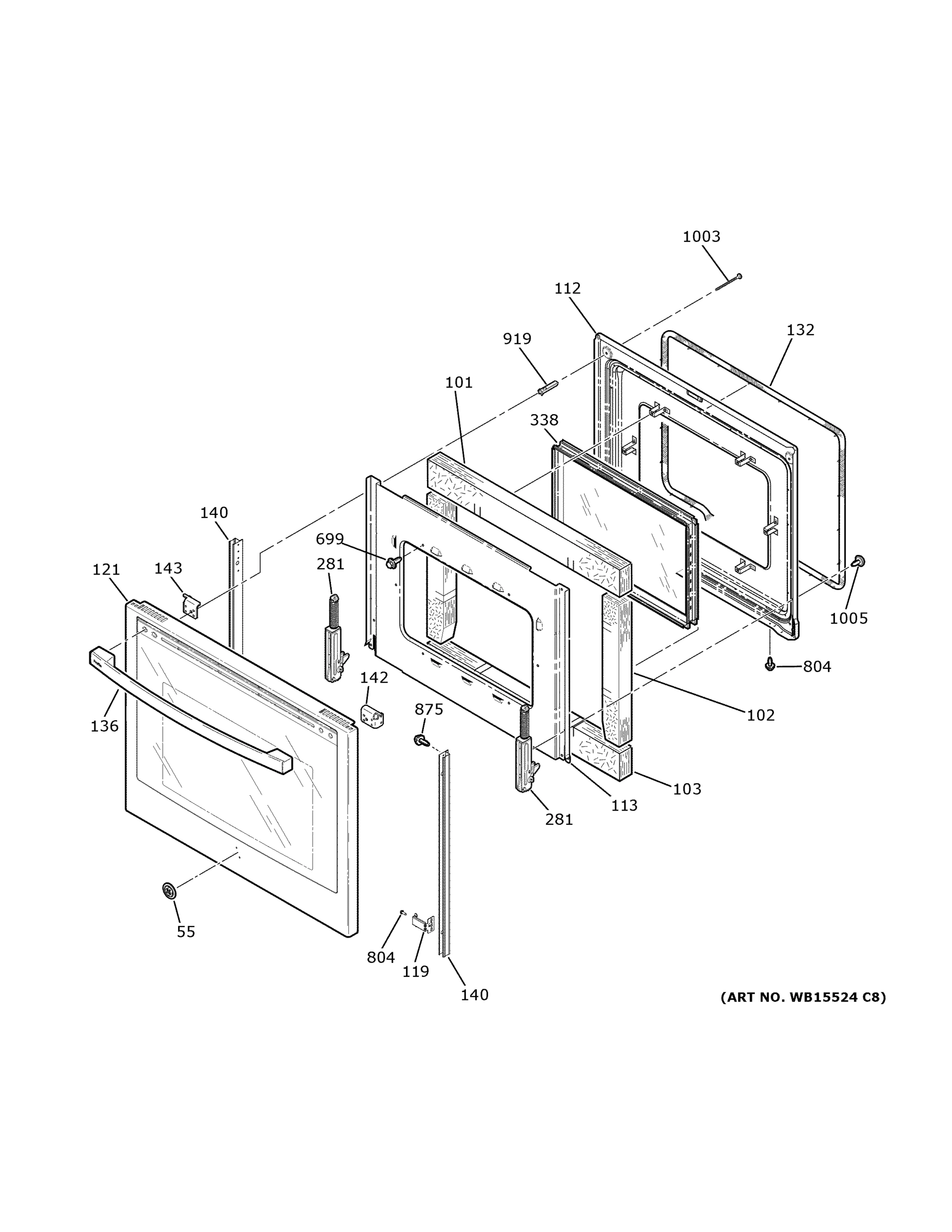

101

WB35T10134 GE Oven Door Insulation Backorder GEN WB35T10134 $17.88

View on Model

102

WB35T10135 GE Oven Door Insulation Backorder GEN WB35T10135 $5.20

View on Model

103

WB35T10255 GE Oven Insulation Door Backorder GEN WB35T10255 $37.28

View on Model

112

WB55T10203 GE Range Door Liner Assembly (Blac Backorder GEN WB55T10203 $88.80

View on Model

113

WB56T10178 GE Oven Door Insulation Retainer Backorder GEN WB56T10178 $76.78

View on Model

119

WB02X28578 GE Door Glass Bracket Backorder GEN WB02X28578 $5.20

View on Model

121

BLACK STAINLESS OUTER DOOR GEN WB56X37606 Contact Us For Availability

View on Model

132

WB35X30048 GE Range Door Gasket Backorder GEN WB35X30048 $27.50

View on Model

136

HANDLE & ENDCAP ASM 30" (TS) Backorder GEN WB15X36026 $40.41

View on Model

140

WB56T10287 GE Oven Door Side Frame (Black) Backorder GEN WB56T10287 $14.04

View on Model

142

WB34X25221 GE Range Handle Vent Trim Bracket Backorder GEN WB34X25221 $8.84

View on Model

143

WB34X42670 GE Left Hand Door Handle Bracket Backorder GEN WB34X42670 $4.81

View on Model

150

WB10X29077 GE Range Latch Assembly Backorder GEN WB10X29077 $55.44

View on Model

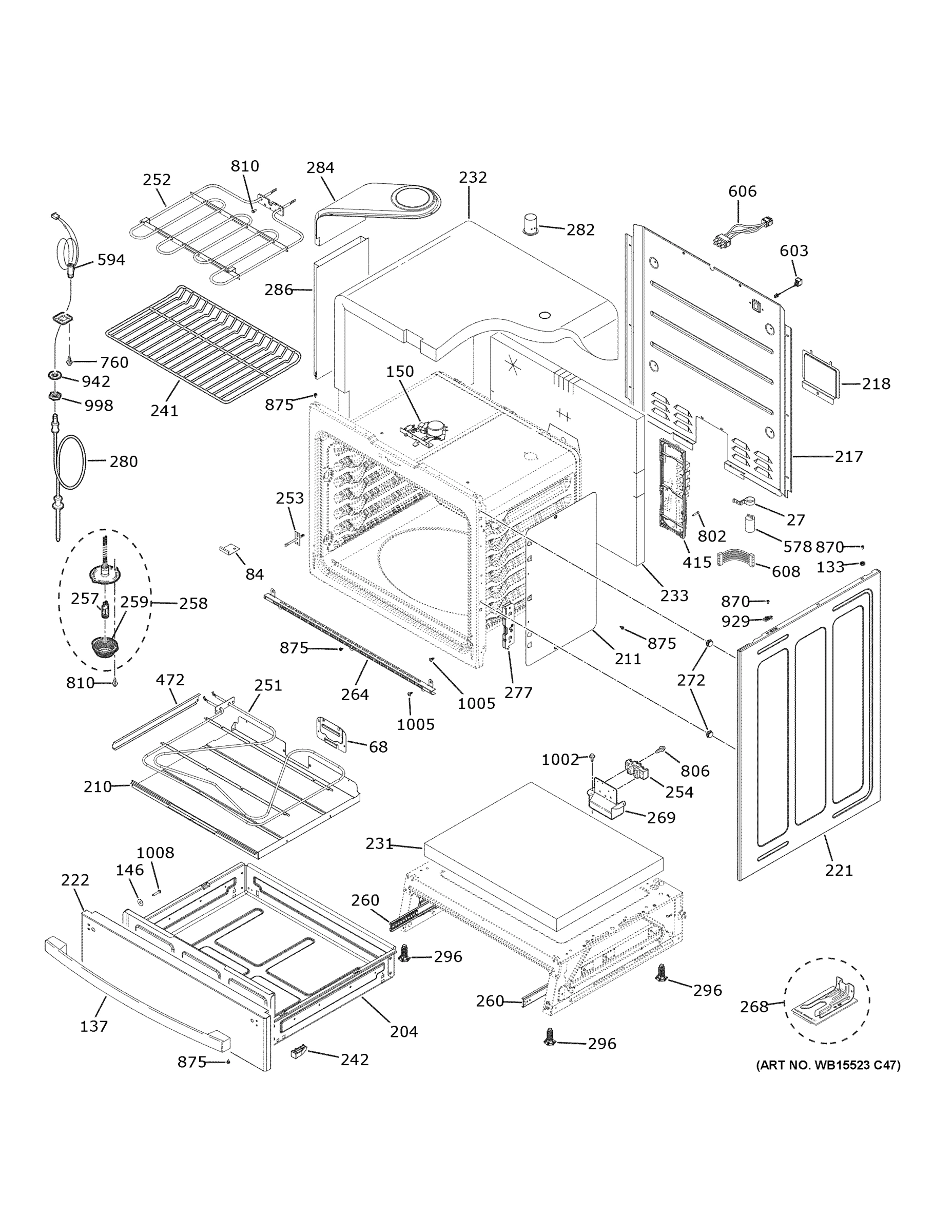

204

WB63X29521 GE Range Drawer Body and Slide Ass Backorder GEN WB63X29521 $103.08

View on Model

217

WB34X29069 GE Range Main Wire Cover Backorder GEN WB34X29069 $45.35

View on Model

218

WB02T10560 GE Range Terminal Cover Assembly Backorder GEN WB02T10560 $7.56

View on Model

221

WB63X28679 GE Range Side Panel Backorder GEN WB63X28679 $54.55

View on Model

222

WB56X29161 GE Range Drawer Panel Backorder GEN WB56X29161 $155.87

View on Model

231

WB35X29643 GE Range Bottom Insulation Backorder GEN WB35X29643 $12.30

View on Model

232

WB35X29076 GE Range Insulation Wrapper Backorder GEN WB35X29076 $37.66

View on Model

233

WB35X29074 GE Range Back Insulation Backorder GEN WB35X29074 $17.29

View on Model

241

WB48T10082 GE Oven Rack Backorder GEN WB48T10082 $57.96

View on Model

242

WB02X29072 GE Range Drawer Wedge Backorder GEN WB02X29072 $5.20

View on Model

251

WB44X45499 GE Oven Bake Element In Stock GEN WB44X45499 $31.84

View on Model

252

WB44X45491 GE Broil Element Backorder GEN WB44X45491 $37.15

View on Model

253

WB21X22134 GE Oven Sensor Assembly In Stock GEN WB21X22134 $14.04

View on Model

254

WB17X38438 GE Terminal Block Assembly Backorder GEN WB17X38438 $5.20

View on Model

257

WB49X29679 GE Range Halogen Bulb Kit In Stock GEN WB49X29679 $27.23

View on Model

258

WB25X40248 GE Assembly Halogen Lamp Backorder GEN WB25X40248 $26.83

View on Model

259

WB25T10027 GE Oven Lens Lamp Backorder GEN WB25T10027 $9.15

View on Model

260

WB63X29185 GE Range Drawer Slide and Bracket Backorder GEN WB63X29185 $46.70

View on Model

261

WB24X46908 GE High Limit Switch Backorder GEN WB24X46908 $7.14

View on Model

264

WB07T10516 GE Oven Front Trim Assembly Backorder GEN WB07T10516 $23.90

View on Model

268

WB02T10578 GE Oven Anti-Tip Bracket Assembly In Stock GEN WB02T10578 $21.72

View on Model

269

WB17T10021 GE Oven Mount Terminal Block Backorder GEN WB17T10021 $14.60

View on Model

272

WB02T10034 GE Oven Body Side Support Backorder GEN WB02T10034 $5.20

View on Model

277

WB10T10068 GE Oven Hinge Receiver Backorder GEN WB10T10068 $25.95

View on Model

280

WB20T10024 GE Oven Thermistor Probe In Stock GEN WB20T10024 $44.01

View on Model

281

WB10T10070 GE Range Door Hinge Backorder GEN WB10T10070 $54.39

View on Model

282

WB38X33651 GE Vent Tube Backorder GEN WB38X33651 $13.83

View on Model

284

WB34X29182 GE Upper Duct Assembly Backorder GEN WB34X29182 $34.97

View on Model

285

WB02T10591 GE Range Foam Tape Gasket Backorder GEN WB02T10591 $12.50

View on Model

286

WB34X29183 GE Side Duct Assembly Backorder GEN WB34X29183 $41.32

View on Model

288

WB34X29483 GE Range Cooling Fan Duct Backorder GEN WB34X29483 $10.94

View on Model

296

WB02X10521 GE Oven Leveling Leg In Stock GEN WB02X10521 $9.04

View on Model

298

WB44X45496 GE Convection Heating Element Backorder GEN WB44X45496 $15.56

View on Model

338

WB56X22160 GE Stove Inner Door Glass Assembly Backorder GEN WB56X22160 $312.68

View on Model

415

WB27X44050 GE Control RC17 Assembly Backorder GEN WB27X44050 $104.35

View on Model

472

WB49T10007 GE Side Reflector Backorder GEN WB49T10007 $19.22

View on Model

511

WB26X29157 GE Range Convection Motor Backorder GEN WB26X29157 $72.22

View on Model

513

WB02X29181 GE Convection Motor Bracket Backorder GEN WB02X29181 $14.51

View on Model

514

WB34X31766 GE Convection Fan Cover Black Backorder GEN WB34X31766 $32.59

View on Model

515

WB04T10080 GE Oven Convection Fan Gasket Backorder GEN WB04T10080 $5.20

View on Model

578

WB27T10662 GE Oven Capacitor Backorder GEN WB27T10662 $5.20

View on Model

594

WB18X25985 GE Meat Probe with Harness Receive Backorder GEN WB18X25985 $42.86

View on Model

599

WB27X28659 GE Oven Sensor Board In Stock GEN WB27X28659 $19.53

View on Model

603

WB18X29523 GE RJ45 Connector Harness Backorder GEN WB18X29523 $15.57

View on Model

606

HARNESS WIRE SENSOR Backorder GEN WB18X34775 $51.42

View on Model

608

WB18X30731 GE Hidden Bake Harness Wire Backorder GEN WB18X30731 $14.59

View on Model

699

WB1M1 GE Oven Screw Backorder GEN WB1M1 $5.00

View on Model

760

WB1X536 GE Oven Screw Backorder GEN WB1X536 $6.35

View on Model

802

SCREW 8-18 AB SKT25 7/8 Backorder GEN WB01X30451 $5.56

View on Model

804

WB1K5157 GE Oven Black Screw In Stock GEN WB1K5157 $5.20

View on Model

806

WH2X1186 GE Screw Backorder GEN WH2X1186 $5.20

View on Model

810

WB01M10002 GE Oven Screw Backorder GEN WB01M10002 $5.20

View on Model

828

WB01X29474 GE Range Plug Insert Backorder GEN WB01X29474 $5.20

View on Model

870

WB1X5904 GE Oven Screw 8-18 BA In Stock GEN WB1X5904 $5.20

View on Model

875

WH2X930 GE Screw Backorder GEN WH2X930 $5.20

View on Model

919

WB02X38986 GE Spacer Backorder GEN WB02X38986 $5.20

View on Model

929

WB02T10026 GE Oven Strike Maintop Backorder GEN WB02T10026 $5.20

View on Model

942

WB1X5573 GE Oven Washer Backorder GEN WB1X5573 $5.20

View on Model

977

WB02X35585 GE Hex Nut Backorder GEN WB02X35585 $5.20

View on Model

998

WB1X5572 GE Oven Nut Backorder GEN WB1X5572 $14.60

View on Model

1002

WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS Backorder GEN WB01T10017 $5.20

View on Model

1003

WB02X24268 GE Range Screw 10-32 CA TRT15 Backorder GEN WB02X24268 $5.20

View on Model

1004

SCR 8-18 AB HXW 3/4 GEN WZ04X0416 Contact Us For Availability

View on Model

1005

WB01T10008 GE Oven Screw 10-32 In Stock GEN WB01T10008 $5.20

View on Model

1008

WB1X1258 GE Oven Screw Backorder GEN WB1X1258 $5.20

View on Model
