Model GE PGP966SET4SS Gas Range Or Dual Fuel – Common Parts & Diagrams

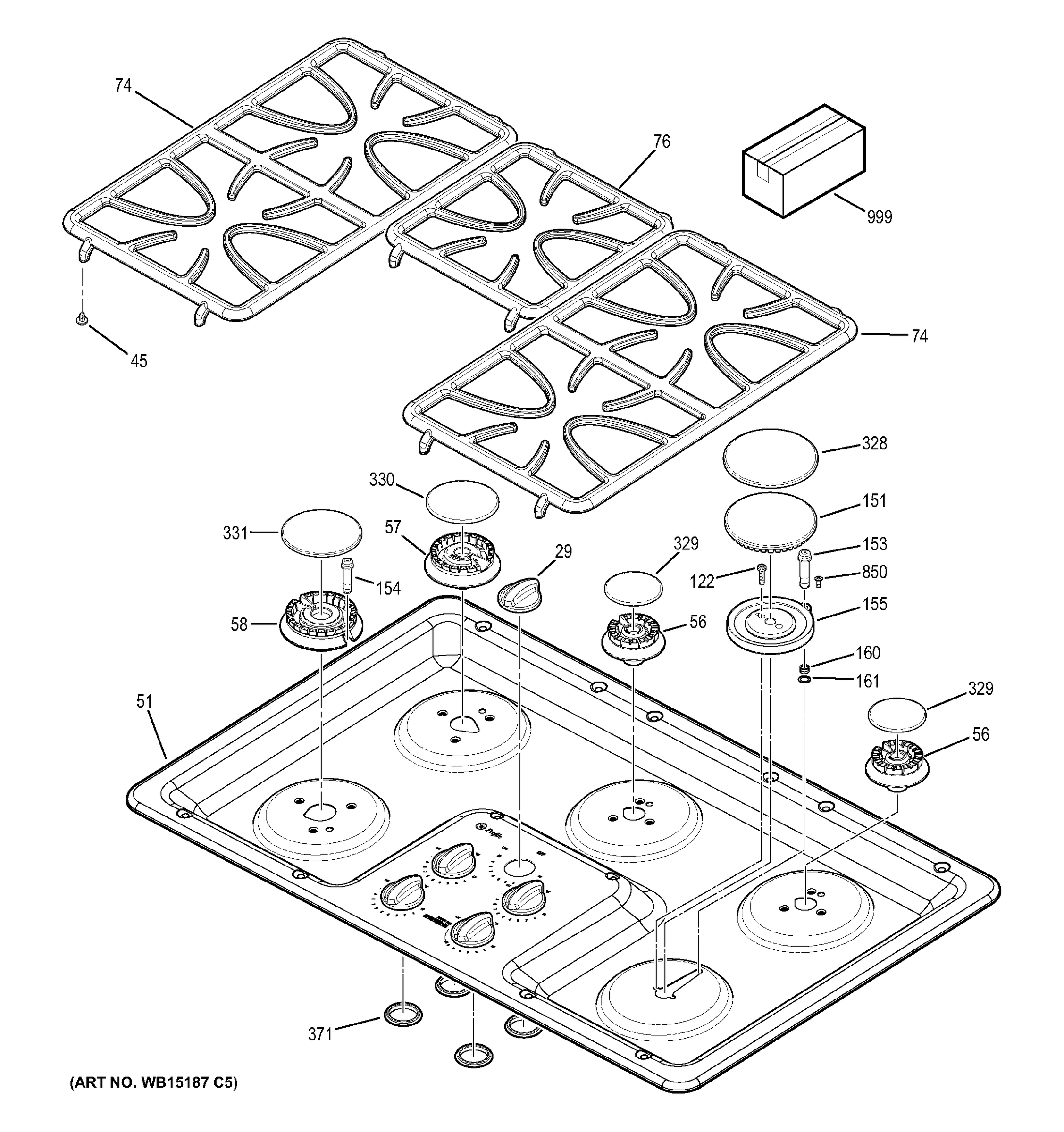

CONTROL PANEL & COOKTOP

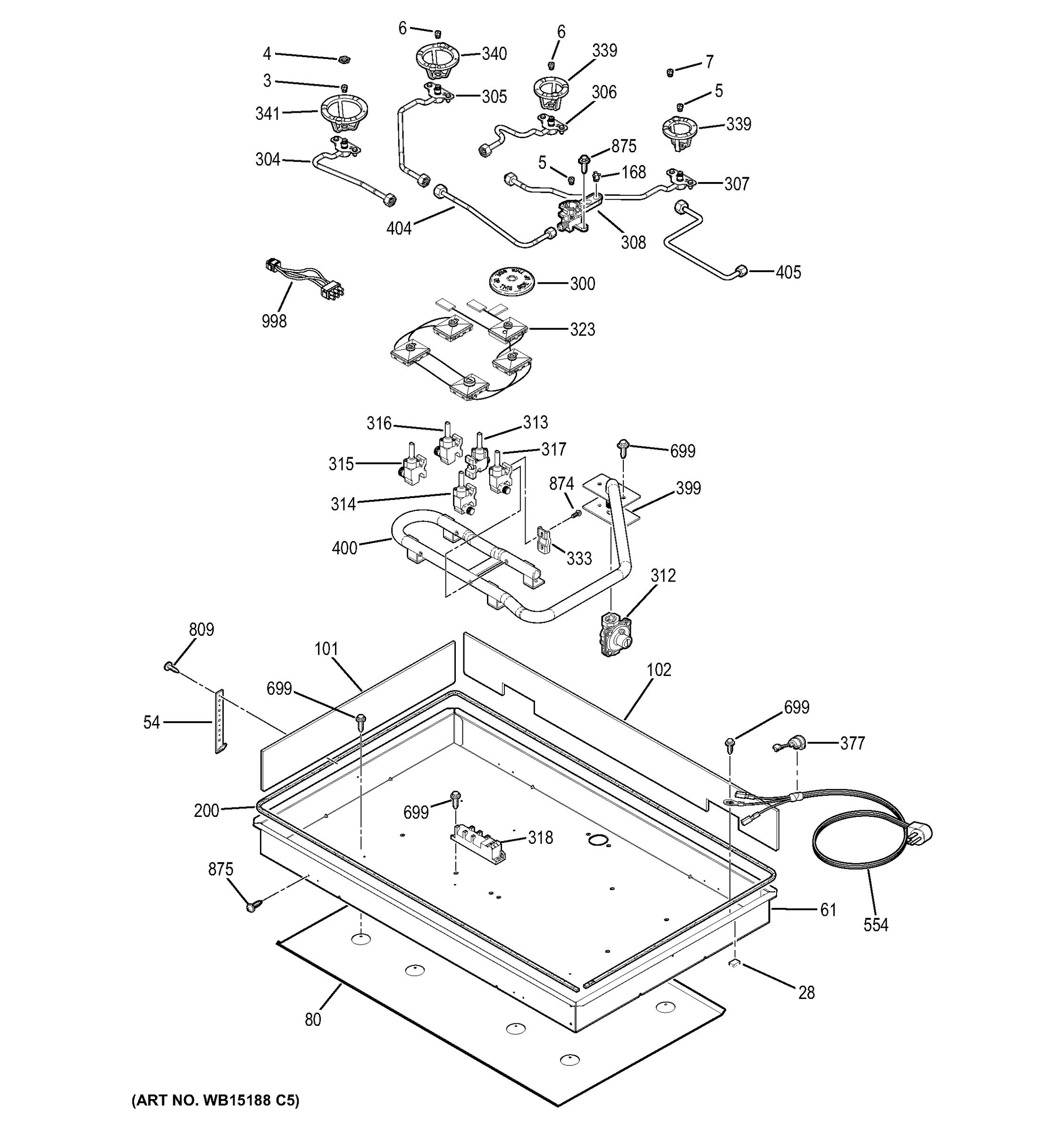

GAS & BURNER PARTS
Common parts from model GE PGP966SET4SS Gas Range Or Dual Fuel
3
ORIFICE SPUD LP 86L GEN WB28K10215 Contact Us For Availability
3
ORIFICE SPUD LP 84MM GEN WB28K10107 Contact Us For Availability
3
HIGH ALT ORIFICE LP MAIN GEN WB28T10147 Contact Us For Availability
4
ECONOMIC NUT GEN WB01K10037 Contact Us For Availability
5
ORIFICE SPUD LP 88L GEN WB28K10214 Contact Us For Availability
5
ORIFICE SPUD NG SIMMER GEN WB28T10116 Contact Us For Availability
6
ORIFICE-LP 63MM GEN WB28K10031 Contact Us For Availability
7
ORIFICE SPUD LP MAIN GEN WB28T10118 Contact Us For Availability
29
KNOB ASM GEN WB03T10267 Contact Us For Availability
45
GRATE FOOT GEN WB02T10461 Contact Us For Availability
56
SMALL BURNER V 5K GEN WB16K10070 Contact Us For Availability
57
BURNER MEDIUM (9500) GEN WB16K10055 Contact Us For Availability
58
BURNER 12K GEN WB16T10046 Contact Us For Availability
74
GRATE ASM GEN WB31T10087 Contact Us For Availability
76
GRATE ASM GEN WB31T10095 Contact Us For Availability
151
HEAD BURNER MAIN GEN WB16T10038 Contact Us For Availability
153
ELECTRODE TOP GEN WB13T10065 Contact Us For Availability
154
ELECTRODE TOP GEN WB13K10014 Contact Us For Availability
160
SPRING IGNITER GEN WB09T10011 Contact Us For Availability
161
WASHER IGNITER GEN WB02T10323 Contact Us For Availability
168
CLIP ELECTRODE GEN WB01K10114 Contact Us For Availability
304
TUBE BURNER ASM LT FRONT GEN WB28X22780 Contact Us For Availability
305
TUBE ASM LT REAR GEN WB28T10127 Contact Us For Availability
306
TUBE ASM CTR GEN WB28T10135 Contact Us For Availability
307
TUBE ASM RT REAR GEN WB28T10125 Contact Us For Availability
308
INJET BURNER 18K GEN WB28T10114 Contact Us For Availability
312
REGULATOR CONVERT PRESS GEN WB19T10078 Contact Us For Availability
314
VALVE GAS GEN WB19T10095 Contact Us For Availability
323
HARNESS SWITCH ASM GEN WB18T10534 Contact Us For Availability
329
ASM BURNER CAP (5000) GEN WB29K10022 Contact Us For Availability
330
ASM BURNER CAP (9500) GEN WB29K10023 Contact Us For Availability
331
ASM BURNER CAP (12000) GEN WB29K10024 Contact Us For Availability
339
CKT BRACKET SMALL GEN WB02K10360 Contact Us For Availability
340
CKT BRACKET MDM & LGE GEN WB02K10361 Contact Us For Availability
341
CKT BRACKET MDM & LGE GEN WB02K10362 Contact Us For Availability
371
SEAL CNTL (BLK) GEN WB04T10042 Contact Us For Availability
400
MANIFOLD PIPE GEN WB28T10101 Contact Us For Availability
404
TUBE BURNER (MAIN) GEN WB28T10129 Contact Us For Availability
405
TUBE BURNER (SIMMER) GEN WB28T10130 Contact Us For Availability
554
CORD RANGE GEN WB08T10015 Contact Us For Availability
850
SCR 8-32 CA PNT15 1/2 S GEN WB01T10116 Contact Us For Availability
998
HARNESS WIRE BURNER GEN WB18X25698 Contact Us For Availability
999
HI ALT & BUTANE KIT GEN WB28T10283 Contact Us For Availability
× ![]()
