Model Maytag PBB2255GEB REFRIGERATOR – Common Parts & Diagrams
01 - CABINET BACK
02 - COMPRESSOR
03 - CONTROLS
04 - EVAPORATOR AREA & ROLLERS

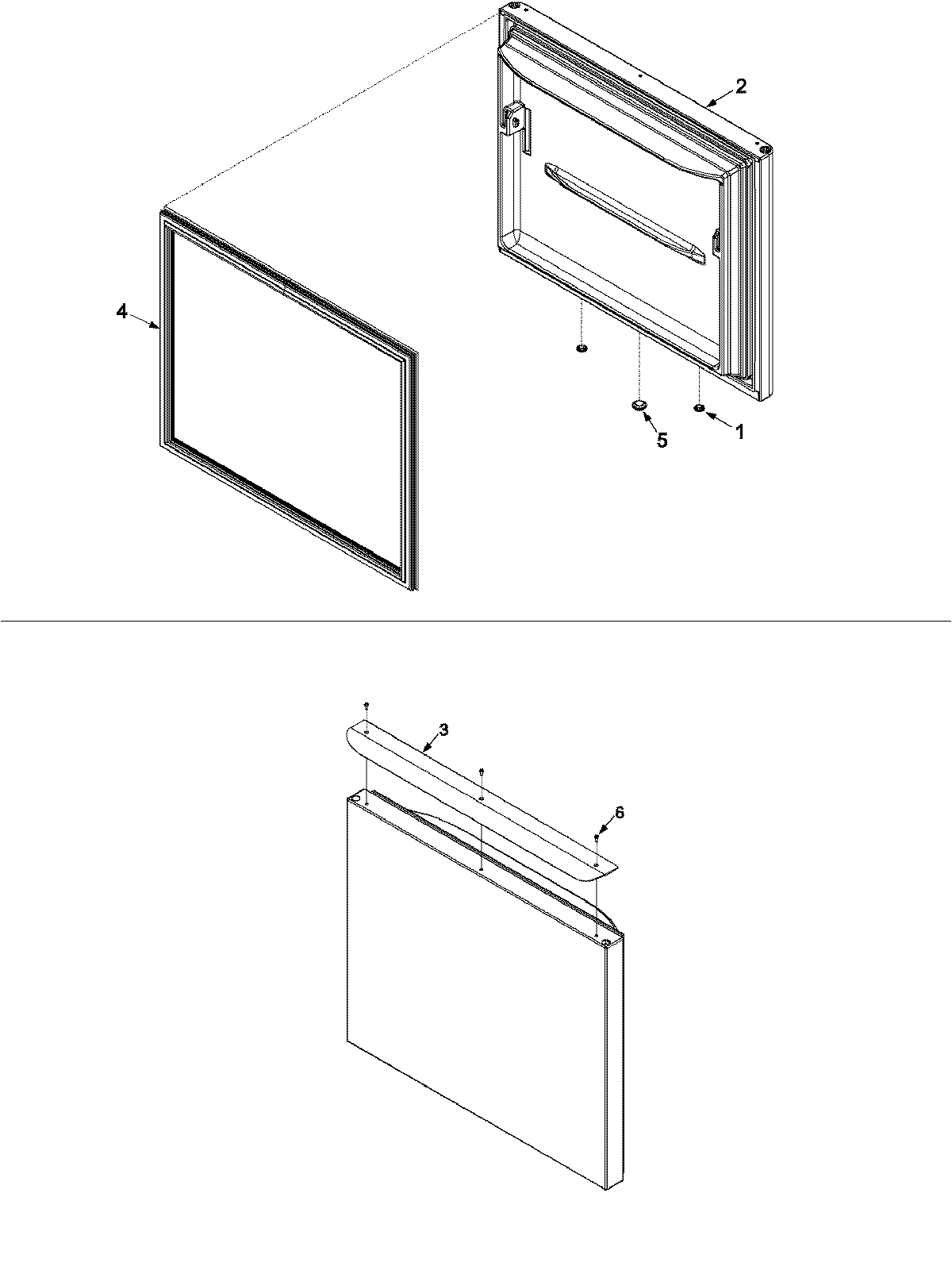

05 - FREEZER DOOR

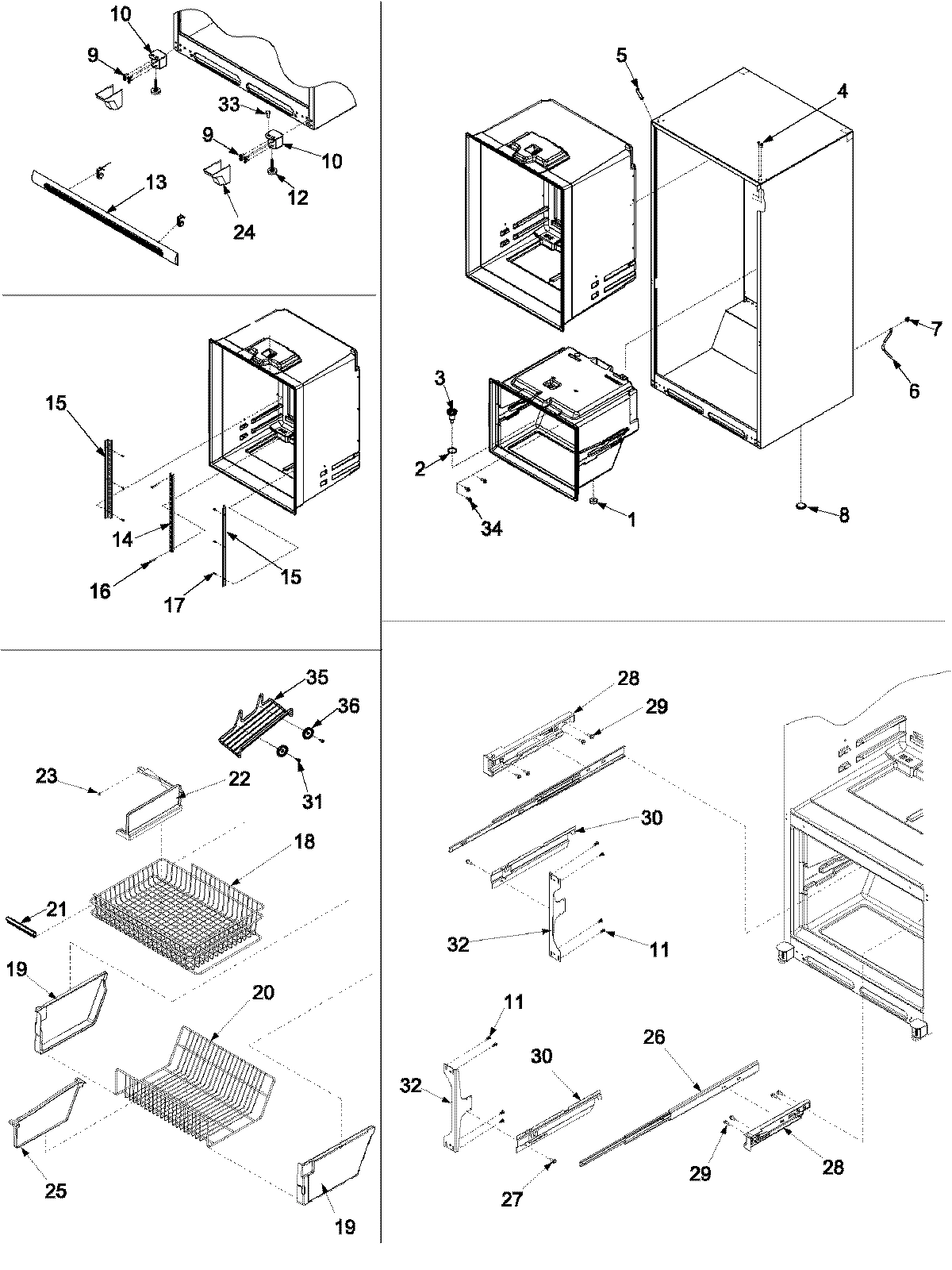

06 - INTERIOR CABINET & FREEZER SHELVING
07 - OPTIONAL ICE MAKER KIT IC11B P1328003W

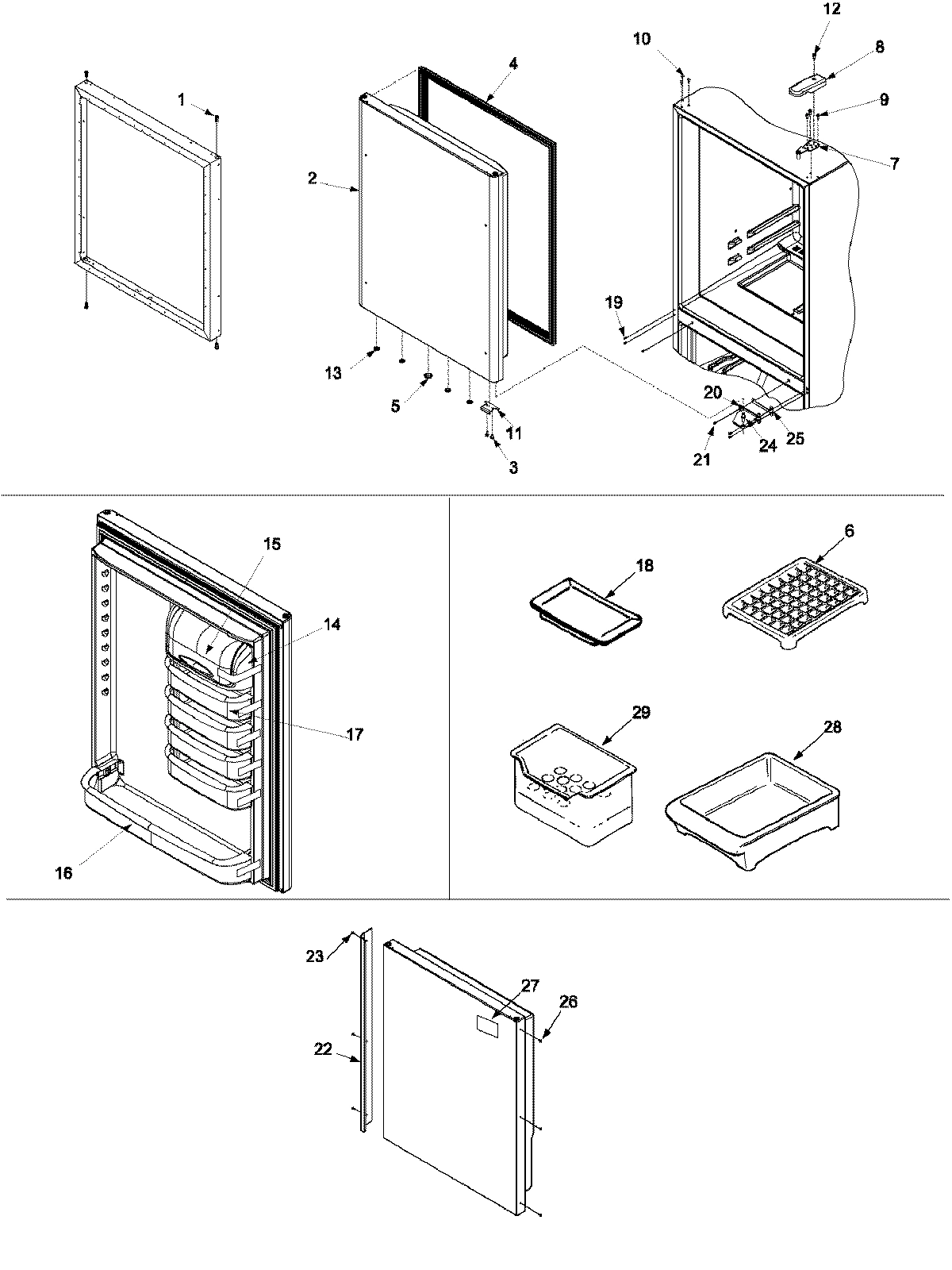

08 - REFRIGERATOR DOOR

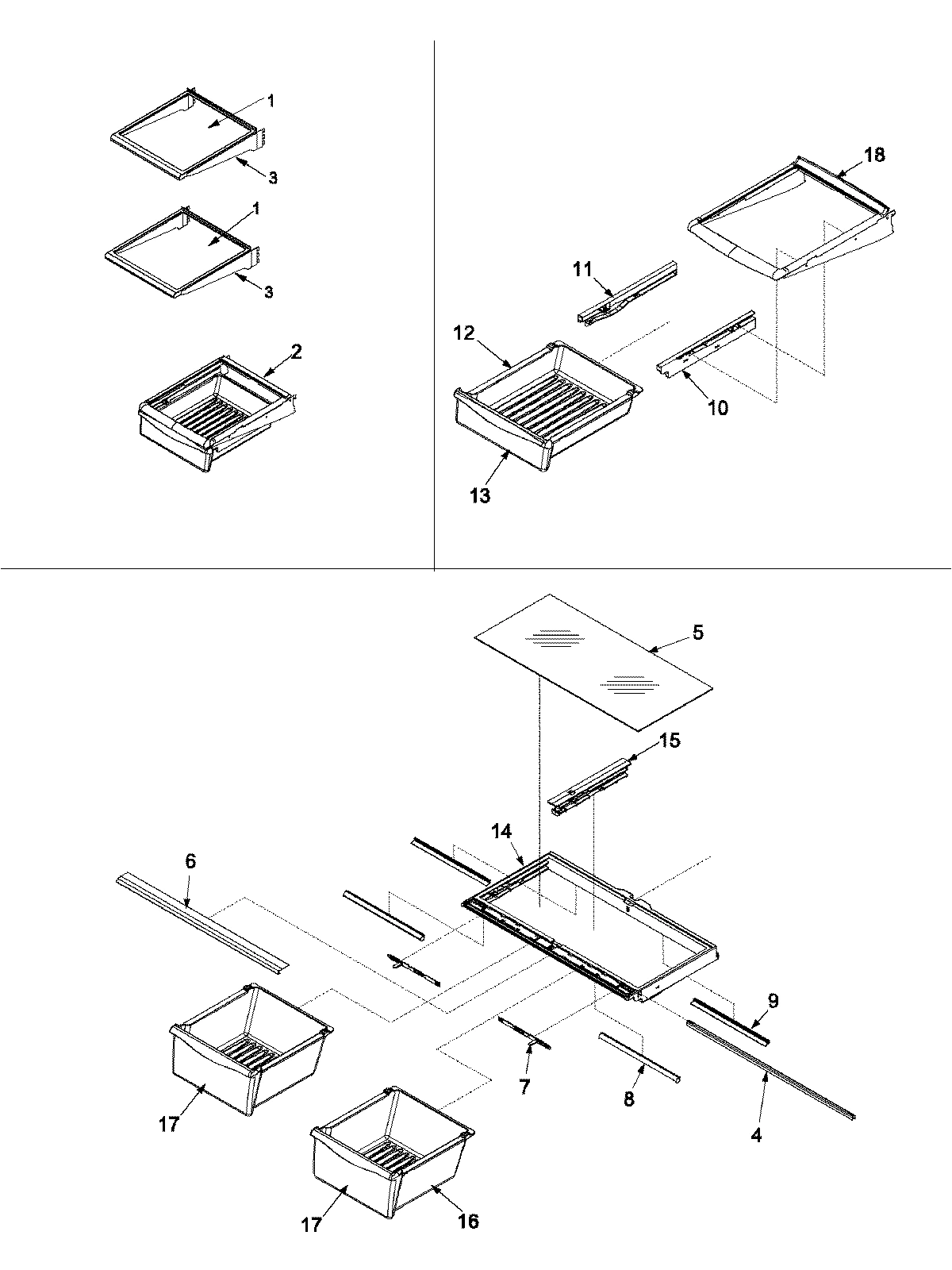

09 - REFRIGERATOR SHELVING
10 - SUPPLEMENTAL INFORMATION

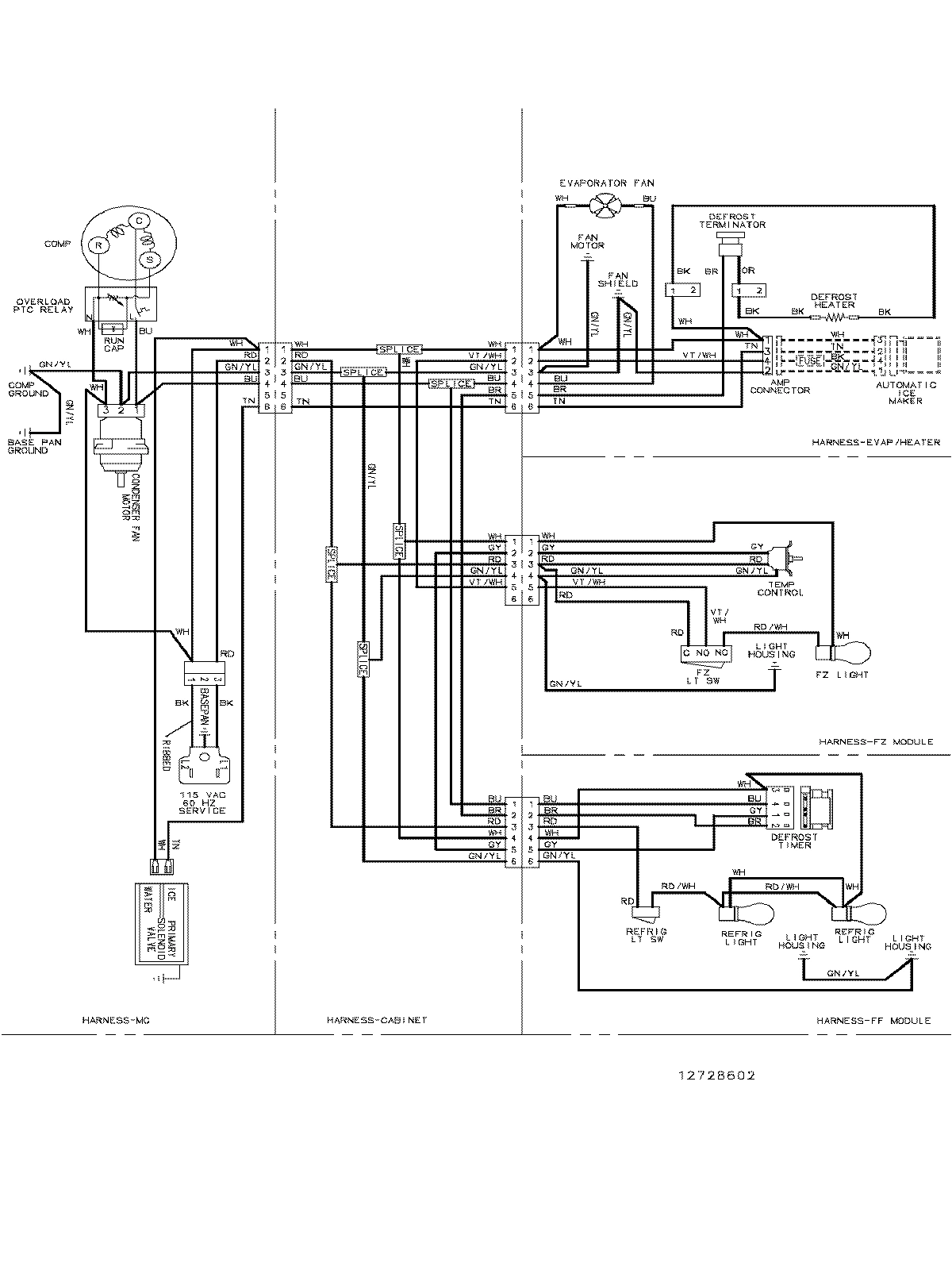

11 - WIRING INFORMATION
Common parts from model Maytag PBB2255GEB REFRIGERATOR
1
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
1
MAY 10961002 MAY 10961002 Contact Us For Availability
1
MAY 67003058 MAY 67003058 Contact Us For Availability
1
MAY 61002572 MAY 61002572 Contact Us For Availability
1
MAY 67002057 MAY 67002057 Contact Us For Availability
2
TRAY, DRIP E-CT MAY 67001080 Contact Us For Availability
2
MAY 67001222 MAY 67001222 Contact Us For Availability
2
SEAL, O RING MAY M0500703 Contact Us For Availability
2
MAY 67001207 MAY 67001207 Contact Us For Availability
2
MAY 67002440 MAY 67002440 Contact Us For Availability
2
MAY 16022155 MAY 16022155 Contact Us For Availability
3
MAY 10623002 MAY 10623002 Contact Us For Availability
3
MAY 67002060 MAY 67002060 Contact Us For Availability
3
MAY D7753903 MAY D7753903 Contact Us For Availability
3
MAY M0211533 MAY M0211533 Contact Us For Availability
3
MAY 61005964 MAY 61005964 Contact Us For Availability
3
MAY 67003414 MAY 67003414 Contact Us For Availability
4
MAY 67001081 MAY 67001081 Contact Us For Availability
4
MAY A4539607 MAY A4539607 Contact Us For Availability
4
MAY 16021484 MAY 16021484 Contact Us For Availability
5
GASKET MAY 67001776 Contact Us For Availability
5
MAY A3080001 MAY A3080001 Contact Us For Availability
5
MAY 12587702B MAY 12587702B Contact Us For Availability
5
BRACKET, MODULE & HEATER MAY 95107-1 Contact Us For Availability
6
MAY 67001066 MAY 67001066 Contact Us For Availability
6
MAY 67002441 MAY 67002441 Contact Us For Availability
7
ROLLER BRACKET ASSY MAY 67002227 Contact Us For Availability
7
SCREW MAY 95106-1 Contact Us For Availability
8
SPRING, ANTI KINK MAY A1055105 Contact Us For Availability
8
MAY 67001063 MAY 67001063 Contact Us For Availability
9
MAY M0260242 MAY M0260242 Contact Us For Availability
9
MAY M0241508 MAY M0241508 Contact Us For Availability
9
MAY M0238731 MAY M0238731 Contact Us For Availability
10
GROMMET, SCREW MAY M0580205 Contact Us For Availability
10
HINGE, BOTTOM E-CT (BLK) MAY 67001238 Contact Us For Availability
10
ELBOW, FILL TUBE MAY 10463201 Contact Us For Availability
10
PLUG, TOP HINGE BUTTON (BLK) MAY M0310731 Contact Us For Availability
11
MAY 67002190 MAY 67002190 Contact Us For Availability
11
DRIER MAY B2150504 Contact Us For Availability
11
MAY B5705323 MAY B5705323 Contact Us For Availability
11
MAY 10447109 MAY 10447109 Contact Us For Availability
12
MAY 67002189 MAY 67002189 Contact Us For Availability
12
MAY 12576801 MAY 12576801 Contact Us For Availability
12
MAY 10354001 MAY 10354001 Contact Us For Availability
13
MAY M0216705 MAY M0216705 Contact Us For Availability
13
DAM, LEFT RETURN MAY 67001083 Contact Us For Availability
13
MAY 67002174 MAY 67002174 Contact Us For Availability
13
MAY 61002676 MAY 61002676 Contact Us For Availability
14
MAY 67001037 MAY 67001037 Contact Us For Availability
14
DAM, RIGHT RETURN MAY 67001084 Contact Us For Availability
14
MAY 67002108 MAY 67002108 Contact Us For Availability
14
MAY 67002462 MAY 67002462 Contact Us For Availability
15
MAY 67001038 MAY 67001038 Contact Us For Availability
15
MAY 67002463 MAY 67002463 Contact Us For Availability
16
MAY 67002439 MAY 67002439 Contact Us For Availability
16
MAY M0231425 MAY M0231425 Contact Us For Availability
16
RETAINER, DOOR MAY 67001748 Contact Us For Availability
17
MAY 67001040 MAY 67001040 Contact Us For Availability
17
SHROUD, EVAP FAN MAY 67001086 Contact Us For Availability
17
SCREW, SM MAY M0238642 Contact Us For Availability
17
MAY 67001281 MAY 67001281 Contact Us For Availability
17
MAY 67002442 MAY 67002442 Contact Us For Availability
18
MAY 61005752 MAY 61005752 Contact Us For Availability
18
MAY 67001041 MAY 67001041 Contact Us For Availability
18
MAY 67002918 MAY 67002918 Contact Us For Availability
18
NUT, SLEEVE MAY M0753001 Contact Us For Availability
18
MAY 29936-2 MAY 29936-2 Contact Us For Availability
19
MAY 67001042 MAY 67001042 Contact Us For Availability
19
MAY 12217805 MAY 12217805 Contact Us For Availability
19
MAY 67002919 MAY 67002919 Contact Us For Availability
19
MAY 67002920 MAY 67002920 Contact Us For Availability
19
MAY 67002645 MAY 67002645 Contact Us For Availability
20
MAY 12619301 MAY 12619301 Contact Us For Availability
20
MAY 67001240 MAY 67001240 Contact Us For Availability
20
MAY 95108-1 MAY 95108-1 Contact Us For Availability
21
COVER, FZ LIGHT MAY 67001285 Contact Us For Availability
21
MAY 12217201 MAY 12217201 Contact Us For Availability
21
MAY 67002361 MAY 67002361 Contact Us For Availability
21
MAY 67001258 MAY 67001258 Contact Us For Availability
21
MAY M0226233 MAY M0226233 Contact Us For Availability
22
MAY 67001723 MAY 67001723 Contact Us For Availability
22
MAY 67003004 MAY 67003004 Contact Us For Availability
22
MAY 67003192 MAY 67003192 Contact Us For Availability
22
MAY 67003412 MAY 67003412 Contact Us For Availability
23
PANEL, FZ CONTROL MOUNTING MAY 67001045 Contact Us For Availability
23
MAY 67001693 MAY 67001693 Contact Us For Availability
23
MAY 67001310 MAY 67001310 Contact Us For Availability
23
INSERT, PLASTIC TUBE MAY A3223101 Contact Us For Availability
24
COVER, LWR HINGE (BLK) MAY 12561901B Contact Us For Availability
24
MAY M0286708 MAY M0286708 Contact Us For Availability
24
MAY M0114003 MAY M0114003 Contact Us For Availability
25
MAY 67001321 MAY 67001321 Contact Us For Availability
25
MAY 10450602 MAY 10450602 Contact Us For Availability
25
MAY 67002872 MAY 67002872 Contact Us For Availability
25
SHIM, NON METAL (BLK) MAY M0274062 Contact Us For Availability
26
MAY 67001035 MAY 67001035 Contact Us For Availability
26
MAY M1205302 MAY M1205302 Contact Us For Availability
27
MAY Y12570701 MAY Y12570701 Contact Us For Availability
27
MAY 10547002 MAY 10547002 Contact Us For Availability
27
MAY M0216716 MAY M0216716 Contact Us For Availability
27
MAY 10526701 MAY 10526701 Contact Us For Availability
27
MAY 67003408 MAY 67003408 Contact Us For Availability
28
MAY 67001246 MAY 67001246 Contact Us For Availability
28
MAY 67001247 MAY 67001247 Contact Us For Availability
28
MAY M0211018 MAY M0211018 Contact Us For Availability
28
MAY A0282803 MAY A0282803 Contact Us For Availability
28
MAY 61002267 MAY 61002267 Contact Us For Availability
29
MAY 12466101 MAY 12466101 Contact Us For Availability
29
SCREW 1`` MAY M0211021 Contact Us For Availability
29
MAY 67001264 MAY 67001264 Contact Us For Availability
29
MAY 67215-2 MAY 67215-2 Contact Us For Availability
30
HARNESS, FF MODULE MAY 67001043 Contact Us For Availability
30
MAY 67002008 MAY 67002008 Contact Us For Availability
30
MAY 67001248 MAY 67001248 Contact Us For Availability
30
MAY 67001249 MAY 67001249 Contact Us For Availability
31
MAY 67001049 MAY 67001049 Contact Us For Availability
31
MAY M0230919 MAY M0230919 Contact Us For Availability
32
MAY 67001262 MAY 67001262 Contact Us For Availability
33
PLUG, BUTTON (WHT) MAY M0310343 Contact Us For Availability
34
MAY M0238616 MAY M0238616 Contact Us For Availability
35
MAY 67002419 MAY 67002419 Contact Us For Availability
NI
MAY 15003035 MAY 15003035 Contact Us For Availability
× ![]()
