Model NYE3200AYW – Common Parts & Diagrams

Common parts from model NYE3200AYW

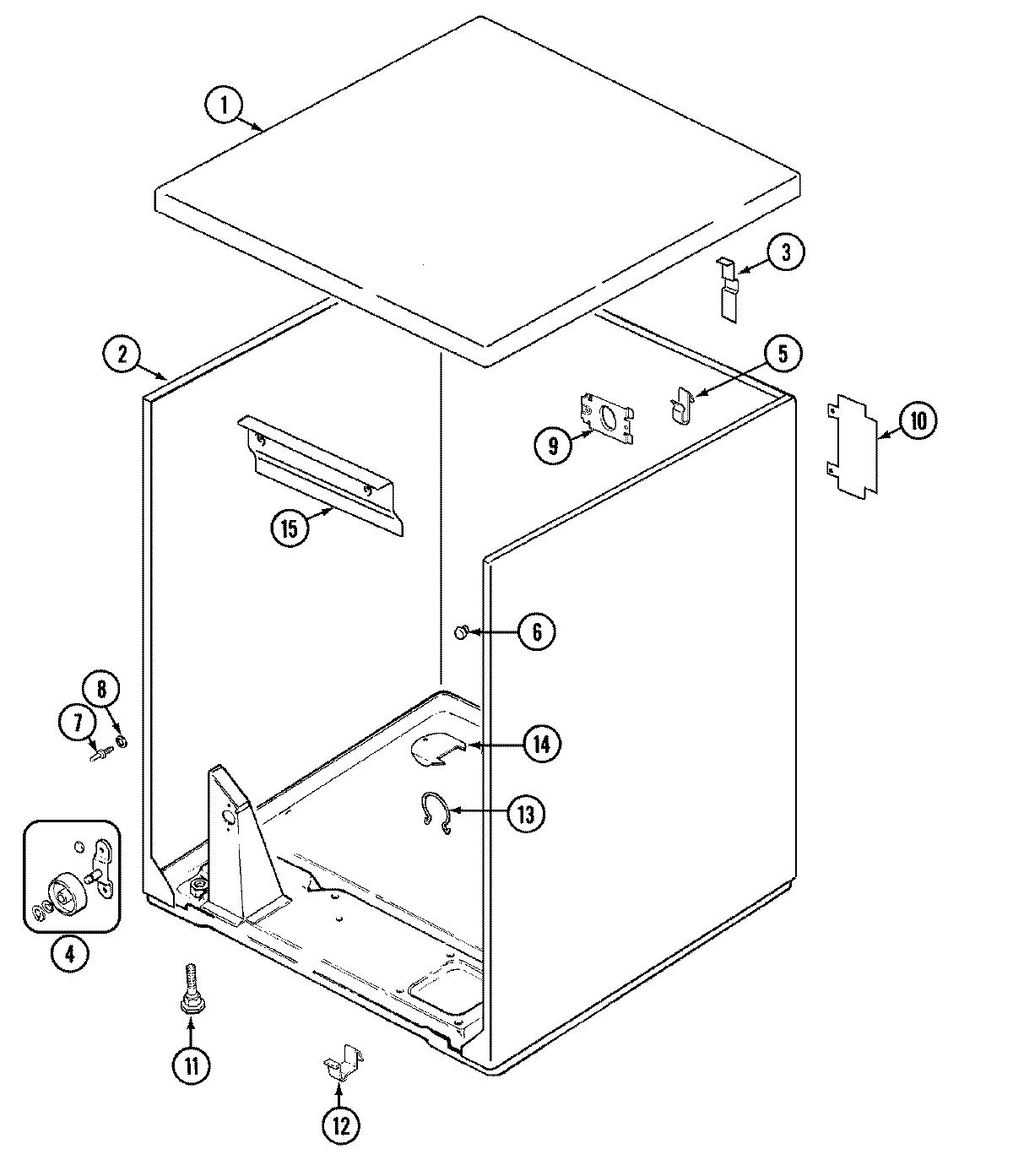

01 - CABINET

Print

• This Diagram
• All Diagrams

×

1

LA-1044 Whirpool Dryer Heating Element Kit In Stock WPL LA-1044 View Details $35.12

View on Model

1

W10410996 Whirpool Dryer Drum Drive Motor Ass In Stock WPL W10410996 View Details $173.01

View on Model

1

WP31001535 Whirpool Dryer Motor Pulley In Stock WPL WP31001535 View Details $41.65

View on Model

1

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 View Details $2.34

View on Model

2

WP31001747 Whirlpool Seal Assembly Out of Stock WPL WP31001747 View Details $14.18

View on Model

3

WP25-7220 Whirlpool Cabinet Clip In Stock WPL WP25-7220 View Details $4.48

View on Model

3

WP53-0771 Whirpool Dryer High Limit Thermosta Out of Stock WPL WP53-0771 View Details $44.10

View on Model

3

WP681414 Whirlpool Screw In Stock WPL WP681414 View Details $2.34

View on Model

4

WP660658 Whirlpool Clamp In Stock WPL WP660658 View Details $3.46

View on Model

5

341241 Whirpool Dryer Drive Belt In Stock WPL 341241 View Details $5.62

View on Model

5

LA-1053 Whirpool Dryer Thermostat Kit In Stock WPL LA-1053 View Details $13.00

View on Model

6

12001324 Whirlpool Collector Duct Out of Stock WPL 12001324 View Details $83.32

View on Model

6

31001465 Whirlpool P-1 Spring, IDLER Out of Stock WPL 31001465 View Details $24.39

View on Model

6

WP3351614 Whirlpool Screw Out of Stock WPL WP3351614 View Details $2.34

View on Model

6

WP53-0197 Whirlpool Support Out of Stock WPL WP53-0197 View Details $33.68

View on Model

9

WP53-0918 Whirpool Front Load Dryer Lint Scre In Stock WPL WP53-0918 View Details $20.45

View on Model

10

W11497304 Whirlpool Blower Wheel In Stock WPL W11497304 View Details $36.18

View on Model

10

WP25-7854 Whirlpool Clip In Stock WPL WP25-7854 View Details $4.63

View on Model

12

WP53-0120 Whirlpool Clip Out of Stock WPL WP53-0120 View Details $27.88

View on Model

14

WP31001192 Whirlpool Thermostat In Stock WPL WP31001192 View Details $53.98

View on Model

15

WP31001470 Whirlpool Glide Out of Stock WPL WP31001470 View Details $27.36

View on Model

16

WP31001356 Whirlpool Glide Pad Out of Stock WPL WP31001356 View Details $26.84

View on Model

17

LA-1006 Whirpool Dryer Drum Glide In Stock WPL LA-1006 View Details $9.38

View on Model

18

WP31001469 Whirlpool Glide In Stock WPL WP31001469 View Details $28.24

View on Model

22

LA-1003 Whirpool Front Load Dryer Door Catch In Stock WPL LA-1003 View Details $11.07

View on Model

28

WP53-2287 Whirlpool Idler Out of Stock WPL WP53-2287 View Details $71.12

View on Model
