Model Alliance NWL065T4V Washer – Common Parts & Diagrams

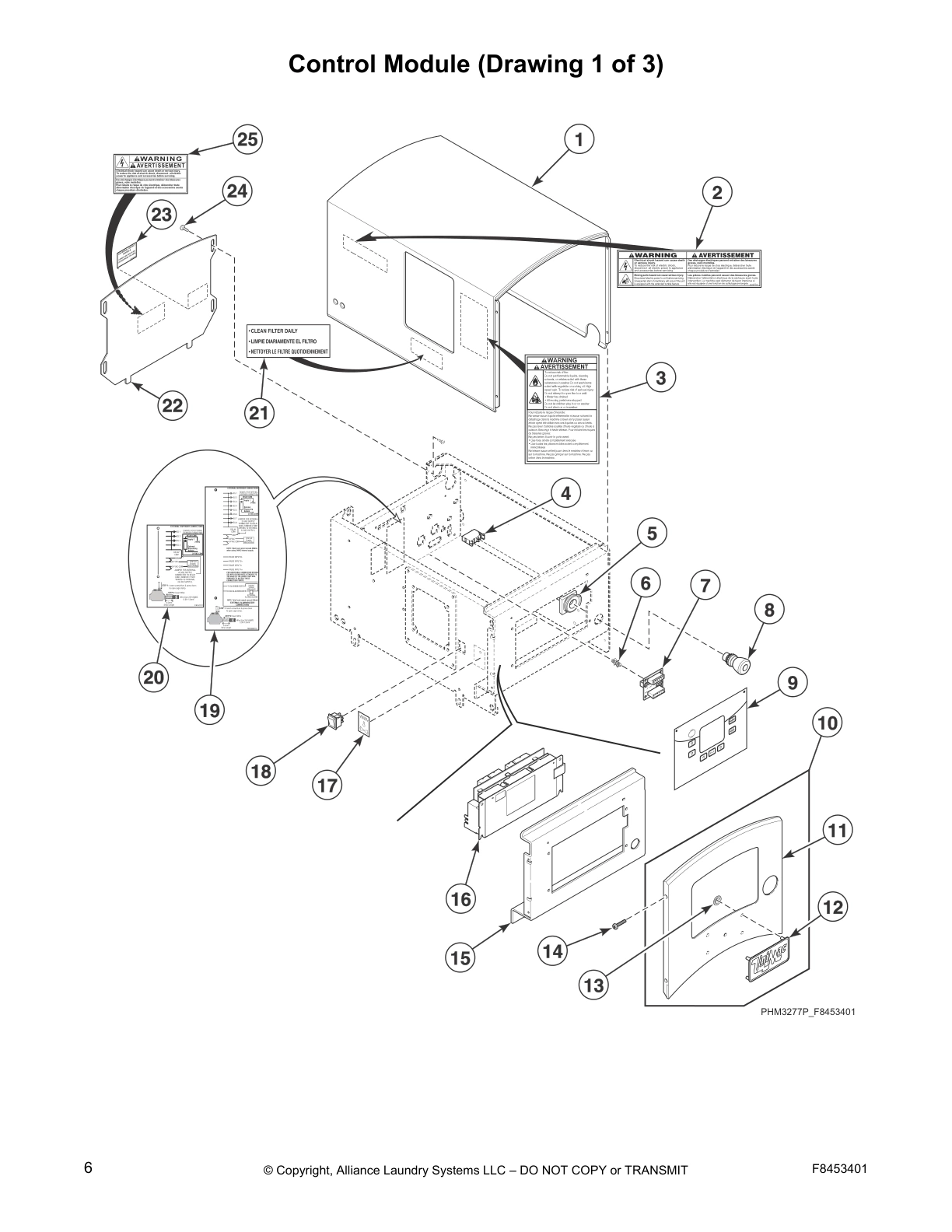

Control Module (Drawing 1 of 3)

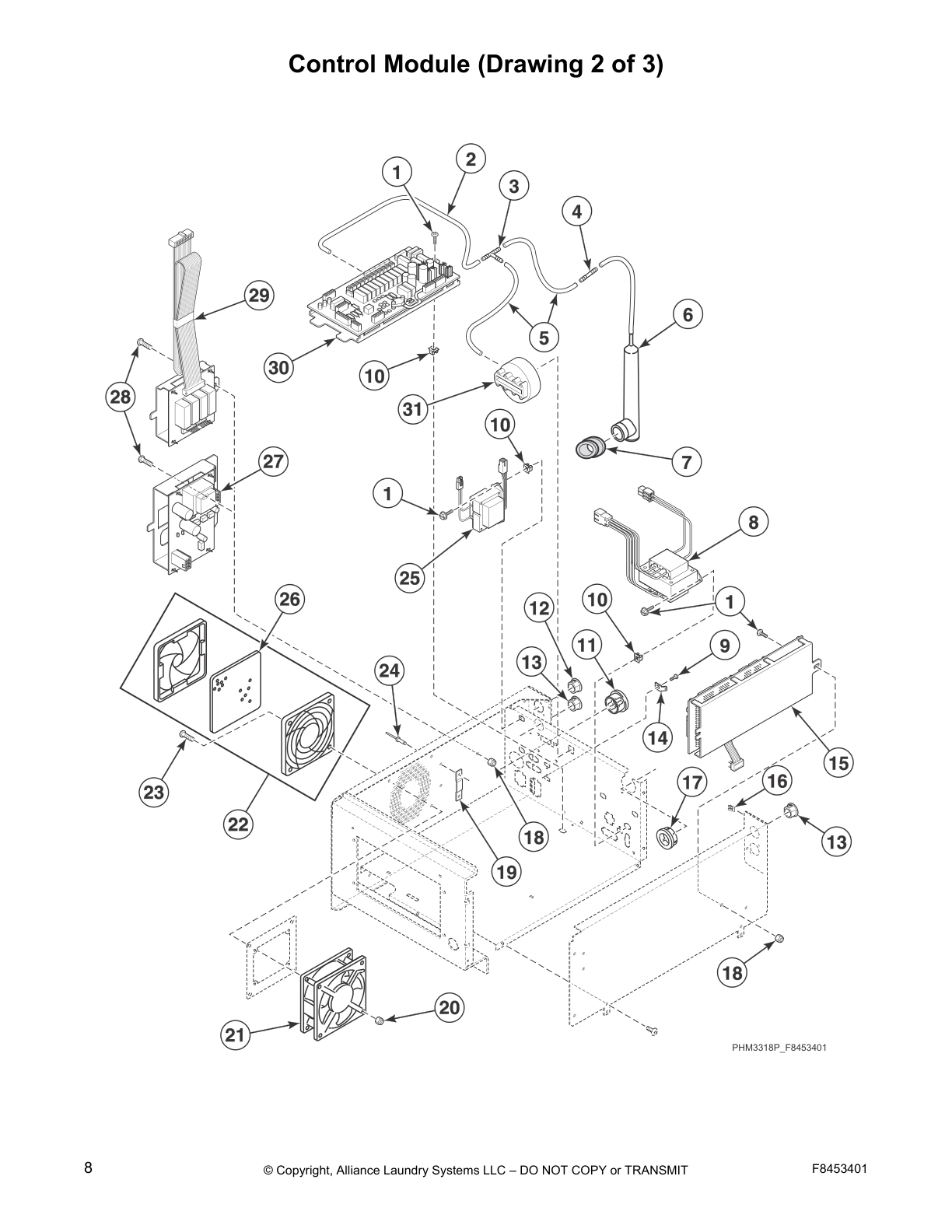

Control Module (Drawing 2 of 3)

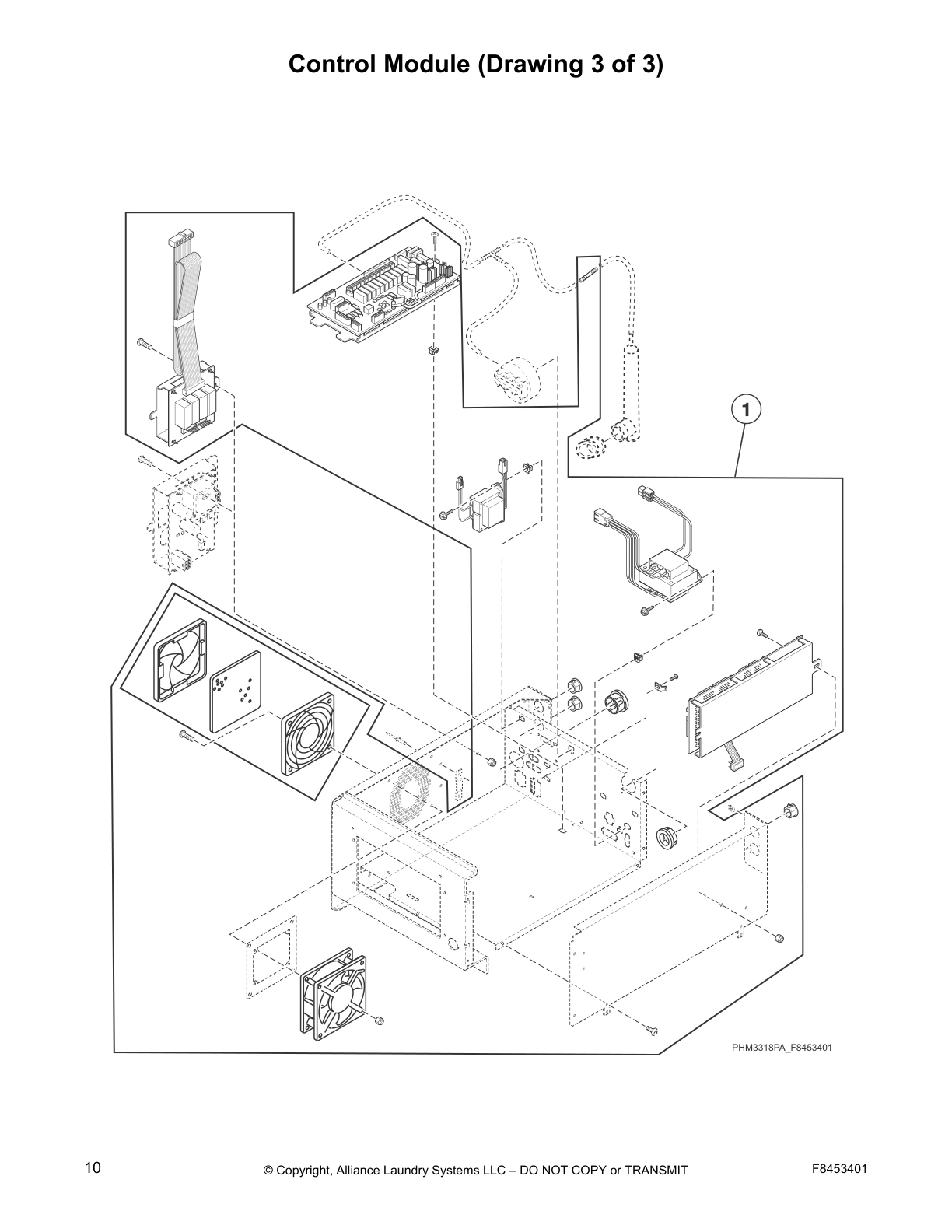

Control Module (Drawing 3 of 3)

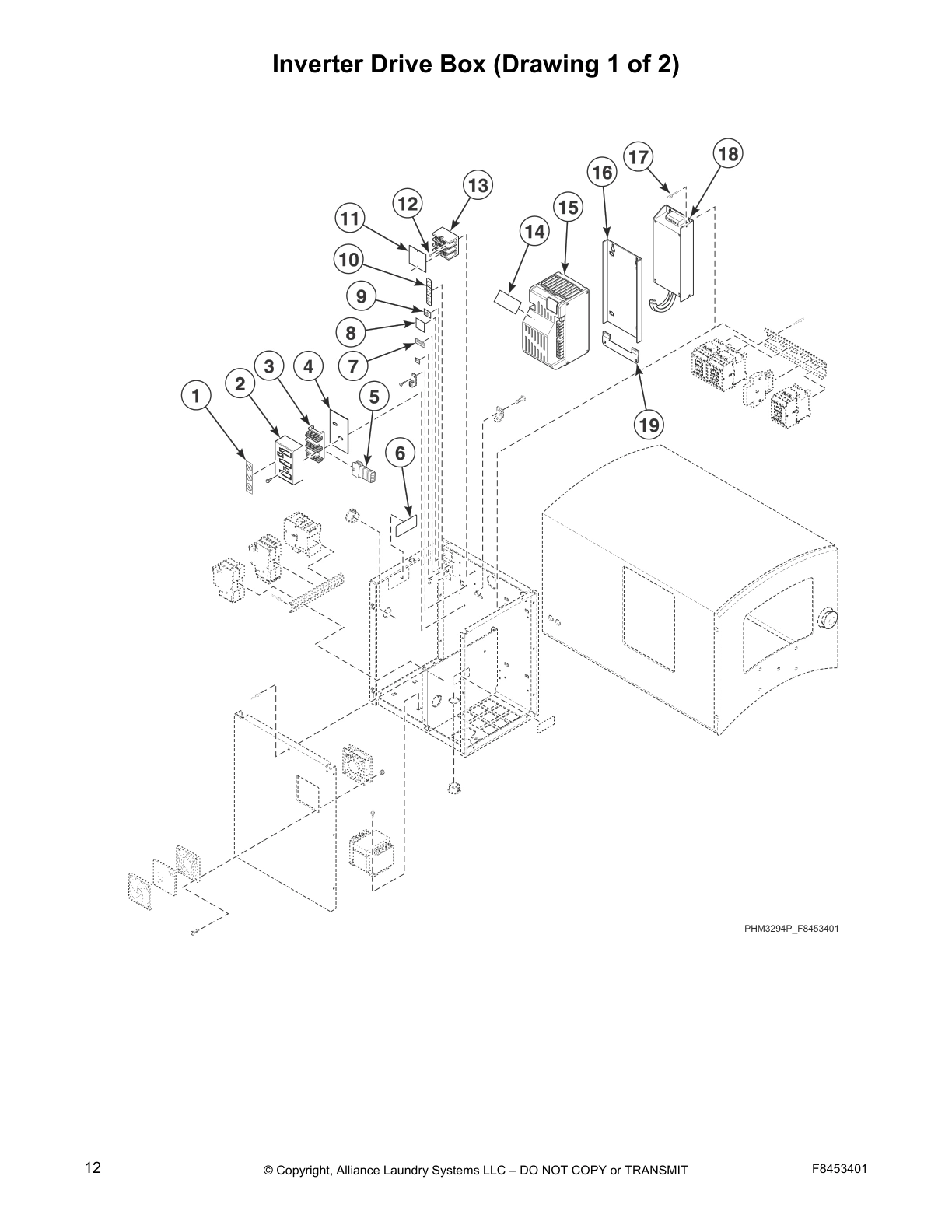

Inverter Drive Box (Drawing 1 of 2)

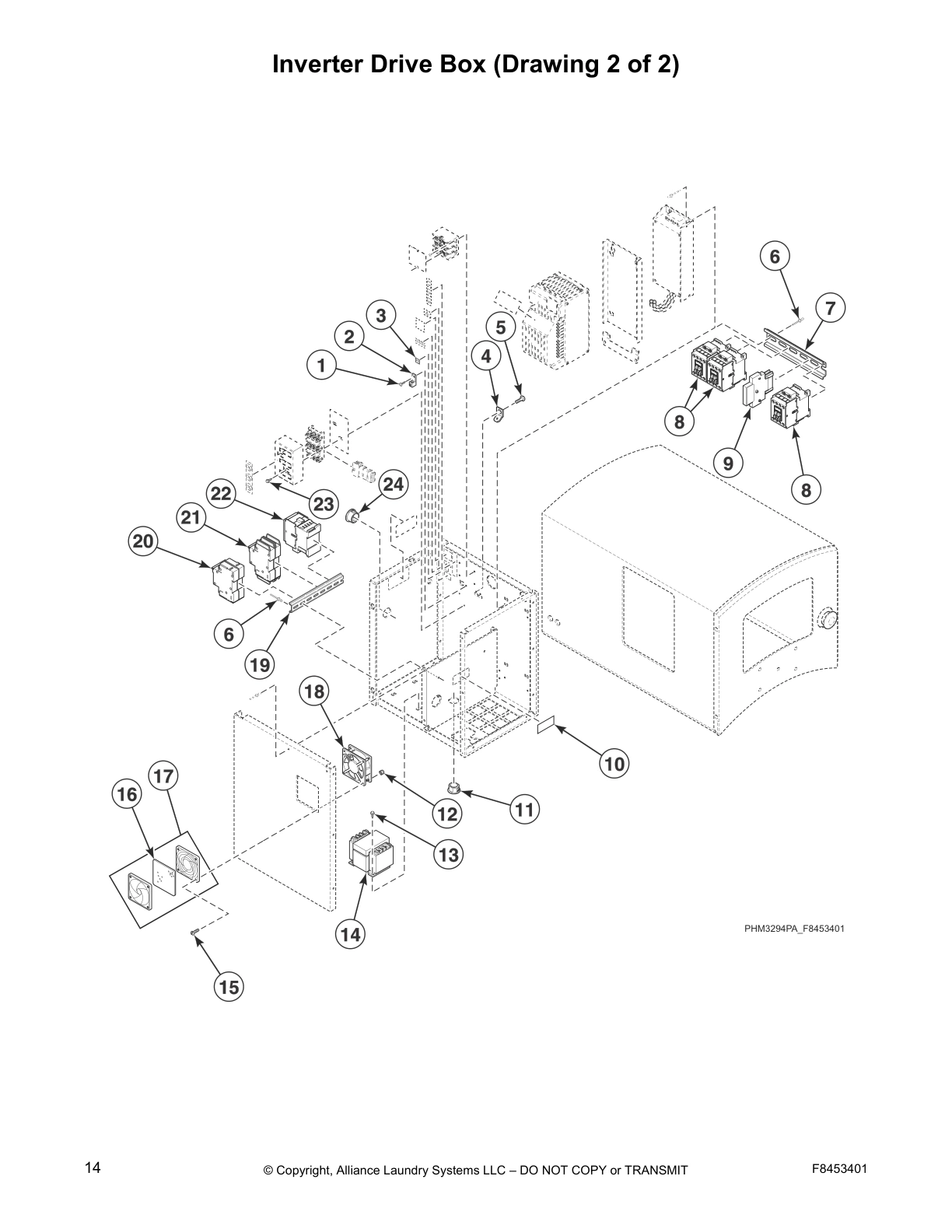

Inverter Drive Box (Drawing 2 of 2)

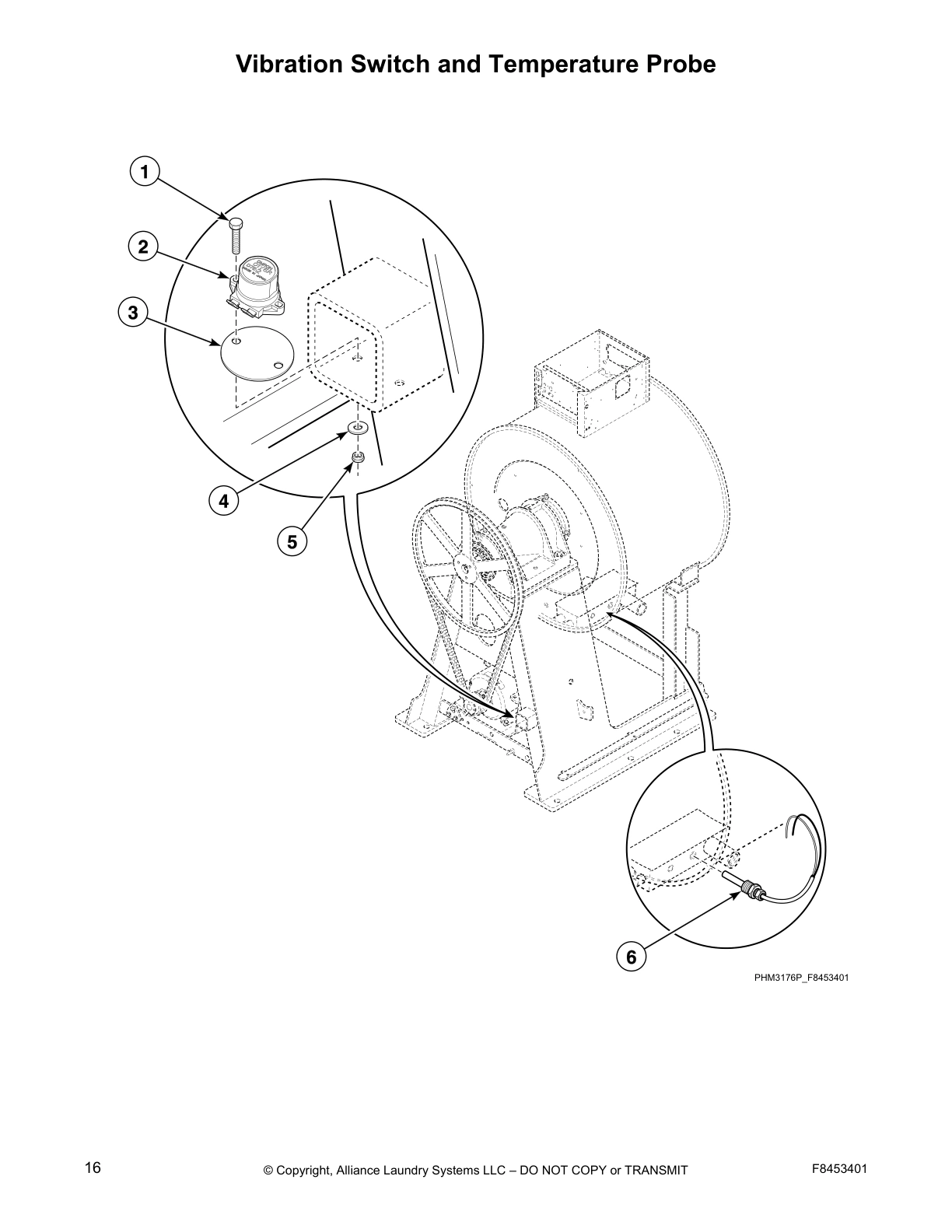

Vibration Switch and Temperature Probe

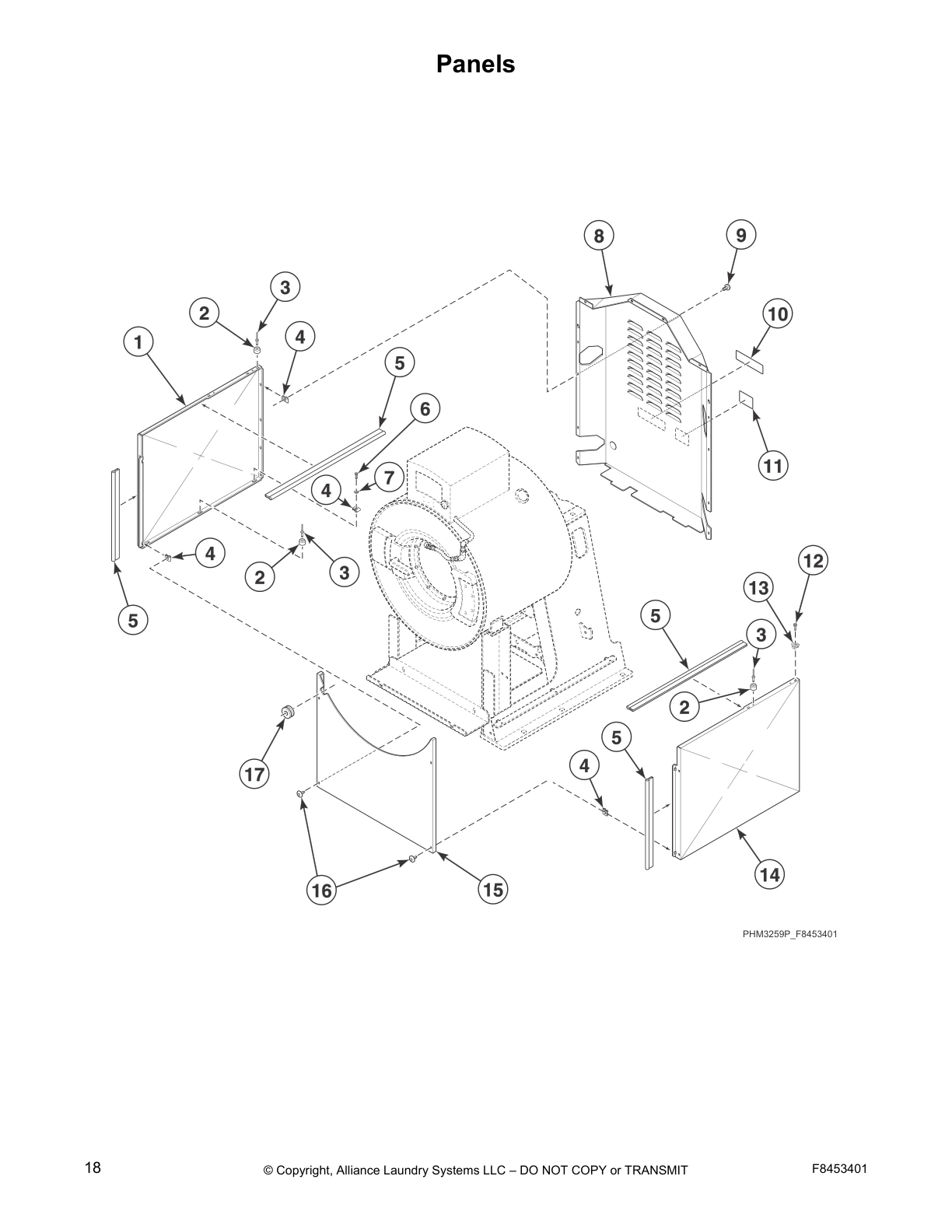

Panels

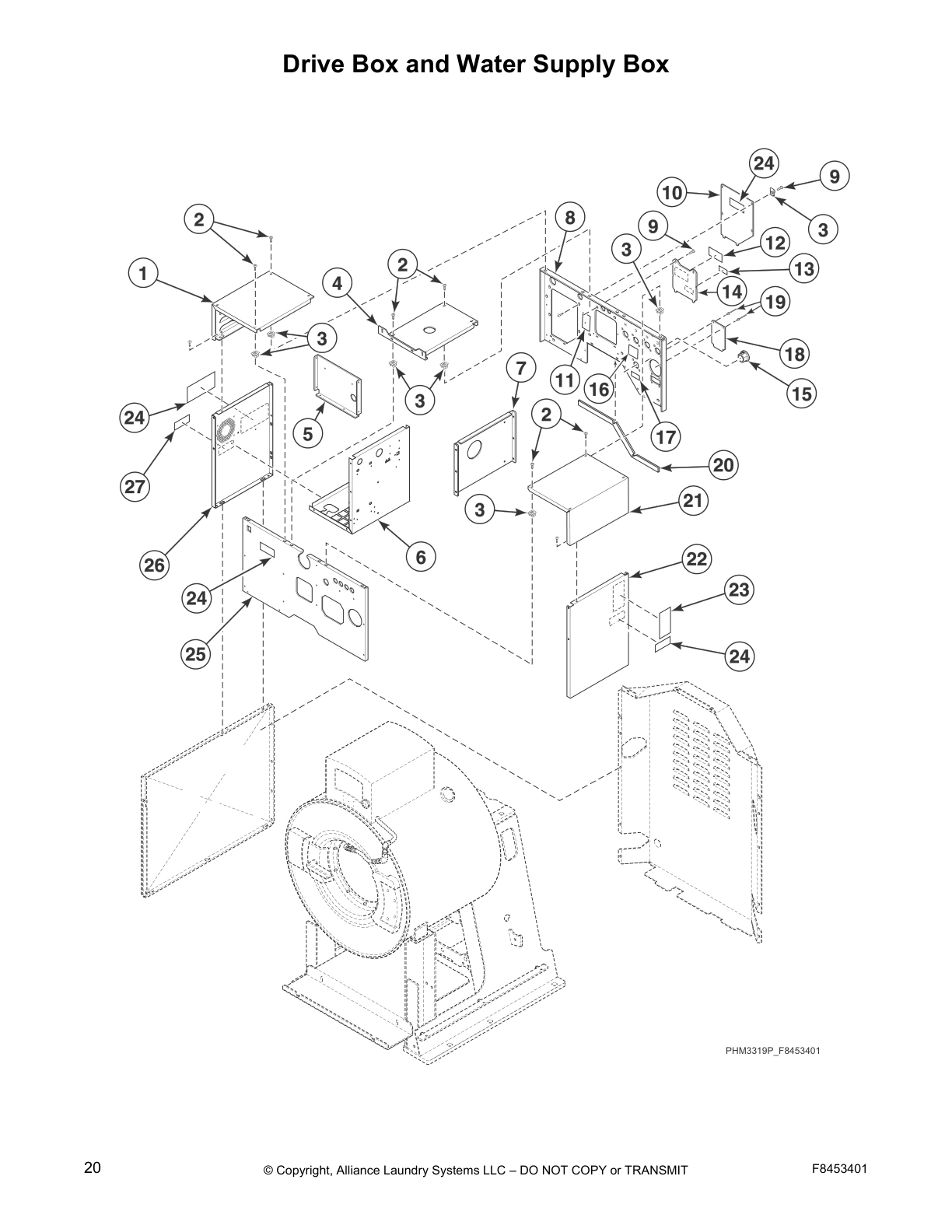

Drive Box and Water Supply Box

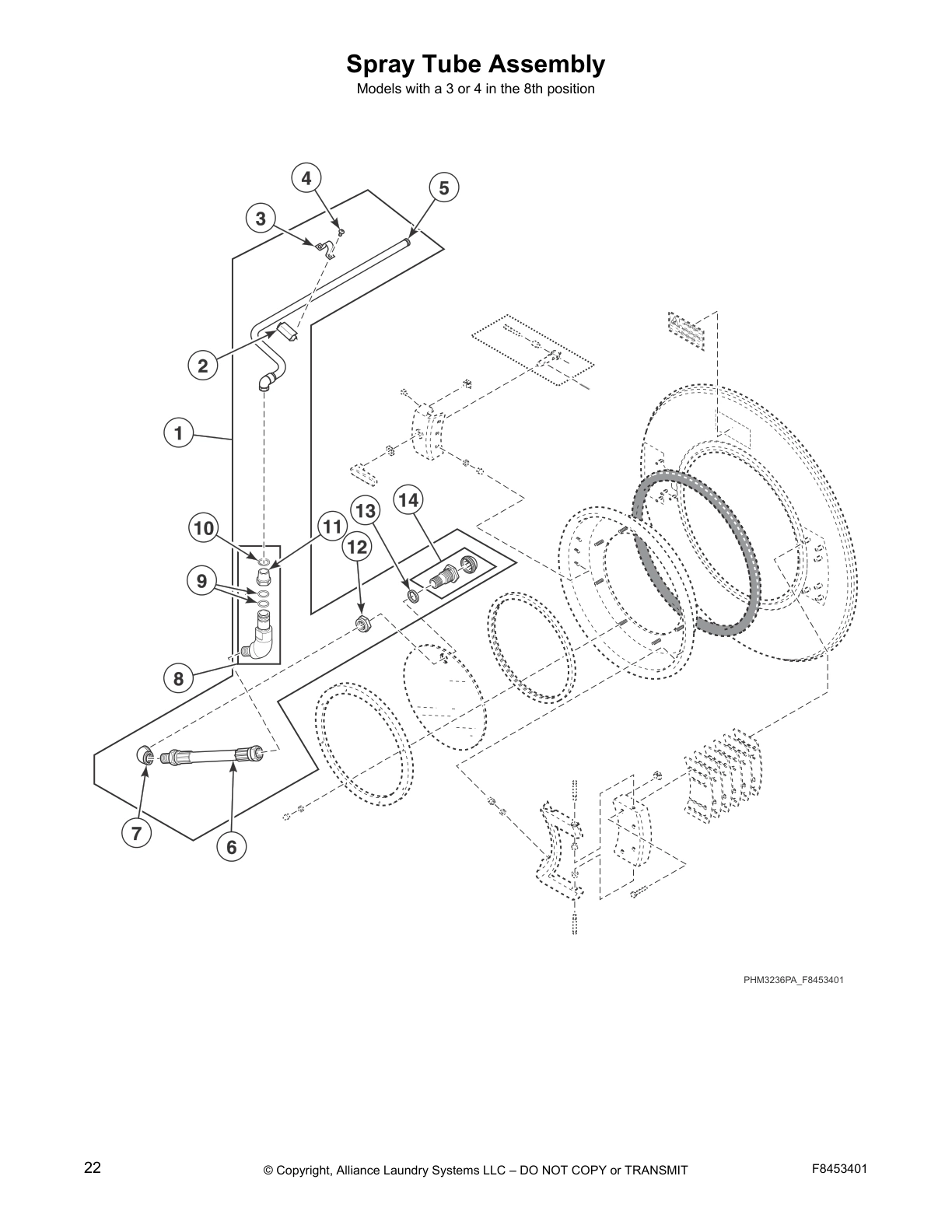

Spray Tube Assembly

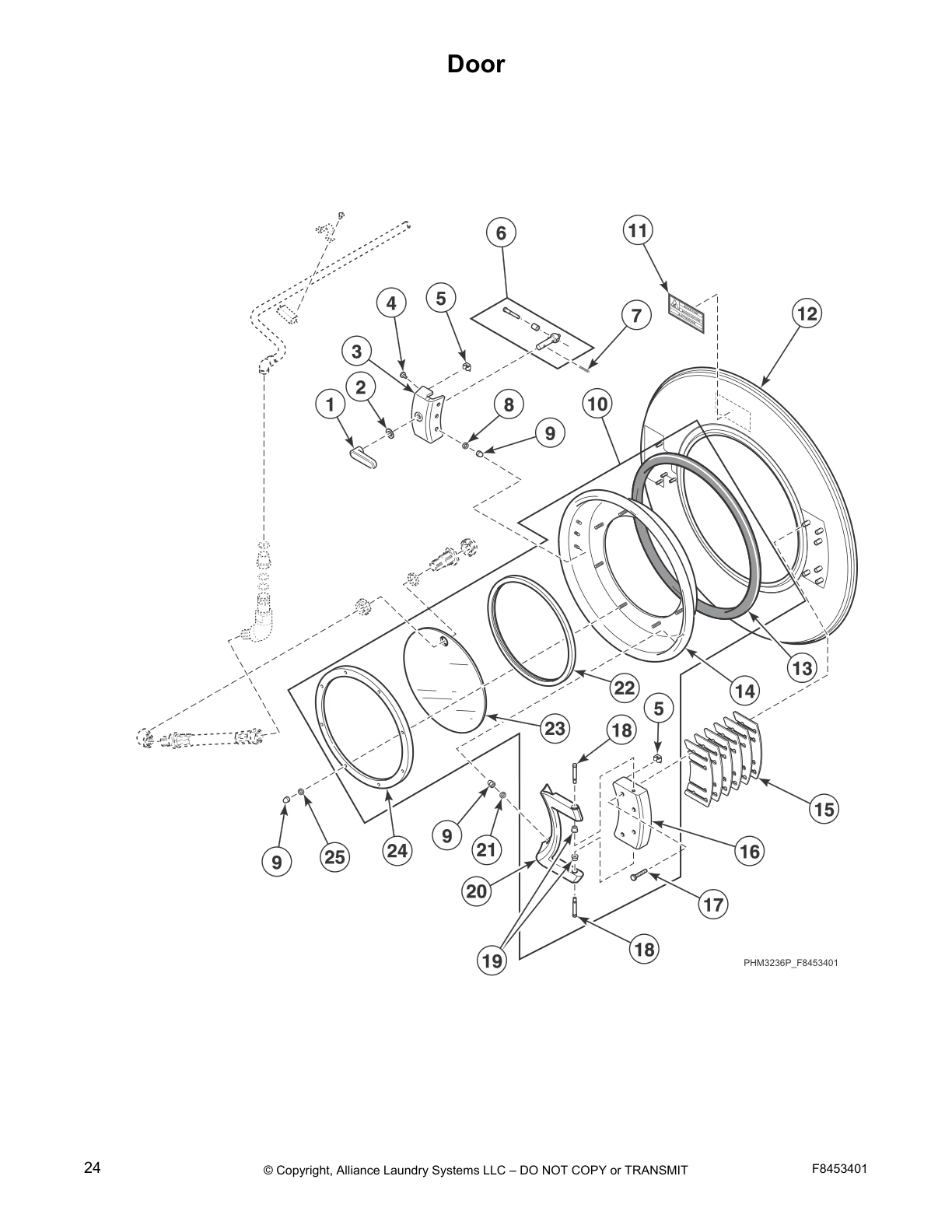

Door

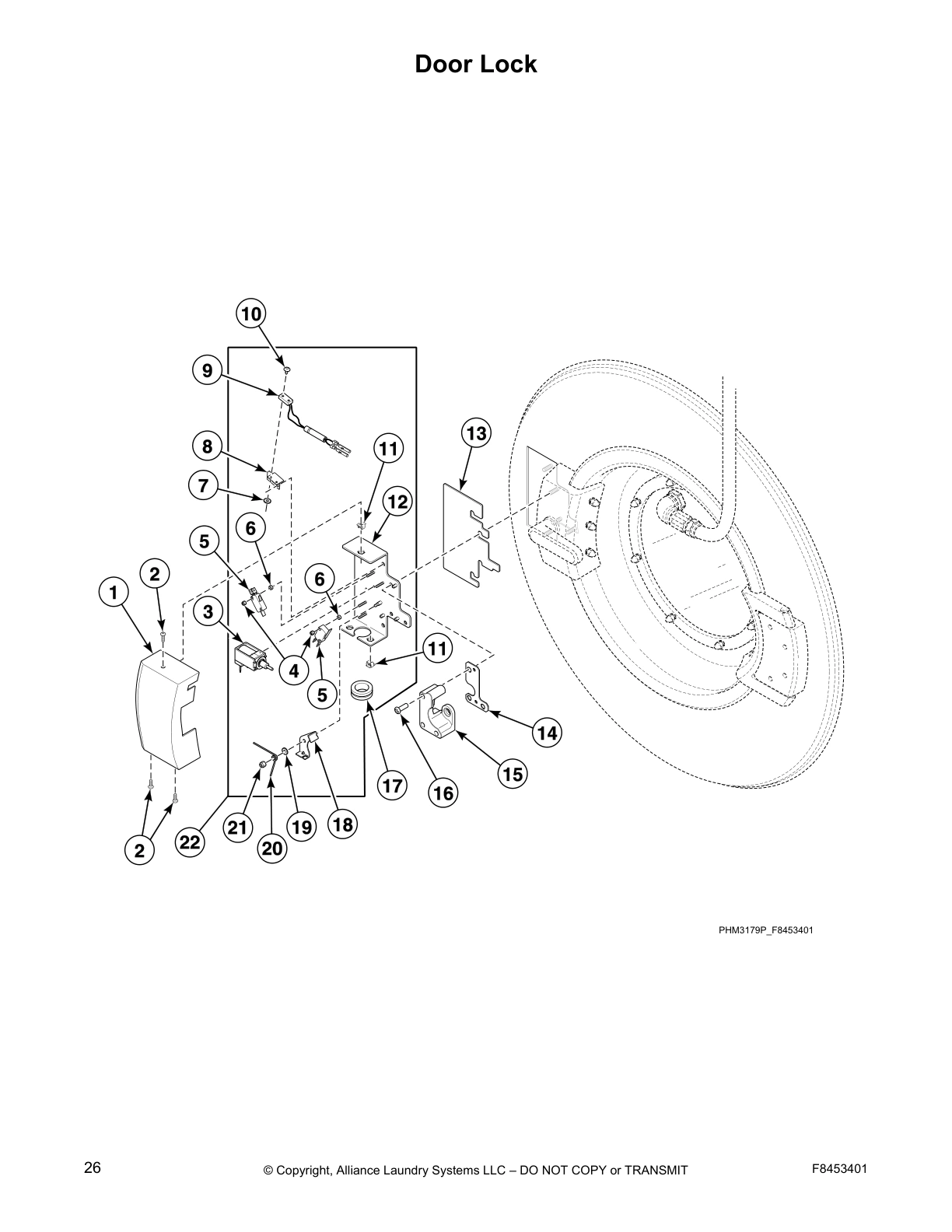

Door Lock

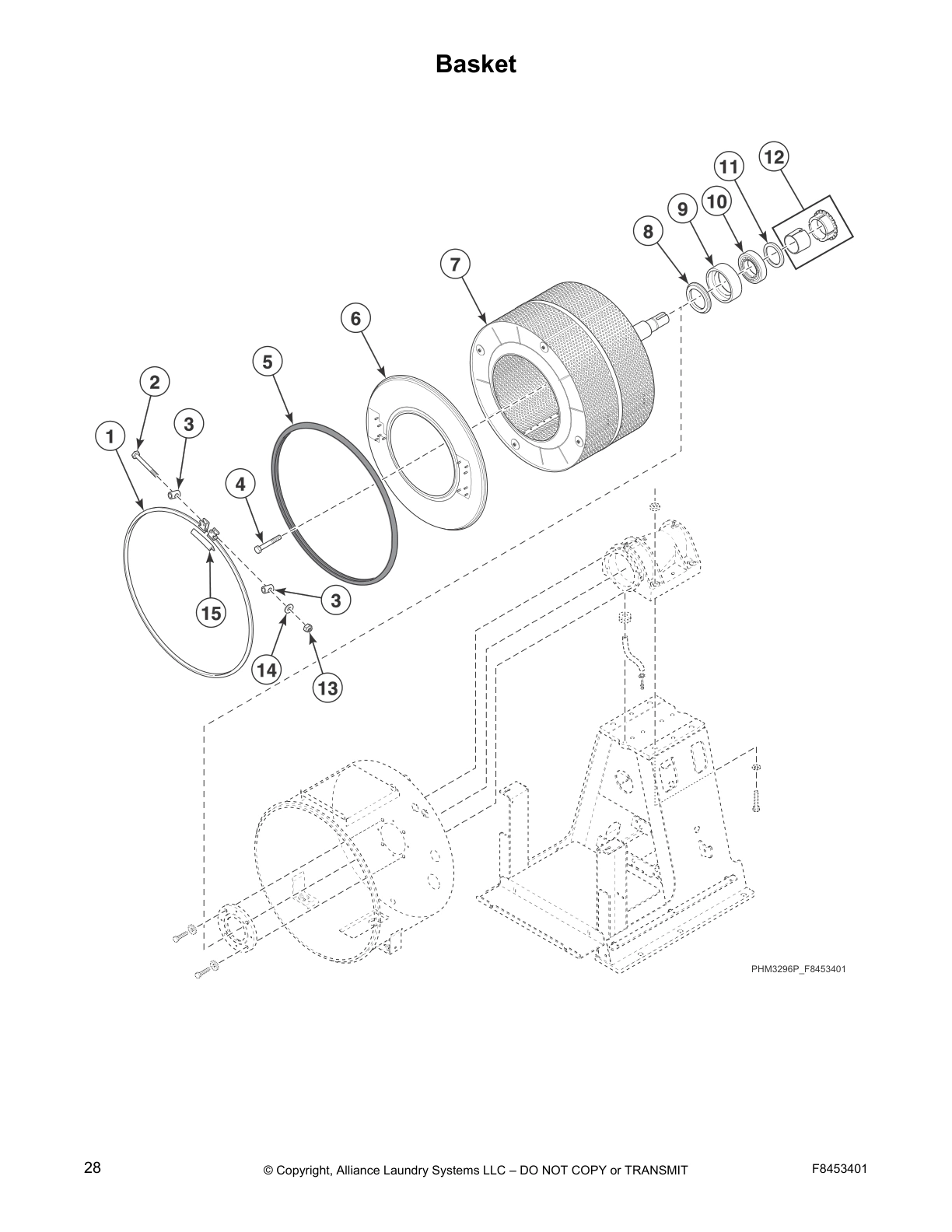

Basket

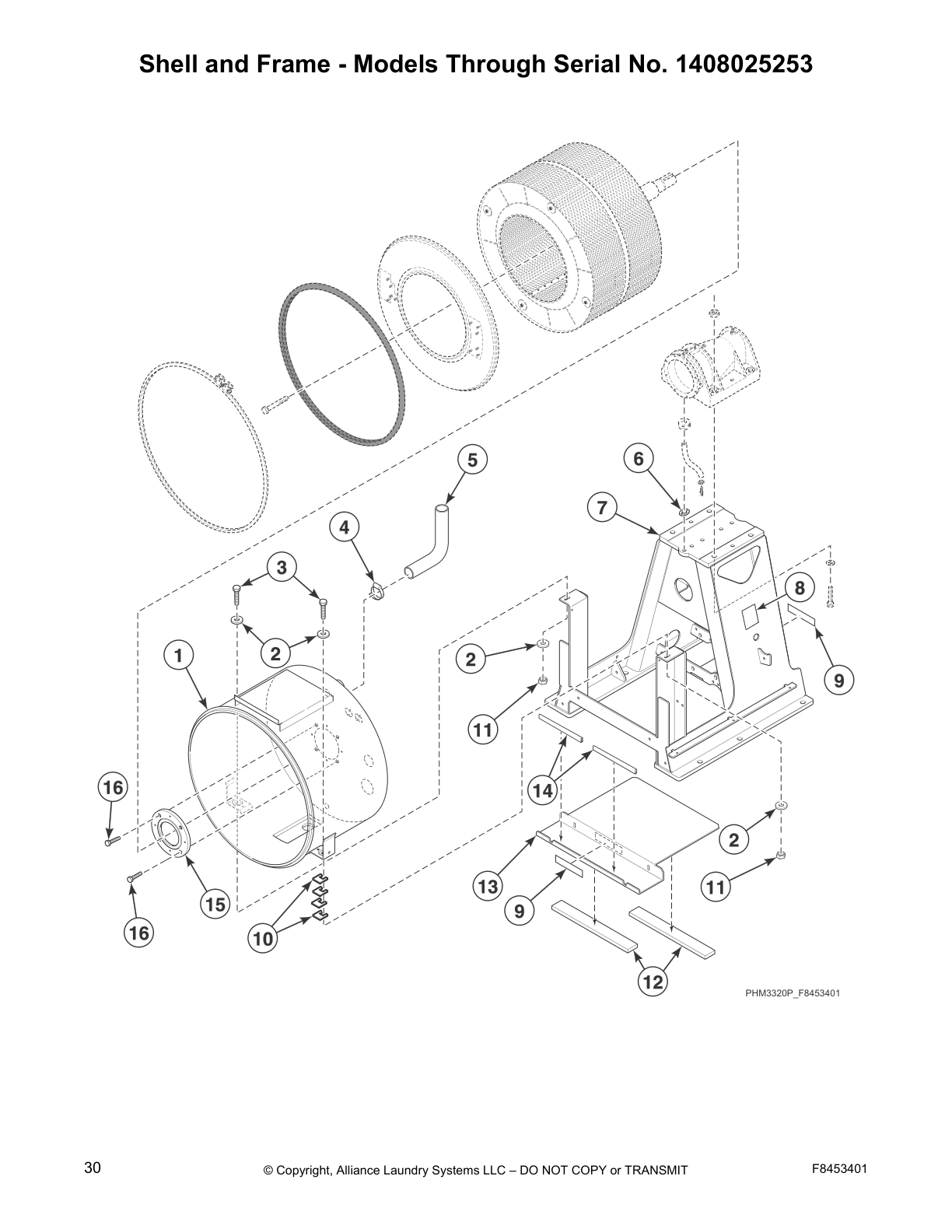

Shell and Frame - Models Through Serial No. 1408025253

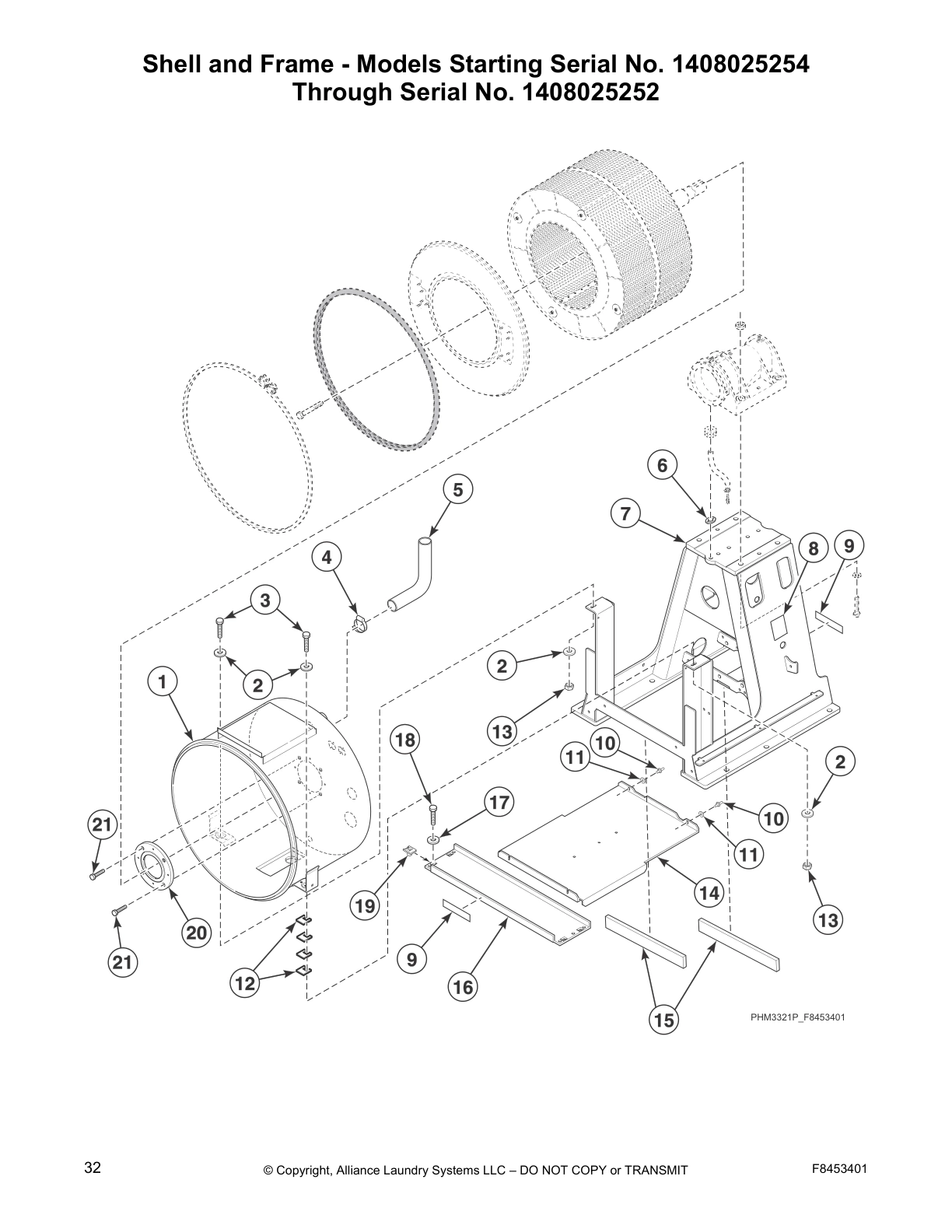

Shell and Frame - Models Starting Serial No. 1408025254
Through Serial No. 1408025252

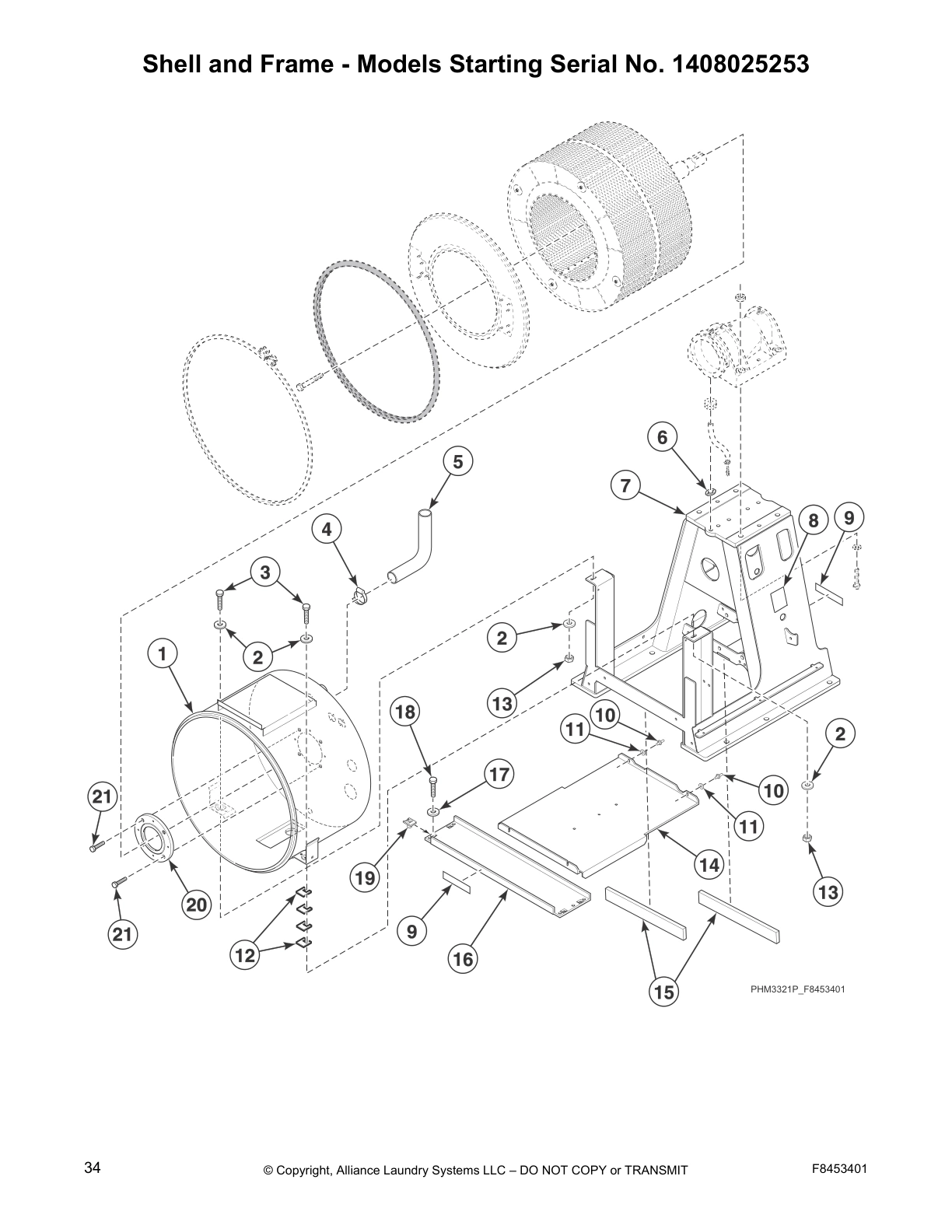

Shell and Frame - Models Starting Serial No. 1408025253

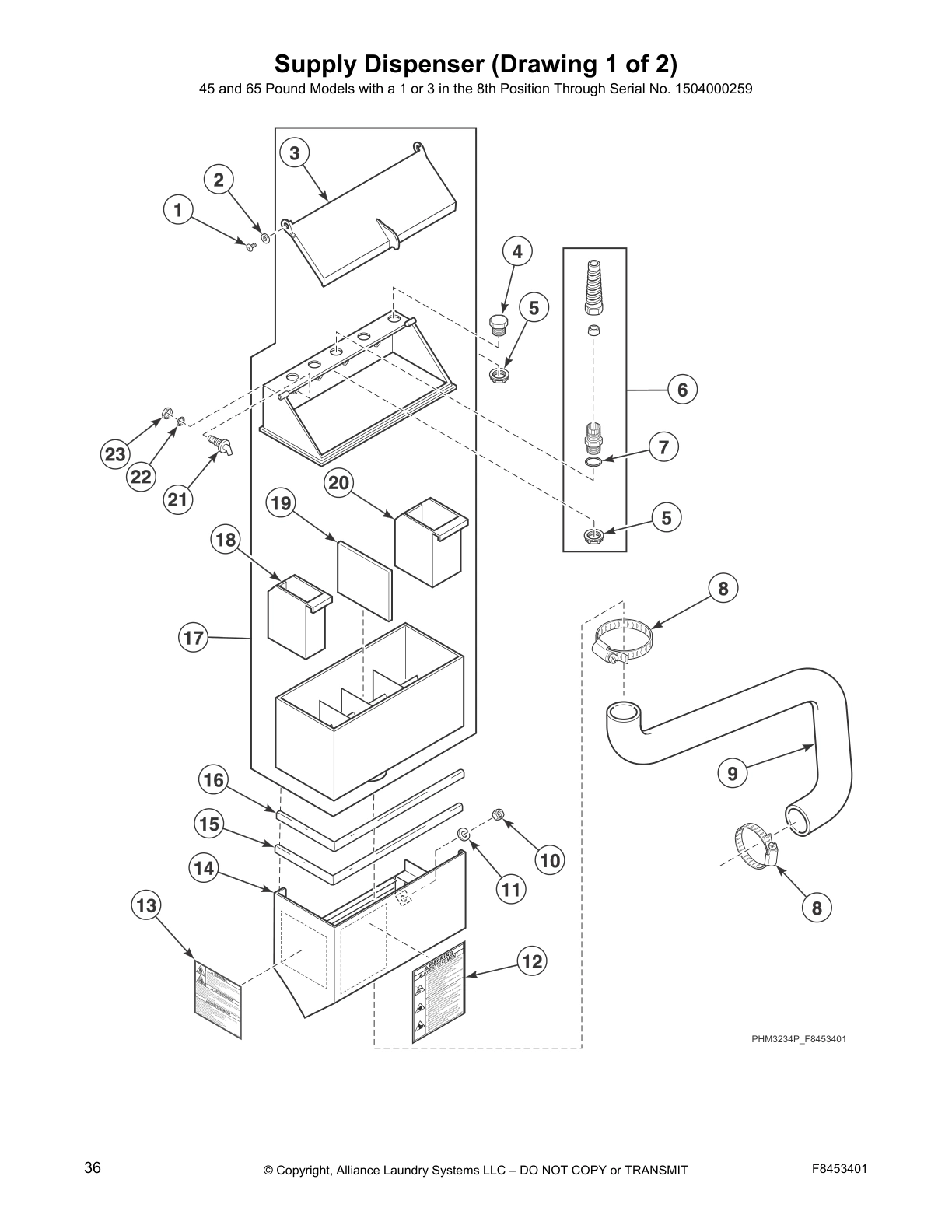

Supply Dispenser (Drawing 1 of 2)

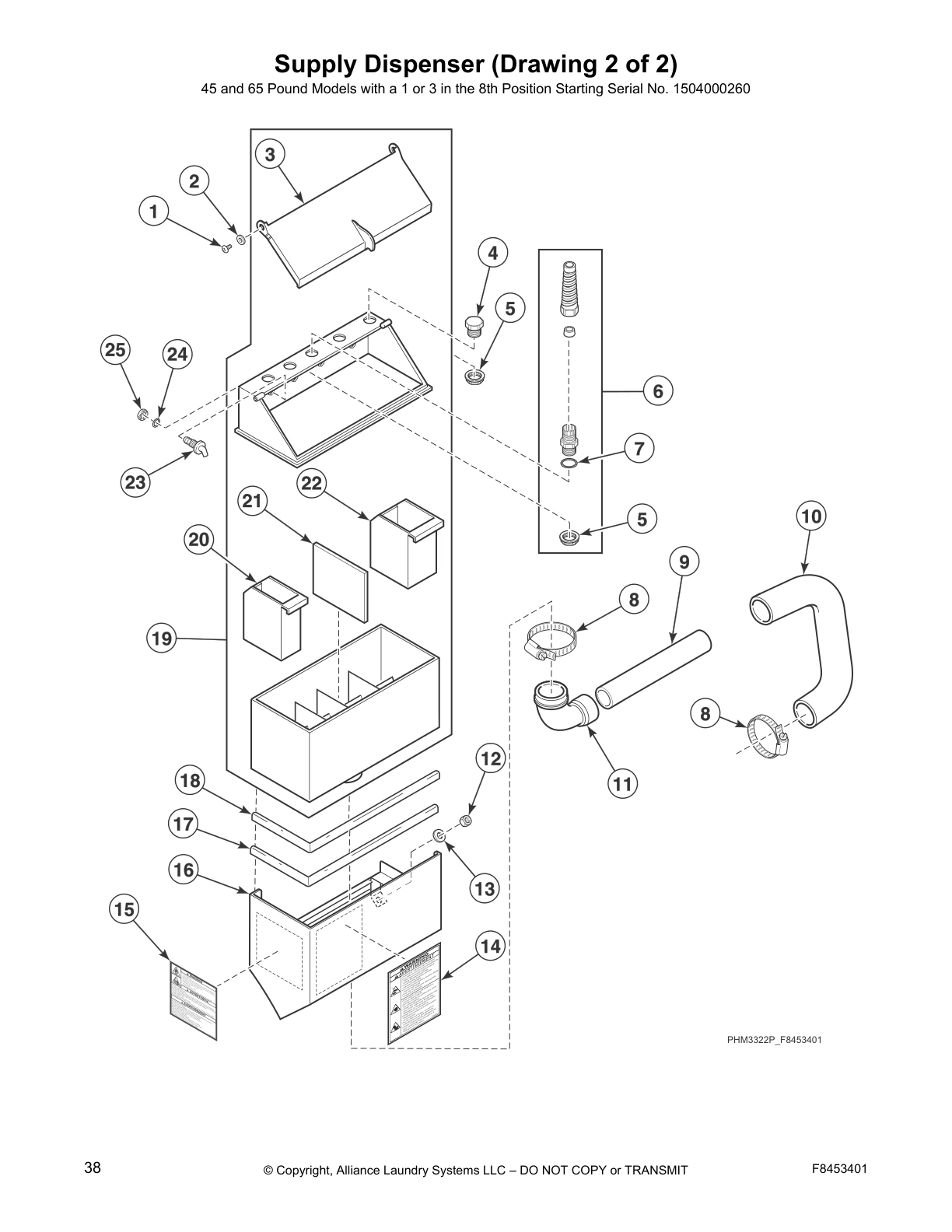

Supply Dispenser (Drawing 2 of 2)

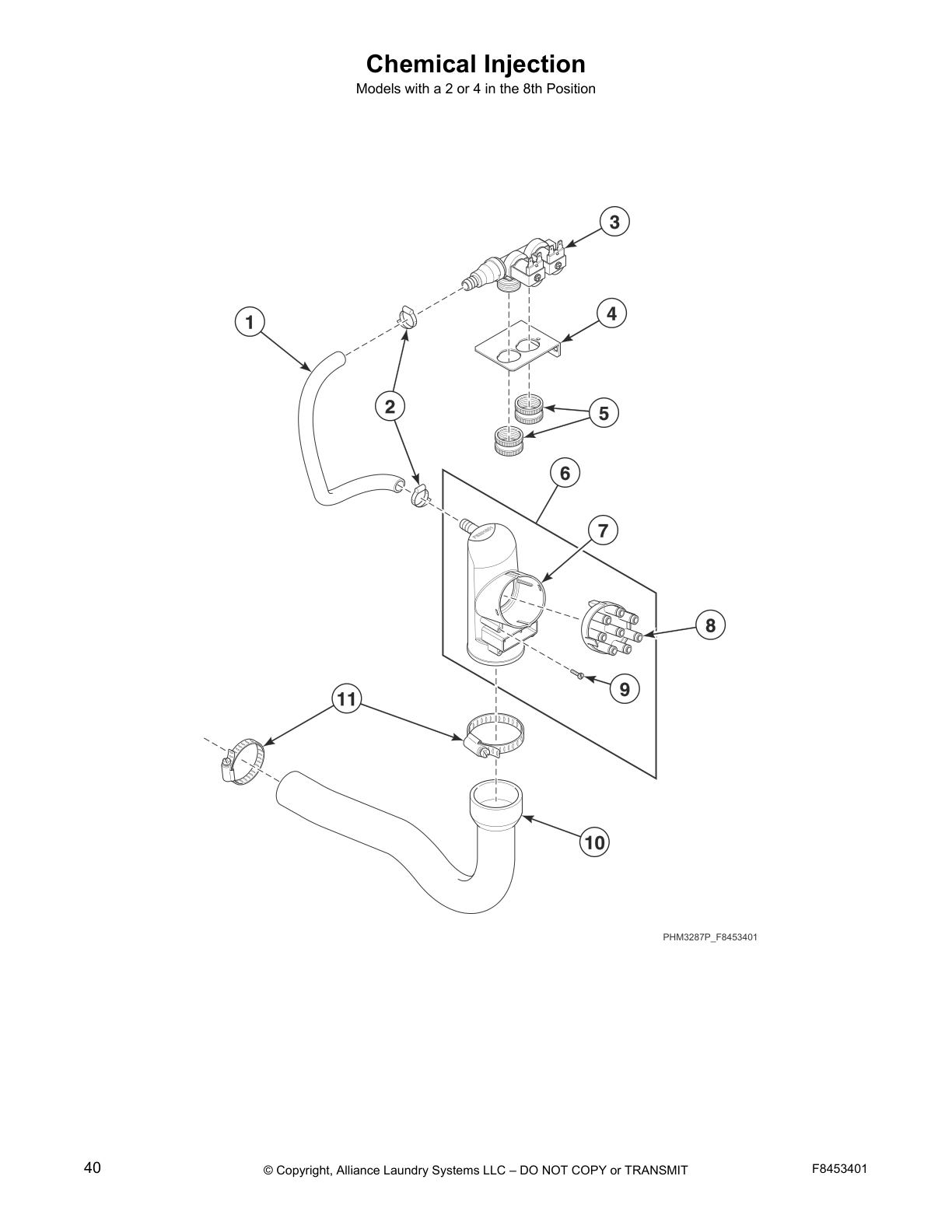

Chemical Injection

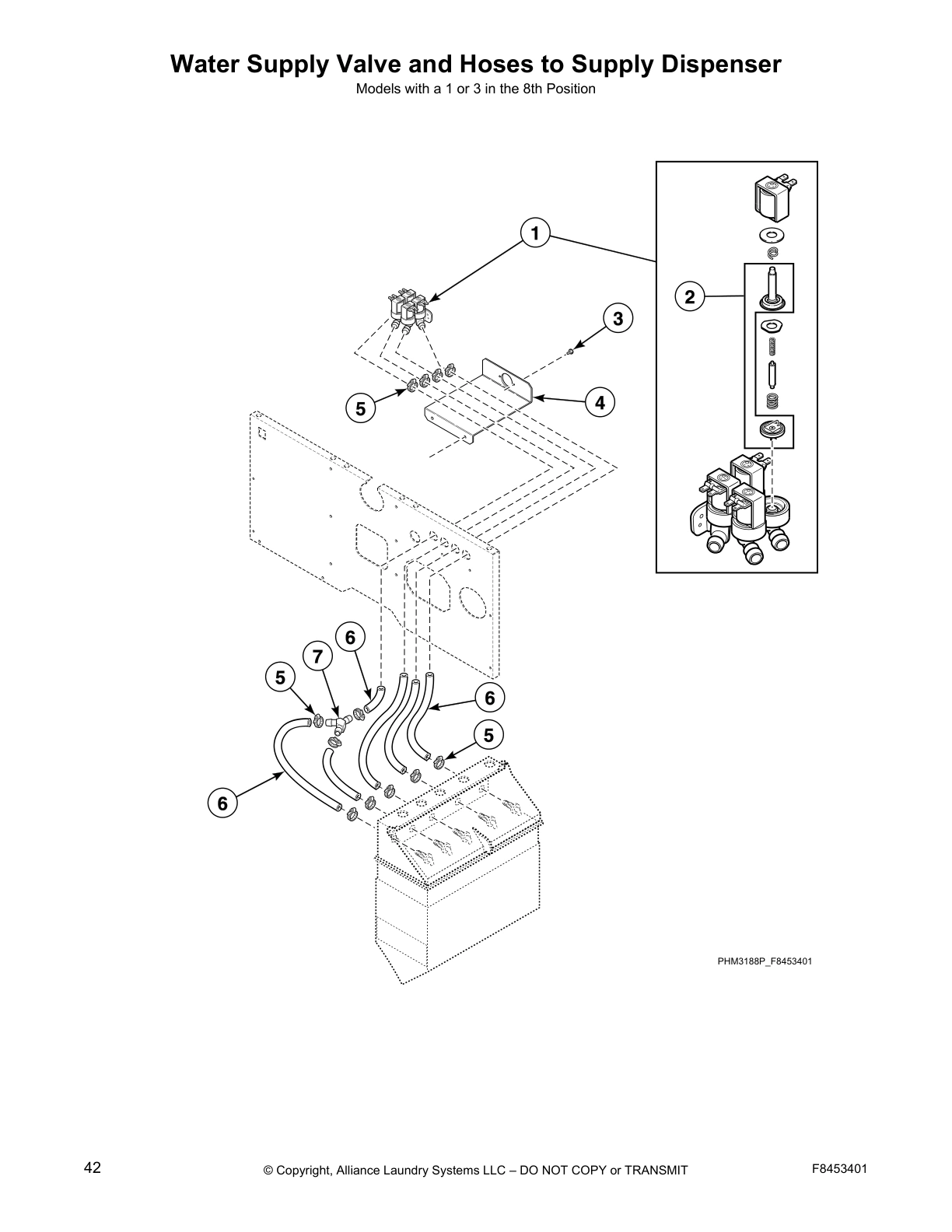

Water Supply Valve and Hoses to Supply Dispenser

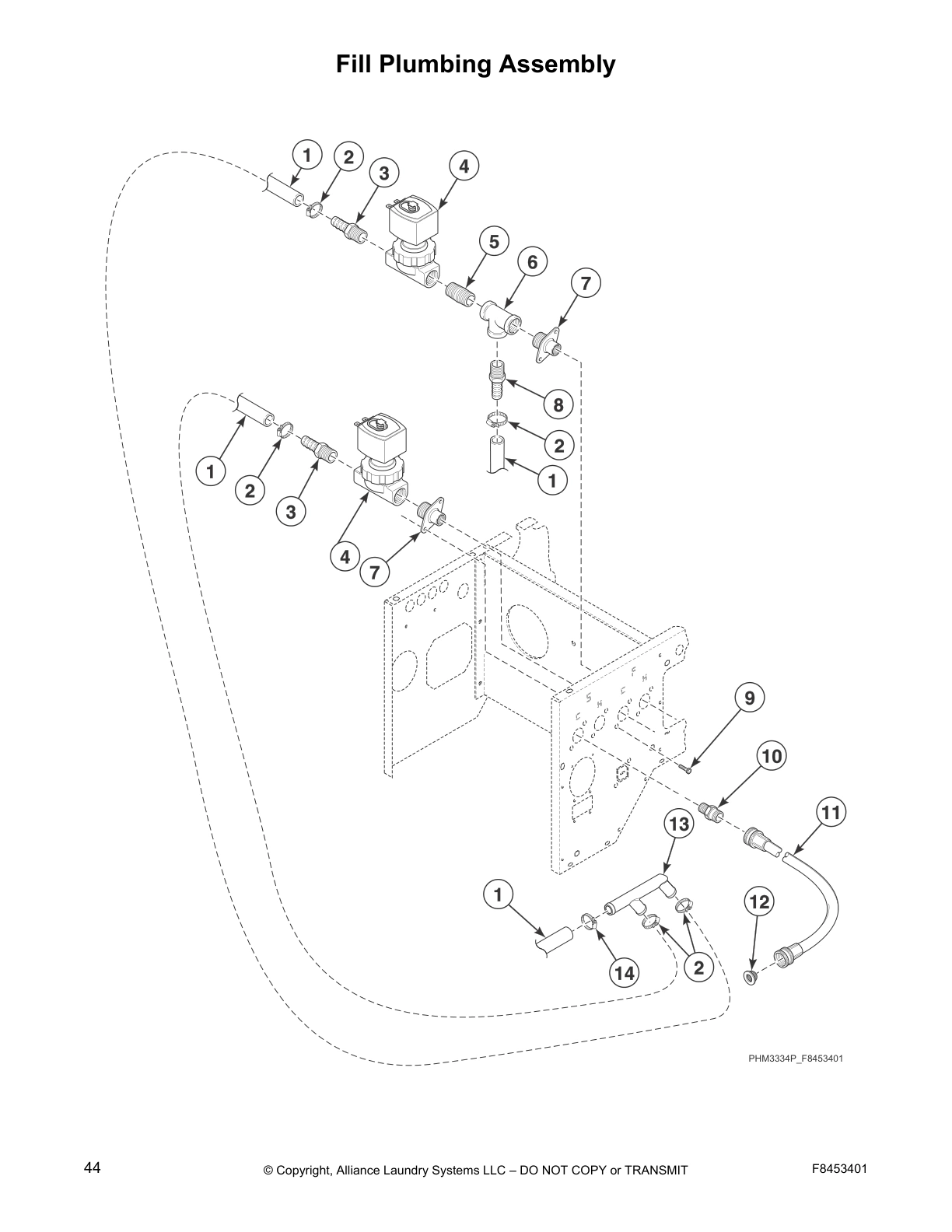

Fill Plumbing Assembly

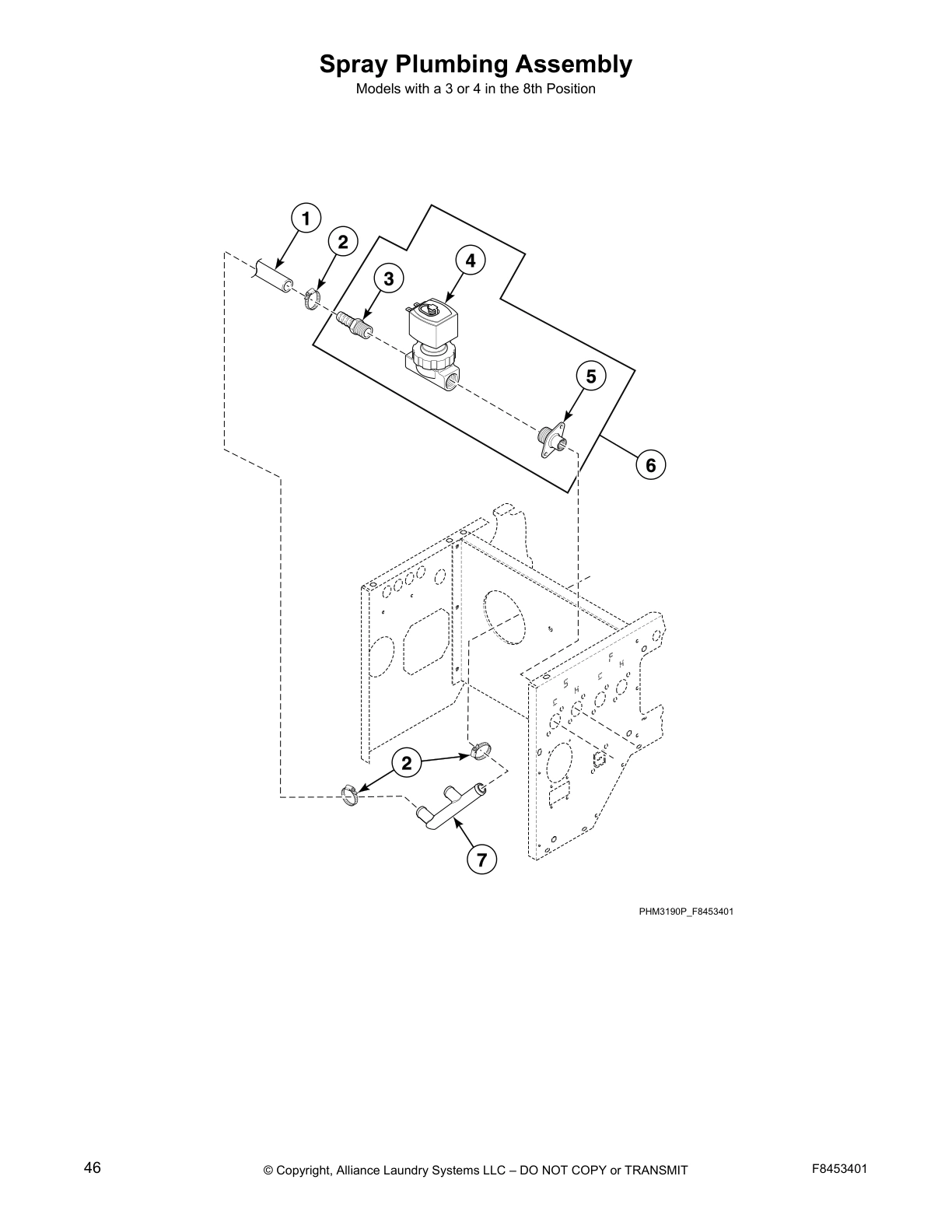

Spray Plumbing Assembly

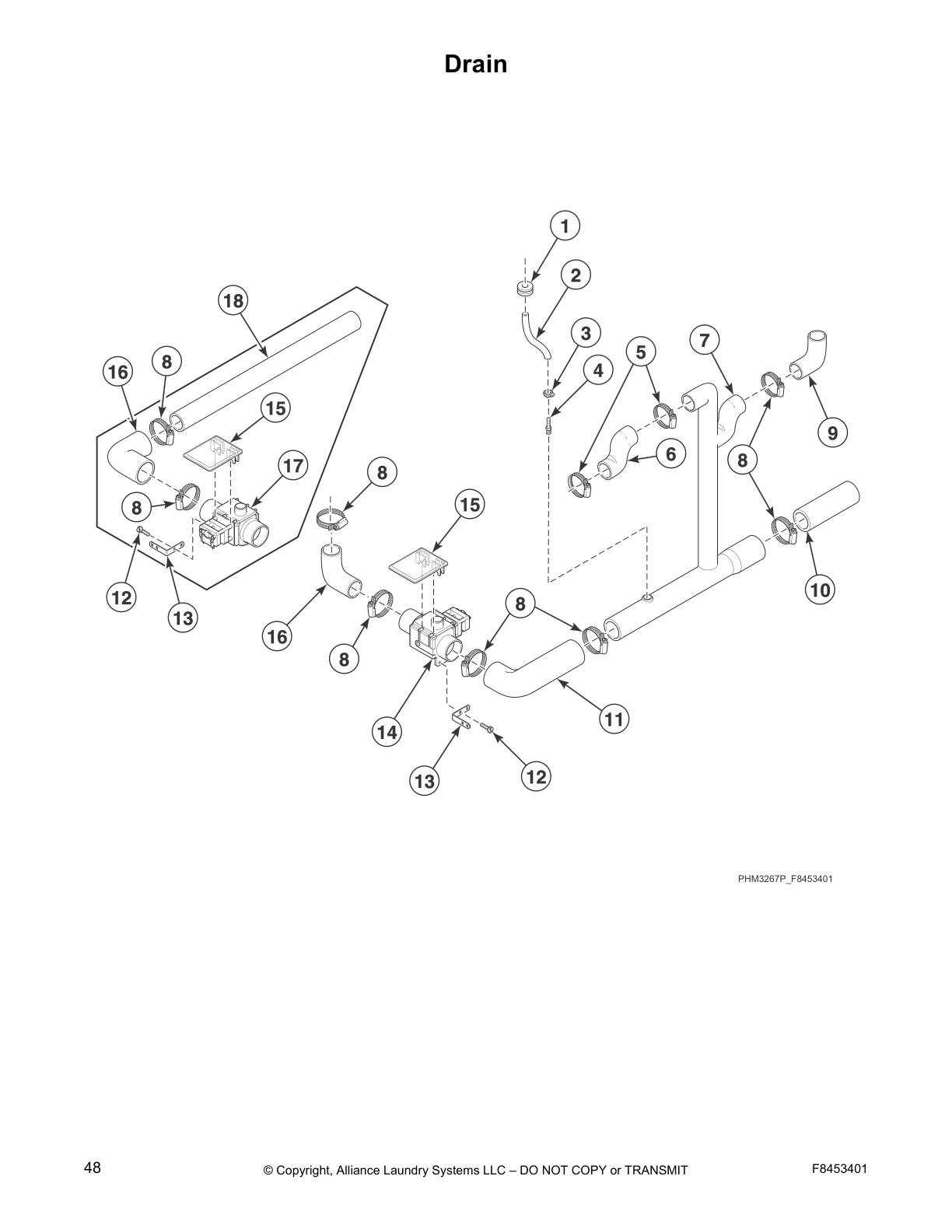

Drain

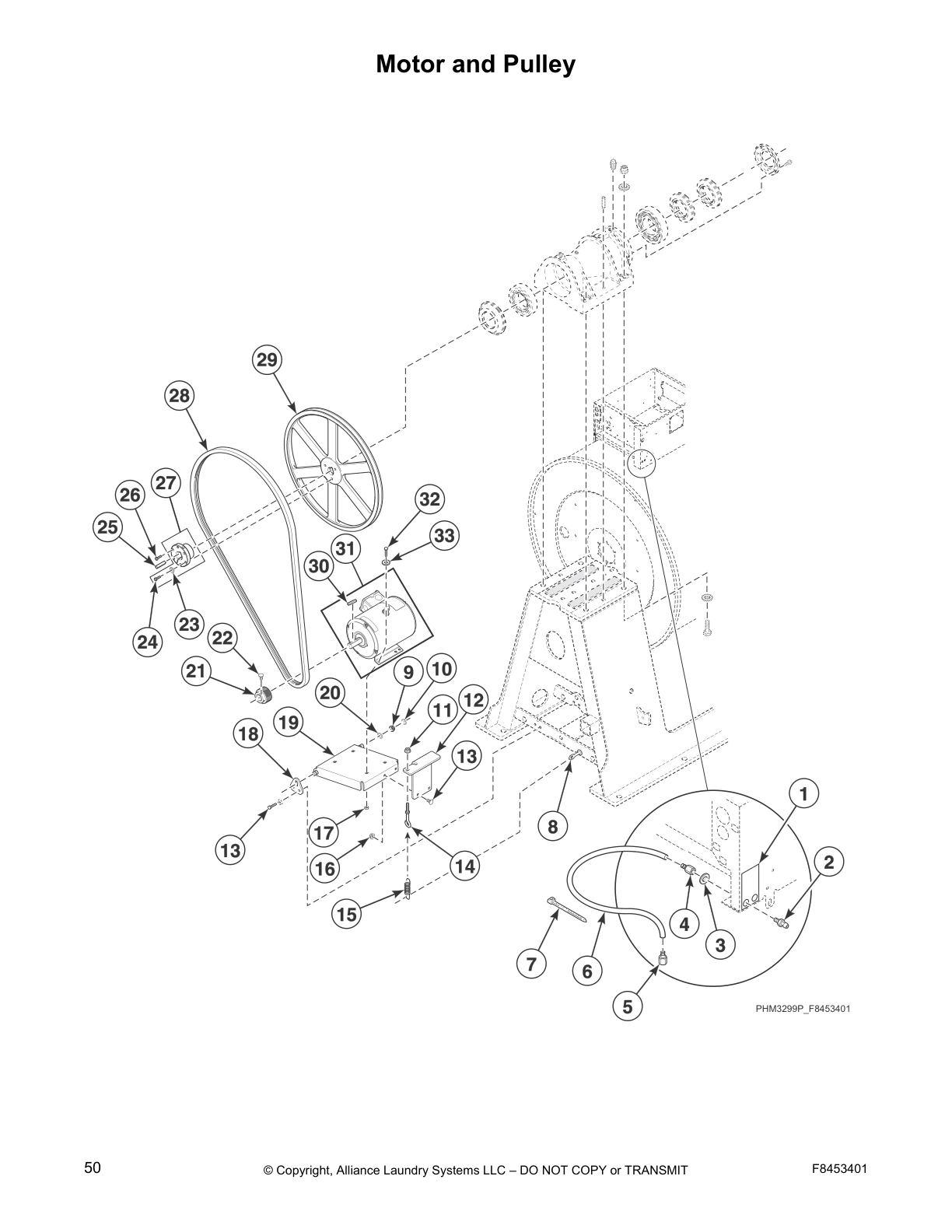

Motor and Pulley

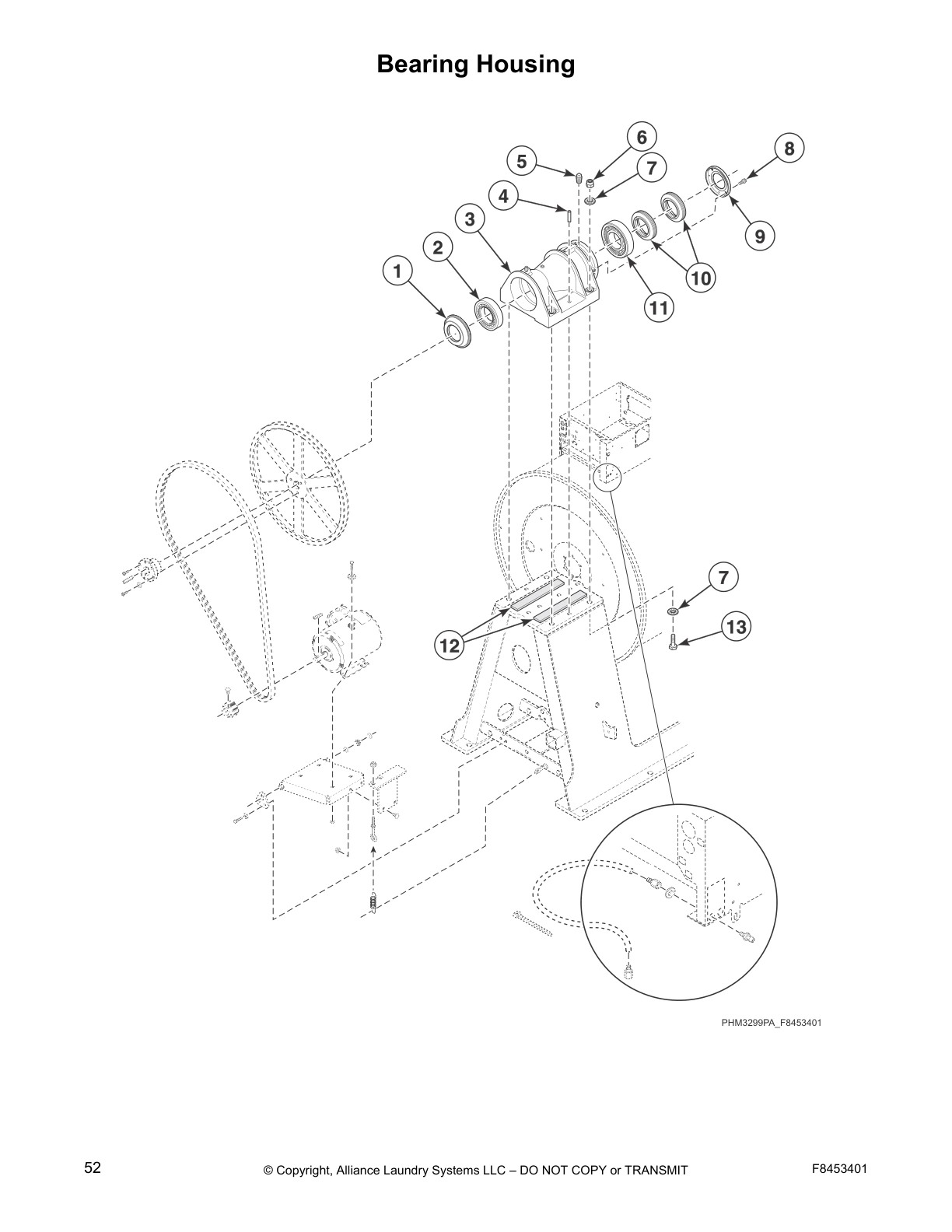

Bearing Housing

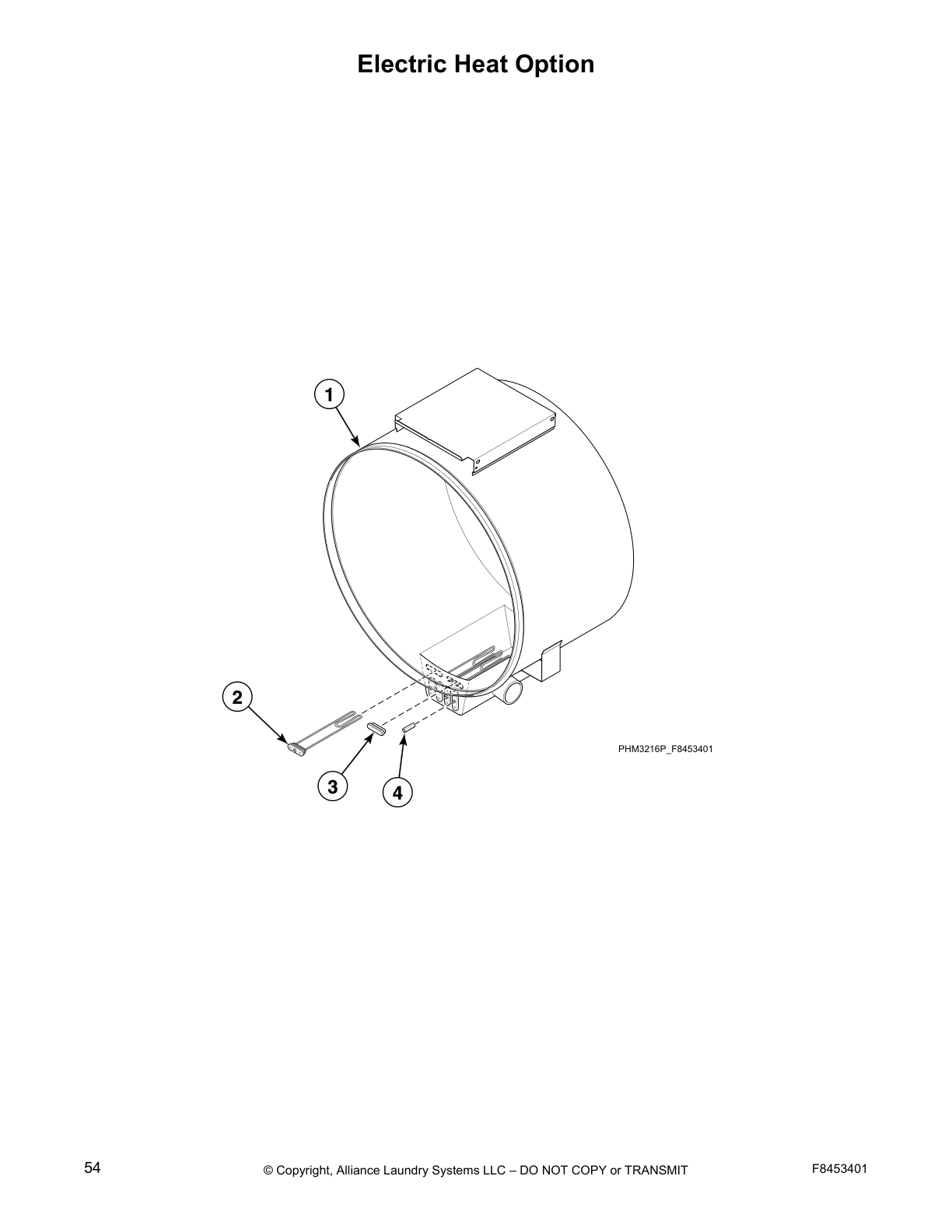

Electric Heat Option

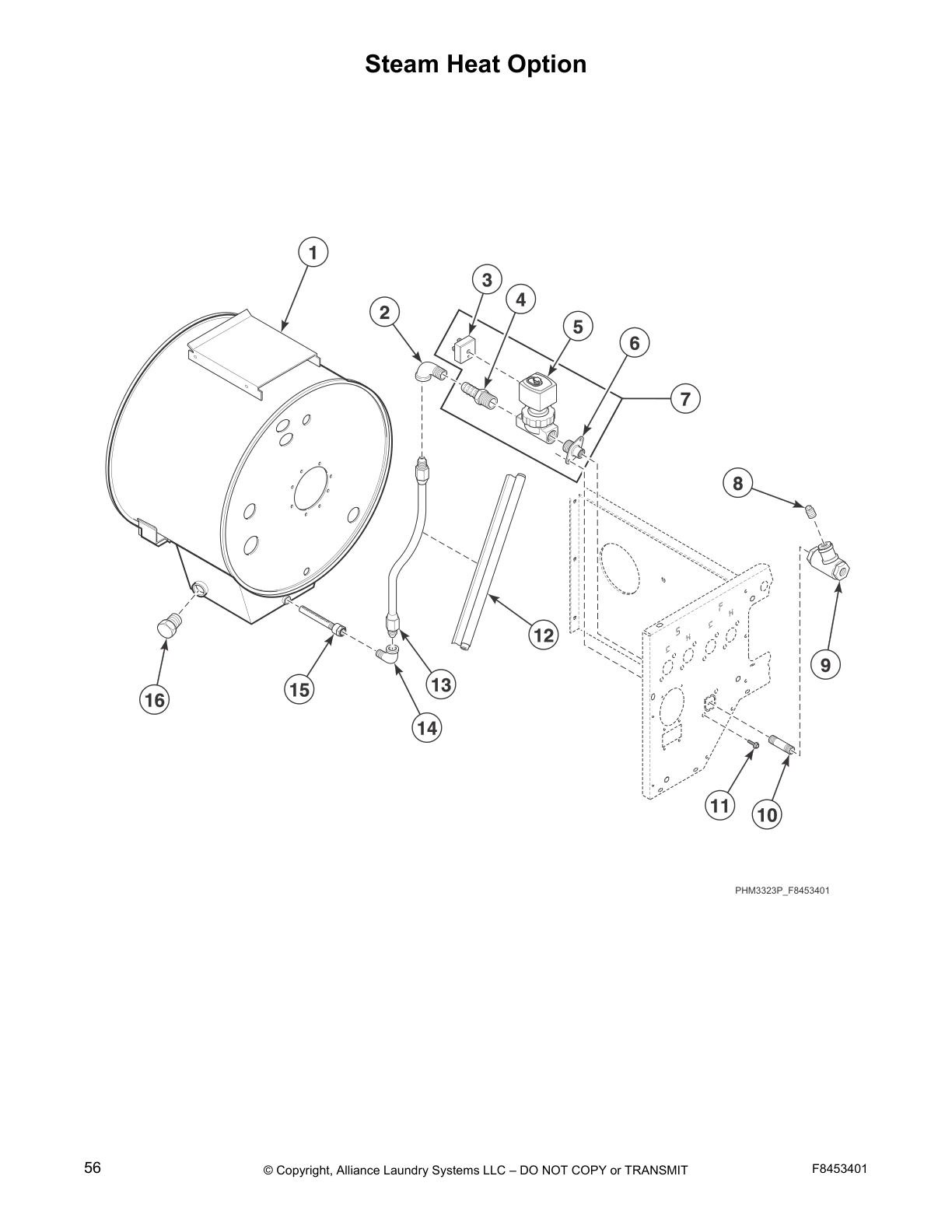

Steam Heat Option

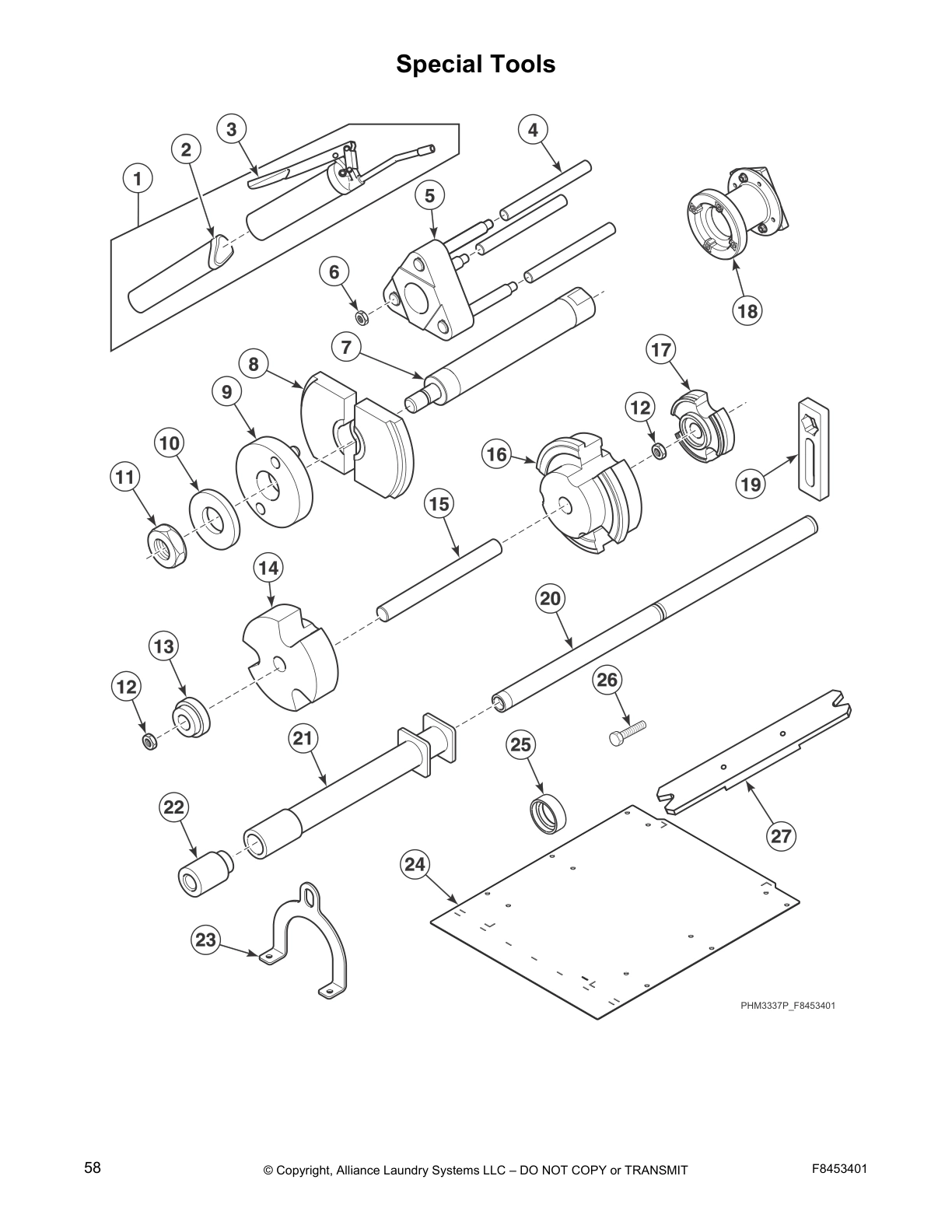

Special Tools
Common parts from model Alliance NWL065T4V Washer
Communication Cable SPQ F8028701 Contact Us For Availability
SPQ F8030501P SPQ F8030501P Contact Us For Availability
SPQ F8028109 SPQ F8028109 Contact Us For Availability
Ground Decal SPQ F8454401 Contact Us For Availability
Logic Supply Power Harness SPQ F230739 Contact Us For Availability
Electric Heat Harness SPQ F8060301 Contact Us For Availability
SPQ F8054903 SPQ F8054903 Contact Us For Availability
SPQ F8054603 SPQ F8054603 Contact Us For Availability
SPQ 20253 SPQ 20253 Contact Us For Availability
SPQ F8438901 SPQ F8438901 Contact Us For Availability
SPQ F8257002 SPQ F8257002 Contact Us For Availability
Bearings and Seals Kit SPQ F822P3 Contact Us For Availability
SPQ F8503801 SPQ F8503801 Contact Us For Availability
SPQ F8599401 SPQ F8599401 Contact Us For Availability
UniLinc PC and PDA Software CD SPQ F923P3 Contact Us For Availability
USB IR Interface Kit SPQ F8133301 Contact Us For Availability
1
Module Box Assembly SPQ F8410409P Contact Us For Availability
1
Do Not Tamper Label SPQ F8345901 Contact Us For Availability
1
Left Side Panel SPQ F8407904 Contact Us For Availability
1
Top Left Cover SPQ F8374002 Contact Us For Availability
1
Spray Rinse Assembly Kit SPQ F8510701 Contact Us For Availability
1
Door Handle SPQ F8435501 Contact Us For Availability
1
Door Lock Cover SPQ F8435801 Contact Us For Availability
1
Shell Band SPQ F8388005 Contact Us For Availability
1
Shell Assembly SPQ F8279202 Contact Us For Availability
1
Shell Assembly SPQ F8511502 Contact Us For Availability
1
Hose SPQ F8232006 Contact Us For Availability
1
Grommet SPQ F8410501 Contact Us For Availability
1
Grease Instruction Label SPQ F8422801 Contact Us For Availability
1
Seal SPQ F8379301 Contact Us For Availability
1
Grease Gun Kit SPQ F798700 Contact Us For Availability
2
Screw SPQ F8206901 Contact Us For Availability
2
Muffin Fan SPQ F8153901 Contact Us For Availability
2
Circuit Breaker SPQ F110110 Contact Us For Availability
2
SPQ 70030401 SPQ 70030401 Contact Us For Availability
2
Spray Rinse Bracket SPQ F8451101 Contact Us For Availability
2
Washer SPQ F431916 Contact Us For Availability
2
Bolt SPQ F8270701 Contact Us For Availability
2
Manifold SPQ F200185 Contact Us For Availability
2
Hose Barb SPQ F8578002 Contact Us For Availability
2
Motor Pulley SPQ F190701 Contact Us For Availability
2
Screw SPQ F8313701 Contact Us For Availability
2
Heating Element SPQ F360203P Contact Us For Availability
2
DIN Valve Adapter Kit SPQ F422304 Contact Us For Availability
2
Frame Template SPQ F210206P Contact Us For Availability
3
Water Pressure Switch SPQ F8246601 Contact Us For Availability
3
EMI Filter Power Harness SPQ F827P3 Contact Us For Availability
3
Vibration Switch Shield SPQ F8337301 Contact Us For Availability
3
Nut SPQ M412763 Contact Us For Availability
3
Expansion Clip SPQ F8535303 Contact Us For Availability
3
Spray Rinse Strap SPQ F8451701 Contact Us For Availability
3
Expansion Clip SPQ F8435701 Contact Us For Availability
3
Solenoid SPQ F8630601 Contact Us For Availability
3
Pin SPQ F8302701 Contact Us For Availability
3
SPQ F8442702 SPQ F8442702 Contact Us For Availability
3
Hose Clamp SPQ F8126601 Contact Us For Availability
3
Hose Barb SPQ F8110701 Contact Us For Availability
3
Cable Tie SPQ F8517801 Contact Us For Availability
3
Electric Heat Harness SPQ F8056701 Contact Us For Availability
3
Hose Barb SPQ F8382301 Contact Us For Availability
3
Basket Puller Tool SPQ F210207P Contact Us For Availability
4
Grommet SPQ 802492 Contact Us For Availability
4
Terminal Block Shield SPQ F8129001 Contact Us For Availability
4
Pop Rivet SPQ F8030002P Contact Us For Availability
4
Door Lock Microswitch SPQ F430225 Contact Us For Availability
4
Top Cover SPQ F8535301 Contact Us For Availability
4
Door Latch Arm Assembly SPQ F8406201 Contact Us For Availability
4
Shell Band Gasket SPQ 70391101 Contact Us For Availability
4
SPQ H88213996 SPQ H88213996 Contact Us For Availability
4
Cap SPQ F8428901 Contact Us For Availability
4
Valve SPQ F8322803P Contact Us For Availability
4
Overflow Hose SPQ F8402301 Contact Us For Availability
4
SPQ F8366601 SPQ F8366601 Contact Us For Availability
4
Dowel Pin SPQ F8375401 Contact Us For Availability
4
Heating Element Plug SPQ F360202 Contact Us For Availability
4
Valve SPQ F421930 Contact Us For Availability
5
Spacer SPQ F200203200 Contact Us For Availability
5
Transformer
Machine control voltage SPQ F8404401 Contact Us For Availability
5
Terminal Block SPQ F8322401 Contact Us For Availability
5
Contactor SPQ F8030001 Contact Us For Availability
5
Washer SPQ F8412802 Contact Us For Availability
5
Drive Box Partition SPQ F8530402 Contact Us For Availability
5
Spray Rinse Tube Assembly SPQ F8332301 Contact Us For Availability
5
Shell Front Assembly SPQ F8502305 Contact Us For Availability
5
Coupling SPQ F8362702 Contact Us For Availability
5
Molded Drain SPQ F8531401 Contact Us For Availability
5
SPQ F422114 SPQ F422114 Contact Us For Availability
5
Connector SPQ F8406502 Contact Us For Availability
5
Coupling SPQ F8322801P Contact Us For Availability
6
Jumper Configuration Assembly
240 Volt SPQ F422500 Contact Us For Availability
6
Interlock Contactor SPQ F330188P Contact Us For Availability
6
Thermistor Sensor SPQ F370609 Contact Us For Availability
6
Spray Rinse Hose SPQ F8508201 Contact Us For Availability
6
Nut SPQ F8221403 Contact Us For Availability
6
Basket Assembly Kit SPQ F8319901 Contact Us For Availability
6
Reed Switch Bracket SPQ F431901 Contact Us For Availability
6
Dual Drain Harness SPQ F200215 Contact Us For Availability
6
SPQ F8363601 SPQ F8363601 Contact Us For Availability
6
Dispenser SPQ F8331801P Contact Us For Availability
6
Steam Valve Assembly SPQ F8362701 Contact Us For Availability
6
Nipple SPQ F200222 Contact Us For Availability
6
Fill Plumbing Assembly SPQ F8288401 Contact Us For Availability
6
Nut SPQ J1408004 Contact Us For Availability
6
Reuse Kit SPQ F8459101 Contact Us For Availability
7
SPQ F431222 SPQ F431222 Contact Us For Availability
7
Jumper Harness Assembly
208 Volt SPQ F8339601 Contact Us For Availability
7
Insulator SPQ 70333001 Contact Us For Availability
7
SPQ 51783 SPQ 51783 Contact Us For Availability
7
Bulkhead Brace SPQ F8374101 Contact Us For Availability
7
Elbow SPQ F8453701 Contact Us For Availability
7
Excluder Seal SPQ F8424302P Contact Us For Availability
7
Dispenser Cap SPQ F8331801 Contact Us For Availability
7
Manifold SPQ F8333201 Contact Us For Availability
7
Drain Valve Harness SPQ F0150488-00 Contact Us For Availability
7
SPQ F8245714 SPQ F8245714 Contact Us For Availability
7
Washer SPQ F430248 Contact Us For Availability
7
Steam Filter SPQ F8288403 Contact Us For Availability
8
SPQ F8487901 SPQ F8487901 Contact Us For Availability
8
Rear Bulkhead Panel SPQ F8332801 Contact Us For Availability
8
Swivel Coupling Assembly SPQ F8504001 Contact Us For Availability
8
SPQ F8549401 SPQ F8549401 Contact Us For Availability
8
Reed Switch Assembly SPQ F8402601 Contact Us For Availability
8
Seal Sleeve SPQ F8527701 Contact Us For Availability
8
Screw SPQ F8325101 Contact Us For Availability
8
Coupling SPQ F421964 Contact Us For Availability
8
Dual Drain Kit SPQ F8351302 Contact Us For Availability
8
Seal Wear Plate SPQ F8171201 Contact Us For Availability
8
Steam Heat Kit SPQ F420409 Contact Us For Availability
9
Power Harness
All other models SPQ F8433001 Contact Us For Availability
9
Harness SPQ 430642 Contact Us For Availability
9
SPQ M411283 SPQ M411283 Contact Us For Availability
9
SPQ F8324501 SPQ F8324501 Contact Us For Availability
9
O-Ring SPQ F170200 Contact Us For Availability
9
SPQ F8066801P SPQ F8066801P Contact Us For Availability
9
Shell Front Gasket Kit SPQ F8343911 Contact Us For Availability
9
SPQ F8325102 SPQ F8325102 Contact Us For Availability
9
SPQ F200201 SPQ F200201 Contact Us For Availability
9
SPQ F140605 SPQ F140605 Contact Us For Availability
9
Bearing Housing Assembly SPQ F8442802 Contact Us For Availability
10
Electrical Access Cover SPQ F8323801 Contact Us For Availability
10
Ring Retainer SPQ F310206 Contact Us For Availability
10
Door Assembly
Includes items 1-9, 13, 14, 16 SPQ F8531702 Contact Us For Availability
10
Blind Rivet SPQ F8245101 Contact Us For Availability
10
Stud SPQ F8279201 Contact Us For Availability
10
Stud SPQ F8511501 Contact Us For Availability
10
Dispenser Hose SPQ F8548801 Contact Us For Availability
10
Adapter SPQ F8265701 Contact Us For Availability
10
Drain Hose SPQ F200165100 Contact Us For Availability
10
Spacer SPQ F8451601 Contact Us For Availability
10
Radial Lip Seal SPQ F8528501 Contact Us For Availability
10
Pipe Nipple SPQ 901403 Contact Us For Availability
10
Washer SPQ F8456101 Contact Us For Availability
11
Plug SPQ F8223901 Contact Us For Availability
11
Power Distribution Block Cover SPQ 44014901P Contact Us For Availability
11
Mount on Concrete Warning Label SPQ F8246401 Contact Us For Availability
11
Conversion Label SPQ F8448801 Contact Us For Availability
11
Insertion Sleeve SPQ F8464901 Contact Us For Availability
11
Washer SPQ 70334702 Contact Us For Availability
11
Hose Clamp SPQ F200213 Contact Us For Availability
11
Hose Adapter SPQ F421908 Contact Us For Availability
11
Drain Elbow Hose SPQ F8387301 Contact Us For Availability
11
Radial Seal SPQ F8203808 Contact Us For Availability
11
Screw SPQ 70321501 Contact Us For Availability
11
Nut SPQ F8455801 Contact Us For Availability
12
Nut SPQ F430231 Contact Us For Availability
12
Screw SPQ M411072 Contact Us For Availability
12
Nut SPQ F8322601 Contact Us For Availability
12
Door Lock Plate Assembly SPQ F8320401 Contact Us For Availability
12
Bearing SPQ F8280504 Contact Us For Availability
12
Sleeve Adapter SPQ F8382501 Contact Us For Availability
12
Water Hose SPQ F200166 Contact Us For Availability
12
Screw SPQ 202175 Contact Us For Availability
12
Motor Spring Bracket SPQ F8342201 Contact Us For Availability
12
Bearing Sleeve Assembly SPQ F8457701 Contact Us For Availability
13
Power Distribution Block SPQ M413865 Contact Us For Availability
13
Male Tab Terminal SPQ M400985 Contact Us For Availability
13
External Supply Connection Decal SPQ F8150201 Contact Us For Availability
13
Spray Nozzle Gasket SPQ F8322701 Contact Us For Availability
13
Shell Front Assembly
Includes F8233201 Stud, SPQ F8508501 Contact Us For Availability
13
Washer SPQ F431147 Contact Us For Availability
13
Door Lock Plate Shim SPQ F8398401 Contact Us For Availability
13
Frame Shield SPQ F8402701 Contact Us For Availability
13
Strainer SPQ F200164 Contact Us For Availability
13
Valve Support Bracket SPQ F8312901 Contact Us For Availability
13
Bolt SPQ F8402801 Contact Us For Availability
13
Shell Band Gasket SPQ F8502306 Contact Us For Availability
13
Steam Hose SPQ F200197 Contact Us For Availability
14
Right Side Panel SPQ F8407903 Contact Us For Availability
14
Chemical Connection Cover SPQ F8447901 Contact Us For Availability
14
Warning Label SPQ F8428501 Contact Us For Availability
14
Door Spray Nozzle Assembly SPQ F8356301 Contact Us For Availability
14
Door Gasket SPQ F8308001 Contact Us For Availability
14
Shim SPQ F8484401 Contact Us For Availability
14
Gasket SPQ F8353901 Contact Us For Availability
14
Washer SPQ F200193 Contact Us For Availability
14
Drain Valve Kit SPQ F8577201 Contact Us For Availability
14
Eye Bolt SPQ F8319503 Contact Us For Availability
14
Street Elbow SPQ F421703 Contact Us For Availability
15
Clip SPQ F8108501P Contact Us For Availability
15
Drive Assembly SPQ F8303601P Contact Us For Availability
15
Filter Retainer Guard SPQ F8401301 Contact Us For Availability
15
Front Panel SPQ F8408001 Contact Us For Availability
15
Plug SPQ 70180001 Contact Us For Availability
15
Door Weldment
Studded SPQ F8398301 Contact Us For Availability
15
Door Lock Catch SPQ F8344501 Contact Us For Availability
15
Shell Extension Band SPQ F8510501 Contact Us For Availability
15
Seal Wear Plate SPQ F8207001 Contact Us For Availability
15
Screw SPQ F8509401 Contact Us For Availability
15
Hose Clamp SPQ F8428701 Contact Us For Availability
15
Drain Valve Cover SPQ F200133600 Contact Us For Availability
15
Extension Spring SPQ F8440701 Contact Us For Availability
15
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
16
Drive Fan Harness SPQ F8151201 Contact Us For Availability
16
Main Power Harness SPQ F8204801P Contact Us For Availability
16
Screw SPQ F8117601 Contact Us For Availability
16
Grommet SPQ 70182601 Contact Us For Availability
16
Door Hinge Shim SPQ F8435901 Contact Us For Availability
16
Seal Wear Plate SPQ 70414101 Contact Us For Availability
16
Pipe SPQ F8340801 Contact Us For Availability
16
Plug SPQ F421510 Contact Us For Availability
17
Muffin Fan SPQ F200318900P Contact Us For Availability
17
Nut SPQ 70346501 Contact Us For Availability
17
Communication Cable SPQ F8413401 Contact Us For Availability
17
Panel Locator SPQ F170604 Contact Us For Availability
17
Label SPQ F8119401 Contact Us For Availability
17
Grommet SPQ F8457801 Contact Us For Availability
17
Hose Clamp SPQ F8480401 Contact Us For Availability
17
Tubing SPQ F200166402 Contact Us For Availability
17
Motor Isolation Kit SPQ F8387601 Contact Us For Availability
18
DIN Rail SPQ F220900 Contact Us For Availability
18
Drive Mounting Bracket SPQ F8385103 Contact Us For Availability
18
Vent Hose SPQ M405535 Contact Us For Availability
18
Dispenser Cover SPQ F8338601 Contact Us For Availability
18
Bolt SPQ F8549301 Contact Us For Availability
18
Door Lock Switch Lever SPQ F8223401 Contact Us For Availability
18
Hose Clamp SPQ F0602365-27 Contact Us For Availability
18
Grease Fitting SPQ F8441101 Contact Us For Availability
18
Bearing Grease SPQ F8530201 Contact Us For Availability
19
Tubing SPQ F8079401 Contact Us For Availability
19
Pop Rivet SPQ F8386901 Contact Us For Availability
19
Male Tab Terminal SPQ F8113901 Contact Us For Availability
19
Bushing SPQ F8378701 Contact Us For Availability
19
Washer SPQ F8193101 Contact Us For Availability
19
O-Ring SPQ F8562503 Contact Us For Availability
20
Step Down Power Harness SPQ F8134001 Contact Us For Availability
20
Rear Bulkhead Edging SPQ F8439101 Contact Us For Availability
20
Door Hinge SPQ F8436001 Contact Us For Availability
20
Torsion/Door Lock Spring SPQ F8070301 Contact Us For Availability
20
Screw SPQ F8441901 Contact Us For Availability
21
Harness SPQ 00177 Contact Us For Availability
21
Nut SPQ F430232 Contact Us For Availability
21
Top Right Cover SPQ F8374001 Contact Us For Availability
21
Washer SPQ F8362601 Contact Us For Availability
22
Contactor SPQ 70256901P Contact Us For Availability
22
Right Bulkhead Panel SPQ F8530401 Contact Us For Availability
22
Door Glass
Models with a 3 or 4 in the 8th po SPQ F8499901 Contact Us For Availability
22
Door Lock Assembly SPQ F8320501 Contact Us For Availability
22
Key SPQ M400077 Contact Us For Availability
23
Snap Bushing SPQ F8405101 Contact Us For Availability
23
Door Glass Retainer SPQ F8323401P Contact Us For Availability
23
Flanged Bushing SPQ M400013 Contact Us For Availability
24
Network Board Assembly
Network models SPQ F431210 Contact Us For Availability
24
Ground Lug Connector SPQ F8303001P Contact Us For Availability
24
Handle Mount SPQ F8323301 Contact Us For Availability
24
Belt SPQ 44079203 Contact Us For Availability
24
Screw SPQ F8413201 Contact Us For Availability
25
Front Bulkhead Panel SPQ F8286503 Contact Us For Availability
25
Magnet SPQ F431100 Contact Us For Availability
25
Basket Pulley SPQ F8649101 Contact Us For Availability
26
Left Bulkhead Panel SPQ F8286501 Contact Us For Availability
26
Motor SPQ 44048902 Contact Us For Availability
26
Clamp SPQ M400063 Contact Us For Availability
27
Air Coupling SPQ F8649401 Contact Us For Availability
27
Grease Gun SPQ F8634801 Contact Us For Availability
28
Connector SPQ F8382806 Contact Us For Availability
29
Hose SPQ F8382816 Contact Us For Availability
30
Connector SPQ F980P3 Contact Us For Availability
30
SPQ 70292801 SPQ 70292801 Contact Us For Availability
31
SPQ F8487102 SPQ F8487102 Contact Us For Availability
32
SPQ F8335201P SPQ F8335201P Contact Us For Availability
NI
SPQ F430903 SPQ F430903 Contact Us For Availability
NI
Network Wire Harness Assembly SPQ M413506 Contact Us For Availability
NI
Power Harness
Dual heat SPQ F8060401P Contact Us For Availability
NI
SPQ F8030101P SPQ F8030101P Contact Us For Availability
NI
SPQ 44088501P SPQ 44088501P Contact Us For Availability
NI
SPQ F8367801 SPQ F8367801 Contact Us For Availability
NI
SPQ F8410401P SPQ F8410401P Contact Us For Availability
NI
SPQ F8410405P SPQ F8410405P Contact Us For Availability
NI
Filter SPQ M413862 Contact Us For Availability
NI
Use Copper Conductors Only Caution Label SPQ F8454601 Contact Us For Availability
NI
Motor Harness SPQ F8242201 Contact Us For Availability
NI
Electric Heat Coils Harness SPQ F8385001 Contact Us For Availability
NI
SPQ F8060001 SPQ F8060001 Contact Us For Availability
NI
SPQ F8054901 SPQ F8054901 Contact Us For Availability
NI
SPQ F8054602 SPQ F8054602 Contact Us For Availability
NI
SPQ F8054601 SPQ F8054601 Contact Us For Availability
NI
SPQ F8134101 SPQ F8134101 Contact Us For Availability
NI
SPQ F330186P SPQ F330186P Contact Us For Availability
NI
Temperature Harness SPQ F8028230 Contact Us For Availability
NI
SPQ F8028221P SPQ F8028221P Contact Us For Availability
NI
SPQ F8439001 SPQ F8439001 Contact Us For Availability
NI
SPQ F8513501 SPQ F8513501 Contact Us For Availability
NI
Bearing Housing Kit SPQ F8550101 Contact Us For Availability
NI
SPQ F8452701 SPQ F8452701 Contact Us For Availability
NI
SPQ F8351601 SPQ F8351601 Contact Us For Availability
NI
Fill/Supply Harness SPQ F421921 Contact Us For Availability
NI
Fill Valve Harness SPQ F422208 Contact Us For Availability
NI
SPQ F8347501 SPQ F8347501 Contact Us For Availability
NI
Fill Valve Harness SPQ F8347101 Contact Us For Availability
NI
Fill/Supply Harness SPQ F8347401 Contact Us For Availability
NI
SPQ F8261303 SPQ F8261303 Contact Us For Availability
NI
SPQ F8257101 SPQ F8257101 Contact Us For Availability
NI
SPQ F8257001P SPQ F8257001P Contact Us For Availability
NI
SPQ F8564201 SPQ F8564201 Contact Us For Availability
NI
SPQ F8333301 SPQ F8333301 Contact Us For Availability
NI
Bearing Seal Insertion and Remo Kit SPQ F8474602 Contact Us For Availability
NI
SPQ F8503701 SPQ F8503701 Contact Us For Availability
NI
Standoff SPQ F8515401 Contact Us For Availability
NI
SPQ F8054702 SPQ F8054702 Contact Us For Availability
NI
SPQ F8054701P SPQ F8054701P Contact Us For Availability
NI
Valve Kit SPQ F943P3 Contact Us For Availability
NI
SPQ F8394501 SPQ F8394501 Contact Us For Availability
NI
SPQ F8379501P SPQ F8379501P Contact Us For Availability
NI
Wet-Clean Kit SPQ F460129P Contact Us For Availability
NI
UniLinc PC and PDA Software CD SPQ F924P3 Contact Us For Availability
NI
Bearing Seal Insertion and Removal Kit SPQ F8133701 Contact Us For Availability
NI
Concrete Hardware Kit SPQ F8599401-1 Contact Us For Availability
NI
SPQ 203346 SPQ 203346 Contact Us For Availability
NI
SPQ 1112P SPQ 1112P Contact Us For Availability
× ![]()
