Model Alliance NE4313 Dryer – Common Parts & Diagrams

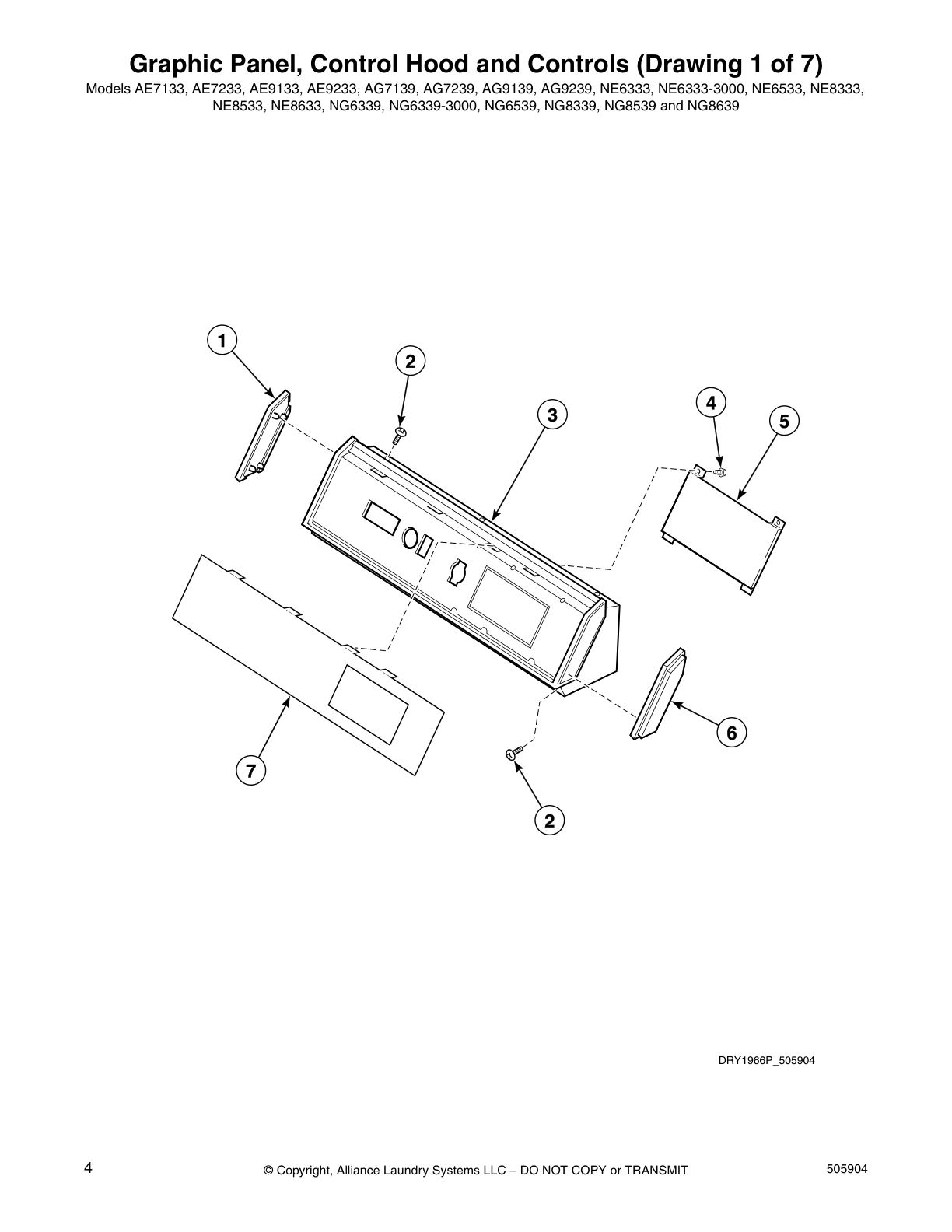

Graphic Panel, Control Hood and Controls (Drawing 1 of 7)

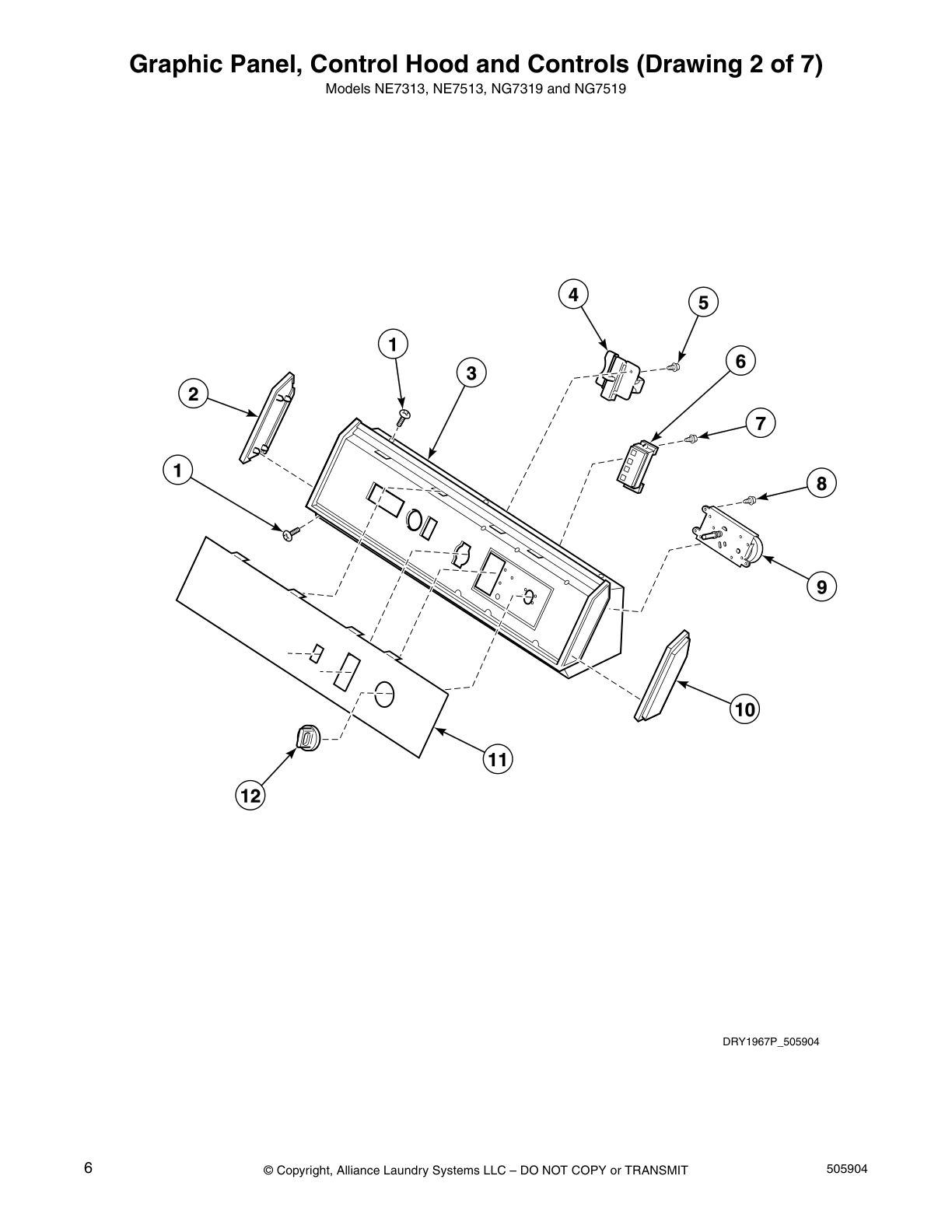

Graphic Panel, Control Hood and Controls (Drawing 2 of 7)

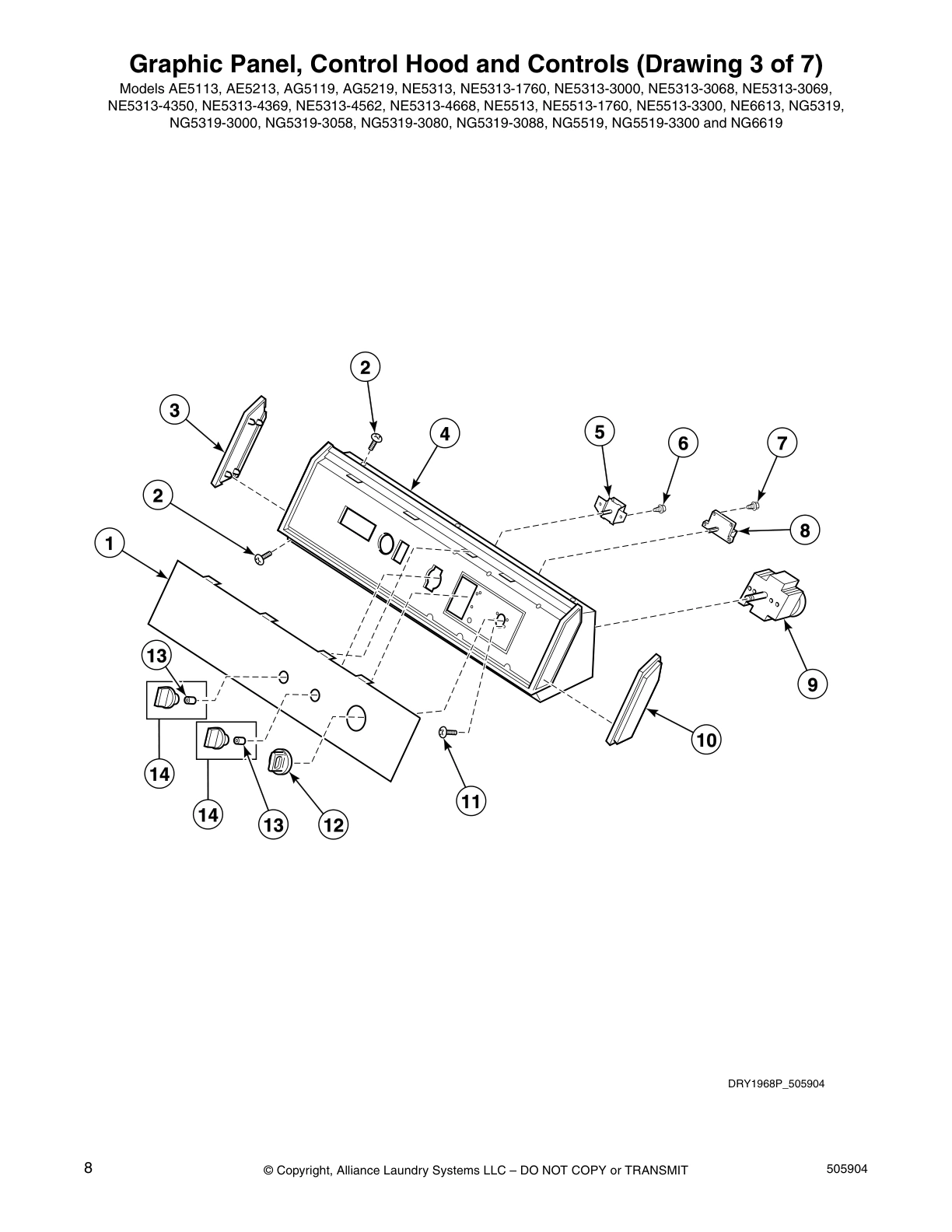

Graphic Panel, Control Hood and Controls (Drawing 3 of 7)

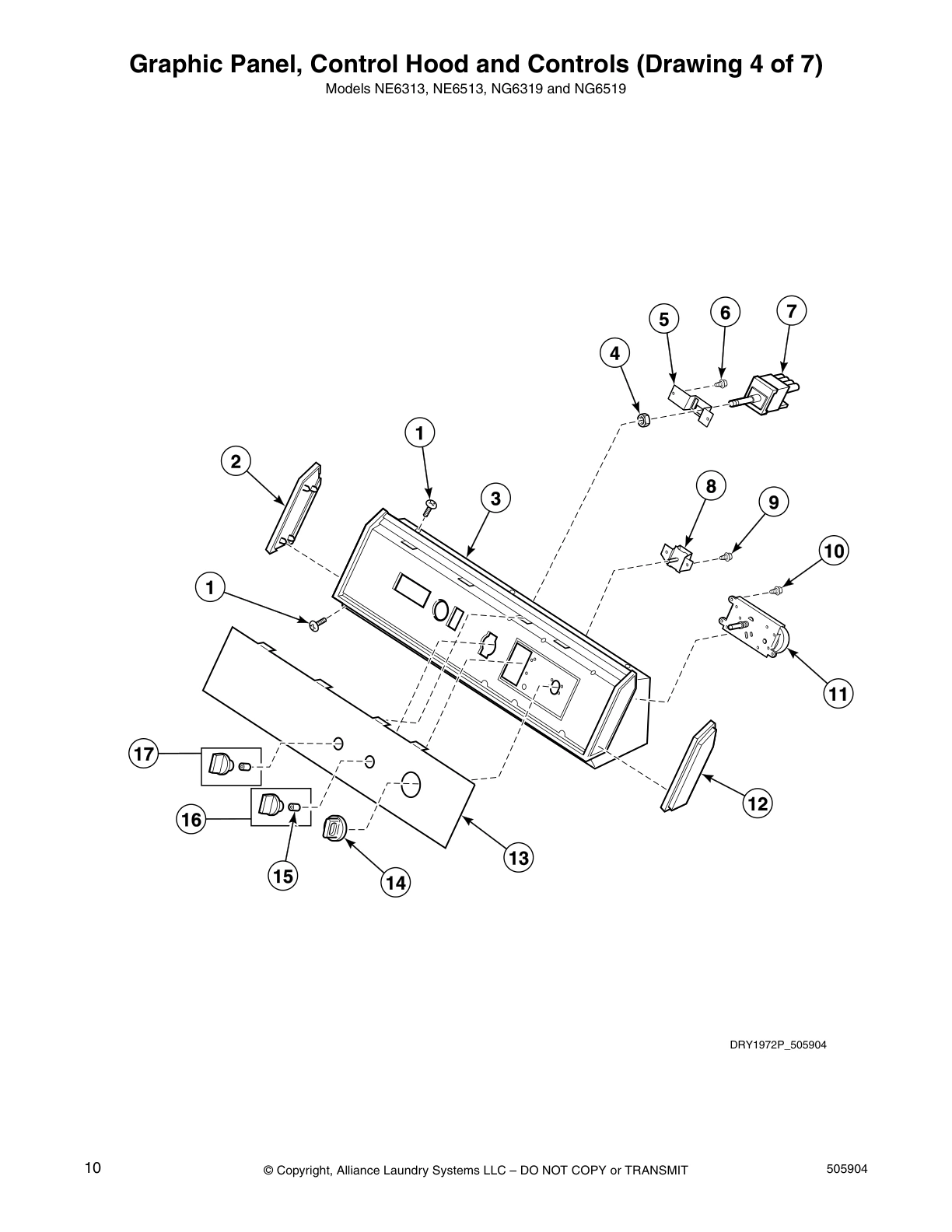

Graphic Panel, Control Hood and Controls (Drawing 4 of 7)

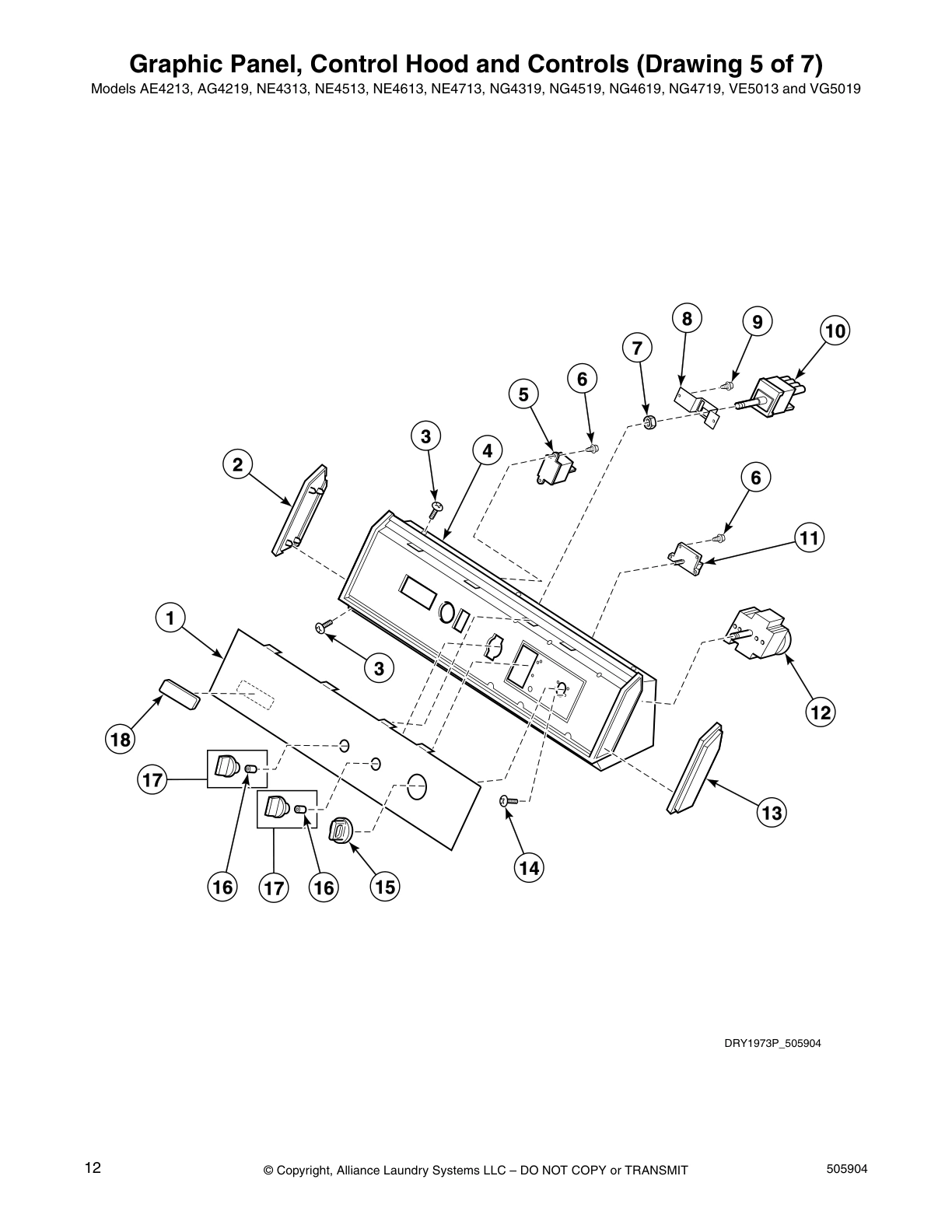

Graphic Panel, Control Hood and Controls (Drawing 5 of 7)

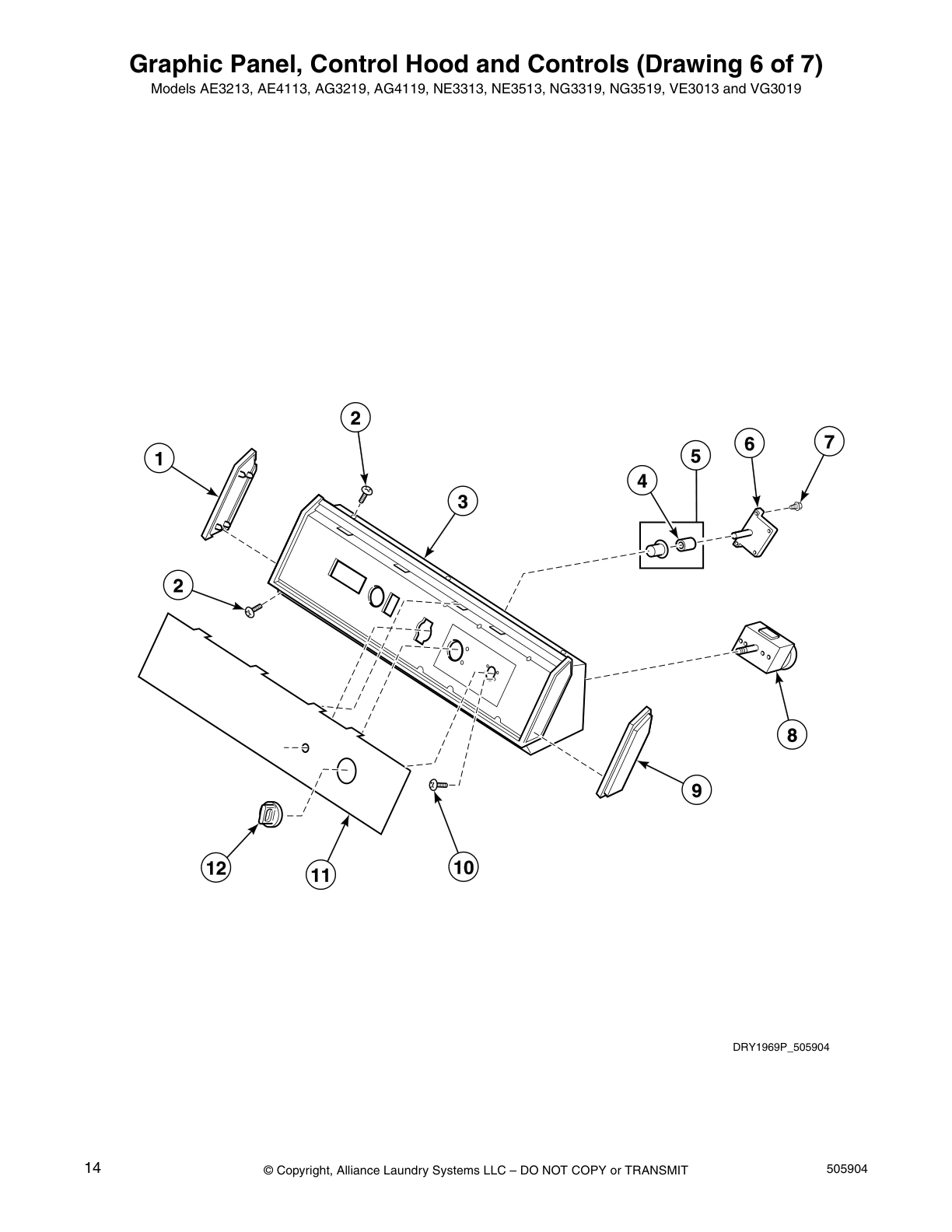

Graphic Panel, Control Hood and Controls (Drawing 6 of 7)

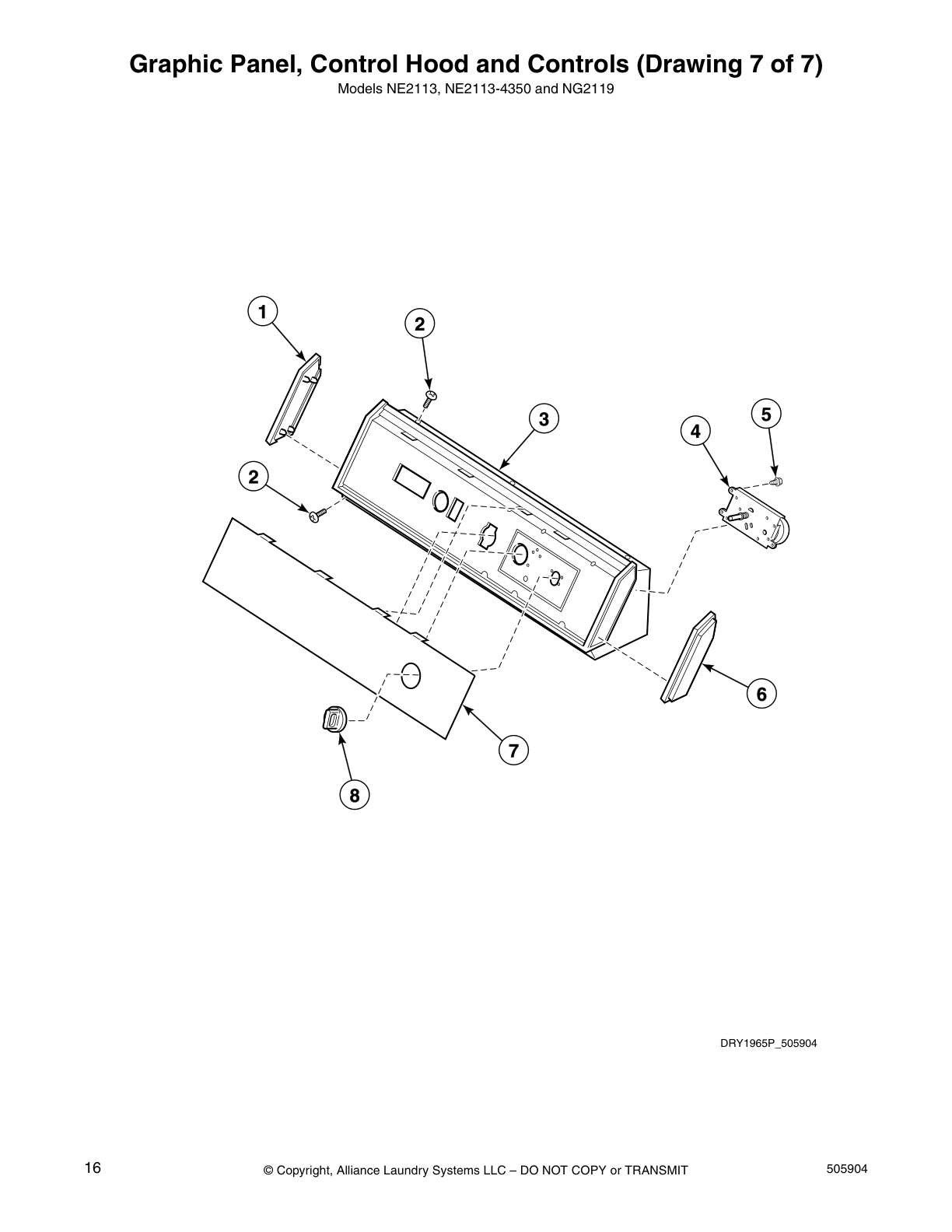

Graphic Panel, Control Hood and Controls (Drawing 7 of 7)

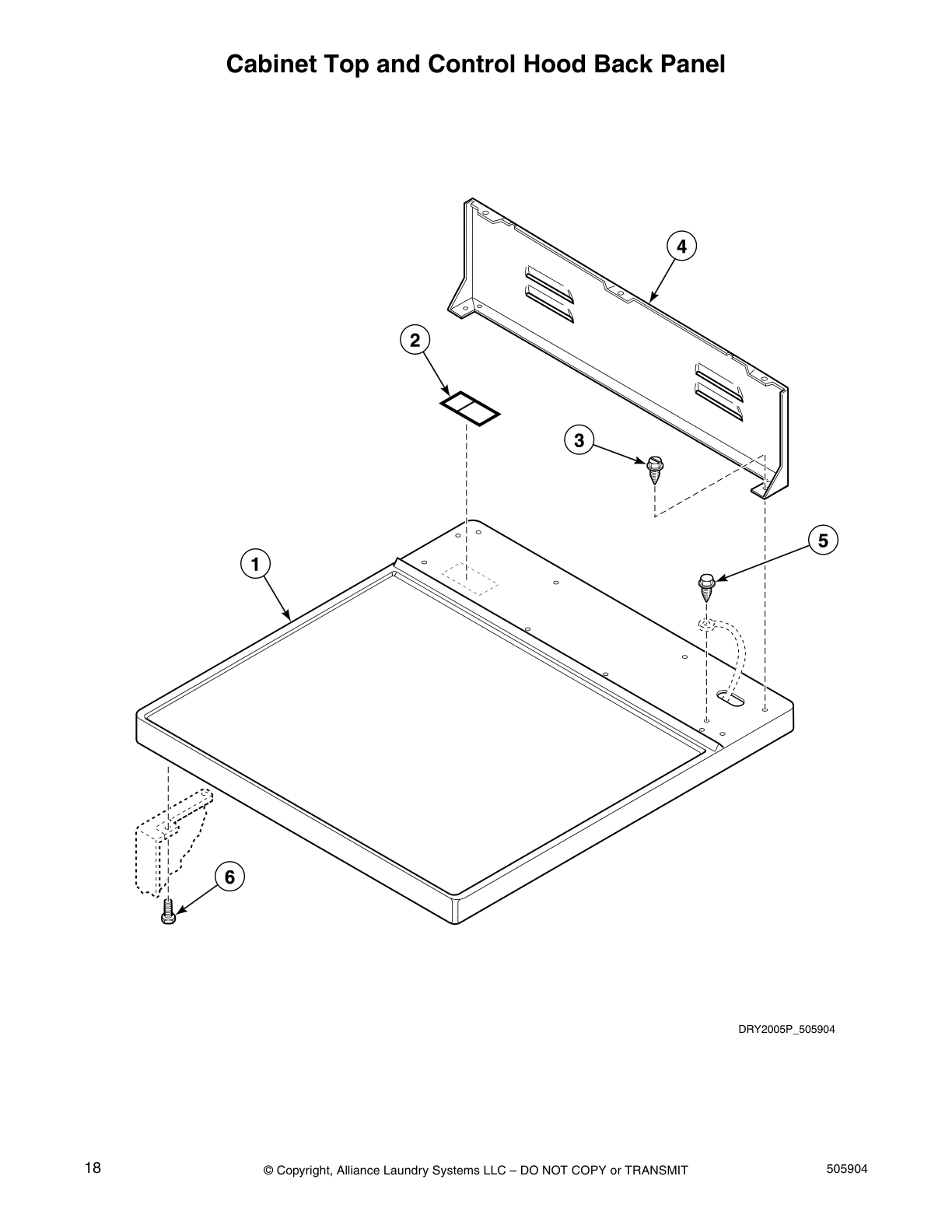

Cabinet Top and Control Hood Back Panel

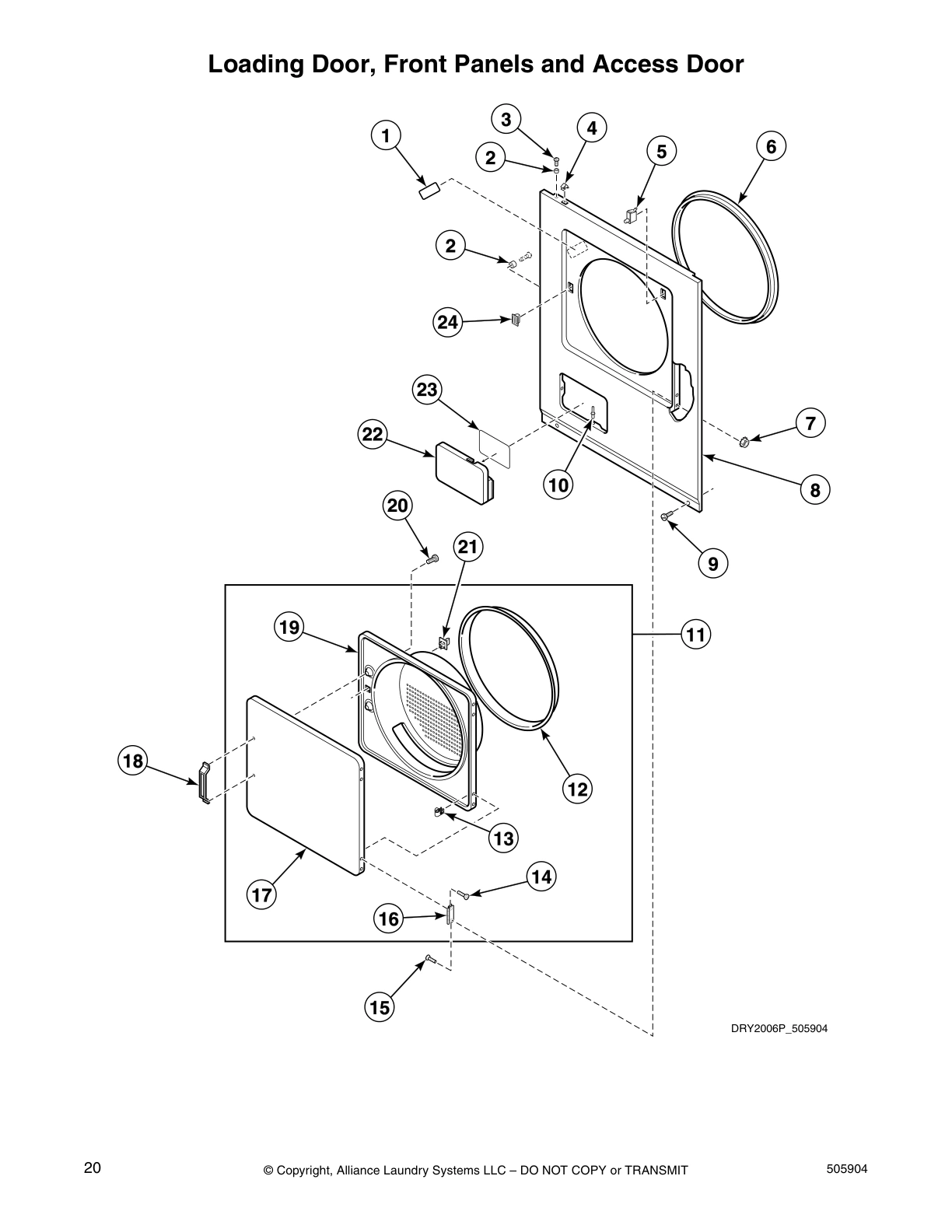

Loading Door, Front Panels and Access Door

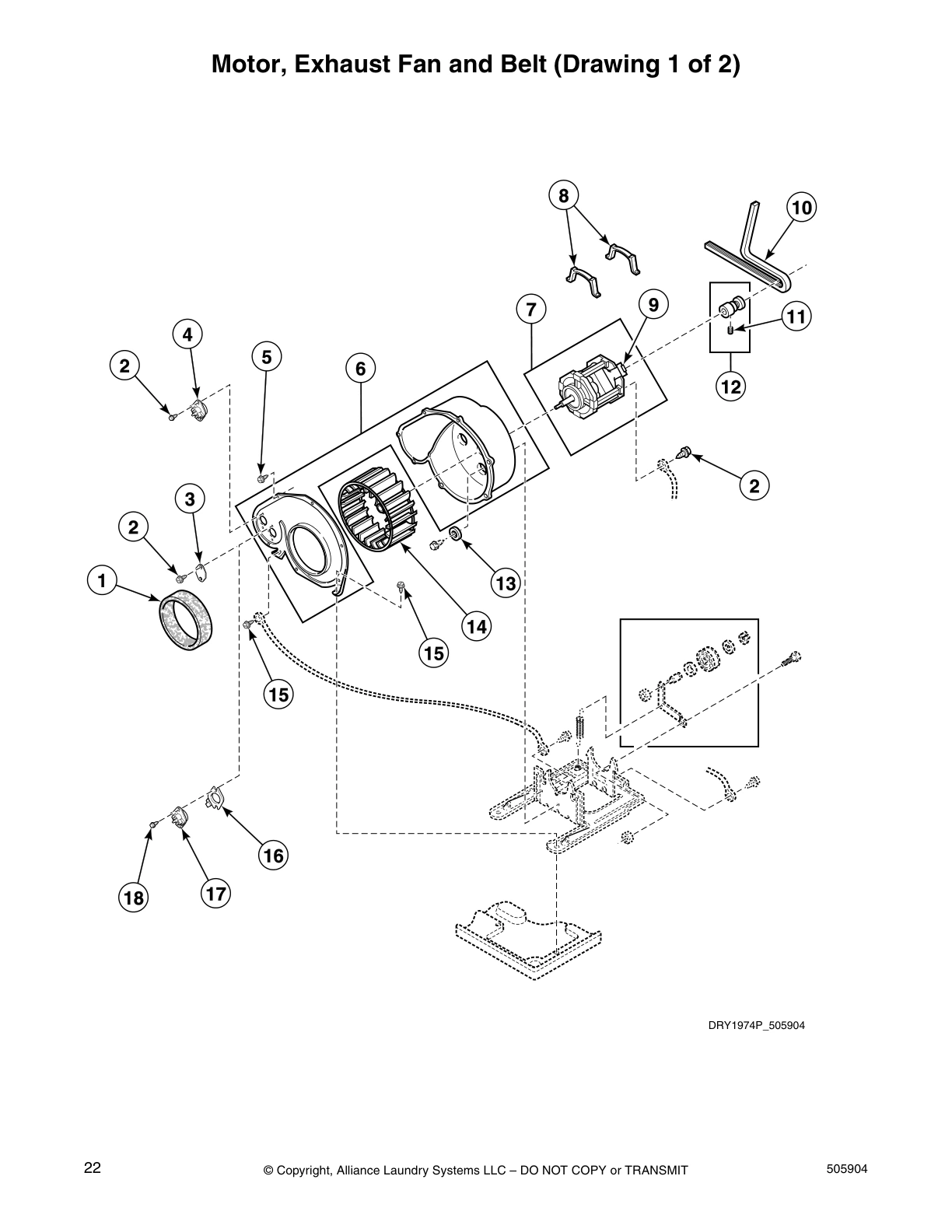

Motor, Exhaust Fan and Belt (Drawing 1 of 2)

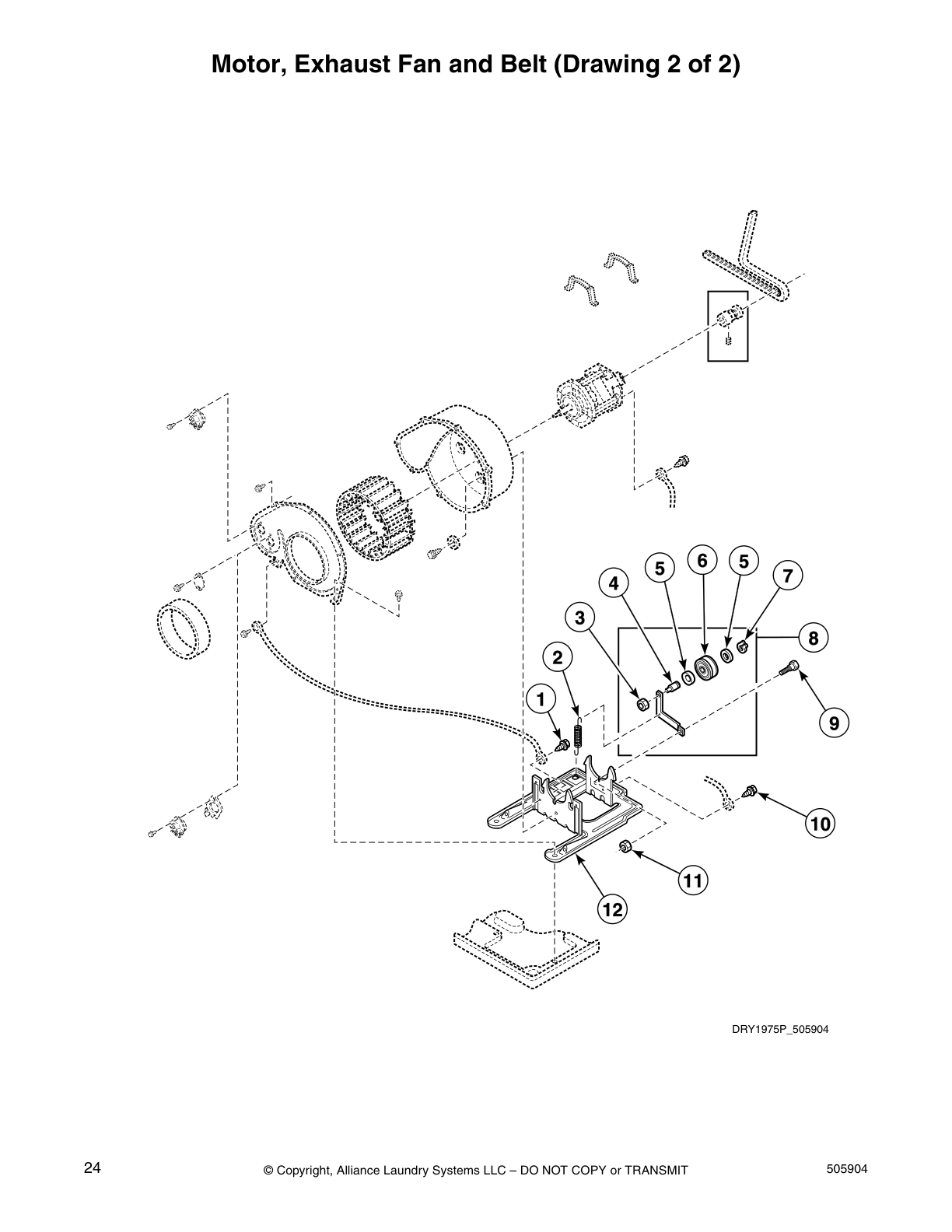

Motor, Exhaust Fan and Belt (Drawing 2 of 2)

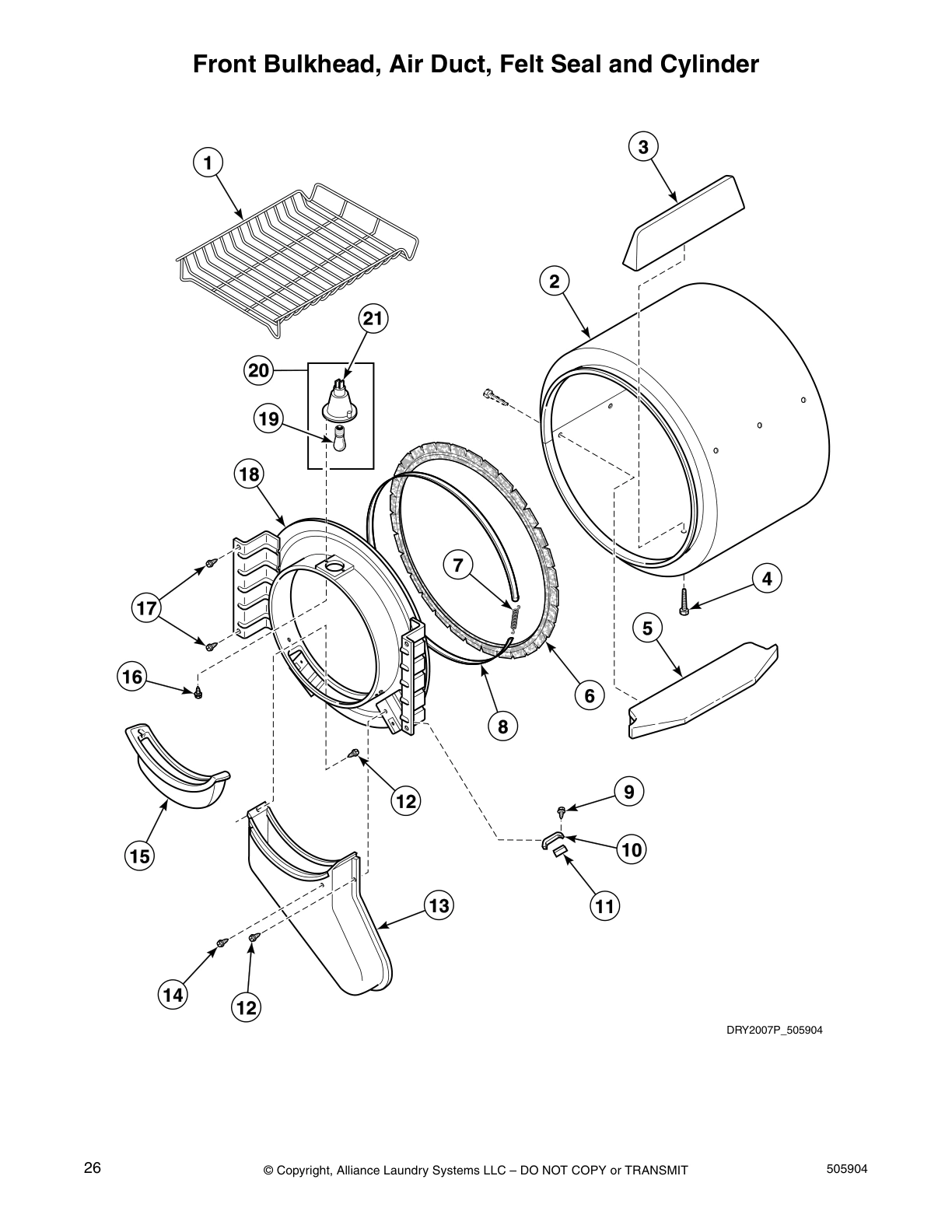

Front Bulkhead, Air Duct, Felt Seal and Cylinder

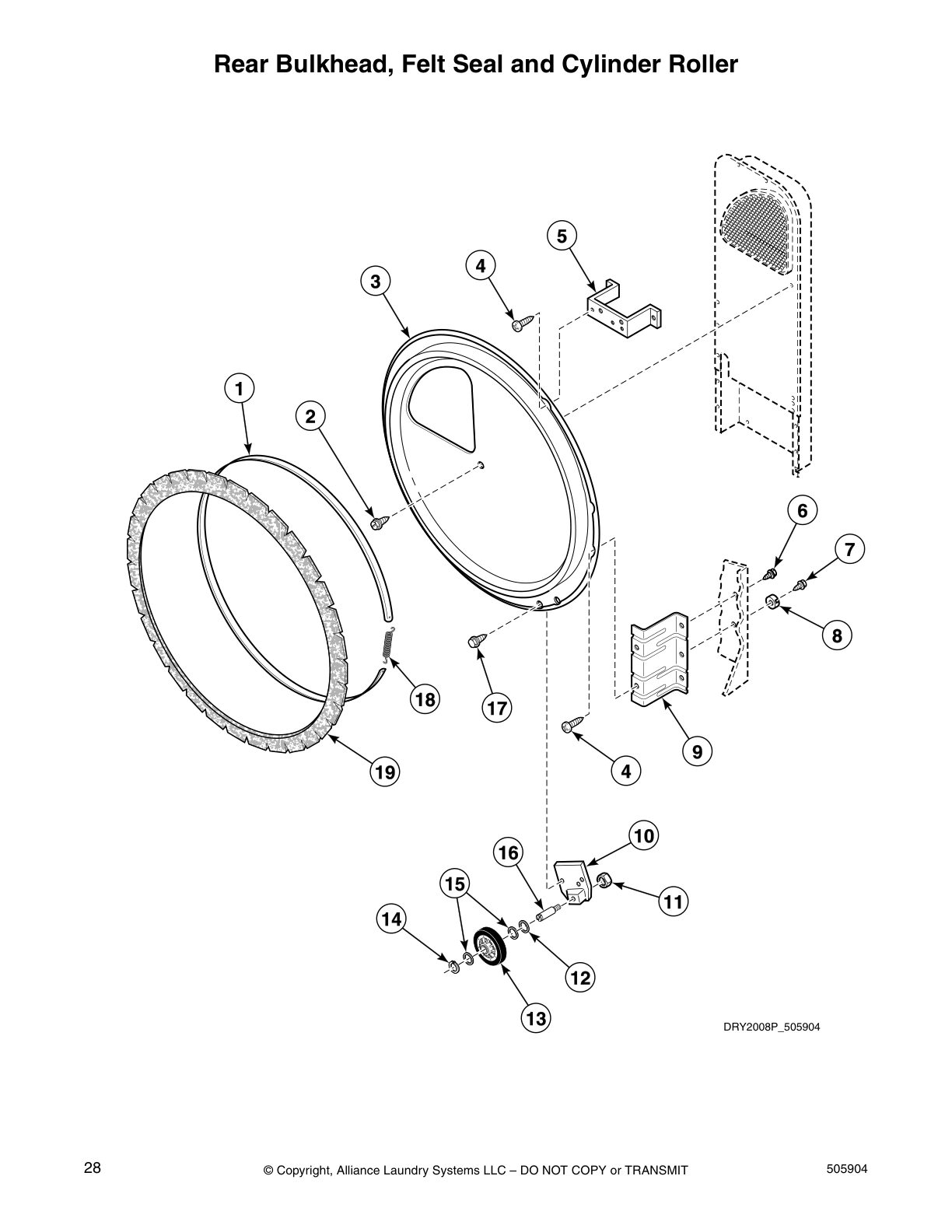

Rear Bulkhead, Felt Seal and Cylinder Roller

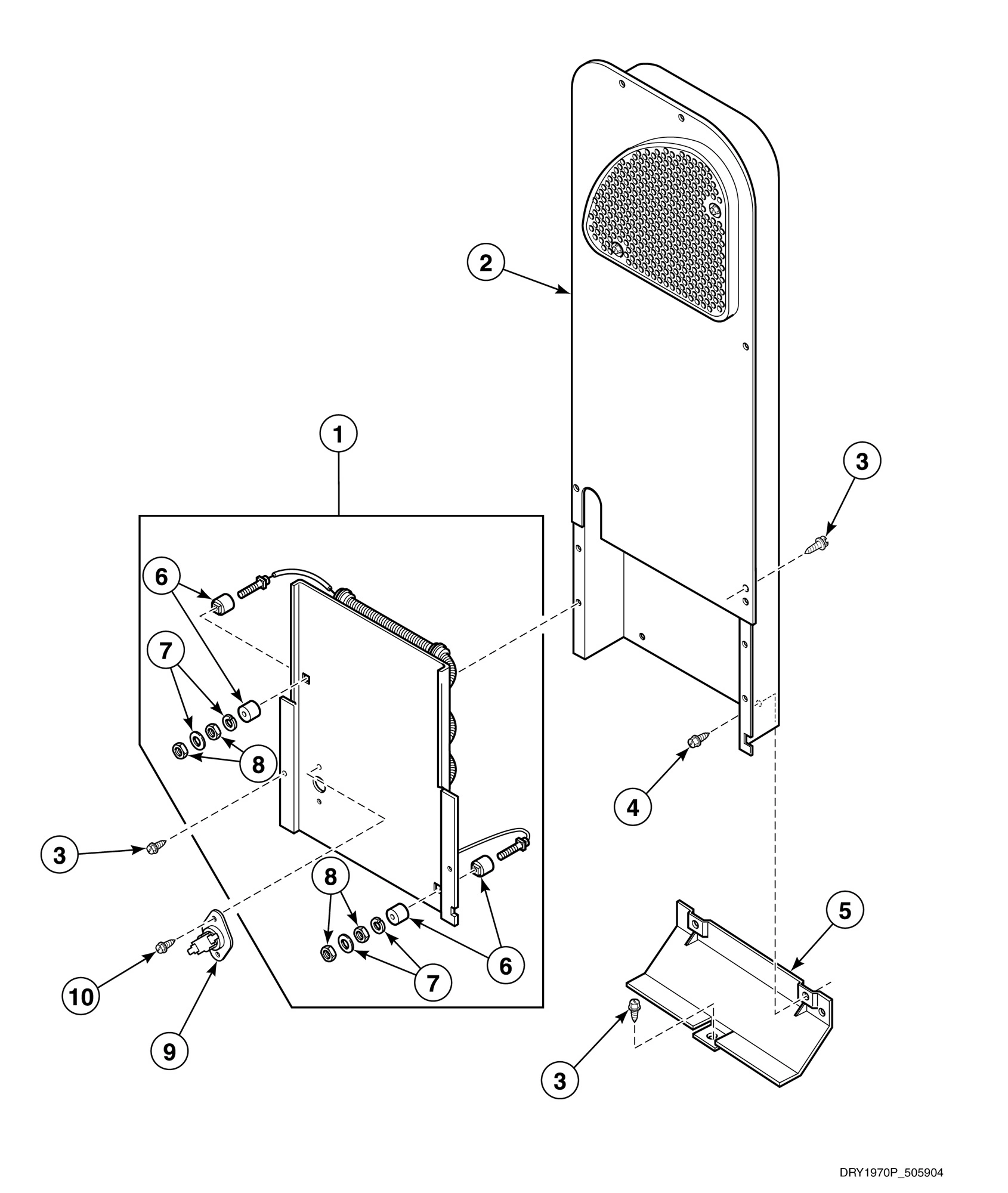

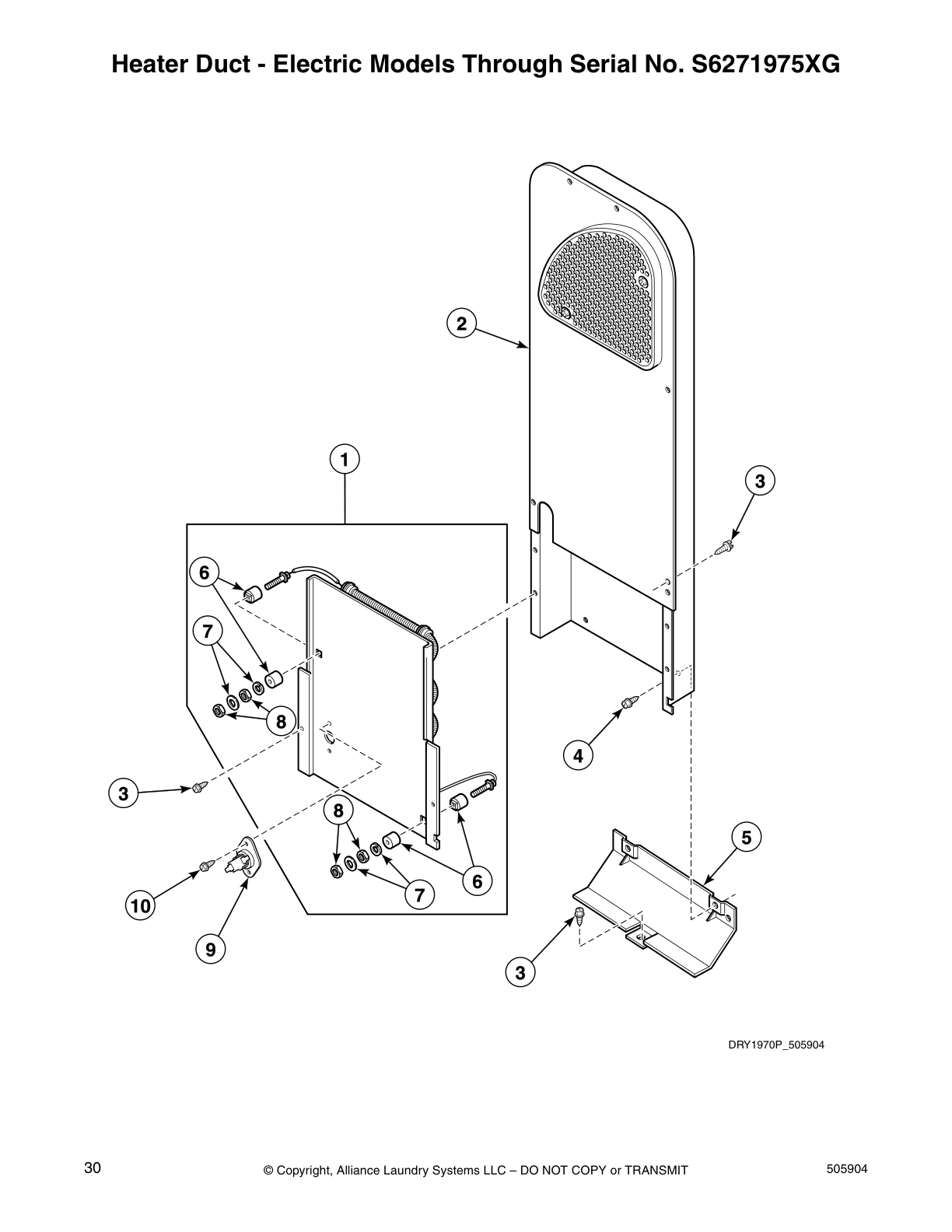

Heater Duct - Electric Models Through Serial No. S6271975XG

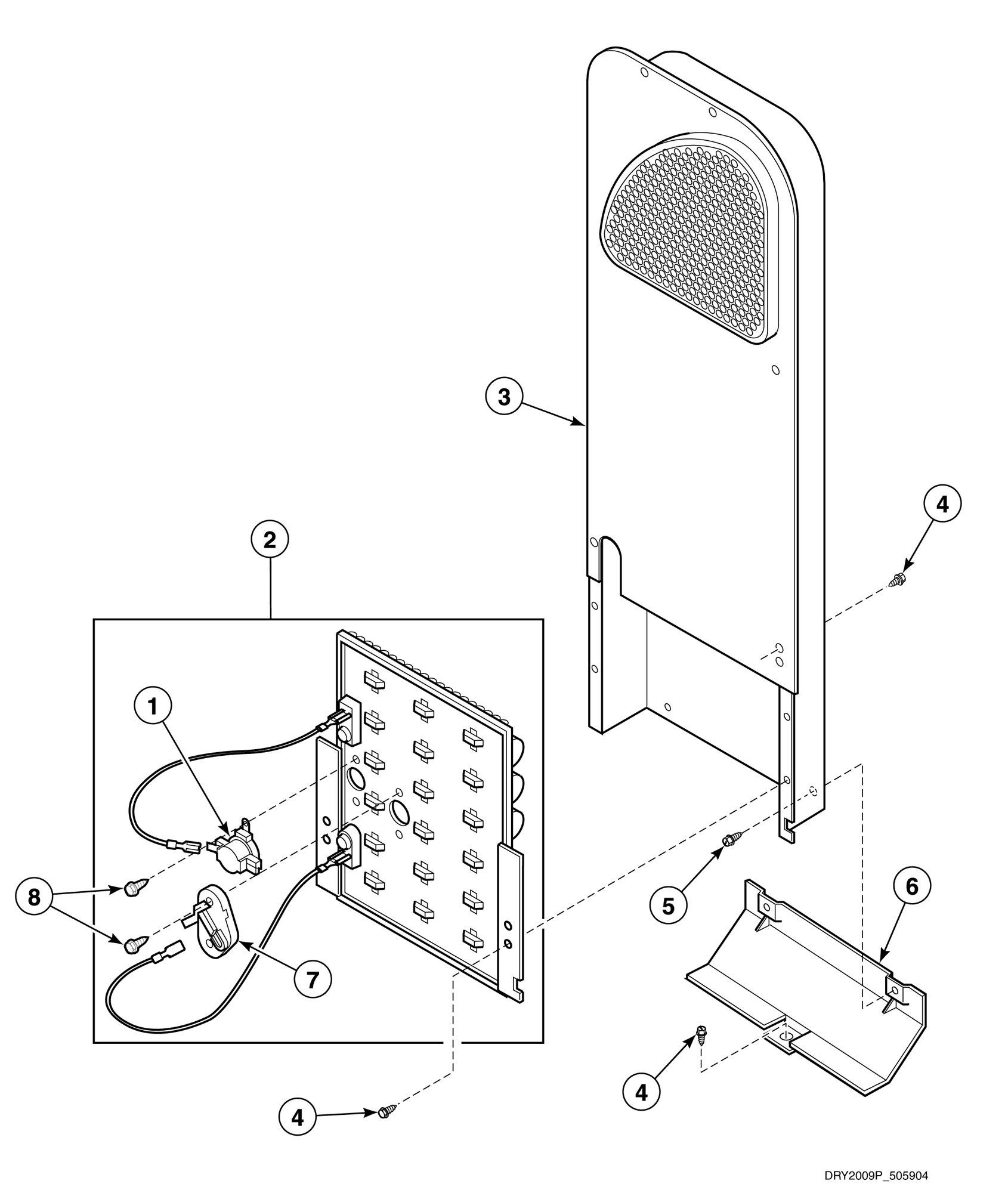

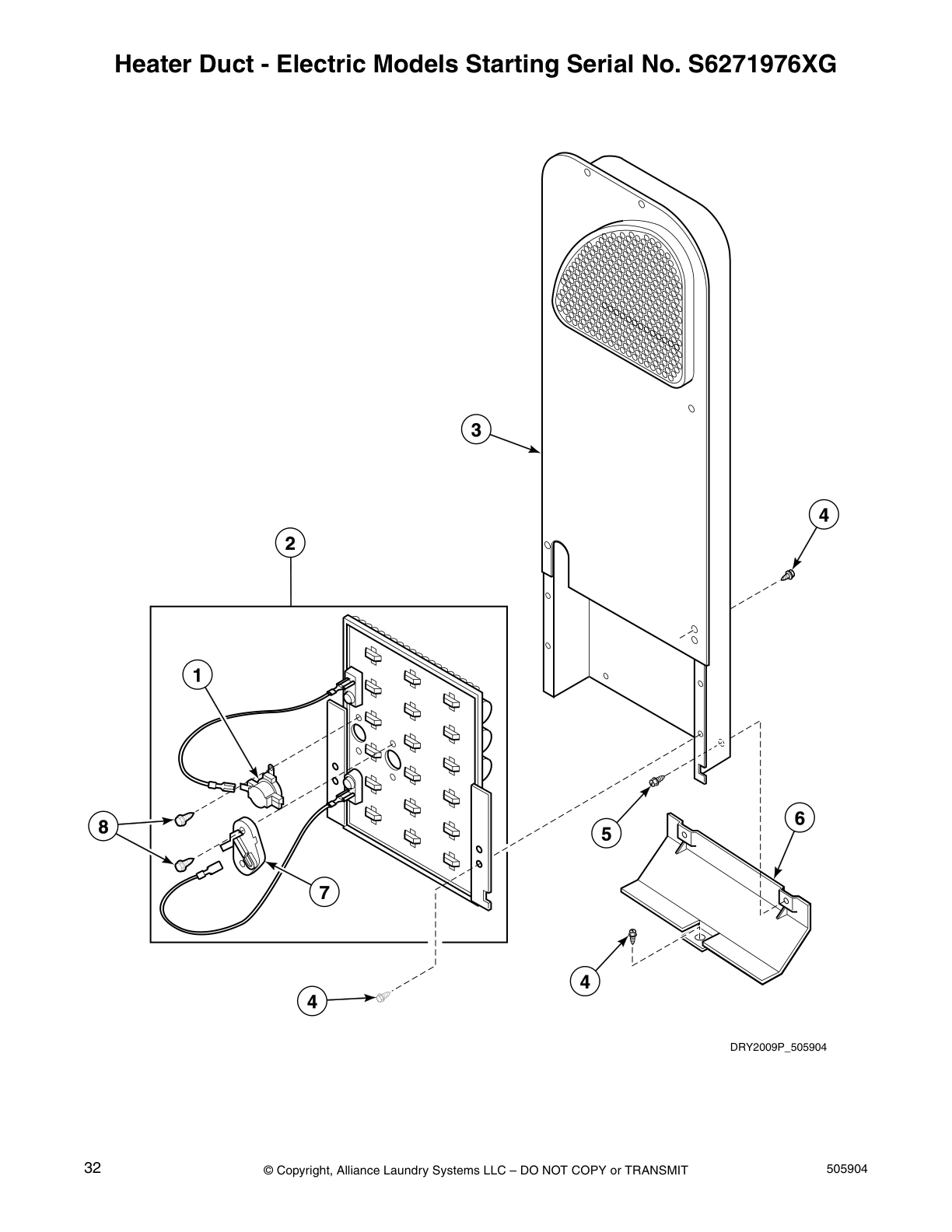

Heater Duct - Electric Models Starting Serial No. S6271976XG

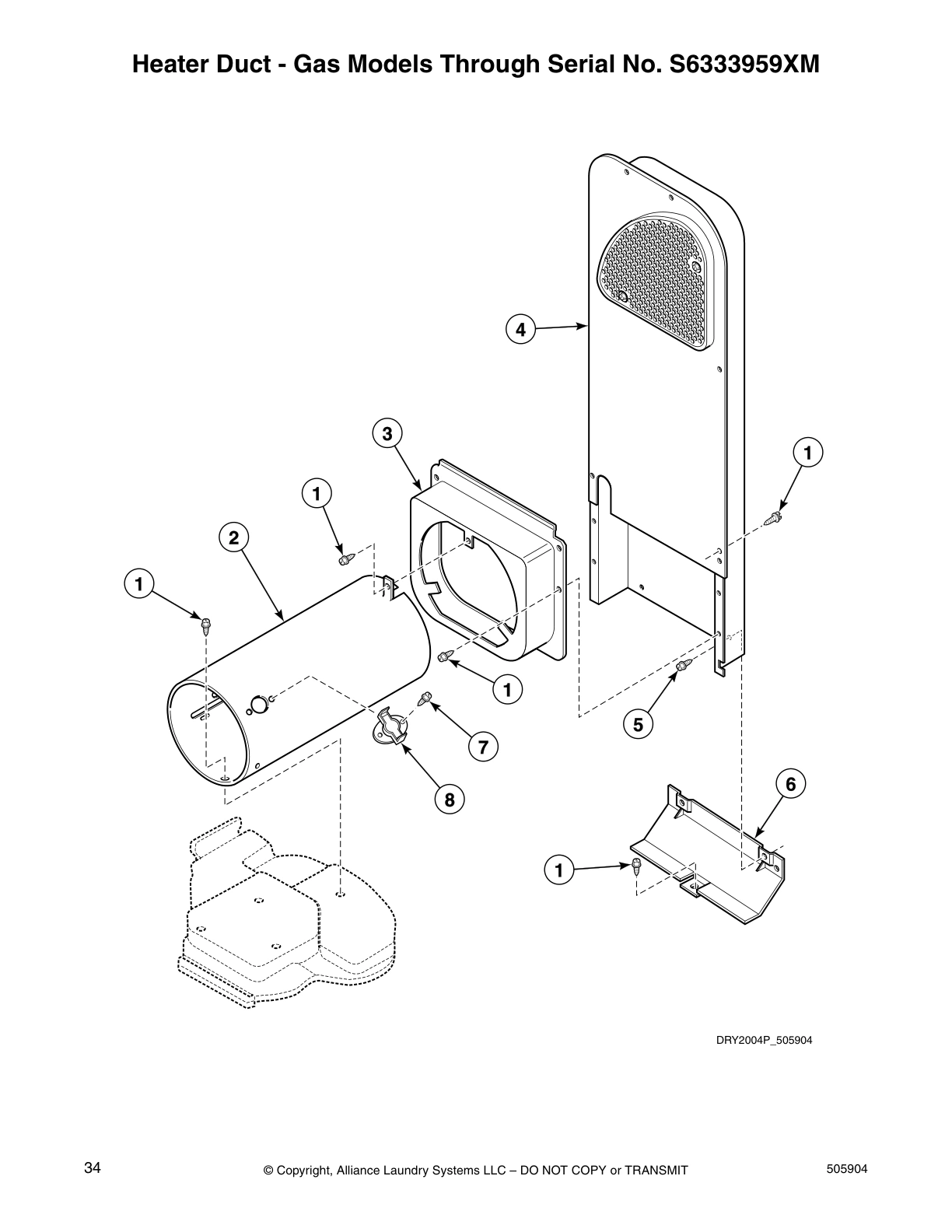

Heater Duct - Gas Models Through Serial No. S6333959XM

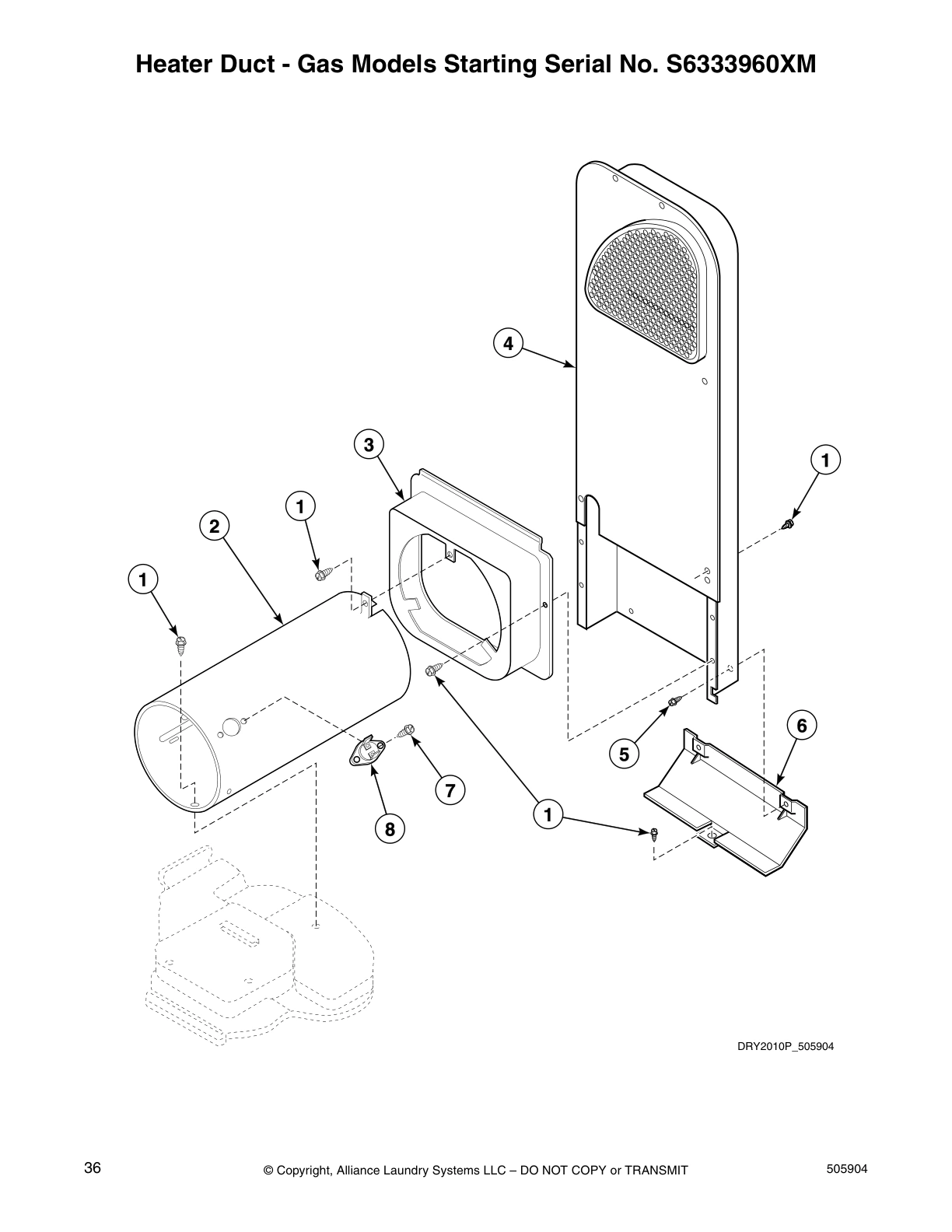

Heater Duct - Gas Models Starting Serial No. S6333960XM

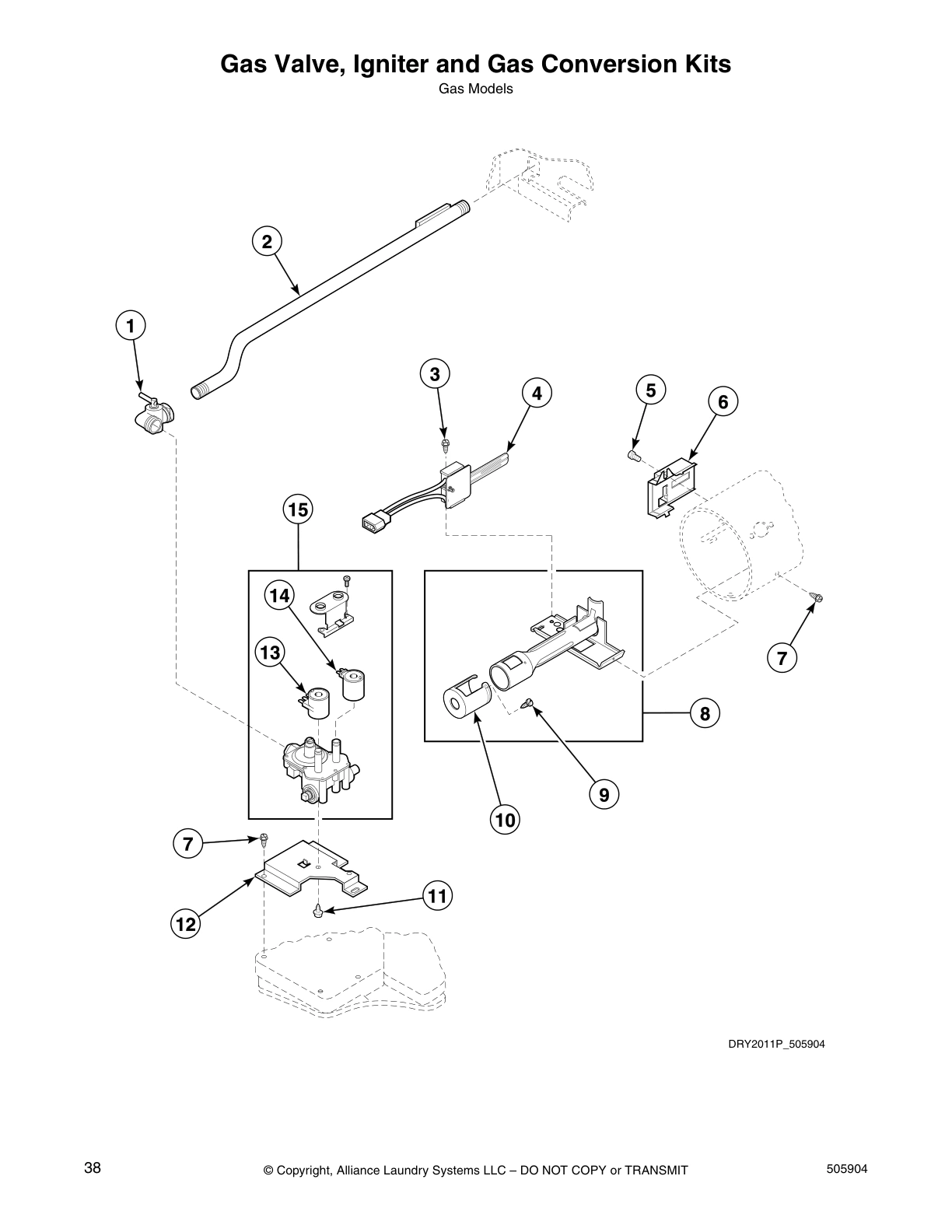

Gas Valve, Igniter and Gas Conversion Kits

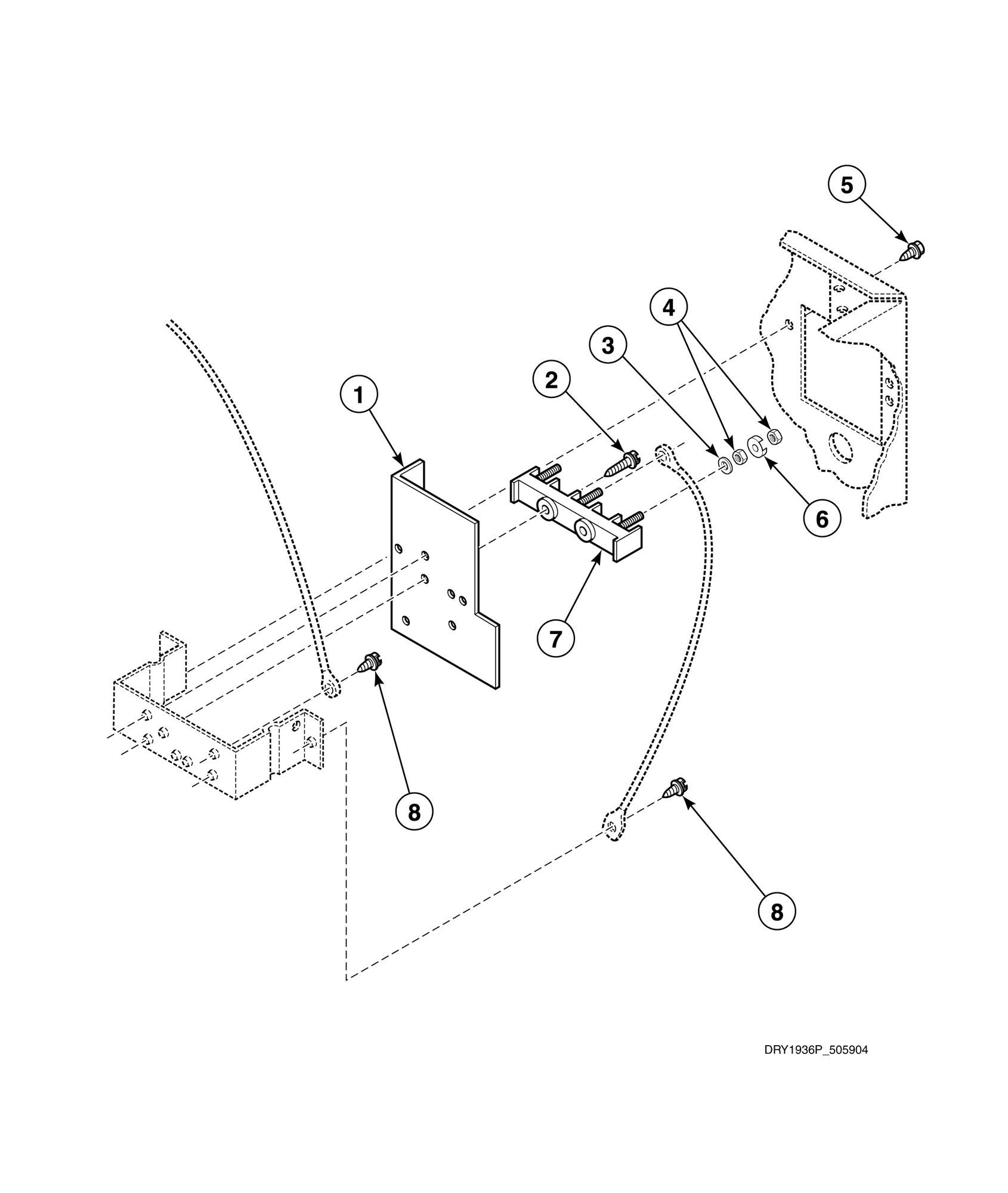

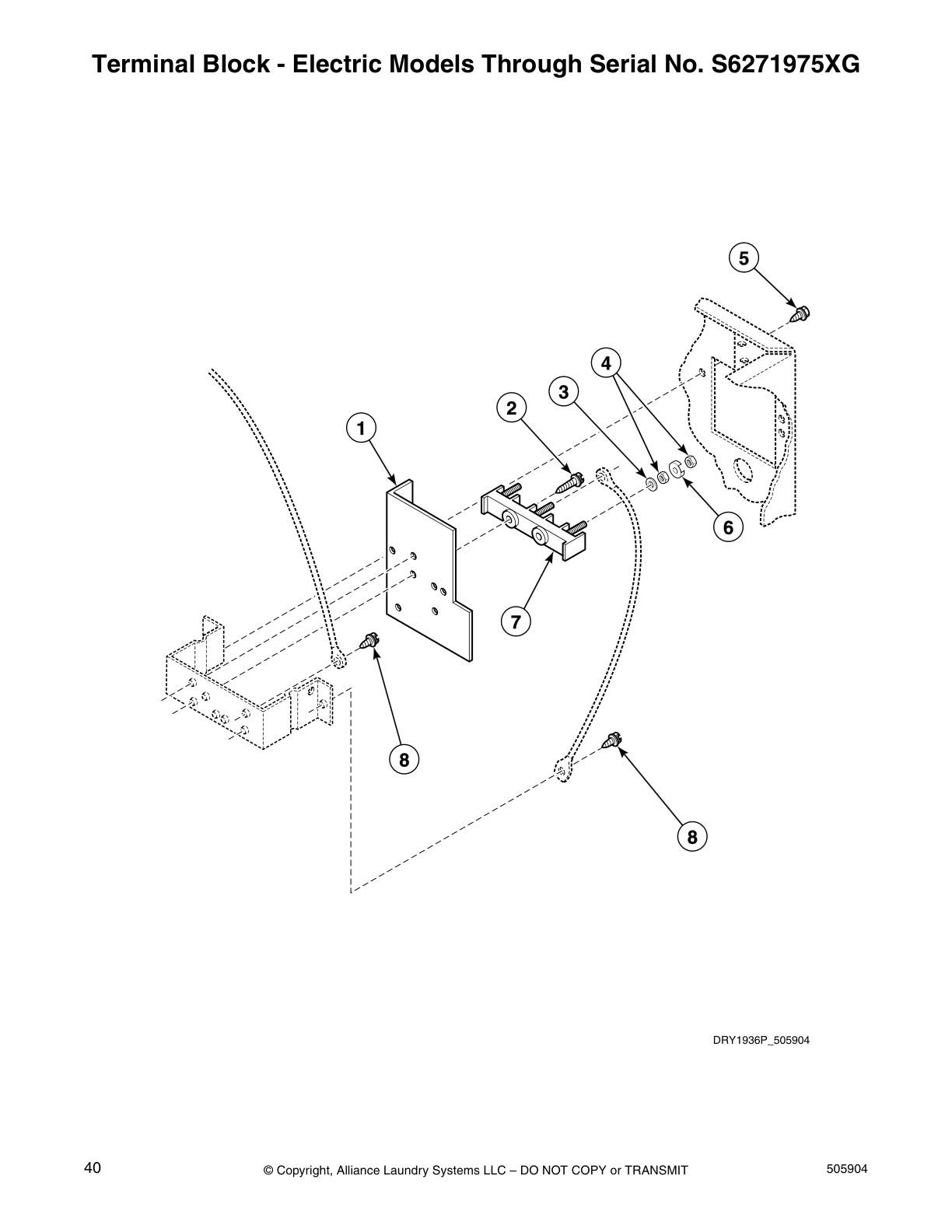

Terminal Block - Electric Models Through Serial No. S6271975XG

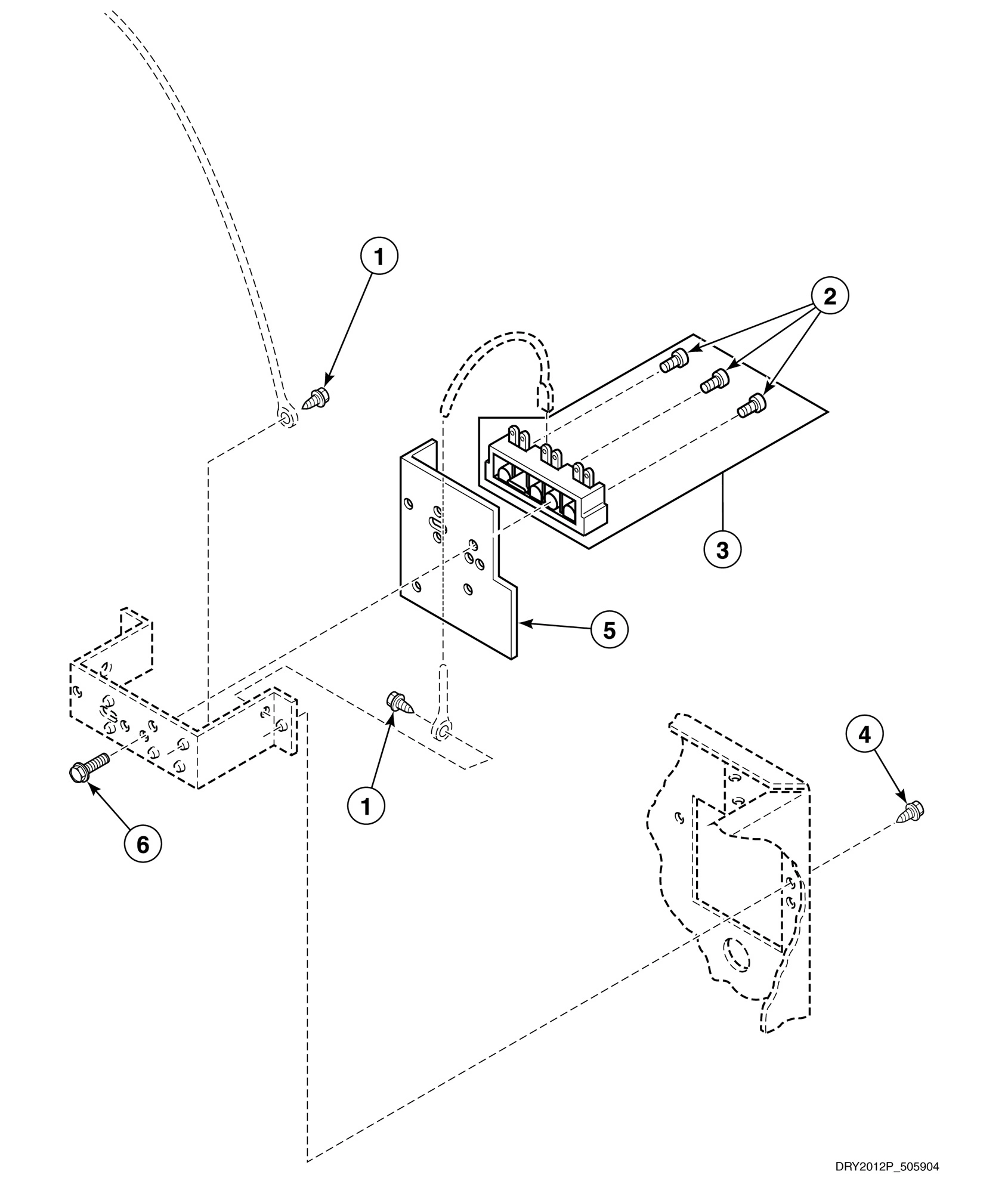

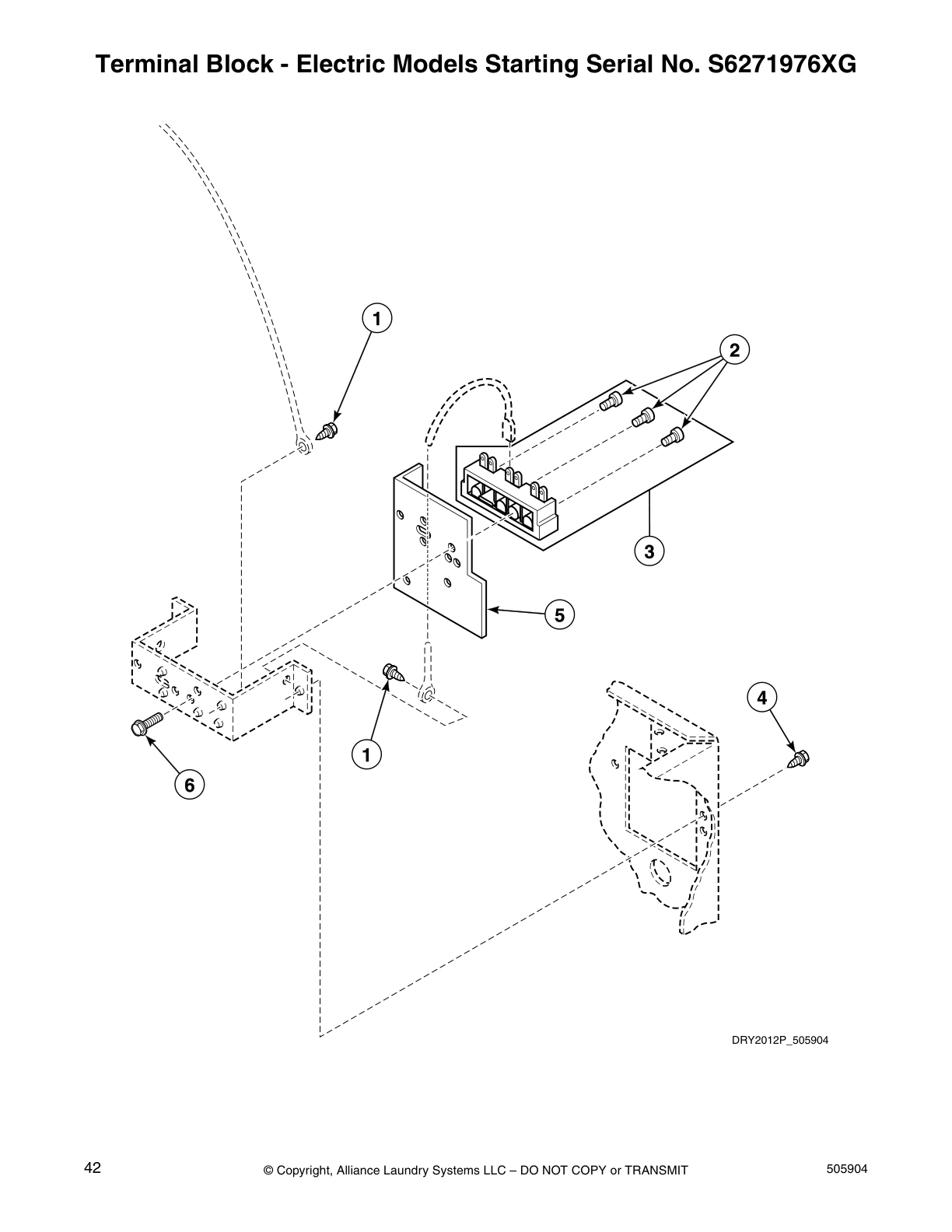

Terminal Block - Electric Models Starting Serial No. S6271976XG

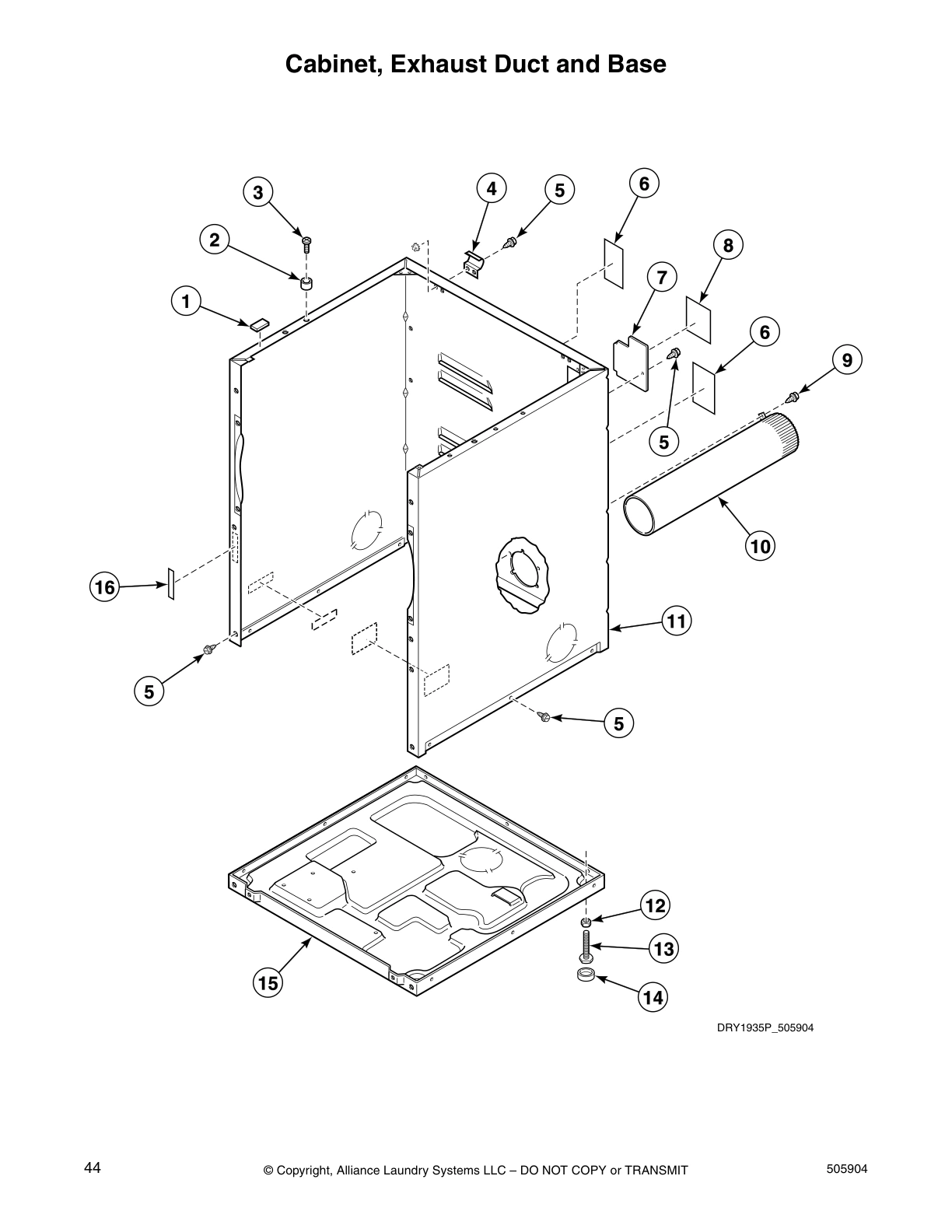

Cabinet, Exhaust Duct and Base

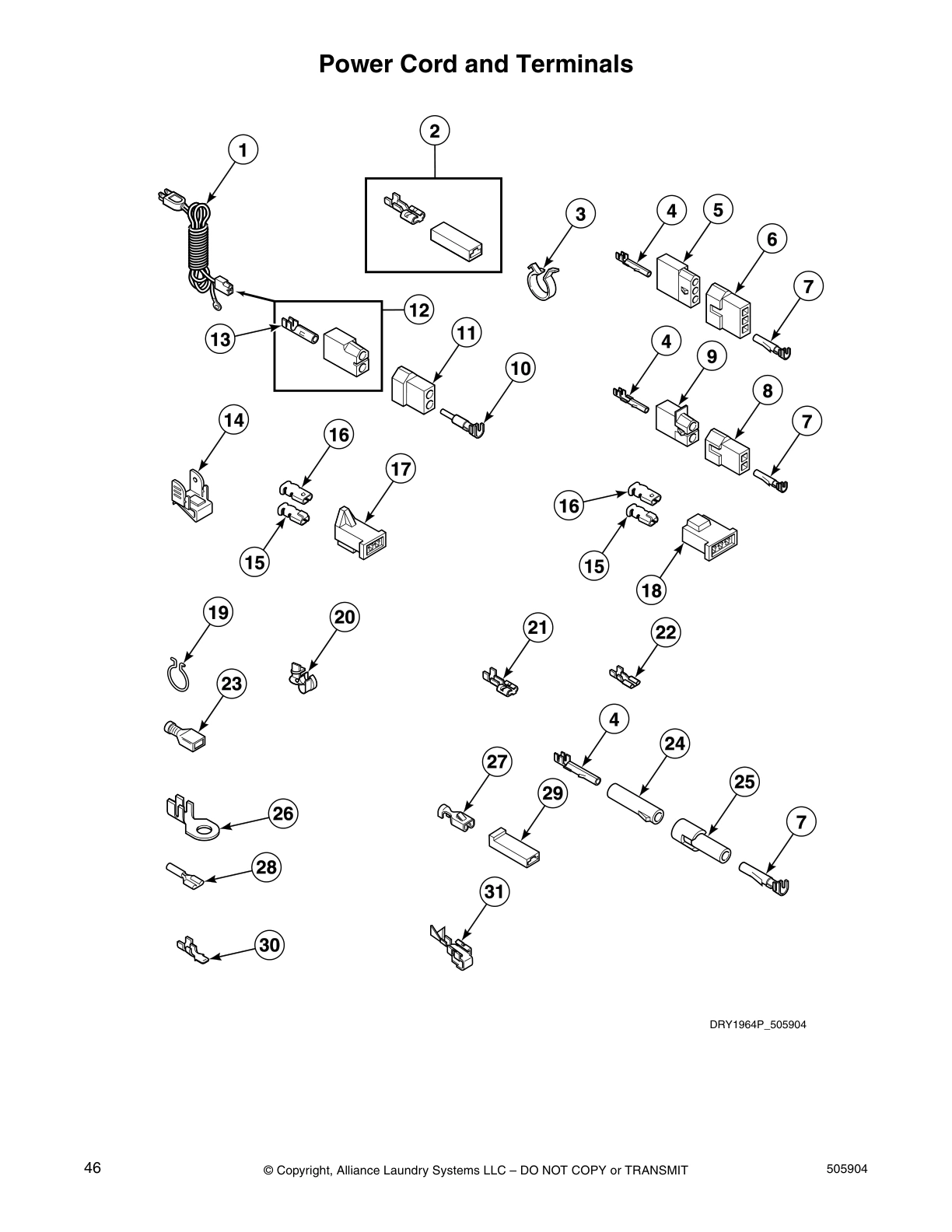

Power Cord and Terminals
Loading Door, Front Panels And Access Door
Cabinet, Exhaust Duct And Base
Loading Door, Front Panels And Access Door
Power Cord And Terminals
Terminal Block - Electric Models Through Serial No. S6271975xg
Rear Bulkhead, Felt Seal And Cylinder Roller
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor, Exhaust Fan And Belt (drawing 2 Of 2)
Loading Door, Front Panels And Access Door
Rear Bulkhead, Felt Seal And Cylinder Roller
Loading Door, Front Panels And Access Door
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Loading Door, Front Panels And Access Door
Cabinet, Exhaust Duct And Base
Heater Duct - Electric Models Through Serial No. S6271975xg
Terminal Block - Electric Models Through Serial No. S6271975xg
Terminal Block - Electric Models Starting Serial No. S6271976xg
Rear Bulkhead, Felt Seal And Cylinder Roller
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Cabinet, Exhaust Duct And Base
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor, Exhaust Fan And Belt (drawing 2 Of 2)
Power Cord And Terminals
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Power Cord And Terminals
Loading Door, Front Panels And Access Door
Terminal Block - Electric Models Through Serial No. S6271975xg
Heater Duct - Electric Models Through Serial No. S6271975xg
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Graphic Panel, Control Hood And Controls (drawing 5 Of 7)
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Power Cord And Terminals
Graphic Panel, Control Hood And Controls (drawing 5 Of 7)
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Cabinet, Exhaust Duct And Base
Heater Duct - Electric Models Through Serial No. S6271975xg
Heater Duct - Electric Models Starting Serial No. S6271976xg
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Terminal Block - Electric Models Starting Serial No. S6271976xg
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Graphic Panel, Control Hood And Controls (drawing 5 Of 7)
Loading Door, Front Panels And Access Door
Heater Duct - Electric Models Through Serial No. S6271975xg
Heater Duct - Electric Models Starting Serial No. S6271976xg
Heater Duct - Electric Models Through Serial No. S6271975xg
Heater Duct - Electric Models Starting Serial No. S6271976xg
Heater Duct - Electric Models Through Serial No. S6271975xg
Heater Duct - Electric Models Starting Serial No. S6271976xg
Heater Duct - Electric Models Through Serial No. S6271975xg
Heater Duct - Electric Models Starting Serial No. S6271976xg
Heater Duct - Electric Models Through Serial No. S6271975xg
Heater Duct - Electric Models Starting Serial No. S6271976xg
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Power Cord And Terminals
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Rear Bulkhead, Felt Seal And Cylinder Roller
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor, Exhaust Fan And Belt (drawing 2 Of 2)
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Rear Bulkhead, Felt Seal And Cylinder Roller
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Loading Door, Front Panels And Access Door
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Loading Door, Front Panels And Access Door
Graphic Panel, Control Hood And Controls (drawing 5 Of 7)
Terminal Block - Electric Models Starting Serial No. S6271976xg
Loading Door, Front Panels And Access Door
Power Cord And Terminals
Cabinet Top And Control Hood Back Panel
Cabinet, Exhaust Duct And Base
Heater Duct - Electric Models Through Serial No. S6271975xg
Heater Duct - Electric Models Starting Serial No. S6271976xg
Cabinet Top And Control Hood Back Panel
Motor, Exhaust Fan And Belt (drawing 2 Of 2)
Cabinet Top And Control Hood Back Panel
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Motor, Exhaust Fan And Belt (drawing 2 Of 2)
Loading Door, Front Panels And Access Door
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Loading Door, Front Panels And Access Door
Motor, Exhaust Fan And Belt (drawing 2 Of 2)
Terminal Block - Electric Models Starting Serial No. S6271976xg
Heater Duct - Electric Models Starting Serial No. S6271976xg
Loading Door, Front Panels And Access Door
Cabinet, Exhaust Duct And Base
Motor, Exhaust Fan And Belt (drawing 2 Of 2)
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Loading Door, Front Panels And Access Door
Rear Bulkhead, Felt Seal And Cylinder Roller
Terminal Block - Electric Models Through Serial No. S6271975xg
Heater Duct - Electric Models Through Serial No. S6271975xg
Terminal Block - Electric Models Through Serial No. S6271975xg
Heater Duct - Electric Models Starting Serial No. S6271976xg
Motor, Exhaust Fan And Belt (drawing 2 Of 2)
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Heater Duct - Electric Models Through Serial No. S6271975xg
Heater Duct - Electric Models Starting Serial No. S6271976xg
Terminal Block - Electric Models Through Serial No. S6271975xg
Terminal Block - Electric Models Starting Serial No. S6271976xg
Cabinet Top And Control Hood Back Panel
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor, Exhaust Fan And Belt (drawing 2 Of 2)
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Heater Duct - Electric Models Through Serial No. S6271975xg
Heater Duct - Electric Models Starting Serial No. S6271976xg
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Loading Door, Front Panels And Access Door
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Cabinet, Exhaust Duct And Base
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Graphic Panel, Control Hood And Controls (drawing 5 Of 7)
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Cabinet Top And Control Hood Back Panel
Motor, Exhaust Fan And Belt (drawing 2 Of 2)
Cabinet, Exhaust Duct And Base
Motor, Exhaust Fan And Belt (drawing 1 Of 2)
Common parts from model Alliance NE4313 Dryer
2
Screw SPQ Q6535 Contact Us For Availability
3
Nut SPQ 31752 Contact Us For Availability
3
M SCREW WAS 211294 SPQ WP90767 Contact Us For Availability
5
SCREW SPQ WP3351614 Contact Us For Availability
5
SCREW SPQ WP3390631 Contact Us For Availability
6
Idler Wheel And Bearing Assembly SPQ D510142 Contact Us For Availability
6
Electric Clearance Label SPQ D511005 Contact Us For Availability
7
M THRMST-FIX WAS 490P3 1199KJ SPQ R9900489 Contact Us For Availability
7
BLOCK- TER NS SPQ WP33001244 Contact Us For Availability
8
SCREW SPQ WP3177991 Contact Us For Availability
9
SCREW SPQ WP489464 Contact Us For Availability
10
Cylinder Belt SPQ D511255 Contact Us For Availability
11
NUT SPQ WPW10139757 Contact Us For Availability
12
Idler Spring SPQ 510060 Contact Us For Availability
12
NUT SPQ WP62739 Contact Us For Availability
13
ADJUSTABLE SPQ WPY305086 Contact Us For Availability
14
Blower Fan Assembly SPQ D510139 Contact Us For Availability
14
FOOT- RUBB SPQ WPY314137 Contact Us For Availability
16
Thermostat SPQ 61401 Contact Us For Availability
17
THERMOSTAT SPQ WPY61372 Contact Us For Availability
18
Thermostat SPQ 61372 Contact Us For Availability
18
Spring SPQ 52310 Contact Us For Availability
18
Panel Locator SPQ 61925 Contact Us For Availability
19
ASSY SEAL SPQ 56088P Contact Us For Availability
23
Gas Clearance Label SPQ D511004 Contact Us For Availability
× ![]()
