Model Whirlpool N9357L2 – Common Parts & Diagrams

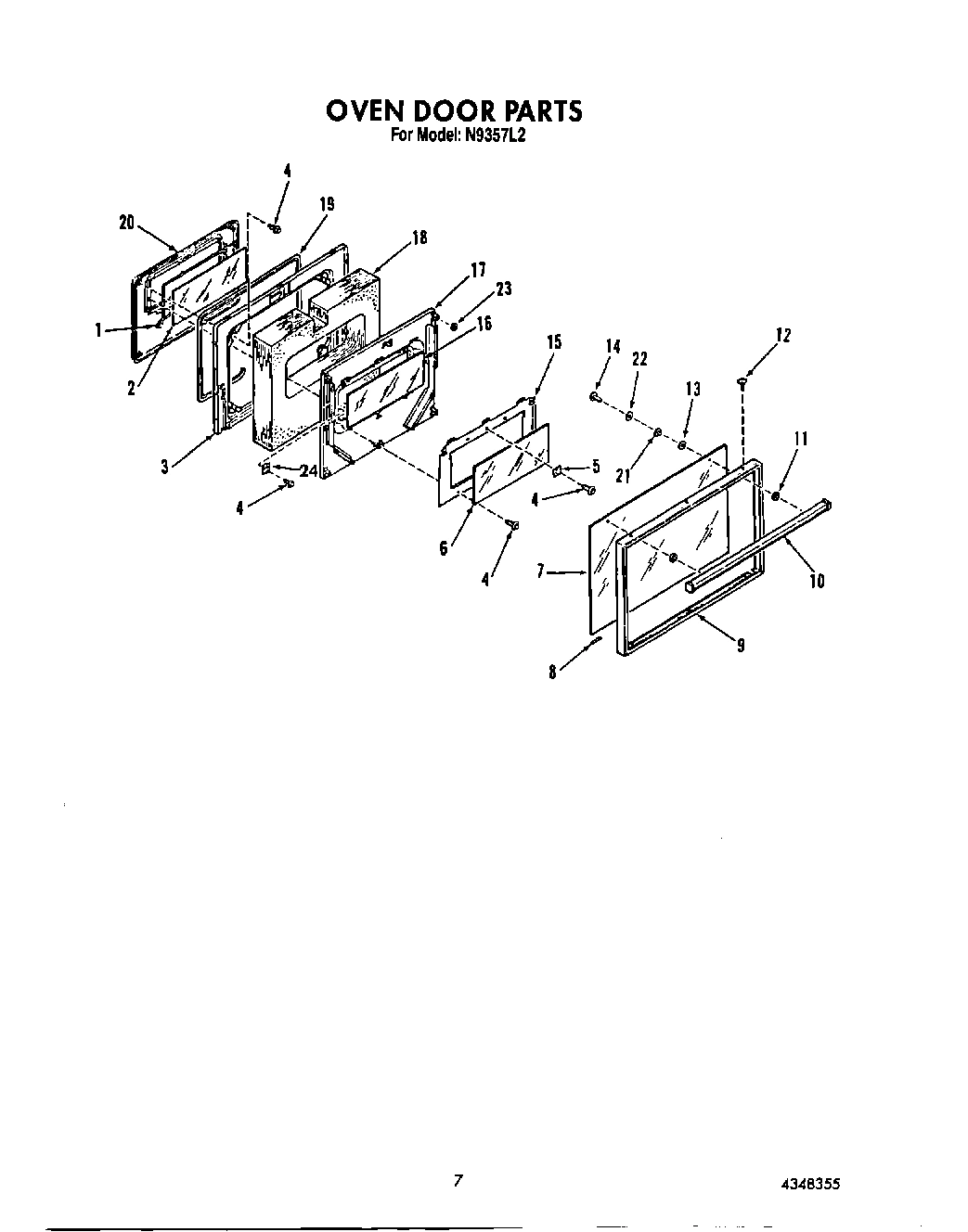

06 - OVEN DOOR

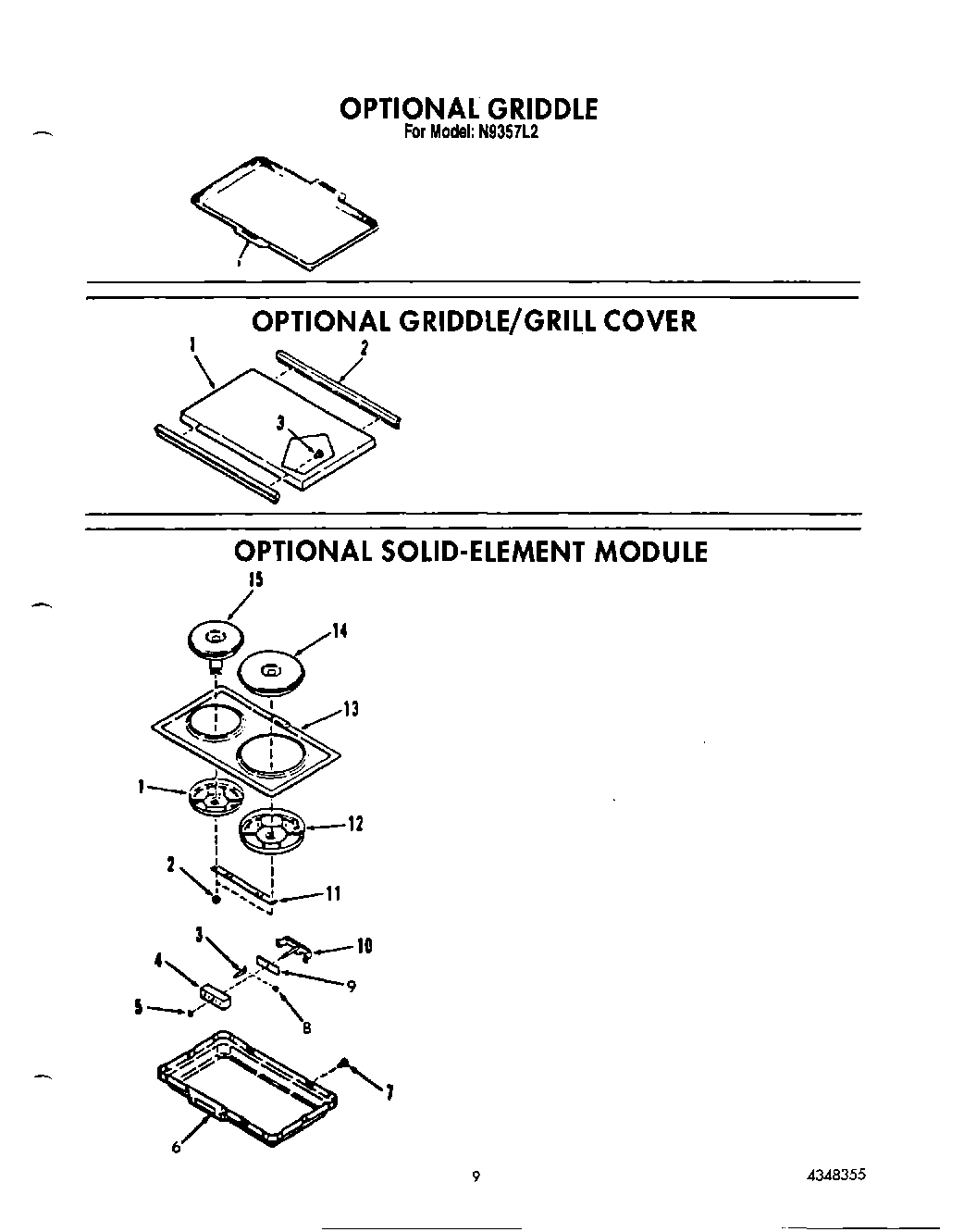

08 - OPTIONAL GRIDDLE , OPTIONAL GRIDDLE

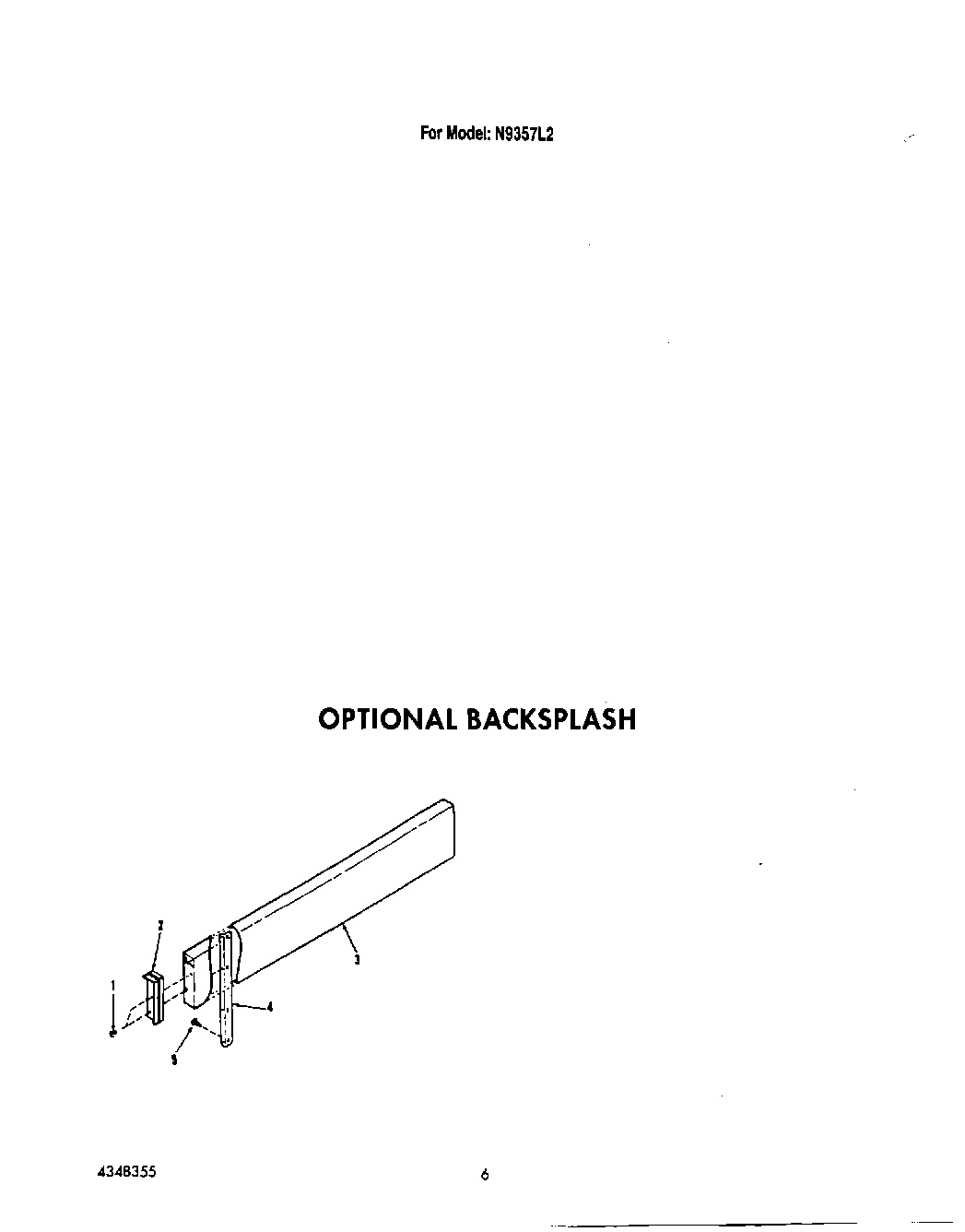

05 - OPTIONAL BACKSPLASH

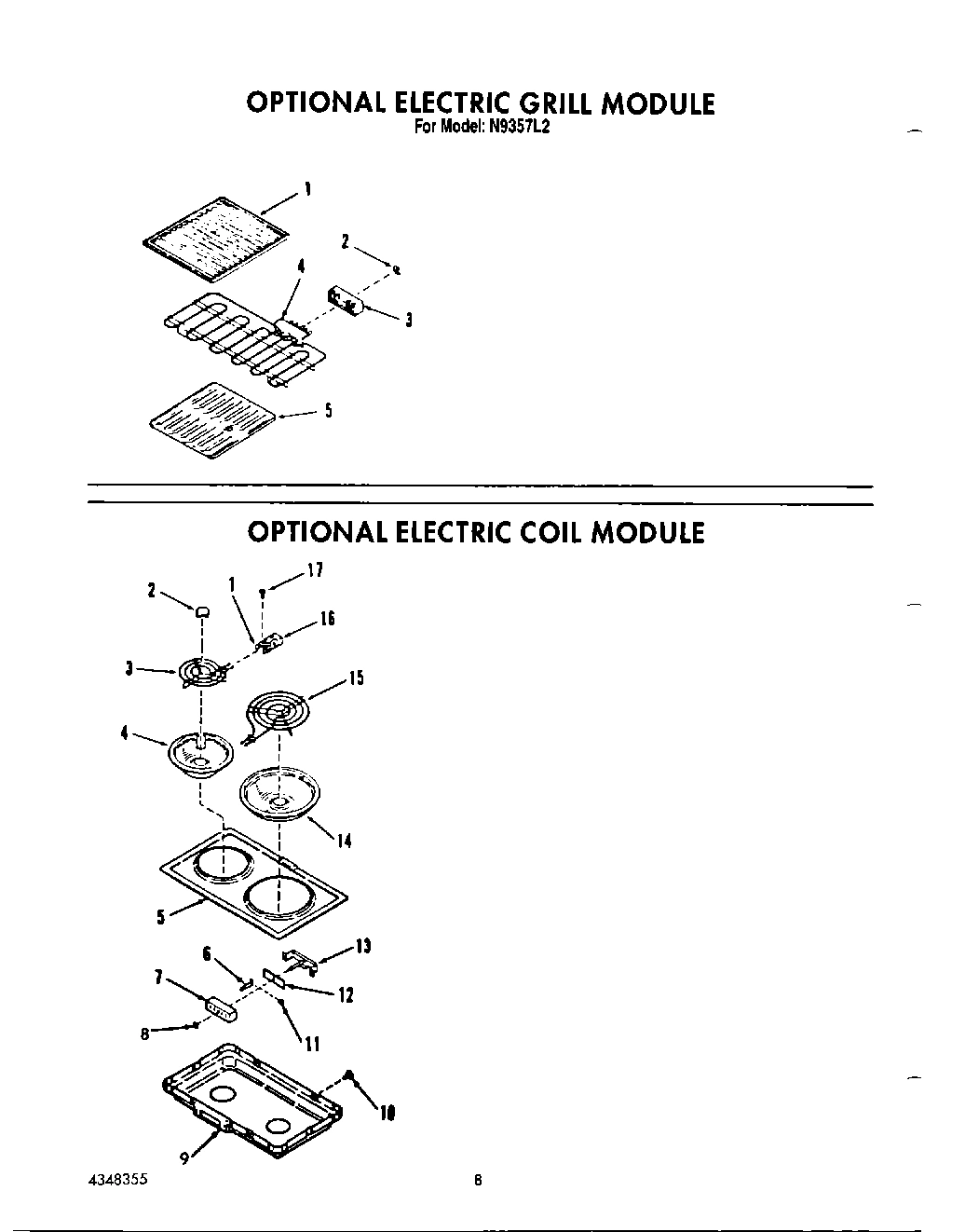

07 - OPTIONAL ELECTRIC GRILL MODULE

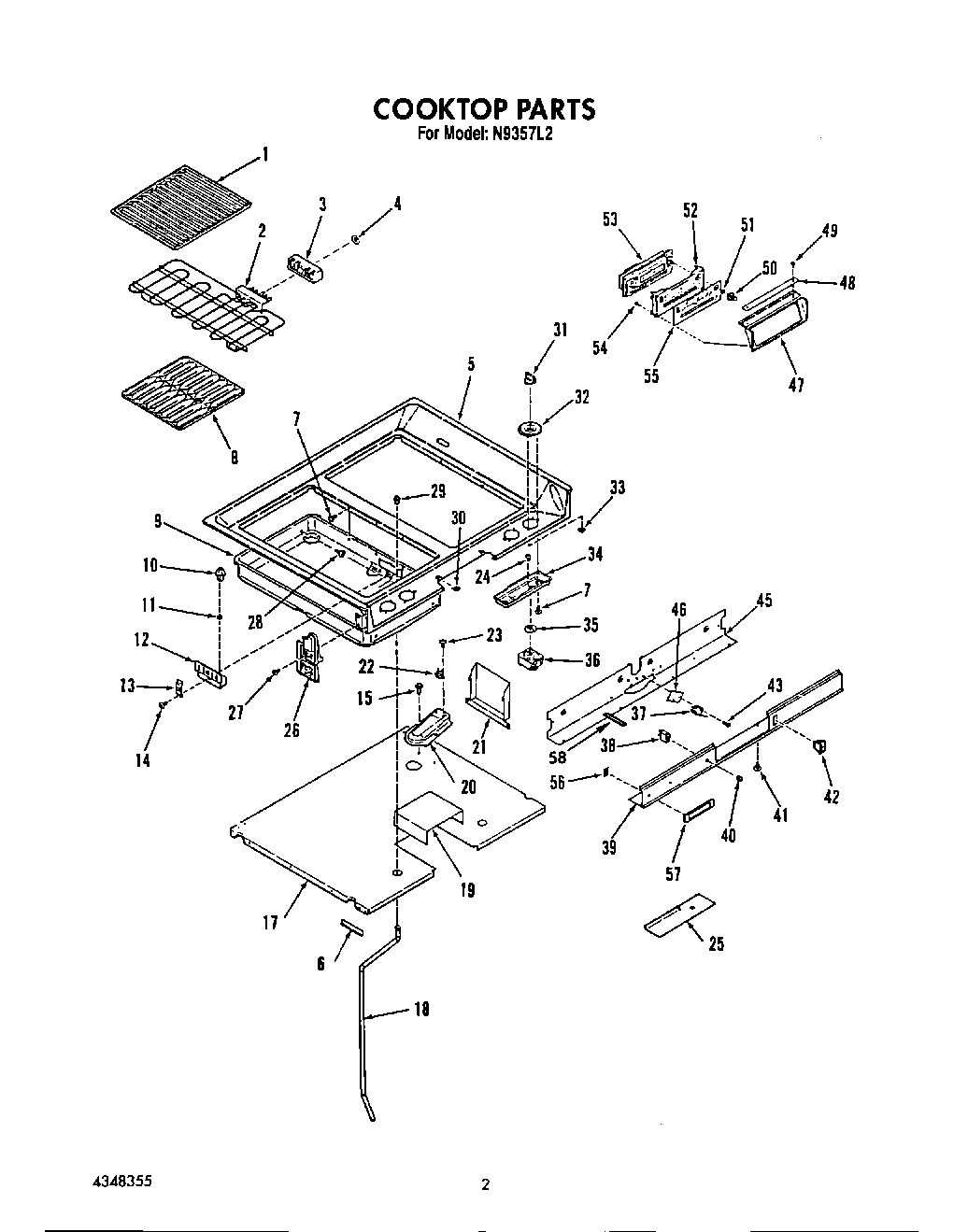

02 - COOKTOP

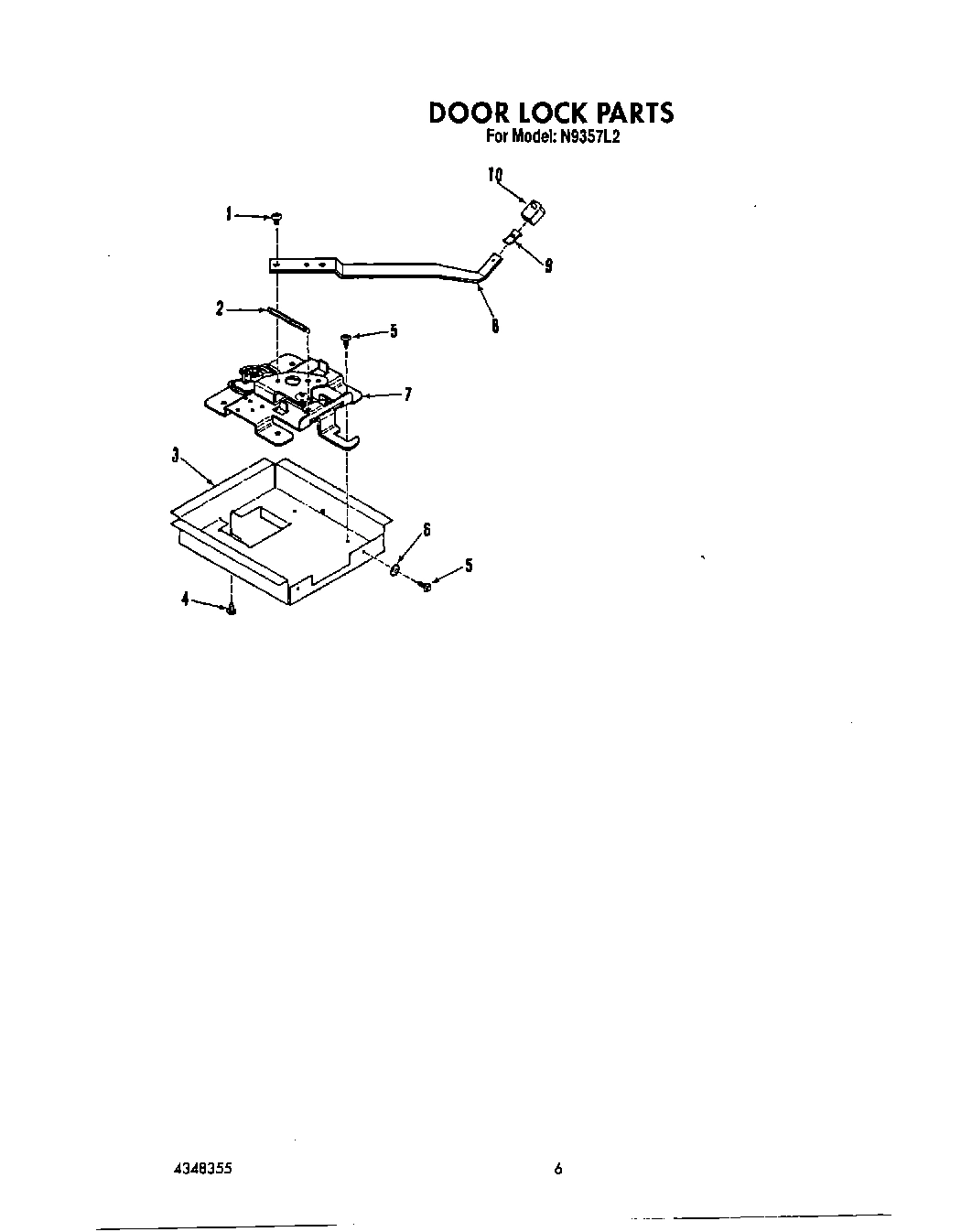

04 - DOOR LOCK

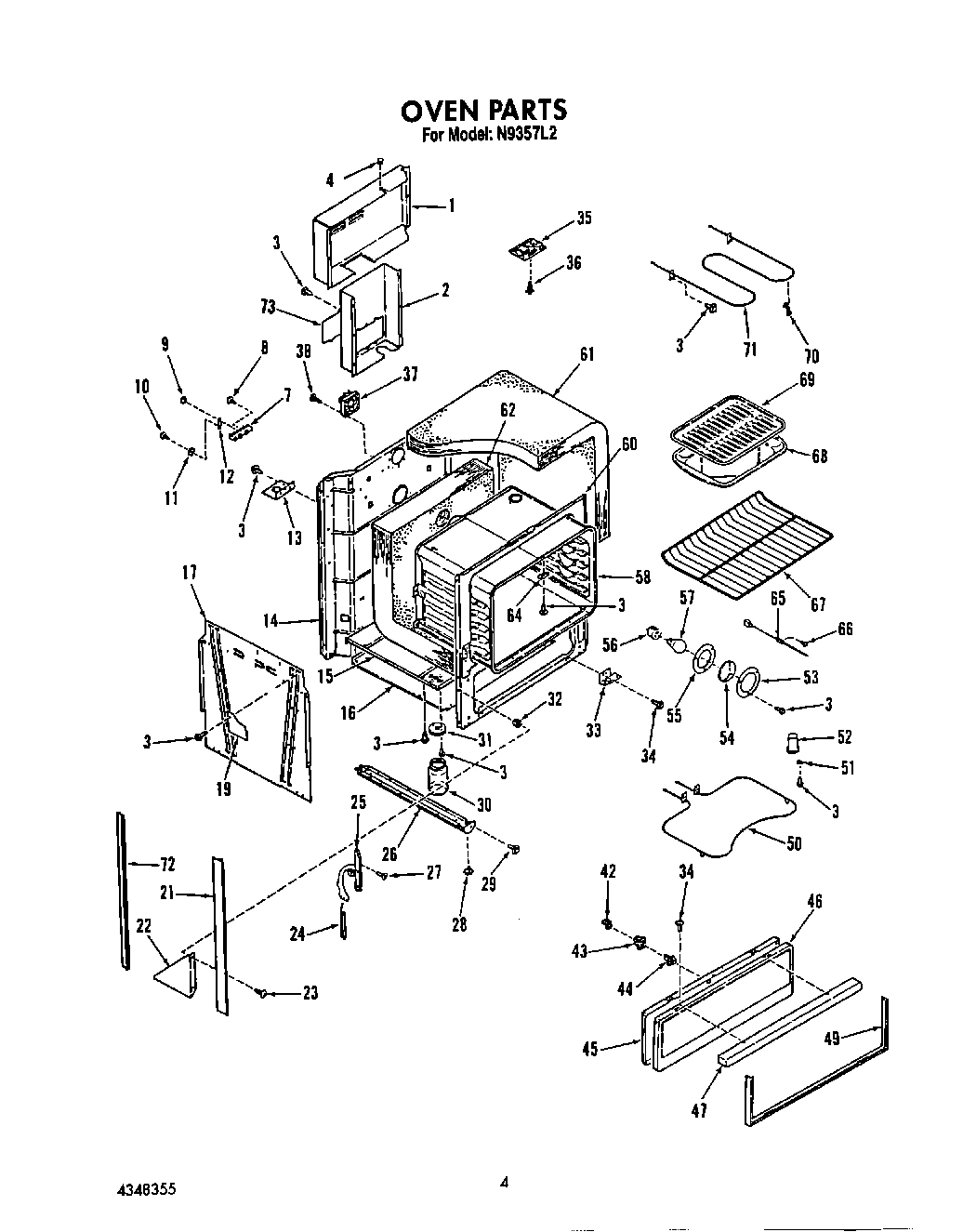

03 - OVEN

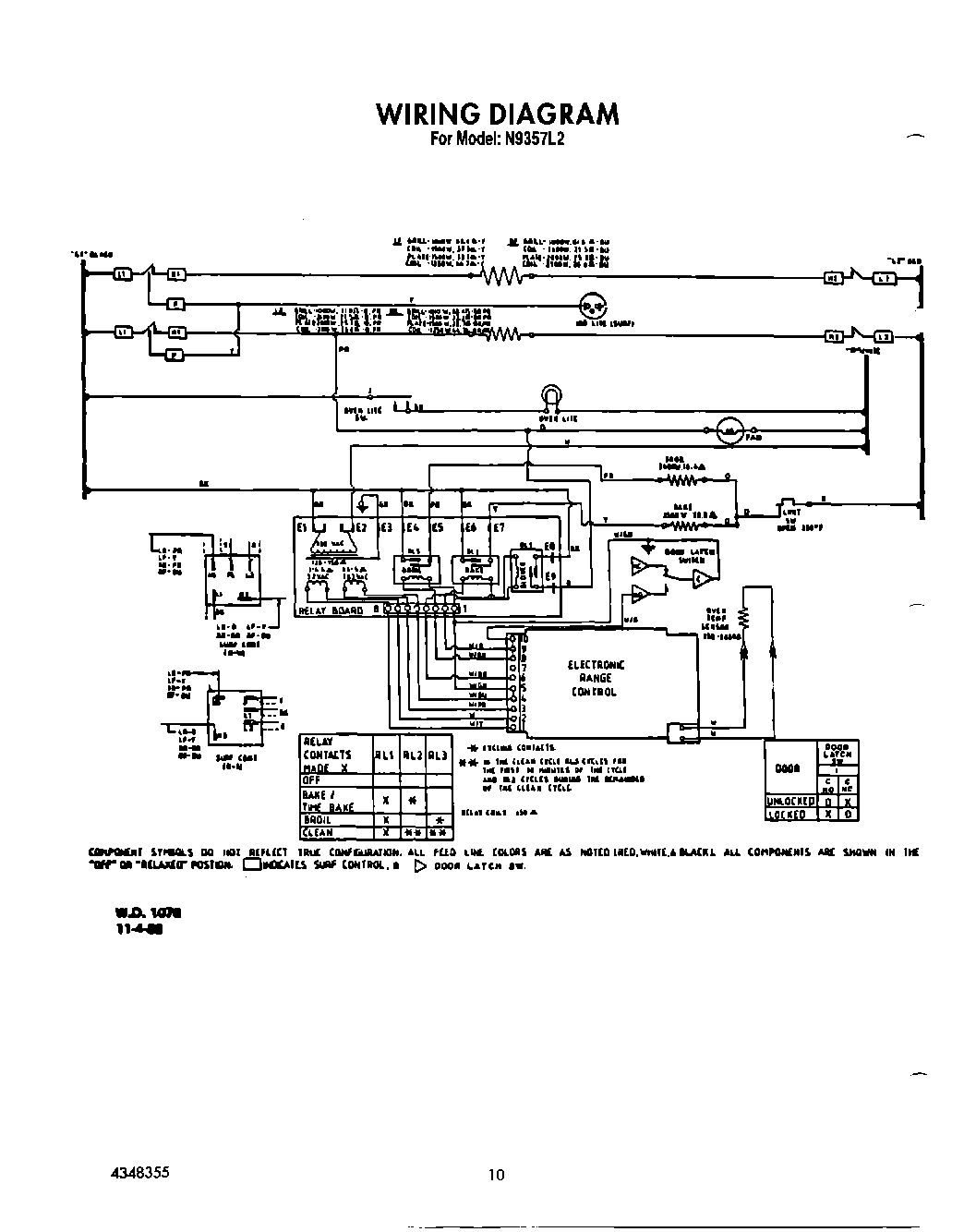

09 - WIRING DIAGRAM
Common parts from model Whirlpool N9357L2
Instruction Sheet WPL LIT4348037 Contact Us For Availability
1
Seal, Inner Glass WPL 4342634 Contact Us For Availability
1
Clamp - Small WPL 4335942 Contact Us For Availability
1
Cover WPL 4336005 Contact Us For Availability
1
Griddle WPL 4336453 Contact Us For Availability
1
Grill, Grate (2) WPL 4335911 Contact Us For Availability
1
Screw, No.10-24 x 1/4 WPL 4326551 Contact Us For Availability
1
Wire Cover, Rear - Upper WPL 4338359 Contact Us For Availability
2
Glass, Inner Oven Door WPL 4337767 Contact Us For Availability
2
Handle, (Left/Right) WPL 4336006 Contact Us For Availability
2
Nut, Mounting (2) WPL 4336026 Contact Us For Availability
2
Cap, End WPL 4336262 Contact Us For Availability
2
Medallion (2) WPL 4332691 Contact Us For Availability
2
Clip - Push on WPL 4336259 Contact Us For Availability
2
Element, Grill (208 Volt) WPL 4337302 Contact Us For Availability
2
Element, Grill (240 Volt) WPL 4337409 Contact Us For Availability
2
Spring WPL 4331536 Contact Us For Availability
2
Wire Cover, Lower Rear WPL 4336825 Contact Us For Availability
3
Lining, Oven Door WPL 4336704 Contact Us For Availability
3
Screw, No. 6 x 1/4 WPL 4336235 Contact Us For Availability
3
Block, Terminal WPL 4335910 Contact Us For Availability
3
Backsplash WPL 4337259 Contact Us For Availability
3
Block, Terminal WPL 4336252 Contact Us For Availability
3
Box, Mounting Box WPL 4336705 Contact Us For Availability
4
Clip WPL 4323399 Contact Us For Availability
4
Support, Backsplash WPL 4336258 Contact Us For Availability
4
Element, Grill (240 Volt) WPL 4336912 Contact Us For Availability
4
Element-Grill (208 Volt (Optional)) WPL 4336913 Contact Us For Availability
4
Screw 6-20x3/8 WPL 4336048 Contact Us For Availability
4
Button, Plug WPL 4342630 Contact Us For Availability
5
Retainer WPL 4334791 Contact Us For Availability
5
Top, Main (Chrome) WPL 4335980 Contact Us For Availability
5
Top, Main (Almond) WPL 4336458 Contact Us For Availability
5
Cooktop (Almond) WPL 4337000 Contact Us For Availability
5
Cooktop (Chrome) WPL 4337001 Contact Us For Availability
6
Glass, Intermediate WPL 4334821 Contact Us For Availability
6
Pin, Terminal (4) WPL 4330875 Contact Us For Availability
6
Pan-Module WPL 4336604 Contact Us For Availability
6
Spacer WPL 4335097 Contact Us For Availability
6
Washer WPL 4323206 Contact Us For Availability
7
Glass, Outer Oven Door WPL 4337863 Contact Us For Availability
7
Lock Asm (Inc`s. Illus No.2) WPL 4337490 Contact Us For Availability
8
Cushion (3) WPL 4324217 Contact Us For Availability
8
Grid, (2) WPL 4336807 Contact Us For Availability
8
Handle, Lock WPL 4336811 Contact Us For Availability
8
Screw, No.10-32x1 WPL 4331572 Contact Us For Availability
9
Frame, Oven Door WPL 4337864 Contact Us For Availability
9
Pan, Module WPL 4336605 Contact Us For Availability
9
Grease Well (Left) WPL 4337016 Contact Us For Availability
9
Grease Well (Right) WPL 4337017 Contact Us For Availability
9
Clip WPL 4335705 Contact Us For Availability
9
Nut, Hex 10-32 WPL 4323653 Contact Us For Availability
10
Handle, Oven Door WPL 4336828 Contact Us For Availability
10
Terminal WPL 4337042 Contact Us For Availability
10
Knob, Lock WPL 4337568 Contact Us For Availability
10
Screw, 10-32x7/16`` WPL 4331573 Contact Us For Availability
11
Spacer, Handle WPL 4323997 Contact Us For Availability
11
Screw No.8-32 x 3/16 WPL 4323479 Contact Us For Availability
11
Strap, Element WPL 4335993 Contact Us For Availability
11
Washer WPL 4327921 Contact Us For Availability
12
Insulator WPL 4330873 Contact Us For Availability
12
Clamp, Large WPL 4335941 Contact Us For Availability
12
Block, Terminal WPL 4337041 Contact Us For Availability
12
Strap, Ground WPL 4335219 Contact Us For Availability
13
Washer WPL 4336868 Contact Us For Availability
13
Bracket-Terminal WPL 4335944 Contact Us For Availability
13
Cooktop, Main (Chrome) WPL 4335938 Contact Us For Availability
13
Cooktop, Main (Almond) WPL 4336457 Contact Us For Availability
13
Clamp, Terminal Block WPL 4336251 Contact Us For Availability
13
Plate, Mounting WPL 4335223 Contact Us For Availability
14
Screw, No.8-32 x 3/8 WPL 4324647 Contact Us For Availability
14
Back, Main WPL 4338228 Contact Us For Availability
15
Mounting Plate WPL 4335753 Contact Us For Availability
15
Wire-Blue 12`` (2) WPL 4335945 Contact Us For Availability
15
Wire-Brown 7`` (2) WPL 4335946 Contact Us For Availability
15
Retainer, Bottom Insulation WPL 4337573 Contact Us For Availability
16
Glass, Center WPL 4338251 Contact Us For Availability
16
Bottom WPL 4337283 Contact Us For Availability
17
Retainer, Insulation WPL 4338315 Contact Us For Availability
17
Screw, No.7-32 x 5/16 WPL 4327985 Contact Us For Availability
17
Wire - Blue 12`` (2) WPL 4335921 Contact Us For Availability
17
Wire - Brown 7`` (2) WPL 4335922 Contact Us For Availability
17
Retainer, Top Insulation WPL 4338186 Contact Us For Availability
17
Retainer, Side Insulation WPL 4337266 Contact Us For Availability
18
Insulation, Oven Door WPL 4354940 Contact Us For Availability
18
Tube, Grease WPL 4336823 Contact Us For Availability
19
Gasket, Oven Door WPL 4338115 Contact Us For Availability
19
Cover, Latch WPL 4337081 Contact Us For Availability
19
Wire Cover WPL 4337217 Contact Us For Availability
20
Plug, Door Lining WPL 4337448 Contact Us For Availability
20
Flue Duct WPL 4338185 Contact Us For Availability
21
Extension, Vent WPL 4337267 Contact Us For Availability
21
Side Trim (Right) WPL 4336818 Contact Us For Availability
21
Side Trim (Left) WPL 4336819 Contact Us For Availability
22
Washer WPL 4323694 Contact Us For Availability
22
Switch, Thermostat WPL 4337096 Contact Us For Availability
22
Corner Filler (Left) WPL 4338387 Contact Us For Availability
22
Corner Filler (Right) WPL 4338388 Contact Us For Availability
23
Spacer WPL 4342691 Contact Us For Availability
23
Screw WPL 4338182 Contact Us For Availability
23
Screw No.8x5/8 WPL 4331822 Contact Us For Availability
24
Wire Harness (Eyelet Terminal) WPL 4325031 Contact Us For Availability
24
Wire Harness (Flag Terminal) WPL 4325035 Contact Us For Availability
24
Wire Harness (Faston Terminal) WPL 4325036 Contact Us For Availability
24
Retainer WPL 4331472 Contact Us For Availability
24
Wire Harness (Control) WPL 4336941 Contact Us For Availability
24
Wire Harness (Sensor) WPL 4337929 Contact Us For Availability
24
Screw No.8-32x3/16 WPL 4350281 Contact Us For Availability
24
Spring, Door (2) WPL 4337386 Contact Us For Availability
25
Hinge-Door (Left) WPL 4336784 Contact Us For Availability
25
Hinge-Door (Right) WPL 4336783 Contact Us For Availability
25
Thermal Insulator WPL 4338589 Contact Us For Availability
26
End Cap (Right) WPL 4336816 Contact Us For Availability
26
End Cap (Left) WPL 4336817 Contact Us For Availability
26
Base W/levelers WPL 4338262 Contact Us For Availability
27
Screw, No.10 x 5/8 WPL 4337167 Contact Us For Availability
27
Screw WPL 4336631 Contact Us For Availability
28
Screw No.16-20x3/8 WPL 4335339 Contact Us For Availability
28
Levelers, Leg (4) WPL 4334800 Contact Us For Availability
29
Fitting WPL 4336824 Contact Us For Availability
29
Screw, 10-32x17/32 WPL 4323884 Contact Us For Availability
30
Speed Clip WPL 4337543 Contact Us For Availability
31
Knob, Infinite WPL 4336360 Contact Us For Availability
31
Lid, Jar (2) WPL 4335900 Contact Us For Availability
32
Knob Cup (Left Rear) WPL 4336571 Contact Us For Availability
32
Knob Cup (Right Rear) WPL 4336572 Contact Us For Availability
32
Knob Cup (Left Front) WPL 4336573 Contact Us For Availability
32
Knob Cup (Right Front) WPL 4336574 Contact Us For Availability
32
Spacer, Expansion Nut - (8) WPL 4331381 Contact Us For Availability
33
Nut, Speed WPL 4342629 Contact Us For Availability
33
Hinge WPL 4337416 Contact Us For Availability
34
Screw, No.10-16x1/2 WPL 4332521 Contact Us For Availability
34
Plate, Mounting WPL 4337775 Contact Us For Availability
35
Seal, Control WPL 4325524 Contact Us For Availability
35
Circuit Board w/Relay & Transformers WPL 4338265 Contact Us For Availability
36
Spacer, Circuit Board WPL 4336562 Contact Us For Availability
37
Micro Switch WPL 4337377 Contact Us For Availability
37
Fan WPL 4338418 Contact Us For Availability
38
Light, Indicator WPL 4336248 Contact Us For Availability
38
Screw No.6-32x7/8 WPL 4335220 Contact Us For Availability
39
Panel, Control WPL 4337214 Contact Us For Availability
40
Lens, Indicator Light WPL 4336078 Contact Us For Availability
42
Switch, Oven Light WPL 4336479 Contact Us For Availability
42
Bracket, Catch WPL 4337417 Contact Us For Availability
43
Screw No.4-40x11/16 WPL 4335881 Contact Us For Availability
43
Catch WPL 4337418 Contact Us For Availability
44
Strike WPL 4337419 Contact Us For Availability
45
Back, Control Panel WPL 4337451 Contact Us For Availability
45
Lining, Lower Door WPL 4337420 Contact Us For Availability
46
Insulation WPL 4335973 Contact Us For Availability
46
Panel, Lower Door WPL 4336734 Contact Us For Availability
47
Bezel, Clock/Oven Control WPL 4336815 Contact Us For Availability
47
Handle WPL 4336754 Contact Us For Availability
48
Plate, Clock/Oven Control WPL 4336919 Contact Us For Availability
49
Screw No.6-32x3/8 WPL 4328958 Contact Us For Availability
49
Frame, Lower Door WPL 4336752 Contact Us For Availability
50
Knob, Clock/Oven WPL 4337194 Contact Us For Availability
50
Element, Bake (240 Volt) WPL 4334928 Contact Us For Availability
50
Element, Bake (208 Volt (Opt.)) WPL 4334929 Contact Us For Availability
51
Hex Nut WPL 4337161 Contact Us For Availability
51
Washer WPL 4337453 Contact Us For Availability
52
Lens, Clock/Oven WPL 4337210 Contact Us For Availability
52
Tube, Vent WPL 4337314 Contact Us For Availability
53
Clock/Oven Control WPL 4338408 Contact Us For Availability
53
Retainer, Light Lens WPL 4324482 Contact Us For Availability
54
Screw, No.6-32 x 5/16 WPL 4337582 Contact Us For Availability
54
Lens, Light WPL 4324415 Contact Us For Availability
55
Faceplate, Clock-Oven Control WPL 4337075 Contact Us For Availability
55
Seal, Lens WPL 4324481 Contact Us For Availability
56
WPL 4323217 WPL 4323217 Contact Us For Availability
57
WPL 4335903 WPL 4335903 Contact Us For Availability
58
WPL 4337340 WPL 4337340 Contact Us For Availability
58
Body, Oven WPL 4337959 Contact Us For Availability
60
Frame, Front Frame WPL 4337446 Contact Us For Availability
61
Insulation, Top & Sides WPL 4336990 Contact Us For Availability
62
Insulation, Bottom & Back WPL 4353609 Contact Us For Availability
64
Cover WPL 4329206 Contact Us For Availability
65
Sensor WPL 4337170 Contact Us For Availability
66
Screw WPL 4324445 Contact Us For Availability
67
Rack, Oven (2) WPL 4334809 Contact Us For Availability
70
Support, WPL 4338587 Contact Us For Availability
72
WPL 4337215 WPL 4337215 Contact Us For Availability
73
WPL 4336826 WPL 4336826 Contact Us For Availability
× ![]()
