Model Whirlpool N9257L1 – Common Parts & Diagrams
04 - BLOWER
06 - OVEN DOOR

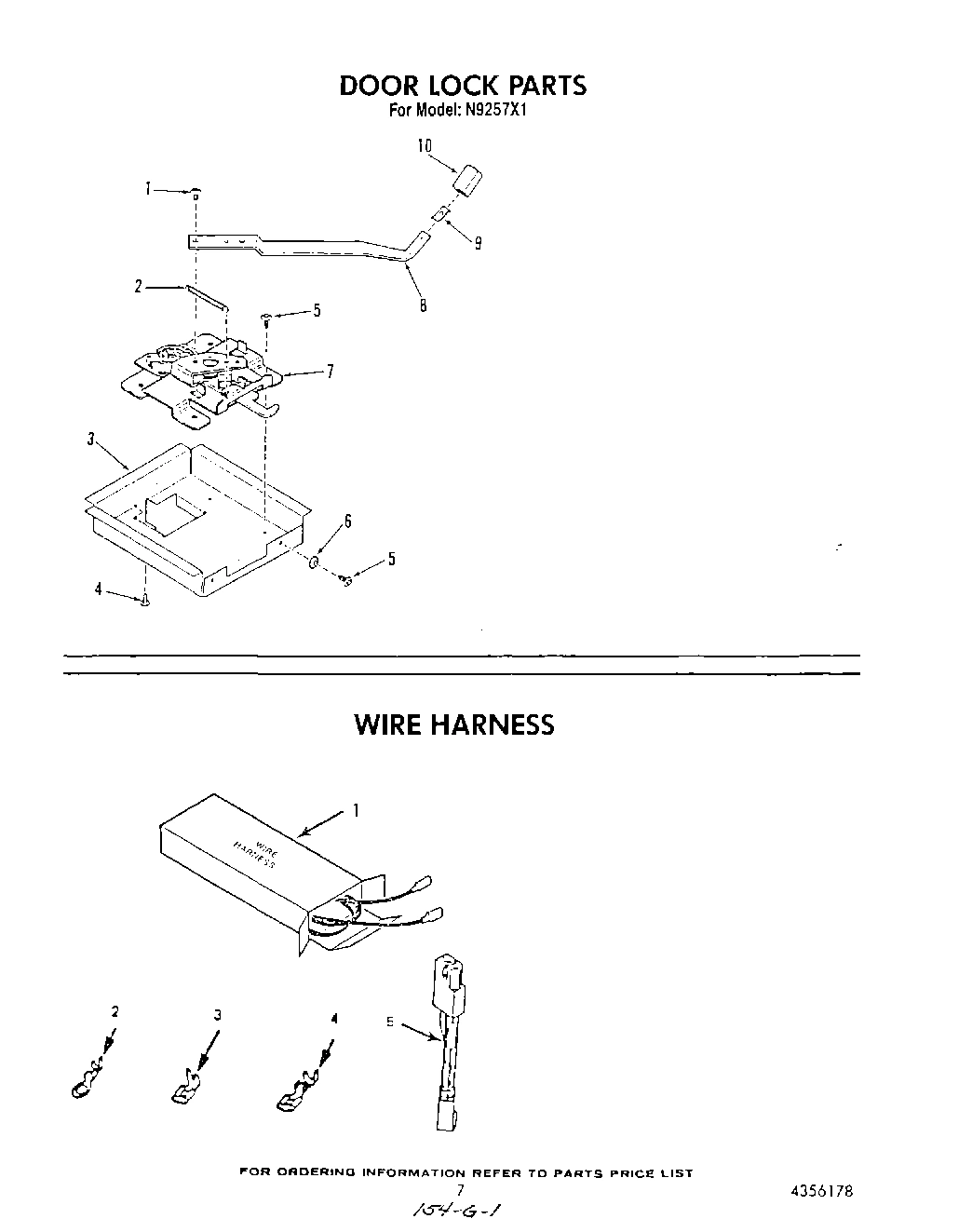

05 - DOOR LOCK , WIRE HARNESS

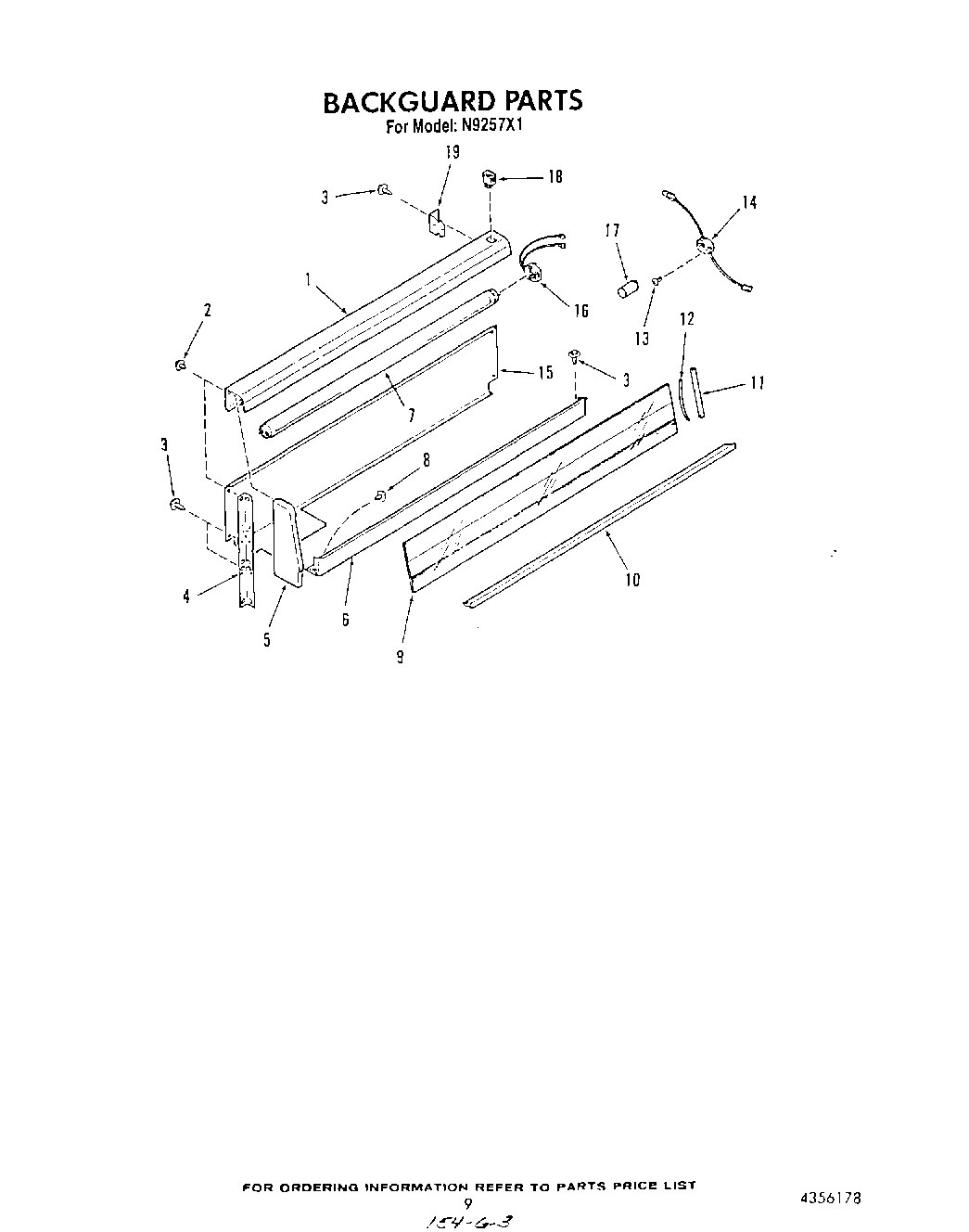

07 - BACKGUARD

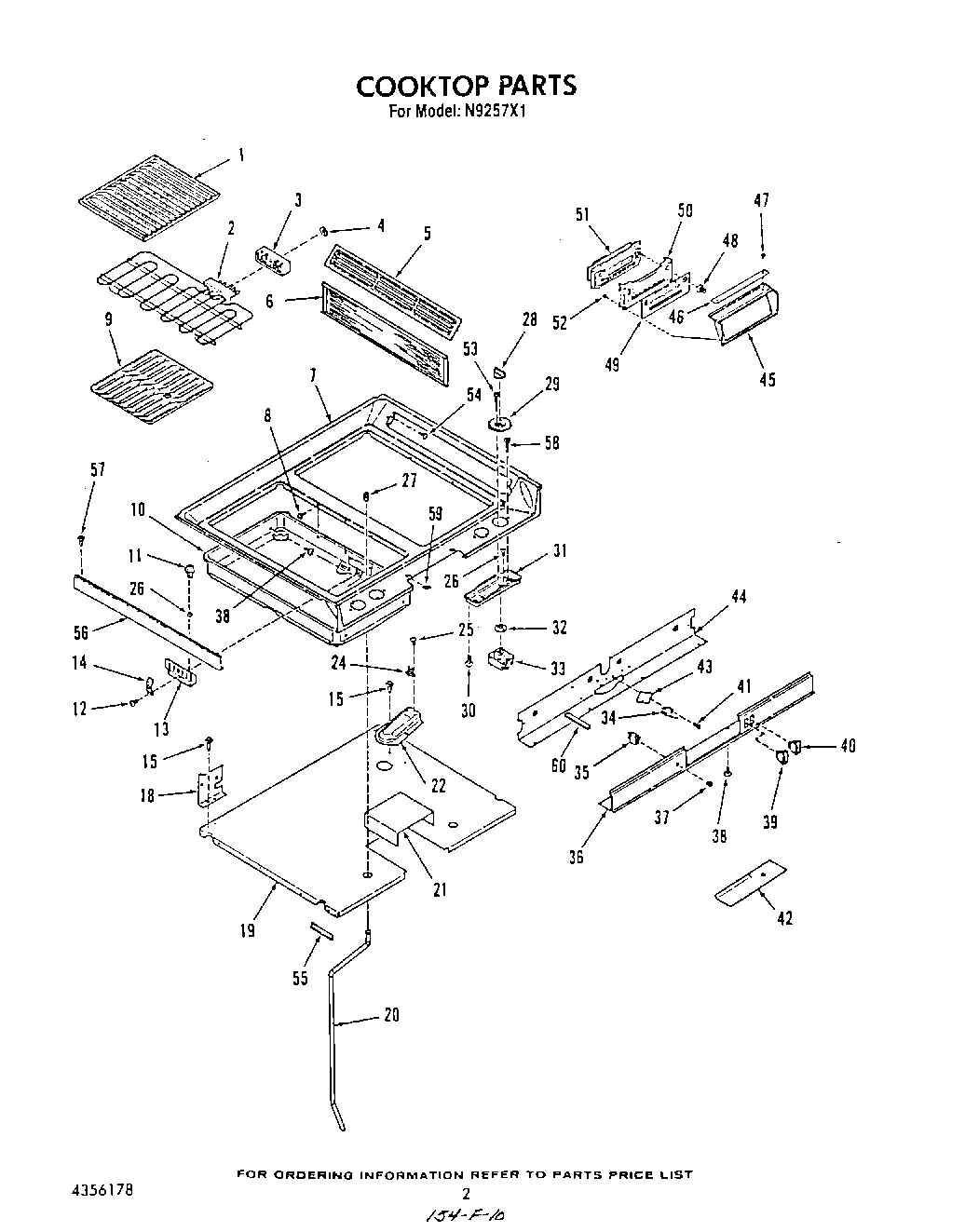

02 - COOK TOP

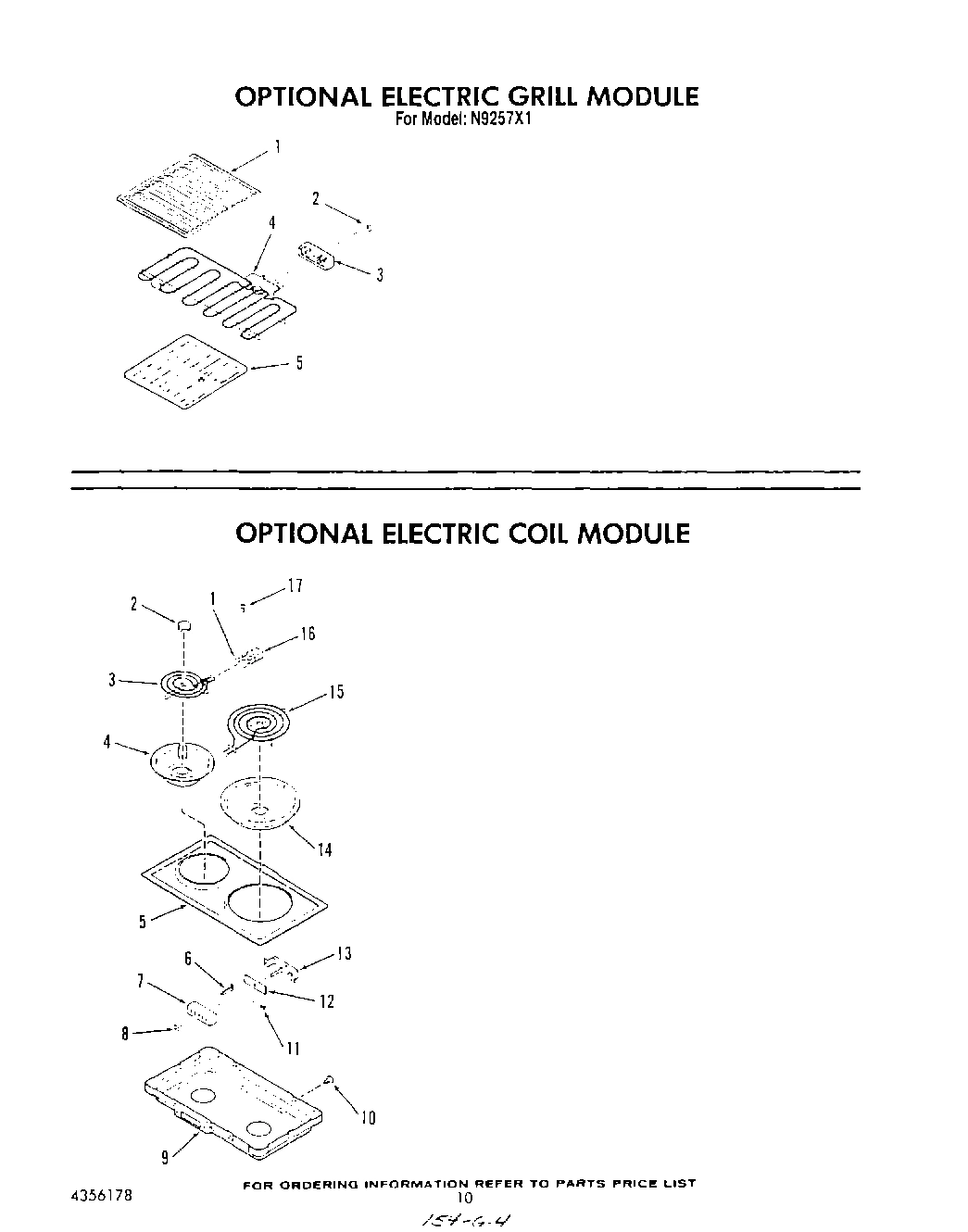

08 - ELECTRIC GRILL , ELECTRIC COIL

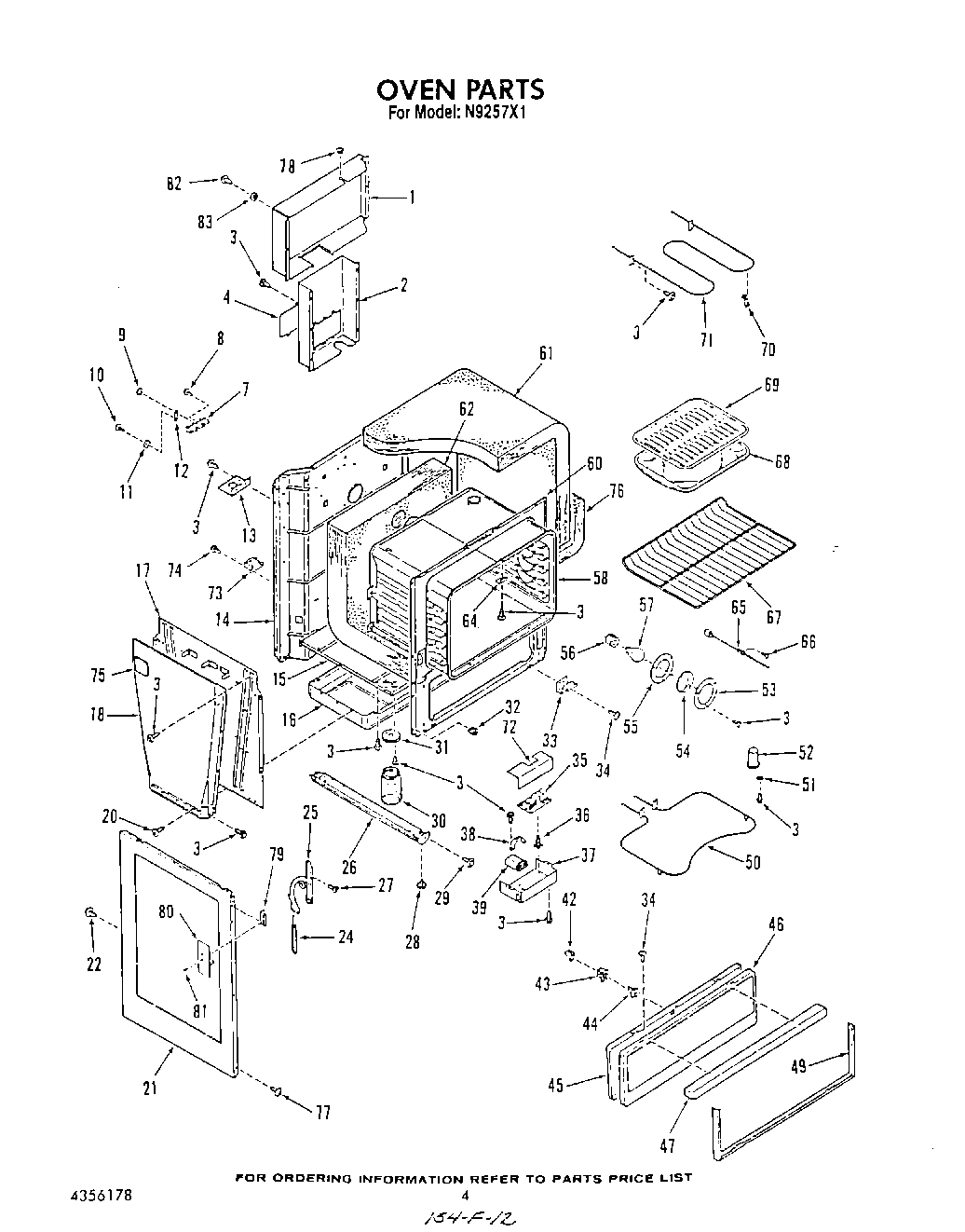

03 - OVEN

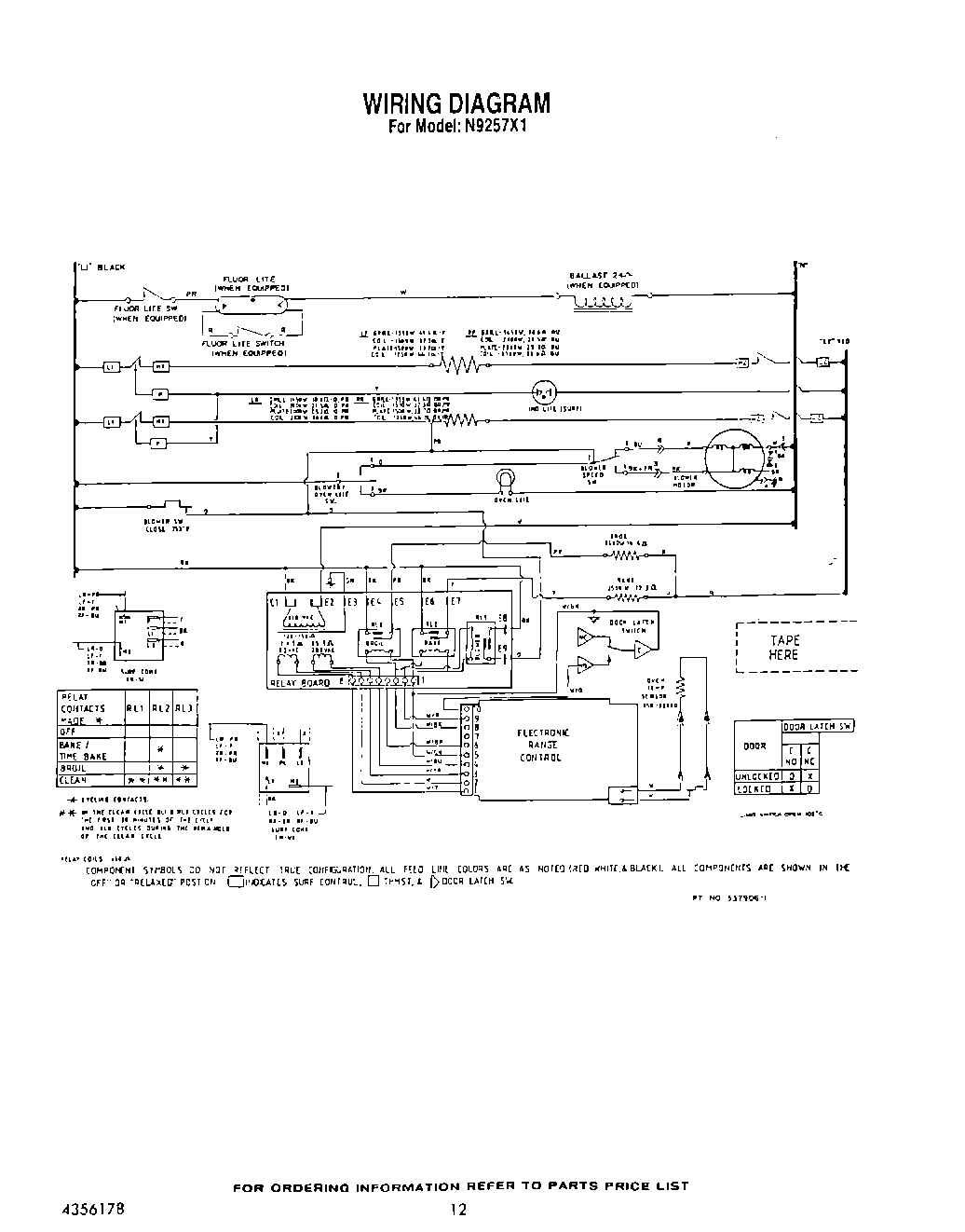

10 - WIRING DIAGRAM

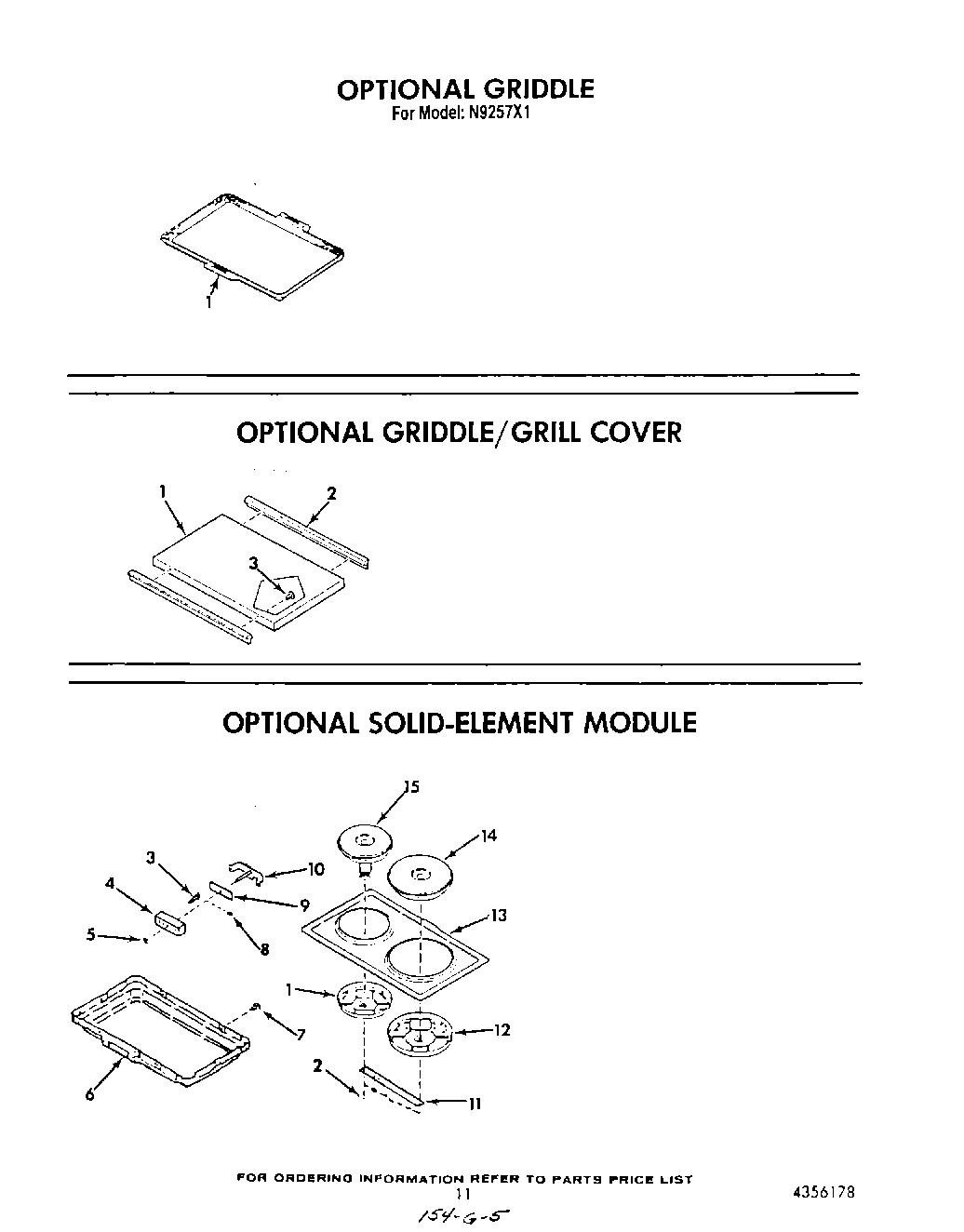

09 - GRIDDLE , GRIDDLE/GRILL COVER
Common parts from model Whirlpool N9257L1
1
Seal, Inner Glass WPL 4342634 Contact Us For Availability
1
Screw, No.10-24 x 1/4 WPL 4326551 Contact Us For Availability
1
Harness, Wire (Wire, Control) WPL 4336941 Contact Us For Availability
1
Harness, Wire (Wire, Blower) WPL 4336942 Contact Us For Availability
1
Harness, Wire (Wire, Main - Left) WPL 4337204 Contact Us For Availability
1
Harness, Wire (Main - Right) WPL 4337205 Contact Us For Availability
1
Harness, Wire (Wire, Sensor) WPL 4337929 Contact Us For Availability
1
Harness, Wire (Wire, Relay) WPL 4342635 Contact Us For Availability
1
Shade, Lamp WPL 4338391 Contact Us For Availability
1
Grate-Grill WPL 4335911 Contact Us For Availability
1
Wire Cover, Rear - Upper WPL 4338359 Contact Us For Availability
1
Clamp WPL 4335942 Contact Us For Availability
1
Griddle WPL 4338460 Contact Us For Availability
1
Cover WPL 4342671 Contact Us For Availability
2
Glass, Inner Oven Door WPL 4337767 Contact Us For Availability
2
Terminal, Eyelet WPL 4325031 Contact Us For Availability
2
Spring WPL 4331536 Contact Us For Availability
2
Screw No.10-32x1/4 WPL 4323953 Contact Us For Availability
2
Element, Grill (208 Volt (Opt.)) WPL 4337302 Contact Us For Availability
2
Clip - Push on WPL 4336259 Contact Us For Availability
2
Medallion (2) WPL 4332691 Contact Us For Availability
2
Wire Cover, Lower Rear WPL 4336825 Contact Us For Availability
2
Handle, (Left/Right) WPL 4336006 Contact Us For Availability
2
Nut, Mount. (2) WPL 4336026 Contact Us For Availability
3
Lining, Oven Door WPL 4336704 Contact Us For Availability
3
Terminal, Flag WPL 4325033 Contact Us For Availability
3
Box, Mounting WPL 4336705 Contact Us For Availability
3
Block, Terminal WPL 4336252 Contact Us For Availability
3
Pin, Terminal (4) WPL 4330875 Contact Us For Availability
3
Screw, No. 6 x 1/4 WPL 4336235 Contact Us For Availability
4
Vent Tubing, Flexible WPL 4335913 Contact Us For Availability
4
Support, Backguard WPL 4342672 Contact Us For Availability
4
Element - Grill WPL 4337403 Contact Us For Availability
4
Terminal Block WPL 4335910 Contact Us For Availability
4
Plate, Access WPL 4336826 Contact Us For Availability
5
Clamp, Tube WPL 4335914 Contact Us For Availability
5
Fuse, Thermal WPL 4338515 Contact Us For Availability
5
End Cap (Right) WPL 4342660 Contact Us For Availability
5
End Cap (Left) WPL 4342661 Contact Us For Availability
5
Grill, Air Intake WPL 4335907 Contact Us For Availability
5
Grid, (2) WPL 4336807 Contact Us For Availability
5
Top, Main (Chrome) WPL 4335980 Contact Us For Availability
5
Top, Main (Almond) WPL 4336458 Contact Us For Availability
5
Nut, Speed WPL 4323399 Contact Us For Availability
6
Transition WPL 4336822 Contact Us For Availability
6
Glass, Intermediate WPL 4334821 Contact Us For Availability
6
Washer WPL 4323206 Contact Us For Availability
6
Backsplash WPL 4338217 Contact Us For Availability
6
Air Filter WPL 4337454 Contact Us For Availability
6
Pan-Module WPL 4336604 Contact Us For Availability
7
Seal, Rear Cover WPL 4337098 Contact Us For Availability
7
Glass, Outer Oven Door WPL 4337863 Contact Us For Availability
7
Lock Assembly, (Inc`s Illus. No.2) WPL 4337490 Contact Us For Availability
7
Cooktop, Main (Chrome) WPL 4342645 Contact Us For Availability
7
Cooktop, Main (Almond) WPL 4342653 Contact Us For Availability
7
Screw, No.8-32 x 3/8 WPL 4324647 Contact Us For Availability
8
Cover, Rear WPL 4337244 Contact Us For Availability
8
Cushion (3) WPL 4324217 Contact Us For Availability
8
Screw No.8-32 x 3/16 WPL 4323479 Contact Us For Availability
8
Screw, No.10-32x1 WPL 4331572 Contact Us For Availability
9
Grommet WPL 4337097 Contact Us For Availability
9
Frame, Oven Door WPL 4337864 Contact Us For Availability
9
Clip WPL 4335705 Contact Us For Availability
9
Glass, Backguard WPL 4342662 Contact Us For Availability
9
Pan, Module WPL 4336605 Contact Us For Availability
9
Insulator WPL 4330873 Contact Us For Availability
9
Nut, Hex 10-32 WPL 4323653 Contact Us For Availability
10
Screw No.10 x 3/4 WPL 4323387 Contact Us For Availability
10
Handle, Oven Door WPL 4336828 Contact Us For Availability
10
Knob, Lock WPL 4337568 Contact Us For Availability
10
Trim, Bottom-glass WPL 4342663 Contact Us For Availability
10
Grease Well (Left) WPL 4337016 Contact Us For Availability
10
Grease Well (Right) WPL 4337017 Contact Us For Availability
10
Screw, 10-32x7/16`` WPL 4331573 Contact Us For Availability
10
Bracket WPL 4335944 Contact Us For Availability
11
Housing, Blower WPL 4337912 Contact Us For Availability
11
Spacer, Handle WPL 4323997 Contact Us For Availability
11
Trim, End WPL 4342664 Contact Us For Availability
11
Terminal WPL 4337042 Contact Us For Availability
11
Washer WPL 4327921 Contact Us For Availability
11
Strap, Element WPL 4335993 Contact Us For Availability
12
Disconnect WPL 4337909 Contact Us For Availability
12
Spring, Trim WPL 4338230 Contact Us For Availability
12
Strap, Ground WPL 4335219 Contact Us For Availability
12
Clamp, Elmnt. WPL 4335941 Contact Us For Availability
13
Screw, Set, 5/16 No.24 x 3/8 WPL 4336243 Contact Us For Availability
13
Washer WPL 4336868 Contact Us For Availability
13
Block, Terminal WPL 4337041 Contact Us For Availability
13
Plate, Mounting WPL 4335223 Contact Us For Availability
13
Top, Main (Chrome) WPL 4335938 Contact Us For Availability
13
Top, Main (Almond) WPL 4336457 Contact Us For Availability
14
Wheel, Blower WPL 4337911 Contact Us For Availability
14
Screw 10-32x3/4`` WPL 4342665 Contact Us For Availability
14
Starter, Base WPL 4338270 Contact Us For Availability
14
Clamp, Terminal Block WPL 4330868 Contact Us For Availability
14
Back, Main WPL 4338228 Contact Us For Availability
15
Clamp, Wire WPL 4337243 Contact Us For Availability
15
Mounting Plate WPL 4335753 Contact Us For Availability
15
Cover, Wire WPL 4338161 Contact Us For Availability
15
Retainer, Bottom Insulation WPL 4337573 Contact Us For Availability
16
Ring, Inlet WPL 4337093 Contact Us For Availability
16
Glass, Center WPL 4338251 Contact Us For Availability
16
Holder, Lamp (Left) WPL 4338150 Contact Us For Availability
16
Lamp Holder (Right) WPL 4338355 Contact Us For Availability
16
Plenum WPL 4336691 Contact Us For Availability
17
Gasket, Blower WPL 4337216 Contact Us For Availability
17
Retainer, Insulation WPL 4338315 Contact Us For Availability
17
Starter WPL 4337125 Contact Us For Availability
17
Screw, No.7-32 x 5/16 WPL 4327985 Contact Us For Availability
17
Retainer, Side Insulation WPL 4337266 Contact Us For Availability
18
Harness, Wire WPL 4337914 Contact Us For Availability
18
Insulation, Oven Door WPL 4354940 Contact Us For Availability
18
Switch WPL 4338275 Contact Us For Availability
18
Rear Filler (Right) WPL 4336954 Contact Us For Availability
18
Rear Filler (Left) WPL 4336955 Contact Us For Availability
18
Box, Vent WPL 4338053 Contact Us For Availability
19
Eyelet WPL 4338274 Contact Us For Availability
19
Gasket, Oven Door WPL 4342564 Contact Us For Availability
19
Bracket WPL 4338160 Contact Us For Availability
19
Retainer, Insul. WPL 4338186 Contact Us For Availability
20
Panel, Inner Door WPL 4337448 Contact Us For Availability
20
Tube, Grease WPL 4336823 Contact Us For Availability
21
Spacer, Glass WPL 4336869 Contact Us For Availability
21
Cover, Latch WPL 4337081 Contact Us For Availability
21
Side Panel (Black, Left) WPL 4337711 Contact Us For Availability
21
Side Panel (Black, Right) WPL 4337712 Contact Us For Availability
21
Side Panel (Almond, Left) WPL 4342667 Contact Us For Availability
21
Side Panel (Almond, Right) WPL 4342668 Contact Us For Availability
22
Retainer WPL 4342666 Contact Us For Availability
22
Flue Duct WPL 4338185 Contact Us For Availability
23
Washer WPL 4337618 Contact Us For Availability
24
Retainer, Glass WPL 4334791 Contact Us For Availability
24
Limit Switch, WPL 4337008 Contact Us For Availability
24
Spring, Door (2) WPL 4337386 Contact Us For Availability
25
Hinge-Door (Left) WPL 4336784 Contact Us For Availability
25
Hinge-Door (Right) WPL 4336783 Contact Us For Availability
25
Screw 6-32x5/16 WPL 4328072 Contact Us For Availability
26
Base W/levelers WPL 4342828 Contact Us For Availability
27
Fitting, Tube WPL 4336824 Contact Us For Availability
27
Screw WPL 4336631 Contact Us For Availability
28
Knob, Infinite WPL 4342655 Contact Us For Availability
28
Leg Levelers (4) WPL 4334834 Contact Us For Availability
29
Bezel, Knob (Left Rear) WPL 4342647 Contact Us For Availability
29
Bezel, Knob (Right Rear) WPL 4342648 Contact Us For Availability
29
Bezel, Knob (Left Front) WPL 4342649 Contact Us For Availability
29
Bezel, Knob (Right Front) WPL 4342650 Contact Us For Availability
29
Screw, 10-32x17/32 WPL 4323884 Contact Us For Availability
31
Plate, Mounting WPL 4337775 Contact Us For Availability
31
Lid, Jar (2) WPL 4335900 Contact Us For Availability
32
Seal, Control WPL 4325524 Contact Us For Availability
32
Spacer, Expansion Nut - (8) WPL 4331381 Contact Us For Availability
33
Hinge WPL 4337416 Contact Us For Availability
34
Switch, Door Lock WPL 4337377 Contact Us For Availability
35
Light, Indicator WPL 4336248 Contact Us For Availability
35
Circuit Board W/Relay & Transf. WPL 4338554 Contact Us For Availability
36
Panel, Control WPL 4336820 Contact Us For Availability
36
Spacer, Circuit Board WPL 4336562 Contact Us For Availability
37
Lens, Ind. Light WPL 4336078 Contact Us For Availability
37
Cover, Wire WPL 4336918 Contact Us For Availability
38
Clamp, Capacitor WPL 4337073 Contact Us For Availability
39
Rocker Switch, Blower/Hi-Lo WPL 4336220 Contact Us For Availability
39
Capacitor WPL 4337124 Contact Us For Availability
40
Rocker Switch, Blower/Oven Light WPL 4335904 Contact Us For Availability
41
Screw No.4-40 WPL 4335881 Contact Us For Availability
42
Insulator WPL 4338589 Contact Us For Availability
42
Bracket, Catch WPL 4337417 Contact Us For Availability
43
Insulator WPL 4335973 Contact Us For Availability
43
Catch WPL 4337418 Contact Us For Availability
44
Back, Control WPL 4337451 Contact Us For Availability
44
Strike WPL 4337419 Contact Us For Availability
45
Bezel, Clock/Oven Control WPL 4336815 Contact Us For Availability
45
Lining, Lower Door WPL 4337420 Contact Us For Availability
46
Plate, Clock/Oven Control WPL 4337033 Contact Us For Availability
46
Panel, Lower Door WPL 4336734 Contact Us For Availability
47
Handle WPL 4336811 Contact Us For Availability
48
Knob, Clock/Oven Control WPL 4337194 Contact Us For Availability
49
Faceplate WPL 4337075 Contact Us For Availability
49
Frame, Lower Door WPL 4336752 Contact Us For Availability
50
Lens, Clock/Oven Control WPL 4337210 Contact Us For Availability
50
Element, Bake (240 Volt) WPL 4334928 Contact Us For Availability
50
Element, Bake (208 Volt (Opt.)) WPL 4334929 Contact Us For Availability
51
Control-Clock/Oven WPL 4343004 Contact Us For Availability
51
Washer WPL 4337453 Contact Us For Availability
52
Screw, No.6-32 x 5/16 WPL 4337582 Contact Us For Availability
52
Tube, Vent WPL 4337203 Contact Us For Availability
53
Scre WPL 4342656 Contact Us For Availability
53
Retainer, Light Lens WPL 4324482 Contact Us For Availability
54
WPL 4337623 WPL 4337623 Contact Us For Availability
54
Lens, Light WPL 4324415 Contact Us For Availability
55
WPL 4335097 WPL 4335097 Contact Us For Availability
55
Seal, Lens WPL 4324481 Contact Us For Availability
56
WPL 4342657 WPL 4342657 Contact Us For Availability
56
WPL 4342658 WPL 4342658 Contact Us For Availability
57
WPL 4327216 WPL 4327216 Contact Us For Availability
58
WPL 4342659 WPL 4342659 Contact Us For Availability
58
Body, Oven WPL 4337959 Contact Us For Availability
59
WPL 4337543 WPL 4337543 Contact Us For Availability
60
WPL 4337340 WPL 4337340 Contact Us For Availability
60
Frame, Front WPL 4337446 Contact Us For Availability
61
Insulation, Top & Sides WPL 4336990 Contact Us For Availability
62
Insulation, Bottom & Back WPL 4353609 Contact Us For Availability
64
Cover WPL 4329206 Contact Us For Availability
65
Sensor WPL 4337170 Contact Us For Availability
66
Screw WPL 4324445 Contact Us For Availability
67
Rack, Oven (2) WPL 4334809 Contact Us For Availability
70
WPL 4338587 WPL 4338587 Contact Us For Availability
72
WPL 4337413 WPL 4337413 Contact Us For Availability
73
WPL 4323673 WPL 4323673 Contact Us For Availability
74
WPL 4336048 WPL 4336048 Contact Us For Availability
75
WPL 4338237 WPL 4338237 Contact Us For Availability
76
WPL 4354262 WPL 4354262 Contact Us For Availability
77
WPL 4331822 WPL 4331822 Contact Us For Availability
78
WPL 4342670 WPL 4342670 Contact Us For Availability
79
WPL 4337625 WPL 4337625 Contact Us For Availability
80
WPL 4338039 WPL 4338039 Contact Us For Availability
80
WPL 4338040 WPL 4338040 Contact Us For Availability
81
WPL 4332521 WPL 4332521 Contact Us For Availability
83
WPL 4337434 WPL 4337434 Contact Us For Availability
× ![]()
