Model Whirlpool MTF1972HRQ REFRIGERATOR – Common Parts & Diagrams

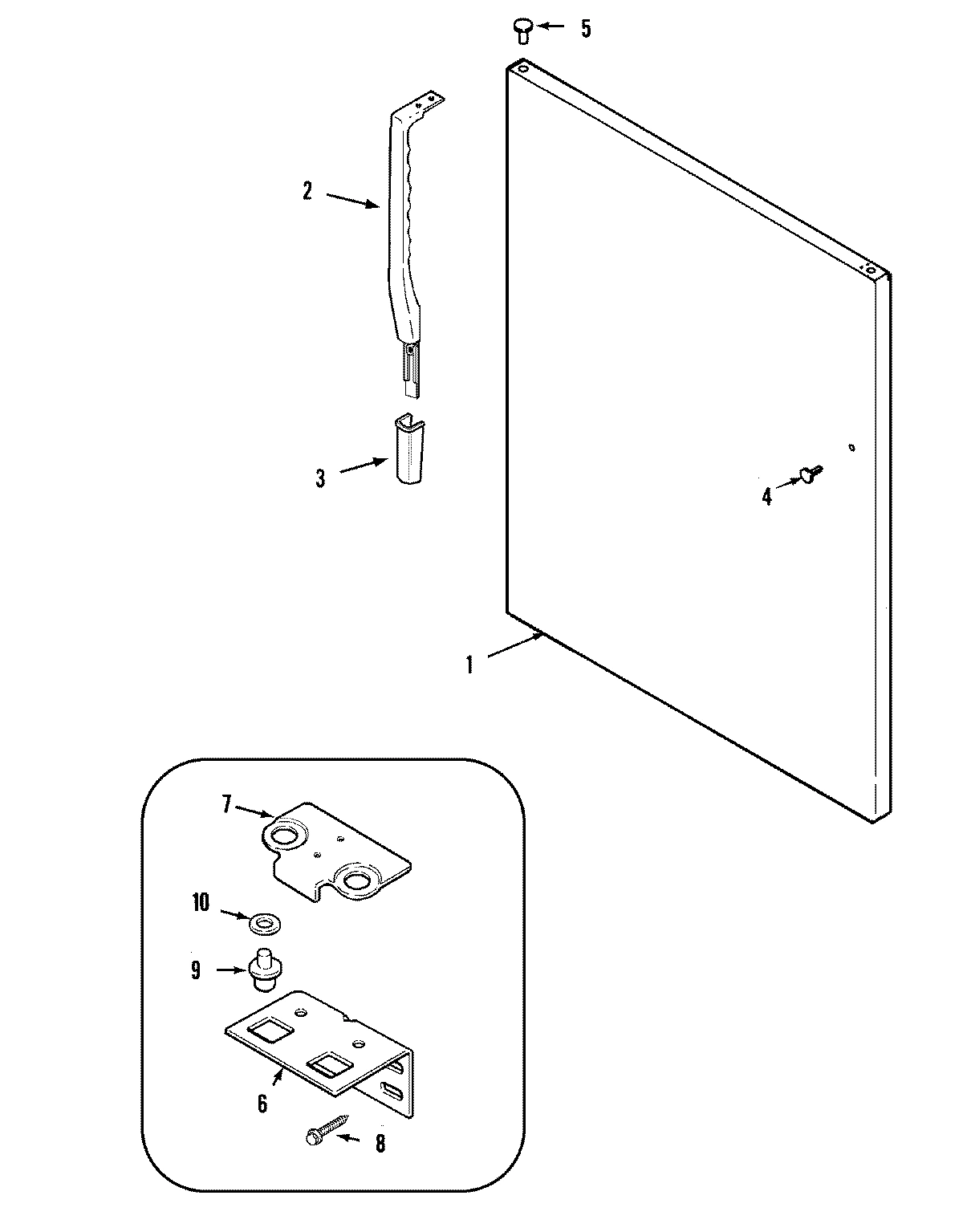

07 - FRESH FOOD OUTER DOOR

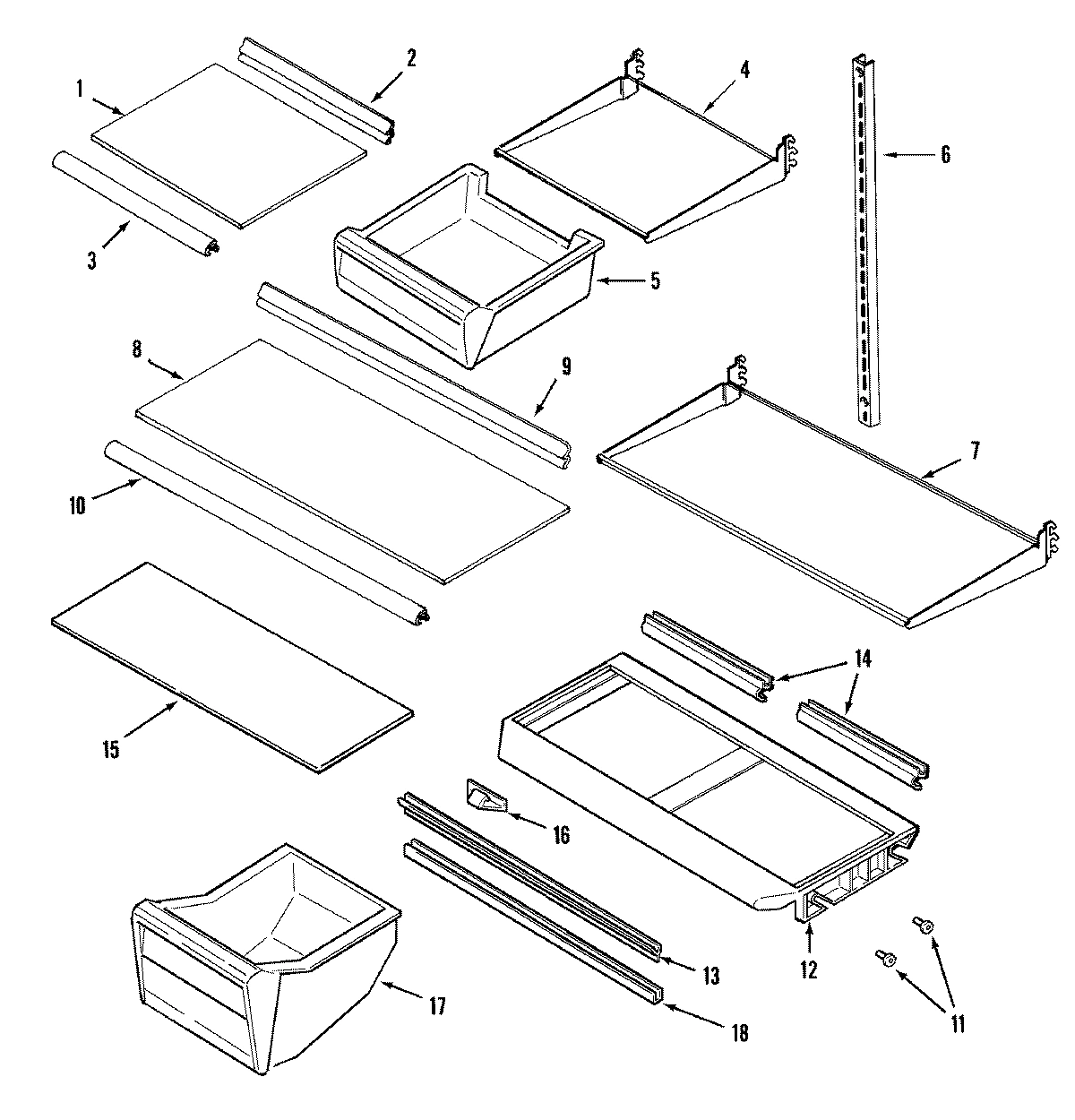

09 - SHELVES & ACCESSORIES

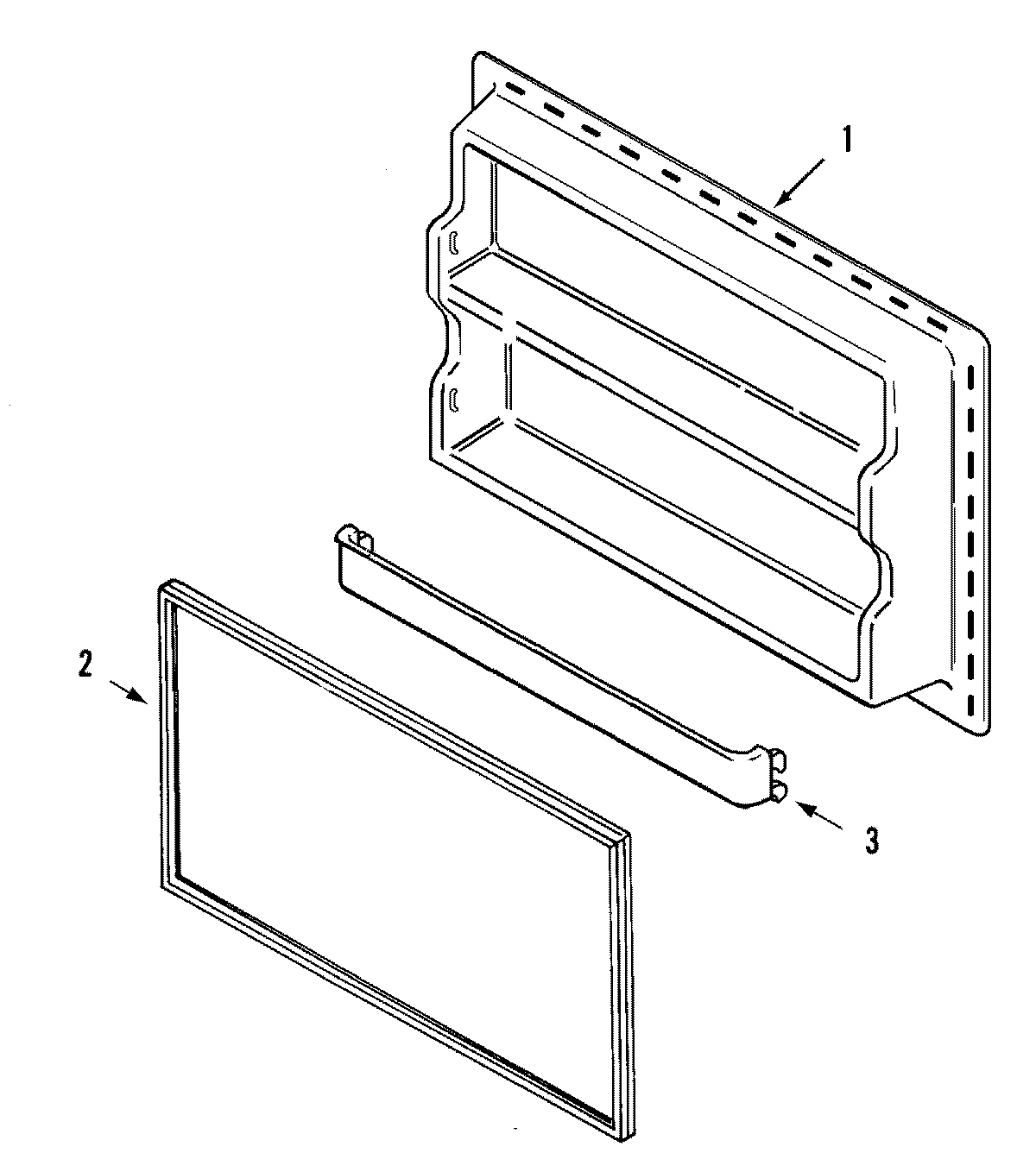

04 - FREEZER INNER DOOR

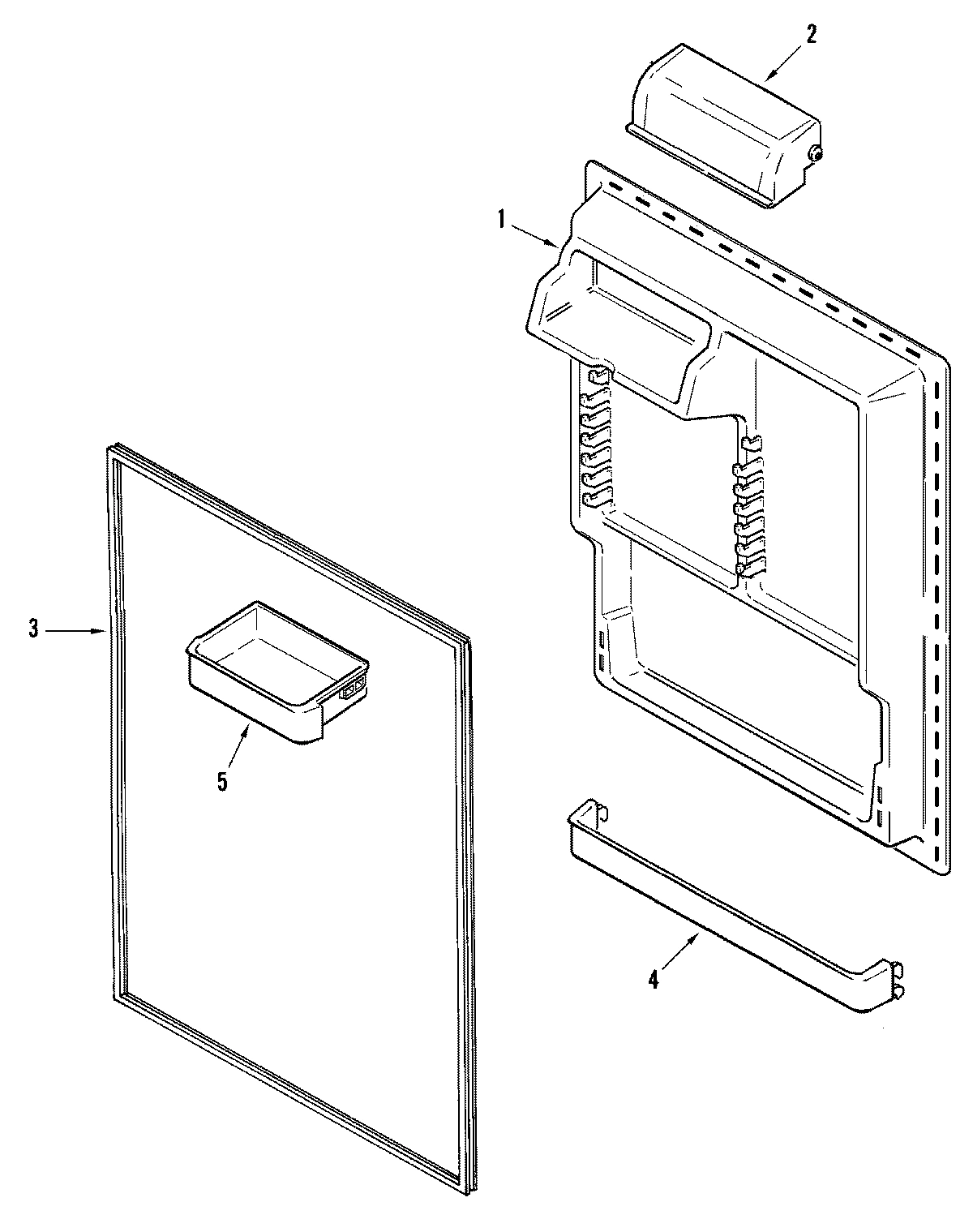

06 - FRESH FOOD INNER DOOR

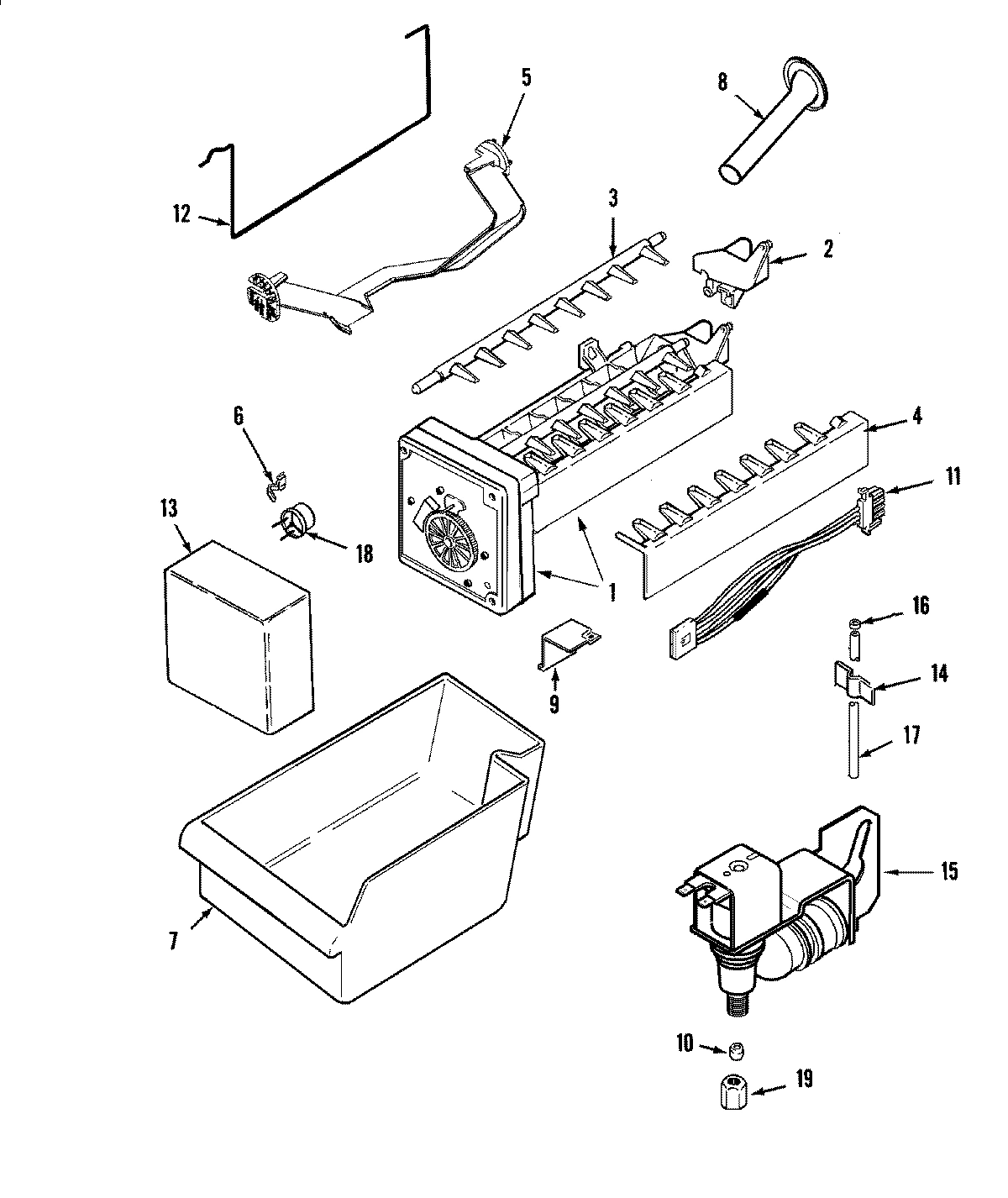

08 - ICE MAKER
10 - SUPPLEMENTAL INFORMATION

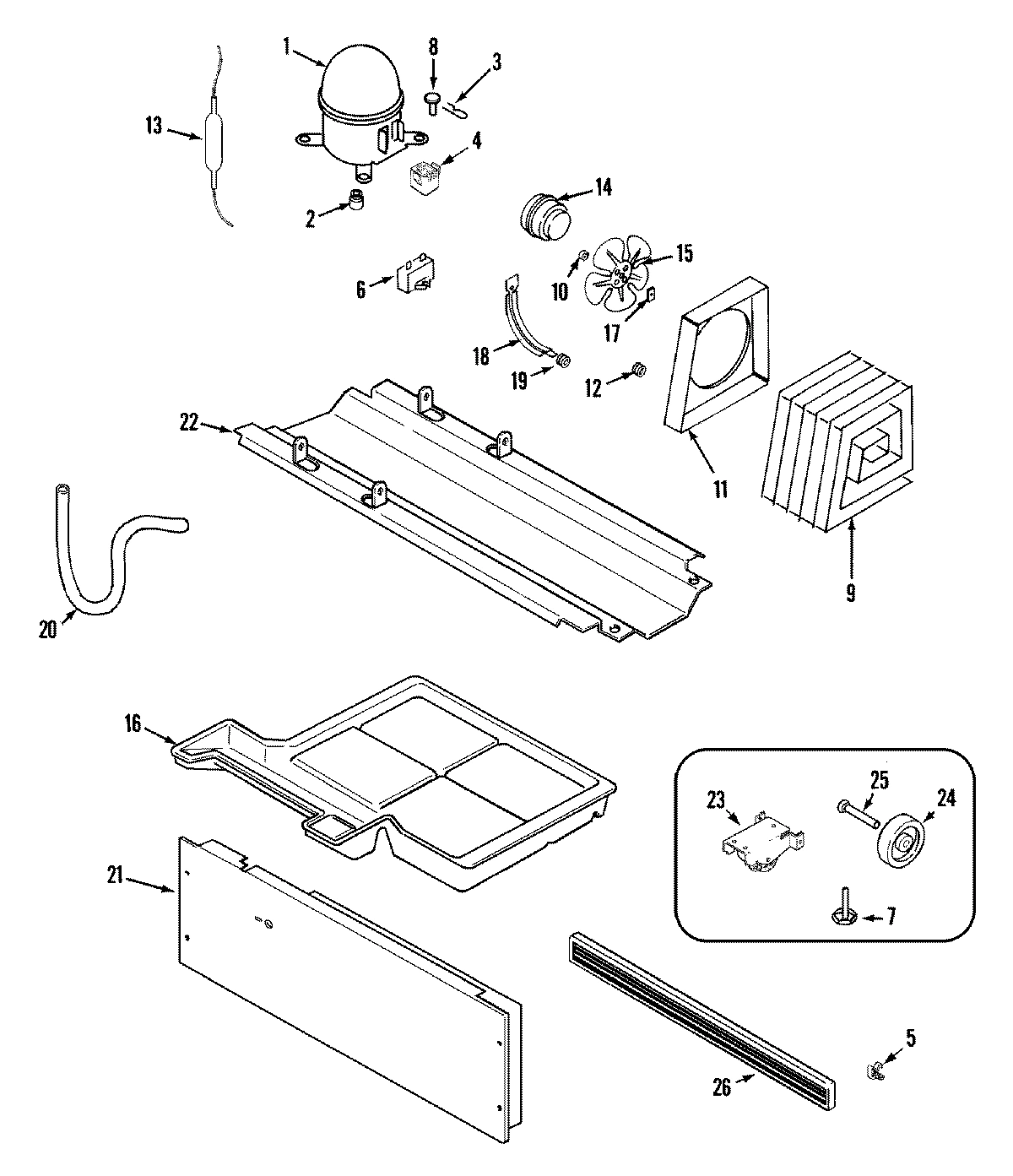

01 - COMPRESSOR

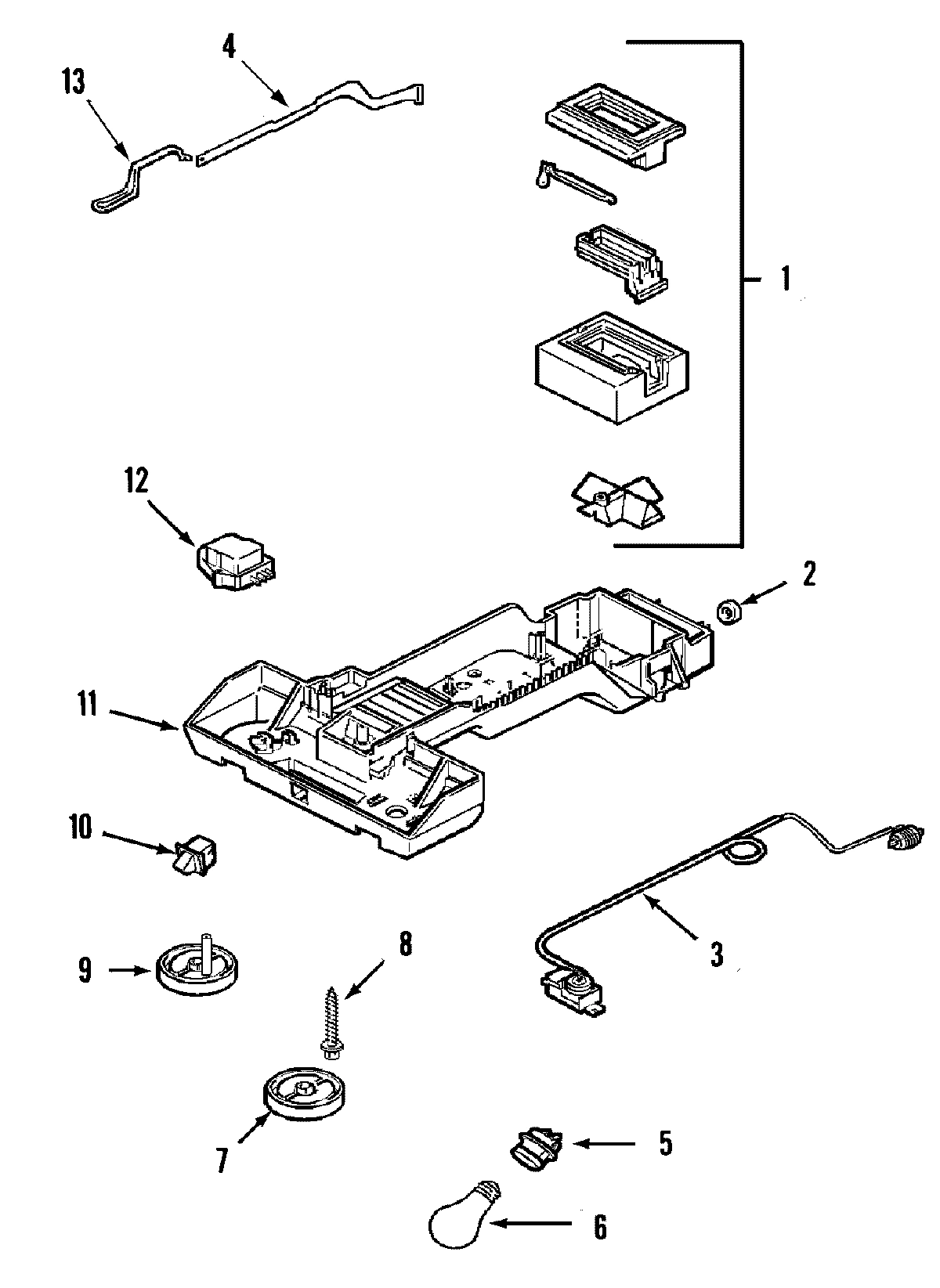

02 - CONTROLS

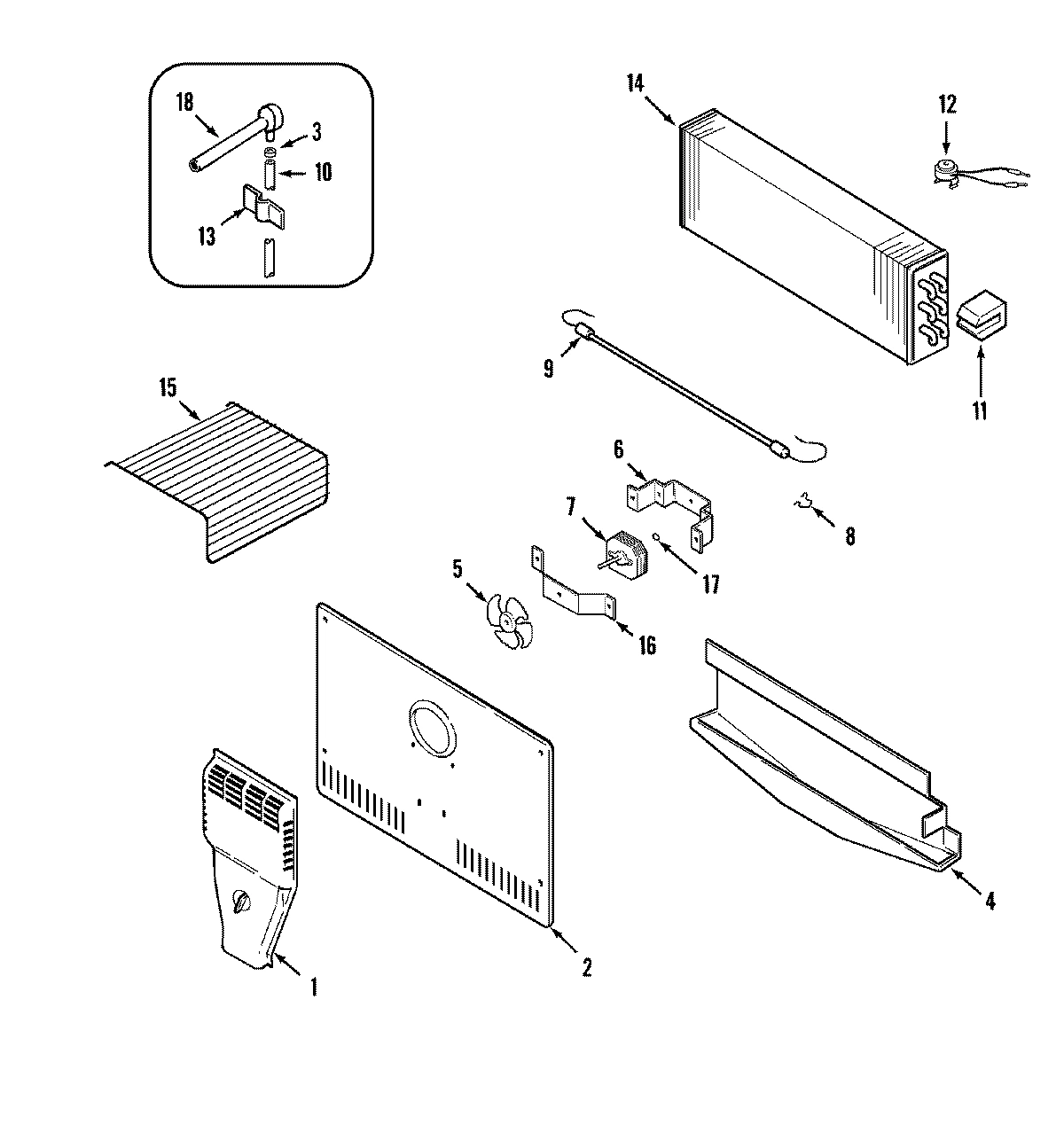

03 - FREEZER COMPARTMENT

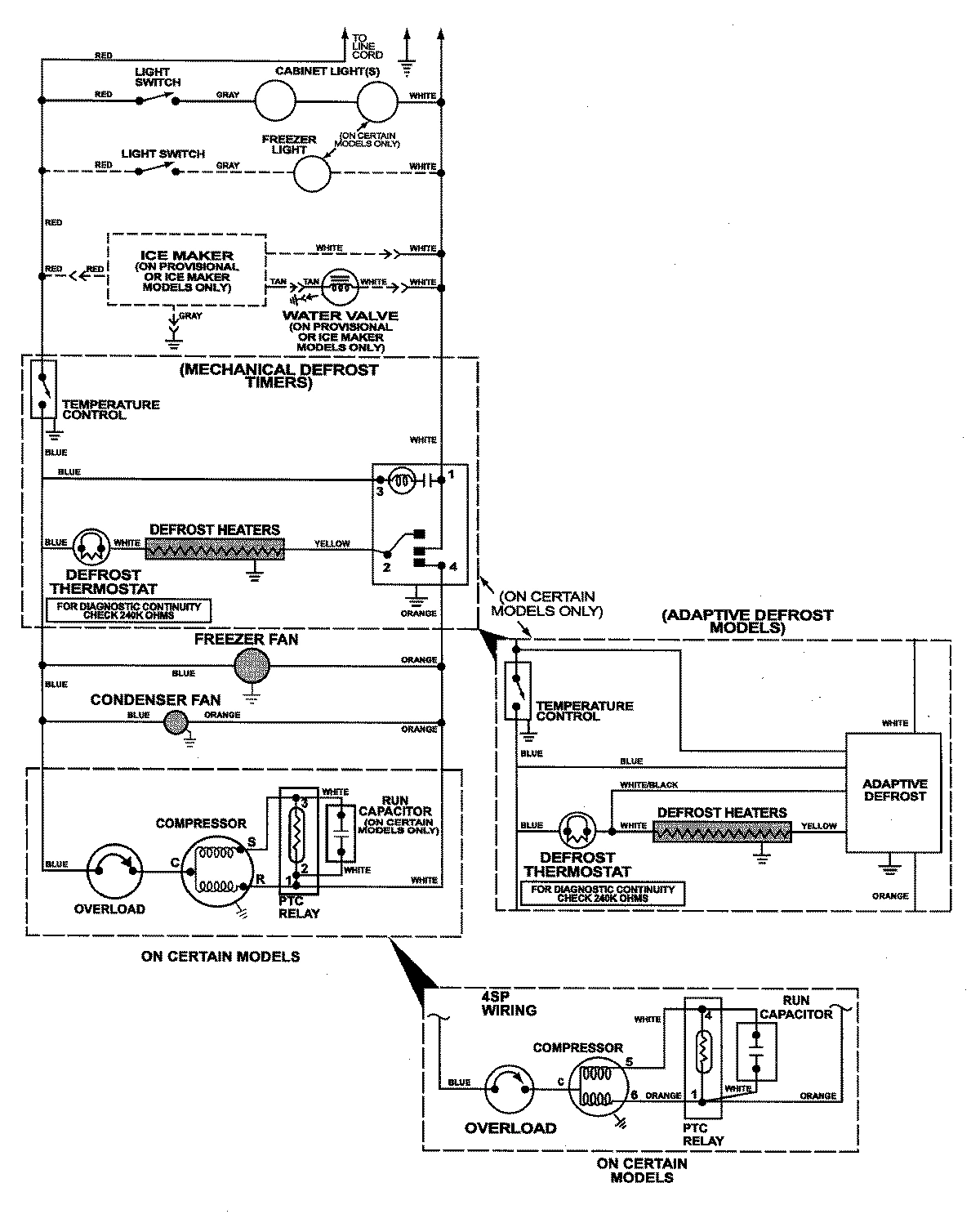

11 - WIRING INFORMATION

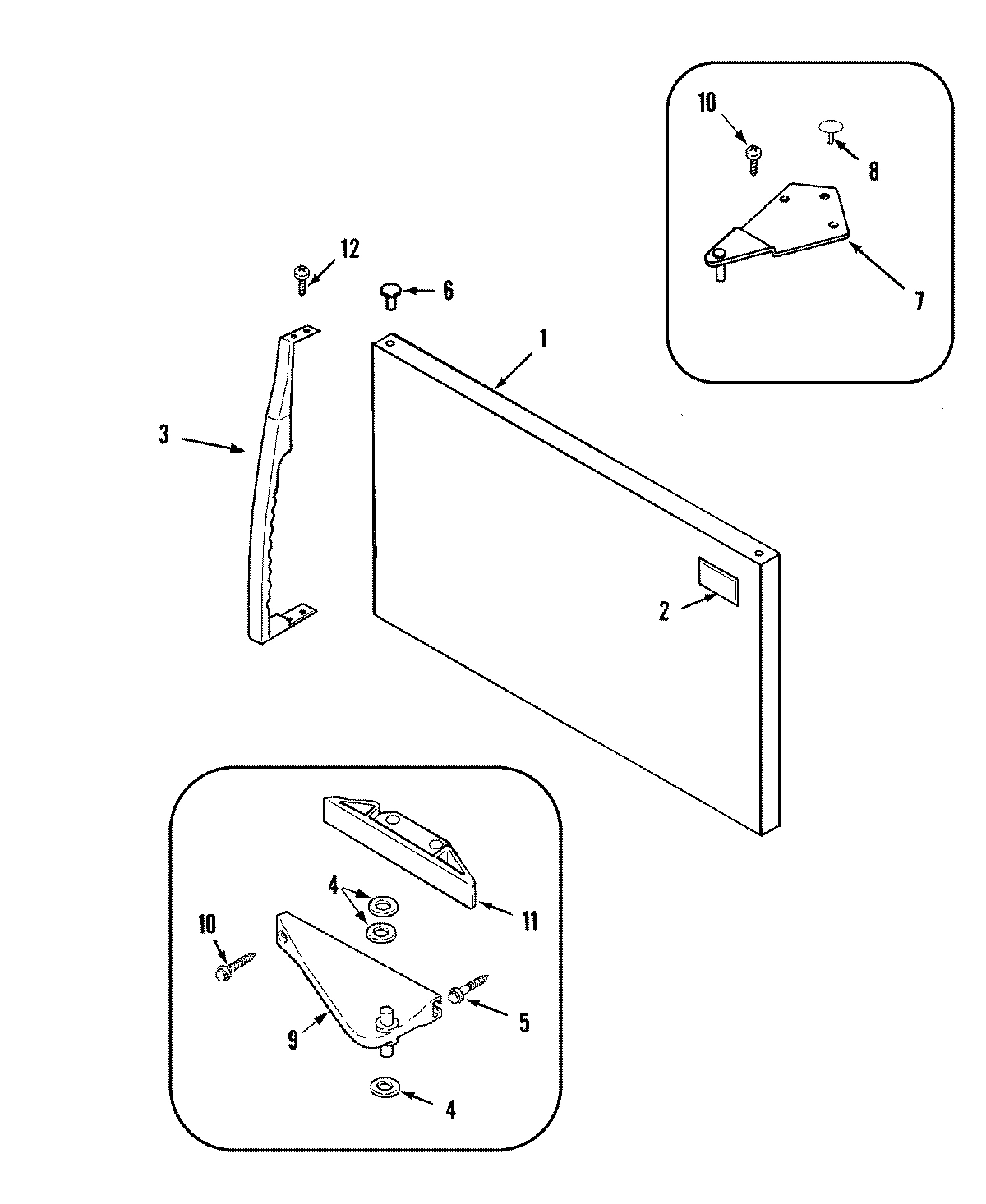

05 - FREEZER OUTER DOOR
Common parts from model Whirlpool MTF1972HRQ REFRIGERATOR
1
GLASS, SPLIT SHELF WPL 61002509 Contact Us For Availability
1
LINER. FRZ. DOOR WPL 61002261 Contact Us For Availability
1
INSERT, LINER SUPPORT WPL 61002827 Contact Us For Availability
1
INSERT, LINER SUPPORT WPL 61004652 Contact Us For Availability
1
SCREW WPL 61005749 Contact Us For Availability
1
INSERT, LINER SUPPORT WPL 61002741 Contact Us For Availability
1
INSERT, LINER SUPPORT WPL 61002828 Contact Us For Availability
1
LINER, F.F. DOOR WPL 61005103 Contact Us For Availability
1
MANUAL, USE & CARE WPL Y111541001 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 61004917 Contact Us For Availability
1
DAMPER/INSULATION KIT WPL 12001377 Contact Us For Availability
1
TUNNEL, AIR WPL 61005596 Contact Us For Availability
1
PANEL, FRZ. DOOR (BSQ) WPL 61005014 Contact Us For Availability
1
LABEL, DUAL ENERGY GUIDE WPL 61006247 Contact Us For Availability
2
SEAL, DRAIN WPL 61001977 Contact Us For Availability
2
TRIM, MEAT SHELF (REAR) WPL 61002475 Contact Us For Availability
2
DOOR, DAIRY WPL 61002160 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
MANUAL, SERVICE-NO REFUND WPL 16008248 Contact Us For Availability
2
PLUG BUTTON, EVAP. COVER WPL 61001952 Contact Us For Availability
2
COVER, EVAPORATOR WPL 61002418 Contact Us For Availability
2
SEAL, FOAM (CTR) WPL 61005920 Contact Us For Availability
2
NAMEPLATE (BSQ) WPL 61005024 Contact Us For Availability
3
CONTROL ASSY., TEMPERATURE WPL 61005790 Contact Us For Availability
3
PLUG BUTTON, HANDLE TOP (BSQ) WPL 61004907 Contact Us For Availability
3
TRIM, SHELF (FRT) WPL 61002483 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
CLIP, COMPRESSOR WPL 61005561 Contact Us For Availability
3
SCREW WPL 6527581 Contact Us For Availability
3
HANDLE, FRZ. DOOR (BSQ) WPL 61005400 Contact Us For Availability
4
FRAME, MEAT SHELF WPL 61002484 Contact Us For Availability
4
FRAME, SPLIT SHELF WPL 61002485 Contact Us For Availability
4
FRONT, PICK-OFF WPL 61005104 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
CLIP, RELAY/OVERLOAD ASSY. WPL 61006187 Contact Us For Availability
4
TAPE, DAMPER ACTUATOR WPL 61001999 Contact Us For Availability
4
BARRIER, FOIL WPL 61004832 Contact Us For Availability
4
TRAY, DRIP WPL 61004838 Contact Us For Availability
5
PAN, MEAT WPL 61005915 Contact Us For Availability
5
SHELF, PICK-OFF WPL 61005105 Contact Us For Availability
5
ADJUSTER, ICE LEVEL WPL 61005174 Contact Us For Availability
5
CLIP, KICKPLATE WPL 61001975 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability
5
SCREW WPL 61002025 Contact Us For Availability
6
PLUG BUTTON, HINGE CUP (BSQ) WPL 61004898 Contact Us For Availability
6
HINGE, LOWER (ZINC) WPL 61006113 Contact Us For Availability
6
SCREW WPL 40003728 Contact Us For Availability
6
RAIL, SHELF SUPPORT (LT/RT) WPL 61002254 Contact Us For Availability
6
RAIL, SHELF SUPPORT (CTR) WPL 61005916 Contact Us For Availability
6
SCREW WPL 4000171 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
CAPACITOR, RUN WPL 658894 Contact Us For Availability
6
BULB, LIGHT WPL 319561 Contact Us For Availability
6
BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability
7
SCREW WPL 61001876 Contact Us For Availability
7
STOP, DOOR WPL 61006147 Contact Us For Availability
7
FRAME, FULL SHELF WPL 61002491 Contact Us For Availability
7
PAN, ICE WPL 61001886 Contact Us For Availability
7
LEG, LEVELING WPL 61002014 Contact Us For Availability
7
HINGE, UPPER WPL 61004896 Contact Us For Availability
8
GLASS, FULL SHELF WPL 61002510 Contact Us For Availability
8
PLUG, COMPRESSOR WPL 61006030 Contact Us For Availability
8
SCREW WPL 61004485 Contact Us For Availability
8
CLIP, DEFROST HEATER WPL 61006173 Contact Us For Availability
8
PLUG BUTTON, HINGE (BSQ) WPL 61004899 Contact Us For Availability
9
TRIM, FULL SHELF (REAR) WPL 61002489 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW, BRACKET WPL 951081 Contact Us For Availability
9
CONDENSER WPL 61005427 Contact Us For Availability
9
HINGE, CENTER (BSQ) WPL 61004897 Contact Us For Availability
10
TRIM, FULL SHELF (FRT) WPL 61002490 Contact Us For Availability
10
SLEEVE, BRASS WPL 694311 Contact Us For Availability
10
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
10
SWITCH, LIGHT WPL 61006075 Contact Us For Availability
11
HOUSING, CONTROL WPL 61004622 Contact Us For Availability
11
SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability
11
WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability
11
SHROUD, CONDENSER WPL 61001941 Contact Us For Availability
11
SUPPORT, EVAPORATOR (LT) WPL 61006174 Contact Us For Availability
11
SUPPORT, EVAPORATOR (RT) WPL 61006175 Contact Us For Availability
11
STOP, DOOR (BSQ) WPL 61004912 Contact Us For Availability
12
SHELF, CRISPER WPL 61002416 Contact Us For Availability
12
ARM, SENSOR WPL 61005173 Contact Us For Availability
12
CLIP, SENSOR ARM WPL 61005175 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability
12
SCREW WPL 4050071 Contact Us For Availability
12
TIMER, DEFROST WPL 682333 Contact Us For Availability
12
SCREW WPL 61005394 Contact Us For Availability
13
SEAL, CRISPER SHELF (FRT) WPL 61002389 Contact Us For Availability
13
COVER, ICE MAKER WPL 61005374 Contact Us For Availability
13
CLIP, WATER LINE (ADHESIVE) WPL 61004913 Contact Us For Availability
13
DRIER WPL 139001 Contact Us For Availability
13
ARM, ACTUATOR WPL 61002000 Contact Us For Availability
14
EVAP/HEAT EXCH. ASSY. 19` WPL 12001397 Contact Us For Availability
14
SEAL, CRISPER SHELF (REAR) WPL 61003129 Contact Us For Availability
14
SCREW WPL 4000161 Contact Us For Availability
14
CLAMP, TUBING WPL 535168 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
WIRE HARNESS, CONTROLS WPL 61002212 Contact Us For Availability
15
GLASS, CRISPER SHELF WPL 61002459 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability
15
TRIVET WPL 61002001 Contact Us For Availability
16
PAN, DRAIN WPL 61004095 Contact Us For Availability
16
SLIDE, CONTROL WPL 61002331 Contact Us For Availability
16
RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability
17
PAN, CRISPER WPL 61006171 Contact Us For Availability
17
BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability
18
RAIL, CRISPER SUPPORT WPL 61005012 Contact Us For Availability
18
GROMMET, FILL TUBE WPL 61005940 Contact Us For Availability
18
THERMOSTAT WPL 950921 Contact Us For Availability
18
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
19
GROMMET, BRACKET WPL 61004743 Contact Us For Availability
19
WIRE HARNESS, FRZ. WPL 61005033 Contact Us For Availability
20
TUBE, DRAIN TRAP WPL 61006123 Contact Us For Availability
21
COVER, COMPRESSOR COMPARTMENT WPL 61005913 Contact Us For Availability
22
PAN, COMPRESSOR MTG. WPL 61005272 Contact Us For Availability
23
SCREW WPL 6527550 Contact Us For Availability
23
WHEEL ASSY. (FRT) WPL 61005216 Contact Us For Availability
26
KICKPLATE W/CLIPS (BSQ) WPL 61005011 Contact Us For Availability
27
YODER LOOP HEATER REPAIR (115V WPL 12001492 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002787 Contact Us For Availability
× ![]()
