Model Maytag MTB2254MEB00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - LINER PARTS

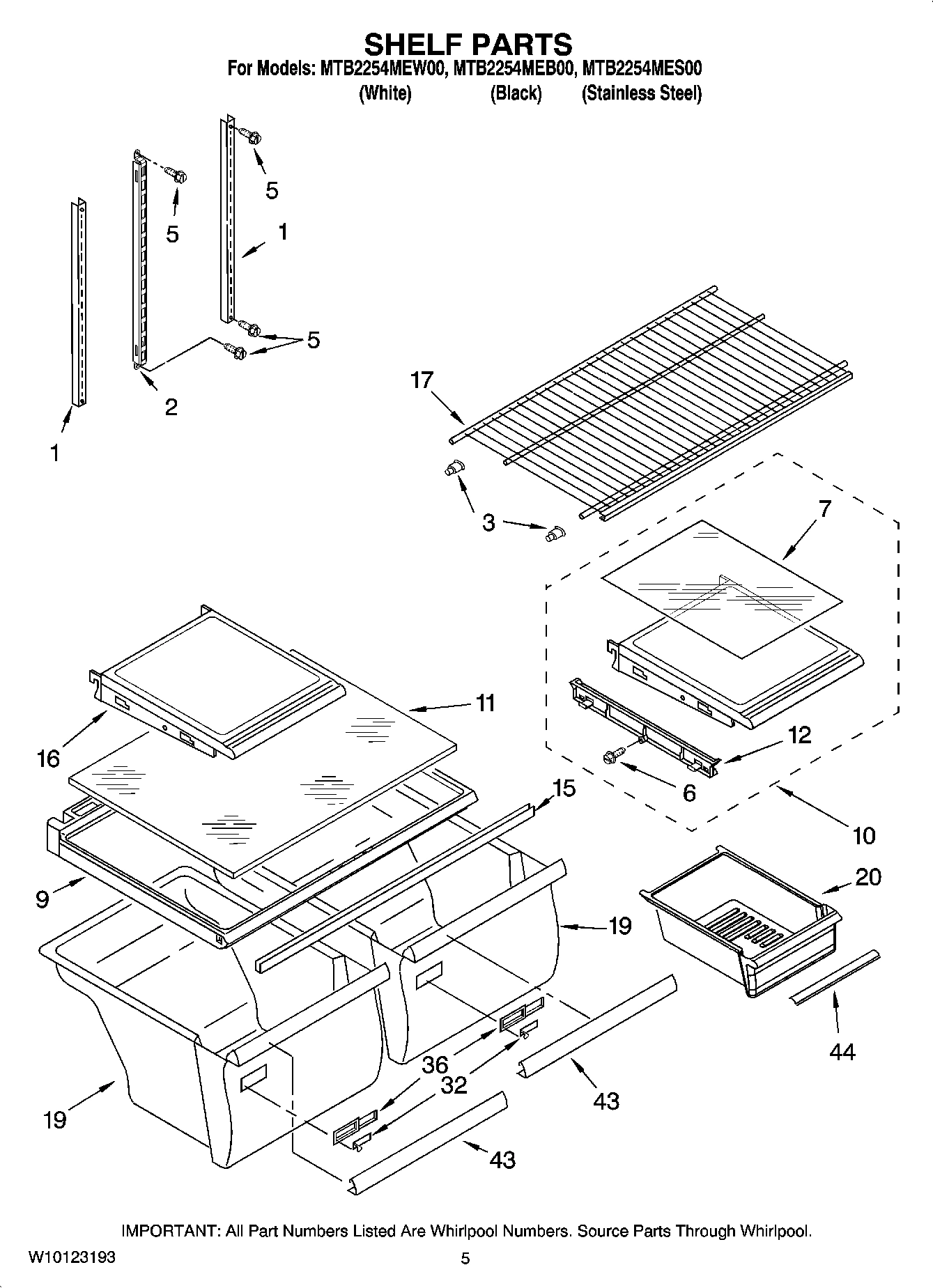

03 - SHELF PARTS

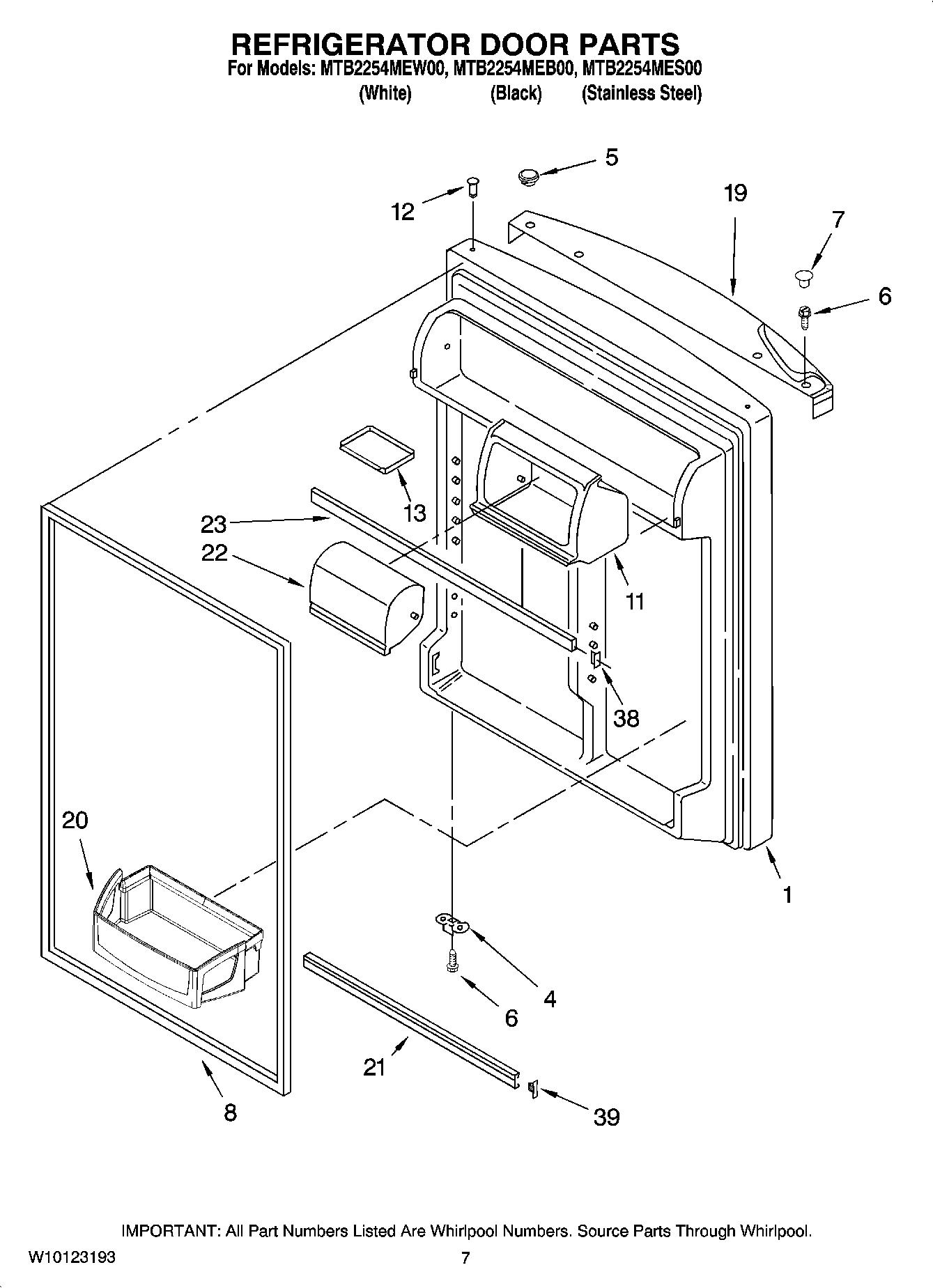

04 - REFRIGERATOR DOOR PARTS

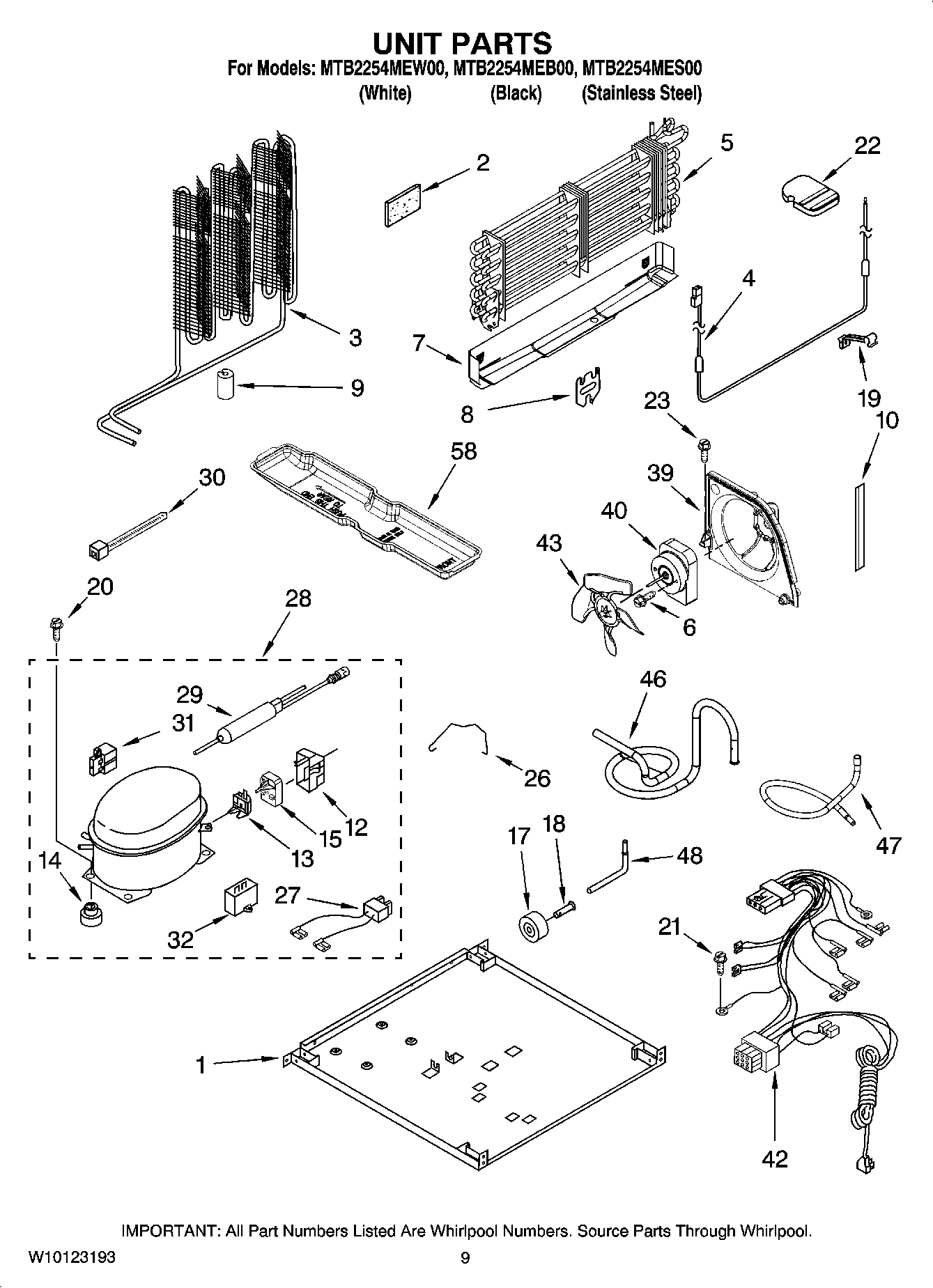

05 - UNIT PARTS

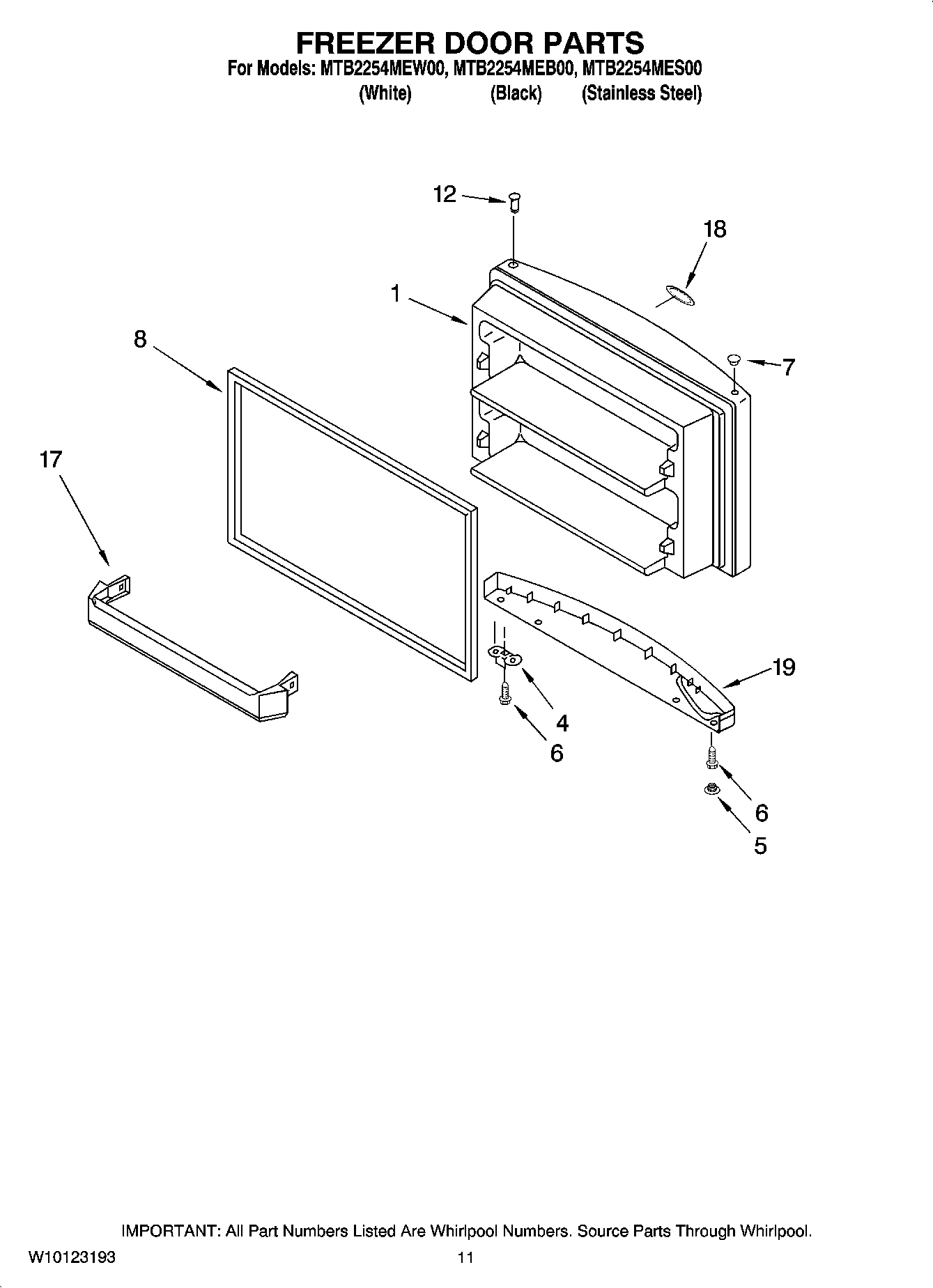

06 - FREEZER DOOR PARTS, OPTIONAL PARTS
Common parts from model Maytag MTB2254MEB00 REFRIGERATOR
MAY 1117510 MAY 1117510 Contact Us For Availability
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
FIELD INSTALLABLE ICE MAKER (ECKMF94) MAY 2155469 Contact Us For Availability
WIRE MAY 253886 Contact Us For Availability
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, WHITE (12 MAY 350930 Contact Us For Availability
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, BLACK (12 MAY 350939 Contact Us For Availability
CUSTOMER TOUCH-UP MATERIAL (PRIMER, WHITE (12 MAY 350942 Contact Us For Availability
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 4392899 Contact Us For Availability
Enamel, Biscuit (1 Qt. Uncut) MAY 4392900 Contact Us For Availability
Customer Touch-Up Material (Enamel, Biscuit ( MAY 4392901 Contact Us For Availability
MAY 479502 MAY 479502 Contact Us For Availability
MAY 503695 MAY 503695 Contact Us For Availability
MAY 505587 MAY 505587 Contact Us For Availability
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
MAY 542638 MAY 542638 Contact Us For Availability
MAY 542639 MAY 542639 Contact Us For Availability
MAY 606755 MAY 606755 Contact Us For Availability
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
MAY 799340 MAY 799340 Contact Us For Availability
Enamel, White (1 Qt. Uncut) MAY 799344 Contact Us For Availability
MAY 799832 MAY 799832 Contact Us For Availability
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
MAY 833938 MAY 833938 Contact Us For Availability
MAY 876029 MAY 876029 Contact Us For Availability
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
MAY 978941 MAY 978941 Contact Us For Availability
1
MAY 2314273 MAY 2314273 Contact Us For Availability
1
MAY 2320198 MAY 2320198 Contact Us For Availability
1
MAY 2320393 MAY 2320393 Contact Us For Availability
1
DO-IT-YOURSELF MANUAL REF./FZR. MAY 677969 Contact Us For Availability
1
MAY 2210522 MAY 2210522 Contact Us For Availability
1
Refrigerator Door (Includes Illus. 8 & 12) (W MAY 2202519 Contact Us For Availability
1
Refrigerator Door (Includes Illus. 8 & 12) (B MAY 2204867 Contact Us For Availability
1
Refrigerator Door (Includes Illus. 8 & 12) (S MAY 2218278 Contact Us For Availability
1
MAY 2320187 MAY 2320187 Contact Us For Availability
1
Freezer Door (Includes Illus. 8 & 12) (White) MAY 2202520 Contact Us For Availability
1
Freezer Door (Includes Illus. 8 & 12) (Black) MAY 2204856 Contact Us For Availability
1
Freezer Door (Includes Illus. 8 & 12) (Stainl MAY 2212419 Contact Us For Availability
2
MAY 2189410 MAY 2189410 Contact Us For Availability
2
Grommet (2) MAY 2197380 Contact Us For Availability
2
MAY 2300520 MAY 2300520 Contact Us For Availability
2
MAY 2169104 MAY 2169104 Contact Us For Availability
3
MAY 2166108 MAY 2166108 Contact Us For Availability
3
MAY 2254360 MAY 2254360 Contact Us For Availability
3
Cup, Shelf Mtg. MAY 2163762 Contact Us For Availability
3
MAY 2214960 MAY 2214960 Contact Us For Availability
4
MAY 489427 MAY 489427 Contact Us For Availability
4
Adaptive, Defrost Control MAY 2304099 Contact Us For Availability
4
MAY 2189202 MAY 2189202 Contact Us For Availability
4
MAY 2314157 MAY 2314157 Contact Us For Availability
5
MAY 489385 MAY 489385 Contact Us For Availability
5
MAY 2212485 MAY 2212485 Contact Us For Availability
5
MAY 489478 MAY 489478 Contact Us For Availability
5
MAY 2204837 MAY 2204837 Contact Us For Availability
5
MAY 2204840 MAY 2204840 Contact Us For Availability
5
MAY 2254249 MAY 2254249 Contact Us For Availability
6
Screw MAY 488208 Contact Us For Availability
6
MAY 3400065 MAY 3400065 Contact Us For Availability
6
Screw, 8-18 x 3/4 MAY 489276 Contact Us For Availability
6
MAY 8533859 MAY 8533859 Contact Us For Availability
7
MAY 2310057 MAY 2310057 Contact Us For Availability
7
MAY 2214913 MAY 2214913 Contact Us For Availability
7
Hole Plug, Hinge Sleeve (White) MAY 2212648 Contact Us For Availability
7
MAY 2212651 MAY 2212651 Contact Us For Availability
7
MAY 2254295 MAY 2254295 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
MAY 2202875 MAY 2202875 Contact Us For Availability
8
MAY 2202882 MAY 2202882 Contact Us For Availability
8
MAY 2176301 MAY 2176301 Contact Us For Availability
8
MAY 2214967 MAY 2214967 Contact Us For Availability
8
MAY 2214969 MAY 2214969 Contact Us For Availability
9
MAY 2179858 MAY 2179858 Contact Us For Availability
9
MAY 2314549 MAY 2314549 Contact Us For Availability
9
GROMMET-COND-(4) MAY 2319835 Contact Us For Availability
10
MAY 2214986 MAY 2214986 Contact Us For Availability
10
Shelf Assembly MAY 2214911 Contact Us For Availability
10
MAY 2300638 MAY 2300638 Contact Us For Availability
11
MAY 3400504 MAY 3400504 Contact Us For Availability
11
Fan Blade MAY 2163777 Contact Us For Availability
11
MAY 2210573 MAY 2210573 Contact Us For Availability
11
MAY 2210566 MAY 2210566 Contact Us For Availability
12
MAY 549193 MAY 549193 Contact Us For Availability
12
MAY 2212982 MAY 2212982 Contact Us For Availability
12
Frame Assembly, Meat Shelf MAY 2214892 Contact Us For Availability
12
MAY 2183003 MAY 2183003 Contact Us For Availability
12
COVER ((SERVICE ONLY)) MAY 4387731 Contact Us For Availability
13
MAY 2179826 MAY 2179826 Contact Us For Availability
13
Thermostat Assembly (Includes Illus. 5 & 18) MAY 2200859 Contact Us For Availability
13
MAY 2195388 MAY 2195388 Contact Us For Availability
13
OVERLOAD ((SERVICE ONLY)) MAY 4390624 Contact Us For Availability
14
MAY 1100826 MAY 1100826 Contact Us For Availability
14
MAY 4387558 MAY 4387558 Contact Us For Availability
15
MAY 489497 MAY 489497 Contact Us For Availability
15
MAY 2314478 MAY 2314478 Contact Us For Availability
15
Start Device Combination (Start Relay and Ove MAY 2225929 Contact Us For Availability
16
MAY 2254618 MAY 2254618 Contact Us For Availability
16
MAY 2302561 MAY 2302561 Contact Us For Availability
16
Shelf Assembly, Spillguard (2) MAY 2214909 Contact Us For Availability
17
MAY 2183854 MAY 2183854 Contact Us For Availability
17
Light Bulb (2) MAY 527949 Contact Us For Availability
17
MAY 2184667 MAY 2184667 Contact Us For Availability
17
MAY 2150304 MAY 2150304 Contact Us For Availability
17
Trivet MAY 2159292 Contact Us For Availability
18
MAY 8281265 MAY 8281265 Contact Us For Availability
18
MAY 2200831 MAY 2200831 Contact Us For Availability
18
MAY 2221797 MAY 2221797 Contact Us For Availability
18
MAY 13035001 MAY 13035001 Contact Us For Availability
19
MAY 1118894 MAY 1118894 Contact Us For Availability
19
Pan, Crisper (Includes Illus. 32,36 & 43) MAY 2218130 Contact Us For Availability
19
Endcap, Handle (Black) MAY 2300571B Contact Us For Availability
19
Endcap, Handle (White) MAY 2300571W Contact Us For Availability
19
MAY 2182338 MAY 2182338 Contact Us For Availability
19
Endcap, Handle (Black) MAY 2300575B Contact Us For Availability
19
Endcap, Handle (White) MAY 2300575W Contact Us For Availability
20
MAY 2254473 MAY 2254473 Contact Us For Availability
20
Wire Assembly, Freezer Compartment (Includes MAY 2310099 Contact Us For Availability
20
Pan, Meat MAY 2218132 Contact Us For Availability
20
Bin, Door Shelf (3) MAY 2179606 Contact Us For Availability
20
MAY 489373 MAY 489373 Contact Us For Availability
21
MAY 2176281 MAY 2176281 Contact Us For Availability
21
MAY 2195948 MAY 2195948 Contact Us For Availability
21
MAY 488500 MAY 488500 Contact Us For Availability
22
MAY 2200863 MAY 2200863 Contact Us For Availability
22
MAY 2218109 MAY 2218109 Contact Us For Availability
22
MAY 2201185 MAY 2201185 Contact Us For Availability
23
MAY 2254354 MAY 2254354 Contact Us For Availability
23
MAY 2159306 MAY 2159306 Contact Us For Availability
23
MAY 3400518 MAY 3400518 Contact Us For Availability
24
MAY 2189452 MAY 2189452 Contact Us For Availability
26
MAY 2212439 MAY 2212439 Contact Us For Availability
26
MAY 2255113 MAY 2255113 Contact Us For Availability
27
MAY 2183998 MAY 2183998 Contact Us For Availability
27
Hole Plug (6) (White) MAY 2201012 Contact Us For Availability
27
Cover-Inlet Tube MAY 2205003 Contact Us For Availability
27
Wire Assembly (Service Only) MAY 4387765 Contact Us For Availability
28
MAY 8534009 MAY 8534009 Contact Us For Availability
28
Compressor (Includes Items 12,13,14,27,29, 31 MAY 2218968 Contact Us For Availability
29
MAY 2254453 MAY 2254453 Contact Us For Availability
29
MAY 2317845 MAY 2317845 Contact Us For Availability
30
MAY 2320183 MAY 2320183 Contact Us For Availability
30
Wire Tie MAY 2155774 Contact Us For Availability
31
MAY 2254454 MAY 2254454 Contact Us For Availability
31
Relay (Service Only) MAY 2183454 Contact Us For Availability
32
MAY 487996 MAY 487996 Contact Us For Availability
32
MAY 2176222 MAY 2176222 Contact Us For Availability
32
Capacitor (Service) MAY 1118576 Contact Us For Availability
32
MAY 2169373 MAY 2169373 Contact Us For Availability
34
MAY 2302536 MAY 2302536 Contact Us For Availability
35
Corner Filler (2) (White) MAY 2201014 Contact Us For Availability
35
MAY 2201017 MAY 2201017 Contact Us For Availability
35
MAY 941839 MAY 941839 Contact Us For Availability
36
Grille (Includes Illus. 39) (White) MAY 2254313 Contact Us For Availability
36
Grille (Includes Illus. 39) (Black) MAY 2254315 Contact Us For Availability
36
MAY 2205079 MAY 2205079 Contact Us For Availability
36
MAY 2212446 MAY 2212446 Contact Us For Availability
37
Washer, Plain MAY 489341 Contact Us For Availability
37
Valve-Tube, Body MAY 2210509 Contact Us For Availability
38
Washer, Nylon MAY 487576 Contact Us For Availability
38
MAY 2177340 MAY 2177340 Contact Us For Availability
39
Clip, Grille (2) MAY 2189356 Contact Us For Availability
39
MAY 2300418 MAY 2300418 Contact Us For Availability
39
MAY 2156006 MAY 2156006 Contact Us For Availability
39
MAY 2302249 MAY 2302249 Contact Us For Availability
40
Cover, Hinge (White) MAY 2213360 Contact Us For Availability
40
MAY 2213363 MAY 2213363 Contact Us For Availability
40
MAY 2188874 MAY 2188874 Contact Us For Availability
41
MAY 2187601 MAY 2187601 Contact Us For Availability
42
Electrical Shield, Freezer Light MAY 2193491 Contact Us For Availability
42
WIRE ASSY, UNIT MAY 2187382 Contact Us For Availability
43
Light Bulb MAY 850166 Contact Us For Availability
43
Trim, Crisper Pan MAY 2320357 Contact Us For Availability
43
MAY 2225834 MAY 2225834 Contact Us For Availability
44
MAY 2254576 MAY 2254576 Contact Us For Availability
44
Trim-Meat Pan MAY 2176357 Contact Us For Availability
45
MAY 2204639 MAY 2204639 Contact Us For Availability
46
MAY 2179859 MAY 2179859 Contact Us For Availability
46
MAY 2205384 MAY 2205384 Contact Us For Availability
47
MAY 2163810 MAY 2163810 Contact Us For Availability
47
MAY 2225237 MAY 2225237 Contact Us For Availability
48
MAY 2166284 MAY 2166284 Contact Us For Availability
48
MAY 2154109 MAY 2154109 Contact Us For Availability
49
MAY 489442 MAY 489442 Contact Us For Availability
54
MAY 2319915 MAY 2319915 Contact Us For Availability
58
Evaporator Tray MAY 2254574 Contact Us For Availability
58
MAY 876764 MAY 876764 Contact Us For Availability
58
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
58
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
58
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
58
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
58
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
58
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
× ![]()
