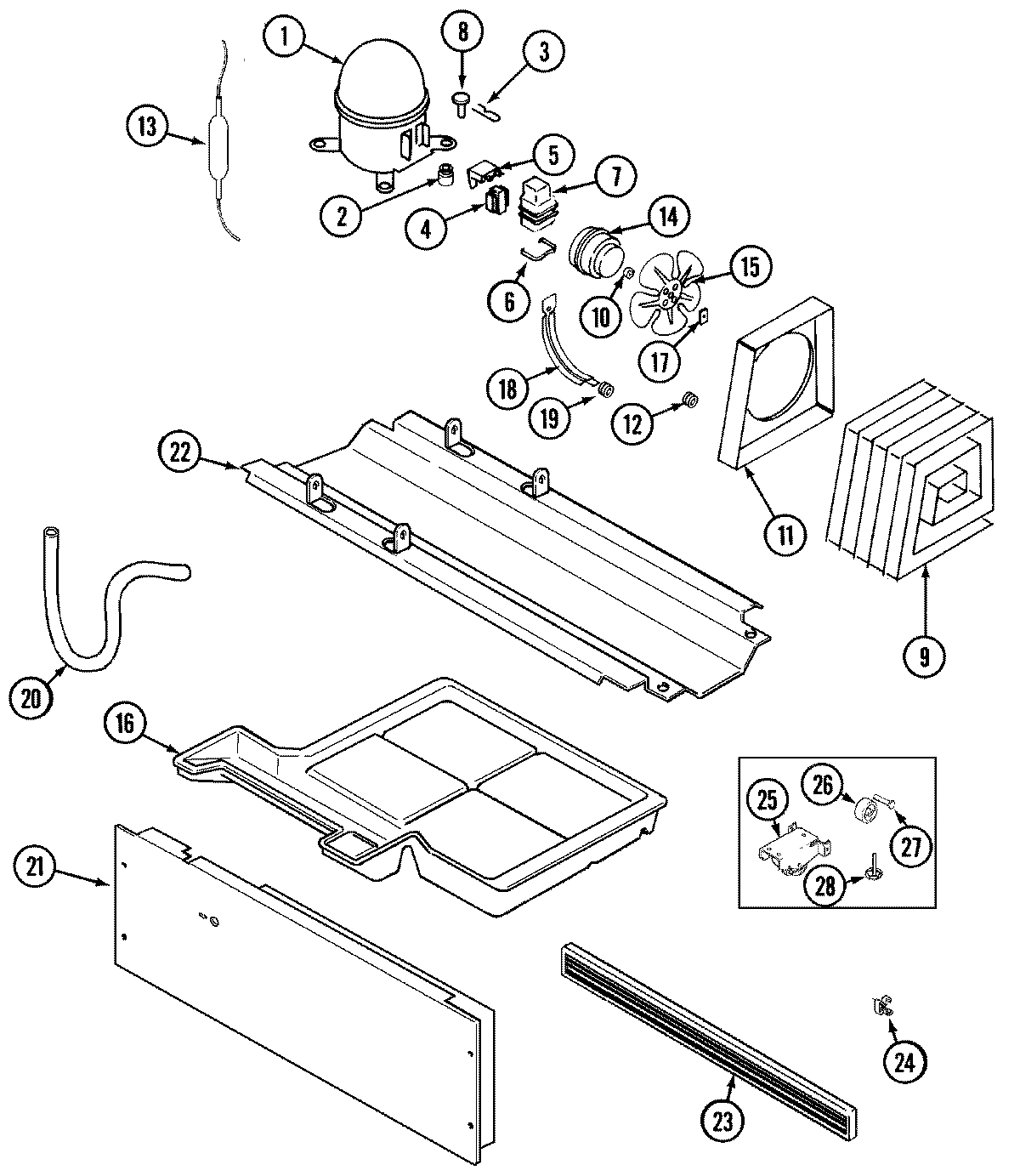

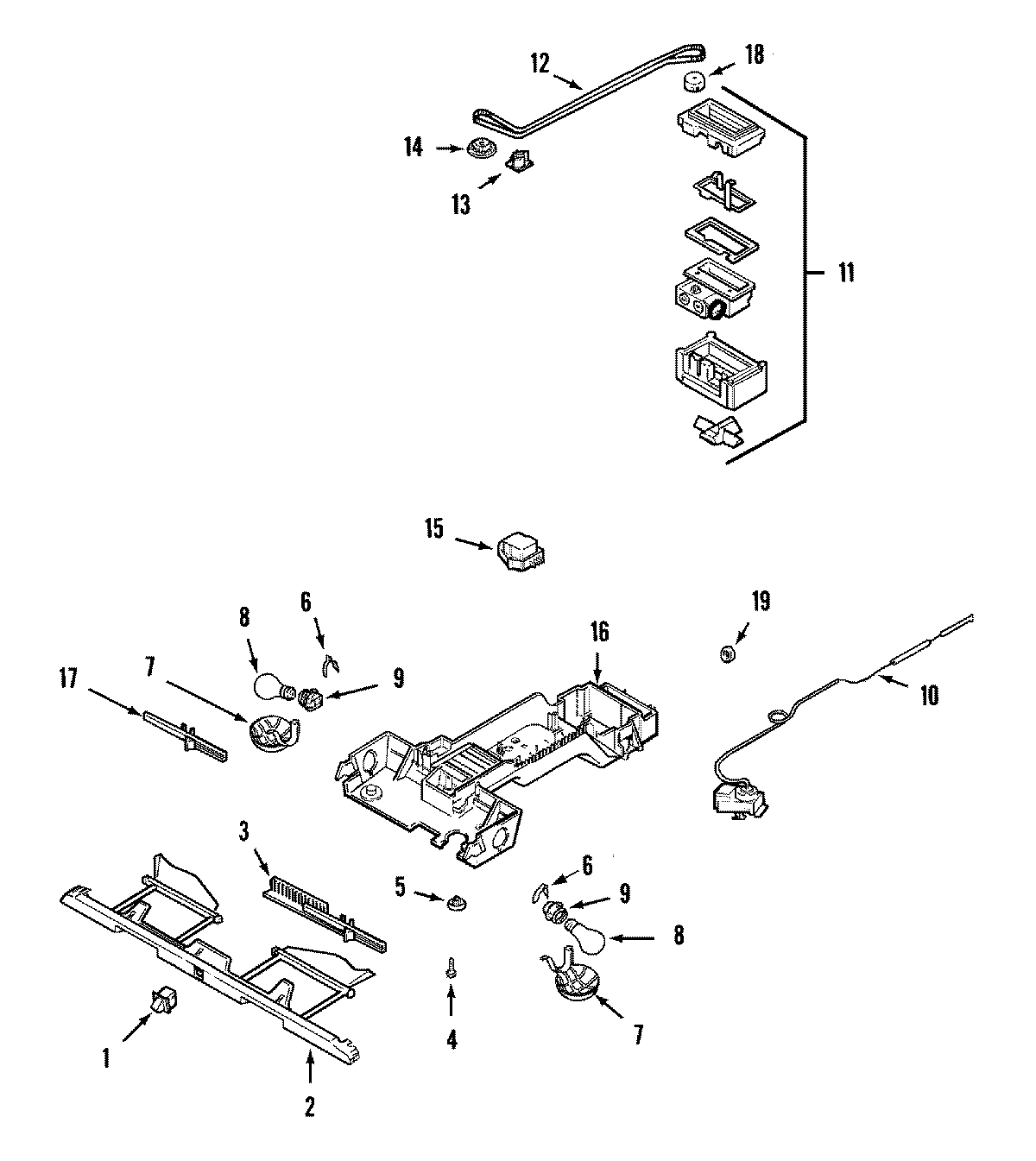

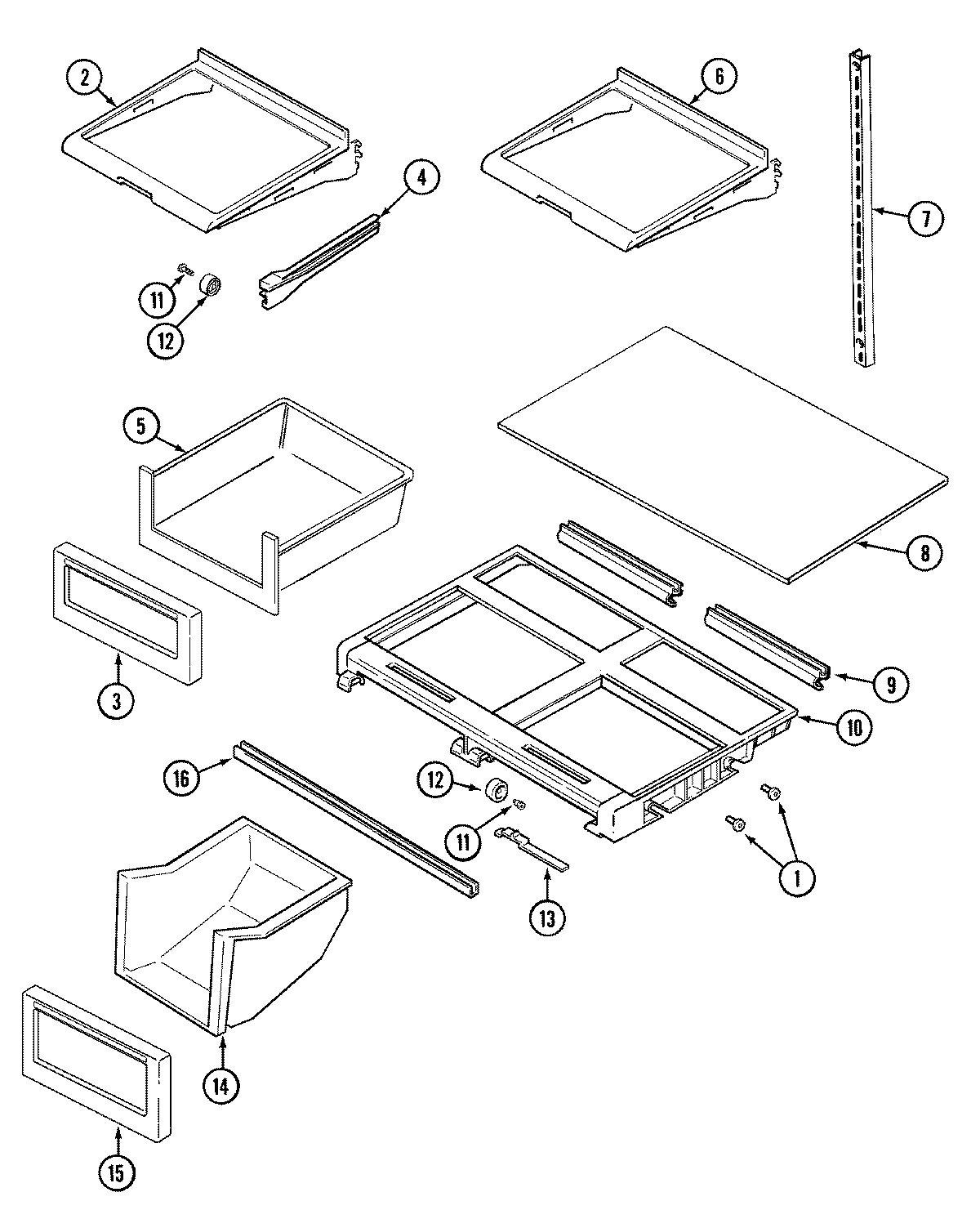

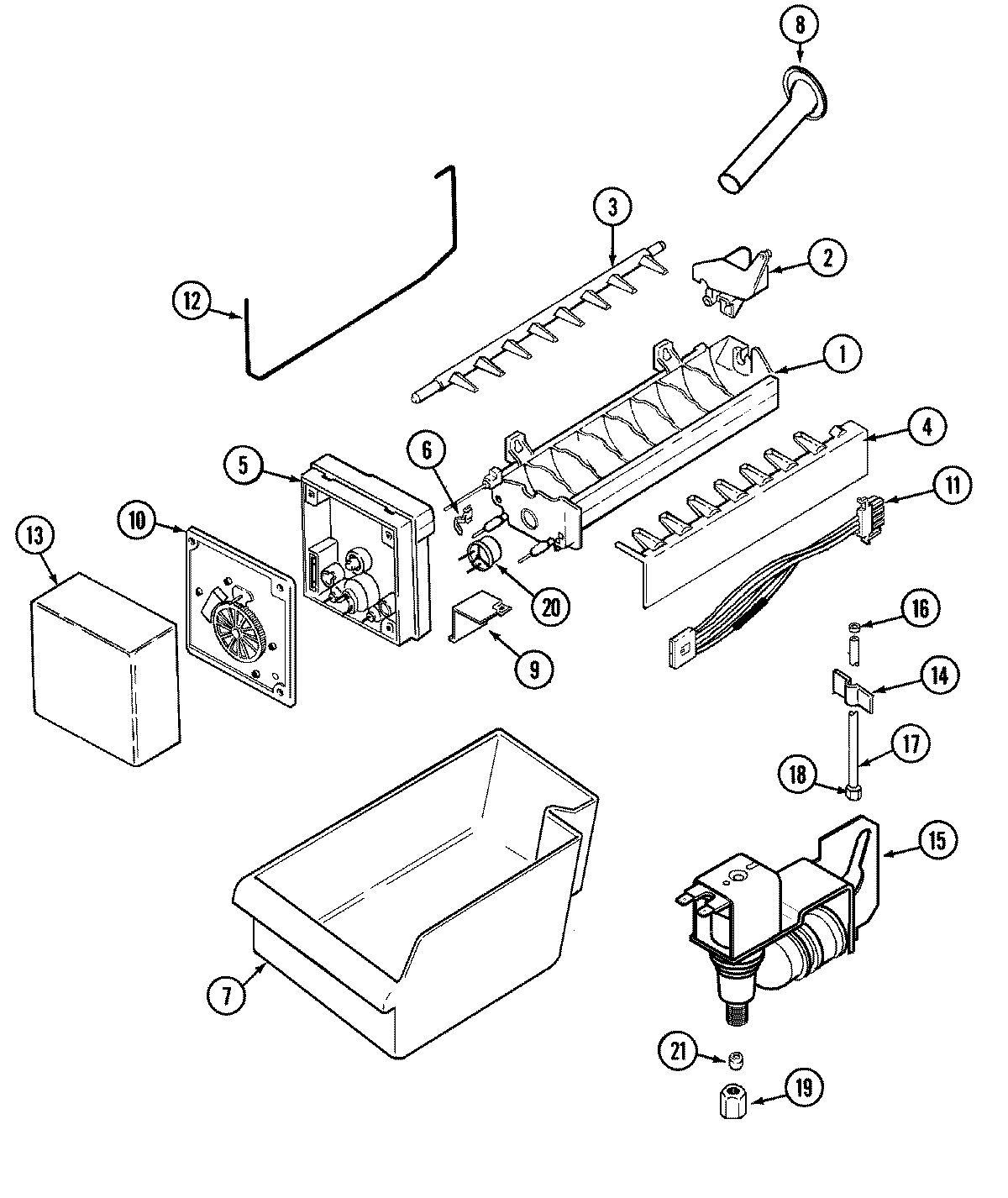

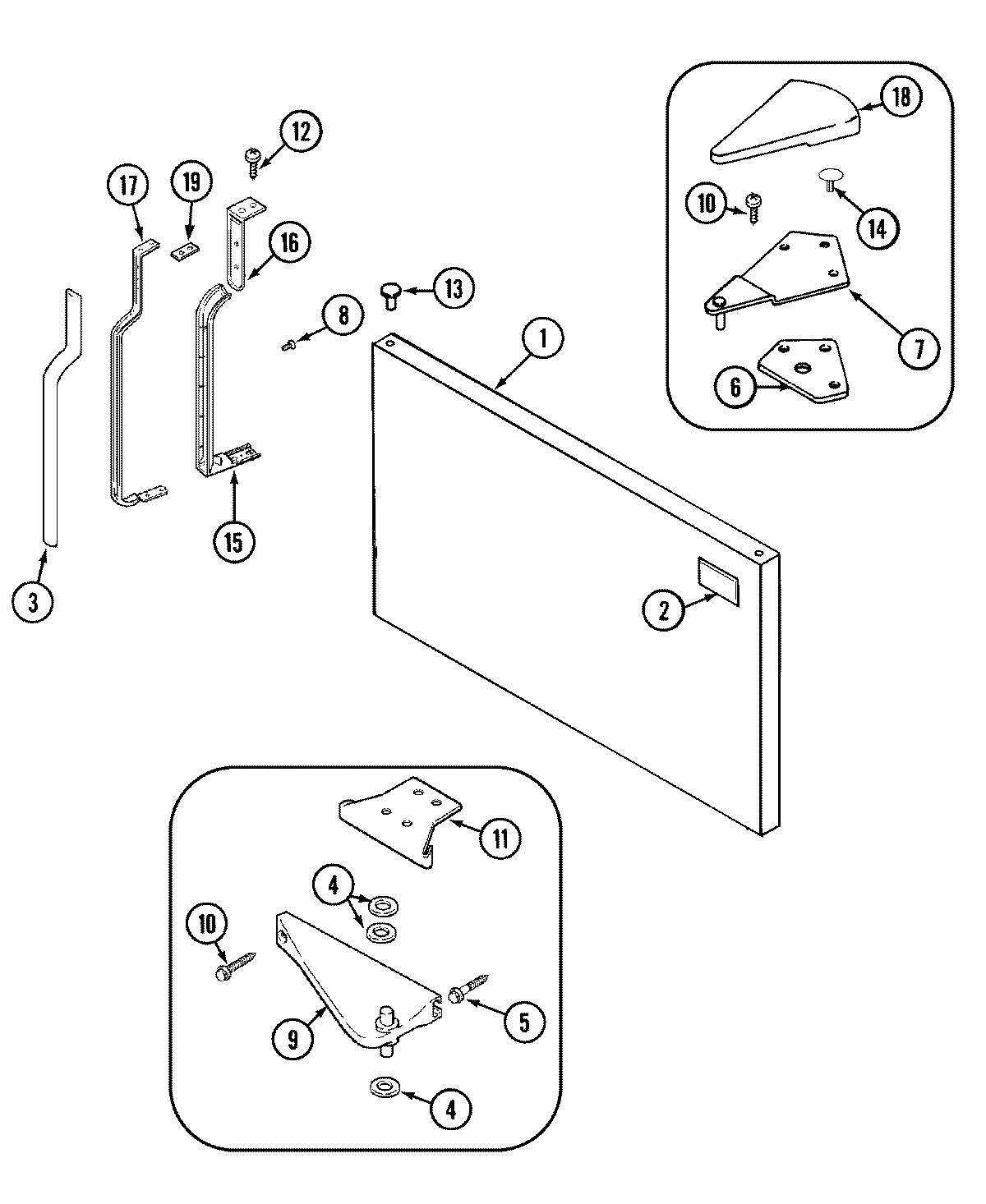

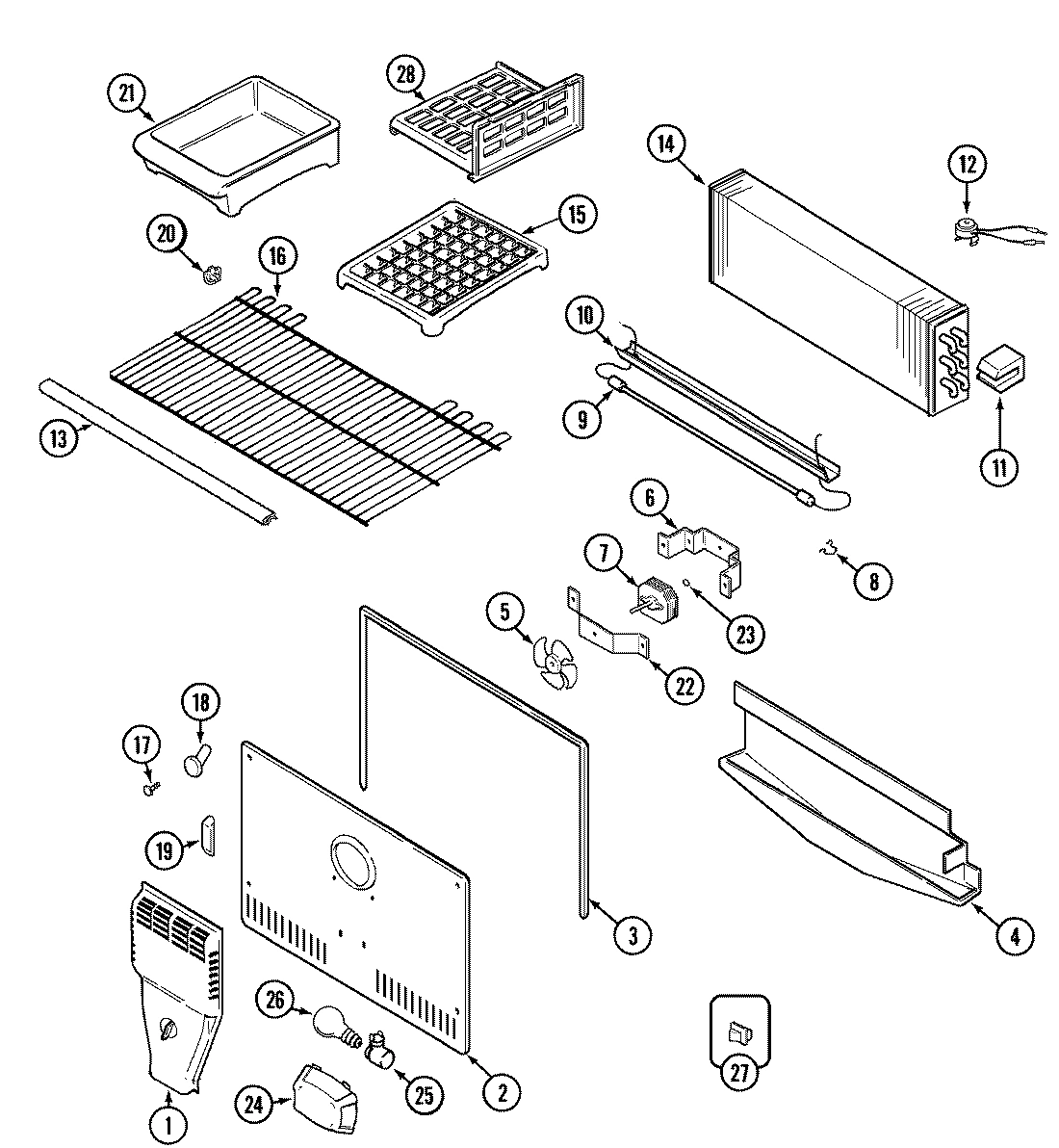

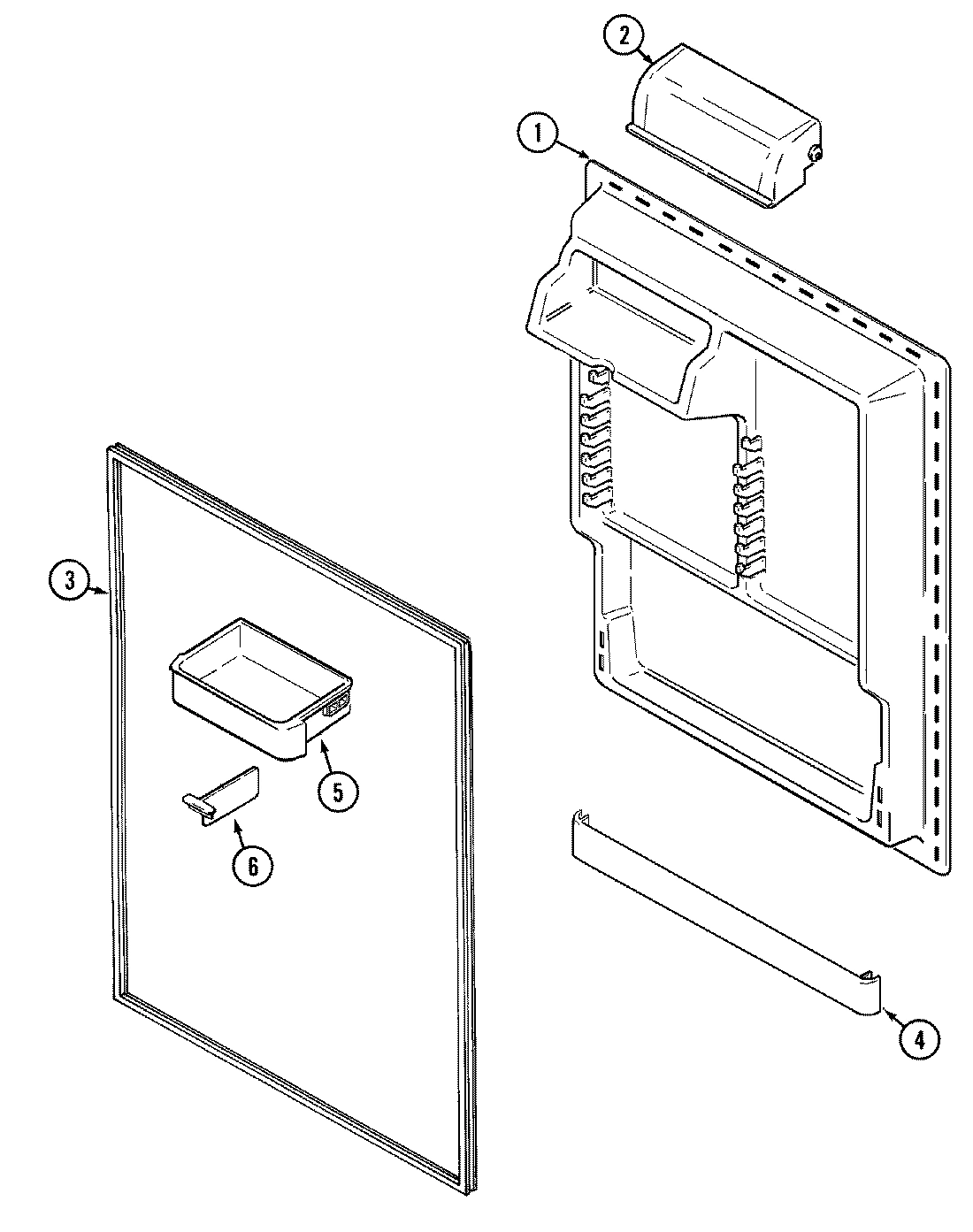

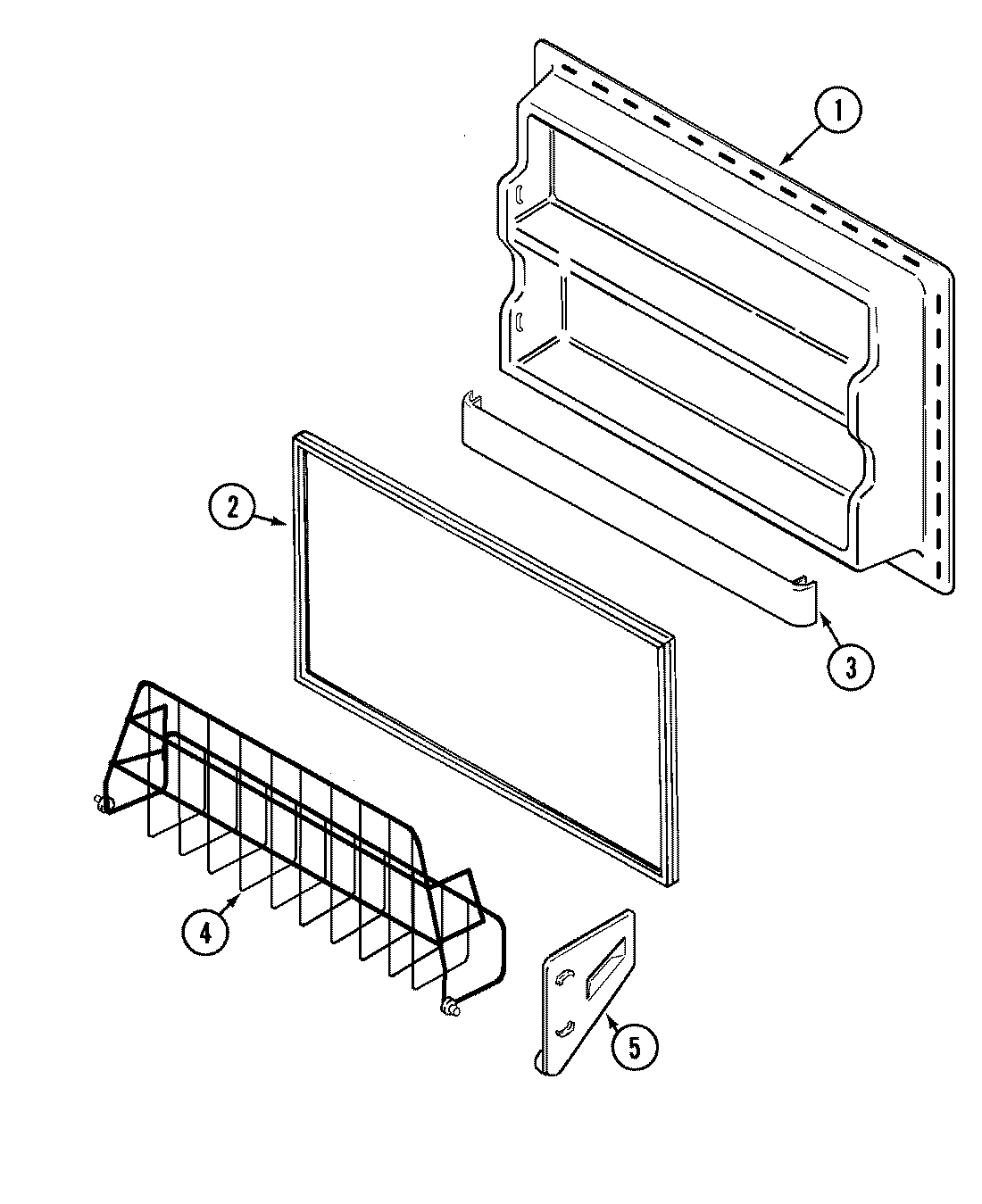

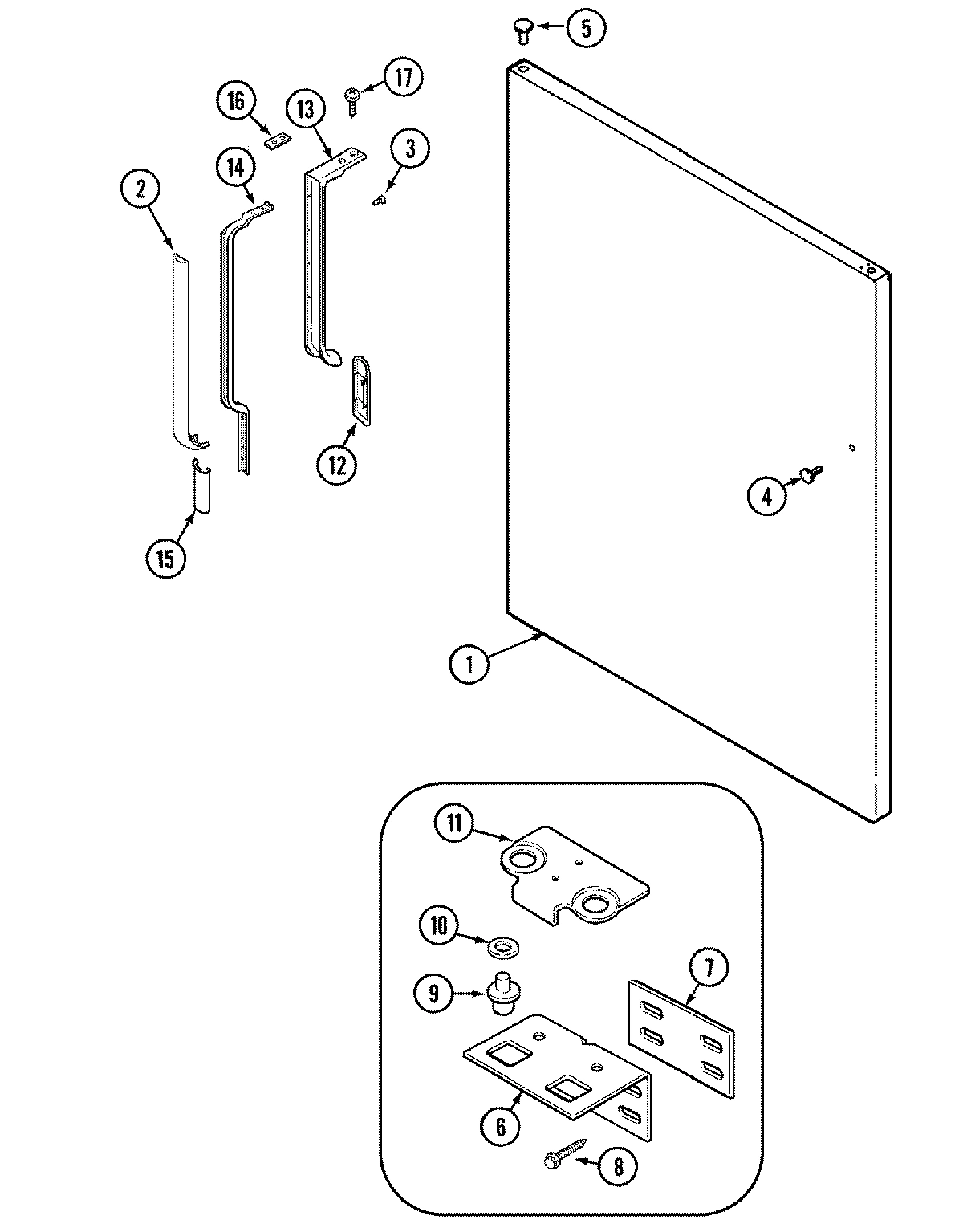

Model Whirlpool MTB2148DRB REFRIGERATOR – Common Parts &amp; Diagrams

1

SCREW WPL 652755 Contact Us For Availability

1

PANEL, FRZ. DOOR (BLK) WPL 61002797 Contact Us For Availability

1

INSERT, LINER SUPPORT WPL 61002557 Contact Us For Availability

1

LINER, FRZ. DOOR WPL 61002601 Contact Us For Availability

1

INSERT, LINER SUPPORT WPL 61004652 Contact Us For Availability

1

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

1

GREASE, SILICONE WPL 950991 Contact Us For Availability

1

SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability

1

LINER, F.F. DOOR WPL 61002592 Contact Us For Availability

1

PANEL, F.F. DOOR (BLK) WPL 61002825 Contact Us For Availability

1

TUNNEL, AIR WPL 61004655 Contact Us For Availability

2

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.79

2

GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability

2

NAMEPLATE (BLK) WPL 61004649 Contact Us For Availability

2

PANEL, CONTROL WPL 61002568 Contact Us For Availability

2

SEAL, FRZ. DOOR (BLK) WPL 61004016 Contact Us For Availability

2

INLET, WATER WPL 951001 Contact Us For Availability

2

SHELF, MEAT WPL 61002675 Contact Us For Availability

2

DOOR, DAIRY WPL 61002593 Contact Us For Availability

2

INSERT, F.F. HANDLE (BLK) WPL 61002457 Contact Us For Availability

2

COVER, EVAPORATOR WPL 61002627 Contact Us For Availability

3

WP61004017 Whirlpool Refrigerator Seal Backorder WPL WP61004017 $163.81

3

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.80

3

CLIP, COMPRESSOR WPL 61003099 Contact Us For Availability

3

INSERT, HANDLE (BLK) WPL 61004650 Contact Us For Availability

3

SCREW WPL 6527544 Contact Us For Availability

3

SLIDE, CONTROL (FRZ.) WPL 61002295 Contact Us For Availability

3

FRONT, PICK-OFF WPL 61002603 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

FRONT, MEAT PAN WPL 61002676 Contact Us For Availability

3

SEAL, EVAPORATOR COVER WPL 61004498 Contact Us For Availability

4

61005136 Whirlpool Refrigerator Front Pickoff Backorder WPL 61005136 $83.81

4

WP10097204 Whirlpool Start Relay Backorder WPL WP10097204 $59.86

4

WP67002191 Whirlpool Refrigerator Crisper Mea Backorder WPL WP67002191 $12.85

4

PLUG BUTTON, HANDLE MTG. (BLK) WPL 61002443 Contact Us For Availability

4

SCREW WPL 61004485 Contact Us For Availability

4

BASKET, TILT-OUT WPL 61002604 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

RAIL, MEAT PAN (LT) WPL 61002304 Contact Us For Availability

4

PLUG BUTTON, HANDLE HOLE (BLK) WPL 676785 Contact Us For Availability

4

TRAY, DRIP WPL 61002541 Contact Us For Availability

4

BARRIER, FOIL WPL 61004832 Contact Us For Availability

4

TRAY, DRIP WPL 61004861 Contact Us For Availability

5

WP2183456 Whirlpool Refrigerator Overload Backorder WPL WP2183456 $53.77

5

SCREW WPL 61002025 Contact Us For Availability

5

PLUG BUTTON, HINGE CUP (BLK) WPL 61002360 Contact Us For Availability

5

GEAR, CONTROL (F.F.) WPL 61002288 Contact Us For Availability

5

STOP, BASKET (LT) WPL 61004465 Contact Us For Availability

5

STOP, BASKET (RT) WPL 61004466 Contact Us For Availability

5

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

5

SCREW WPL 951061 Contact Us For Availability

5

PAN, MEAT WPL 61002581 Contact Us For Availability

5

SHELF, PICK-OFF WPL 61002595 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability

6

CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability

6

SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability

6

CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability

6

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

6

SHELF, SPILLPROOF WPL 61002677 Contact Us For Availability

6

ORGANIZER, SHELF WPL 61002274 Contact Us For Availability

6

HINGE, LOWER (BLK) WPL 61002361 Contact Us For Availability

6

BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability

7

WP61004888 Whirlpool Refrigerator Evaporator In Stock WPL WP61004888 $64.53

7

COVER, TERMINAL WPL 665891 Contact Us For Availability

7

SCREW WPL 4000171 Contact Us For Availability

7

HINGE, UPPER WPL 61001971 Contact Us For Availability

7

GUARD, LIGHT WPL 61002286 Contact Us For Availability

7

PAN, ICE WPL 61001886 Contact Us For Availability

7

SCREW WPL 40003728 Contact Us For Availability

7

RAIL, CANT. SHELF WPL 61002253 Contact Us For Availability

7

RAIL, SHELF SUPPORT (LT/RT) WPL 61002254 Contact Us For Availability

7

SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability

8

3400112 Whirlpool Refrigerator Screw Backorder WPL 3400112 $32.59

8

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $7.18

8

WP61002623 Whirlpool Crisper Glass Shelf Backorder WPL WP61002623 $116.27

8

WP61003071 Whirlpool Refrigerator Clip Backorder WPL WP61003071 $4.67

8

PLUG, COMPRESSOR WPL 526562 Contact Us For Availability

8

GROMMET, WATER ENTRY WPL 61001888 Contact Us For Availability

8

CLIP, DEFROST HEATER WPL 61004834 Contact Us For Availability

9

WP61001925 Whirlpool Refrigerator Lower Pin Backorder WPL WP61001925 $18.43

9

WP61002046 Whirlpool Defrost Heater Backorder WPL WP61002046 $104.59

9

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $38.22

9

CONDENSER WPL 61002841 Contact Us For Availability

9

HINGE, CENTER (BLK) WPL 61002373 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

9

SEAL, CRISPER SHELF (REAR) WPL 61002574 Contact Us For Availability

WP61002043 Whirlpool Refrigerator Control Backorder WPL WP61002043 $111.48

WP61002231 Whirlpool Refrigerator Washer Hing Backorder WPL WP61002231 $5.10

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

SCREW WPL 6527581 Contact Us For Availability

SCREW WPL 4000211 Contact Us For Availability

ICEMAKER WPL 951091 Contact Us For Availability

SHELF, CRISPER WPL 61002575 Contact Us For Availability

SHIELD, DEFROST HEATER WPL 61002543 Contact Us For Availability

SHROUD, CONDENSER WPL 61001941 Contact Us For Availability

STOP, DOOR (BLK) WPL 61004547 Contact Us For Availability

DAMPER/INSULATION KIT WPL 61002092 Contact Us For Availability

WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability

SCREW, ROLLER WPL 61002308 Contact Us For Availability

SCREW WPL 61001876 Contact Us For Availability

STOP, DOOR WPL 61001969 Contact Us For Availability

SUPPORT, EVAPORATOR (LT) WPL 61003012 Contact Us For Availability

SUPPORT, EVAPORATOR (RT) WPL 61003013 Contact Us For Availability

SUPPORT, EVAPORATOR (LT) WPL 61004835 Contact Us For Availability

SUPPORT, EVAPORATOR (RT) WPL 61004836 Contact Us For Availability

WP61002992 Whirlpool Defrost Thermostat Backorder WPL WP61002992 $59.19

WP61005254 Whirlpool Refrigerator Thermostat In Stock WPL WP61005254 $56.65

GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability

BELT, DAMPER WPL 61002290 Contact Us For Availability

ARM, SENSOR WPL 681121 Contact Us For Availability

ROLLER WPL 61002307 Contact Us For Availability

BASE, EXTENSION WPL 61002148 Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.55

DRIER WPL 139001 Contact Us For Availability

HANDLE (BLK) WPL 61002451 Contact Us For Availability

TENSIONER, BELT WPL 61002289 Contact Us For Availability

COVER, ICE MAKER WPL 61001239 Contact Us For Availability

SLIDE, CONTROL WPL 61002310 Contact Us For Availability

TRIM, FRZ. SHELF WPL 61002678 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

SCREW WPL 6527533 Contact Us For Availability

SCREW WPL 4000161 Contact Us For Availability

PLUG BUTTON, HINGE (BLK) WPL 61002374 Contact Us For Availability

GEAR, DAMPER BELT (FRT) WPL 61002291 Contact Us For Availability

CLAMP, TUBING WPL 535168 Contact Us For Availability

CLIP, WATER LINE (ADHESIVE) WPL 61001889 Contact Us For Availability

FRAME, HANDLE WPL 61002151 Contact Us For Availability

EVAP/HEAT EXCH. ASSY. 21 & 24` WPL 12001398 Contact Us For Availability

WP12587601 Whirlpool Refrigerator Condenser B Backorder WPL WP12587601 $59.62

WP61002140 Whirlpool Ice Cube Tray Backorder WPL WP61002140 $12.22

WP61005273 Whirlpool Refrigerator Inlet Valve In Stock WPL WP61005273 $36.49

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.65

SCREW WPL 4050071 Contact Us For Availability

TIMER, DEFROST WPL 682333 Contact Us For Availability

FRONT, CRISPER PAN (RT) WPL 61002578 Contact Us For Availability

FRONT, CRISPER PAN (LT) WPL 61002579 Contact Us For Availability

TRIM, HANDLE EXT. (BLK) WPL 61004648 Contact Us For Availability

PAN, DRAIN WPL 61001955 Contact Us For Availability

BASE, EXTENSION WPL 61002325 Contact Us For Availability

SHIM, HANDLE WPL 679341 Contact Us For Availability

SHIELD, HEAT (LT) WPL 61002296 Contact Us For Availability

SHIELD, HEAT (RT) WPL 61002297 Contact Us For Availability

HOUSING, CONTROL WPL 61004643 Contact Us For Availability

CLAMP, SPRING WPL 603334 Contact Us For Availability

SUPPORT, CRISPER PAN WPL 61002535 Contact Us For Availability

SHELF, FRZ. WPL 61002544 Contact Us For Availability

TUBE WPL 675796 No Longer Available

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.76

SCREW WPL 61002924 Contact Us For Availability

FRAME, HANDLE WPL 61002326 Contact Us For Availability

SLIDE, CONTROL (F.F.) WPL 61002294 Contact Us For Availability

PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

COVER, UPPER HINGE (BLK) WPL 61002375 Contact Us For Availability

GEAR, DAMPER BELT (REAR) WPL 61002292 Contact Us For Availability

NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability

CAP, FILL TUBE WPL 61002026 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

SEAL, DRAIN WPL 61001977 Contact Us For Availability

GROMMET, BRACKET WPL 569331 Contact Us For Availability

CAP, I/M WIRE HARNESS WPL 61002027 Contact Us For Availability

TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 61002316 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

SUPPORT, FRZ. SHELF (FRT) WPL 61002142 Contact Us For Availability

SUPPORT, FRZ. SHELF (REAR) WPL 61002143 Contact Us For Availability

COVER, COMPRESSOR COMPARTMENT WPL 61004667 Contact Us For Availability

SCREW WPL 6527550 Contact Us For Availability

SLEEVE, BRASS WPL 694311 Contact Us For Availability

PAN, ICE WPL 61002267 Contact Us For Availability

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $2.51

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $3.76

PAN, COMPRESSOR MTG. WPL 61002519 Contact Us For Availability

RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability

23

KICKPLATE W/CLIPS (BLK) WPL 61002576 Contact Us For Availability

23

BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability

24

CLIP, KICKPLATE WPL 61001975 Contact Us For Availability

24

SHIELD, LIGHT WPL 61002272 Contact Us For Availability

25

WHEEL ASSY. WPL 61001978 Contact Us For Availability

25

RECEPTACLE, BULB WPL 689743 Contact Us For Availability

26

WP61003826 Whirlpool Wheel Backorder WPL WP61003826 $3.76

26

BULB, LIGHT WPL 319561 Contact Us For Availability

27

SWITCH, LIGHT WPL 669871 Contact Us For Availability

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

LEG, LEVELING WPL 61002014 Contact Us For Availability

SCREW WPL 4000191 Contact Us For Availability

SHELF, ICE TRAY WPL 61002268 Contact Us For Availability

29

MANUAL, USE & CARE WPL 16009478 Contact Us For Availability

29

WIRE HARNESS, FREEZER WPL 61002545 Contact Us For Availability

30

MANUAL, SERVICE-NO REFUND WPL 16008248 Contact Us For Availability

NI

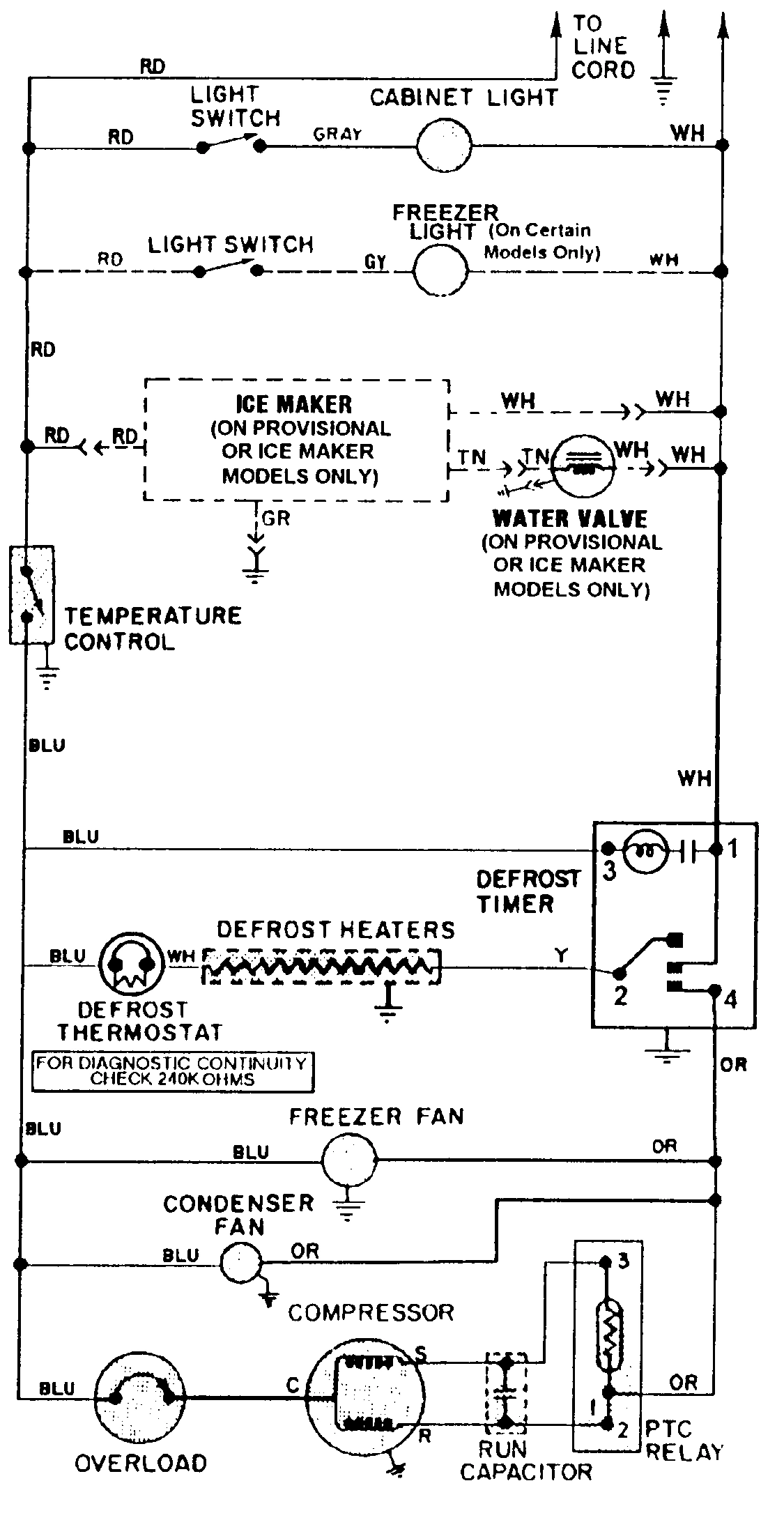

WIRING INFORMATION WPL 15002139 Contact Us For Availability
