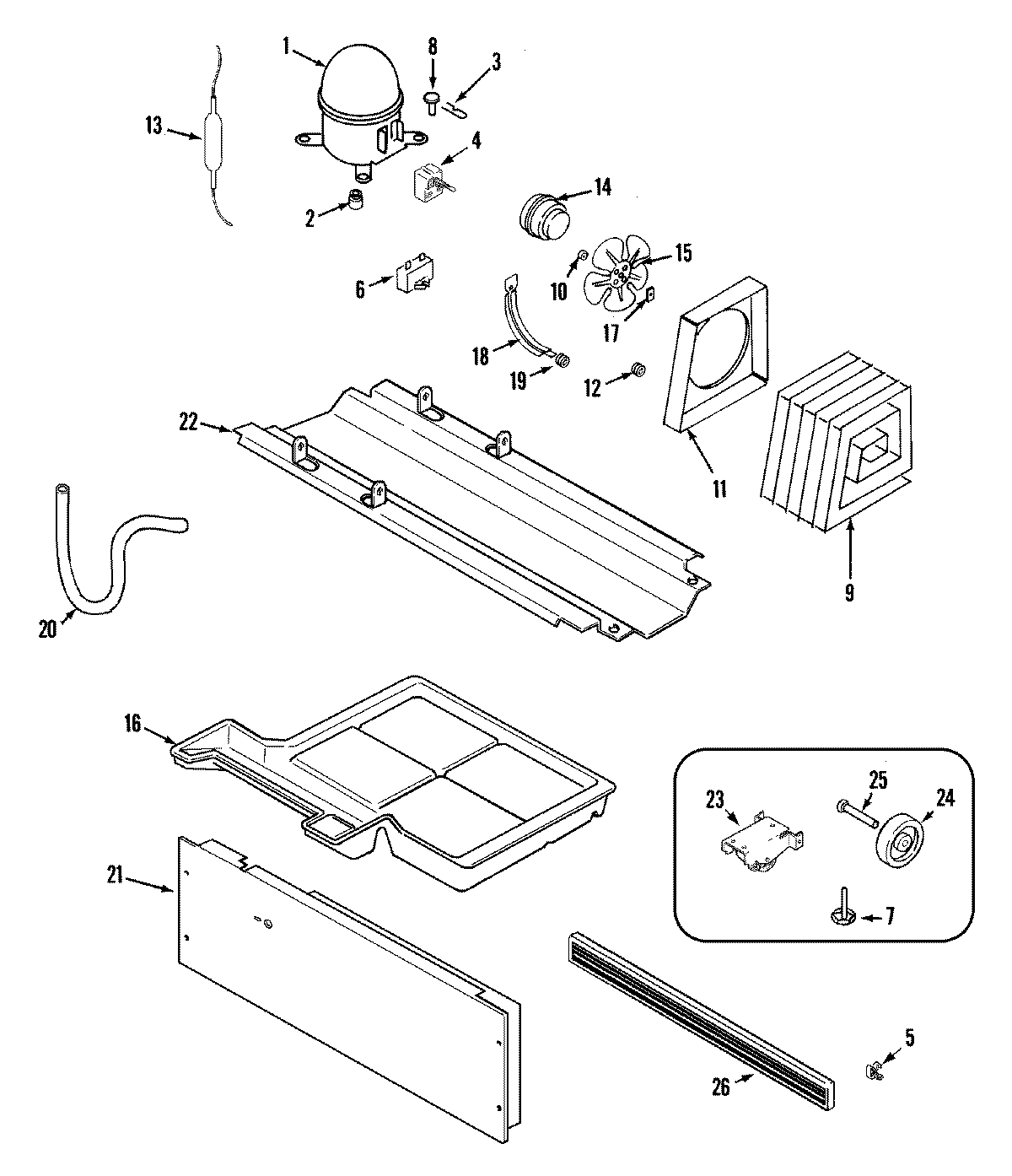

Model Whirlpool MTB1950GRQ REFRIGERATOR – Common Parts &amp; Diagrams

1

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $15.76

1

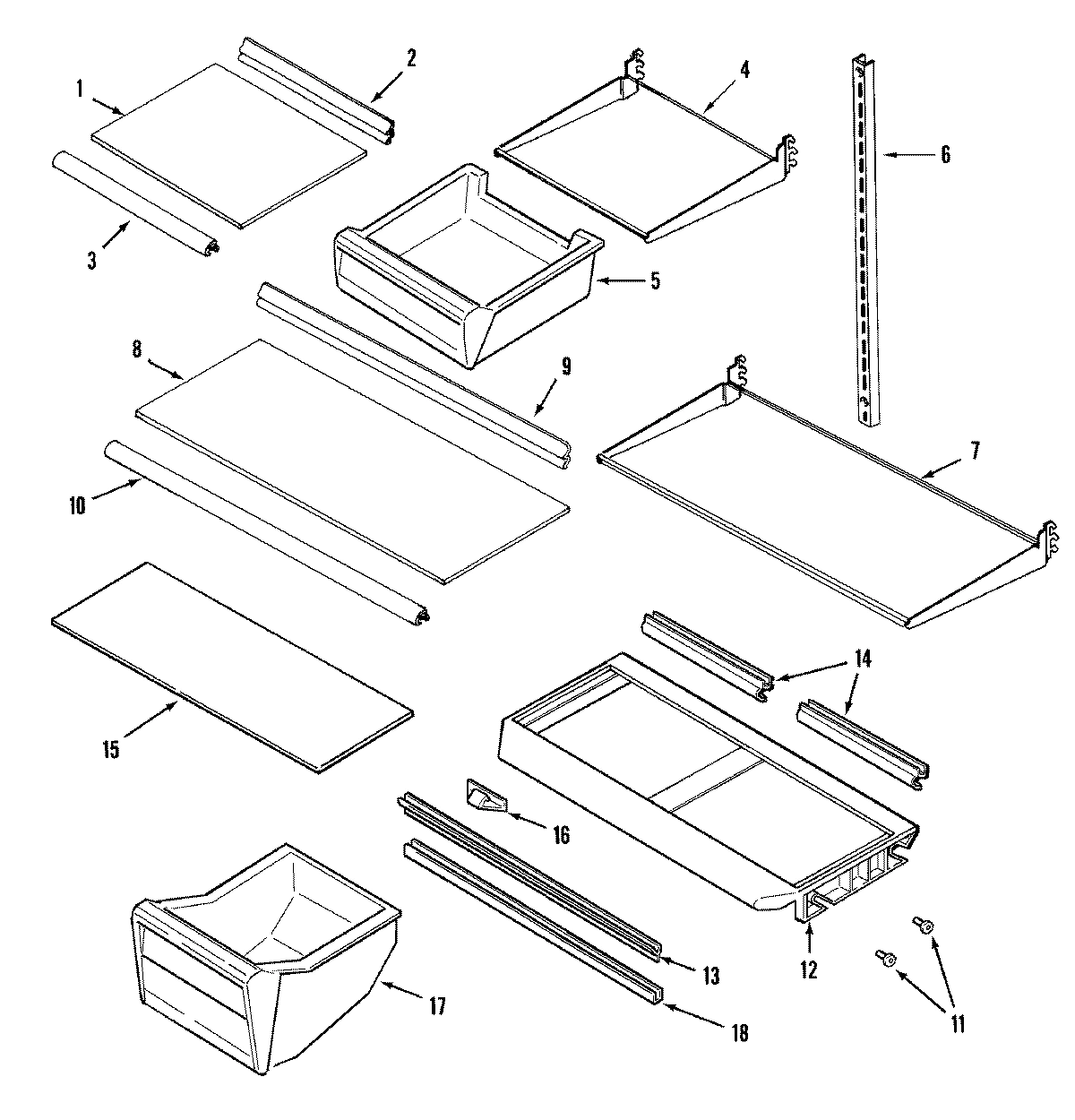

GLASS, SPLIT SHELF WPL 61002509 Contact Us For Availability

1

KIT, COMPRESSOR WPL 12002059 Contact Us For Availability

1

WIRE HARNESS, COMPRESSOR WPL 61006032 Contact Us For Availability

1

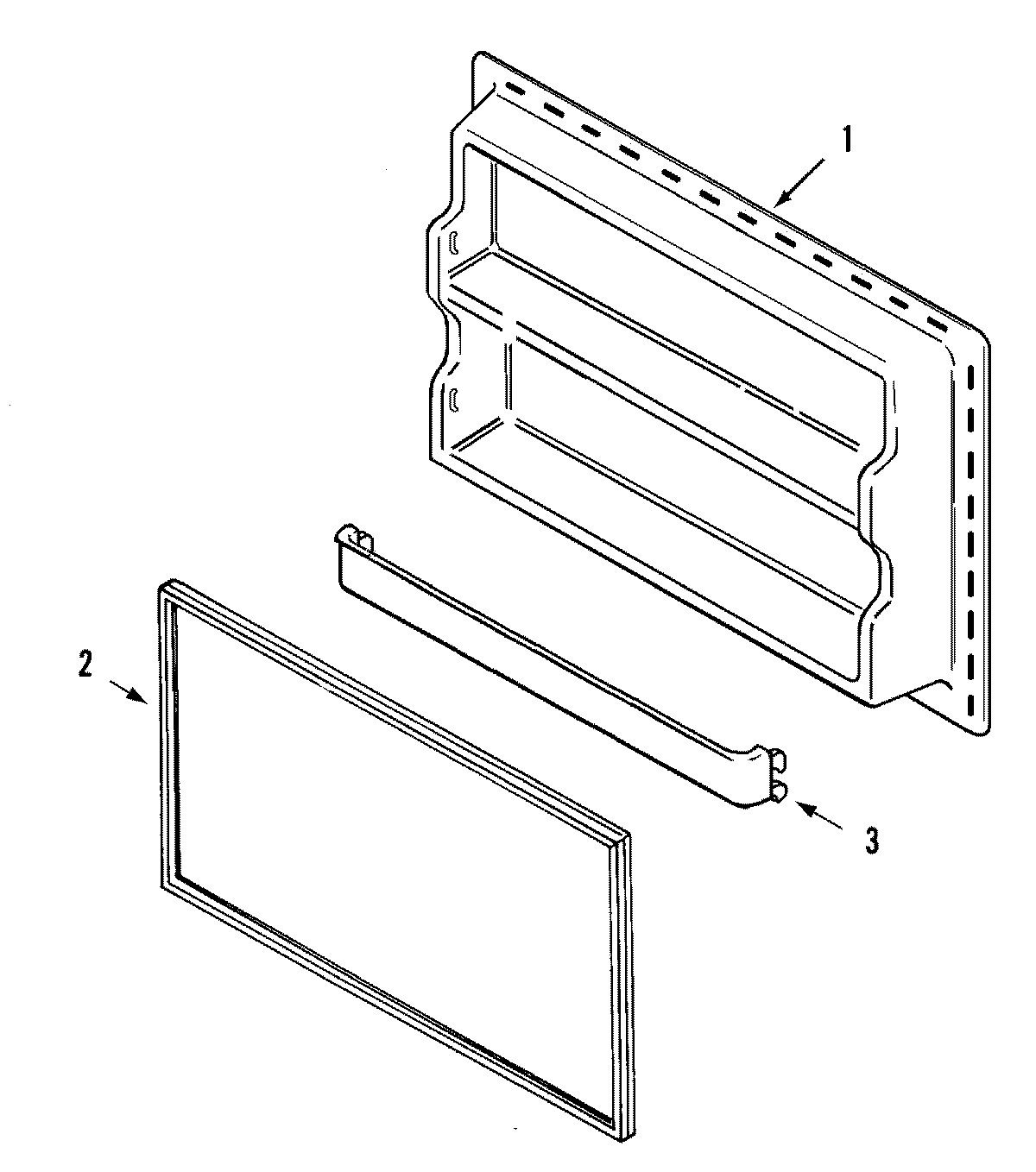

LINER. FRZ. DOOR WPL 61002261 Contact Us For Availability

1

INSERT, LINER SUPPORT WPL 61002827 Contact Us For Availability

1

INSERT, LINER SUPPORT WPL 61004652 Contact Us For Availability

1

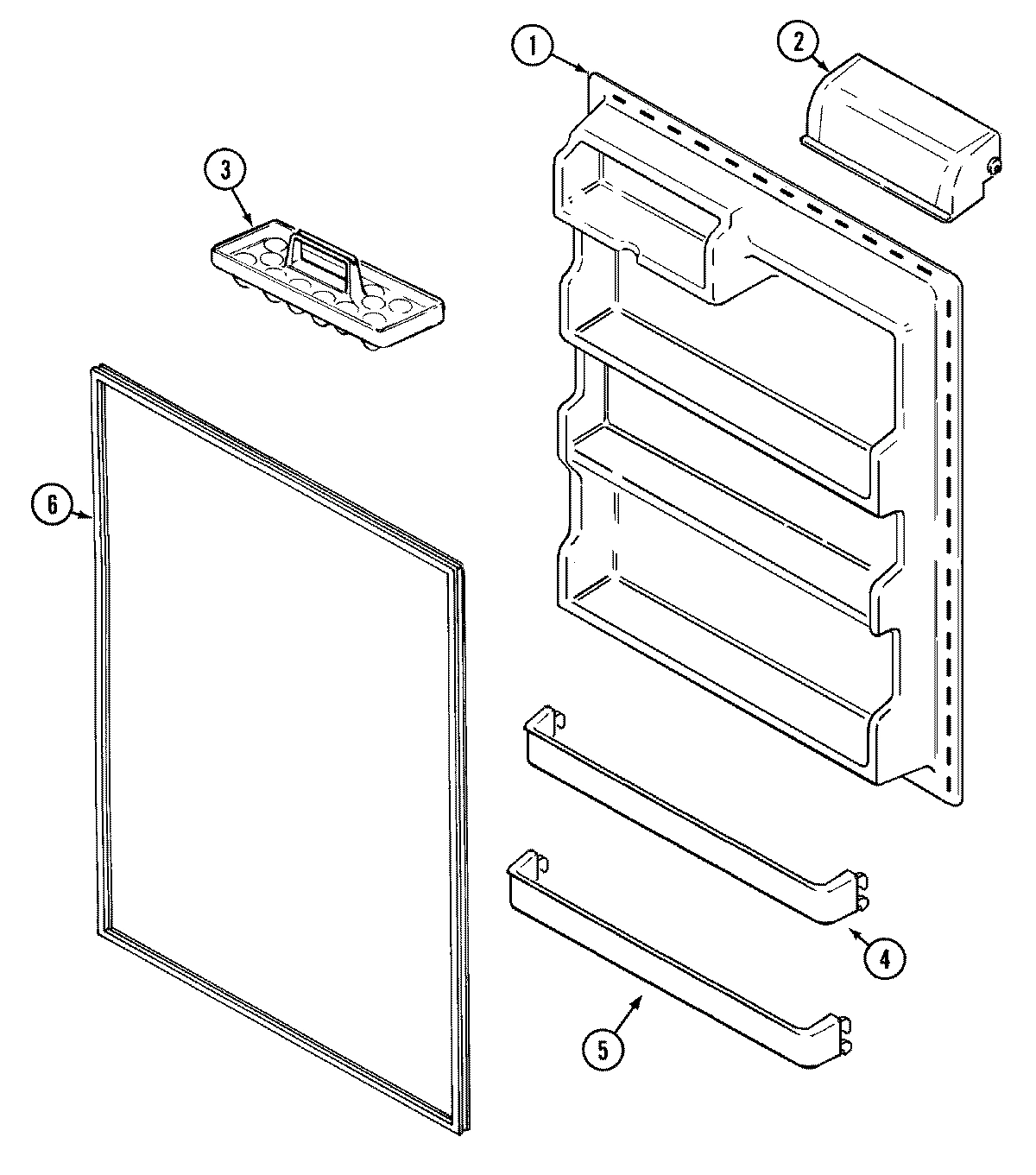

LINER, F.F. DOOR WPL 61002513 Contact Us For Availability

1

INSERT, LINER SUPPORT WPL 61002741 Contact Us For Availability

1

INSERT, LINER SUPPORT WPL 61002828 Contact Us For Availability

1

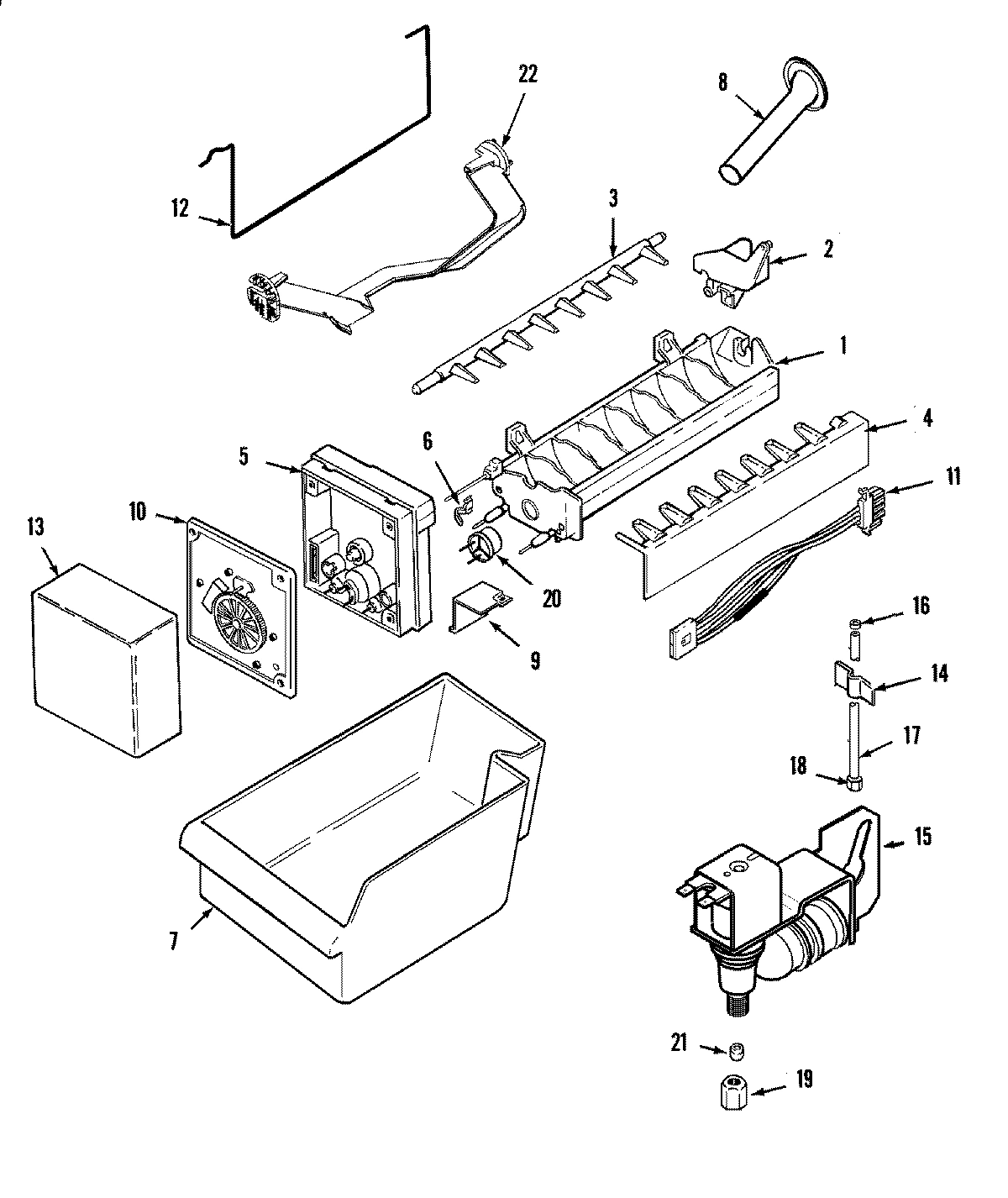

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

1

GREASE, SILICONE WPL 950991 Contact Us For Availability

1

WIRE HARNESS, COMPRESSOR WPL 61004917 Contact Us For Availability

1

TUNNEL, AIR WPL 61004655 Contact Us For Availability

1

KIT, COMPRESSOR (R134A) WPL 12001872 Contact Us For Availability

1

SWITCH, LIGHT WPL 61006075 Contact Us For Availability

1

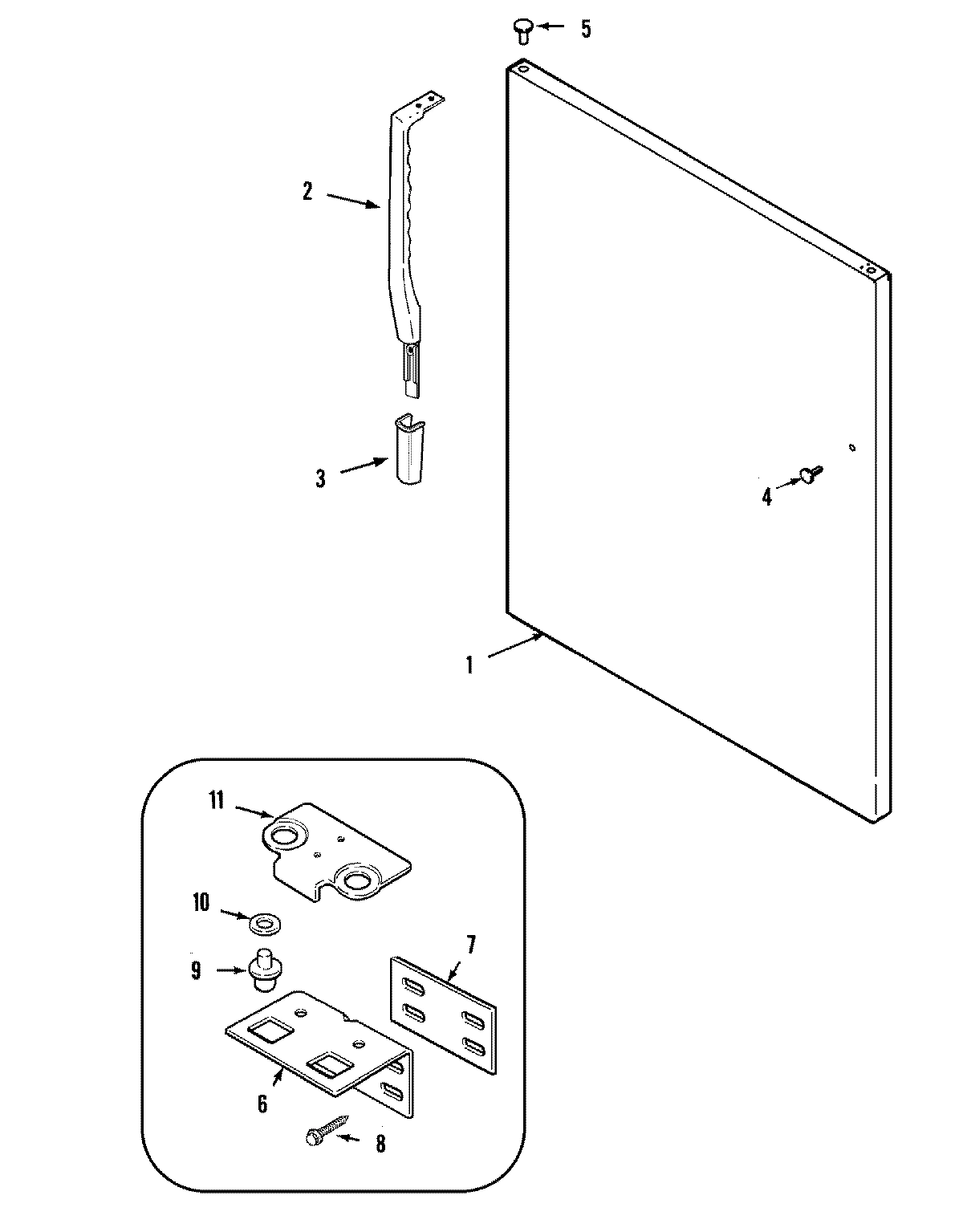

PANEL, F.F. DOOR (BSQ) WPL 61005013 Contact Us For Availability

2

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.76

2

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.79

2

WP61004007 Whirlpool Refrigerator Seal Backorder WPL WP61004007 $128.76

2

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.70

2

SCREW WPL 61005394 Contact Us For Availability

2

TRIM, MEAT SHELF (REAR) WPL 61002475 Contact Us For Availability

2

DOOR, DAIRY WPL 61002160 Contact Us For Availability

2

INLET, WATER WPL 951001 Contact Us For Availability

2

PLUG BUTTON, EVAP. COVER WPL 61001952 Contact Us For Availability

2

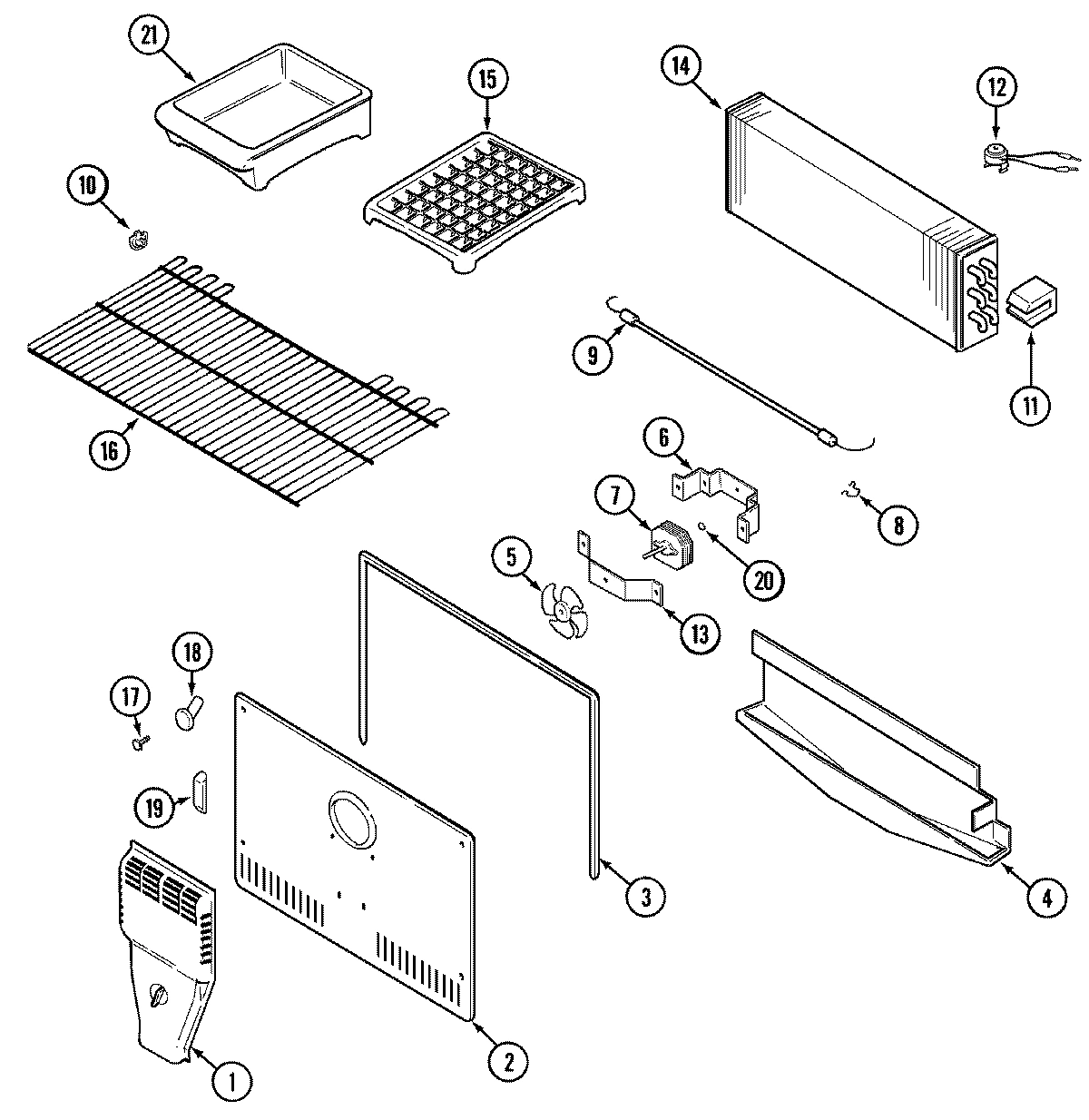

COVER, EVAPORATOR WPL 61002418 Contact Us For Availability

2

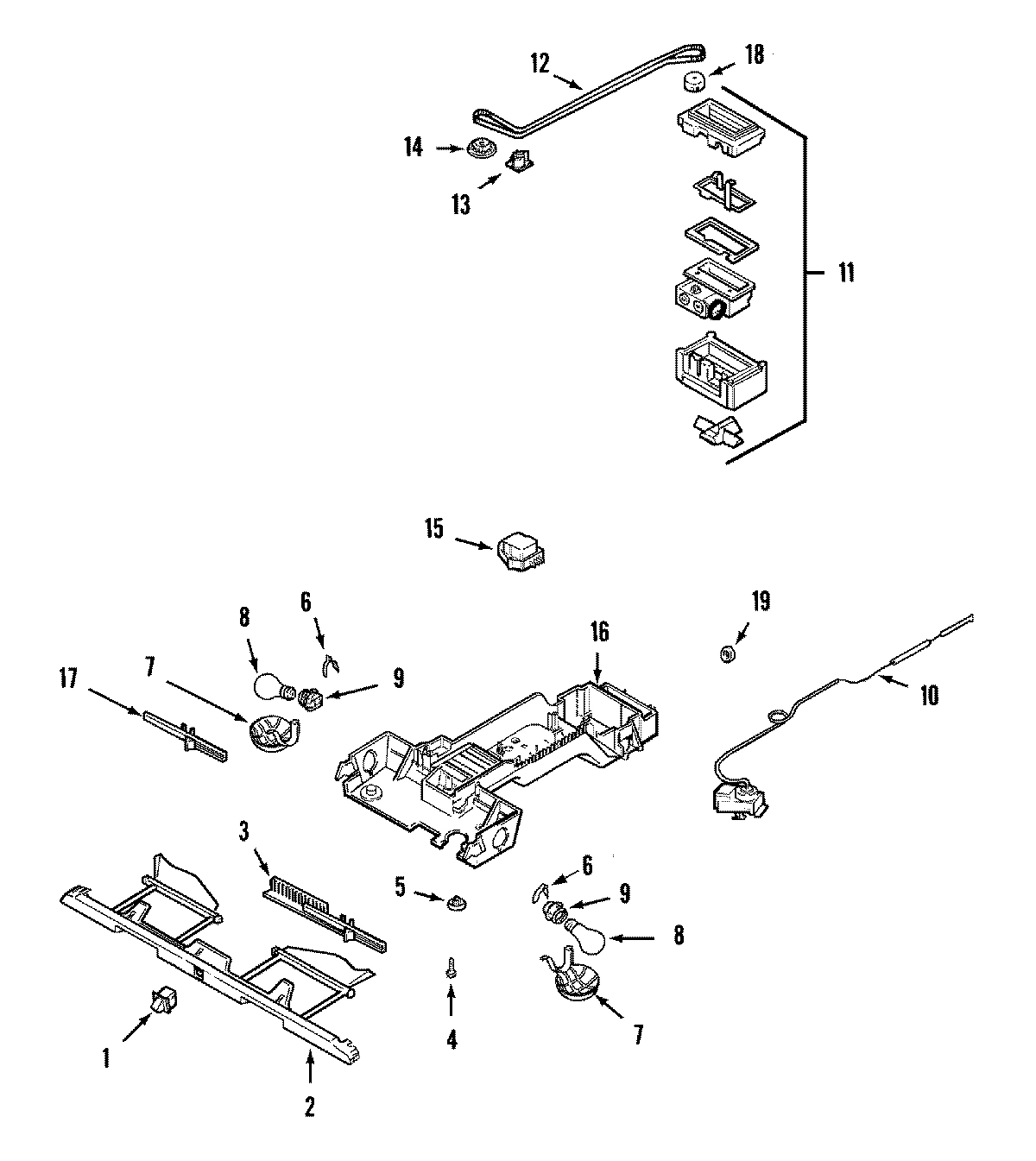

PANEL, CONTROL WPL 61002448 Contact Us For Availability

2

HANDLE, F.F. DOOR (BSQ) WPL 61005485 Contact Us For Availability

3

TRIM, SHELF (FRT) WPL 61002483 Contact Us For Availability

3

CLIP, COMPRESSOR WPL 61005561 Contact Us For Availability

3

TRAY, EGG WPL 600661 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

SEAL, FOAM (CTR) WPL 61002276 Contact Us For Availability

3

SEAL, EVAPORATOR COVER WPL 61004625 Contact Us For Availability

3

SLIDE, CONTROL (FRZ.) WPL 61002295 Contact Us For Availability

3

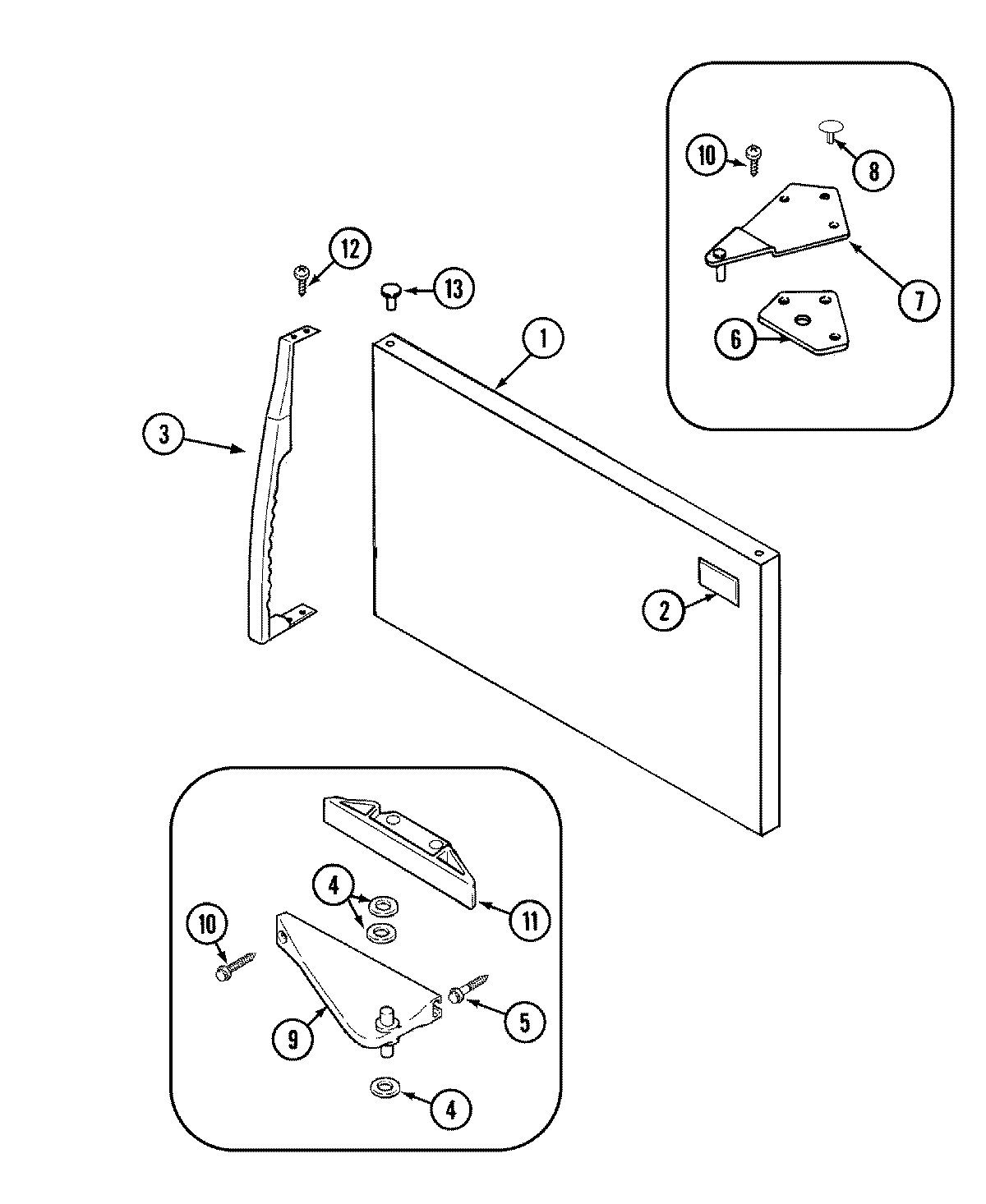

CAP, HANDLE (BSQ) WPL 61005396 Contact Us For Availability

4

12002782 Whirlpool Refrigerator Overload Rela Backorder WPL 12002782 $65.47

4

12002794 Whirlpool Refrigerator Overload Rela Backorder WPL 12002794 $102.41

4

61005405 Whirlpool Refrigerator Front Pick-Of Backorder WPL 61005405 $70.93

4

FRAME, MEAT SHELF WPL 61002484 Contact Us For Availability

4

FRAME, SPLIT SHELF WPL 61002485 Contact Us For Availability

4

RELAY/OVERLOAD ASSY. WPL 61006022 Contact Us For Availability

4

CLIP, RETAINER WPL 61006029 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

CLIP, RELAY/OVERLOAD ASSY. WPL 61006187 Contact Us For Availability

4

BARRIER, FOIL WPL 61004832 Contact Us For Availability

4

TRAY, DRIP WPL 61004838 Contact Us For Availability

4

CLIP, RELAY/OVERLOAD ASSY.-NA WPL 61005620 Contact Us For Availability

4

SCREW WPL 61004485 Contact Us For Availability

4

PLUG BUTTON, HANDLE HOLE (BSQ) WPL 61004906 Contact Us For Availability

4

PLUG BUTTON, HANDLE TOP (BSQ) WPL 61004907 Contact Us For Availability

5

SCREW WPL 61002025 Contact Us For Availability

5

PLUG BUTTON, HINGE CUP (BSQ) WPL 61004898 Contact Us For Availability

5

PAN, MEAT WPL 61002512 Contact Us For Availability

5

CLIP, KICKPLATE WPL 61001975 Contact Us For Availability

5

FRONT, PICK-OFF WPL 61005104 Contact Us For Availability

5

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

5

SCREW WPL 951061 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability

5

GEAR, CONTROL (F.F.) WPL 61002288 Contact Us For Availability

6

WP61004008 Whirlpool Refrigerator Seal Backorder WPL WP61004008 $162.35

6

SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability

6

SCREW WPL 40003728 Contact Us For Availability

6

RAIL, CANT. SHELF WPL 61002253 Contact Us For Availability

6

RAIL, SHELF SUPPORT (LT/RT) WPL 61002254 Contact Us For Availability

6

CAPACITOR, RUN WPL 658894 Contact Us For Availability

6

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

6

BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability

6

CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability

6

HINGE, LOWER (BSQ) WPL 61004764 Contact Us For Availability

7

WP61004888 Whirlpool Refrigerator Evaporator In Stock WPL WP61004888 $64.53

7

HINGE, UPPER WPL 61004896 Contact Us For Availability

7

FRAME, FULL SHELF WPL 61002491 Contact Us For Availability

7

LEG, LEVELING WPL 61002014 Contact Us For Availability

7

PAN, ICE WPL 61001886 Contact Us For Availability

7

GUARD, LIGHT WPL 61002286 Contact Us For Availability

7

SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability

8

3400112 Whirlpool Refrigerator Screw Backorder WPL 3400112 $32.59

8

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $7.18

8

PLUG BUTTON, HINGE (BSQ) WPL 61004899 Contact Us For Availability

8

GLASS, FULL SHELF WPL 61002510 Contact Us For Availability

8

PLUG, COMPRESSOR WPL 526562 Contact Us For Availability

8

GROMMET, WATER ENTRY WPL 61001888 Contact Us For Availability

8

CLIP, DEFROST HEATER WPL 61004834 Contact Us For Availability

9

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $2.51

9

WP61001925 Whirlpool Refrigerator Lower Pin Backorder WPL WP61001925 $18.43

9

WP61002045 Whirlpool Refrigerator Defrost Hea In Stock WPL WP61002045 $78.37

9

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $38.22

9

HINGE, CENTER (BSQ) WPL 61004897 Contact Us For Availability

9

TRIM, FULL SHELF (REAR) WPL 61002489 Contact Us For Availability

9

CONDENSER WPL 61005427 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

WP61002043 Whirlpool Refrigerator Control Backorder WPL WP61002043 $111.48

WP61002231 Whirlpool Refrigerator Washer Hing Backorder WPL WP61002231 $5.10

TRIM, FULL SHELF (FRT) WPL 61002490 Contact Us For Availability

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

SCREW WPL 4000211 Contact Us For Availability

ICEMAKER WPL 951091 Contact Us For Availability

SUPPORT, FRZ. SHELF (FRT) WPL 61002142 Contact Us For Availability

SUPPORT, FRZ. SHELF (REAR) WPL 61002143 Contact Us For Availability

SCREW WPL 6527581 Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.55

STOP, DOOR (BSQ) WPL 61004912 Contact Us For Availability

SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability

SHROUD, CONDENSER WPL 61001941 Contact Us For Availability

WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability

SUPPORT, EVAPORATOR (LT) WPL 61004835 Contact Us For Availability

SUPPORT, EVAPORATOR (RT) WPL 61004836 Contact Us For Availability

DAMPER/INSULATION KIT WPL 61005654 Contact Us For Availability

SCREW WPL 61001876 Contact Us For Availability

STOP, DOOR WPL 61001969 Contact Us For Availability

WP61005254 Whirlpool Refrigerator Thermostat In Stock WPL WP61005254 $56.65

SHELF, CRISPER WPL 61002511 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability

ARM, SENSOR WPL 61005173 Contact Us For Availability

CLIP, SENSOR ARM WPL 61005175 Contact Us For Availability

BELT, DAMPER WPL 61002290 Contact Us For Availability

SEAL, CRISPER SHELF (FRT) WPL 61002389 Contact Us For Availability

DRIER WPL 139001 Contact Us For Availability

COVER, ICE MAKER WPL 61004594 Contact Us For Availability

RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability

TENSIONER, BELT WPL 61002289 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

EVAP/HEAT EXCH. ASSY. 19` WPL 12001397 Contact Us For Availability

SEAL, CRISPER SHELF (REAR) WPL 61003129 Contact Us For Availability

SCREW WPL 6527533 Contact Us For Availability

CLAMP, TUBING WPL 535168 Contact Us For Availability

CLIP, WATER LINE (ADHESIVE) WPL 61004913 Contact Us For Availability

GEAR, DAMPER BELT (FRT) WPL 61002291 Contact Us For Availability

WP61002140 Whirlpool Ice Cube Tray Backorder WPL WP61002140 $12.22

WP61005273 Whirlpool Refrigerator Inlet Valve In Stock WPL WP61005273 $36.49

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.65

GLASS, CRISPER SHELF WPL 61002459 Contact Us For Availability

BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

TIMER, DEFROST WPL 682333 Contact Us For Availability

PAN, DRAIN WPL 61004095 Contact Us For Availability

CONTROL, HUMIDITY WPL 61002187 Contact Us For Availability

SCREW WPL 4000171 Contact Us For Availability

CLAMP, SPRING WPL 603334 Contact Us For Availability

SHELF, FRZ. WPL 61002420 Contact Us For Availability

SHIELD, HEAT (LT) WPL 61002296 Contact Us For Availability

SHIELD, HEAT (RT) WPL 61002297 Contact Us For Availability

HOUSING, CONTROL WPL 61004643 Contact Us For Availability

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.76

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $7.51

PAN, CRISPER WPL 61002515 Contact Us For Availability

PAN, CRISPER WPL 61006171 Contact Us For Availability

PLUG BUTTON, ICE MAKER WPL 61005015 Contact Us For Availability

SLIDE, CONTROL (F.F.) WPL 61002294 Contact Us For Availability

RAIL, CRISPER SUPPORT WPL 61005012 Contact Us For Availability

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability

CAP, FILL TUBE WPL 61002026 Contact Us For Availability

GEAR, DAMPER BELT (REAR) WPL 61002292 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

SEAL, DRAIN WPL 61001977 Contact Us For Availability

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

CAP, I/M WIRE HARNESS WPL 61002027 Contact Us For Availability

TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 61002316 Contact Us For Availability

COVER, COMPRESSOR COMPARTMENT WPL 61004654 Contact Us For Availability

SCREW WPL 61005388 Contact Us For Availability

SCREW WPL 652751 Contact Us For Availability

SLEEVE, BRASS WPL 694311 Contact Us For Availability

PAN, ICE WPL 61002177 Contact Us For Availability

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $3.76

PAN, COMPRESSOR MTG. WPL 61005272 Contact Us For Availability

ADJUSTER, ICE LEVEL WPL 61005174 Contact Us For Availability

WIRE HARNESS, FRZ. WPL 61005033 Contact Us For Availability

23

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

23

SCREW WPL 4000161 Contact Us For Availability

23

WHEEL ASSY. (FRT) WPL 61005216 Contact Us For Availability

24

WP61003826 Whirlpool Wheel Backorder WPL WP61003826 $3.76

26

KICKPLATE W/CLIPS (BSQ) WPL 61005011 Contact Us For Availability

27

YODER LOOP HEATER REPAIR (115V WPL 12001492 Contact Us For Availability

28

MANUAL, USE & CARE (TRILNGUL) WPL 16010376 Contact Us For Availability

29

MANUAL, SERVICE-NO REFUND WPL 16008248 Contact Us For Availability

NI

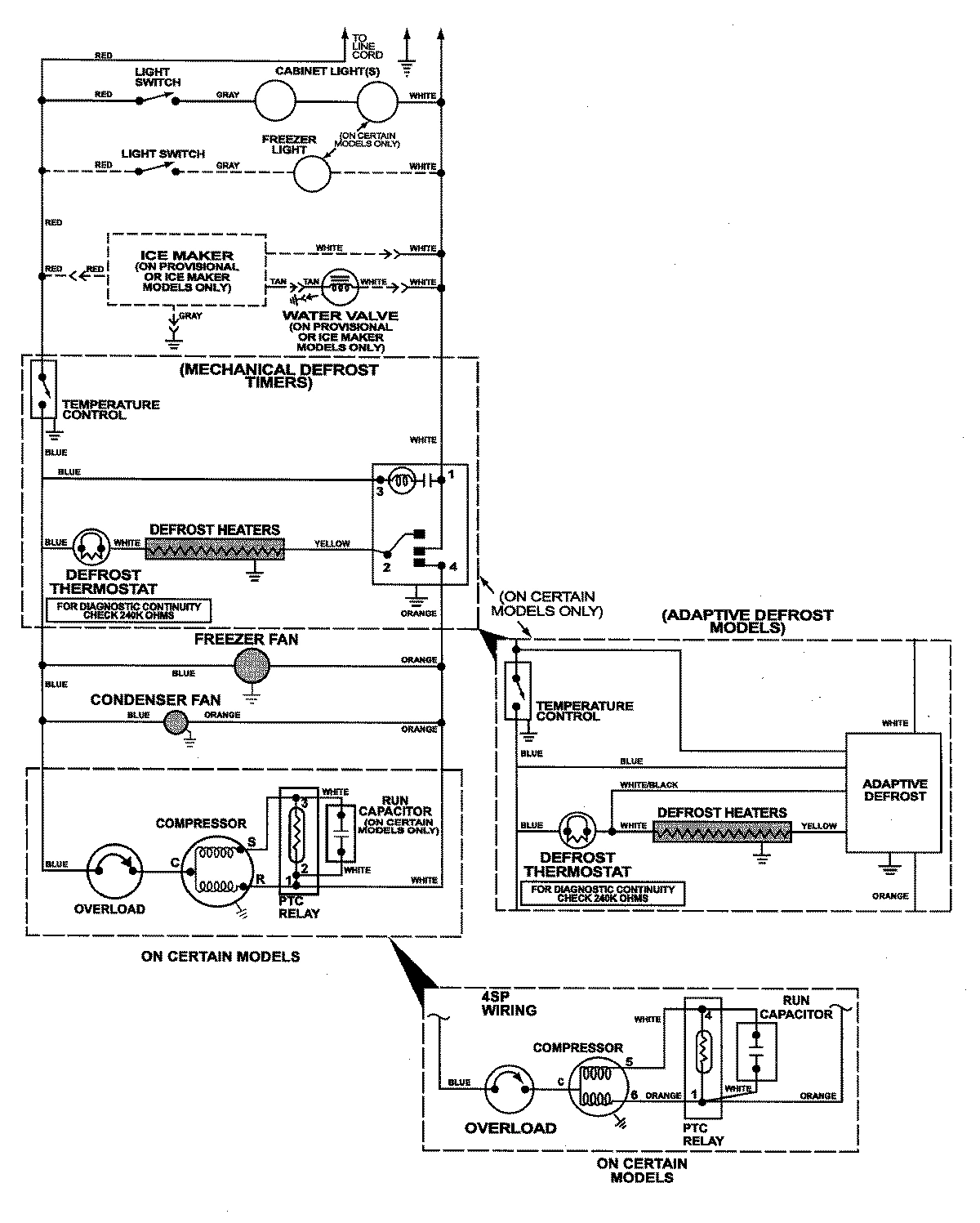

WIRING INFORMATION WPL 15002787 Contact Us For Availability
