Model Whirlpool MH2155XPQ1 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

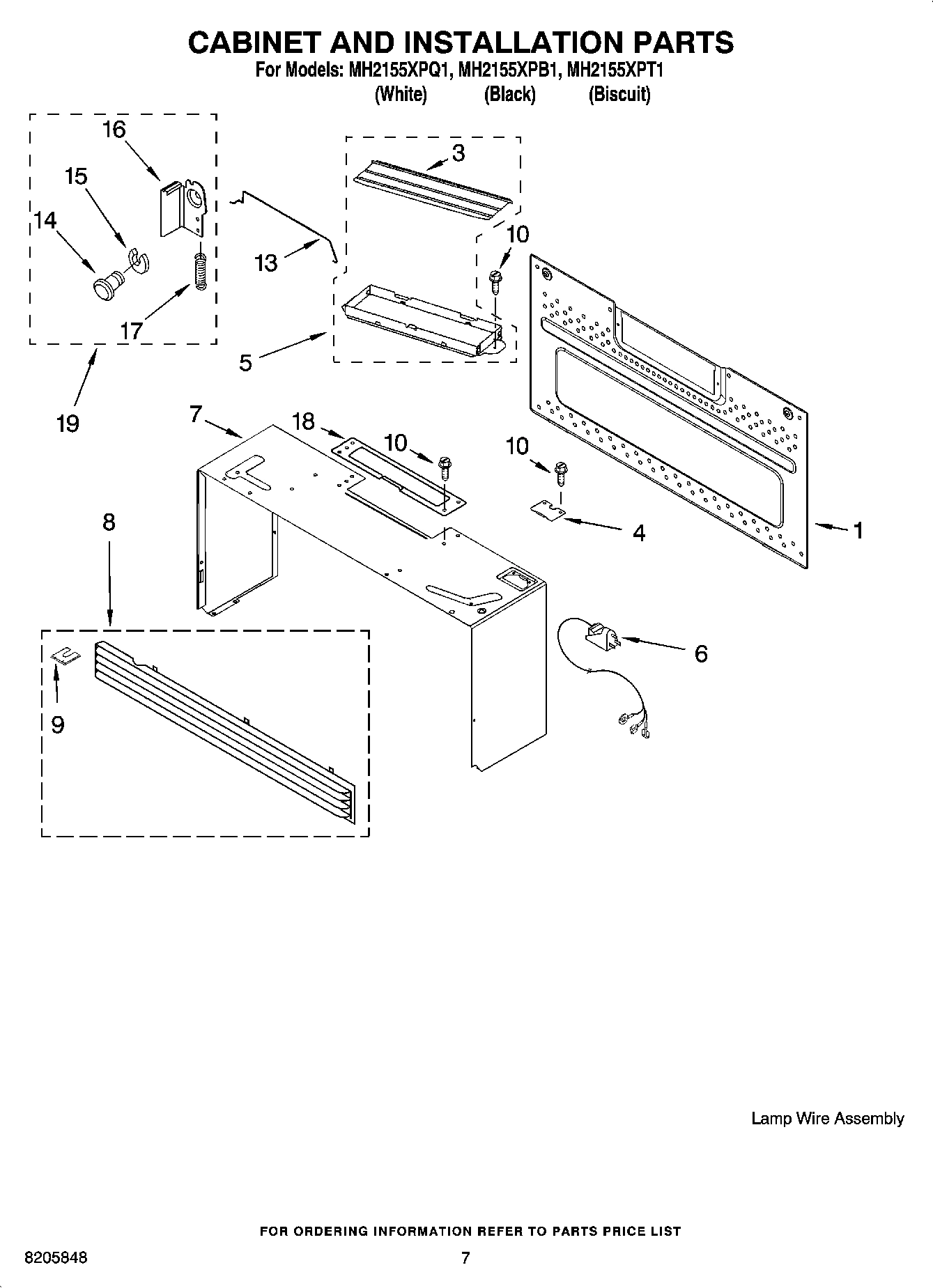

06 - CABINET AND INSTALLATION PARTS

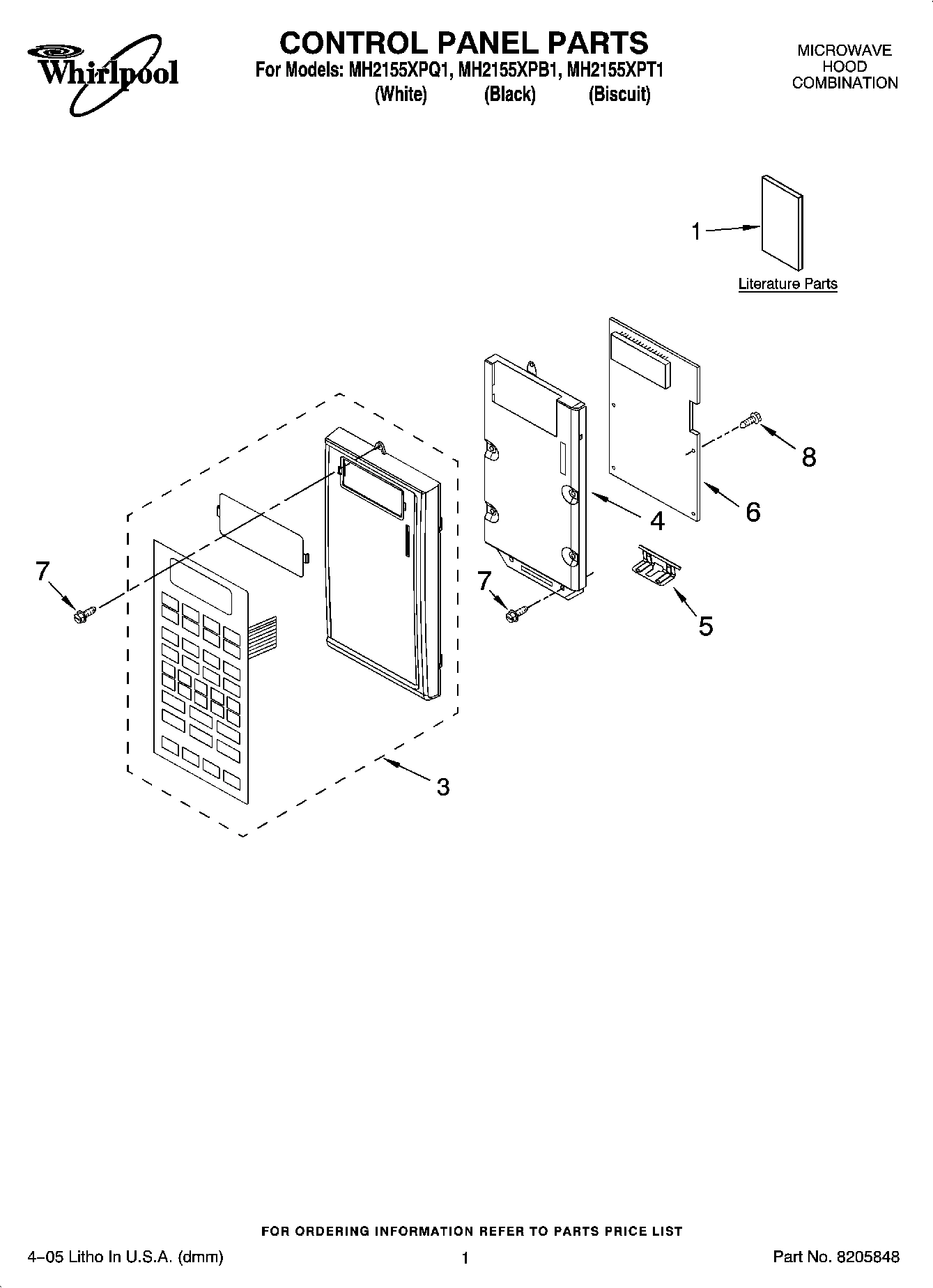

01 - CONTROL PANEL PARTS
04 - AIR FLOW PARTS
05 - MAGNETRON AND TURNTABLE PARTS
03 - INTERIOR AND VENTILATION PARTS
02 - DOOR PARTS
Common parts from model Whirlpool MH2155XPQ1 MICROWAVE HOOD COMBINATION
1
Deflector, Air WPL 8184638 Contact Us For Availability
1
Motor, Stirrer WPL 8205044 Contact Us For Availability
1
Reflector, Lamp WPL 4393688 Contact Us For Availability
1
Film, Back WPL 4393870 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Reflector, Air WPL 8169557 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8205315 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Panel Asy, Control (Includes lens and membran WPL 8205319 Contact Us For Availability
3
Duct, Air WPL 8185083 Contact Us For Availability
4
Bracket, Control WPL 8183821 Contact Us For Availability
4
Bracket, Thermostat WPL 8204653 Contact Us For Availability
4
Body, Door (White) WPL 8185107 Contact Us For Availability
4
Body, Door (Biscuit) WPL 8185108 Contact Us For Availability
4
Body, Door (Black) WPL 8185109 Contact Us For Availability
5
Thermostat WPL 8183697 Contact Us For Availability
5
Plate, Hinge WPL 4393744 Contact Us For Availability
5
Cover, Inlet WPL 8184476 Contact Us For Availability
5
Plate, Bottom WPL 8185105 Contact Us For Availability
6
Hook, Rack (4) WPL 8204662 Contact Us For Availability
6
Microcomputer WPL 8183726 Contact Us For Availability
6
Housing, Lamp WPL 8184745 Contact Us For Availability
6
Glass, Lamp WPL 8185210 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8169642 Contact Us For Availability
7
Screw WPL 4393828 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
7
Holder, Glass WPL 8184308 Contact Us For Availability
8
Turntable WPL 4393799 Contact Us For Availability
8
Screw WPL 4393346 Contact Us For Availability
8
Wheel, Fan WPL 8204694 Contact Us For Availability
8
Guide, Air (Magnetron) WPL 8205045 Contact Us For Availability
9
Motor, Fan WPL 8204751 Contact Us For Availability
9
Cover, Fan WPL 8183823 Contact Us For Availability
9
Complete Door (White) WPL 8204878 Contact Us For Availability
9
Complete Door (Black) WPL 8204879 Contact Us For Availability
9
Complete Door (Biscuit) WPL 8204880 Contact Us For Availability
10
Frame, Outer (Includes Glass) (White) WPL 8185233 Contact Us For Availability
10
Screw WPL 4393833 Contact Us For Availability
10
Shield WPL 8204754 Contact Us For Availability
10
Switch, Micro (3) WPL 8204656 Contact Us For Availability
10
Frame, Outer (includes glass) (Biscuit) WPL 8185225 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
11
Housing, Fan WPL 8184624 Contact Us For Availability
11
Upper Hinge WPL 8183741 Contact Us For Availability
12
Plate, Cam (2) WPL 8183824 Contact Us For Availability
12
Bracket, Fan (Not Serviced) WPL ARI118048A Contact Us For Availability
12
Lower Hinge WPL 8183742 Contact Us For Availability
13
Screw WPL 8169474 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Wheel, Fan WPL 8183825 Contact Us For Availability
15
Thermostat WPL 8183698 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
15
Housing, Fan WPL 8184310 Contact Us For Availability
16
Plate, Damper WPL 4393874 Contact Us For Availability
16
Holder, Connector (L) WPL 8205792 Contact Us For Availability
16
Motor, Fan WPL 8185211 Contact Us For Availability
17
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
17
Holder, Connector (R) WPL 8169705 Contact Us For Availability
17
Chassis WPL 8185212 Contact Us For Availability
18
Cushion, Mtr WPL 8169635 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
18
Holder, Capacitor WPL 8184311 Contact Us For Availability
19
Holder, Lamp WPL 8169539 Contact Us For Availability
19
Filler Kit (Black) WPL 8171337 Contact Us For Availability
19
Filler Kit (White) WPL 8171336 Contact Us For Availability
20
Nut WPL 8184404 Contact Us For Availability
21
Humidity, Sensor WPL 4393808 Contact Us For Availability
21
Transformer, H.V. WPL 8204844 Contact Us For Availability
22
Filter WPL 8169561 Contact Us For Availability
22
Plate, Side (R) WPL 8204657 Contact Us For Availability
23
Shield WPL 8184485 Contact Us For Availability
24
Thermostat And Bracket WPL 8184585 Contact Us For Availability
25
Plate, Side (L) WPL 8204658 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183703 Contact Us For Availability
34
Screw WPL 8169478 Contact Us For Availability
× ![]()
